Color Map Optimization#

Consider color mapping to the geometry reconstructed from depth cameras. As color and depth frames are not perfectly aligned, the texture mapping using color images is subject to results in blurred color map. CloudViewer provides color map optimization method proposed by [Zhou2014]. The following script shows an example of color map optimization.

Input#

This code below reads color and depth image pairs and makes rgbd_image. Note that convert_rgb_to_intensity flag is False. This is to preserve 8-bit color channels instead of using single channel float type image.

It is always good practice to visualize the RGBD image before applying it to the color map optimization. The debug_mode switch can be set to True to visualize the RGBD image.

[2]:

def load_fountain_dataset():
    rgbd_images = []
    fountain_rgbd_dataset = cv3d.data.SampleFountainRGBDImages()
    for i in range(len(fountain_rgbd_dataset.depth_paths)):
        depth = cv3d.io.read_image(fountain_rgbd_dataset.depth_paths[i])
        color = cv3d.io.read_image(fountain_rgbd_dataset.color_paths[i])
        rgbd_image = cv3d.geometry.RGBDImage.create_from_color_and_depth(
            color, depth, convert_rgb_to_intensity=False)
        rgbd_images.append(rgbd_image)

    camera_trajectory = cv3d.io.read_pinhole_camera_trajectory(
        fountain_rgbd_dataset.keyframe_poses_log_path)
    mesh = cv3d.io.read_triangle_mesh(fountain_rgbd_dataset.reconstruction_path)

    return mesh, rgbd_images, camera_trajectory

The code below reads a camera trajectory and a mesh.

[3]:

# Load dataset
mesh, rgbd_images, camera_trajectory = load_fountain_dataset()

[CloudViewer INFO] Downloading https://github.com/isl-org/open3d_downloads/releases/download/20220201-data/SampleFountainRGBDImages.zip
[CloudViewer INFO] Downloaded to /root/cloudViewer_data/download/SampleFountainRGBDImages/SampleFountainRGBDImages.zip
[CloudViewer INFO] Created directory /root/cloudViewer_data/extract/SampleFountainRGBDImages.
[CloudViewer INFO] Extracting /root/cloudViewer_data/download/SampleFountainRGBDImages/SampleFountainRGBDImages.zip.
[CloudViewer INFO] Extracted to /root/cloudViewer_data/extract/SampleFountainRGBDImages.

To visualize how the camera poses are not good for color mapping, this code intentionally sets the iteration number to 0, which means no optimization. color_map_optimization paints a mesh using corresponding RGBD images and camera poses. Without optimization, the texture map is blurred.

[4]:

# Before full optimization, let's visualize texture map
# with given geometry, RGBD images, and camera poses.
mesh, camera_trajectory = cv3d.pipelines.color_map.run_rigid_optimizer(
    mesh, rgbd_images, camera_trajectory,
    cv3d.pipelines.color_map.RigidOptimizerOption(maximum_iteration=0))
cv3d.visualization.draw_geometries([mesh],
                                   zoom=0.5399,
                                   front=[0.0665, -0.1107, -0.9916],
                                   lookat=[0.7353, 0.6537, 1.0521],
                                   up=[0.0136, -0.9936, 0.1118])

[CloudViewer WARNING] GLFW Error: X11: The DISPLAY environment variable is missing
[CloudViewer WARNING] GLFW initialized for headless rendering.

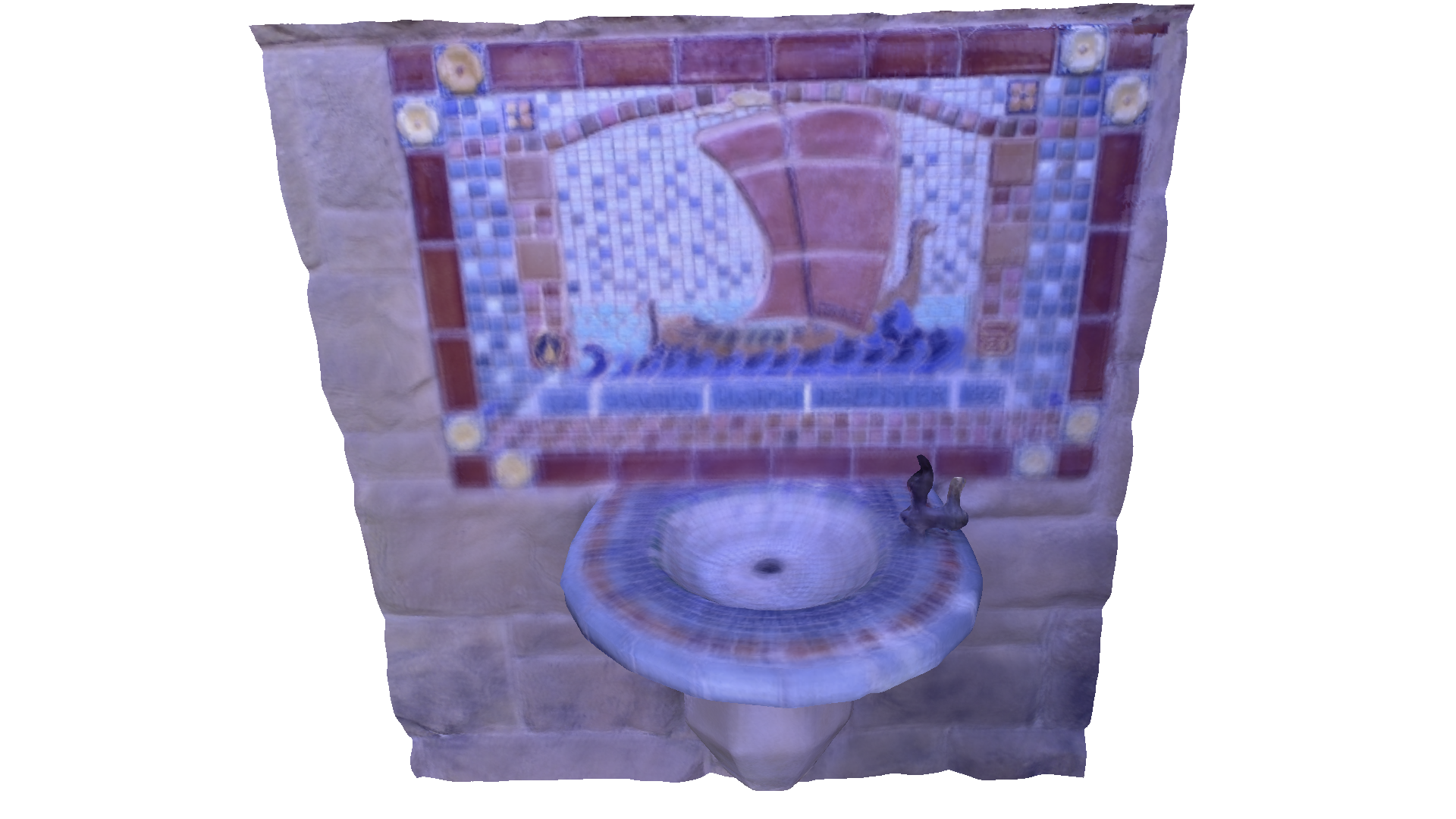

../../_images/tutorial_pipelines_color_map_optimization_7_1.png

Rigid Optimization#

The next step is to optimize camera poses to get a sharp color map.

The code below sets maximum_iteration = 300 for actual iterations.

[5]:

# Optimize texture and save the mesh as texture_mapped.ply
# This is implementation of following paper
# Q.-Y. Zhou and V. Koltun,
# Color Map Optimization for 3D Reconstruction with Consumer Depth Cameras,
# SIGGRAPH 2014

# Run rigid optimization.
maximum_iteration = 100 if is_ci else 300
with cv3d.utility.VerbosityContextManager(
        cv3d.utility.VerbosityLevel.Debug) as cm:
    mesh, camera_trajectory = cv3d.pipelines.color_map.run_rigid_optimizer(
        mesh, rgbd_images, camera_trajectory,
        cv3d.pipelines.color_map.RigidOptimizerOption(
            maximum_iteration=maximum_iteration))

cv3d.visualization.draw_geometries([mesh],
                                   zoom=0.5399,
                                   front=[0.0665, -0.1107, -0.9916],
                                   lookat=[0.7353, 0.6537, 1.0521],
                                   up=[0.0136, -0.9936, 0.1118])

[CloudViewer DEBUG] [ColorMapOptimization] CreateUtilImagesFromRGBD
[CloudViewer DEBUG] [ColorMapOptimization] CreateDepthBoundaryMasks
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 0/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 1/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 2/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 3/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 4/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 5/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 6/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 7/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 8/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 9/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 10/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 11/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 12/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 13/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 14/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 15/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 16/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 17/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 18/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 19/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 20/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 21/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 22/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 23/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 24/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 25/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 26/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 27/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 28/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 29/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 30/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 31/33
[CloudViewer DEBUG] [MakeDepthMasks] geometry::Image 32/33
[CloudViewer DEBUG] [ColorMapOptimization] CreateVertexAndImageVisibility
[CloudViewer DEBUG] [cam 0]: 238774/536872 (44.47503%) vertices are visible
[CloudViewer DEBUG] [cam 1]: 264228/536872 (49.21620%) vertices are visible
[CloudViewer DEBUG] [cam 2]: 32910/536872 (6.12995%) vertices are visible
[CloudViewer DEBUG] [cam 3]: 207076/536872 (38.57083%) vertices are visible
[CloudViewer DEBUG] [cam 4]: 208953/536872 (38.92045%) vertices are visible
[CloudViewer DEBUG] [cam 5]: 121789/536872 (22.68492%) vertices are visible
[CloudViewer DEBUG] [cam 6]: 139892/536872 (26.05686%) vertices are visible
[CloudViewer DEBUG] [cam 7]: 94112/536872 (17.52969%) vertices are visible
[CloudViewer DEBUG] [cam 8]: 136523/536872 (25.42934%) vertices are visible
[CloudViewer DEBUG] [cam 9]: 88157/536872 (16.42049%) vertices are visible
[CloudViewer DEBUG] [cam 10]: 119823/536872 (22.31873%) vertices are visible
[CloudViewer DEBUG] [cam 11]: 183991/536872 (34.27092%) vertices are visible
[CloudViewer DEBUG] [cam 12]: 238849/536872 (44.48900%) vertices are visible
[CloudViewer DEBUG] [cam 13]: 222246/536872 (41.39646%) vertices are visible
[CloudViewer DEBUG] [cam 14]: 220761/536872 (41.11986%) vertices are visible
[CloudViewer DEBUG] [cam 15]: 257217/536872 (47.91030%) vertices are visible
[CloudViewer DEBUG] [cam 16]: 123058/536872 (22.92129%) vertices are visible
[CloudViewer DEBUG] [cam 17]: 155657/536872 (28.99332%) vertices are visible
[CloudViewer DEBUG] [cam 18]: 109616/536872 (20.41753%) vertices are visible
[CloudViewer DEBUG] [cam 19]: 132968/536872 (24.76717%) vertices are visible
[CloudViewer DEBUG] [cam 20]: 125766/536872 (23.42570%) vertices are visible
[CloudViewer DEBUG] [cam 21]: 118639/536872 (22.09819%) vertices are visible
[CloudViewer DEBUG] [cam 22]: 112538/536872 (20.96179%) vertices are visible
[CloudViewer DEBUG] [cam 23]: 76603/536872 (14.26839%) vertices are visible
[CloudViewer DEBUG] [cam 24]: 74932/536872 (13.95714%) vertices are visible
[CloudViewer DEBUG] [cam 25]: 79252/536872 (14.76181%) vertices are visible
[CloudViewer DEBUG] [cam 26]: 107727/536872 (20.06568%) vertices are visible
[CloudViewer DEBUG] [cam 27]: 114058/536872 (21.24491%) vertices are visible
[CloudViewer DEBUG] [cam 28]: 128703/536872 (23.97275%) vertices are visible
[CloudViewer DEBUG] [cam 29]: 149558/536872 (27.85729%) vertices are visible
[CloudViewer DEBUG] [cam 30]: 165234/536872 (30.77717%) vertices are visible
[CloudViewer DEBUG] [cam 31]: 104629/536872 (19.48863%) vertices are visible
[CloudViewer DEBUG] [cam 32]: 50546/536872 (9.41491%) vertices are visible
[CloudViewer DEBUG] [ColorMapOptimization] Rigid Optimization
