cloudViewer::ScalarField Class Reference

A simple scalar field (to be associated to a point cloud) More...

#include <ScalarField.h>

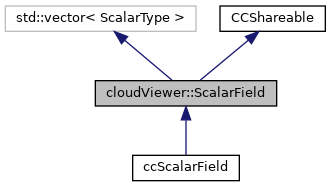

Inheritance diagram for cloudViewer::ScalarField:

Collaboration diagram for cloudViewer::ScalarField:

Public Member Functions
	ScalarField (const char *name=nullptr)
	Default constructor. More...
	ScalarField (const ScalarField &sf)
	Copy constructor. More...
void	setName (const char *name)
	Sets scalar field name. More...
const char *	getName () const
	Returns scalar field name. More...
void	computeMeanAndVariance (ScalarType &mean, ScalarType *variance=nullptr) const
virtual void	computeMinAndMax ()
	Determines the min and max values. More...
void	flagValueAsInvalid (std::size_t index)
	Sets the value as 'invalid' (i.e. NAN_VALUE) More...
std::size_t	countValidValues () const
	Returns the number of valid values in this scalar field. More...
ScalarType	getMin () const
	Returns the minimum value. More...
ScalarType	getMax () const
	Returns the maximum value. More...
void	fill (ScalarType fillValue=0)
	Fills the array with a particular value. More...
bool	reserveSafe (std::size_t count)
	Reserves memory (no exception thrown) More...
bool	resizeSafe (std::size_t count, bool initNewElements=false, ScalarType valueForNewElements=0)
	Resizes memory (no exception thrown) More...
ScalarType &	getValue (std::size_t index)
const ScalarType &	getValue (std::size_t index) const
void	setValue (std::size_t index, ScalarType value)
void	addElement (ScalarType value)
unsigned	currentSize () const
void	swap (std::size_t i1, std::size_t i2)
	~ScalarField () override=default
	Default destructor. More...
Public Member Functions inherited from CCShareable
	CCShareable ()
	Default constructor. More...
virtual void	link ()
	Increase counter. More...
virtual void	release ()
	Decrease counter and deletes object when 0. More...
virtual unsigned	getLinkCount () const
	Returns the current link count. More...

Static Public Member Functions
static ScalarType	NaN ()
	Returns the specific NaN value. More...
static bool	ValidValue (ScalarType value)
	Returns whether a scalar value is valid or not. More...

Protected Attributes
char	m_name [256]
	Scalar field name. More...
ScalarType	m_minVal
	Minimum value. More...
ScalarType	m_maxVal
	Maximum value. More...
Protected Attributes inherited from CCShareable
unsigned	m_linkCount
	Links counter. More...

Additional Inherited Members
Protected Member Functions inherited from CCShareable
virtual	~CCShareable ()
	Destructor. More...

Detailed Description

A simple scalar field (to be associated to a point cloud)

A mono-dimensionnal array of scalar values. It has also specific parameters for display purposes.

Invalid values can be represented by NAN_VALUE.

Definition at line 25 of file ScalarField.h.

Constructor & Destructor Documentation

ScalarField() [1/2]

ScalarField::ScalarField ( const char *  name = nullptr )

explicit

Default constructor.

[SHAREABLE] Call 'link' when associating this structure to an object.

Parameters

name	scalar field name

Definition at line 16 of file ScalarField.cpp.

References name, and setName().

ScalarField() [2/2]

ScalarField::ScalarField

(

const ScalarField &

sf

)

Copy constructor.

Parameters

sf	scalar field to copy

Warning

May throw a std::bad_alloc exception

Definition at line 18 of file ScalarField.cpp.

References m_name, and setName().

~ScalarField()

cloudViewer::ScalarField::~ScalarField ( )

overridedefault

Default destructor.

Call release instead.

Member Function Documentation

addElement()

void cloudViewer::ScalarField::addElement ( ScalarType  value )

inline

Definition at line 99 of file ScalarField.h.

Referenced by MeshWrapper< Real >::addDensity(), ccPointCloud::append(), DistanceMapGenerationTool::ConvertMapToCloud(), ccRasterGrid::convertToCloud(), ccCompass::convertToPointCloud(), pcl2cc::CopyScalarField(), define_ScalarField(), ccCompass::estimateP21(), ccCompass::estimateStrain(), ccCompass::estimateStructureNormals(), ccPointCloud::From(), LoadCloud(), PTXFilter::loadFile(), VTKFilter::loadFile(), SimpleBinFilter::loadFile(), PrepareLASField(), cloudViewer::ICPRegistrationTools::Register(), ccPointCloud::SelectByIndex(), and DistanceMapGenerationDlg::update().

computeMeanAndVariance()

void ScalarField::computeMeanAndVariance	(	ScalarType &	mean,
		ScalarType *	variance = nullptr
	)		const

Computes the mean value (and optionally the variance value) of the scalar field

Parameters

mean	a field to store the mean value
variance	if not void, the variance will be computed and stored here

Definition at line 41 of file ScalarField.cpp.

References ecvColor::LookUpTable::at(), count, size, and ValidValue().

Referenced by ccComparisonDlg::computeApproxDistances(), ccComparisonDlg::computeDistances(), define_ScalarField(), and CommandFilterBySFValue::process().

computeMinAndMax()

void cloudViewer::ScalarField::computeMinAndMax ( )

inlinevirtual

Determines the min and max values.

Reimplemented in ccScalarField.

Definition at line 123 of file ScalarField.h.

References ecvColor::LookUpTable::at(), m_maxVal, m_minVal, size, and ValidValue().

Referenced by ccScalarFieldArithmeticsDlg::Apply(), ccLibAlgorithms::ApplyCCLibAlgorithm(), ccTrace::buildCurvatureCost(), ccTrace::buildGradientCost(), masc::Classifier::classify(), qCanupoProcess::Classify(), ccComparisonDlg::computeApproxDistances(), ccComparisonDlg::computeDistances(), ccLibAlgorithms::ComputeGeomCharacteristic(), ComputeMathOpWithNearestNeighbor(), ccKdTree::convertCellIndexToSF(), ccCompass::convertToPointCloud(), define_ScalarField(), ccCompass::estimateStructureNormals(), ccPointCloud::exportCoordToSF(), ccPointCloud::exportNormalToSF(), GrainsAsEllipsoids::exportResultsAsCloud(), qFacets::extractFacets(), TreeIso::Final_seg_pcd(), masc::ContextBasedFeature::finish(), masc::NeighborhoodFeature::finish(), masc::PointFeature::finish(), cloudViewer::MeshSamplingTools::flagMeshVerticesByType(), getMortarMaps(), ccEntityAction::importToSF(), TreeIso::Init_seg_pcd(), TreeIso::Intermediate_seg_pcd(), PlyFilter::loadFile(), ccTrace::optimizePath(), masc::Feature::PerformMathOp(), ccGenericPointCloud::pointPicking(), masc::ContextBasedFeature::prepare(), masc::PointFeature::prepare(), CommandExtractCCs::process(), ccEntityAction::processMeshSF(), cloudViewer::ICPRegistrationTools::Register(), ccEntityAction::rgbGaussianFilter(), ccEntityAction::sfAddIdField(), ccEntityAction::sfGaussianFilter(), and ccPointCloud::unroll().

countValidValues()

std::size_t ScalarField::countValidValues

(

)

const

Returns the number of valid values in this scalar field.

Definition at line 29 of file ScalarField.cpp.

References ecvColor::LookUpTable::at(), count, size, and ValidValue().

Referenced by ccEntityAction::computeStatParams(), CommandSubsample::process(), and ccEntityAction::sfSetAsCoord().

currentSize()

unsigned cloudViewer::ScalarField::currentSize ( ) const

inline

Definition at line 100 of file ScalarField.h.

References size.

Referenced by ccPointCloud::append(), ccScalarFieldArithmeticsDlg::Apply(), ccHistogramWindow::computeBinArrayFromSF(), cloudViewer::DistanceComputationTools::computeCloud2CloudDistances(), ComputeCorePointDescriptor(), qM3C2Normals::ComputeCorePointsNormals(), ccScalarField::computeMinAndMax(), cloudViewer::GeometricalAnalysisTools::ComputeWeightedCrossCovarianceMatrix(), cloudViewer::GeometricalAnalysisTools::ComputeWeightedGravityCenter(), ccRasterizeTool::convertGridToCloud(), ccRasterGrid::convertToCloud(), define_ScalarField(), cloudViewer::MeshSamplingTools::flagMeshVerticesByType(), ccRasterizeTool::generateContours(), ccRasterizeTool::generateHillshade(), ccPointCloud::getDrawingParameters(), ccEntityAction::importToSF(), PTXFilter::loadFile(), cloudViewer::ICPRegistrationTools::Register(), SaveScan(), ccEntityAction::sfAddIdField(), ccEntityAction::sfConvertToRandomRGB(), and ecvFilterByLabelDlg::start().

fill()

void cloudViewer::ScalarField::fill ( ScalarType  fillValue = 0 )

inline

Fills the array with a particular value.

Definition at line 77 of file ScalarField.h.

Referenced by masc::Classifier::classify(), qCanupoProcess::Classify(), cloudViewer::DistanceComputationTools::computeCloud2CloudDistances(), cloudViewer::DistanceComputationTools::computeCloud2MeshDistancesWithOctree(), qM3C2Normals::ComputeCorePointsNormals(), ccCropTool::Crop(), define_ScalarField(), TreeIso::Final_seg_pcd(), cloudViewer::MeshSamplingTools::flagMeshVerticesByType(), ccRasterizeTool::generateHillshade(), TreeIso::Init_seg_pcd(), TreeIso::Intermediate_seg_pcd(), ccPointCloudInterpolator::InterpolateScalarFieldsFrom(), masc::Feature::PrepareSF(), and ResolveNormalsWithMST().

flagValueAsInvalid()

void cloudViewer::ScalarField::flagValueAsInvalid ( std::size_t  index )

inline

Sets the value as 'invalid' (i.e. NAN_VALUE)

Definition at line 66 of file ScalarField.h.

References ecvColor::LookUpTable::at(), and NaN().

Referenced by define_ScalarField(), and LoadScan().

getMax()

ScalarType cloudViewer::ScalarField::getMax ( ) const

inline

Returns the maximum value.

Definition at line 74 of file ScalarField.h.

References m_maxVal.

Referenced by ccTrace::buildCurvatureCost(), ccTrace::buildGradientCost(), ccComparisonDlg::computeApproxDistances(), ccEntityAction::computeStatParams(), ccVolumeCalcTool::convertGridToCloud(), ccVolumeCalcTool::ConvertGridToCloud(), define_ScalarField(), ccPointCloud::enhanceRGBWithIntensitySF(), ccHistogramWindow::fromSF(), ccRasterizeTool::generateContours(), LasField::GetLASFields(), ccTrace::getSegmentCostCurve(), ccTrace::getSegmentCostGrad(), ccTrace::getSegmentCostScalar(), ccTrace::getSegmentCostScalarInv(), LasSaveDialog::handleComboBoxChange(), PTXFilter::loadFile(), LoadScan(), ccColorScaleEditorDialog::onStepModified(), CommandSubsample::process(), CommandFilterBySFValue::process(), ccEntityAction::rgbGaussianFilter(), SaveScan(), LasDetails::SelectBestVersion(), ccColorScaleEditorDialog::setAssociatedScalarField(), ccColorFromScalarDlg::setDefaultSatValuePerChannel(), ccEntityAction::sfConvertToRandomRGB(), ccEntityAction::sfGaussianFilter(), and ccColorFromScalarDlg::updateSpinBoxLimits().

getMin()

ScalarType cloudViewer::ScalarField::getMin ( ) const

inline

Returns the minimum value.

Definition at line 72 of file ScalarField.h.

References m_minVal.

Referenced by ccComparisonDlg::computeApproxDistances(), ccEntityAction::computeStatParams(), ccVolumeCalcTool::convertGridToCloud(), ccVolumeCalcTool::ConvertGridToCloud(), define_ScalarField(), ccPointCloud::enhanceRGBWithIntensitySF(), ccHistogramWindow::fromSF(), ccRasterizeTool::generateContours(), ccTrace::getSegmentCostScalar(), ccTrace::getSegmentCostScalarInv(), LasSaveDialog::handleComboBoxChange(), PTXFilter::loadFile(), LoadScan(), ccColorScaleEditorDialog::onStepModified(), CommandSubsample::process(), CommandFilterBySFValue::process(), ccEntityAction::rgbGaussianFilter(), SaveScan(), ccColorScaleEditorDialog::setAssociatedScalarField(), ccColorFromScalarDlg::setDefaultSatValuePerChannel(), ccEntityAction::sfConvertToRandomRGB(), ccEntityAction::sfGaussianFilter(), ccEntityAction::sfSetAsCoord(), and ccColorFromScalarDlg::updateSpinBoxLimits().

getName()

const char* cloudViewer::ScalarField::getName ( ) const

inline

Returns scalar field name.

Definition at line 43 of file ScalarField.h.

References m_name.

Referenced by ccPointCloud::addScalarField(), ccPointCloud::append(), ccScalarFieldArithmeticsDlg::Apply(), CCCloudToDraco(), ccRasterizeTool::ccRasterizeTool(), masc::Classifier::classify(), qCanupoProcess::Classify(), MLSSmoothingUpsampling::compute(), qM3C2Process::Compute(), ccComparisonDlg::computeDistances(), ccEntityAction::computeStatParams(), ccRasterGrid::convertToCloud(), copyScalarFields(), define_ScalarField(), ccDBRoot::editLabelScalarValue(), ccEntityAction::enhanceRGBWithIntensities(), masc::Classifier::evaluate(), LasExtraScalarFieldCard::fillFrom(), masc::ContextBasedFeature::finish(), masc::NeighborhoodFeature::finish(), masc::PointFeature::finish(), ccPointCloud::From(), cc2smReader::getAsSM(), cc2DLabel::getLabelInfo1(), LasField::GetLASFields(), ScalarFieldWrapper::getName(), LoadScan(), ccPointCloud::partialClone(), masc::ContextBasedFeature::prepare(), masc::NeighborhoodFeature::prepare(), masc::PointFeature::prepare(), PrepareLASField(), CommandSubsample::process(), SFCollector::releaseSFs(), masc::Tools::RetrieveSF(), ccEntityAction::rgbGaussianFilter(), VTKFilter::saveToFile(), LASFWFFilter::saveToFile(), LasIOFilter::saveToFile(), LASFilter::saveToFile(), ccPointCloud::SelectByIndex(), ccEntityAction::sfGaussianFilter(), ccEntityAction::sfRename(), and PclTools::UpdateScalarBar().

getValue() [1/2]

ScalarType& cloudViewer::ScalarField::getValue ( std::size_t  index )

inline

Definition at line 92 of file ScalarField.h.

References ecvColor::LookUpTable::at().

Referenced by PclUtils::PCLVis::addScalarFieldToVTK(), ccPointCloud::append(), ccScalarFieldArithmeticsDlg::Apply(), G3Point::G3PointAction::buildStacksFromG3PointLabelSF(), CCCloudToDraco(), cellSFInterpolator(), ClusterEmptySpace(), qVoxFallProcess::Compute(), ccHistogramWindow::computeBinArrayFromSF(), ccScalarField::computeMinAndMax(), ComputePMUncertainty(), cloudViewer::GeometricalAnalysisTools::ComputeWeightedCrossCovarianceMatrix(), copyScalarFields(), DistanceMapGenerationTool::CreateMap(), ccCropTool::Crop(), ccComparisonDlg::determineBestOctreeLevel(), ccSNECloud::drawMeOnly(), ccDBRoot::editLabelScalarValue(), ccPointCloud::enhanceRGBWithIntensitySF(), ccCompass::estimateStructureNormals(), masc::Classifier::evaluate(), ccRasterGrid::fillWith(), TreeIso::Final_seg_pcd(), ccPointCloud::From(), ccRasterizeTool::generateContours(), cc2smReader::getFloatScalarField(), ccPointCloud::getPointDisplayedDistance(), LasField::getSafeValue(), ccTrace::getSegmentCostScalar(), ccTrace::getSegmentCostScalarInv(), ccScalarField::getValueColor(), cc2smReader::getvtkScalars(), ccPointCloud::hidePointsByScalarValue(), TreeIso::Intermediate_seg_pcd(), ccCloudLayersHelper::mouseMove(), ccColorFromScalarDlg::onApply(), ccPointCloud::partialClone(), masc::Feature::PerformMathOp(), ccGenericPointCloud::pointPicking(), ccOctree::pointPicking(), ScalarFieldRatioWrapper::pointValue(), masc::ContextBasedFeature::prepare(), RefinePointClassif(), cloudViewer::ICPRegistrationTools::Register(), ccPointCloud::RemoveNonFinitePoints(), SaveScan(), ccCloudLayersHelper::saveState(), VTKFilter::saveToFile(), SimpleBinFilter::saveToFile(), ccPointCloud::SelectByIndex(), ccPointCloud::setCoordFromSF(), ccEntityAction::sfConvertToRandomRGB(), ecvFilterByLabelDlg::start(), masc::Classifier::train(), and G3Point::G3PointAction::wolman().

getValue() [2/2]

const ScalarType& cloudViewer::ScalarField::getValue ( std::size_t  index ) const

inline

Definition at line 93 of file ScalarField.h.

References ecvColor::LookUpTable::at().

NaN()

static ScalarType cloudViewer::ScalarField::NaN ( )

inlinestatic

Returns the specific NaN value.

Definition at line 46 of file ScalarField.h.

References NAN_VALUE.

Referenced by ccPointCloud::append(), ccRasterGrid::convertToCloud(), define_ScalarField(), and flagValueAsInvalid().

reserveSafe()

bool ScalarField::reserveSafe

(

std::size_t

count

)

Reserves memory (no exception thrown)

Definition at line 71 of file ScalarField.cpp.

References count.

Referenced by MeshWrapper< Real >::addDensity(), ccPointCloud::addScalarField(), cloudViewer::ScalarFieldTools::computeScalarFieldGradient(), DistanceMapGenerationTool::ConvertMapToCloud(), vtk2cc::ConvertToPointCloud(), pcl2cc::CopyScalarField(), define_ScalarField(), ccRasterizeTool::generateHillshade(), LoadCloud(), PTXFilter::loadFile(), VTKFilter::loadFile(), SimpleBinFilter::loadFile(), PrepareLASField(), cloudViewer::ICPRegistrationTools::Register(), and ccPointCloud::SelectByIndex().

resizeSafe()

bool ScalarField::resizeSafe	(	std::size_t	count,
		bool	initNewElements = false,
		ScalarType	valueForNewElements = 0
	)

Resizes memory (no exception thrown)

Definition at line 81 of file ScalarField.cpp.

References count.

Referenced by ccPointCloud::addScalarField(), cloudViewer::PointCloudTpl< T >::addScalarField(), ccPointCloud::append(), ccScalarFieldArithmeticsDlg::Apply(), masc::Classifier::classify(), qM3C2Process::Compute(), qVoxFallProcess::Compute(), qM3C2Normals::ComputeCorePointsNormals(), ccComparisonDlg::computeDistances(), ccPointCloud::convertNormalToDipDirSFs(), ccRasterGrid::convertToCloud(), vtk2cc::ConvertToPointCloud(), copyScalarFields(), define_ScalarField(), cloudViewer::PointCloudTpl< T >::enableScalarField(), cloudViewer::AutoSegmentationTools::frontPropagationBasedSegmentation(), PlyFilter::loadFile(), LoadScan(), ccPointCloud::partialClone(), masc::PointFeature::prepare(), masc::Feature::PrepareSF(), cloudViewer::ICPRegistrationTools::Register(), and ccPointCloud::RemoveNonFinitePoints().

setName()

void ScalarField::setName

(

const char *

name

)

Sets scalar field name.

Definition at line 22 of file ScalarField.cpp.

References m_name, and name.

Referenced by masc::Classifier::classify(), ccComparisonDlg::computeDistances(), ccVolumeCalcTool::convertGridToCloud(), ccVolumeCalcTool::ConvertGridToCloud(), define_ScalarField(), CommandSFRename::process(), cloudViewer::PointCloudTpl< T >::renameScalarField(), ScalarField(), ccEntityAction::sfRename(), and DistanceMapGenerationDlg::updateHeightUnits().

setValue()

void cloudViewer::ScalarField::setValue ( std::size_t  index, ScalarType  value  )

inline

Definition at line 96 of file ScalarField.h.

References ecvColor::LookUpTable::at().

Referenced by ccPointCloud::append(), ccScalarFieldArithmeticsDlg::Apply(), ccCloudLayersHelper::changeCode(), masc::Classifier::classify(), qCanupoProcess::Classify(), ClusterEmptySpace(), qVoxFallProcess::Compute(), cloudViewer::DistanceComputationTools::computeCellHausdorffDistance(), cloudViewer::DistanceComputationTools::computeCellHausdorffDistanceWithLocalModel(), ComputeCorePointDescriptor(), ComputeM3C2DistForPoint(), ComputeMathOpWithNearestNeighbor(), DistanceMapGenerationTool::ComputeRadialDist(), ccPointCloud::convertNormalToDipDirSFs(), ccRasterGrid::convertToCloud(), vtk2cc::ConvertToPointCloud(), copyScalarFields(), define_ScalarField(), ccDBRoot::editLabelScalarValue(), ccCompass::estimateStructureNormals(), masc::Classifier::evaluate(), ccPointCloud::exportCoordToSF(), ccPointCloud::exportNormalToSF(), GrainsAsEllipsoids::exportResultsAsCloud(), TreeIso::Final_seg_pcd(), cloudViewer::MeshSamplingTools::flagMeshVerticesByType(), ccRasterizeTool::generateHillshade(), getMortarMaps(), ccEntityAction::importToSF(), TreeIso::Init_seg_pcd(), TreeIso::Intermediate_seg_pcd(), qM3C2Dialog::loadParamsFrom(), LoadScan(), ccCloudLayersHelper::mouseMove(), ccCloudLayersHelper::moveItem(), ccPointCloud::partialClone(), masc::Feature::PerformMathOp(), masc::ContextBasedFeature::prepare(), masc::PointFeature::prepare(), cloudViewer::ICPRegistrationTools::Register(), ccPointCloud::RemoveNonFinitePoints(), ResolveNormalsWithMST(), ccCloudLayersHelper::restoreState(), scalar_cb(), ccEntityAction::sfAddIdField(), and ccPointCloud::unroll().

swap()

void cloudViewer::ScalarField::swap ( std::size_t  i1, std::size_t  i2  )

inline

Definition at line 103 of file ScalarField.h.

References ecvColor::LookUpTable::at(), and std::swap().

ValidValue()

static bool cloudViewer::ScalarField::ValidValue ( ScalarType  value )

inlinestatic

Returns whether a scalar value is valid or not.

Definition at line 61 of file ScalarField.h.

Referenced by ccScalarFieldArithmeticsDlg::Apply(), applySqrtToPointDist(), ComparePointsAndTriangles(), cloudViewer::StatisticalTestingTools::computeAdaptativeChi2Dist(), ComputeCellGaussianFilter(), cloudViewer::ScalarFieldTools::computeCellGaussianFilter(), cloudViewer::WeibullDistribution::computeChi2Dist(), cloudViewer::NormalDistribution::computeChi2Dist(), cloudViewer::WeibullDistribution::ComputeG(), AnglesCustomPlot::computeHistogram(), cloudViewer::ScalarFieldTools::computeKmeans(), cloudViewer::StatisticalTestingTools::computeLocalChi2DistAtLevel(), computeMeanAndVariance(), cloudViewer::ScalarFieldTools::computeMeanGradientOnPatch(), cloudViewer::ScalarFieldTools::computeMeanScalarValue(), cloudViewer::ScalarFieldTools::computeMeanSquareScalarValue(), computeMinAndMax(), cloudViewer::NormalDistribution::computeParameters(), cloudViewer::WeibullDistribution::computeParameters(), DistanceMapGenerationTool::ComputeRadialDist(), cloudViewer::ScalarFieldTools::computeScalarFieldExtremas(), cloudViewer::ScalarFieldTools::computeScalarFieldHistogram(), ccEntityAction::computeStatParams(), cloudViewer::GeometricalAnalysisTools::ComputeWeightedCrossCovarianceMatrix(), cloudViewer::ScalarFieldTools::countScalarFieldValidValues(), countValidValues(), DistanceMapGenerationTool::CreateMap(), define_ScalarField(), cloudViewer::DistanceComputationTools::diff(), ccSubsamplingDlg::enableSFModulation(), ccRasterGrid::fillWith(), cloudViewer::DgmOctree::findNearestNeighborsStartingFromCell(), ccRasterizeTool::generateContours(), cc2DLabel::getLabelInfo1(), cloudViewer::DgmOctree::getPointsInNeighbourCellsAround(), LasField::getSafeValue(), cc2DLabel::GetSFValueAsString(), cloudViewer::ScalarFieldTools::multiplyScalarFields(), CommandSubsample::process(), cloudViewer::ICPRegistrationTools::Register(), cloudViewer::CloudSamplingTools::resampleCloudSpatially(), SaveScan(), and ccPointCloud::setCoordFromSF().

Member Data Documentation

m_maxVal

ScalarType cloudViewer::ScalarField::m_maxVal

protected

Maximum value.

Definition at line 120 of file ScalarField.h.

Referenced by computeMinAndMax(), ccScalarField::computeMinAndMax(), getMax(), and ccScalarField::updateSaturationBounds().

m_minVal

ScalarType cloudViewer::ScalarField::m_minVal

protected

Minimum value.

Definition at line 118 of file ScalarField.h.

Referenced by computeMinAndMax(), ccScalarField::computeMinAndMax(), getMin(), ccScalarField::setLogScale(), and ccScalarField::updateSaturationBounds().

m_name

char cloudViewer::ScalarField::m_name[256]

protected

Scalar field name.

Definition at line 115 of file ScalarField.h.

Referenced by getName(), ccScalarField::minimumFileVersion(), ScalarField(), and setName().

---

The documentation for this class was generated from the following files:

• /root/ACloudViewer/core/include/ScalarField.h
• /root/ACloudViewer/core/src/ScalarField.cpp
