A scalar field associated to display-related parameters. More...

#include <ecvScalarField.h>

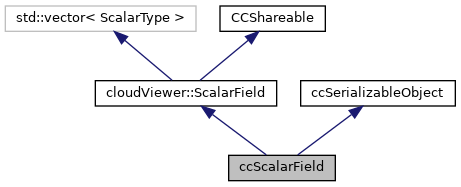

Inheritance diagram for ccScalarField:

[legend]

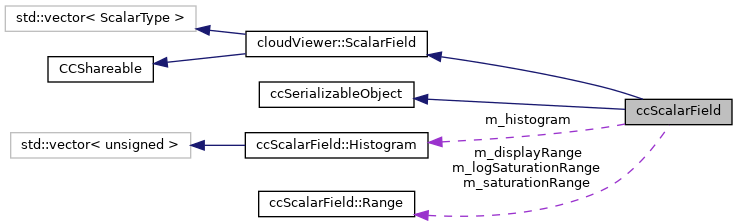

Collaboration diagram for ccScalarField:

[legend]

Classes
struct	Histogram
	Simple histogram structure. More...

class	Range
	Scalar field range structure. More...

Public Member Functions
	ccScalarField (const char *name=nullptr)
	Default constructor. More...

	ccScalarField (const ccScalarField &sf)
	Copy constructor. More...

const Range &	displayRange () const
	Access to the range of displayed values. More...

const Range &	saturationRange () const
	Access to the range of saturation values. More...

const Range &	logSaturationRange () const
	Access to the range of log scale saturation values. More...

void	setMinDisplayed (ScalarType val)
	Sets the minimum displayed value. More...

void	setMaxDisplayed (ScalarType val)
	Sets the maximum displayed value. More...

void	setSaturationStart (ScalarType val)
	Sets the value at which to start color gradient. More...

void	setSaturationStop (ScalarType val)
	Sets the value at which to stop color gradient. More...

const ecvColor::Rgb *	getColor (ScalarType value) const

const ecvColor::Rgb *	getValueColor (unsigned index) const
	Shortcut to getColor. More...

void	showNaNValuesInGrey (bool state)

bool	areNaNValuesShownInGrey () const
	Returns whether NaN values are displayed in gray or hidden. More...

void	alwaysShowZero (bool state)
	Sets whether 0 should always appear in associated color ramp or not. More...

bool	isZeroAlwaysShown () const
	Returns whether 0 should always appear in associated color ramp or not. More...

void	setSymmetricalScale (bool state)
	Sets whether the color scale should be symmetrical or not. More...

bool	symmetricalScale () const
	Returns whether the color scale s symmetrical or not. More...

void	setLogScale (bool state)
	Sets whether scale is logarithmic or not. More...

bool	logScale () const
	Returns whether scalar field is logarithmic or not. More...

void	computeMinAndMax () override
	Determines the min and max values. More...

const ccColorScale::Shared &	getColorScale () const
	Returns associated color scale. More...

void	setColorScale (ccColorScale::Shared scale)
	Sets associated color scale. More...

unsigned	getColorRampSteps () const
	Returns number of color ramp steps. More...

void	setColorRampSteps (unsigned steps)
	Sets number of color ramp steps used for display. More...

const Histogram &	getHistogram () const
	Returns associated histogram values (for display) More...

bool	mayHaveHiddenValues () const

void	setModificationFlag (bool state)
	Sets modification flag state. More...

bool	getModificationFlag () const
	Returns modification flag state. More...

void	importParametersFrom (const ccScalarField *sf)
	Imports the parameters from another scalar field. More...

bool	isSerializable () const override
	Returns whether object is serializable of not. More...

bool	toFile (QFile &out, short dataVersion) const override
	Saves data to binary stream. More...

short	minimumFileVersion () const override
	Returns the minimum file version required to save this instance. More...

bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override
	Loads data from binary stream. More...

double	getGlobalShift () const
	Returns the global shift (if any) More...

void	setGlobalShift (double shift)
	Sets the global shift. More...

Public Member Functions inherited from cloudViewer::ScalarField
	ScalarField (const char *name=nullptr)
	Default constructor. More...

	ScalarField (const ScalarField &sf)
	Copy constructor. More...

void	setName (const char *name)
	Sets scalar field name. More...

const char *	getName () const
	Returns scalar field name. More...

void	computeMeanAndVariance (ScalarType &mean, ScalarType *variance=nullptr) const

void	flagValueAsInvalid (std::size_t index)
	Sets the value as 'invalid' (i.e. NAN_VALUE) More...

std::size_t	countValidValues () const
	Returns the number of valid values in this scalar field. More...

ScalarType	getMin () const
	Returns the minimum value. More...

ScalarType	getMax () const
	Returns the maximum value. More...

void	fill (ScalarType fillValue=0)
	Fills the array with a particular value. More...

bool	reserveSafe (std::size_t count)
	Reserves memory (no exception thrown) More...

bool	resizeSafe (std::size_t count, bool initNewElements=false, ScalarType valueForNewElements=0)
	Resizes memory (no exception thrown) More...

ScalarType &	getValue (std::size_t index)

const ScalarType &	getValue (std::size_t index) const

void	setValue (std::size_t index, ScalarType value)

void	addElement (ScalarType value)

unsigned	currentSize () const

void	swap (std::size_t i1, std::size_t i2)

	~ScalarField () override=default
	Default destructor. More...

Public Member Functions inherited from CCShareable
	CCShareable ()
	Default constructor. More...

virtual void	link ()
	Increase counter. More...

virtual void	release ()
	Decrease counter and deletes object when 0. More...

virtual unsigned	getLinkCount () const
	Returns the current link count. More...

Public Member Functions inherited from ccSerializableObject
virtual	~ccSerializableObject ()=default
	Destructor. More...

Protected Member Functions
	~ccScalarField () override=default
	Default destructor. More...

void	updateSaturationBounds ()
	Updates saturation values. More...

ScalarType	normalize (ScalarType val) const
	Normalizes a scalar value between 0 and 1 (wrt to current parameters) More...

Protected Member Functions inherited from CCShareable
virtual	~CCShareable ()
	Destructor. More...

Protected Attributes
Range	m_displayRange
	Displayed values range. More...

Range	m_saturationRange
	Saturation values range. More...

Range	m_logSaturationRange
	saturation values range (log scale mode) More...

bool	m_showNaNValuesInGrey
	Whether NaN values are shown in grey or are hidden. More...

bool	m_symmetricalScale
	Whether color scale is symmetrical or not. More...

bool	m_logScale
	Whether scale is logarithmic or not. More...

bool	m_alwaysShowZero
	Whether 0 should always appear in associated color ramp. More...

ccColorScale::Shared	m_colorScale
	Active color ramp (for display) More...

unsigned	m_colorRampSteps
	Number of color ramps steps (for display) More...

Histogram	m_histogram
	Associated histogram values (for display) More...

bool	m_modified
	Modification flag. More...

double	m_globalShift
	Global shift. More...

Protected Attributes inherited from cloudViewer::ScalarField
char	m_name [256]
	Scalar field name. More...

ScalarType	m_minVal
	Minimum value. More...

ScalarType	m_maxVal
	Maximum value. More...

Protected Attributes inherited from CCShareable
unsigned	m_linkCount
	Links counter. More...

Additional Inherited Members
Public Types inherited from ccSerializableObject
enum	DeserializationFlags { DF_POINT_COORDS_64_BITS , DF_SCALAR_VAL_32_BITS = 2 }
	Deserialization flags (bit-field) More...

typedef QMultiMap< unsigned, unsigned >	LoadedIDMap
	Map of loaded unique IDs (old ID --> new ID) More...

Static Public Member Functions inherited from cloudViewer::ScalarField
static ScalarType	NaN ()
	Returns the specific NaN value. More...

static bool	ValidValue (ScalarType value)
	Returns whether a scalar value is valid or not. More...

Static Public Member Functions inherited from ccSerializableObject
static bool	WriteError ()
	Sends a custom error message (write error) and returns 'false'. More...

static bool	ReadError ()
	Sends a custom error message (read error) and returns 'false'. More...

static bool	MemoryError ()
	Sends a custom error message (not enough memory) and returns 'false'. More...

static bool	CorruptError ()
	Sends a custom error message (corrupted file) and returns 'false'. More...

Detailed Description

A scalar field associated to display-related parameters.

Extends the cloudViewer::ScalarField object.

Definition at line 19 of file ecvScalarField.h.

Constructor & Destructor Documentation

◆ ccScalarField() [1/2]

ccScalarField::ccScalarField ( const char * name = nullptr )

explicit

Default constructor.

Parameters

name	scalar field name

Definition at line 24 of file ecvScalarField.cpp.

References ccColorScalesManager::BGYR, ccColorScale::DEFAULT_STEPS, ccColorScalesManager::GetUniqueInstance(), setColorRampSteps(), and setColorScale().

◆ ccScalarField() [2/2]

ccScalarField::ccScalarField ( const ccScalarField & sf )

Copy constructor.

Parameters

sf	scalar field to copy

Warning: May throw a std::bad_alloc exception

Definition at line 39 of file ecvScalarField.cpp.

References computeMinAndMax().

◆ ~ccScalarField()

ccScalarField::~ccScalarField ( )

overrideprotecteddefault

Default destructor.

Call release instead

Member Function Documentation

◆ alwaysShowZero()

void ccScalarField::alwaysShowZero ( bool state )

Sets whether 0 should always appear in associated color ramp or not.

Definition at line 628 of file ecvScalarField.cpp.

References m_alwaysShowZero, and m_modified.

Referenced by sfEditDlg::alwaysShow0Changed(), define_ccScalarField(), and importParametersFrom().

◆ areNaNValuesShownInGrey()

bool ccScalarField::areNaNValuesShownInGrey ( ) const

inline

Returns whether NaN values are displayed in gray or hidden.

Definition at line 156 of file ecvScalarField.h.

Referenced by define_ccScalarField(), ccGenericMesh::drawMeOnly(), ccMesh::drawMeOnly(), ccPointCloud::drawMeOnly(), ccSNECloud::drawMeOnly(), sfEditDlg::fillDialogWith(), importParametersFrom(), mayHaveHiddenValues(), sfEditDlg::nanInGrayChanged(), and PclTools::UpdateScalarBar().

◆ computeMinAndMax()

void ccScalarField::computeMinAndMax ( )

overridevirtual

Determines the min and max values.

Reimplemented from cloudViewer::ScalarField.

Definition at line 145 of file ecvScalarField.cpp.

References cloudViewer::utility::ceil(), count, cloudViewer::ScalarField::currentSize(), cloudViewer::utility::floor(), cloudViewer::ScalarField::getValue(), m_displayRange, m_histogram, cloudViewer::ScalarField::m_maxVal, cloudViewer::ScalarField::m_minVal, m_modified, MAX_HISTOGRAM_SIZE, ccScalarField::Range::maxRange(), ccScalarField::Histogram::maxValue, ccScalarField::Range::min(), ccScalarField::Range::setBounds(), updateSaturationBounds(), and CVLog::Warning().

Referenced by ccPointCloud::append(), ccScalarField(), masc::Classifier::classify(), qM3C2Process::Compute(), qVoxFallProcess::Compute(), DistanceMapGenerationTool::ComputeRadialDist(), DistanceMapGenerationTool::ConvertMapToCloud(), ccPointCloud::convertNormalToDipDirSFs(), ccRasterGrid::convertToCloud(), vtk2cc::ConvertToPointCloud(), pcl2cc::CopyScalarField(), copyScalarFields(), ccMeasurementDevice::createScalarFieldForCloud(), qPCV::doAction(), qPoissonRecon::doAction(), ccDBRoot::editLabelScalarValue(), ccCompass::estimateStrain(), masc::Classifier::evaluate(), ccPointCloud::From(), ccRasterizeTool::generateHillshade(), LoadCloud(), PTXFilter::loadFile(), VTKFilter::loadFile(), LoadScan(), ccFastMarchingForNormsDirection::OrientNormals(), ccPointCloud::partialClone(), CommandStatTest::process(), PCVCommand::Process(), ccPointCloud::RemoveNonFinitePoints(), ResolveNormalsWithMST(), ccPointCloud::SelectByIndex(), ccEntityAction::statisticalTest(), and DistanceMapGenerationDlg::update().

◆ displayRange()

const Range& ccScalarField::displayRange ( ) const

inline

Access to the range of displayed values.

Values outside of the [start;stop] intervale will either be grey or invisible (see showNaNValuesInGrey).

Definition at line 108 of file ecvScalarField.h.

Referenced by ccRasterizeTool::activeLayerChanged(), ccColorFromScalarDlg::ccColorFromScalarDlg(), define_ccScalarField(), ccSNECloud::drawMeOnly(), sfEditDlg::fillDialogWith(), ccHistogramWindow::fromSF(), importParametersFrom(), ccHistogramWindow::refresh(), ecvFilterByLabelDlg::setInputEntity(), and PclTools::UpdateScalarBar().

◆ fromFile()

bool ccScalarField::fromFile	(	QFile &	in,
		short	dataVersion,
		int	flags,
		LoadedIDMap &	oldToNewIDMap
	)

overridevirtual

Loads data from binary stream.

Parameters

in	input file (already opened)
dataVersion	file version (for version-specific deserialization)
flags	deserialization flags (see ccSerializableObject::DeserializationFlags)
oldToNewIDMap	map to link old IDs with new IDs

Returns

success

Note: When implementing, use dataVersion checks to handle different

versions:

if (dataVersion >= X) { read new field } else { use default value } This ensures forward compatibility with older file formats.

Reimplemented from ccSerializableObject.

Definition at line 390 of file ecvScalarField.cpp.

◆ getColor()

const ecvColor::Rgb* ccScalarField::getColor ( ScalarType value ) const

inline

Returns the color corresponding to a given value (wrt to the current display parameters) Warning: must no be called if the SF is not associated to a color scale!

Definition at line 139 of file ecvScalarField.h.

References ecvColor::lightGrey().

Referenced by ccRasterizeTool::addNewContour(), define_ccScalarField(), ccSNECloud::drawMeOnly(), ccPointCloud::getScalarValueColor(), ccGenericPointCloud::pointPicking(), ccOctree::pointPicking(), ccHistogramWindow::refresh(), ccHistogramWindow::refreshBars(), and PclTools::UpdateScalarBar().

◆ getColorRampSteps()

unsigned ccScalarField::getColorRampSteps ( ) const

inline

Returns number of color ramp steps.

Definition at line 194 of file ecvScalarField.h.

Referenced by define_ccScalarField(), importParametersFrom(), ccHistogramWindow::refresh(), and ccPropertiesTreeDelegate::setEditorData().

◆ getColorScale()

const ccColorScale::Shared& ccScalarField::getColorScale ( ) const

inline

◆ getGlobalShift()

double ccScalarField::getGlobalShift ( ) const

inline

Returns the global shift (if any)

Definition at line 234 of file ecvScalarField.h.

Referenced by ccPointCloud::append(), define_ccScalarField(), ExtraLasField::ExtraLasField(), ccPointCloud::From(), cc2DLabel::getLabelInfo1(), LasField::GetLASFields(), minimumFileVersion(), ccPointCloud::partialClone(), VTKFilter::saveToFile(), SimpleBinFilter::saveToFile(), ccPointCloud::SelectByIndex(), and PclTools::UpdateScalarBar().

◆ getHistogram()

const Histogram& ccScalarField::getHistogram ( ) const

inline

Returns associated histogram values (for display)

Definition at line 206 of file ecvScalarField.h.

Referenced by ccHistogramWindow::computeBinArrayFromSF(), define_ccScalarField(), sfEditDlg::fillDialogWith(), and PclTools::UpdateScalarBar().

◆ getModificationFlag()

bool ccScalarField::getModificationFlag ( ) const

inline

Returns modification flag state.

Definition at line 219 of file ecvScalarField.h.

Referenced by define_ccScalarField().

◆ getValueColor()

const ecvColor::Rgb* ccScalarField::getValueColor ( unsigned index ) const

inline

Shortcut to getColor.

Definition at line 147 of file ecvScalarField.h.

References cloudViewer::ScalarField::getValue().

Referenced by define_ccScalarField(), cc2smReader::getPclCloud2(), ccPointCloud::getPointScalarValueColor(), and cc2smReader::getVtkPolyDataFromMeshCloud().

◆ importParametersFrom()

void ccScalarField::importParametersFrom ( const ccScalarField * sf )

Imports the parameters from another scalar field.

Definition at line 633 of file ecvScalarField.cpp.

References alwaysShowZero(), areNaNValuesShownInGrey(), displayRange(), getColorRampSteps(), getColorScale(), isZeroAlwaysShown(), logScale(), saturationRange(), setColorRampSteps(), setColorScale(), setLogScale(), setMaxDisplayed(), setMinDisplayed(), setSaturationStart(), setSaturationStop(), setSymmetricalScale(), showNaNValuesInGrey(), ccScalarField::Range::start(), ccScalarField::Range::stop(), and symmetricalScale().

Referenced by ccPointCloud::append(), ccRasterGrid::convertToCloud(), ccCropTool::Crop(), define_ccScalarField(), ccPointCloud::partialClone(), and ccPointCloud::SelectByIndex().

◆ isSerializable()

bool ccScalarField::isSerializable ( ) const

inlineoverridevirtual

Returns whether object is serializable of not.

Reimplemented from ccSerializableObject.

Definition at line 225 of file ecvScalarField.h.

◆ isZeroAlwaysShown()

bool ccScalarField::isZeroAlwaysShown ( ) const

inline

Returns whether 0 should always appear in associated color ramp or not.

Definition at line 164 of file ecvScalarField.h.

Referenced by sfEditDlg::alwaysShow0Changed(), define_ccScalarField(), sfEditDlg::fillDialogWith(), importParametersFrom(), and PclTools::UpdateScalarBar().

◆ logSaturationRange()

const Range& ccScalarField::logSaturationRange ( ) const

inline

Access to the range of log scale saturation values.

Relative color scales will only be applied to values inside the [start;stop] intervale.

Definition at line 122 of file ecvScalarField.h.

Referenced by define_ccScalarField().

◆ logScale()

bool ccScalarField::logScale ( ) const

inline

Returns whether scalar field is logarithmic or not.

Definition at line 180 of file ecvScalarField.h.

Referenced by define_ccScalarField(), sfEditDlg::fillDialogWith(), importParametersFrom(), sfEditDlg::logScaleChanged(), and PclTools::UpdateScalarBar().

◆ mayHaveHiddenValues()

bool ccScalarField::mayHaveHiddenValues ( ) const

Returns whether the scalar field in its current configuration MAY have 'hidden' values or not 'Hidden' values are typically NaN values or values outside of the 'displayed' intervale while those values are not displayed in grey (see ccScalarField::showNaNValuesInGrey).

Definition at line 615 of file ecvScalarField.cpp.

References areNaNValuesShownInGrey(), m_displayRange, ccScalarField::Range::max(), ccScalarField::Range::min(), ccScalarField::Range::start(), and ccScalarField::Range::stop().

Referenced by define_ccScalarField(), ccGenericPointCloud::pointPicking(), and ccOctree::pointPicking().

◆ minimumFileVersion()

short ccScalarField::minimumFileVersion ( ) const

overridevirtual

Returns the minimum file version required to save this instance.

To be overridden by subclasses to indicate their minimum required version. This enables the system to determine:

Forward compatibility: newer software can read older files (dataVersion check in fromFile)
Backward compatibility: determine minimum version needed to save current data
Returns
minimum file version required for this object

Implements ccSerializableObject.

Definition at line 373 of file ecvScalarField.cpp.

References getGlobalShift(), m_colorScale, and cloudViewer::ScalarField::m_name.

◆ normalize()

ScalarType ccScalarField::normalize ( ScalarType val ) const

protected

Normalizes a scalar value between 0 and 1 (wrt to current parameters)

Parameters

val	scalar value

Returns: a number between 0 and 1 if inside displayed range or -1 otherwise

ValidValue(d) ||

Definition at line 56 of file ecvScalarField.cpp.

References ccScalarField::Range::isInRange(), m_displayRange, m_logSaturationRange, m_logScale, m_saturationRange, m_symmetricalScale, ccScalarField::Range::range(), ccScalarField::Range::start(), ccScalarField::Range::stop(), and ZERO_TOLERANCE_SCALAR.

◆ saturationRange()

const Range& ccScalarField::saturationRange ( ) const

inline

Access to the range of saturation values.

Relative color scales will only be applied to values inside the [start;stop] intervale.

Definition at line 114 of file ecvScalarField.h.

Referenced by ccColorFromScalarDlg::ccColorFromScalarDlg(), define_ccScalarField(), sfEditDlg::fillDialogWith(), importParametersFrom(), ccHistogramWindow::refresh(), and PclTools::UpdateScalarBar().

◆ setColorRampSteps()

void ccScalarField::setColorRampSteps ( unsigned steps )

Sets number of color ramp steps used for display.

Definition at line 284 of file ecvScalarField.cpp.

References m_colorRampSteps, m_modified, ccColorScale::MAX_STEPS, and ccColorScale::MIN_STEPS.

Referenced by ccScalarField(), DistanceMapGenerationDlg::colorScaleChanged(), define_ccScalarField(), importParametersFrom(), and DistanceMapGenerationDlg::update().

◆ setColorScale()

void ccScalarField::setColorScale ( ccColorScale::Shared scale )

Sets associated color scale.

Definition at line 108 of file ecvScalarField.cpp.

References m_colorScale, m_modified, m_symmetricalScale, and updateSaturationBounds().

◆ setGlobalShift()

void ccScalarField::setGlobalShift ( double shift )

inline

Sets the global shift.

Definition at line 236 of file ecvScalarField.h.

Referenced by ccPointCloud::append(), define_ccScalarField(), SimpleBinFilter::loadFile(), ccPointCloud::partialClone(), and ccPointCloud::SelectByIndex().

◆ setLogScale()

void ccScalarField::setLogScale ( bool state )

Sets whether scale is logarithmic or not.

Definition at line 132 of file ecvScalarField.cpp.

References m_logScale, cloudViewer::ScalarField::m_minVal, m_modified, and CVLog::Warning().

Referenced by define_ccScalarField(), importParametersFrom(), and sfEditDlg::logScaleChanged().

◆ setMaxDisplayed()

void ccScalarField::setMaxDisplayed ( ScalarType val )

Sets the maximum displayed value.

Definition at line 261 of file ecvScalarField.cpp.

References m_displayRange, m_modified, and ccScalarField::Range::setStop().

Referenced by define_ccScalarField(), importParametersFrom(), ccHistogramWindow::setMaxDispValue(), and ccColorFromScalarDlg::~ccColorFromScalarDlg().

◆ setMinDisplayed()

void ccScalarField::setMinDisplayed ( ScalarType val )

Sets the minimum displayed value.

Definition at line 256 of file ecvScalarField.cpp.

References m_displayRange, m_modified, and ccScalarField::Range::setStart().

Referenced by qM3C2Process::Compute(), define_ccScalarField(), importParametersFrom(), CommandStatTest::process(), ccHistogramWindow::setMinDispValue(), ccEntityAction::statisticalTest(), and ccColorFromScalarDlg::~ccColorFromScalarDlg().

◆ setModificationFlag()

void ccScalarField::setModificationFlag ( bool state )

inline

Sets modification flag state.

Definition at line 217 of file ecvScalarField.h.

Referenced by define_ccScalarField().

◆ setSaturationStart()

void ccScalarField::setSaturationStart ( ScalarType val )

Sets the value at which to start color gradient.

Definition at line 266 of file ecvScalarField.cpp.

References m_logSaturationRange, m_logScale, m_modified, m_saturationRange, and ccScalarField::Range::setStart().

Referenced by define_ccScalarField(), importParametersFrom(), PTXFilter::loadFile(), E57Filter::loadFile(), CommandStatTest::process(), ccHistogramWindow::setMinSatValue(), ccEntityAction::statisticalTest(), ccColorFromScalarDlg::updateHistogram(), and ccColorFromScalarDlg::~ccColorFromScalarDlg().

◆ setSaturationStop()

void ccScalarField::setSaturationStop ( ScalarType val )

Sets the value at which to stop color gradient.

Definition at line 275 of file ecvScalarField.cpp.

References m_logSaturationRange, m_logScale, m_modified, m_saturationRange, and ccScalarField::Range::setStop().

Referenced by define_ccScalarField(), importParametersFrom(), PTXFilter::loadFile(), E57Filter::loadFile(), ccHistogramWindow::setMaxSatValue(), ccColorFromScalarDlg::updateHistogram(), and ccColorFromScalarDlg::~ccColorFromScalarDlg().

◆ setSymmetricalScale()

void ccScalarField::setSymmetricalScale ( bool state )

Sets whether the color scale should be symmetrical or not.

For relative color scales only.

Definition at line 123 of file ecvScalarField.cpp.

References m_modified, m_symmetricalScale, and updateSaturationBounds().

Referenced by qM3C2Process::Compute(), ccLibAlgorithms::ComputeGeomCharacteristic(), ccVolumeCalcTool::convertGridToCloud(), ccVolumeCalcTool::ConvertGridToCloud(), define_ccScalarField(), importParametersFrom(), CommandStatTest::process(), ccEntityAction::statisticalTest(), and sfEditDlg::symmetricalScaleChanged().

◆ showNaNValuesInGrey()

void ccScalarField::showNaNValuesInGrey ( bool state )

Sets whether NaN/out of displayed range values should be displayed in gray or hidden

Definition at line 623 of file ecvScalarField.cpp.

References m_modified, and m_showNaNValuesInGrey.

Referenced by define_ccScalarField(), qPoissonRecon::doAction(), importParametersFrom(), and sfEditDlg::nanInGrayChanged().

◆ symmetricalScale()

bool ccScalarField::symmetricalScale ( ) const

inline

Returns whether the color scale s symmetrical or not.

For relative color scales only.

Definition at line 174 of file ecvScalarField.h.

Referenced by define_ccScalarField(), sfEditDlg::fillDialogWith(), importParametersFrom(), ccHistogramWindow::refresh(), sfEditDlg::symmetricalScaleChanged(), and PclTools::UpdateScalarBar().

◆ toFile()

bool ccScalarField::toFile	(	QFile &	out,
		short	dataVersion
	)		const

overridevirtual

Saves data to binary stream.

Parameters

out	output file (already opened)
dataVersion	target file version (for forward/backward compatibility)

Returns: success

Reimplemented from ccSerializableObject.

Definition at line 295 of file ecvScalarField.cpp.

◆ updateSaturationBounds()

void ccScalarField::updateSaturationBounds ( )

protected

Updates saturation values.

Definition at line 202 of file ecvScalarField.cpp.

References m_colorScale, m_logSaturationRange, cloudViewer::ScalarField::m_maxVal, cloudViewer::ScalarField::m_minVal, m_modified, m_saturationRange, m_symmetricalScale, ccScalarField::Range::setBounds(), and ZERO_TOLERANCE_SCALAR.

Referenced by computeMinAndMax(), setColorScale(), and setSymmetricalScale().

Member Data Documentation

◆ m_alwaysShowZero

bool ccScalarField::m_alwaysShowZero

protected

Whether 0 should always appear in associated color ramp.

Definition at line 280 of file ecvScalarField.h.

Referenced by alwaysShowZero().

◆ m_colorRampSteps

unsigned ccScalarField::m_colorRampSteps

protected

Number of color ramps steps (for display)

Definition at line 286 of file ecvScalarField.h.

Referenced by setColorRampSteps().

◆ m_colorScale

ccColorScale::Shared ccScalarField::m_colorScale

protected

Active color ramp (for display)

Definition at line 283 of file ecvScalarField.h.

Referenced by minimumFileVersion(), setColorScale(), and updateSaturationBounds().

◆ m_displayRange

Range ccScalarField::m_displayRange

protected

Displayed values range.

Definition at line 256 of file ecvScalarField.h.

Referenced by computeMinAndMax(), mayHaveHiddenValues(), normalize(), setMaxDisplayed(), and setMinDisplayed().

◆ m_globalShift

double ccScalarField::m_globalShift

protected

Global shift.

Definition at line 298 of file ecvScalarField.h.

◆ m_histogram

Histogram ccScalarField::m_histogram

protected

Associated histogram values (for display)

Definition at line 289 of file ecvScalarField.h.

Referenced by computeMinAndMax().

◆ m_logSaturationRange

Range ccScalarField::m_logSaturationRange

protected

saturation values range (log scale mode)

For log scale color mapping with relative scales.

Definition at line 266 of file ecvScalarField.h.

Referenced by normalize(), setSaturationStart(), setSaturationStop(), and updateSaturationBounds().

◆ m_logScale

bool ccScalarField::m_logScale

protected

Whether scale is logarithmic or not.

Definition at line 277 of file ecvScalarField.h.

Referenced by normalize(), setLogScale(), setSaturationStart(), and setSaturationStop().

◆ m_modified

bool ccScalarField::m_modified

protected

Modification flag.

Any modification to the scalar field values or parameters will turn this flag on.

Definition at line 295 of file ecvScalarField.h.

Referenced by alwaysShowZero(), computeMinAndMax(), setColorRampSteps(), setColorScale(), setLogScale(), setMaxDisplayed(), setMinDisplayed(), setSaturationStart(), setSaturationStop(), setSymmetricalScale(), showNaNValuesInGrey(), and updateSaturationBounds().

◆ m_saturationRange

Range ccScalarField::m_saturationRange

protected

Saturation values range.

For color mapping with relative scales.

Definition at line 261 of file ecvScalarField.h.

Referenced by normalize(), setSaturationStart(), setSaturationStop(), and updateSaturationBounds().

◆ m_showNaNValuesInGrey

bool ccScalarField::m_showNaNValuesInGrey

protected

Whether NaN values are shown in grey or are hidden.

Definition at line 269 of file ecvScalarField.h.

Referenced by showNaNValuesInGrey().

◆ m_symmetricalScale

bool ccScalarField::m_symmetricalScale

protected

Whether color scale is symmetrical or not.

For relative color scales only.

Definition at line 274 of file ecvScalarField.h.

Referenced by normalize(), setColorScale(), setSymmetricalScale(), and updateSaturationBounds().

The documentation for this class was generated from the following files:

/root/ACloudViewer/libs/CV_db/include/ecvScalarField.h
/root/ACloudViewer/libs/CV_db/src/ecvScalarField.cpp

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ccScalarField() [1/2]

◆ ccScalarField() [2/2]

◆ ~ccScalarField()

Member Function Documentation

◆ alwaysShowZero()

◆ areNaNValuesShownInGrey()

◆ computeMinAndMax()

◆ displayRange()

◆ fromFile()

◆ getColor()

◆ getColorRampSteps()

◆ getColorScale()

◆ getGlobalShift()

◆ getHistogram()

◆ getModificationFlag()

◆ getValueColor()

◆ importParametersFrom()

◆ isSerializable()

◆ isZeroAlwaysShown()

◆ logSaturationRange()

◆ logScale()

◆ mayHaveHiddenValues()

◆ minimumFileVersion()

◆ normalize()

◆ saturationRange()

◆ setColorRampSteps()

◆ setColorScale()

◆ setGlobalShift()

◆ setLogScale()

◆ setMaxDisplayed()

◆ setMinDisplayed()

◆ setModificationFlag()

◆ setSaturationStart()

◆ setSaturationStop()

◆ setSymmetricalScale()

◆ showNaNValuesInGrey()

◆ symmetricalScale()

◆ toFile()

◆ updateSaturationBounds()

Member Data Documentation

◆ m_alwaysShowZero

◆ m_colorRampSteps

◆ m_colorScale

◆ m_displayRange

◆ m_globalShift

◆ m_histogram

◆ m_logSaturationRange

◆ m_logScale

◆ m_modified

◆ m_saturationRange

◆ m_showNaNValuesInGrey

◆ m_symmetricalScale
