Generic feature descriptor. More...

#include <FeaturesInterface.h>

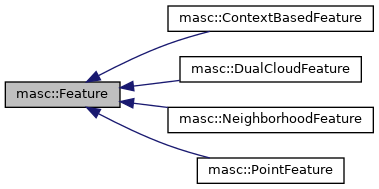

Inheritance diagram for masc::Feature:

[legend]

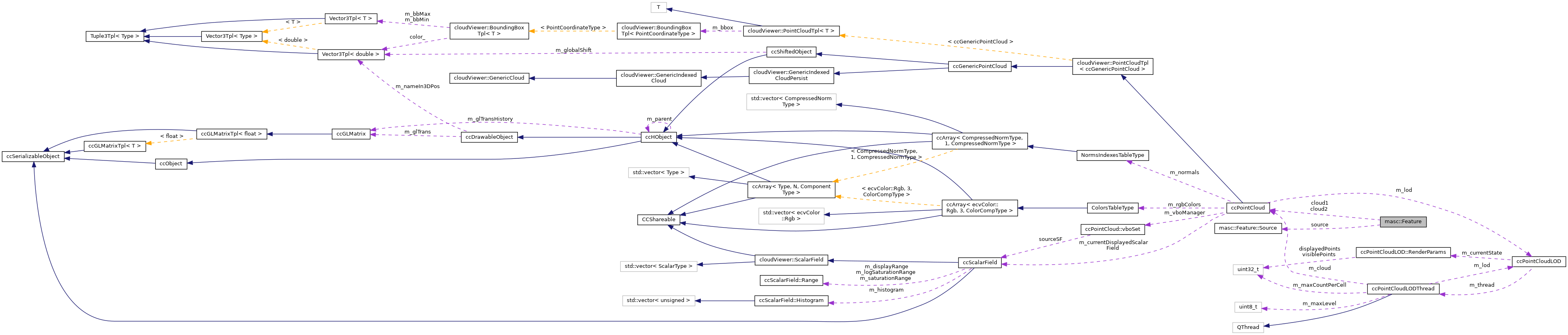

Collaboration diagram for masc::Feature:

[legend]

Classes
struct	Source
	Sources of values for this feature. More...

Public Types
enum class	Type { PointFeature , NeighborhoodFeature , ContextBasedFeature , DualCloudFeature , Invalid }
	Feature type. More...

enum	Stat { NO_STAT , MEAN , MODE , MEDIAN , STD , RANGE , SKEW }

enum	Operation { NO_OPERATION , MINUS , PLUS , DIVIDE , MULTIPLY }

typedef QSharedPointer< Feature >	Shared
	Shared type. More...

typedef std::vector< Shared >	Set
	Set of features. More...

Public Member Functions
	Feature (double p_scale=std::numeric_limits< double >::quiet_NaN(), Source::Type p_source=Source::ScalarField, QString p_sourceName=QString())
	Default constructor. More...

virtual	~Feature ()
	Destructor. More...

virtual Type	getType () const =0
	Returns the type (must be reimplemented by child struct) More...

virtual QString	toString () const =0
	Returns the formatted description. More...

virtual Feature::Shared	clone () const =0
	Clones this feature. More...

virtual bool	prepare (const CorePoints &corePoints, QString &error, cloudViewer::GenericProgressCallback progressCb=nullptr, SFCollector generatedScalarFields=nullptr)=0
	Prepares the feature (compute the scalar field, etc.) More...

virtual bool	finish (const CorePoints &corePoints, QString &error)
	Finishes the feature preparation (update the scalar field, etc.) More...

bool	scaled () const
	Returns whether the feature has an associated scale. More...

virtual bool	checkValidity (QString corePointRole, QString &error) const
	Checks the feature definition validity. More...

Static Public Member Functions
static QString	StatToString (Stat stat)

static QString	OpToString (Operation op)

static bool	ExtractSources (const Set &features, Source::Set &sources)
	Extracts the set of 'sources' from a set of features. More...

static bool	SaveSources (const Source::Set &sources, QString filename)
	Saves a set of 'sources' to a file. More...

static bool	LoadSources (Source::Set &sources, QString filename)
	Loads a set of 'sources' from a file. More...

static bool	CheckSFExistence (ccPointCloud cloud, const char resultSFName)

static cloudViewer::ScalarField *	PrepareSF (ccPointCloud cloud, const char resultSFName, SFCollector *generatedScalarFields, SFCollector::Behavior behavior)

static ScalarType	PerformMathOp (double s1, double s2, Operation op)
	Performs a mathematical operation between two scalars. More...

static bool	PerformMathOp (cloudViewer::ScalarField sf1, const cloudViewer::ScalarField sf2, Operation op)

static bool	PerformMathOp (const IScalarFieldWrapper &sf1, const IScalarFieldWrapper &sf2, Operation op, cloudViewer::ScalarField *outSF)

Public Attributes
double	scale
	Scale (diameter) More...

ccPointCloud *	cloud1

ccPointCloud *	cloud2

QString	cloud1Label

QString	cloud2Label

Source	source

Stat	stat

Operation	op

bool	sf1WasAlreadyExisting

bool	sf2WasAlreadyExisting

Detailed Description

Generic feature descriptor.

Definition at line 46 of file FeaturesInterface.h.

Member Typedef Documentation

◆ Set

typedef std::vector<Shared> masc::Feature::Set

Set of features.

Definition at line 52 of file FeaturesInterface.h.

◆ Shared

typedef QSharedPointer<Feature> masc::Feature::Shared

Shared type.

Definition at line 49 of file FeaturesInterface.h.

Member Enumeration Documentation

◆ Operation

enum masc::Feature::Operation

Enumerator
NO_OPERATION
MINUS
PLUS
DIVIDE
MULTIPLY

Definition at line 95 of file FeaturesInterface.h.

◆ Stat

enum masc::Feature::Stat

Enumerator
NO_STAT
MEAN
MODE
MEDIAN
STD
RANGE
SKEW

Definition at line 65 of file FeaturesInterface.h.

◆ Type

enum masc::Feature::Type

strong

Feature type.

Enumerator
PointFeature	Point features (scalar field, etc.)
NeighborhoodFeature	Neighborhood based features for a given scale
ContextBasedFeature	Contextual based features
DualCloudFeature	Dual Cloud features: requires 2 point clouds
Invalid	Invalid feature

Definition at line 56 of file FeaturesInterface.h.

Constructor & Destructor Documentation

◆ Feature()

masc::Feature::Feature	(	double	p_scale = `std::numeric_limits<double>::quiet_NaN()`,
		Source::Type	p_source = `Source::ScalarField`,
		QString	p_sourceName = `QString()`
	)

inline

Default constructor.

Definition at line 138 of file FeaturesInterface.h.

◆ ~Feature()

virtual masc::Feature::~Feature ( )

inlinevirtual

Destructor.

Definition at line 151 of file FeaturesInterface.h.

Member Function Documentation

◆ CheckSFExistence()

bool Feature::CheckSFExistence	(	ccPointCloud *	cloud,
		const char *	resultSFName
	)

static

Creates (or resets) a scalar field with the given name on the input core points cloud

Definition at line 19 of file FeaturesInterface.cpp.

References cloudViewer::PointCloudTpl< T >::getScalarFieldIndexByName().

Referenced by masc::ContextBasedFeature::prepare(), masc::NeighborhoodFeature::prepare(), and masc::PointFeature::prepare().

◆ checkValidity()

virtual bool masc::Feature::checkValidity	(	QString	corePointRole,
		QString &	error
	)		const

inlinevirtual

Checks the feature definition validity.

Reimplemented in masc::PointFeature, masc::NeighborhoodFeature, masc::DualCloudFeature, and masc::ContextBasedFeature.

Definition at line 179 of file FeaturesInterface.h.

References cloud1, cloud2, getType(), NO_OPERATION, NO_STAT, op, PointFeature, and stat.

Referenced by masc::ContextBasedFeature::checkValidity(), masc::DualCloudFeature::checkValidity(), masc::NeighborhoodFeature::checkValidity(), and masc::PointFeature::checkValidity().

◆ clone()

virtual Feature::Shared masc::Feature::clone ( ) const

pure virtual

Clones this feature.

Implemented in masc::PointFeature, masc::NeighborhoodFeature, masc::DualCloudFeature, and masc::ContextBasedFeature.

◆ ExtractSources()

bool Feature::ExtractSources	(	const Set &	features,
		Source::Set &	sources
	)

static

Extracts the set of 'sources' from a set of features.

Definition at line 195 of file FeaturesInterface.cpp.

References CVLog::Warning().

Referenced by q3DMASCPlugin::doClassifyAction(), q3DMASCPlugin::doTrainAction(), and Command3DMASCClassif::process().

◆ finish()

virtual bool masc::Feature::finish	(	const CorePoints &	corePoints,
		QString &	error
	)

inlinevirtual

Finishes the feature preparation (update the scalar field, etc.)

Reimplemented in masc::PointFeature, masc::NeighborhoodFeature, and masc::ContextBasedFeature.

Definition at line 170 of file FeaturesInterface.h.

◆ getType()

virtual Type masc::Feature::getType ( ) const

pure virtual

Returns the type (must be reimplemented by child struct)

Implemented in masc::PointFeature, masc::NeighborhoodFeature, masc::DualCloudFeature, and masc::ContextBasedFeature.

Referenced by checkValidity().

◆ LoadSources()

bool Feature::LoadSources	(	Source::Set &	sources,
		QString	filename
	)

static

Loads a set of 'sources' from a file.

Definition at line 154 of file FeaturesInterface.cpp.

References masc::Feature::Source::Blue, filename, masc::Feature::Source::name, masc::Feature::Source::ScalarField, masc::Feature::Source::type, and CVLog::Warning().

Referenced by Command3DMASCClassif::process().

◆ OpToString()

static QString masc::Feature::OpToString ( Operation op )

inlinestatic

Definition at line 97 of file FeaturesInterface.h.

References DIVIDE, MINUS, MULTIPLY, op, and PLUS.

Referenced by masc::NeighborhoodFeature::prepare(), masc::PointFeature::prepare(), masc::NeighborhoodFeature::toString(), and masc::PointFeature::toString().

◆ PerformMathOp() [1/3]

bool Feature::PerformMathOp	(	cloudViewer::ScalarField *	sf1,
		const cloudViewer::ScalarField *	sf2,
		Feature::Operation	op
	)

static

Performs a mathematical operation between two scalar fields (they must have the same size!)

Definition at line 95 of file FeaturesInterface.cpp.

References cloudViewer::ScalarField::computeMinAndMax(), cloudViewer::ScalarField::getValue(), NO_OPERATION, op, PerformMathOp(), and cloudViewer::ScalarField::setValue().

◆ PerformMathOp() [2/3]

bool Feature::PerformMathOp	(	const IScalarFieldWrapper &	sf1,
		const IScalarFieldWrapper &	sf2,
		Operation	op,
		cloudViewer::ScalarField *	outSF
	)

static

Performs a mathematical operation between two scalar fields (they must have the same size!)

Definition at line 116 of file FeaturesInterface.cpp.

References cloudViewer::ScalarField::computeMinAndMax(), NO_OPERATION, op, PerformMathOp(), IScalarFieldWrapper::pointValue(), cloudViewer::ScalarField::setValue(), and IScalarFieldWrapper::size().

◆ PerformMathOp() [3/3]

ScalarType Feature::PerformMathOp	(	double	s1,
		double	s2,
		Operation	op
	)

static

Performs a mathematical operation between two scalars.

Definition at line 72 of file FeaturesInterface.cpp.

References DIVIDE, MINUS, MULTIPLY, NAN_VALUE, op, and PLUS.

Referenced by ComputeMathOpWithNearestNeighbor(), masc::NeighborhoodFeature::finish(), masc::PointFeature::finish(), and PerformMathOp().

◆ prepare()

virtual bool masc::Feature::prepare	(	const CorePoints &	corePoints,
		QString &	error,
		cloudViewer::GenericProgressCallback *	progressCb = `nullptr`,
		SFCollector *	generatedScalarFields = `nullptr`
	)

pure virtual

Prepares the feature (compute the scalar field, etc.)

Implemented in masc::PointFeature, masc::NeighborhoodFeature, masc::DualCloudFeature, and masc::ContextBasedFeature.

◆ PrepareSF()

cloudViewer::ScalarField * Feature::PrepareSF	(	ccPointCloud *	cloud,
		const char *	resultSFName,
		SFCollector *	generatedScalarFields,
		SFCollector::Behavior	behavior
	)
