QCustomPlot: selectable cursor interface. More...

#include <ecvQCustomPlot.h>

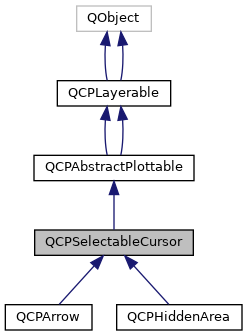

Inheritance diagram for QCPSelectableCursor:

[legend]

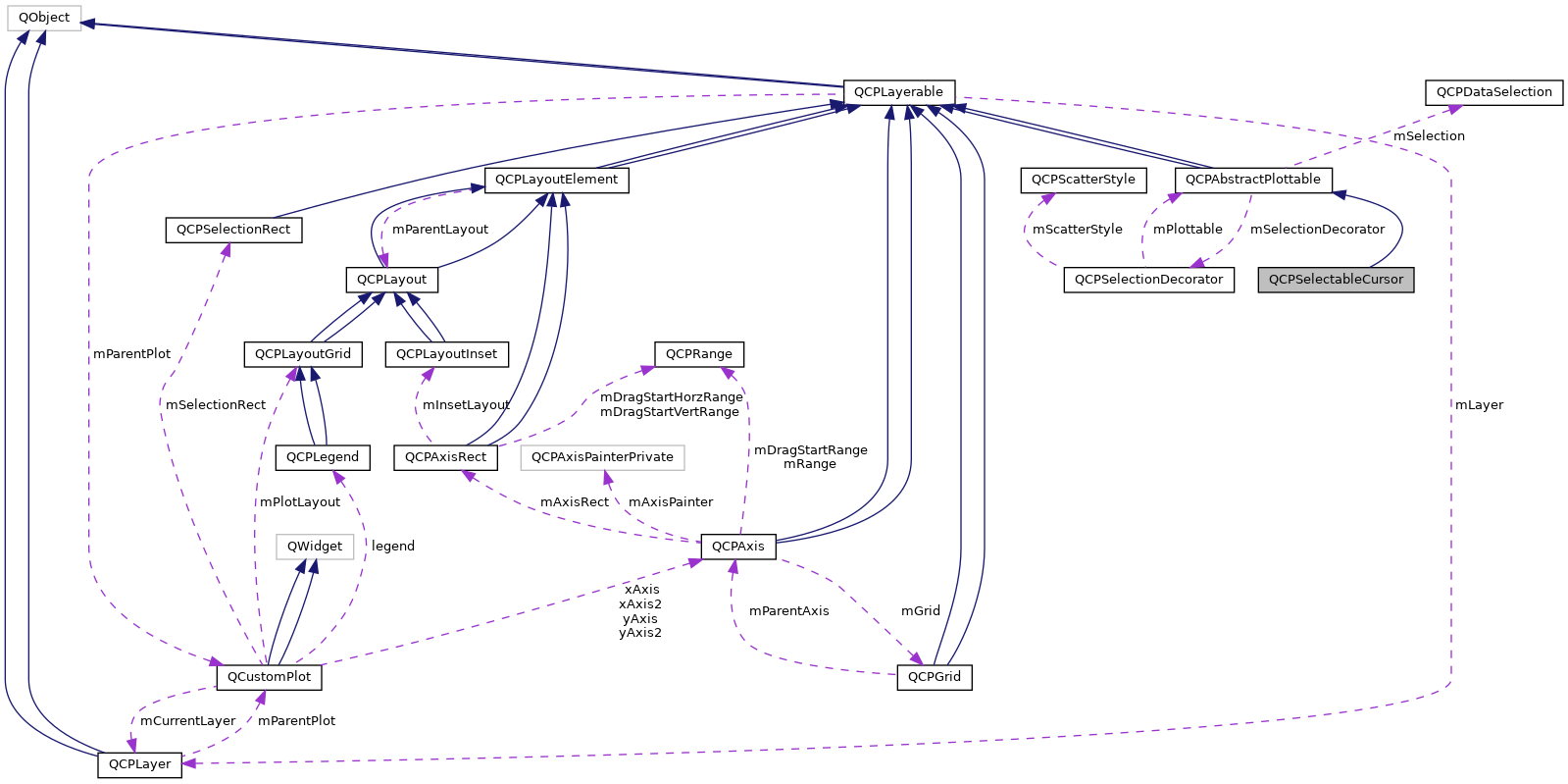

Collaboration diagram for QCPSelectableCursor:

[legend]

Public Member Functions
	QCPSelectableCursor (QCPAxis keyAxis, QCPAxis valueAxis)
	Default constructor. More...

virtual bool	isSelectable (QPoint click) const

double	currentVal () const

double	minVal () const

double	maxVal () const

void	range (double &minVal, double &maxVal) const

void	setCurrentVal (double val)

void	setRange (double minVal, double maxVal)

double	pixelToKey (int pixX) const
	Converts a pixel value (X) to the equivalent key. More...

double	pixelToValue (int pixY) const
	Converts a pixel value (Y) to the equivalent value. More...

virtual void	clearData ()

double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const override

Public Member Functions inherited from QCPAbstractPlottable
	QCPAbstractPlottable (QCPAxis keyAxis, QCPAxis valueAxis)

virtual	~QCPAbstractPlottable ()

QString	name () const

bool	antialiasedFill () const

bool	antialiasedScatters () const

QPen	pen () const

QBrush	brush () const

QCPAxis *	keyAxis () const

QCPAxis *	valueAxis () const

QCP::SelectionType	selectable () const

bool	selected () const

QCPDataSelection	selection () const

QCPSelectionDecorator *	selectionDecorator () const

void	setName (const QString &name)

void	setAntialiasedFill (bool enabled)

void	setAntialiasedScatters (bool enabled)

void	setPen (const QPen &pen)

void	setBrush (const QBrush &brush)

void	setKeyAxis (QCPAxis *axis)

void	setValueAxis (QCPAxis *axis)

Q_SLOT void	setSelectable (QCP::SelectionType selectable)

Q_SLOT void	setSelection (QCPDataSelection selection)

void	setSelectionDecorator (QCPSelectionDecorator *decorator)

virtual QCPPlottableInterface1D *	interface1D ()

void	coordsToPixels (double key, double value, double &x, double &y) const

const QPointF	coordsToPixels (double key, double value) const

void	pixelsToCoords (double x, double y, double &key, double &value) const

void	pixelsToCoords (const QPointF &pixelPos, double &key, double &value) const

void	rescaleAxes (bool onlyEnlarge=false) const

void	rescaleKeyAxis (bool onlyEnlarge=false) const

void	rescaleValueAxis (bool onlyEnlarge=false, bool inKeyRange=false) const

bool	addToLegend (QCPLegend *legend)

bool	addToLegend ()

bool	removeFromLegend (QCPLegend *legend) const

bool	removeFromLegend () const

	QCPAbstractPlottable (QCPAxis keyAxis, QCPAxis valueAxis)

QString	name () const

bool	antialiasedFill () const

bool	antialiasedScatters () const

bool	antialiasedErrorBars () const

QPen	pen () const

QPen	selectedPen () const

QBrush	brush () const

QBrush	selectedBrush () const

QCPAxis *	keyAxis () const

QCPAxis *	valueAxis () const

bool	selectable () const

bool	selected () const

void	setName (const QString &name)

void	setAntialiasedFill (bool enabled)

void	setAntialiasedScatters (bool enabled)

void	setAntialiasedErrorBars (bool enabled)

void	setPen (const QPen &pen)

void	setSelectedPen (const QPen &pen)

void	setBrush (const QBrush &brush)

void	setSelectedBrush (const QBrush &brush)

void	setKeyAxis (QCPAxis *axis)

void	setValueAxis (QCPAxis *axis)

Q_SLOT void	setSelectable (bool selectable)

Q_SLOT void	setSelected (bool selected)

virtual bool	addToLegend ()

virtual bool	removeFromLegend () const

void	rescaleAxes (bool onlyEnlarge=false) const

void	rescaleKeyAxis (bool onlyEnlarge=false) const

void	rescaleValueAxis (bool onlyEnlarge=false) const

Public Member Functions inherited from QCPLayerable
	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)

virtual	~QCPLayerable ()

bool	visible () const

QCustomPlot *	parentPlot () const

QCPLayerable *	parentLayerable () const

QCPLayer *	layer () const

bool	antialiased () const

void	setVisible (bool on)

Q_SLOT bool	setLayer (QCPLayer *layer)

bool	setLayer (const QString &layerName)

void	setAntialiased (bool enabled)

bool	realVisibility () const

	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)

	~QCPLayerable ()

bool	visible () const

QCustomPlot *	parentPlot () const

QCPLayerable *	parentLayerable () const

QCPLayer *	layer () const

bool	antialiased () const

void	setVisible (bool on)

Q_SLOT bool	setLayer (QCPLayer *layer)

bool	setLayer (const QString &layerName)

void	setAntialiased (bool enabled)

bool	realVisibility () const

Protected Member Functions
void	drawLegendIcon (QCPPainter *painter, const QRectF &rect) const override

QCPRange	getKeyRange (bool &foundRange, QCP::SignDomain inSignDomain=QCP::sdBoth) const override

QCPRange	getValueRange (bool &foundRange, QCP::SignDomain inSignDomain=QCP::sdBoth, const QCPRange &inKeyRange=QCPRange()) const override

Protected Member Functions inherited from QCPAbstractPlottable
virtual QRect	clipRect () const

virtual void	draw (QCPPainter *painter)=0

virtual QCP::Interaction	selectionCategory () const

void	applyDefaultAntialiasingHint (QCPPainter *painter) const

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged)

virtual void	deselectEvent (bool *selectionStateChanged)

void	applyFillAntialiasingHint (QCPPainter *painter) const

void	applyScattersAntialiasingHint (QCPPainter *painter) const

virtual QRect	clipRect () const

virtual void	draw (QCPPainter *painter)=0

virtual QCP::Interaction	selectionCategory () const

void	applyDefaultAntialiasingHint (QCPPainter *painter) const

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged)

virtual void	deselectEvent (bool *selectionStateChanged)

virtual QCPRange	getKeyRange (bool &foundRange, SignDomain inSignDomain=sdBoth) const =0

virtual QCPRange	getValueRange (bool &foundRange, SignDomain inSignDomain=sdBoth) const =0

void	coordsToPixels (double key, double value, double &x, double &y) const

const QPointF	coordsToPixels (double key, double value) const

void	pixelsToCoords (double x, double y, double &key, double &value) const

void	pixelsToCoords (const QPointF &pixelPos, double &key, double &value) const

QPen	mainPen () const

QBrush	mainBrush () const

void	applyFillAntialiasingHint (QCPPainter *painter) const

void	applyScattersAntialiasingHint (QCPPainter *painter) const

void	applyErrorBarsAntialiasingHint (QCPPainter *painter) const

double	distSqrToLine (const QPointF &start, const QPointF &end, const QPointF &point) const

Protected Member Functions inherited from QCPLayerable
virtual void	parentPlotInitialized (QCustomPlot *parentPlot)

virtual void	mousePressEvent (QMouseEvent *event, const QVariant &details)

virtual void	mouseMoveEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mouseReleaseEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mouseDoubleClickEvent (QMouseEvent *event, const QVariant &details)

virtual void	wheelEvent (QWheelEvent *event)

void	initializeParentPlot (QCustomPlot *parentPlot)

void	setParentLayerable (QCPLayerable *parentLayerable)

bool	moveToLayer (QCPLayer *layer, bool prepend)

void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

virtual void	parentPlotInitialized (QCustomPlot *parentPlot)

void	initializeParentPlot (QCustomPlot *parentPlot)

void	setParentLayerable (QCPLayerable *parentLayerable)

bool	moveToLayer (QCPLayer *layer, bool prepend)

void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

Protected Attributes
double	mCurrentVal

double	mMinVal

double	mMaxVal

QPoint	mLastPos

int	mLastRadius

Protected Attributes inherited from QCPAbstractPlottable
QString	mName

bool	mAntialiasedFill

bool	mAntialiasedScatters

QPen	mPen

QBrush	mBrush

QPointer< QCPAxis >	mKeyAxis

QPointer< QCPAxis >	mValueAxis

QCP::SelectionType	mSelectable

QCPDataSelection	mSelection

QCPSelectionDecorator *	mSelectionDecorator

bool	mAntialiasedErrorBars

QPen	mSelectedPen

QBrush	mSelectedBrush

bool	mSelectable

bool	mSelected

Protected Attributes inherited from QCPLayerable
bool	mVisible

QCustomPlot *	mParentPlot

QPointer< QCPLayerable >	mParentLayerable

QCPLayer *	mLayer

bool	mAntialiased

Additional Inherited Members
Signals inherited from QCPAbstractPlottable
void	selectionChanged (bool selected)

void	selectionChanged (const QCPDataSelection &selection)

void	selectableChanged (QCP::SelectionType selectable)

void	selectionChanged (bool selected)

void	selectableChanged (bool selectable)

Signals inherited from QCPLayerable
void	layerChanged (QCPLayer *newLayer)

void	layerChanged (QCPLayer *newLayer)

Protected Types inherited from QCPAbstractPlottable
enum	SignDomain { sdNegative , sdBoth , sdPositive }

Detailed Description

QCustomPlot: selectable cursor interface.

Definition at line 173 of file ecvQCustomPlot.h.

Constructor & Destructor Documentation

◆ QCPSelectableCursor()

QCPSelectableCursor::QCPSelectableCursor	(	QCPAxis *	keyAxis,
		QCPAxis *	valueAxis
	)

inlineexplicit

Default constructor.

Definition at line 178 of file ecvQCustomPlot.h.

Member Function Documentation

◆ clearData()

virtual void QCPSelectableCursor::clearData ( )

inlinevirtual

Clears all data in the plottable.

Implements QCPAbstractPlottable.

Definition at line 222 of file ecvQCustomPlot.h.

◆ currentVal()

double QCPSelectableCursor::currentVal ( ) const

inline

Definition at line 195 of file ecvQCustomPlot.h.

References mCurrentVal.

Referenced by ccHistogramWindow::mouseMoveEvent(), ccHistogramWindow::setMaxDispValue(), ccHistogramWindow::setMaxSatValue(), ccHistogramWindow::setMinDispValue(), and ccHistogramWindow::setMinSatValue().

◆ drawLegendIcon()

void QCPSelectableCursor::drawLegendIcon	(	QCPPainter *	painter,
		const QRectF &	rect
	)		const

inlineoverrideprotectedvirtual

Implements QCPAbstractPlottable.

Definition at line 231 of file ecvQCustomPlot.h.

◆ getKeyRange()

QCPRange QCPSelectableCursor::getKeyRange	(	bool &	foundRange,
		QCP::SignDomain	inSignDomain = `QCP::sdBoth`
	)		const

inlineoverrideprotectedvirtual

Returns the coordinate range that all data in this plottable span in the key axis dimension. For logarithmic plots, one can set inSignDomain to either QCP::sdNegative or QCP::sdPositive in order to restrict the returned range to that sign domain. E.g. when only negative range is wanted, set inSignDomain to QCP::sdNegative and all positive points will be ignored for range calculation. For no restriction, just set inSignDomain to QCP::sdBoth (default). foundRange is an output parameter that indicates whether a range could be found or not. If this is false, you shouldn't use the returned range (e.g. no points in data).

Note that foundRange is not the same as QCPRange::validRange, since the range returned by this function may have size zero (e.g. when there is only one data point). In this case foundRange would return true, but the returned range is not a valid range in terms of QCPRange::validRange.

See also: rescaleAxes, getValueRange

Implements QCPAbstractPlottable.

Definition at line 233 of file ecvQCustomPlot.h.

◆ getValueRange()

QCPRange QCPSelectableCursor::getValueRange	(	bool &	foundRange,
		QCP::SignDomain	inSignDomain = `QCP::sdBoth`,
		const QCPRange &	inKeyRange = `QCPRange()`
	)		const

inlineoverrideprotectedvirtual

Returns the coordinate range that the data points in the specified key range (inKeyRange) span in the value axis dimension. For logarithmic plots, one can set inSignDomain to either QCP::sdNegative or QCP::sdPositive in order to restrict the returned range to that sign domain. E.g. when only negative range is wanted, set inSignDomain to QCP::sdNegative and all positive points will be ignored for range calculation. For no restriction, just set inSignDomain to QCP::sdBoth (default). foundRange is an output parameter that indicates whether a range could be found or not. If this is false, you shouldn't use the returned range (e.g. no points in data).

If inKeyRange has both lower and upper bound set to zero (is equal to QCPRange()), all data points are considered, without any restriction on the keys.

Note that foundRange is not the same as QCPRange::validRange, since the range returned by this function may have size zero (e.g. when there is only one data point). In this case foundRange would return true, but the returned range is not a valid range in terms of QCPRange::validRange.

See also: rescaleAxes, getKeyRange

Implements QCPAbstractPlottable.

Definition at line 239 of file ecvQCustomPlot.h.

◆ isSelectable()

virtual bool QCPSelectableCursor::isSelectable ( QPoint click ) const

inlinevirtual

Returns whether the item is "selectable" when the mouse is clicked at a given position

Definition at line 188 of file ecvQCustomPlot.h.

References mLastPos, and mLastRadius.

Referenced by ccHistogramWindow::mousePressEvent().

◆ maxVal()

double QCPSelectableCursor::maxVal ( ) const

inline

Definition at line 197 of file ecvQCustomPlot.h.

References mMaxVal.

Referenced by range(), and setRange().

◆ minVal()

double QCPSelectableCursor::minVal ( ) const

inline

Definition at line 196 of file ecvQCustomPlot.h.

References mMinVal.

Referenced by range(), and setRange().

◆ pixelToKey()

double QCPSelectableCursor::pixelToKey ( int pixX ) const

inline

Converts a pixel value (X) to the equivalent key.

Definition at line 213 of file ecvQCustomPlot.h.

References QCPAbstractPlottable::keyAxis(), and QCPAxis::pixelToCoord().

Referenced by ccHistogramWindow::mouseMoveEvent().

◆ pixelToValue()

double QCPSelectableCursor::pixelToValue ( int pixY ) const

inline

Converts a pixel value (Y) to the equivalent value.

Definition at line 217 of file ecvQCustomPlot.h.

References QCPAxis::pixelToCoord(), and QCPAbstractPlottable::valueAxis().

◆ range()

void QCPSelectableCursor::range	(	double &	minVal,
		double &	maxVal
	)		const

inline

Definition at line 198 of file ecvQCustomPlot.h.

References maxVal(), minVal(), mMaxVal, and mMinVal.

◆ selectTest()

double QCPSelectableCursor::selectTest	(	const QPointF &	pos,
		bool	onlySelectable,
		QVariant *	details = `0`
	)		const

inlineoverridevirtual

This function is used to decide whether a click hits a layerable object or not.

pos is a point in pixel coordinates on the QCustomPlot surface. This function returns the shortest pixel distance of this point to the object. If the object is either invisible or the distance couldn't be determined, -1.0 is returned. Further, if onlySelectable is true and the object is not selectable, -1.0 is returned, too.

If the object is represented not by single lines but by an area like a QCPItemText or the bars of a QCPBars plottable, a click inside the area should also be considered a hit. In these cases this function thus returns a constant value greater zero but still below the parent plot's selection tolerance. (typically the selectionTolerance multiplied by 0.99).

Providing a constant value for area objects allows selecting line objects even when they are obscured by such area objects, by clicking close to the lines (i.e. closer than 0.99*selectionTolerance).

The actual setting of the selection state is not done by this function. This is handled by the parent QCustomPlot when the mouseReleaseEvent occurs, and the finally selected object is notified via the selectEvent/ deselectEvent methods.

details is an optional output parameter. Every layerable subclass may place any information in details. This information will be passed to selectEvent when the parent QCustomPlot decides on the basis of this selectTest call, that the object was successfully selected. The subsequent call to selectEvent will carry the details. This is useful for multi-part objects (like QCPAxis). This way, a possibly complex calculation to decide which part was clicked is only done once in selectTest. The result (i.e. the actually clicked part) can then be placed in details. So in the subsequent selectEvent, the decision which part was selected doesn't have to be done a second time for a single selection operation.

In the case of 1D Plottables (QCPAbstractPlottable1D, like QCPGraph or QCPBars) details will be set to a QCPDataSelection, describing the closest data point to pos.

You may pass 0 as details to indicate that you are not interested in those selection details.

See also: selectEvent, deselectEvent, mousePressEvent, wheelEvent, QCustomPlot::setInteractions, QCPAbstractPlottable1D::selectTestRect

This function is used to decide whether a click hits a layerable object or not.

pos is a point in pixel coordinates on the QCustomPlot surface. This function returns the shortest pixel distance of this point to the object. If the object is either invisible or the distance couldn't be determined, -1.0 is returned. Further, if onlySelectable is true and the object is not selectable, -1.0 is returned, too.

If the object is represented not by single lines but by an area like a QCPItemText or the bars of a QCPBars plottable, a click inside the area should also be considered a hit. In these cases this function thus returns a constant value greater zero but still below the parent plot's selection tolerance. (typically the selectionTolerance multiplied by 0.99).

Providing a constant value for area objects allows selecting line objects even when they are obscured by such area objects, by clicking close to the lines (i.e. closer than 0.99*selectionTolerance).

The actual setting of the selection state is not done by this function. This is handled by the parent QCustomPlot when the mouseReleaseEvent occurs, and the finally selected object is notified via the selectEvent/deselectEvent methods.

details is an optional output parameter. Every layerable subclass may place any information in details. This information will be passed to selectEvent when the parent QCustomPlot decides on the basis of this selectTest call, that the object was successfully selected. The subsequent call to selectEvent will carry the details. This is useful for multi-part objects (like QCPAxis). This way, a possibly complex calculation to decide which part was clicked is only done once in selectTest. The result (i.e. the actually clicked part) can then be placed in details. So in the subsequent selectEvent, the decision which part was selected doesn't have to be done a second time for a single selection operation.

You may pass 0 as details to indicate that you are not interested in those selection details.
