Base abstract class for each implemented PCL filter. More...

#include <BasePclModule.h>

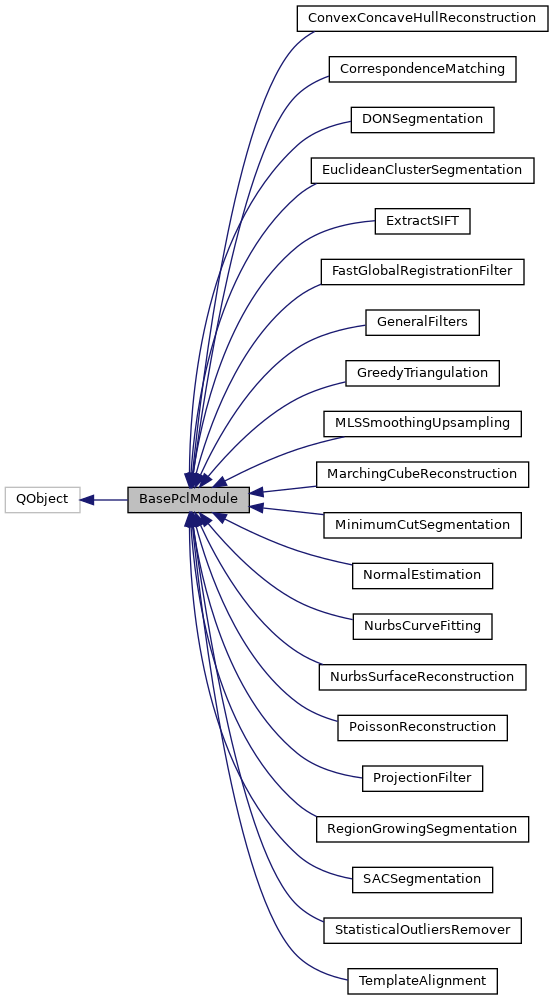

Inheritance diagram for BasePclModule:

[legend]

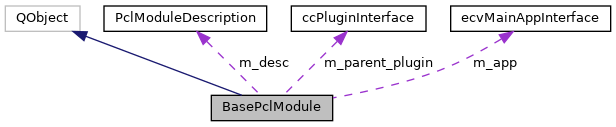

Collaboration diagram for BasePclModule:

[legend]

Signals
void	entityHasChanged (ccHObject *)
	Signal emitted when an entity is (visually) modified. More...

void	newEntity (ccHObject *)
	Signal emitted when a new entity is created by the filter. More...

void	newErrorMessage (QString)
	Signal emitted when a new error message is produced. More...

Public Member Functions
	BasePclModule (PclModuleDescription desc=PclModuleDescription(), ccPluginInterface *parent_plugin=0)
	Default constructor. More...

QAction *	getAction ()
	Get the action associated with the button used in menu and toolbar creation. More...

virtual QString	getErrorMessage (int errorCode)
	Returns the error message corresponding to a given error code. More...

QString	getStatusTip () const
	Returns the status tip. More...

QString	getModuleName () const
	Returns the name of the filter. More...

QString	getEntryName () const
	Returns the entry name. More...

QIcon	getIcon () const
	Returns the icon associated with the button. More...

void	setShowProgressBar (bool status)
	Sets whether to show a progressbar while computing or not. More...

std::vector< std::string >	getSelectedAvailableScalarFields ()

ccPointCloud *	getSelectedEntityAsCCPointCloud () const
	Returns the first selected entity as a ccPointCloud. More...

ccHObject *	getSelectedEntityAsCCHObject () const
	Returns the first selected entity as a ccHObject. More...

ccHObject::Container	getSelectedThatHaveMetaData (const QString key) const
	Get selected object that also have the provided metadata key. More...

void	getAllEntitiesOfType (CV_CLASS_ENUM type, ccHObject::Container &entities)
	Returns all the objects in db tree of type "type". More...

void	getAllEntitiesThatHaveMetaData (QString key, ccHObject::Container &entities)

void	getSelectedEntitiesThatAreCCPointCloud (ccHObject::Container &entities)
	get all entities that are selected and that also are cc_point_cloud More...

void	getSelectedEntitiesThatAre (CV_CLASS_ENUM kind, ccHObject::Container &entities)

int	hasSelectedRGB ()
	Returns 1 if the first selected entity has RGB info. More...

int	hasSelectedScalarField ()
	Returns 1 if the first selected entity has at least one scalar field. More...

int	hasSelectedScalarField (std::string field_name)

int	isFirstSelectedCcPointCloud ()
	Returns 1 if the first selected object is a ccPointCloud. More...

virtual void	updateSelectedEntities (const ccHObject::Container &selectedEntities)
	Updates the internal copy of selected entities. More...

virtual int	compute ()=0
	Performs the actual filter job. More...

void	setMainAppInterface (ecvMainAppInterface *app)
	Sets associated CC application interface (to access DB) More...

ecvMainAppInterface *	getMainAppInterface ()

ccPluginInterface *	getParentPlugin () const
	Returns the associated parent plugin interface. More...

Protected Slots
int	performAction ()
	Returns is called when the dialog window is accepted. More...

Protected Member Functions
virtual int	checkSelected ()
	Checks if current selection is compliant with the filter. More...

virtual int	openInputDialog ()

virtual int	openOutputDialog ()

virtual void	getParametersFromDialog ()
	Collects parameters from the filter dialog (if openDialog is successful) More...

virtual int	checkParameters ()

virtual int	start ()
	Starts computation. More...

virtual void	initAction ()
	Initializes the corresponding action. More...

void	throwError (int errCode)

Protected Attributes
QAction *	m_action
	Forces the Ui to be updated. More...

ccHObject::Container	m_selected
	Pointer to the main window. More...

PclModuleDescription	m_desc
	Associated dialog. More...

ecvMainAppInterface *	m_app
	Associated application interface. More...

ccPluginInterface *	m_parent_plugin
	associated parent plugin of the filter More...

bool	m_show_progress
	Do we want to show a progress bar when the filter works? More...

Detailed Description

Base abstract class for each implemented PCL filter.

Note: Remember to override compute(), at least

Author: DAHAI LU

Definition at line 53 of file BasePclModule.h.

Constructor & Destructor Documentation

◆ BasePclModule()

BasePclModule::BasePclModule	(	PclModuleDescription	desc = `PclModuleDescription()`,
		ccPluginInterface *	parent_plugin = `0`
	)

Default constructor.

Parameters

[in]	desc	a PclModuleDescription structure containing filter infos
[in]	parent_plugin	parent plugin (optional)

Definition at line 37 of file BasePclModule.cpp.

References initAction(), and m_parent_plugin.

Member Function Documentation

◆ checkParameters()

virtual int BasePclModule::checkParameters ( )

inlineprotectedvirtual

Checks that the parameters retrieved by getParametersFromDialog are valid Automatically called by performAction. Does nothing by default. Must be overridden if necessary.

Returns: 1 if parameters are valid (error code otherwise)

Reimplemented in PoissonReconstruction, NurbsSurfaceReconstruction, NurbsCurveFitting, MarchingCubeReconstruction, GreedyTriangulation, ConvexConcaveHullReconstruction, SACSegmentation, RegionGrowingSegmentation, MinimumCutSegmentation, EuclideanClusterSegmentation, DONSegmentation, TemplateAlignment, CorrespondenceMatching, ProjectionFilter, GeneralFilters, and ExtractSIFT.

Definition at line 239 of file BasePclModule.h.

Referenced by performAction().

◆ checkSelected()

int BasePclModule::checkSelected ( )

protectedvirtual

Checks if current selection is compliant with the filter.

If not, an error is returned and computation stops. By default, baseclass method simply checks that selection is composed of one and only one ccPointCloud. This method should be overridden if necessary.

Returns: 1 if selection is compliant (error code otherwise)

Reimplemented in FastGlobalRegistrationFilter, PoissonReconstruction, NurbsSurfaceReconstruction, NurbsCurveFitting, MarchingCubeReconstruction, GreedyTriangulation, ConvexConcaveHullReconstruction, SACSegmentation, RegionGrowingSegmentation, MinimumCutSegmentation, EuclideanClusterSegmentation, DONSegmentation, TemplateAlignment, CorrespondenceMatching, and ExtractSIFT.

Definition at line 139 of file BasePclModule.cpp.

References m_selected, and CV_TYPES::POINT_CLOUD.

Referenced by performAction(), and updateSelectedEntities().

◆ compute()

virtual int BasePclModule::compute ( )

pure virtual

Performs the actual filter job.

This method MUST be re-implemented by derived filter

Returns: 1 if successful (error code otherwise)

Implemented in FastGlobalRegistrationFilter, PoissonReconstruction, NurbsSurfaceReconstruction, NurbsCurveFitting, MarchingCubeReconstruction, GreedyTriangulation, ConvexConcaveHullReconstruction, SACSegmentation, RegionGrowingSegmentation, MinimumCutSegmentation, EuclideanClusterSegmentation, DONSegmentation, TemplateAlignment, CorrespondenceMatching, StatisticalOutliersRemover, ProjectionFilter, MLSSmoothingUpsampling, GeneralFilters, NormalEstimation, and ExtractSIFT.

Referenced by doCompute().

◆ entityHasChanged

void BasePclModule::entityHasChanged ( ccHObject * )

signal

Signal emitted when an entity is (visually) modified.

Referenced by qPCL::addPclModule(), and NormalEstimation::compute().

◆ getAction()

QAction * BasePclModule::getAction ( )

Get the action associated with the button used in menu and toolbar creation.

Definition at line 216 of file BasePclModule.cpp.

References m_action.

Referenced by qPCL::addPclModule().

◆ getAllEntitiesOfType()

void BasePclModule::getAllEntitiesOfType	(	CV_CLASS_ENUM	type,
		ccHObject::Container &	entities
	)

Returns all the objects in db tree of type "type".

Definition at line 285 of file BasePclModule.cpp.

References ecvMainAppInterface::dbRootObject(), ccHObject::filterChildren(), m_app, and type.

Referenced by getAllEntitiesThatHaveMetaData().

◆ getAllEntitiesThatHaveMetaData()

void BasePclModule::getAllEntitiesThatHaveMetaData	(	QString	key,
		ccHObject::Container &	entities
	)

Returns all the existent hierarchical objects which have a specific metadata May return an empty container if none found.

Definition at line 292 of file BasePclModule.cpp.

References getAllEntitiesOfType(), and CV_TYPES::HIERARCHY_OBJECT.

◆ getEntryName()

QString BasePclModule::getEntryName ( ) const

Returns the entry name.

Entry name is used when creating the corresponding QAction by initAction

Definition at line 210 of file BasePclModule.cpp.

References m_desc, and PclModuleDescription::m_entry_name.

Referenced by initAction().

◆ getErrorMessage()

QString BasePclModule::getErrorMessage ( int errorCode )

virtual

Returns the error message corresponding to a given error code.

Each filter have a set of possible error message to be used given bt getFilterErrorMessage() Baseclass implementation provides some generic messages.

Note: These messages can be replaced by re-implementing this method and handling the same codes BEFORE calling the baseclass method

Reimplemented in FastGlobalRegistrationFilter, PoissonReconstruction, NurbsSurfaceReconstruction, NurbsCurveFitting, MarchingCubeReconstruction, GreedyTriangulation, ConvexConcaveHullReconstruction, SACSegmentation, RegionGrowingSegmentation, MinimumCutSegmentation, EuclideanClusterSegmentation, DONSegmentation, TemplateAlignment, CorrespondenceMatching, ProjectionFilter, GeneralFilters, and ExtractSIFT.

Definition at line 218 of file BasePclModule.cpp.

References getModuleName().

◆ getIcon()

QIcon BasePclModule::getIcon ( ) const

Returns the icon associated with the button.

Definition at line 214 of file BasePclModule.cpp.

References m_desc, and PclModuleDescription::m_icon.

Referenced by initAction().

◆ getMainAppInterface()

ecvMainAppInterface* BasePclModule::getMainAppInterface ( )

inline

Returns associated CC application interface for accessing to some of mainWindow methods

Definition at line 165 of file BasePclModule.h.

References m_app.

◆ getModuleName()

QString BasePclModule::getModuleName ( ) const

Returns the name of the filter.

Definition at line 208 of file BasePclModule.cpp.

References m_desc, and PclModuleDescription::m_module_name.

Referenced by getErrorMessage(), and start().

◆ getParametersFromDialog()

virtual void BasePclModule::getParametersFromDialog ( )

inlineprotectedvirtual

Collects parameters from the filter dialog (if openDialog is successful)

Automatically called by performAction. Does nothing by default. Must be overridden if necessary.

Reimplemented in FastGlobalRegistrationFilter, PoissonReconstruction, NurbsSurfaceReconstruction, NurbsCurveFitting, MarchingCubeReconstruction, GreedyTriangulation, ConvexConcaveHullReconstruction, SACSegmentation, RegionGrowingSegmentation, MinimumCutSegmentation, EuclideanClusterSegmentation, DONSegmentation, TemplateAlignment, CorrespondenceMatching, StatisticalOutliersRemover, ProjectionFilter, MLSSmoothingUpsampling, GeneralFilters, NormalEstimation, and ExtractSIFT.

Definition at line 231 of file BasePclModule.h.

Referenced by performAction().

◆ getParentPlugin()

ccPluginInterface* BasePclModule::getParentPlugin ( ) const

inline

Returns the associated parent plugin interface.

Definition at line 168 of file BasePclModule.h.

References m_parent_plugin.

◆ getSelectedAvailableScalarFields()

std::vector< std::string > BasePclModule::getSelectedAvailableScalarFields ( )

Returns a vector of strings representing the names of the available scalar fields For the first selected entity.

Definition at line 344 of file BasePclModule.cpp.

References cloudViewer::PointCloudTpl< T >::getNumberOfScalarFields(), cloudViewer::PointCloudTpl< T >::getScalarFieldName(), and getSelectedEntityAsCCPointCloud().

Referenced by ExtractSIFT::openInputDialog().

◆ getSelectedEntitiesThatAre()

void BasePclModule::getSelectedEntitiesThatAre	(	CV_CLASS_ENUM	kind,
		ccHObject::Container &	entities
	)

get all entities that are selected and that also are of the specified type

Definition at line 315 of file BasePclModule.cpp.

References ccObject::isA(), and m_selected.

◆ getSelectedEntitiesThatAreCCPointCloud()

void BasePclModule::getSelectedEntitiesThatAreCCPointCloud ( ccHObject::Container & entities )

get all entities that are selected and that also are cc_point_cloud

Definition at line 304 of file BasePclModule.cpp.

References ccObject::isA(), m_selected, and CV_TYPES::POINT_CLOUD.

◆ getSelectedEntityAsCCHObject()

ccHObject * BasePclModule::getSelectedEntityAsCCHObject ( ) const

Returns the first selected entity as a ccHObject.

Returns: nullptr if no object is selected

Definition at line 266 of file BasePclModule.cpp.

References m_selected.

◆ getSelectedEntityAsCCPointCloud()

ccPointCloud * BasePclModule::getSelectedEntityAsCCPointCloud ( ) const

Returns the first selected entity as a ccPointCloud.

Returns: nullptr if no cloud is selected or if is not a ccPointCloud

Definition at line 256 of file BasePclModule.cpp.

References ccObject::isA(), m_selected, CV_TYPES::POINT_CLOUD, and ccHObjectCaster::ToPointCloud().

Referenced by ExtractSIFT::compute(), NormalEstimation::compute(), GeneralFilters::compute(), MLSSmoothingUpsampling::compute(), ProjectionFilter::compute(), StatisticalOutliersRemover::compute(), DONSegmentation::compute(), EuclideanClusterSegmentation::compute(), MinimumCutSegmentation::compute(), RegionGrowingSegmentation::compute(), SACSegmentation::compute(), ConvexConcaveHullReconstruction::compute(), GreedyTriangulation::compute(), MarchingCubeReconstruction::compute(), NurbsCurveFitting::compute(), NurbsSurfaceReconstruction::compute(), PoissonReconstruction::compute(), getSelectedAvailableScalarFields(), hasSelectedRGB(), hasSelectedScalarField(), NormalEstimation::openInputDialog(), MinimumCutSegmentation::openInputDialog(), RegionGrowingSegmentation::openInputDialog(), GreedyTriangulation::openInputDialog(), MarchingCubeReconstruction::openInputDialog(), and PoissonReconstruction::openInputDialog().

◆ getSelectedThatHaveMetaData()

ccHObject::Container BasePclModule::getSelectedThatHaveMetaData ( const QString key ) const

Get selected object that also have the provided metadata key.

Definition at line 273 of file BasePclModule.cpp.

References ccObject::hasMetaData(), and m_selected.

◆ getStatusTip()

QString BasePclModule::getStatusTip ( ) const

Returns the status tip.

Status tip is visualized in status bar when button is hovered. used in QAction creation

Definition at line 212 of file BasePclModule.cpp.

References m_desc, and PclModuleDescription::m_status_tip.

Referenced by initAction().

◆ hasSelectedRGB()

int BasePclModule::hasSelectedRGB ( )

Returns 1 if the first selected entity has RGB info.

Definition at line 365 of file BasePclModule.cpp.

References getSelectedEntityAsCCPointCloud(), ccPointCloud::hasColors(), and isFirstSelectedCcPointCloud().

Referenced by ExtractSIFT::checkSelected(), and ExtractSIFT::openInputDialog().

◆ hasSelectedScalarField() [1/2]

int BasePclModule::hasSelectedScalarField ( )

Returns 1 if the first selected entity has at least one scalar field.

Definition at line 335 of file BasePclModule.cpp.

References getSelectedEntityAsCCPointCloud(), ccPointCloud::hasScalarFields(), and isFirstSelectedCcPointCloud().

Referenced by ExtractSIFT::checkSelected().

◆ hasSelectedScalarField() [2/2]

int BasePclModule::hasSelectedScalarField ( std::string field_name )

Returns 1 if the first selected entity has a scalar field with name field_name

Definition at line 326 of file BasePclModule.cpp.

References cloudViewer::PointCloudTpl< T >::getScalarFieldIndexByName(), getSelectedEntityAsCCPointCloud(), and result.

◆ initAction()

void BasePclModule::initAction ( )

protectedvirtual

Initializes the corresponding action.

Action can be retrieved with getAction.

Definition at line 44 of file BasePclModule.cpp.

References getEntryName(), getIcon(), getStatusTip(), m_action, and performAction().

Referenced by BasePclModule().

◆ isFirstSelectedCcPointCloud()

int BasePclModule::isFirstSelectedCcPointCloud ( )

◆ newEntity

void BasePclModule::newEntity ( ccHObject * )

signal

Signal emitted when a new entity is created by the filter.

Referenced by qPCL::addPclModule(), ExtractSIFT::compute(), GeneralFilters::compute(), MLSSmoothingUpsampling::compute(), ProjectionFilter::compute(), StatisticalOutliersRemover::compute(), CorrespondenceMatching::compute(), TemplateAlignment::compute(), DONSegmentation::compute(), EuclideanClusterSegmentation::compute(), MinimumCutSegmentation::compute(), RegionGrowingSegmentation::compute(), SACSegmentation::compute(), ConvexConcaveHullReconstruction::compute(), GreedyTriangulation::compute(), MarchingCubeReconstruction::compute(), NurbsCurveFitting::compute(), NurbsSurfaceReconstruction::compute(), and PoissonReconstruction::compute().

◆ newErrorMessage

void BasePclModule::newErrorMessage ( QString )

signal

Signal emitted when a new error message is produced.

Referenced by qPCL::addPclModule(), and throwError().

◆ openInputDialog()

virtual int BasePclModule::openInputDialog ( )

inlineprotectedvirtual

Opens the input dialog window. Where the user can supply parameters for the computation Automatically called by performAction. Does nothing by default. Must be overridden if a dialog must be displayed.

Returns: 1 if dialog has been successfully executed, 0 if canceled, negative error code otherwise

Reimplemented in PoissonReconstruction, NurbsSurfaceReconstruction, NurbsCurveFitting, MarchingCubeReconstruction, GreedyTriangulation, ConvexConcaveHullReconstruction, SACSegmentation, RegionGrowingSegmentation, MinimumCutSegmentation, EuclideanClusterSegmentation, DONSegmentation, TemplateAlignment, CorrespondenceMatching, StatisticalOutliersRemover, ProjectionFilter, MLSSmoothingUpsampling, GeneralFilters, NormalEstimation, and ExtractSIFT.

Definition at line 215 of file BasePclModule.h.

Referenced by performAction().

◆ openOutputDialog()

virtual int BasePclModule::openOutputDialog ( )

inlineprotectedvirtual

Opens the output dialog window. To be used when the computations have output to be shown in a dedicated dialog (as plots, histograms, etc) Automatically called by performAction. Does nothing by default. Must be overridden if a output dialog must be displayed.

Returns: 1 if dialog has been successfully executed, 0 if canceled, negative error code otherwise

Definition at line 225 of file BasePclModule.h.

Referenced by performAction().

◆ performAction

int BasePclModule::performAction ( )

protectedslot

Returns is called when the dialog window is accepted.

it can be overridden but normally should not be necessary the parameters will be retrieved from the dialog via the getParametersFromDialog() method this always need to be overridden. Called when action is triggered

Note: performAction calls start() in base class

Definition at line 68 of file BasePclModule.cpp.

References ccHObject::applyGLTransformation_recursive(), checkParameters(), checkSelected(), getParametersFromDialog(), ccHObject::getViewId(), m_app, m_selected, openInputDialog(), openOutputDialog(), CV_TYPES::POINT_CLOUD, ecvMainAppInterface::putObjectBackIntoDBTree(), ecvDisplayTools::RedrawDisplay(), ecvDisplayTools::RemoveBB(), ecvMainAppInterface::removeObjectTemporarilyFromDBTree(), ccHObject::setRedrawFlagRecursive(), ecvDisplayTools::SetRedrawRecursive(), start(), throwError(), and ccHObjectCaster::ToPointCloud().

Referenced by initAction().

◆ setMainAppInterface()

void BasePclModule::setMainAppInterface ( ecvMainAppInterface * app )

inline

Sets associated CC application interface (to access DB)

Definition at line 161 of file BasePclModule.h.

References m_app.

Referenced by qPCL::addPclModule().

◆ setShowProgressBar()

void BasePclModule::setShowProgressBar ( bool status )

inline

Sets whether to show a progressbar while computing or not.

Definition at line 95 of file BasePclModule.h.

References m_show_progress.

◆ start()

int BasePclModule::start ( )

protectedvirtual

Starts computation.

Automatically called by performAction. By default, baseclass method simply calls compute Can be overridden if needed (e.g. a pre-processing step before compute())

Returns: 1 if whole process is successful (error code otherwise)

Definition at line 162 of file BasePclModule.cpp.

References doCompute(), getModuleName(), m_show_progress, s_computeStatus, s_computing, s_module, cloudViewer::utility::Sleep(), and throwError().

Referenced by performAction().

◆ throwError()

void BasePclModule::throwError ( int errCode )

protected

Emits the error corresponding to a given error code (see newErrorMessage) Error messages are retrieved from getErrorMessage() and getFilterErrorMessage()

Parameters

errCode Error code (identifies a given error message)

Definition at line 53 of file BasePclModule.cpp.

References getErrorMessage(), and newErrorMessage().

Referenced by performAction(), and start().

◆ updateSelectedEntities()

void BasePclModule::updateSelectedEntities ( const ccHObject::Container & selectedEntities )

virtual

Updates the internal copy of selected entities.

'selectedEntities' is a vector of pointers to selected entities.

Definition at line 61 of file BasePclModule.cpp.

References checkSelected(), m_action, and m_selected.

Member Data Documentation

◆ m_action

QAction* BasePclModule::m_action

protected

Forces the Ui to be updated.

Simply calls m_q_parent->UpdateUI(); The filter action (created by initAction)

Definition at line 269 of file BasePclModule.h.

Referenced by getAction(), initAction(), and updateSelectedEntities().

◆ m_app

ecvMainAppInterface* BasePclModule::m_app

protected

Associated application interface.

Definition at line 296 of file BasePclModule.h.

◆ m_desc

PclModuleDescription BasePclModule::m_desc

protected

Associated dialog.

Created inside the derived class constructor Filter information Contains all informations about the given filter, as name etc.. Passed to the BasePclModule class constructor.

Definition at line 293 of file BasePclModule.h.

Referenced by getEntryName(), getIcon(), getModuleName(), and getStatusTip().

◆ m_parent_plugin

ccPluginInterface* BasePclModule::m_parent_plugin

protected

associated parent plugin of the filter

Definition at line 299 of file BasePclModule.h.

Referenced by BasePclModule(), and getParentPlugin().

◆ m_selected

ccHObject::Container BasePclModule::m_selected

protected

Pointer to the main window.

Used for accessing qCC functionalities from filters Currently selected entities Updated using updateSelectedEntities()

Note: DGM: now called by qPCL! (see MVC architecture)

Definition at line 281 of file BasePclModule.h.

Referenced by checkSelected(), FastGlobalRegistrationFilter::checkSelected(), FastGlobalRegistrationFilter::getParametersFromDialog(), getSelectedEntitiesThatAre(), getSelectedEntitiesThatAreCCPointCloud(), getSelectedEntityAsCCHObject(), getSelectedEntityAsCCPointCloud(), getSelectedThatHaveMetaData(), isFirstSelectedCcPointCloud(), performAction(), and updateSelectedEntities().

◆ m_show_progress

bool BasePclModule::m_show_progress

protected

Do we want to show a progress bar when the filter works?

Definition at line 302 of file BasePclModule.h.

Referenced by setShowProgressBar(), and start().

The documentation for this class was generated from the following files:

/root/ACloudViewer/plugins/core/Standard/qPCL/PclAlgorithms/BasePclModule.h
/root/ACloudViewer/plugins/core/Standard/qPCL/PclAlgorithms/BasePclModule.cpp

Signals

Public Member Functions

Protected Slots

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ BasePclModule()

Member Function Documentation

◆ checkParameters()

◆ checkSelected()

◆ compute()

◆ entityHasChanged

◆ getAction()

◆ getAllEntitiesOfType()

◆ getAllEntitiesThatHaveMetaData()

◆ getEntryName()

◆ getErrorMessage()

◆ getIcon()

◆ getMainAppInterface()

◆ getModuleName()

◆ getParametersFromDialog()

◆ getParentPlugin()

◆ getSelectedAvailableScalarFields()

◆ getSelectedEntitiesThatAre()

◆ getSelectedEntitiesThatAreCCPointCloud()

◆ getSelectedEntityAsCCHObject()

◆ getSelectedEntityAsCCPointCloud()

◆ getSelectedThatHaveMetaData()

◆ getStatusTip()

◆ hasSelectedRGB()

◆ hasSelectedScalarField() [1/2]

◆ hasSelectedScalarField() [2/2]

◆ initAction()

◆ isFirstSelectedCcPointCloud()

◆ newEntity

◆ newErrorMessage

◆ openInputDialog()

◆ openOutputDialog()

◆ performAction

◆ setMainAppInterface()

◆ setShowProgressBar()

◆ start()

◆ throwError()

◆ updateSelectedEntities()

Member Data Documentation

◆ m_action

◆ m_app

◆ m_desc

◆ m_parent_plugin

◆ m_selected

◆ m_show_progress
