Graphical segmentation mechanism (with polyline) More...

#include <ecvGraphicalSegmentationTool.h>

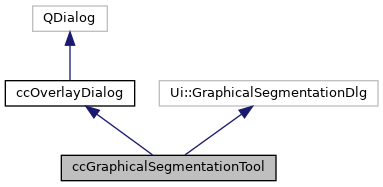

Inheritance diagram for ccGraphicalSegmentationTool:

[legend]

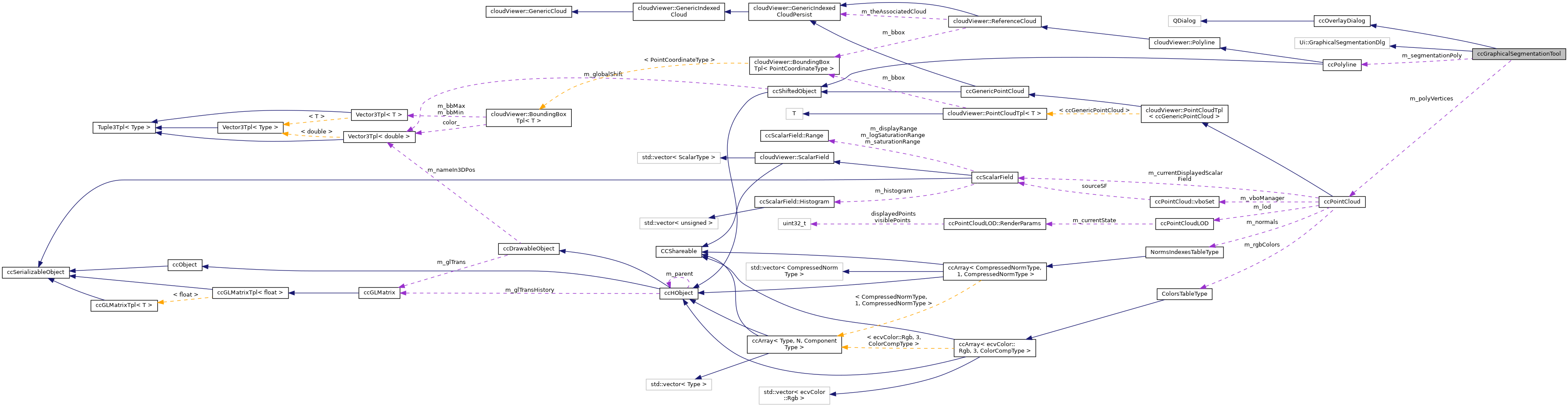

Collaboration diagram for ccGraphicalSegmentationTool:

[legend]

Public Member Functions
	ccGraphicalSegmentationTool (QWidget *parent)
	Default constructor. More...

virtual	~ccGraphicalSegmentationTool ()
	Destructor. More...

bool	addEntity (ccHObject *anObject, bool silent=false)
	Adds an entity (and/or its children) to the 'to be segmented' pool. More...

unsigned	getNumberOfValidEntities () const

ccPolyline *	getPolyLine ()
	Get a pointer to the polyline that has been segmented. More...

QSet< ccHObject * > &	entities ()
	Returns the active 'to be segmented' set. More...

const QSet< ccHObject * > &	entities () const
	Returns the active 'to be segmented' set (const version) More...

virtual bool	linkWith (QWidget *win) override
	Links the overlay dialog with a MDI window. More...

virtual bool	start () override
	Starts process. More...

virtual void	stop (bool accepted) override
	Stops process/dialog. More...

bool	deleteHiddenParts () const
	Returns whether hidden parts should be delete after segmentation. More...

void	removeAllEntities ()
	Remove entities from the 'to be segmented' pool. More...

bool	applySegmentation (ecvMainAppInterface *app, ccHObject::Container &newEntities)
	Apply segmentation and update the database (helper) More...

Public Member Functions inherited from ccOverlayDialog
	ccOverlayDialog (QWidget *parent=nullptr, Qt::WindowFlags flags=Qt::FramelessWindowHint\|Qt::Tool)
	Default constructor. More...

	~ccOverlayDialog () override
	Destructor. More...

void	reject () override

void	addOverridenShortcut (Qt::Key key)

bool	started () const
	Returns whether the tool is currently started or not. More...

Protected Types
enum	ProcessStates { POLYLINE = 1 , RECTANGLE = 2 , PAUSED = 32 , STARTED = 64 , RUNNING = 128 }
	Process states. More...

Protected Slots
void	segmentIn ()

void	segmentOut ()

void	segment (bool)

void	reset ()

void	apply ()

void	applyAndDelete ()

void	cancel ()

void	addPointToPolyline (int x, int y)

void	closePolyLine (int x=0, int y=0)

void	updateSegmentation ()

void	closeRectangle ()

void	updatePolyLine (int x, int y, Qt::MouseButtons buttons)

void	pauseSegmentationMode (bool state, bool only2D=true)

void	pauseSegmentation (bool state)

void	resetSegmentation ()

void	doSetPolylineSelection ()

void	doSetRectangularSelection ()

void	doActionUseExistingPolyline ()

void	doExportSegmentationPolyline ()

void	onShortcutTriggered (int)
	To capture overridden shortcuts (pause button, etc.) More...

void	prepareEntityForRemoval (ccHObject *entity, bool unallocateVisibilityArrays)
	Prepare entity before removal. More...

void	allowPolylineExport (bool state)
	Whether to allow or not to exort the current segmentation polyline. More...

Protected Slots inherited from ccOverlayDialog
virtual void	onLinkedWindowDeletion (QObject *object=nullptr)
	Slot called when the linked window is deleted (calls 'onClose') More...

Protected Member Functions
void	setDrawFlag (bool state=true)

Protected Member Functions inherited from ccOverlayDialog
bool	eventFilter (QObject obj, QEvent e) override

Protected Attributes
QSet< ccHObject * >	m_toSegment
	Set of entities to be segmented. More...

bool	m_somethingHasChanged
	Whether something has changed or not (for proper 'cancel') More...

unsigned	m_state
	Current process state. More...

ccPolyline *	m_segmentationPoly
	Segmentation polyline. More...

ccPointCloud *	m_polyVertices
	Segmentation polyline vertices. More...

bool	m_rectangularSelection
	Selection mode. More...

bool	m_deleteHiddenParts
	Whether to delete hidden parts after segmentation. More...

Protected Attributes inherited from ccOverlayDialog
QWidget *	m_associatedWin
	Associated (MDI) window. More...

bool	m_processing
	Running/processing state. More...

QList< int >	m_overriddenKeys
	Overridden keys. More...

Additional Inherited Members
Signals inherited from ccOverlayDialog
void	processFinished (bool accepted)
	Signal emitted when process is finished. More...

void	shortcutTriggered (int key)
	Signal emitted when an overridden key shortcut is pressed. More...

void	shown ()
	Signal emitted when a 'show' event is detected. More...

Detailed Description

Graphical segmentation mechanism (with polyline)

Definition at line 27 of file ecvGraphicalSegmentationTool.h.

Member Enumeration Documentation

◆ ProcessStates

enum ccGraphicalSegmentationTool::ProcessStates

protected

Process states.

Enumerator
POLYLINE
RECTANGLE
PAUSED
STARTED
RUNNING

Definition at line 118 of file ecvGraphicalSegmentationTool.h.

Constructor & Destructor Documentation

◆ ccGraphicalSegmentationTool()

ccGraphicalSegmentationTool::ccGraphicalSegmentationTool ( QWidget * parent )

explicit

◆ ~ccGraphicalSegmentationTool()

ccGraphicalSegmentationTool::~ccGraphicalSegmentationTool ( )

virtual

Destructor.

Definition at line 138 of file ecvGraphicalSegmentationTool.cpp.

References m_polyVertices, and m_segmentationPoly.

Member Function Documentation

◆ addEntity()

bool ccGraphicalSegmentationTool::addEntity	(	ccHObject *	anObject,
		bool	silent = `false`
	)

Adds an entity (and/or its children) to the 'to be segmented' pool.

Warning: some entities may be rejected if they are locked, or can't be segmented this way.

Returns: whether entity has been added to the pool or not

Definition at line 325 of file ecvGraphicalSegmentationTool.cpp.

References cloudViewer::ReferenceCloud::getAssociatedCloud(), ccGenericMesh::getAssociatedCloud(), ccHObject::getChild(), ccHObject::getChildrenNumber(), ccObject::getName(), CV_TYPES::HIERARCHY_OBJECT, ccObject::isA(), ccGenericMesh::IsCloudVerticesOfMesh(), ccPolyline::IsCloudVerticesOfPolyline(), ccObject::isKindOf(), m_toSegment, CV_TYPES::MESH, CV_TYPES::POINT_CLOUD, CV_TYPES::POLY_LINE, ccHObject::popDisplayState(), CV_TYPES::PRIMITIVE, ccHObject::pushDisplayState(), result, ccObject::setEnabled(), ccDrawableObject::setVisible(), CV_TYPES::SUB_MESH, ccHObjectCaster::ToGenericMesh(), ccHObjectCaster::ToGenericPointCloud(), ccHObjectCaster::ToPolyline(), and CVLog::Warning().

◆ addPointToPolyline

void ccGraphicalSegmentationTool::addPointToPolyline	(	int	x,
		int	y
	)

protectedslot

◆ allowPolylineExport

void ccGraphicalSegmentationTool::allowPolylineExport ( bool state )

protectedslot

Whether to allow or not to exort the current segmentation polyline.

Definition at line 129 of file ecvGraphicalSegmentationTool.cpp.

Referenced by addPointToPolyline(), ccGraphicalSegmentationTool(), closePolyLine(), closeRectangle(), doActionUseExistingPolyline(), pauseSegmentationMode(), start(), and updatePolyLine().

◆ apply

void ccGraphicalSegmentationTool::apply ( )

protectedslot

Definition at line 1065 of file ecvGraphicalSegmentationTool.cpp.

References m_deleteHiddenParts, and stop().

Referenced by ccGraphicalSegmentationTool().

◆ applyAndDelete

void ccGraphicalSegmentationTool::applyAndDelete ( )

protectedslot

Definition at line 1070 of file ecvGraphicalSegmentationTool.cpp.

References m_deleteHiddenParts, and stop().

Referenced by ccGraphicalSegmentationTool().

◆ applySegmentation()

bool ccGraphicalSegmentationTool::applySegmentation	(	ecvMainAppInterface *	app,
		ccHObject::Container &	newEntities
	)

Apply segmentation and update the database (helper)

Definition at line 1130 of file ecvGraphicalSegmentationTool.cpp.

References ccHObject::addChild(), ecvMainAppInterface::addToDB(), ccGBLSensor::clearDepthBuffer(), ccGenericPointCloud::createNewCloudFromVisibilitySelection(), ccMesh::createNewMeshFromSelection(), ccPolyline::createNewPolylinesFromSelection(), ecvMainAppInterface::dbRootObject(), cc2DLabel::PickedPoint::entity(), CVLog::Error(), ccHObject::filterChildren(), CV_TYPES::GBL_SENSOR, cloudViewer::ReferenceCloud::getAssociatedCloud(), ccGenericMesh::getAssociatedCloud(), ccObject::getName(), ccHObject::getParent(), cc2DLabel::getPickedPoint(), ccObject::isA(), ccHObject::isAncestorOf(), ccGenericMesh::IsCloudVerticesOfMesh(), ccPolyline::IsCloudVerticesOfPolyline(), ccObject::isKindOf(), ccObject::isLocked(), CV_TYPES::LABEL_2D, m_deleteHiddenParts, m_toSegment, CV_TYPES::MESH, ecvMainAppInterface::ccHObjectContext::parent, CV_TYPES::POINT_CLOUD, CV_TYPES::POLY_LINE, prepareEntityForRemoval(), ecvMainAppInterface::putObjectBackIntoDBTree(), removeAllEntities(), ccHObject::removeChild(), ecvMainAppInterface::removeObjectTemporarilyFromDBTree(), RemoveUnusedLabelsAndUpdateTheOthers(), ccObject::setName(), cc2DLabel::size(), cloudViewer::GenericCloud::size(), cloudViewer::GenericMesh::size(), cloudViewer::ReferenceCloud::size(), ccMesh::size(), ccHObjectCaster::ToGBLSensor(), ccHObjectCaster::ToGenericMesh(), ccHObjectCaster::ToGenericPointCloud(), ccHObjectCaster::ToMesh(), and CVLog::Warning().

◆ cancel

void ccGraphicalSegmentationTool::cancel ( )

protectedslot

Definition at line 1075 of file ecvGraphicalSegmentationTool.cpp.

References m_deleteHiddenParts, reset(), and stop().

Referenced by ccGraphicalSegmentationTool().

◆ closePolyLine

void ccGraphicalSegmentationTool::closePolyLine	(	int	x = `0`,
		int	y = `0`
	)

protectedslot

Definition at line 613 of file ecvGraphicalSegmentationTool.cpp.

References allowPolylineExport(), ccPointCloud::clear(), cloudViewer::Polyline::clear(), m_polyVertices, m_segmentationPoly, m_state, POLYLINE, cloudViewer::ReferenceCloud::resize(), RUNNING, cloudViewer::Polyline::setClosed(), cloudViewer::ReferenceCloud::size(), and updateSegmentation().

Referenced by linkWith().

◆ closeRectangle

void ccGraphicalSegmentationTool::closeRectangle ( )

protectedslot

Definition at line 591 of file ecvGraphicalSegmentationTool.cpp.

References allowPolylineExport(), ccPointCloud::clear(), cloudViewer::Polyline::clear(), m_polyVertices, m_rectangularSelection, m_segmentationPoly, m_state, RECTANGLE, RUNNING, cloudViewer::ReferenceCloud::size(), and updateSegmentation().

Referenced by linkWith().

◆ deleteHiddenParts()

bool ccGraphicalSegmentationTool::deleteHiddenParts ( ) const

inline

Returns whether hidden parts should be delete after segmentation.

Definition at line 62 of file ecvGraphicalSegmentationTool.h.

References m_deleteHiddenParts.

◆ doActionUseExistingPolyline

void ccGraphicalSegmentationTool::doActionUseExistingPolyline ( )

protectedslot

Definition at line 836 of file ecvGraphicalSegmentationTool.cpp.

References cloudViewer::PointCloudTpl< T >::addPoint(), cloudViewer::ReferenceCloud::addPointIndex(), allowPolylineExport(), ccPointCloud::clear(), cloudViewer::Polyline::clear(), MainWindow::dbRootObject(), doSetPolylineSelection(), CVLog::Error(), ccHObject::filterChildren(), cloudViewer::ReferenceCloud::getAssociatedCloud(), ecvDisplayTools::GetGLCameraParameters(), ecvDisplayTools::GetMainWindow(), cc2DViewportObject::getParameters(), cloudViewer::GenericIndexedCloud::getPoint(), cloudViewer::PointCloudTpl< T >::getPoint(), cloudViewer::ReferenceCloud::getPointGlobalIndex(), ccPolyline::is2DMode(), cloudViewer::Polyline::isClosed(), m_polyVertices, m_rectangularSelection, m_segmentationPoly, m_state, pauseSegmentationMode(), CV_TYPES::POLY_LINE, POLYLINE, ccGLCameraParameters::project(), ecvDisplayTools::RedrawDisplay(), cloudViewer::ReferenceCloud::reserve(), ccPointCloud::reserve(), RUNNING, ccItemSelectionDlg::SelectEntity(), cloudViewer::Polyline::setClosed(), ecvDisplayTools::SetRedrawRecursive(), ecvDisplayTools::SetViewportParameters(), cloudViewer::GenericCloud::size(), cloudViewer::ReferenceCloud::size(), MainWindow::TheInstance(), updateSegmentation(), CV_TYPES::VIEWPORT_2D_OBJECT, Tuple3Tpl< Type >::x, Tuple3Tpl< Type >::y, and Tuple3Tpl< Type >::z.

Referenced by ccGraphicalSegmentationTool().

◆ doExportSegmentationPolyline

void ccGraphicalSegmentationTool::doExportSegmentationPolyline ( )

protectedslot

Definition at line 946 of file ecvGraphicalSegmentationTool.cpp.

References ccHObject::addChild(), MainWindow::addToDB(), Vector3Tpl< PointCoordinateType >::fromArray(), cloudViewer::ReferenceCloud::getAssociatedCloud(), ecvDisplayTools::GetClick3DPos(), ecvDisplayTools::GetGLCameraParameters(), ccShiftedObject::getGlobalScale(), ccShiftedObject::getGlobalShift(), cloudViewer::PointCloudTpl< T >::getPoint(), ecvDisplayTools::GetViewportParameters(), height, ccPointCloud::invalidateBoundingBox(), ccShiftedObject::isShifted(), m_segmentationPoly, m_toSegment, CVLog::Print(), s_polylineExportCount, ccPolyline::set2DMode(), cloudViewer::Polyline::setClosed(), ccPolyline::setColor(), ccObject::setEnabled(), ccPolyline::setGlobalScale(), ccPolyline::setGlobalShift(), ccObject::setName(), cc2DViewportObject::setParameters(), cloudViewer::GenericCloud::size(), cloudViewer::ReferenceCloud::size(), MainWindow::TheInstance(), ccHObjectCaster::ToShifted(), Tuple3Tpl< Type >::u, ccGLCameraParameters::viewport, CVLog::Warning(), Tuple3Tpl< Type >::x, Tuple3Tpl< Type >::y, and ecvColor::yellow().

Referenced by ccGraphicalSegmentationTool().

◆ doSetPolylineSelection

void ccGraphicalSegmentationTool::doSetPolylineSelection ( )

protectedslot

Definition at line 784 of file ecvGraphicalSegmentationTool.cpp.

References ecvDisplayTools::DisplayNewMessage(), m_rectangularSelection, m_state, ecvDisplayTools::MANUAL_SEGMENTATION_MESSAGE, PAUSED, pauseSegmentationMode(), ecvDisplayTools::RedrawDisplay(), ecvDisplayTools::SetRedrawRecursive(), and ecvDisplayTools::UPPER_CENTER_MESSAGE.

Referenced by ccGraphicalSegmentationTool(), doActionUseExistingPolyline(), and onShortcutTriggered().

◆ doSetRectangularSelection

void ccGraphicalSegmentationTool::doSetRectangularSelection ( )

protectedslot

Definition at line 810 of file ecvGraphicalSegmentationTool.cpp.

References ecvDisplayTools::DisplayNewMessage(), m_rectangularSelection, m_state, ecvDisplayTools::MANUAL_SEGMENTATION_MESSAGE, PAUSED, pauseSegmentationMode(), ecvDisplayTools::RedrawDisplay(), ecvDisplayTools::SetRedrawRecursive(), and ecvDisplayTools::UPPER_CENTER_MESSAGE.

Referenced by ccGraphicalSegmentationTool(), and onShortcutTriggered().

◆ entities() [1/2]

QSet<ccHObject*>& ccGraphicalSegmentationTool::entities ( )

inline

Returns the active 'to be segmented' set.

Definition at line 52 of file ecvGraphicalSegmentationTool.h.

References m_toSegment.

◆ entities() [2/2]

const QSet<ccHObject*>& ccGraphicalSegmentationTool::entities ( ) const

inline

Returns the active 'to be segmented' set (const version)

Definition at line 54 of file ecvGraphicalSegmentationTool.h.

References m_toSegment.

◆ getNumberOfValidEntities()

unsigned ccGraphicalSegmentationTool::getNumberOfValidEntities ( ) const

Returns the number of entites currently in the the 'to be segmented' pool

Definition at line 454 of file ecvGraphicalSegmentationTool.cpp.

References m_toSegment.

◆ getPolyLine()

ccPolyline* ccGraphicalSegmentationTool::getPolyLine ( )

inline

Get a pointer to the polyline that has been segmented.

Definition at line 49 of file ecvGraphicalSegmentationTool.h.

References m_segmentationPoly.

◆ linkWith()

bool ccGraphicalSegmentationTool::linkWith ( QWidget * win )

overridevirtual

Links the overlay dialog with a MDI window.

Warning: link can't be modified while dialog is displayed/process is running!

Returns: success

Reimplemented from ccOverlayDialog.

Definition at line 183 of file ecvGraphicalSegmentationTool.cpp.

References addPointToPolyline(), closePolyLine(), closeRectangle(), ccOverlayDialog::linkWith(), m_segmentationPoly, ecvDisplayTools::TheInstance(), and updatePolyLine().

◆ onShortcutTriggered

void ccGraphicalSegmentationTool::onShortcutTriggered ( int key )

protectedslot

To capture overridden shortcuts (pause button, etc.)

Definition at line 146 of file ecvGraphicalSegmentationTool.cpp.

References doSetPolylineSelection(), doSetRectangularSelection(), and m_rectangularSelection.

Referenced by ccGraphicalSegmentationTool().

◆ pauseSegmentation

void ccGraphicalSegmentationTool::pauseSegmentation ( bool state )

inlineprotectedslot

Definition at line 91 of file ecvGraphicalSegmentationTool.h.

References pauseSegmentationMode().

Referenced by ccGraphicalSegmentationTool().

◆ pauseSegmentationMode

void ccGraphicalSegmentationTool::pauseSegmentationMode	(	bool	state,
		bool	only2D = `true`
	)

protectedslot

Definition at line 726 of file ecvGraphicalSegmentationTool.cpp.

References allowPolylineExport(), ccPointCloud::clear(), cloudViewer::Polyline::clear(), ecvDisplayTools::DisplayNewMessage(), ecvDisplayTools::GetCurrentScreen(), ecvDisplayTools::GetMainWindow(), ecvDisplayTools::INTERACT_SEND_ALL_SIGNALS, m_polyVertices, m_rectangularSelection, m_segmentationPoly, m_state, ecvDisplayTools::MANUAL_SEGMENTATION_MESSAGE, PAUSED, ecvDisplayTools::RedrawDisplay(), resetSegmentation(), ecvDisplayTools::SetInteractionMode(), ecvDisplayTools::SetRedrawRecursive(), cloudViewer::PointCloudTpl< T >::size(), STARTED, ecvDisplayTools::TRANSFORM_CAMERA(), and ecvDisplayTools::UPPER_CENTER_MESSAGE.

Referenced by doActionUseExistingPolyline(), doSetPolylineSelection(), doSetRectangularSelection(), pauseSegmentation(), segment(), and start().

◆ prepareEntityForRemoval

void ccGraphicalSegmentationTool::prepareEntityForRemoval	(	ccHObject *	entity,
		bool	unallocateVisibilityArrays
	)

protectedslot

Prepare entity before removal.

Definition at line 225 of file ecvGraphicalSegmentationTool.cpp.

References ccGenericMesh::IsCloudVerticesOfMesh(), ccPolyline::IsCloudVerticesOfPolyline(), ccObject::isKindOf(), CV_TYPES::POINT_CLOUD, ccHObject::popDisplayState(), ccHObjectCaster::ToGenericPointCloud(), and ccGenericPointCloud::unallocateVisibilityArray().

Referenced by applySegmentation(), and removeAllEntities().

◆ removeAllEntities()

void ccGraphicalSegmentationTool::removeAllEntities ( )

Remove entities from the 'to be segmented' pool.

Warning: 'unallocateVisibilityArray' will be called on all point clouds prior to be removed from the pool.

Definition at line 264 of file ecvGraphicalSegmentationTool.cpp.

References m_toSegment, prepareEntityForRemoval(), and setDrawFlag().

Referenced by applySegmentation().

◆ reset

void ccGraphicalSegmentationTool::reset ( void )

protectedslot

Definition at line 302 of file ecvGraphicalSegmentationTool.cpp.

References ecvDisplayTools::GetCurrentScreen(), m_somethingHasChanged, m_toSegment, ecvDisplayTools::RedrawDisplay(), resetSegmentation(), ccGenericPointCloud::resetVisibilityArray(), setDrawFlag(), ecvDisplayTools::SetRedrawRecursive(), and ccHObjectCaster::ToGenericPointCloud().

Referenced by cancel(), ccGraphicalSegmentationTool(), and start().

◆ resetSegmentation

void ccGraphicalSegmentationTool::resetSegmentation ( )

protectedslot

Definition at line 648 of file ecvGraphicalSegmentationTool.cpp.

References ecvDisplayTools::GetCurrentScreen(), ccHObject::getViewId(), m_segmentationPoly, ecvDisplayTools::RemoveWidgets(), and WIDGET_POLYLINE_2D.

Referenced by pauseSegmentationMode(), reset(), stop(), and updateSegmentation().

◆ segment

void ccGraphicalSegmentationTool::segment ( bool keepPointsInside )

protectedslot

◆ segmentIn

void ccGraphicalSegmentationTool::segmentIn ( )

protectedslot

Definition at line 656 of file ecvGraphicalSegmentationTool.cpp.

References segment().

Referenced by ccGraphicalSegmentationTool().

◆ segmentOut

void ccGraphicalSegmentationTool::segmentOut ( )

protectedslot

Definition at line 658 of file ecvGraphicalSegmentationTool.cpp.

References segment().

Referenced by ccGraphicalSegmentationTool().

◆ setDrawFlag()

void ccGraphicalSegmentationTool::setDrawFlag ( bool state = true )

protected

Definition at line 295 of file ecvGraphicalSegmentationTool.cpp.

References m_toSegment.

Referenced by removeAllEntities(), reset(), and segment().

◆ start()

bool ccGraphicalSegmentationTool::start ( )

overridevirtual

Starts process.

Returns: success

Reimplemented from ccOverlayDialog.

Definition at line 207 of file ecvGraphicalSegmentationTool.cpp.

References allowPolylineExport(), ccPointCloud::clear(), cloudViewer::Polyline::clear(), m_polyVertices, m_segmentationPoly, m_somethingHasChanged, ecvDisplayTools::NO_PICKING, pauseSegmentationMode(), reset(), ecvDisplayTools::SetPickingMode(), and ccOverlayDialog::start().

◆ stop()

void ccGraphicalSegmentationTool::stop ( bool accepted )

overridevirtual

Stops process/dialog.

Automatically emits the 'processFinished' signal (with input state as argument).

Parameters

accepted process/dialog result

Reimplemented from ccOverlayDialog.

Definition at line 276 of file ecvGraphicalSegmentationTool.cpp.

References ecvDisplayTools::DEFAULT_PICKING, ecvDisplayTools::DisplayNewMessage(), ecvDisplayTools::GetCurrentScreen(), m_segmentationPoly, ecvDisplayTools::MANUAL_SEGMENTATION_MESSAGE, ecvDisplayTools::RedrawDisplay(), resetSegmentation(), ecvDisplayTools::SetInteractionMode(), ecvDisplayTools::SetPickingMode(), ecvDisplayTools::SetRedrawRecursive(), ccOverlayDialog::stop(), ecvDisplayTools::TRANSFORM_CAMERA(), and ecvDisplayTools::UPPER_CENTER_MESSAGE.

Referenced by apply(), applyAndDelete(), and cancel().

◆ updatePolyLine

void ccGraphicalSegmentationTool::updatePolyLine	(	int	x,
		int	y,
		Qt::MouseButtons	buttons
	)

protectedslot

◆ updateSegmentation

void ccGraphicalSegmentationTool::updateSegmentation ( )

protectedslot

Definition at line 638 of file ecvGraphicalSegmentationTool.cpp.

References ecvDisplayTools::DrawWidgets(), ecvDisplayTools::GetCurrentScreen(), m_segmentationPoly, WIDGETS_PARAMETER::opacity, resetSegmentation(), and WIDGET_POLYLINE_2D.

Referenced by addPointToPolyline(), closePolyLine(), closeRectangle(), doActionUseExistingPolyline(), and updatePolyLine().

Member Data Documentation

◆ m_deleteHiddenParts

bool ccGraphicalSegmentationTool::m_deleteHiddenParts

protected

Whether to delete hidden parts after segmentation.

Definition at line 141 of file ecvGraphicalSegmentationTool.h.

Referenced by apply(), applyAndDelete(), applySegmentation(), cancel(), and deleteHiddenParts().

◆ m_polyVertices

ccPointCloud* ccGraphicalSegmentationTool::m_polyVertices

protected

Segmentation polyline vertices.

Definition at line 135 of file ecvGraphicalSegmentationTool.h.

Referenced by addPointToPolyline(), ccGraphicalSegmentationTool(), closePolyLine(), closeRectangle(), doActionUseExistingPolyline(), pauseSegmentationMode(), start(), updatePolyLine(), and ~ccGraphicalSegmentationTool().

◆ m_rectangularSelection

bool ccGraphicalSegmentationTool::m_rectangularSelection

protected

Selection mode.

Definition at line 138 of file ecvGraphicalSegmentationTool.h.

Referenced by addPointToPolyline(), closeRectangle(), doActionUseExistingPolyline(), doSetPolylineSelection(), doSetRectangularSelection(), onShortcutTriggered(), and pauseSegmentationMode().

◆ m_segmentationPoly

ccPolyline* ccGraphicalSegmentationTool::m_segmentationPoly

protected

Segmentation polyline.

Definition at line 133 of file ecvGraphicalSegmentationTool.h.

Referenced by addPointToPolyline(), ccGraphicalSegmentationTool(), closePolyLine(), closeRectangle(), doActionUseExistingPolyline(), doExportSegmentationPolyline(), getPolyLine(), linkWith(), pauseSegmentationMode(), resetSegmentation(), segment(), start(), stop(), updatePolyLine(), updateSegmentation(), and ~ccGraphicalSegmentationTool().

◆ m_somethingHasChanged

bool ccGraphicalSegmentationTool::m_somethingHasChanged

protected

Whether something has changed or not (for proper 'cancel')

Definition at line 115 of file ecvGraphicalSegmentationTool.h.

Referenced by reset(), segment(), and start().

◆ m_state

unsigned ccGraphicalSegmentationTool::m_state

protected

Current process state.

Definition at line 130 of file ecvGraphicalSegmentationTool.h.

Referenced by addPointToPolyline(), closePolyLine(), closeRectangle(), doActionUseExistingPolyline(), doSetPolylineSelection(), doSetRectangularSelection(), pauseSegmentationMode(), and updatePolyLine().

◆ m_toSegment

QSet<ccHObject*> ccGraphicalSegmentationTool::m_toSegment

protected

Set of entities to be segmented.

Definition at line 112 of file ecvGraphicalSegmentationTool.h.

Referenced by addEntity(), applySegmentation(), doExportSegmentationPolyline(), entities(), getNumberOfValidEntities(), removeAllEntities(), reset(), segment(), and setDrawFlag().

The documentation for this class was generated from the following files:

/root/ACloudViewer/app/ecvGraphicalSegmentationTool.h
/root/ACloudViewer/app/ecvGraphicalSegmentationTool.cpp

Public Member Functions

Protected Types

Protected Slots

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ ProcessStates

Constructor & Destructor Documentation

◆ ccGraphicalSegmentationTool()

◆ ~ccGraphicalSegmentationTool()

Member Function Documentation

◆ addEntity()

◆ addPointToPolyline

◆ allowPolylineExport

◆ apply

◆ applyAndDelete

◆ applySegmentation()

◆ cancel

◆ closePolyLine

◆ closeRectangle

◆ deleteHiddenParts()

◆ doActionUseExistingPolyline

◆ doExportSegmentationPolyline

◆ doSetPolylineSelection

◆ doSetRectangularSelection

◆ entities() [1/2]

◆ entities() [2/2]

◆ getNumberOfValidEntities()

◆ getPolyLine()

◆ linkWith()

◆ onShortcutTriggered

◆ pauseSegmentation

◆ pauseSegmentationMode

◆ prepareEntityForRemoval

◆ removeAllEntities()

◆ reset

◆ resetSegmentation

◆ segment

◆ segmentIn

◆ segmentOut

◆ setDrawFlag()

◆ start()

◆ stop()

◆ updatePolyLine

◆ updateSegmentation

Member Data Documentation

◆ m_deleteHiddenParts

◆ m_polyVertices

◆ m_rectangularSelection

◆ m_segmentationPoly

◆ m_somethingHasChanged

◆ m_state

◆ m_toSegment
