cloudViewer::GenericMesh Class Reference

#include <GenericMesh.h>

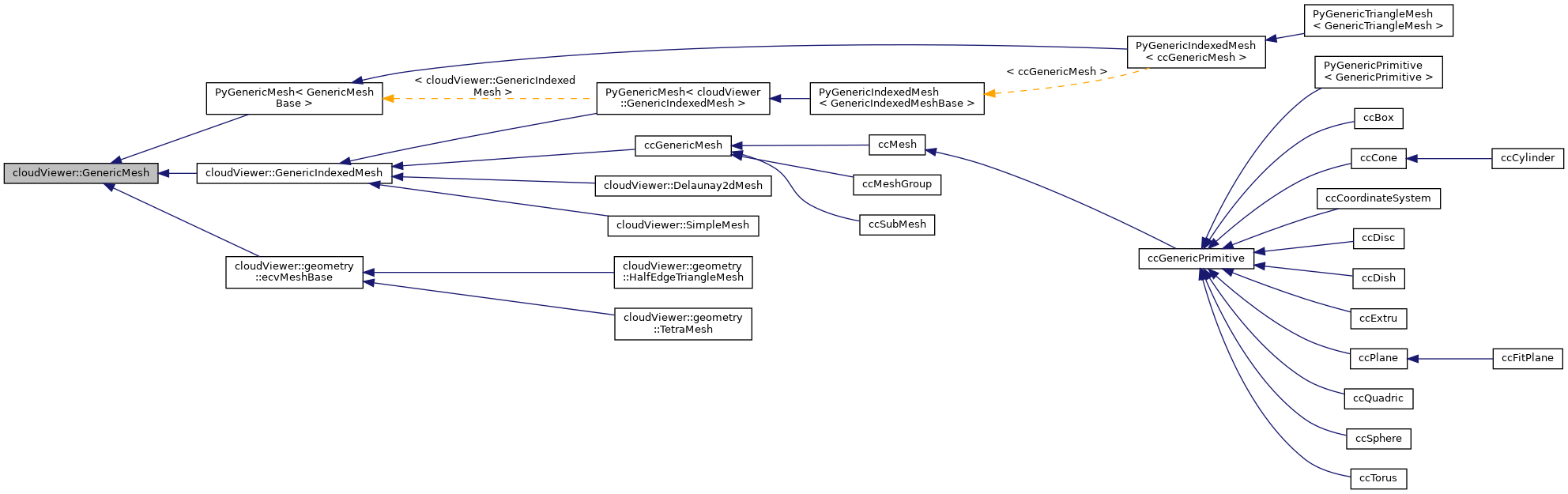

Inheritance diagram for cloudViewer::GenericMesh:

Public Types
enum class	SimplificationContraction { Average , Quadric }
	Indicates the method that is used for mesh simplification if multiple vertices are combined to a single one. More...
enum class	FilterScope { All , Color , Normal , Vertex }
	Indicates the scope of filter operations. More...
enum class	DeformAsRigidAsPossibleEnergy { Spokes , Smoothed }
using	genericTriangleAction = std::function< void(GenericTriangle &)>
	Generic function to apply to a triangle (used by foreach) More...

Public Member Functions
	GenericMesh ()=default
virtual	~GenericMesh ()=default
	Default destructor. More...
virtual unsigned	size () const =0
	Returns the number of triangles. More...
virtual bool	hasTriangles () const
virtual void	forEach (genericTriangleAction action)=0
	Fast iteration mechanism. More...
virtual void	getBoundingBox (CCVector3 &bbMin, CCVector3 &bbMax)=0
	Returns the mesh bounding-box. More...
virtual void	placeIteratorAtBeginning ()=0
	Places the mesh iterator at the beginning. More...
virtual GenericTriangle *	_getNextTriangle ()=0
	Returns the next triangle (relatively to the global iterator position) More...

Detailed Description

A generic mesh interface for data communication between library and client applications

Definition at line 21 of file GenericMesh.h.

Member Typedef Documentation

genericTriangleAction

using cloudViewer::GenericMesh::genericTriangleAction = std::function<void(GenericTriangle&)>

Generic function to apply to a triangle (used by foreach)

Definition at line 53 of file GenericMesh.h.

Member Enumeration Documentation

DeformAsRigidAsPossibleEnergy

enum cloudViewer::GenericMesh::DeformAsRigidAsPossibleEnergy

strong

Energy model that is minimized in the DeformAsRigidAsPossible method.

Parameters

Spokes	is the original energy as formulated in Sorkine and Alexa, "As-Rigid-As-Possible Surface Modeling", 2007.
Smoothed	adds a rotation smoothing term to the rotations.

Enumerator
Spokes
Smoothed

Definition at line 50 of file GenericMesh.h.

FilterScope

enum cloudViewer::GenericMesh::FilterScope

strong

Indicates the scope of filter operations.

Parameters

All	indicates that all properties (color, normal, vertex position) are filtered.
Color	indicates that only the colors are filtered.
Normal	indicates that only the normals are filtered.
Vertex	indicates that only the vertex positions are filtered.

Enumerator
All
Color
Normal
Vertex

Definition at line 44 of file GenericMesh.h.

SimplificationContraction

enum cloudViewer::GenericMesh::SimplificationContraction

strong

Indicates the method that is used for mesh simplification if multiple vertices are combined to a single one.

Parameters

Average	indicates that the average position is computed as output.
Quadric	indicates that the distance to the adjacent triangle planes is minimized. Cf. "Simplifying Surfaces with Color and Texture using Quadric Error Metrics" by Garland and Heckbert.

Enumerator
Average
Quadric

Definition at line 35 of file GenericMesh.h.

Constructor & Destructor Documentation

GenericMesh()

cloudViewer::GenericMesh::GenericMesh ( )

default

~GenericMesh()

virtual cloudViewer::GenericMesh::~GenericMesh ( )

virtualdefault

Default destructor.

Member Function Documentation

_getNextTriangle()

virtual GenericTriangle* cloudViewer::GenericMesh::_getNextTriangle ( )

pure virtual

Returns the next triangle (relatively to the global iterator position)

Virtual method to handle the mesh global iterator. Global iterator position should be increased each time this method is called. The returned object can be temporary.

Returns

a triangle

Implemented in PyGenericMesh< GenericMeshBase >, PyGenericMesh< cloudViewer::GenericIndexedMesh >, ccSubMesh, ccMeshGroup, cloudViewer::geometry::ecvMeshBase, ccMesh, cloudViewer::SimpleMesh, and cloudViewer::Delaunay2dMesh.

Referenced by cloudViewer::MeshSamplingTools::computeMeshArea(), cloudViewer::MeshSamplingTools::computeMeshVolume(), define_GenericMesh(), cloudViewer::DistanceComputationTools::intersectMeshWithOctree(), cloudViewer::Grid3D< Type >::intersectWith(), cloudViewer::geometry::pybind_meshbase(), and cloudViewer::MeshSamplingTools::samplePointsOnMesh().

forEach()

virtual void cloudViewer::GenericMesh::forEach ( genericTriangleAction  action )

pure virtual

Fast iteration mechanism.

Virtual method to apply a function to the whole mesh

Parameters

action

function to apply (see GenericMesh::genericTriangleAction)

Implemented in ccSubMesh, ccMeshGroup, cloudViewer::geometry::ecvMeshBase, ccMesh, cloudViewer::SimpleMesh, and cloudViewer::Delaunay2dMesh.

Referenced by define_GenericMesh().

getBoundingBox()

virtual void cloudViewer::GenericMesh::getBoundingBox ( CCVector3 &  bbMin, CCVector3 &  bbMax  )

pure virtual

Returns the mesh bounding-box.

Virtual method to request the mesh bounding-box limits. It is equivalent to the bounding-box of the cloud composed of the mesh vertexes.

Parameters

bbMin	lower bounding-box limits (Xmin,Ymin,Zmin)
bbMax	higher bounding-box limits (Xmax,Ymax,Zmax)

Implemented in PyGenericMesh< GenericMeshBase >, PyGenericMesh< cloudViewer::GenericIndexedMesh >, ccSubMesh, ccMeshGroup, cloudViewer::geometry::ecvMeshBase, ccMesh, cloudViewer::SimpleMesh, and cloudViewer::Delaunay2dMesh.

Referenced by cloudViewer::DistanceComputationTools::computeCloud2MeshDistances(), cloudViewer::MeshSamplingTools::computeMeshVolume(), define_GenericMesh(), and cloudViewer::geometry::pybind_meshbase().

hasTriangles()

virtual bool cloudViewer::GenericMesh::hasTriangles ( ) const

inlinevirtual

Reimplemented in cloudViewer::geometry::HalfEdgeTriangleMesh.

Definition at line 60 of file GenericMesh.h.

References size.

Referenced by ccMesh::hasTriangleMaterialIds(), ccMesh::hasTriangleUvs(), ccMesh::IsEmpty(), cloudViewer::geometry::pybind_meshbase(), cloudViewer::geometry::pybind_trianglemesh(), cloudViewer::io::ReadTriangleMesh(), and cloudViewer::io::rpc::SetTriangleMesh().

placeIteratorAtBeginning()

virtual void cloudViewer::GenericMesh::placeIteratorAtBeginning ( )

pure virtual

Places the mesh iterator at the beginning.

Virtual method to handle the mesh global iterator

Implemented in PyGenericMesh< GenericMeshBase >, PyGenericMesh< cloudViewer::GenericIndexedMesh >, ccSubMesh, ccMeshGroup, cloudViewer::geometry::ecvMeshBase, ccMesh, cloudViewer::SimpleMesh, and cloudViewer::Delaunay2dMesh.

Referenced by cloudViewer::MeshSamplingTools::buildMeshEdgeUsageMap(), cloudViewer::MeshSamplingTools::computeMeshArea(), cloudViewer::MeshSamplingTools::computeMeshVolume(), define_GenericMesh(), cloudViewer::DistanceComputationTools::intersectMeshWithOctree(), cloudViewer::Grid3D< Type >::intersectWith(), cloudViewer::geometry::pybind_meshbase(), cloudViewer::MeshSamplingTools::samplePointsOnMesh(), MAFilter::saveToFile(), and cloudViewer::ManualSegmentationTools::segmentMesh().

size()

virtual unsigned cloudViewer::GenericMesh::size ( ) const

pure virtual

Returns the number of triangles.

Virtual method to request the mesh size

Returns

the mesh size

Implemented in PyGenericMesh< GenericMeshBase >, PyGenericMesh< cloudViewer::GenericIndexedMesh >, ccSubMesh, ccMeshGroup, cloudViewer::geometry::ecvMeshBase, ccMesh, cloudViewer::SimpleMesh, and cloudViewer::Delaunay2dMesh.

Referenced by ccGraphicalSegmentationTool::applySegmentation(), cloudViewer::MeshSamplingTools::buildMeshEdgeUsageMap(), cloudViewer::DistanceComputationTools::computeCloud2MeshDistances(), cloudViewer::DistanceComputationTools::computeCloud2MeshDistanceWithOctree(), cloudViewer::MeshSamplingTools::computeMeshArea(), cloudViewer::MeshSamplingTools::computeMeshVolume(), define_GenericMesh(), ccComparisonDlg::determineBestOctreeLevel(), ccPropertiesTreeDelegate::fillWithMesh(), ccSubMesh::getCurrentTriGlobalIndex(), ccMesh::hasTriangleMaterialIds(), ccMesh::hasTriangleUvs(), ccCommandLineParser::importFile(), cloudViewer::DistanceComputationTools::intersectMeshWithOctree(), cloudViewer::Grid3D< Type >::intersectWith(), cloudViewer::geometry::pybind_meshbase(), cloudViewer::MeshSamplingTools::samplePointsOnMesh(), MAFilter::saveToFile(), cloudViewer::ManualSegmentationTools::segmentMesh(), cloudViewer::ManualSegmentationTools::segmentMeshWithAABox(), cloudViewer::ManualSegmentationTools::segmentMeshWithAAPlane(), ccMesh::shrinkToFit(), ToFbxMesh(), and TrianglesToTest::TrianglesToTest().

---

The documentation for this class was generated from the following file:

• /root/ACloudViewer/core/include/GenericMesh.h
