GUI database tree root. More...

#include <ecvDBRoot.h>

Inheritance diagram for ccDBRoot:

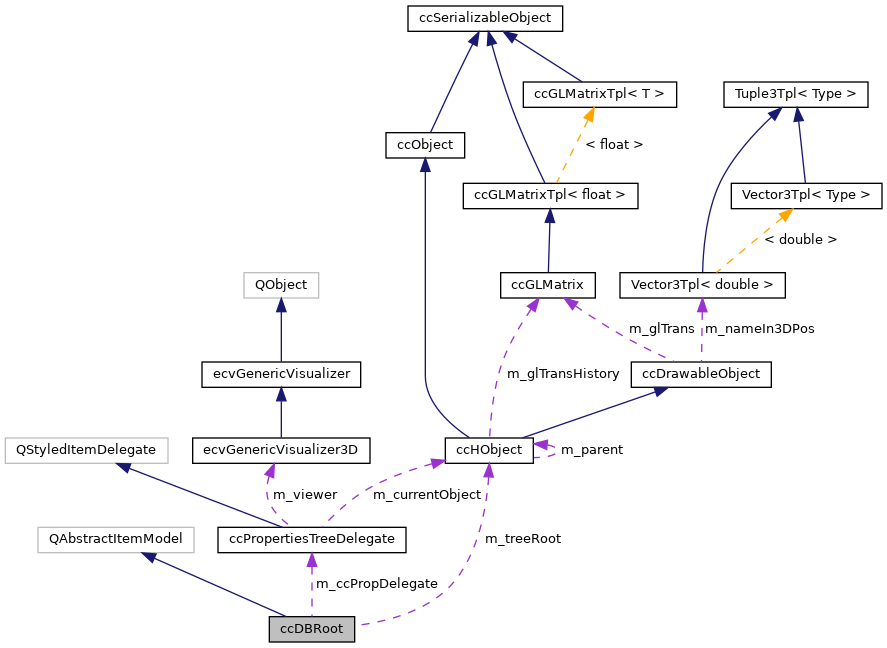

Collaboration diagram for ccDBRoot:

[legend]

Public Slots
void	changeSelection (const QItemSelection &selected, const QItemSelection &deselected)

void	reflectObjectPropChange (ccHObject *obj)

void	redrawCCObject (ccHObject *object, bool forceRedraw=true)

void	redrawCCObjectAndChildren (ccHObject *object, bool forceRedraw=true)

void	updateCCObject (ccHObject *object)

void	deleteSelectedEntities ()

void	selectEntity (ccHObject *obj, bool forceAdditiveSelection=false)
	Selects a given entity. More...

void	selectEntities (std::unordered_set< int > entIDs)
	Selects multiple entities at once (shortcut to the other version) More...

void	selectEntities (const ccHObject::Container &entities, bool incremental=false)
	Selects multiple entities at once. More...

Signals
void	selectionChanged ()

void	dbIsEmpty ()

void	dbIsNotEmptyAnymore ()

Public Member Functions
	ccDBRoot (ccCustomQTreeView dbTreeWidget, QTreeView propertiesTreeWidget, QObject *parent=nullptr)
	Default constructor. More...

virtual	~ccDBRoot () override
	Destructor. More...

void	hide ()

void	show ()

ccHObject *	getRootEntity ()
	Returns associated root object. More...

void	hidePropertiesView ()
	Hides properties view. More...

void	updatePropertiesView ()
	Updates properties view. More...

ccPropertiesTreeDelegate *	getPropertiesDelegate ()
	Get properties tree delegate. More...

void	addElement (ccHObject *object, bool autoExpand=true)
	Adds an element to the DB tree. More...

void	removeElement (ccHObject *object)
	Removes an element from the DB tree. More...

void	removeElements (ccHObject::Container &objects)
	Removes several elements at once from the DB tree. More...

ccHObject *	find (int uniqueID) const
	Finds an element in DB. More...

int	countSelectedEntities (CV_CLASS_ENUM filter=CV_TYPES::OBJECT)

size_t	getSelectedEntities (ccHObject::Container &selectedEntities, CV_CLASS_ENUM filter=CV_TYPES::OBJECT, dbTreeSelectionInfo *info=nullptr)

void	expandElement (ccHObject *object, bool state)
	Expands tree at a given node. More...

void	unselectEntity (ccHObject *obj)
	Unselects a given entity. More...

void	unselectAllEntities ()
	Unselects all entities. More...

void	unloadAll ()
	Unloads all entities. More...

virtual QVariant	data (const QModelIndex &index, int role) const override

virtual QModelIndex	index (int row, int column, const QModelIndex &parentIndex=QModelIndex()) const override

QModelIndex	index (ccHObject *object)

virtual QModelIndex	parent (const QModelIndex &index) const override

virtual int	rowCount (const QModelIndex &parent=QModelIndex()) const override

virtual int	columnCount (const QModelIndex &parent=QModelIndex()) const override

virtual Qt::ItemFlags	flags (const QModelIndex &index) const override

virtual bool	setData (const QModelIndex &index, const QVariant &value, int role=Qt::EditRole) override

virtual Qt::DropActions	supportedDropActions () const override

virtual bool	dropMimeData (const QMimeData *data, Qt::DropAction action, int row, int column, const QModelIndex &parent) override

virtual QMap< int, QVariant >	itemData (const QModelIndex &index) const override

virtual Qt::DropActions	supportedDragActions () const override

Protected Types
enum	TOGGLE_PROPERTY { TG_ENABLE , TG_VISIBLE , TG_COLOR , TG_SF , TG_NORMAL , TG_MATERIAL , TG_3D_NAME }
	Entity property that can be toggled. More...

enum	SortRules { SORT_A2Z , SORT_Z2A , SORT_BY_TYPE }
	Entities sorting schemes. More...

Protected Slots
void	showContextMenu (const QPoint &)

void	expandBranch ()

void	collapseBranch ()

void	gatherRecursiveInformation ()

void	sortChildrenAZ ()

void	sortChildrenZA ()

void	sortChildrenType ()

void	selectByTypeAndName ()

void	exportImages ()

void	toggleSelectedEntities ()

void	toggleSelectedEntitiesVisibility ()

void	toggleSelectedEntitiesColor ()

void	toggleSelectedEntitiesNormals ()

void	toggleSelectedEntitiesSF ()

void	toggleSelectedEntitiesMat ()

void	toggleSelectedEntities3DName ()

void	addEmptyGroup ()

void	alignCameraWithEntityDirect ()

void	alignCameraWithEntityIndirect ()

void	enableBubbleViewMode ()

void	editLabelScalarValue ()

Protected Member Functions
void	toggleSelectedEntitiesProperty (TOGGLE_PROPERTY prop)

void	alignCameraWithEntity (bool reverse)
	Aligns the camera with the currently selected entity. More...

void	showPropertiesView (ccHObject *obj)
	Shows properties view for a given element. More...

void	sortSelectedEntitiesChildren (SortRules rule)
	Sorts selected entities children. More...

void	expandOrCollapseHoveredBranch (bool expand)
	Expands or collapses hovered item. More...

void	selectChildrenByTypeAndName (CV_CLASS_ENUM type, bool typeIsExclusive=true, QString name=QString(), bool nameIsRegex=false)
	Selects objects by type and/or name. More...

Protected Attributes
ccHObject *	m_treeRoot
	Associated DB root. More...

QTreeView *	m_dbTreeWidget
	Associated widget for DB tree. More...

QTreeView *	m_propertiesTreeWidget
	Associated widget for selected entity's properties tree. More...

QStandardItemModel *	m_propertiesModel
	Selected entity's properties data model. More...

ccPropertiesTreeDelegate *	m_ccPropDelegate
	Selected entity's properties delegate. More...

QAction *	m_expandBranch
	Context menu action: expand tree branch. More...

QAction *	m_collapseBranch
	Context menu action: collapse tree branch. More...

QAction *	m_gatherInformation
	Context menu action: gather (recursive) information on selected entities. More...

QAction *	m_sortChildrenAZ
	Context menu action: sort children in alphabetical order. More...

QAction *	m_sortChildrenZA
	Context menu action: sort children in reverse alphabetical order. More...

QAction *	m_sortChildrenType
	Context menu action: sort children by type. More...

QAction *	m_selectByTypeAndName
	Context menu action: select object by type and/or by name. More...

QAction *	m_exportImages
	Context menu action: export images. More...

QAction *	m_deleteSelectedEntities
	Context menu action: delete selected entities. More...

QAction *	m_toggleSelectedEntities
	Context menu action: enabled/disable selected entities. More...

QAction *	m_toggleSelectedEntitiesVisibility
	Context menu action: hide/show selected entities. More...

QAction *	m_toggleSelectedEntitiesColor
	Context menu action: hide/show selected entities color. More...

QAction *	m_toggleSelectedEntitiesNormals
	Context menu action: hide/show selected entities normals. More...

QAction *	m_toggleSelectedEntitiesMat
	Context menu action: hide/show selected entities materials/textures. More...

QAction *	m_toggleSelectedEntitiesSF
	Context menu action: hide/show selected entities SF. More...

QAction *	m_toggleSelectedEntities3DName
	Context menu action: hide/show selected entities 3D name. More...

QAction *	m_addEmptyGroup
	Context menu action: add empty group. More...

QAction *	m_alignCameraWithEntity
	Context menu action: use 3-points labels or planes to orient camera. More...

QAction *	m_alignCameraWithEntityReverse
	Context menu action: reverse of m_alignCameraWithEntity. More...

QAction *	m_enableBubbleViewMode
	Context menu action: enable bubble-view (on a sensor) More...

QAction *	m_editLabelScalarValue
	Context menu action: change current scalar value (via a 2D label) More...

QPoint	m_contextMenuPos
	Last context menu pos. More...

Detailed Description

GUI database tree root.

Definition at line 65 of file ecvDBRoot.h.

Member Enumeration Documentation

◆ SortRules

enum ccDBRoot::SortRules

protected

Entities sorting schemes.

Enumerator
SORT_A2Z
SORT_Z2A
SORT_BY_TYPE

Definition at line 268 of file ecvDBRoot.h.

◆ TOGGLE_PROPERTY

enum ccDBRoot::TOGGLE_PROPERTY

protected

Entity property that can be toggled.

Enumerator
TG_ENABLE
TG_VISIBLE
TG_COLOR
TG_SF
TG_NORMAL
TG_MATERIAL
TG_3D_NAME

Definition at line 198 of file ecvDBRoot.h.

Constructor & Destructor Documentation

◆ ccDBRoot()

ccDBRoot::ccDBRoot	(	ccCustomQTreeView *	dbTreeWidget,
		QTreeView *	propertiesTreeWidget,
		QObject *	parent = `nullptr`
	)

Default constructor.

Parameters

dbTreeWidget	widget for DB tree display
propertiesTreeWidget	widget for selected entity's properties tree display
parent	widget QObject parent

Definition at line 262 of file ecvDBRoot.cpp.

References addEmptyGroup(), alignCameraWithEntityDirect(), alignCameraWithEntityIndirect(), ccPropertiesTreeDelegate::ccObjectAndChildrenAppearanceChanged(), ccPropertiesTreeDelegate::ccObjectAppearanceChanged(), ccPropertiesTreeDelegate::ccObjectPropertiesChanged(), changeSelection(), collapseBranch(), deleteSelectedEntities(), editLabelScalarValue(), enableBubbleViewMode(), expandBranch(), exportImages(), gatherRecursiveInformation(), redrawCCObject(), redrawCCObjectAndChildren(), selectByTypeAndName(), showContextMenu(), sortChildrenAZ(), sortChildrenType(), sortChildrenZA(), toggleSelectedEntities(), toggleSelectedEntities3DName(), toggleSelectedEntitiesColor(), toggleSelectedEntitiesMat(), toggleSelectedEntitiesNormals(), toggleSelectedEntitiesSF(), toggleSelectedEntitiesVisibility(), and updateCCObject().

◆ ~ccDBRoot()

ccDBRoot::~ccDBRoot ( )

overridevirtual

Destructor.

Definition at line 382 of file ecvDBRoot.cpp.

References m_ccPropDelegate, m_propertiesModel, and m_treeRoot.

Member Function Documentation

◆ addElement()

void ccDBRoot::addElement	(	ccHObject *	object,
		bool	autoExpand = `true`
	)

Adds an element to the DB tree.

Definition at line 423 of file ecvDBRoot.cpp.

References ccHObject::addChild(), dbIsNotEmptyAnymore(), ccHObject::getChildIndex(), ccHObject::getChildrenNumber(), ccHObject::getParent(), index(), m_dbTreeWidget, and m_treeRoot.

Referenced by addEmptyGroup(), MainWindow::addToDB(), dropMimeData(), and MainWindow::putObjectBackIntoDBTree().

◆ addEmptyGroup

void ccDBRoot::addEmptyGroup ( )

protectedslot

Definition at line 2074 of file ecvDBRoot.cpp.

References addElement(), index(), m_contextMenuPos, m_dbTreeWidget, and parent().

Referenced by ccDBRoot().

◆ alignCameraWithEntity()

void ccDBRoot::alignCameraWithEntity ( bool reverse )

protected

Aligns the camera with the currently selected entity.

Parameters

reverse whether to use the entity's normal (false) or its inverse (true)

Definition at line 1628 of file ecvDBRoot.cpp.

References cc2DLabel::PickedPoint::cloud, cloudViewer::CCMiscTools::ComputeBaseVectors(), cross(), CV_TYPES::FACET, Vector3Tpl< double >::fromArray(), ccHObject::getBB_recursive(), cloudViewer::BoundingBoxTpl< T >::getCenter(), ccGLMatrixTpl< T >::getColumnAsVec3D(), ccFacet::getNormal(), ccPlane::getNormal(), ccMesh::getOwnBB(), cc2DLabel::getPickedPoint(), cloudViewer::GenericIndexedCloud::getPoint(), ccGenericPrimitive::getTransformation(), cc2DLabel::PickedPoint::index, ccObject::isA(), CV_TYPES::LABEL_2D, m_dbTreeWidget, CV_TYPES::PLANE, CVLog::Print(), ccGLMatrixTpl< T >::setTranslation(), cc2DLabel::size(), and Tuple3Tpl< Type >::u.

Referenced by alignCameraWithEntityDirect(), and alignCameraWithEntityIndirect().

◆ alignCameraWithEntityDirect

void ccDBRoot::alignCameraWithEntityDirect ( )

inlineprotectedslot

Definition at line 247 of file ecvDBRoot.h.

References alignCameraWithEntity().

Referenced by ccDBRoot().

◆ alignCameraWithEntityIndirect

void ccDBRoot::alignCameraWithEntityIndirect ( )

inlineprotectedslot

Definition at line 248 of file ecvDBRoot.h.

References alignCameraWithEntity().

Referenced by ccDBRoot().

◆ changeSelection

void ccDBRoot::changeSelection	(	const QItemSelection &	selected,
		const QItemSelection &	deselected
	)

slot

Definition at line 999 of file ecvDBRoot.cpp.

References MainWindow::refreshAll(), selectionChanged(), ecvDisplayTools::SetRedrawRecursive(), ccDrawableObject::setSelected(), MainWindow::TheInstance(), and updatePropertiesView().

Referenced by ccDBRoot().

◆ collapseBranch

void ccDBRoot::collapseBranch ( )

protectedslot

Definition at line 1588 of file ecvDBRoot.cpp.

References expandOrCollapseHoveredBranch().

Referenced by ccDBRoot().

◆ columnCount()

int ccDBRoot::columnCount ( const QModelIndex & parent = QModelIndex() ) const

overridevirtual

Definition at line 994 of file ecvDBRoot.cpp.

References parent().

◆ countSelectedEntities()

int ccDBRoot::countSelectedEntities ( CV_CLASS_ENUM filter = CV_TYPES::OBJECT )

Returns the number of selected entities in DB tree (optionally with a given type)

Definition at line 1256 of file ecvDBRoot.cpp.

References ccObject::isKindOf(), m_dbTreeWidget, and CV_TYPES::OBJECT.

◆ data()

QVariant ccDBRoot::data	(	const QModelIndex &	index,
		int	role
	)		const

overridevirtual

Definition at line 690 of file ecvDBRoot.cpp.

References count, ccHObject::filterChildren(), ccHObject::getChildCountRecursive(), ccHObject::getChildrenNumber(), ccHObject::getClassID(), ccHObject::getIcon(), ccObject::getName(), CV_TYPES::HIERARCHY_OBJECT, index(), ccObject::isA(), ccObject::isEnabled(), ccObject::isLocked(), CV_TYPES::LABEL_2D, and CV_TYPES::VIEWPORT_2D_LABEL.

Referenced by dropMimeData().

◆ dbIsEmpty

void ccDBRoot::dbIsEmpty ( )

signal

Referenced by deleteSelectedEntities(), removeElement(), removeElements(), and unloadAll().

◆ dbIsNotEmptyAnymore

void ccDBRoot::dbIsNotEmptyAnymore ( )

signal

Referenced by addElement().

◆ deleteSelectedEntities

void ccDBRoot::deleteSelectedEntities ( )

slot

◆ dropMimeData()

bool ccDBRoot::dropMimeData	(	const QMimeData *	data,
		Qt::DropAction	action,
		int	row,
		int	column,
		const QModelIndex &	parent
	)

overridevirtual

◆ editLabelScalarValue

void ccDBRoot::editLabelScalarValue ( )

protectedslot

◆ enableBubbleViewMode

void ccDBRoot::enableBubbleViewMode ( )

protectedslot

Definition at line 2088 of file ecvDBRoot.cpp.

References CV_TYPES::GBL_SENSOR, ccObject::isA(), m_dbTreeWidget, MainWindow::refreshAll(), and MainWindow::TheInstance().

Referenced by ccDBRoot().

◆ expandBranch

void ccDBRoot::expandBranch ( )

protectedslot

Definition at line 1586 of file ecvDBRoot.cpp.

References expandOrCollapseHoveredBranch().

Referenced by ccDBRoot().

◆ expandElement()

void ccDBRoot::expandElement	(	ccHObject *	object,
		bool	state
	)

Expands tree at a given node.

Definition at line 477 of file ecvDBRoot.cpp.

References ccHObject::getChild(), ccHObject::getChildrenNumber(), index(), and m_dbTreeWidget.

Referenced by cloudViewer::ModelViewerWidget::SelectObject().

◆ expandOrCollapseHoveredBranch()

void ccDBRoot::expandOrCollapseHoveredBranch ( bool expand )

protected

Expands or collapses hovered item.

Definition at line 1590 of file ecvDBRoot.cpp.

References ccHObject::getChild(), ccHObject::getChildrenNumber(), index(), m_contextMenuPos, and m_dbTreeWidget.

Referenced by collapseBranch(), and expandBranch().

◆ exportImages

void ccDBRoot::exportImages ( )

protectedslot

Definition at line 2159 of file ecvDBRoot.cpp.

References CVLog::Error(), filename, ccHObject::filterChildren(), CV_TYPES::IMAGE, image, ecvProgressDialog::isCancelRequested(), ccObject::isKindOf(), m_dbTreeWidget, CVLog::Print(), ecvProgressDialog::start(), ecvProgressDialog::stop(), MainWindow::TheInstance(), ccHObjectCaster::ToImage(), and CVLog::Warning().

Referenced by ccDBRoot().

◆ find()

ccHObject * ccDBRoot::find ( int uniqueID ) const

Finds an element in DB.

Definition at line 1197 of file ecvDBRoot.cpp.

References ccHObject::find(), and m_treeRoot.

Referenced by selectEntities().

◆ flags()

Qt::ItemFlags ccDBRoot::flags ( const QModelIndex & index ) const

overridevirtual

◆ gatherRecursiveInformation

void ccDBRoot::gatherRecursiveInformation ( )

protectedslot

◆ getPropertiesDelegate()

ccPropertiesTreeDelegate* ccDBRoot::getPropertiesDelegate ( )

inline

Get properties tree delegate.

Definition at line 93 of file ecvDBRoot.h.

References m_ccPropDelegate.

◆ getRootEntity()

ccHObject * ccDBRoot::getRootEntity ( )

Returns associated root object.

Definition at line 421 of file ecvDBRoot.cpp.

References m_treeRoot.

Referenced by MainWindow::addToDB(), and MainWindow::dbRootObject().

◆ getSelectedEntities()

size_t ccDBRoot::getSelectedEntities	(	ccHObject::Container &	selectedEntities,
		CV_CLASS_ENUM	filter = `CV_TYPES::OBJECT`,
		dbTreeSelectionInfo *	info = `nullptr`
	)

Returns selected entities in DB tree (optionally with a given type and additional information)

Definition at line 1273 of file ecvDBRoot.cpp.

◆ hide()

void ccDBRoot::hide ( )

Definition at line 388 of file ecvDBRoot.cpp.

References m_dbTreeWidget, and m_propertiesTreeWidget.

◆ hidePropertiesView()

void ccDBRoot::hidePropertiesView ( )

Hides properties view.

Definition at line 1210 of file ecvDBRoot.cpp.

References m_ccPropDelegate, m_propertiesModel, m_propertiesTreeWidget, and ccPropertiesTreeDelegate::unbind().

Referenced by deleteSelectedEntities(), removeElement(), removeElements(), toggleSelectedEntitiesProperty(), and updatePropertiesView().

◆ index() [1/2]

QModelIndex ccDBRoot::index ( ccHObject * object )

Definition at line 941 of file ecvDBRoot.cpp.

References m_treeRoot, and parent().

◆ index() [2/2]

QModelIndex ccDBRoot::index	(	int	row,
		int	column,
		const QModelIndex &	parentIndex = `QModelIndex()`
	)		const

overridevirtual

Definition at line 921 of file ecvDBRoot.cpp.

References m_treeRoot, and parent().

Referenced by addElement(), addEmptyGroup(), data(), deleteSelectedEntities(), expandElement(), expandOrCollapseHoveredBranch(), flags(), itemData(), parent(), removeElement(), removeElements(), selectEntities(), selectEntity(), setData(), showContextMenu(), unloadAll(), unselectEntity(), and updateCCObject().

◆ itemData()

QMap< int, QVariant > ccDBRoot::itemData ( const QModelIndex & index ) const

overridevirtual

Definition at line 1389 of file ecvDBRoot.cpp.

References ccObject::getUniqueID(), and index().

◆ parent()

QModelIndex ccDBRoot::parent ( const QModelIndex & index ) const

overridevirtual

Definition at line 963 of file ecvDBRoot.cpp.

References ccHObject::getIndex(), ccHObject::getParent(), index(), and m_treeRoot.

Referenced by addEmptyGroup(), columnCount(), deleteSelectedEntities(), index(), removeElement(), removeElements(), rowCount(), and unloadAll().

◆ redrawCCObject

void ccDBRoot::redrawCCObject	(	ccHObject *	object,
		bool	forceRedraw = `true`
	)

slot

Definition at line 1245 of file ecvDBRoot.cpp.

Referenced by ccDBRoot().

◆ redrawCCObjectAndChildren

void ccDBRoot::redrawCCObjectAndChildren	(	ccHObject *	object,
		bool	forceRedraw = `true`
	)

slot

Definition at line 1250 of file ecvDBRoot.cpp.

Referenced by ccDBRoot(), and setData().

◆ reflectObjectPropChange

void ccDBRoot::reflectObjectPropChange ( ccHObject * obj )

slot

Definition at line 1216 of file ecvDBRoot.cpp.

References ccPropertiesTreeDelegate::getCurrentObject(), m_ccPropDelegate, m_propertiesTreeWidget, and showPropertiesView().

Referenced by setData().

◆ removeElement()

void ccDBRoot::removeElement ( ccHObject * object )

Removes an element from the DB tree.

Automatically calls prepareDisplayForRefresh on the object.

Definition at line 554 of file ecvDBRoot.cpp.

References dbIsEmpty(), ccHObject::getChildrenNumber(), hidePropertiesView(), index(), m_treeRoot, parent(), updatePropertiesView(), and CVLog::Warning().

Referenced by ccPointListPickingDlg::cancelAndExit(), ccPointListPickingDlg::clearLastLabel(), dropMimeData(), MainWindow::removeFromDB(), and MainWindow::removeObjectTemporarilyFromDBTree().

◆ removeElements()

void ccDBRoot::removeElements ( ccHObject::Container & objects )

Removes several elements at once from the DB tree.

Faster than multiple calls to removeElement. Automatically calls prepareDisplayForRefresh on the objects.

Warning: The input container will be cleared.

Definition at line 513 of file ecvDBRoot.cpp.

References dbIsEmpty(), ccHObject::getChildrenNumber(), hidePropertiesView(), index(), m_treeRoot, parent(), updatePropertiesView(), and CVLog::Warning().

Referenced by ccPointListPickingDlg::applyAndExit(), and ccPointListPickingDlg::cancelAndExit().

◆ rowCount()

int ccDBRoot::rowCount ( const QModelIndex & parent = QModelIndex() ) const

overridevirtual

Definition at line 983 of file ecvDBRoot.cpp.

References ccHObject::getChildrenNumber(), m_treeRoot, and parent().

◆ selectByTypeAndName

void ccDBRoot::selectByTypeAndName ( )

protectedslot

Definition at line 1900 of file ecvDBRoot.cpp.

References ccSelectChildrenDlg::addType(), CV_TYPES::BOX, CV_TYPES::CAMERA_SENSOR, CV_TYPES::CONE, CV_TYPES::CUSTOM_H_OBJECT, CV_TYPES::CYLINDER, CV_TYPES::DISC, CV_TYPES::DISH, CV_TYPES::EXTRU, CV_TYPES::FACET, CV_TYPES::GBL_SENSOR, ccSelectChildrenDlg::getNameIsRegex(), ccSelectChildrenDlg::getNameMatchIsUsed(), ccSelectChildrenDlg::getSelectedName(), ccSelectChildrenDlg::getSelectedType(), ccSelectChildrenDlg::getStrictMatchState(), ccSelectChildrenDlg::getTypeIsUsed(), CV_TYPES::HIERARCHY_OBJECT, CV_TYPES::IMAGE, CV_TYPES::LABEL_2D, CV_TYPES::MESH, name, CV_TYPES::OBJECT, CV_TYPES::PLANE, CV_TYPES::POINT_CLOUD, CV_TYPES::POINT_KDTREE, CV_TYPES::POINT_OCTREE, CV_TYPES::POLY_LINE, CV_TYPES::PRIMITIVE, selectChildrenByTypeAndName(), CV_TYPES::SENSOR, CV_TYPES::SPHERE, CV_TYPES::SUB_MESH, MainWindow::TheInstance(), CV_TYPES::TORUS, type, CV_TYPES::VIEWPORT_2D_LABEL, and CV_TYPES::VIEWPORT_2D_OBJECT.

Referenced by ccDBRoot().

◆ selectChildrenByTypeAndName()

void ccDBRoot::selectChildrenByTypeAndName	(	CV_CLASS_ENUM	type,
		bool	typeIsExclusive = `true`,
		QString	name = `QString()`,
		bool	nameIsRegex = `false`
	)

protected

Selects objects by type and/or name.

Definition at line 1971 of file ecvDBRoot.cpp.

References ccHObject::filterChildren(), ccHObject::getChildrenNumber(), ccObject::getName(), m_contextMenuPos, m_dbTreeWidget, name, selectEntities(), type, and CVLog::Warning().

Referenced by selectByTypeAndName().

◆ selectEntities [1/2]

void ccDBRoot::selectEntities	(	const ccHObject::Container &	entities,
		bool	incremental = `false`
	)

slot

Selects multiple entities at once.

Parameters

entities	set of the entities to 'select'
incremental	whether to 'add' the input set to the selected entities set or to use it as replacement

Definition at line 1132 of file ecvDBRoot.cpp.

References index(), ccObject::isA(), ccDrawableObject::isSelected(), CV_TYPES::LABEL_2D, and m_dbTreeWidget.

◆ selectEntities [2/2]

void ccDBRoot::selectEntities ( std::unordered_set< int > entIDs )

slot

Selects multiple entities at once (shortcut to the other version)

Parameters

entIDs list of the IDs of the entities to select

Definition at line 1109 of file ecvDBRoot.cpp.

References find(), and CVLog::Warning().

Referenced by ecvFilterByLabelDlg::apply(), and selectChildrenByTypeAndName().

◆ selectEntity

void ccDBRoot::selectEntity	(	ccHObject *	obj,
		bool	forceAdditiveSelection = `false`
	)

slot

Selects a given entity.

If ctrl is pressed by the user at the same time, previous selection will be simply updated accordingly.

Parameters

obj	entity to select
forceAdditiveSelection	whether to force additive selection (just as if CTRL key is pressed) or not

Definition at line 1054 of file ecvDBRoot.cpp.

References index(), ccObject::isA(), ccDrawableObject::isSelected(), CV_TYPES::LABEL_2D, m_dbTreeWidget, ccDrawableObject::setSelected(), and CVLog::Warning().

Referenced by cloudViewer::ModelViewerWidget::SelectObject(), and MainWindow::setSelectedInDB().

◆ selectionChanged

void ccDBRoot::selectionChanged ( )

signal

Referenced by changeSelection().

◆ setData()

bool ccDBRoot::setData	(	const QModelIndex &	index,
		const QVariant &	value,
		int	role = `Qt::EditRole`
	)

overridevirtual

Definition at line 777 of file ecvDBRoot.cpp.

References context, ecvDisplayTools::getDataAxesGridProperties(), ccObject::getName(), ccHObject::getViewId(), ccHObject::hideBB(), ccGenericPrimitive::hideShowDrawings(), ccSensor::hideShowDrawings(), index(), ccObject::isA(), ccObject::isEnabled(), ccObject::isKindOf(), ccDrawableObject::isSelected(), ccDrawableObject::isVisible(), CV_TYPES::LABEL_2D, ccDrawableObject::nameShownIn3D(), CV_TYPES::POINT_KDTREE, CV_TYPES::POINT_OCTREE, CV_TYPES::PRIMITIVE, redrawCCObjectAndChildren(), reflectObjectPropChange(), MainWindow::refreshAll(), ecvDisplayTools::RemoveWidgets(), CV_TYPES::SENSOR, ccObject::setEnabled(), ccHObject::setForceRedrawRecursive(), ccObject::setName(), ccHObject::setRedrawFlagRecursive(), ecvDisplayTools::SetRedrawRecursive(), ccHObject::showBB(), MainWindow::TheInstance(), ecvDisplayTools::TheInstance(), ccHObjectCaster::To2DLabel(), ccHObjectCaster::To2DViewportLabel(), ccHObjectCaster::ToPrimitive(), ccHObjectCaster::ToSensor(), cc2DLabel::updateLabel(), cc2DViewportLabel::updateLabel(), updatePropertiesView(), ecvDisplayTools::UpdateScreen(), CV_TYPES::VIEWPORT_2D_LABEL, AxesGridProperties::visible, WIDGET_RECTANGLE_2D, and WIDGET_T2D.

◆ show()

void ccDBRoot::show ( )

Definition at line 393 of file ecvDBRoot.cpp.

References m_dbTreeWidget, and m_propertiesTreeWidget.

◆ showContextMenu

void ccDBRoot::showContextMenu ( const QPoint & menuPos )

protectedslot

Definition at line 2284 of file ecvDBRoot.cpp.

References cc2DLabel::PickedPoint::cloud, CV_TYPES::FACET, ccHObject::filterChildren(), CV_TYPES::GBL_SENSOR, ccHObject::getChildrenNumber(), cc2DLabel::getPickedPoint(), ccDrawableObject::hasScalarFields(), CV_TYPES::HIERARCHY_OBJECT, CV_TYPES::IMAGE, index(), ccObject::isA(), ccObject::isKindOf(), ccObject::isLeaf(), CV_TYPES::LABEL_2D, m_addEmptyGroup, m_alignCameraWithEntity, m_alignCameraWithEntityReverse, m_collapseBranch, m_contextMenuPos, m_dbTreeWidget, m_deleteSelectedEntities, m_editLabelScalarValue, m_enableBubbleViewMode, m_expandBranch, m_exportImages, m_gatherInformation, m_selectByTypeAndName, m_sortChildrenAZ, m_sortChildrenType, m_sortChildrenZA, m_toggleSelectedEntities, m_toggleSelectedEntities3DName, m_toggleSelectedEntitiesColor, m_toggleSelectedEntitiesMat, m_toggleSelectedEntitiesNormals, m_toggleSelectedEntitiesSF, m_toggleSelectedEntitiesVisibility, CV_TYPES::MESH, CV_TYPES::PLANE, CV_TYPES::POINT_CLOUD, size, cc2DLabel::size(), and ccHObjectCaster::To2DLabel().

Referenced by ccDBRoot().

◆ showPropertiesView()

void ccDBRoot::showPropertiesView ( ccHObject * obj )

protected

Shows properties view for a given element.

Definition at line 1201 of file ecvDBRoot.cpp.

References c_propViewLeftColumnWidth, ccPropertiesTreeDelegate::fillModel(), m_ccPropDelegate, and m_propertiesTreeWidget.

Referenced by reflectObjectPropChange(), and updatePropertiesView().

◆ sortChildrenAZ

void ccDBRoot::sortChildrenAZ ( )

protectedslot

Definition at line 1828 of file ecvDBRoot.cpp.

References SORT_A2Z, and sortSelectedEntitiesChildren().

Referenced by ccDBRoot().

◆ sortChildrenType

void ccDBRoot::sortChildrenType ( )

protectedslot

Definition at line 1832 of file ecvDBRoot.cpp.

References SORT_BY_TYPE, and sortSelectedEntitiesChildren().

Referenced by ccDBRoot().

◆ sortChildrenZA

void ccDBRoot::sortChildrenZA ( )

protectedslot

Definition at line 1830 of file ecvDBRoot.cpp.

References SORT_Z2A, and sortSelectedEntitiesChildren().

Referenced by ccDBRoot().

◆ sortSelectedEntitiesChildren()

void ccDBRoot::sortSelectedEntitiesChildren ( SortRules rule )

protected

Sorts selected entities children.

Definition at line 1836 of file ecvDBRoot.cpp.

References ccHObject::getChild(), ccHObject::getChildrenNumber(), ccHObject::getClassID(), ccObject::getName(), m_dbTreeWidget, SORT_A2Z, SORT_BY_TYPE, SORT_Z2A, cloudViewer::utility::swap(), and ccHObject::swapChildren().

Referenced by sortChildrenAZ(), sortChildrenType(), and sortChildrenZA().

◆ supportedDragActions()

virtual Qt::DropActions ccDBRoot::supportedDragActions ( ) const

inlineoverridevirtual

Definition at line 161 of file ecvDBRoot.h.

◆ supportedDropActions()

Qt::DropActions ccDBRoot::supportedDropActions ( ) const

overridevirtual

Definition at line 1338 of file ecvDBRoot.cpp.

◆ toggleSelectedEntities

void ccDBRoot::toggleSelectedEntities ( )

inlineprotectedslot

Definition at line 224 of file ecvDBRoot.h.

References TG_ENABLE, and toggleSelectedEntitiesProperty().

Referenced by ccDBRoot().

◆ toggleSelectedEntities3DName

void ccDBRoot::toggleSelectedEntities3DName ( )

inlineprotectedslot

Definition at line 242 of file ecvDBRoot.h.

References TG_3D_NAME, and toggleSelectedEntitiesProperty().

Referenced by ccDBRoot().

◆ toggleSelectedEntitiesColor

void ccDBRoot::toggleSelectedEntitiesColor ( )

inlineprotectedslot

Definition at line 230 of file ecvDBRoot.h.

References TG_COLOR, and toggleSelectedEntitiesProperty().

Referenced by ccDBRoot().

◆ toggleSelectedEntitiesMat

void ccDBRoot::toggleSelectedEntitiesMat ( )

inlineprotectedslot

Definition at line 239 of file ecvDBRoot.h.

References TG_MATERIAL, and toggleSelectedEntitiesProperty().

Referenced by ccDBRoot().

◆ toggleSelectedEntitiesNormals

void ccDBRoot::toggleSelectedEntitiesNormals ( )

inlineprotectedslot

Definition at line 233 of file ecvDBRoot.h.

References TG_NORMAL, and toggleSelectedEntitiesProperty().

Referenced by ccDBRoot().

◆ toggleSelectedEntitiesProperty()

void ccDBRoot::toggleSelectedEntitiesProperty ( TOGGLE_PROPERTY prop )

protected

Toggles a given property (enable state, visibility, normal, color, SF, etc.) on selected entities

Definition at line 2023 of file ecvDBRoot.cpp.

References hidePropertiesView(), ccObject::isEnabled(), m_dbTreeWidget, MainWindow::refreshAll(), ccObject::setEnabled(), ccHObject::setForceRedrawRecursive(), TG_3D_NAME, TG_COLOR, TG_ENABLE, TG_NORMAL, TG_SF, TG_VISIBLE, MainWindow::TheInstance(), ccDrawableObject::toggleColors(), ccDrawableObject::toggleNormals(), ccDrawableObject::toggleSF(), ccDrawableObject::toggleShowName(), ccDrawableObject::toggleVisibility(), and updatePropertiesView().

Referenced by toggleSelectedEntities(), toggleSelectedEntities3DName(), toggleSelectedEntitiesColor(), toggleSelectedEntitiesMat(), toggleSelectedEntitiesNormals(), toggleSelectedEntitiesSF(), and toggleSelectedEntitiesVisibility().

◆ toggleSelectedEntitiesSF

void ccDBRoot::toggleSelectedEntitiesSF ( )

inlineprotectedslot

Definition at line 236 of file ecvDBRoot.h.

References TG_SF, and toggleSelectedEntitiesProperty().

Referenced by ccDBRoot().

◆ toggleSelectedEntitiesVisibility

void ccDBRoot::toggleSelectedEntitiesVisibility ( )

inlineprotectedslot

Definition at line 227 of file ecvDBRoot.h.

References TG_VISIBLE, and toggleSelectedEntitiesProperty().

Referenced by ccDBRoot().

◆ unloadAll()

void ccDBRoot::unloadAll ( )

Unloads all entities.

Definition at line 398 of file ecvDBRoot.cpp.

References dbIsEmpty(), ccHObject::getChild(), ccHObject::getChildrenNumber(), index(), m_treeRoot, parent(), MainWindow::refreshAll(), ccHObject::removeChild(), ecvDisplayTools::SetRemoveAllFlag(), MainWindow::TheInstance(), and updatePropertiesView().

Referenced by MainWindow::~MainWindow().

◆ unselectAllEntities()

void ccDBRoot::unselectAllEntities ( )

Unselects all entities.

Definition at line 1047 of file ecvDBRoot.cpp.

References m_dbTreeWidget.

◆ unselectEntity()

void ccDBRoot::unselectEntity ( ccHObject * obj )

Unselects a given entity.

Definition at line 1035 of file ecvDBRoot.cpp.

References index(), ccDrawableObject::isSelected(), and m_dbTreeWidget.

Referenced by cloudViewer::ModelViewerWidget::SelectObject(), and MainWindow::setSelectedInDB().

◆ updateCCObject

void ccDBRoot::updateCCObject ( ccHObject * object )

slot

Definition at line 1237 of file ecvDBRoot.cpp.

References index().

Referenced by ccDBRoot().

◆ updatePropertiesView()

void ccDBRoot::updatePropertiesView ( )

Updates properties view.

Definition at line 1225 of file ecvDBRoot.cpp.

References hidePropertiesView(), m_dbTreeWidget, and showPropertiesView().

Referenced by changeSelection(), deleteSelectedEntities(), removeElement(), removeElements(), setData(), toggleSelectedEntitiesProperty(), unloadAll(), and MainWindow::updatePropertiesView().

Member Data Documentation

◆ m_addEmptyGroup

QAction* ccDBRoot::m_addEmptyGroup

protected

Context menu action: add empty group.

Definition at line 329 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_alignCameraWithEntity

QAction* ccDBRoot::m_alignCameraWithEntity

protected

Context menu action: use 3-points labels or planes to orient camera.

Definition at line 331 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_alignCameraWithEntityReverse

QAction* ccDBRoot::m_alignCameraWithEntityReverse

protected

Context menu action: reverse of m_alignCameraWithEntity.

Definition at line 333 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_ccPropDelegate

ccPropertiesTreeDelegate* ccDBRoot::m_ccPropDelegate

protected

Selected entity's properties delegate.

Definition at line 294 of file ecvDBRoot.h.

Referenced by getPropertiesDelegate(), hidePropertiesView(), reflectObjectPropChange(), showPropertiesView(), and ~ccDBRoot().

◆ m_collapseBranch

QAction* ccDBRoot::m_collapseBranch

protected

Context menu action: collapse tree branch.

Definition at line 299 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_contextMenuPos

QPoint ccDBRoot::m_contextMenuPos

protected

Last context menu pos.

Definition at line 340 of file ecvDBRoot.h.

Referenced by addEmptyGroup(), expandOrCollapseHoveredBranch(), selectChildrenByTypeAndName(), and showContextMenu().

◆ m_dbTreeWidget

QTreeView* ccDBRoot::m_dbTreeWidget

protected

Associated widget for DB tree.

Definition at line 286 of file ecvDBRoot.h.

Referenced by addElement(), addEmptyGroup(), alignCameraWithEntity(), countSelectedEntities(), deleteSelectedEntities(), editLabelScalarValue(), enableBubbleViewMode(), expandElement(), expandOrCollapseHoveredBranch(), exportImages(), gatherRecursiveInformation(), getSelectedEntities(), hide(), selectChildrenByTypeAndName(), selectEntities(), selectEntity(), show(), showContextMenu(), sortSelectedEntitiesChildren(), toggleSelectedEntitiesProperty(), unselectAllEntities(), unselectEntity(), and updatePropertiesView().

◆ m_deleteSelectedEntities

QAction* ccDBRoot::m_deleteSelectedEntities

protected

Context menu action: delete selected entities.

Definition at line 313 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_editLabelScalarValue

QAction* ccDBRoot::m_editLabelScalarValue

protected

Context menu action: change current scalar value (via a 2D label)

Definition at line 337 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_enableBubbleViewMode

QAction* ccDBRoot::m_enableBubbleViewMode

protected

Context menu action: enable bubble-view (on a sensor)

Definition at line 335 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_expandBranch

QAction* ccDBRoot::m_expandBranch

protected

Context menu action: expand tree branch.

Definition at line 297 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_exportImages

QAction* ccDBRoot::m_exportImages

protected

Context menu action: export images.

Definition at line 311 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_gatherInformation

QAction* ccDBRoot::m_gatherInformation

protected

Context menu action: gather (recursive) information on selected entities.

Definition at line 301 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_propertiesModel

QStandardItemModel* ccDBRoot::m_propertiesModel

protected

Selected entity's properties data model.

Definition at line 292 of file ecvDBRoot.h.

Referenced by hidePropertiesView(), and ~ccDBRoot().

◆ m_propertiesTreeWidget

QTreeView* ccDBRoot::m_propertiesTreeWidget

protected

Associated widget for selected entity's properties tree.

Definition at line 289 of file ecvDBRoot.h.

Referenced by hide(), hidePropertiesView(), reflectObjectPropChange(), show(), and showPropertiesView().

◆ m_selectByTypeAndName

QAction* ccDBRoot::m_selectByTypeAndName

protected

Context menu action: select object by type and/or by name.

Definition at line 309 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_sortChildrenAZ

QAction* ccDBRoot::m_sortChildrenAZ

protected

Context menu action: sort children in alphabetical order.

Definition at line 303 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_sortChildrenType

QAction* ccDBRoot::m_sortChildrenType

protected

Context menu action: sort children by type.

Definition at line 307 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_sortChildrenZA

QAction* ccDBRoot::m_sortChildrenZA

protected

Context menu action: sort children in reverse alphabetical order.

Definition at line 305 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_toggleSelectedEntities

QAction* ccDBRoot::m_toggleSelectedEntities

protected

Context menu action: enabled/disable selected entities.

Definition at line 315 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_toggleSelectedEntities3DName

QAction* ccDBRoot::m_toggleSelectedEntities3DName

protected

Context menu action: hide/show selected entities 3D name.

Definition at line 327 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_toggleSelectedEntitiesColor

QAction* ccDBRoot::m_toggleSelectedEntitiesColor

protected

Context menu action: hide/show selected entities color.

Definition at line 319 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_toggleSelectedEntitiesMat

QAction* ccDBRoot::m_toggleSelectedEntitiesMat

protected

Context menu action: hide/show selected entities materials/textures.

Definition at line 323 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_toggleSelectedEntitiesNormals

QAction* ccDBRoot::m_toggleSelectedEntitiesNormals

protected

Context menu action: hide/show selected entities normals.

Definition at line 321 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_toggleSelectedEntitiesSF

QAction* ccDBRoot::m_toggleSelectedEntitiesSF

protected

Context menu action: hide/show selected entities SF.

Definition at line 325 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_toggleSelectedEntitiesVisibility

QAction* ccDBRoot::m_toggleSelectedEntitiesVisibility

protected

Context menu action: hide/show selected entities.

Definition at line 317 of file ecvDBRoot.h.

Referenced by showContextMenu().

◆ m_treeRoot

ccHObject* ccDBRoot::m_treeRoot

protected

Associated DB root.

Definition at line 283 of file ecvDBRoot.h.

Referenced by addElement(), deleteSelectedEntities(), dropMimeData(), find(), getRootEntity(), index(), parent(), removeElement(), removeElements(), rowCount(), unloadAll(), and ~ccDBRoot().

The documentation for this class was generated from the following files:

/root/ACloudViewer/app/db_tree/ecvDBRoot.h
/root/ACloudViewer/app/db_tree/ecvDBRoot.cpp

Public Slots

Signals

Public Member Functions

Protected Types

Protected Slots

Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ SortRules

◆ TOGGLE_PROPERTY

Constructor & Destructor Documentation

◆ ccDBRoot()

◆ ~ccDBRoot()

Member Function Documentation

◆ addElement()

◆ addEmptyGroup

◆ alignCameraWithEntity()

◆ alignCameraWithEntityDirect

◆ alignCameraWithEntityIndirect

◆ changeSelection

◆ collapseBranch

◆ columnCount()

◆ countSelectedEntities()

◆ data()

◆ dbIsEmpty

◆ dbIsNotEmptyAnymore

◆ deleteSelectedEntities

◆ dropMimeData()

◆ editLabelScalarValue

◆ enableBubbleViewMode

◆ expandBranch

◆ expandElement()

◆ expandOrCollapseHoveredBranch()

◆ exportImages

◆ find()

◆ flags()

◆ gatherRecursiveInformation

◆ getPropertiesDelegate()

◆ getRootEntity()

◆ getSelectedEntities()

◆ hide()

◆ hidePropertiesView()

◆ index() [1/2]

◆ index() [2/2]

◆ itemData()

◆ parent()

◆ redrawCCObject

◆ redrawCCObjectAndChildren

◆ reflectObjectPropChange

◆ removeElement()

◆ removeElements()

◆ rowCount()

◆ selectByTypeAndName

◆ selectChildrenByTypeAndName()

◆ selectEntities [1/2]

◆ selectEntities [2/2]

◆ selectEntity

◆ selectionChanged

◆ setData()

◆ show()

◆ showContextMenu

◆ showPropertiesView()

◆ sortChildrenAZ

◆ sortChildrenType

◆ sortChildrenZA

◆ sortSelectedEntitiesChildren()

◆ supportedDragActions()

◆ supportedDropActions()

◆ toggleSelectedEntities

◆ toggleSelectedEntities3DName

◆ toggleSelectedEntitiesColor

◆ toggleSelectedEntitiesMat

◆ toggleSelectedEntitiesNormals

◆ toggleSelectedEntitiesProperty()

◆ toggleSelectedEntitiesSF

◆ toggleSelectedEntitiesVisibility

◆ unloadAll()

◆ unselectAllEntities()

◆ unselectEntity()
