Graphical progress indicator (thread-safe) More...

#include <ecvProgressDialog.h>

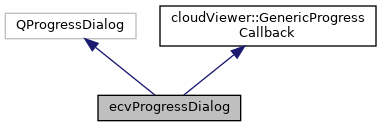

Inheritance diagram for ecvProgressDialog:

Collaboration diagram for ecvProgressDialog:

Signals
void	scheduleRefresh ()
	Schedules a call to refresh. More...

Public Member Functions
	ecvProgressDialog (bool cancelButton=false, QWidget *parent=0)
	Default constructor. More...

virtual	~ecvProgressDialog ()
	Destructor (virtual) More...

virtual void	update (float percent) override
	Notifies the algorithm progress. More...

virtual void	setMethodTitle (const char *methodTitle) override
	Notifies the algorithm title. More...

virtual void	setInfo (const char *infoStr) override
	Notifies some information about the ongoing process. More...

virtual bool	isCancelRequested () override
	Checks if the process should be canceled. More...

virtual void	start () override

virtual void	stop () override
	Notifies the fact that the process has ended. More...

virtual void	setMethodTitle (QString methodTitle)
	setMethodTitle with a QString as argument More...

virtual void	setInfo (QString infoStr)
	setInfo with a QString as argument More...

Public Member Functions inherited from cloudViewer::GenericProgressCallback
virtual	~GenericProgressCallback ()=default
	Default destructor. More...

virtual bool	textCanBeEdited () const
	Returns whether the dialog title and info can be updated or not. More...

Protected Slots
void	refresh ()
	Refreshes the progress. More...

Protected Attributes
QAtomicInt	m_currentValue
	Current progress value (percent) More...

QAtomicInt	m_lastRefreshValue
	Last displayed progress value (percent) More...

Detailed Description

Graphical progress indicator (thread-safe)

Implements the GenericProgressCallback interface, in order to be passed to the cloudViewer algorithms (check the cloudViewer documentation for more information about the inherited methods).

Definition at line 27 of file ecvProgressDialog.h.

Constructor & Destructor Documentation

◆ ecvProgressDialog()

ecvProgressDialog::ecvProgressDialog	(	bool	cancelButton = `false`,
		QWidget *	parent = `0`
	)

Default constructor.

By default, a cancel button is always displayed on the progress interface. It is only possible to activate or deactivate this button. Sadly, the fact that this button is activated doesn't mean it will be possible to stop the ongoing process: it depends only on the client algorithm implementation.

Parameters

cancelButton	activates or deactivates the cancel button
parent	parent widget

◆ ~ecvProgressDialog()

virtual ecvProgressDialog::~ecvProgressDialog ( )

inlinevirtual

Destructor (virtual)

Definition at line 45 of file ecvProgressDialog.h.

Member Function Documentation

◆ isCancelRequested()

virtual bool ecvProgressDialog::isCancelRequested ( )

inlineoverridevirtual

Checks if the process should be canceled.

This method is called by some process from time to time to know if it should halt before its normal ending. This is a way for the client application to cancel an ongoing process (but it won't work with all algorithms). Process results may be incomplete/void. The cancel requirement mechanism must be implemented (typically a simple "cancel()" method that will be called by the client application).

Implements cloudViewer::GenericProgressCallback.

Definition at line 55 of file ecvProgressDialog.h.

Referenced by ccCompass::estimateP21(), ccCompass::estimateStrain(), ccCompass::estimateStructureNormals(), ccDBRoot::exportImages(), and LasIOFilter::loadFile().

◆ refresh

void ecvProgressDialog::refresh ( )

protectedslot

Refreshes the progress.

Should only be called in the main Qt thread! This slot is automatically called by 'update' (in Qt::QueuedConnection mode).

◆ scheduleRefresh

void ecvProgressDialog::scheduleRefresh ( )

signal

Schedules a call to refresh.

◆ setInfo() [1/2]

virtual void ecvProgressDialog::setInfo ( const char * infoStr )

inlineoverridevirtual

Notifies some information about the ongoing process.

The notification is sent by the ongoing algorithm (on the library side).

Parameters

infoStr some textual information about the ongoing process

Implements cloudViewer::GenericProgressCallback.

Definition at line 52 of file ecvProgressDialog.h.

References cloudViewer::GenericProgressCallback::setInfo().

Referenced by ccLibAlgorithms::ApplyScaleMatchingAlgorithm(), qCanupoProcess::Classify(), qM3C2Process::Compute(), qVoxFallProcess::Compute(), DistanceMapGenerationTool::ComputeRadialDist(), qFacets::createFacets(), define_ccProgressDialog(), ccCompass::estimateP21(), ccCompass::estimateStrain(), ccCompass::estimateStructureNormals(), ccRasterizeTool::generateContours(), StereogramWidget::init(), LasIOFilter::loadFile(), RDBFilter::loadFile(), LasIOFilter::saveToFile(), ccEntityAction::sfGaussianFilter(), TileLasReader(), qCanupoTools::TrainClassifier(), and ccCompass::tryLoading().

◆ setInfo() [2/2]

virtual void ecvProgressDialog::setInfo ( QString infoStr )

virtual

setInfo with a QString as argument

◆ setMethodTitle() [1/2]

virtual void ecvProgressDialog::setMethodTitle ( const char * methodTitle )

inlineoverridevirtual

Notifies the algorithm title.

The notification is sent by the ongoing algorithm (on the library side).

Parameters

methodTitle the algorithm title

Implements cloudViewer::GenericProgressCallback.

Definition at line 49 of file ecvProgressDialog.h.

References cloudViewer::GenericProgressCallback::setMethodTitle().

Referenced by ccLibAlgorithms::ApplyScaleMatchingAlgorithm(), qCanupoProcess::Classify(), qM3C2Process::Compute(), qVoxFallProcess::Compute(), DistanceMapGenerationTool::ComputeRadialDist(), qFacets::createFacets(), define_ccProgressDialog(), ccCompass::estimateP21(), ccCompass::estimateStrain(), ccCompass::estimateStructureNormals(), ccRasterizeTool::generateContours(), StereogramWidget::init(), LasIOFilter::loadFile(), RDBFilter::loadFile(), LasIOFilter::saveToFile(), ccEntityAction::sfGaussianFilter(), TileLasReader(), ccCompass::tryLoading(), and G3Point::G3PointAction::wolman().

◆ setMethodTitle() [2/2]

virtual void ecvProgressDialog::setMethodTitle ( QString methodTitle )

virtual

setMethodTitle with a QString as argument

◆ start()

virtual void ecvProgressDialog::start ( )

overridevirtual

Notifies the fact that every information has been sent and that the process begins Once start() is called, the progress bar and other informations could be displayed (for example).

Implements cloudViewer::GenericProgressCallback.

Referenced by ccLibAlgorithms::ApplyScaleMatchingAlgorithm(), qCanupoProcess::Classify(), qM3C2Process::Compute(), qVoxFallProcess::Compute(), DistanceMapGenerationTool::ComputeRadialDist(), ccCompass::estimateP21(), ccCompass::estimateStrain(), ccCompass::estimateStructureNormals(), ccDBRoot::exportImages(), ccRasterizeTool::generateContours(), StereogramWidget::init(), LasIOFilter::loadFile(), RDBFilter::loadFile(), LasIOFilter::saveToFile(), ccEntityAction::sfGaussianFilter(), TileLasReader(), and ccCompass::tryLoading().

◆ stop()

virtual void ecvProgressDialog::stop ( )

overridevirtual

Notifies the fact that the process has ended.

Once end() is called, the progress bar and other informations could be hidden (for example).

Implements cloudViewer::GenericProgressCallback.

Referenced by ccCompass::estimateStructureNormals(), ccDBRoot::exportImages(), and StereogramWidget::init().

◆ update()

virtual void ecvProgressDialog::update ( float percent )

overridevirtual

Notifies the algorithm progress.

The notification is sent by the running algorithm (on the library side). This virtual method shouldn't be called too often, as the real process behind it is unspecified and may be time consuming. Ideally it shouldn't be called more than a few hundreds time.

Parameters

percent current progress, between 0.0 and 100.0

Implements cloudViewer::GenericProgressCallback.

Referenced by qVoxFallProcess::Compute(), ccCompass::estimateP21(), ccCompass::estimateStrain(), and ccCompass::estimateStructureNormals().

Member Data Documentation

◆ m_currentValue

QAtomicInt ecvProgressDialog::m_currentValue

protected

Current progress value (percent)

Definition at line 80 of file ecvProgressDialog.h.

◆ m_lastRefreshValue

QAtomicInt ecvProgressDialog::m_lastRefreshValue

protected

Last displayed progress value (percent)

Definition at line 83 of file ecvProgressDialog.h.

The documentation for this class was generated from the following file:

/root/ACloudViewer/libs/CV_db/include/ecvProgressDialog.h
