A layout element displaying a plot title text. More...

#include <qcustomplot.h>

Inheritance diagram for QCPPlotTitle:

[legend]

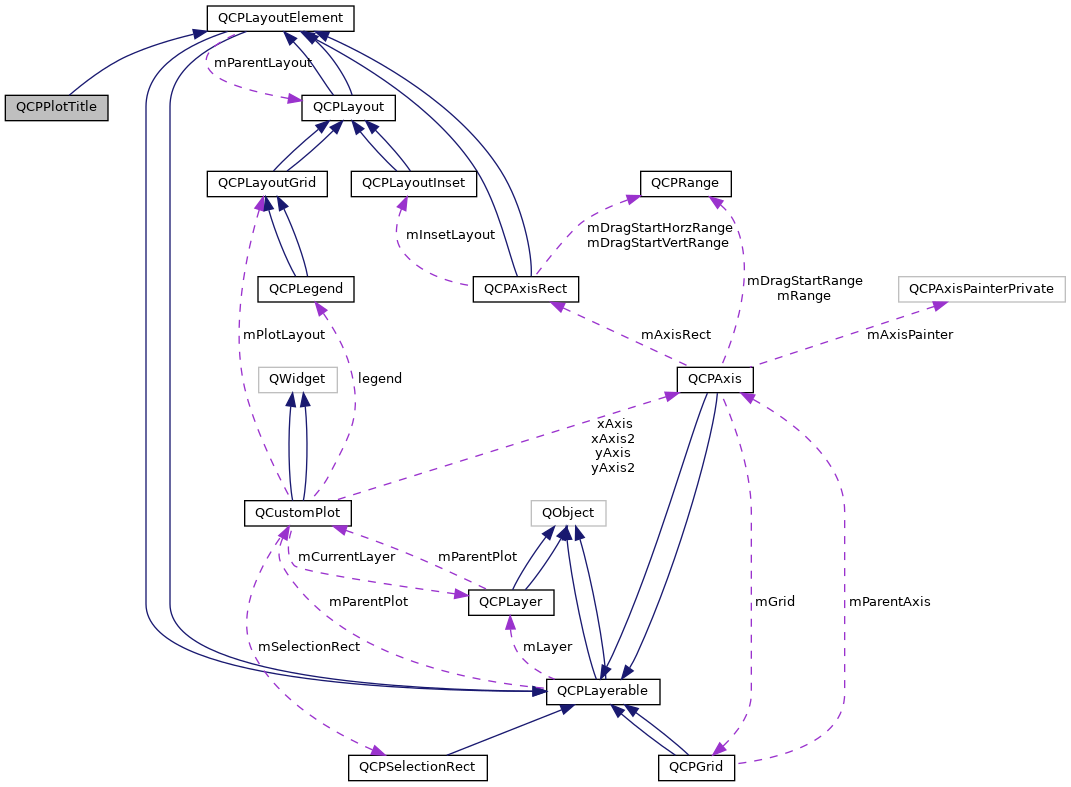

Collaboration diagram for QCPPlotTitle:

[legend]

Signals
void	selectionChanged (bool selected)

void	selectableChanged (bool selectable)

Signals inherited from QCPLayerable
void	layerChanged (QCPLayer *newLayer)

void	layerChanged (QCPLayer *newLayer)

Public Member Functions
	QCPPlotTitle (QCustomPlot *parentPlot)

	QCPPlotTitle (QCustomPlot *parentPlot, const QString &text)

QString	text () const

QFont	font () const

QColor	textColor () const

QFont	selectedFont () const

QColor	selectedTextColor () const

bool	selectable () const

bool	selected () const

void	setText (const QString &text)

void	setFont (const QFont &font)

void	setTextColor (const QColor &color)

void	setSelectedFont (const QFont &font)

void	setSelectedTextColor (const QColor &color)

Q_SLOT void	setSelectable (bool selectable)

Q_SLOT void	setSelected (bool selected)

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const

Public Member Functions inherited from QCPLayoutElement
	QCPLayoutElement (QCustomPlot *parentPlot=0)

virtual	~QCPLayoutElement ()

QCPLayout *	layout () const

QRect	rect () const

QRect	outerRect () const

QMargins	margins () const

QMargins	minimumMargins () const

QCP::MarginSides	autoMargins () const

QSize	minimumSize () const

QSize	maximumSize () const

SizeConstraintRect	sizeConstraintRect () const

QCPMarginGroup *	marginGroup (QCP::MarginSide side) const

QHash< QCP::MarginSide, QCPMarginGroup * >	marginGroups () const

void	setOuterRect (const QRect &rect)

void	setMargins (const QMargins &margins)

void	setMinimumMargins (const QMargins &margins)

void	setAutoMargins (QCP::MarginSides sides)

void	setMinimumSize (const QSize &size)

void	setMinimumSize (int width, int height)

void	setMaximumSize (const QSize &size)

void	setMaximumSize (int width, int height)

void	setSizeConstraintRect (SizeConstraintRect constraintRect)

void	setMarginGroup (QCP::MarginSides sides, QCPMarginGroup *group)

virtual void	update (UpdatePhase phase)

virtual QSize	minimumOuterSizeHint () const

virtual QSize	maximumOuterSizeHint () const

virtual QList< QCPLayoutElement * >	elements (bool recursive) const

	QCPLayoutElement (QCustomPlot *parentPlot=0)

virtual	~QCPLayoutElement ()

QCPLayout *	layout () const

QRect	rect () const

QRect	outerRect () const

QMargins	margins () const

QMargins	minimumMargins () const

QCP::MarginSides	autoMargins () const

QSize	minimumSize () const

QSize	maximumSize () const

QCPMarginGroup *	marginGroup (QCP::MarginSide side) const

QHash< QCP::MarginSide, QCPMarginGroup * >	marginGroups () const

void	setOuterRect (const QRect &rect)

void	setMargins (const QMargins &margins)

void	setMinimumMargins (const QMargins &margins)

void	setAutoMargins (QCP::MarginSides sides)

void	setMinimumSize (const QSize &size)

void	setMinimumSize (int width, int height)

void	setMaximumSize (const QSize &size)

void	setMaximumSize (int width, int height)

void	setMarginGroup (QCP::MarginSides sides, QCPMarginGroup *group)

virtual void	update (UpdatePhase phase)

virtual QList< QCPLayoutElement * >	elements (bool recursive) const

Public Member Functions inherited from QCPLayerable
	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)

virtual	~QCPLayerable ()

bool	visible () const

QCustomPlot *	parentPlot () const

QCPLayerable *	parentLayerable () const

QCPLayer *	layer () const

bool	antialiased () const

void	setVisible (bool on)

Q_SLOT bool	setLayer (QCPLayer *layer)

bool	setLayer (const QString &layerName)

void	setAntialiased (bool enabled)

bool	realVisibility () const

	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)

	~QCPLayerable ()

bool	visible () const

QCustomPlot *	parentPlot () const

QCPLayerable *	parentLayerable () const

QCPLayer *	layer () const

bool	antialiased () const

void	setVisible (bool on)

Q_SLOT bool	setLayer (QCPLayer *layer)

bool	setLayer (const QString &layerName)

void	setAntialiased (bool enabled)

bool	realVisibility () const

Protected Member Functions
virtual void	applyDefaultAntialiasingHint (QCPPainter *painter) const

virtual void	draw (QCPPainter *painter)

virtual QSize	minimumSizeHint () const

virtual QSize	maximumSizeHint () const

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged)

virtual void	deselectEvent (bool *selectionStateChanged)

QFont	mainFont () const

QColor	mainTextColor () const

Protected Member Functions inherited from QCPLayoutElement
virtual int	calculateAutoMargin (QCP::MarginSide side)

virtual void	layoutChanged ()

virtual void	parentPlotInitialized (QCustomPlot *parentPlot)

virtual int	calculateAutoMargin (QCP::MarginSide side)

virtual void	mousePressEvent (QMouseEvent *event)

virtual void	mouseMoveEvent (QMouseEvent *event)

virtual void	mouseReleaseEvent (QMouseEvent *event)

virtual void	mouseDoubleClickEvent (QMouseEvent *event)

virtual void	wheelEvent (QWheelEvent *event)

virtual void	parentPlotInitialized (QCustomPlot *parentPlot)

Protected Member Functions inherited from QCPLayerable
virtual QCP::Interaction	selectionCategory () const

virtual QRect	clipRect () const

virtual void	mousePressEvent (QMouseEvent *event, const QVariant &details)

virtual void	mouseMoveEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mouseReleaseEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mouseDoubleClickEvent (QMouseEvent *event, const QVariant &details)

void	initializeParentPlot (QCustomPlot *parentPlot)

void	setParentLayerable (QCPLayerable *parentLayerable)

bool	moveToLayer (QCPLayer *layer, bool prepend)

void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

virtual QCP::Interaction	selectionCategory () const

virtual QRect	clipRect () const

void	initializeParentPlot (QCustomPlot *parentPlot)

void	setParentLayerable (QCPLayerable *parentLayerable)

bool	moveToLayer (QCPLayer *layer, bool prepend)

void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

Protected Attributes
QString	mText

QFont	mFont

QColor	mTextColor

QFont	mSelectedFont

QColor	mSelectedTextColor

QRect	mTextBoundingRect

bool	mSelectable

bool	mSelected

Protected Attributes inherited from QCPLayoutElement
QCPLayout *	mParentLayout

QSize	mMinimumSize

QSize	mMaximumSize

SizeConstraintRect	mSizeConstraintRect

QRect	mRect

QRect	mOuterRect

QMargins	mMargins

QMargins	mMinimumMargins

QCP::MarginSides	mAutoMargins

QHash< QCP::MarginSide, QCPMarginGroup * >	mMarginGroups

Protected Attributes inherited from QCPLayerable
bool	mVisible

QCustomPlot *	mParentPlot

QPointer< QCPLayerable >	mParentLayerable

QCPLayer *	mLayer

bool	mAntialiased

Additional Inherited Members
Public Types inherited from QCPLayoutElement
enum	UpdatePhase { upPreparation , upMargins , upLayout , upPreparation , upMargins , upLayout }

enum	SizeConstraintRect { scrInnerRect , scrOuterRect }

enum	UpdatePhase { upPreparation , upMargins , upLayout , upPreparation , upMargins , upLayout }

Detailed Description

A layout element displaying a plot title text.

The text may be specified with setText, theformatting can be controlled with setFont and setTextColor.

A plot title can be added as follows:

Since a plot title is a common requirement, QCustomPlot offers specialized selection signals for easy interaction with QCPPlotTitle. If a layout element of type QCPPlotTitle is clicked, the signal QCustomPlot::titleClick is emitted. A double click emits the QCustomPlot::titleDoubleClick signal.

Definition at line 2773 of file qcustomplot.h.

Constructor & Destructor Documentation

◆ QCPPlotTitle() [1/2]

QCPPlotTitle::QCPPlotTitle ( QCustomPlot * parentPlot )

explicit

Creates a new QCPPlotTitle instance and sets default values. The initial text is empty (setText).

To set the title text in the constructor, rather use QCPPlotTitle(QCustomPlot *parentPlot, const QString &text).

Definition at line 13899 of file qcustomplot.cpp.

References QCustomPlot::currentLayer(), mFont, mSelectedFont, QCPLayerable::parentPlot(), QCPLayerable::setLayer(), and QCPLayoutElement::setMargins().

◆ QCPPlotTitle() [2/2]

QCPPlotTitle::QCPPlotTitle	(	QCustomPlot *	parentPlot,
		const QString &	text
	)

explicit

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Creates a new QCPPlotTitle instance and sets default values. The initial text is set to text.

Definition at line 13923 of file qcustomplot.cpp.

References QCPLayerable::setLayer(), and QCPLayoutElement::setMargins().

Member Function Documentation

◆ applyDefaultAntialiasingHint()

void QCPPlotTitle::applyDefaultAntialiasingHint ( QCPPainter * painter ) const

protectedvirtual

Reimplemented from QCPLayoutElement.

Definition at line 14008 of file qcustomplot.cpp.

References QCP::aeNone, QCPLayerable::applyAntialiasingHint(), and QCPLayerable::mAntialiased.

◆ deselectEvent()

void QCPPlotTitle::deselectEvent ( bool * selectionStateChanged )

protectedvirtual

Reimplemented from QCPLayerable.

Definition at line 14055 of file qcustomplot.cpp.

References mSelectable, mSelected, and setSelected().

◆ draw()

void QCPPlotTitle::draw ( QCPPainter * painter )

protectedvirtual

Reimplemented from QCPLayoutElement.

Definition at line 14013 of file qcustomplot.cpp.

References mainFont(), mainTextColor(), QCPLayoutElement::mRect, mText, mTextBoundingRect, and QCPPainter::setPen().

◆ font()

QFont QCPPlotTitle::font ( ) const

inline

Definition at line 2793 of file qcustomplot.h.

References QCPAbstractLegendItem::mFont.

Referenced by setFont(), and setSelectedFont().

◆ mainFont()

QFont QCPPlotTitle::mainFont ( ) const

protected

Definition at line 14082 of file qcustomplot.cpp.

References mFont, mSelected, and mSelectedFont.

Referenced by draw().

◆ mainTextColor()

QColor QCPPlotTitle::mainTextColor ( ) const

protected

Definition at line 14091 of file qcustomplot.cpp.

References mSelected, mSelectedTextColor, and mTextColor.

Referenced by draw().

◆ maximumSizeHint()

QSize QCPPlotTitle::maximumSizeHint ( ) const

protectedvirtual

Returns the maximum size this layout element (the inner rect) may be expanded to.

if a maximum size (setMaximumSize) was not set manually, parent layouts consult this function to determine the maximum allowed size of this layout element. (A manual maximum size is considered set if it is smaller than Qt's QWIDGETSIZE_MAX.)

Reimplemented from QCPLayoutElement.

Definition at line 14030 of file qcustomplot.cpp.

References mFont, QCPLayoutElement::mMargins, mText, and result.

◆ minimumSizeHint()

QSize QCPPlotTitle::minimumSizeHint ( ) const

protectedvirtual

Returns the minimum size this layout element (the inner rect) may be compressed to.

if a minimum size (setMinimumSize) was not set manually, parent layouts consult this function to determine the minimum allowed size of this layout element. (A manual minimum size is considered set if it is non-zero.)

Reimplemented from QCPLayoutElement.

Definition at line 14020 of file qcustomplot.cpp.

References mFont, QCPLayoutElement::mMargins, mText, and result.

◆ selectable()

bool QCPPlotTitle::selectable ( ) const

inline

Definition at line 2797 of file qcustomplot.h.

References QCPAbstractLegendItem::mSelectable.

Referenced by setSelectable().

◆ selectableChanged

void QCPPlotTitle::selectableChanged ( bool selectable )

signal

Referenced by setSelectable().

◆ selected()

bool QCPPlotTitle::selected ( ) const

inline

Definition at line 2798 of file qcustomplot.h.

References QCPAbstractLegendItem::mSelected.

Referenced by setSelected().

◆ selectedFont()

QFont QCPPlotTitle::selectedFont ( ) const

inline

Definition at line 2795 of file qcustomplot.h.

References QCPAbstractLegendItem::mSelectedFont.

◆ selectedTextColor()

QColor QCPPlotTitle::selectedTextColor ( ) const

inline

Definition at line 2796 of file qcustomplot.h.

References QCPAbstractLegendItem::mSelectedTextColor.

◆ selectEvent()

void QCPPlotTitle::selectEvent	(	QMouseEvent *	event,
		bool	additive,
		const QVariant &	details,
		bool *	selectionStateChanged
	)

protectedvirtual

Reimplemented from QCPLayerable.

Definition at line 14040 of file qcustomplot.cpp.

References event, mSelectable, mSelected, and setSelected().

◆ selectionChanged

void QCPPlotTitle::selectionChanged ( bool selected )

signal

This signal is emitted when the selection state has changed to selected, either by user interaction or by a direct call to setSelected.

See also: setSelected, setSelectable

Referenced by setSelected().

◆ selectTest()

double QCPPlotTitle::selectTest	(	const QPointF &	pos,
		bool	onlySelectable,
		QVariant *	details = `0`
	)		const

virtual

Layout elements are sensitive to events inside their outer rect. If pos is within the outer rect, this method returns a value corresponding to 0.99 times the parent plot's selection tolerance. However, layout elements are not selectable by default. So if onlySelectable is true, -1.0 is returned.

See QCPLayerable::selectTest for a general explanation of this virtual method.

QCPLayoutElement subclasses may reimplement this method to provide more specific selection test behaviour.

Reimplemented from QCPLayoutElement.

Definition at line 14065 of file qcustomplot.cpp.

References QCPLayerable::mParentPlot, mSelectable, mTextBoundingRect, and QCustomPlot::selectionTolerance().

◆ setFont()

void QCPPlotTitle::setFont ( const QFont & font )

Sets the font of the title text.

See also: setTextColor, setSelectedFont

Definition at line 13953 of file qcustomplot.cpp.

References font(), and mFont.

◆ setSelectable()

void QCPPlotTitle::setSelectable ( bool selectable )

Sets whether the user may select this plot title to selectable.

Note that even when selectable is set to false, the selection state may be changed programmatically via setSelected.

Definition at line 13986 of file qcustomplot.cpp.

References mSelectable, selectable(), and selectableChanged().

◆ setSelected()

void QCPPlotTitle::setSelected ( bool selected )

Sets the selection state of this plot title to selected. If the selection has changed, selectionChanged is emitted.

Note that this function can change the selection state independently of the current setSelectable state.

Definition at line 14000 of file qcustomplot.cpp.

References mSelected, selected(), and selectionChanged().

Referenced by deselectEvent(), and selectEvent().

◆ setSelectedFont()

void QCPPlotTitle::setSelectedFont ( const QFont & font )

Sets the font of the title text that will be used if the plot title is selected (setSelected).

See also: setFont

Definition at line 13968 of file qcustomplot.cpp.

References font(), and mSelectedFont.

◆ setSelectedTextColor()

void QCPPlotTitle::setSelectedTextColor ( const QColor & color )

Sets the color of the title text that will be used if the plot title is selected (setSelected).

See also: setTextColor

Definition at line 13976 of file qcustomplot.cpp.

References color, and mSelectedTextColor.

◆ setText()

void QCPPlotTitle::setText ( const QString & text )

Sets the text that will be displayed to text. Multiple lines can be created by insertion of "\n".

See also: setFont, setTextColor

Definition at line 13946 of file qcustomplot.cpp.

References mText, and text().

◆ setTextColor()

void QCPPlotTitle::setTextColor ( const QColor & color )

Sets the color of the title text.

See also: setFont, setSelectedTextColor

Definition at line 13960 of file qcustomplot.cpp.

References color, and mTextColor.

◆ text()

QString QCPPlotTitle::text ( ) const

inline

Definition at line 2792 of file qcustomplot.h.

Referenced by setText().

◆ textColor()

QColor QCPPlotTitle::textColor ( ) const

inline

Definition at line 2794 of file qcustomplot.h.

References QCPAbstractLegendItem::mTextColor.

Member Data Documentation

◆ mFont

QFont QCPPlotTitle::mFont

protected

Definition at line 2821 of file qcustomplot.h.

Referenced by mainFont(), maximumSizeHint(), minimumSizeHint(), QCPPlotTitle(), and setFont().

◆ mSelectable

bool QCPPlotTitle::mSelectable

protected

Definition at line 2826 of file qcustomplot.h.

Referenced by deselectEvent(), selectEvent(), selectTest(), and setSelectable().

◆ mSelected

bool QCPPlotTitle::mSelected

protected

Definition at line 2826 of file qcustomplot.h.

Referenced by deselectEvent(), mainFont(), mainTextColor(), selectEvent(), and setSelected().

◆ mSelectedFont

QFont QCPPlotTitle::mSelectedFont

protected

Definition at line 2823 of file qcustomplot.h.

Referenced by mainFont(), QCPPlotTitle(), and setSelectedFont().

◆ mSelectedTextColor

QColor QCPPlotTitle::mSelectedTextColor

protected

Definition at line 2824 of file qcustomplot.h.

Referenced by mainTextColor(), and setSelectedTextColor().

◆ mText

QString QCPPlotTitle::mText

protected

Definition at line 2820 of file qcustomplot.h.

Referenced by draw(), maximumSizeHint(), minimumSizeHint(), and setText().

◆ mTextBoundingRect

QRect QCPPlotTitle::mTextBoundingRect

protected

Definition at line 2825 of file qcustomplot.h.

Referenced by draw(), and selectTest().

◆ mTextColor

QColor QCPPlotTitle::mTextColor

protected

Definition at line 2822 of file qcustomplot.h.

Referenced by mainTextColor(), and setTextColor().

The documentation for this class was generated from the following files:

/root/ACloudViewer/libs/PCLEngine/Tools/Common/qcustomplot.h
/root/ACloudViewer/libs/PCLEngine/Tools/Common/qcustomplot.cpp

Signals

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ QCPPlotTitle() [1/2]

◆ QCPPlotTitle() [2/2]

Member Function Documentation

◆ applyDefaultAntialiasingHint()

◆ deselectEvent()

◆ draw()

◆ font()

◆ mainFont()

◆ mainTextColor()

◆ maximumSizeHint()

◆ minimumSizeHint()

◆ selectable()

◆ selectableChanged

◆ selected()

◆ selectedFont()

◆ selectedTextColor()

◆ selectEvent()

◆ selectionChanged

◆ selectTest()

◆ setFont()

◆ setSelectable()

◆ setSelected()

◆ setSelectedFont()

◆ setSelectedTextColor()

◆ setText()

◆ setTextColor()

◆ text()

◆ textColor()

Member Data Documentation

◆ mFont

◆ mSelectable

◆ mSelected

◆ mSelectedFont

◆ mSelectedTextColor

◆ mText

◆ mTextBoundingRect

◆ mTextColor
