The abstract base class for layouts. More...

#include <qcustomplot.h>

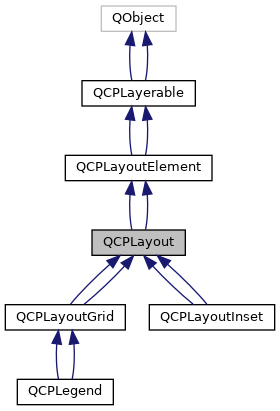

Inheritance diagram for QCPLayout:

[legend]

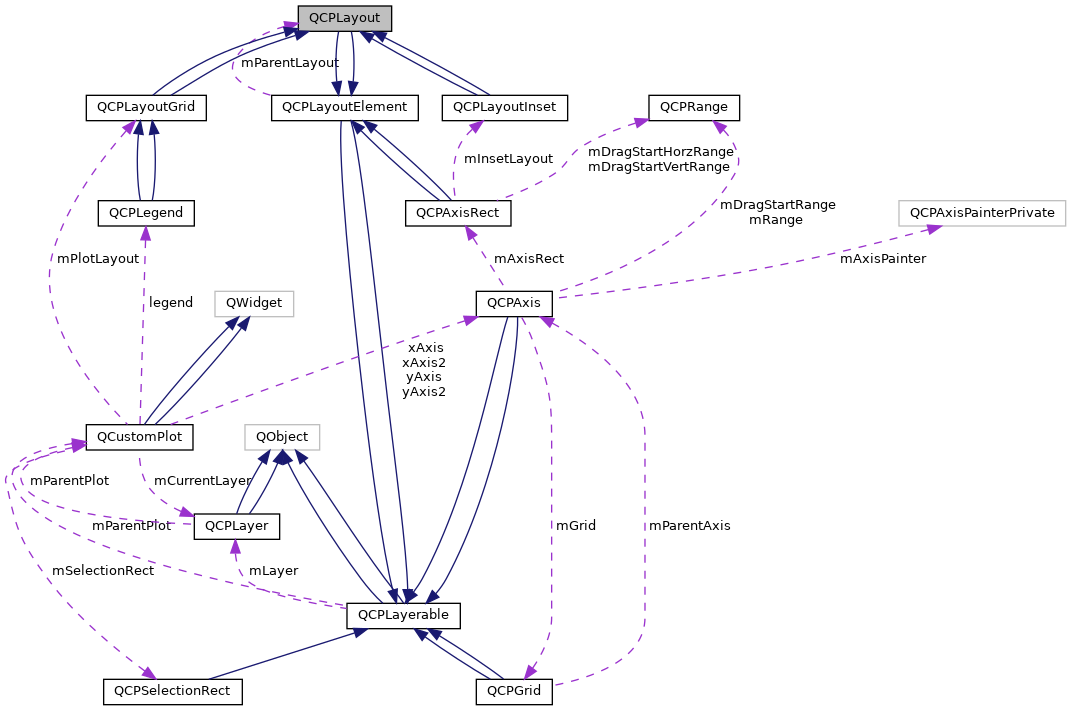

Collaboration diagram for QCPLayout:

[legend]

Public Member Functions
	QCPLayout ()

virtual void	update (UpdatePhase phase)

virtual QList< QCPLayoutElement * >	elements (bool recursive) const

virtual int	elementCount () const =0

virtual QCPLayoutElement *	elementAt (int index) const =0

virtual QCPLayoutElement *	takeAt (int index)=0

virtual bool	take (QCPLayoutElement *element)=0

virtual void	simplify ()

bool	removeAt (int index)

bool	remove (QCPLayoutElement *element)

void	clear ()

	QCPLayout ()

virtual void	update (UpdatePhase phase)

virtual QList< QCPLayoutElement * >	elements (bool recursive) const

virtual int	elementCount () const =0

virtual QCPLayoutElement *	elementAt (int index) const =0

virtual QCPLayoutElement *	takeAt (int index)=0

virtual bool	take (QCPLayoutElement *element)=0

virtual void	simplify ()

bool	removeAt (int index)

bool	remove (QCPLayoutElement *element)

void	clear ()

Public Member Functions inherited from QCPLayoutElement
	QCPLayoutElement (QCustomPlot *parentPlot=0)

virtual	~QCPLayoutElement ()

QCPLayout *	layout () const

QRect	rect () const

QRect	outerRect () const

QMargins	margins () const

QMargins	minimumMargins () const

QCP::MarginSides	autoMargins () const

QSize	minimumSize () const

QSize	maximumSize () const

SizeConstraintRect	sizeConstraintRect () const

QCPMarginGroup *	marginGroup (QCP::MarginSide side) const

QHash< QCP::MarginSide, QCPMarginGroup * >	marginGroups () const

void	setOuterRect (const QRect &rect)

void	setMargins (const QMargins &margins)

void	setMinimumMargins (const QMargins &margins)

void	setAutoMargins (QCP::MarginSides sides)

void	setMinimumSize (const QSize &size)

void	setMinimumSize (int width, int height)

void	setMaximumSize (const QSize &size)

void	setMaximumSize (int width, int height)

void	setSizeConstraintRect (SizeConstraintRect constraintRect)

void	setMarginGroup (QCP::MarginSides sides, QCPMarginGroup *group)

virtual QSize	minimumOuterSizeHint () const

virtual QSize	maximumOuterSizeHint () const

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const

	QCPLayoutElement (QCustomPlot *parentPlot=0)

virtual	~QCPLayoutElement ()

QCPLayout *	layout () const

QRect	rect () const

QRect	outerRect () const

QMargins	margins () const

QMargins	minimumMargins () const

QCP::MarginSides	autoMargins () const

QSize	minimumSize () const

QSize	maximumSize () const

QCPMarginGroup *	marginGroup (QCP::MarginSide side) const

QHash< QCP::MarginSide, QCPMarginGroup * >	marginGroups () const

void	setOuterRect (const QRect &rect)

void	setMargins (const QMargins &margins)

void	setMinimumMargins (const QMargins &margins)

void	setAutoMargins (QCP::MarginSides sides)

void	setMinimumSize (const QSize &size)

void	setMinimumSize (int width, int height)

void	setMaximumSize (const QSize &size)

void	setMaximumSize (int width, int height)

void	setMarginGroup (QCP::MarginSides sides, QCPMarginGroup *group)

virtual QSize	minimumSizeHint () const

virtual QSize	maximumSizeHint () const

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const

Public Member Functions inherited from QCPLayerable
	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)

virtual	~QCPLayerable ()

bool	visible () const

QCustomPlot *	parentPlot () const

QCPLayerable *	parentLayerable () const

QCPLayer *	layer () const

bool	antialiased () const

void	setVisible (bool on)

Q_SLOT bool	setLayer (QCPLayer *layer)

bool	setLayer (const QString &layerName)

void	setAntialiased (bool enabled)

bool	realVisibility () const

	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)

	~QCPLayerable ()

bool	visible () const

QCustomPlot *	parentPlot () const

QCPLayerable *	parentLayerable () const

QCPLayer *	layer () const

bool	antialiased () const

void	setVisible (bool on)

Q_SLOT bool	setLayer (QCPLayer *layer)

bool	setLayer (const QString &layerName)

void	setAntialiased (bool enabled)

bool	realVisibility () const

Protected Member Functions
virtual void	updateLayout ()

void	sizeConstraintsChanged () const

void	adoptElement (QCPLayoutElement *el)

void	releaseElement (QCPLayoutElement *el)

QVector< int >	getSectionSizes (QVector< int > maxSizes, QVector< int > minSizes, QVector< double > stretchFactors, int totalSize) const

virtual void	updateLayout ()

void	sizeConstraintsChanged () const

void	adoptElement (QCPLayoutElement *el)

void	releaseElement (QCPLayoutElement *el)

QVector< int >	getSectionSizes (QVector< int > maxSizes, QVector< int > minSizes, QVector< double > stretchFactors, int totalSize) const

Protected Member Functions inherited from QCPLayoutElement
virtual int	calculateAutoMargin (QCP::MarginSide side)

virtual void	layoutChanged ()

virtual void	applyDefaultAntialiasingHint (QCPPainter *painter) const

virtual void	draw (QCPPainter *painter)

virtual void	parentPlotInitialized (QCustomPlot *parentPlot)

virtual int	calculateAutoMargin (QCP::MarginSide side)

virtual void	mousePressEvent (QMouseEvent *event)

virtual void	mouseMoveEvent (QMouseEvent *event)

virtual void	mouseReleaseEvent (QMouseEvent *event)

virtual void	mouseDoubleClickEvent (QMouseEvent *event)

virtual void	wheelEvent (QWheelEvent *event)

virtual void	applyDefaultAntialiasingHint (QCPPainter *painter) const

virtual void	draw (QCPPainter *painter)

virtual void	parentPlotInitialized (QCustomPlot *parentPlot)

Protected Member Functions inherited from QCPLayerable
virtual QCP::Interaction	selectionCategory () const

virtual QRect	clipRect () const

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged)

virtual void	deselectEvent (bool *selectionStateChanged)

virtual void	mousePressEvent (QMouseEvent *event, const QVariant &details)

virtual void	mouseMoveEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mouseReleaseEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mouseDoubleClickEvent (QMouseEvent *event, const QVariant &details)

void	initializeParentPlot (QCustomPlot *parentPlot)

void	setParentLayerable (QCPLayerable *parentLayerable)

bool	moveToLayer (QCPLayer *layer, bool prepend)

void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

virtual QCP::Interaction	selectionCategory () const

virtual QRect	clipRect () const

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged)

virtual void	deselectEvent (bool *selectionStateChanged)

void	initializeParentPlot (QCustomPlot *parentPlot)

void	setParentLayerable (QCPLayerable *parentLayerable)

bool	moveToLayer (QCPLayer *layer, bool prepend)

void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

Static Protected Member Functions
static QSize	getFinalMinimumOuterSize (const QCPLayoutElement *el)

static QSize	getFinalMaximumOuterSize (const QCPLayoutElement *el)

Additional Inherited Members
Public Types inherited from QCPLayoutElement
enum	UpdatePhase { upPreparation , upMargins , upLayout , upPreparation , upMargins , upLayout }

enum	SizeConstraintRect { scrInnerRect , scrOuterRect }

enum	UpdatePhase { upPreparation , upMargins , upLayout , upPreparation , upMargins , upLayout }

Signals inherited from QCPLayerable
void	layerChanged (QCPLayer *newLayer)

void	layerChanged (QCPLayer *newLayer)

Protected Attributes inherited from QCPLayoutElement
QCPLayout *	mParentLayout

QSize	mMinimumSize

QSize	mMaximumSize

SizeConstraintRect	mSizeConstraintRect

QRect	mRect

QRect	mOuterRect

QMargins	mMargins

QMargins	mMinimumMargins

QCP::MarginSides	mAutoMargins

QHash< QCP::MarginSide, QCPMarginGroup * >	mMarginGroups

Protected Attributes inherited from QCPLayerable
bool	mVisible

QCustomPlot *	mParentPlot

QPointer< QCPLayerable >	mParentLayerable

QCPLayer *	mLayer

bool	mAntialiased

Detailed Description

The abstract base class for layouts.

This is an abstract base class for layout elements whose main purpose is to define the position and size of other child layout elements. In most cases, layouts don't draw anything themselves (but there are exceptions to this, e.g. QCPLegend).

QCPLayout derives from QCPLayoutElement, and thus can itself be nested in other layouts.

QCPLayout introduces a common interface for accessing and manipulating the child elements. Those functions are most notably elementCount, elementAt, takeAt, take, simplify, removeAt, remove and clear. Individual subclasses may add more functions to this interface which are more specialized to the form of the layout. For example, QCPLayoutGrid adds functions that take row and column indices to access cells of the layout grid more conveniently.

Since this is an abstract base class, you can't instantiate it directly. Rather use one of its subclasses like QCPLayoutGrid or QCPLayoutInset.

For a general introduction to the layout system, see the dedicated documentation page The Layout System.

Definition at line 1532 of file qcustomplot.h.

Constructor & Destructor Documentation

◆ QCPLayout() [1/2]

QCPLayout::QCPLayout ( )

explicit

Creates an instance of QCPLayout and sets default values. Note that since QCPLayout is an abstract base class, it can't be instantiated directly.

Definition at line 3607 of file qcustomplot.cpp.

◆ QCPLayout() [2/2]

QCPLayout::QCPLayout ( )

explicit

Member Function Documentation

◆ adoptElement() [1/2]

void QCPLayout::adoptElement ( QCPLayoutElement * el )

protected

Definition at line 3754 of file qcustomplot.cpp.

References QCPLayerable::initializeParentPlot(), QCPLayoutElement::layoutChanged(), QCPLayoutElement::mParentLayout, QCPLayerable::mParentPlot, QCPLayerable::parentPlot(), and QCPLayerable::setParentLayerable().

Referenced by QCPLayoutGrid::addElement(), and QCPLayoutInset::addElement().

◆ adoptElement() [2/2]

void QCPLayout::adoptElement ( QCPLayoutElement * el )

protected

◆ clear() [1/2]

void QCPLayout::clear ( )

Removes and deletes all layout elements in this layout. Finally calls simplify to make sure all empty cells are collapsed.

See also: remove, removeAt

Definition at line 3701 of file qcustomplot.cpp.

References elementAt(), elementCount(), removeAt(), and simplify().

Referenced by QCPLayoutGrid::~QCPLayoutGrid(), and QCPLayoutInset::~QCPLayoutInset().

◆ clear() [2/2]

void QCPLayout::clear ( )

◆ elementAt() [1/2]

QCPLayoutElement * QCPLayout::elementAt ( int index ) const

pure virtual

Returns the element in the cell with the given index. If index is invalid, returns 0.

Note that even if index is valid, the respective cell may be empty in some layouts (e.g. QCPLayoutGrid), so this function may return 0 in those cases. You may use this function to check whether a cell is empty or not.

See also: elements, elementCount, takeAt

Implemented in QCPLayoutInset, QCPLayoutGrid, QCPLayoutInset, and QCPLayoutGrid.

Referenced by clear(), elements(), and update().

◆ elementAt() [2/2]

virtual QCPLayoutElement* QCPLayout::elementAt ( int index ) const

pure virtual

Implemented in QCPLayoutInset, QCPLayoutGrid, QCPLayoutInset, and QCPLayoutGrid.

◆ elementCount() [1/2]

int QCPLayout::elementCount ( ) const

pure virtual

Returns the number of elements/cells in the layout.

See also: elements, elementAt

Implemented in QCPLayoutInset, QCPLayoutGrid, QCPLayoutInset, and QCPLayoutGrid.

Referenced by clear(), elements(), and update().

◆ elementCount() [2/2]

virtual int QCPLayout::elementCount ( ) const

pure virtual

Implemented in QCPLayoutInset, QCPLayoutGrid, QCPLayoutInset, and QCPLayoutGrid.

◆ elements() [1/2]

QList< QCPLayoutElement * > QCPLayout::elements ( bool recursive ) const

virtual

Returns a list of all child elements in this layout element. If recursive is true, all sub-child elements are included in the list, too.

Warning: There may be entries with value 0 in the returned list. (For example, QCPLayoutGrid may have empty cells which yield 0 at the respective index.)

Reimplemented from QCPLayoutElement.

Reimplemented in QCPLayoutGrid, and QCPLayoutGrid.

Definition at line 3633 of file qcustomplot.cpp.

References elementAt(), elementCount(), and result.

Referenced by QCPAxisRect::elements().

◆ elements() [2/2]

virtual QList<QCPLayoutElement *> QCPLayout::elements ( bool recursive ) const

virtual

Returns a list of all child elements in this layout element. If recursive is true, all sub-child elements are included in the list, too.

Warning: There may be entries with value 0 in the returned list. (For example, QCPLayoutGrid may have empty cells which yield 0 at the respective index.)

Reimplemented from QCPLayoutElement.

Reimplemented in QCPLayoutGrid, and QCPLayoutGrid.

◆ getFinalMaximumOuterSize()

QSize QCPLayout::getFinalMaximumOuterSize ( const QCPLayoutElement * el )

staticprotected

Definition at line 4010 of file qcustomplot.cpp.

References QCPLayoutElement::margins(), QCPLayoutElement::maximumOuterSizeHint(), QCPLayoutElement::maximumSize(), QCPLayoutElement::scrInnerRect, and QCPLayoutElement::sizeConstraintRect().

Referenced by QCPLayoutGrid::getMaximumRowColSizes(), and QCPLayoutInset::updateLayout().

◆ getFinalMinimumOuterSize()

QSize QCPLayout::getFinalMinimumOuterSize ( const QCPLayoutElement * el )

staticprotected

Definition at line 3978 of file qcustomplot.cpp.

References QCPLayoutElement::margins(), QCPLayoutElement::minimumOuterSizeHint(), QCPLayoutElement::minimumSize(), QCPLayoutElement::scrInnerRect, and QCPLayoutElement::sizeConstraintRect().

Referenced by QCPLayoutGrid::getMinimumRowColSizes(), and QCPLayoutInset::updateLayout().

◆ getSectionSizes() [1/2]

QVector< int > QCPLayout::getSectionSizes	(	QVector< int >	maxSizes,
		QVector< int >	minSizes,
		QVector< double >	stretchFactors,
		int	totalSize
	)		const

protected

Definition at line 3822 of file qcustomplot.cpp.

Referenced by QCPLayoutGrid::updateLayout().

◆ getSectionSizes() [2/2]

QVector<int> QCPLayout::getSectionSizes	(	QVector< int >	maxSizes,
		QVector< int >	minSizes,
		QVector< double >	stretchFactors,
		int	totalSize
	)		const

protected

◆ releaseElement() [1/2]

void QCPLayout::releaseElement ( QCPLayoutElement * el )

protected

Definition at line 3776 of file qcustomplot.cpp.

References QCPLayoutElement::mParentLayout, QCPLayerable::mParentPlot, and QCPLayerable::setParentLayerable().

Referenced by QCPLayoutGrid::takeAt(), and QCPLayoutInset::takeAt().

◆ releaseElement() [2/2]

void QCPLayout::releaseElement ( QCPLayoutElement * el )

protected

◆ remove() [1/2]

bool QCPLayout::remove ( QCPLayoutElement * element )

Removes and deletes the provided element. Returns true on success. If element is not in the layout, returns false.

This function internally uses takeAt to remove the element from the layout and then deletes the element. Note that some layouts don't remove the respective cell right away but leave an empty cell after successful removal of the layout element. To collapse empty cells, use simplify.

See also: removeAt, take

Definition at line 3687 of file qcustomplot.cpp.

References take().

Referenced by ccHistogramWindow::refresh(), ccWaveWidget::refresh(), and QCPLegend::removeItem().

◆ remove() [2/2]

bool QCPLayout::remove ( QCPLayoutElement * element )

◆ removeAt() [1/2]

bool QCPLayout::removeAt ( int index )

Removes and deletes the element at the provided index. Returns true on success. If index is invalid or points to an empty cell, returns false.

This function internally uses takeAt to remove the element from the layout and then deletes the returned element. Note that some layouts don't remove the respective cell right away but leave an empty cell after successful removal of the layout element. To collapse empty cells, use simplify.

See also: remove, takeAt

Definition at line 3668 of file qcustomplot.cpp.

References takeAt().

Referenced by clear(), and QCPLayoutGrid::simplify().

◆ removeAt() [2/2]

bool QCPLayout::removeAt ( int index )

◆ simplify() [1/2]

void QCPLayout::simplify ( )

virtual

Simplifies the layout by collapsing empty cells. The exact behavior depends on subclasses, the default implementation does nothing.

Not all layouts need simplification. For example, QCPLayoutInset doesn't use explicit simplification while QCPLayoutGrid does.

Reimplemented in QCPLayoutInset, QCPLayoutGrid, QCPLayoutInset, and QCPLayoutGrid.

Definition at line 3655 of file qcustomplot.cpp.

Referenced by clear().

◆ simplify() [2/2]

virtual void QCPLayout::simplify ( )

virtual

Reimplemented in QCPLayoutInset, QCPLayoutGrid, QCPLayoutInset, and QCPLayoutGrid.

◆ sizeConstraintsChanged() [1/2]

void QCPLayout::sizeConstraintsChanged ( ) const

protected

Subclasses call this method to report changed (minimum/maximum) size constraints.

If the parent of this layout is again a QCPLayout, forwards the call to the parent's sizeConstraintsChanged. If the parent is a QWidget (i.e. is the QCustomPlot::plotLayout of QCustomPlot), calls QWidget::updateGeometry, so if the QCustomPlot widget is inside a Qt QLayout, it may update itself and resize cells accordingly.

Definition at line 3718 of file qcustomplot.cpp.

Referenced by QCPLayoutElement::setMaximumSize(), QCPLayoutElement::setMinimumSize(), and QCPLayoutElement::setSizeConstraintRect().

◆ sizeConstraintsChanged() [2/2]

void QCPLayout::sizeConstraintsChanged ( ) const

protected

◆ take() [1/2]

bool QCPLayout::take ( QCPLayoutElement * element )

pure virtual

Removes the specified element from the layout and returns true on success.

If the element isn't in this layout, returns false.

Note that some layouts don't remove the respective cell right away but leave an empty cell after successful removal of the layout element. To collapse empty cells, use simplify.

See also: takeAt

Implemented in QCPLayoutInset, QCPLayoutGrid, QCPLayoutInset, and QCPLayoutGrid.

Referenced by QCPLayoutGrid::addElement(), QCPLayoutInset::addElement(), remove(), and QCPLayoutElement::~QCPLayoutElement().

◆ take() [2/2]

virtual bool QCPLayout::take ( QCPLayoutElement * element )

pure virtual

Implemented in QCPLayoutInset, QCPLayoutGrid, QCPLayoutInset, and QCPLayoutGrid.

◆ takeAt() [1/2]

QCPLayoutElement * QCPLayout::takeAt ( int index )

pure virtual

Removes the element with the given index from the layout and returns it.

If the index is invalid or the cell with that index is empty, returns 0.

Note that some layouts don't remove the respective cell right away but leave an empty cell after successful removal of the layout element. To collapse empty cells, use simplify.

See also: elementAt, take

Implemented in QCPLayoutInset, QCPLayoutGrid, QCPLayoutInset, and QCPLayoutGrid.

Referenced by removeAt().

◆ takeAt() [2/2]

virtual QCPLayoutElement* QCPLayout::takeAt ( int index )

pure virtual

Implemented in QCPLayoutInset, QCPLayoutGrid, QCPLayoutInset, and QCPLayoutGrid.

◆ update() [1/2]

void QCPLayout::update ( UpdatePhase phase )

virtual

If phase is upLayout, calls updateLayout, which subclasses may reimplement to reposition and resize their cells.

Finally, the call is propagated down to all child QCPLayoutElements.

For details about this method and the update phases, see the documentation of QCPLayoutElement::update.

First calls the QCPLayoutElement::update base class implementation to update the margins on this layout.

Then calls updateLayout which subclasses reimplement to reposition and resize their cells.

Finally, update is called on all child elements.

Reimplemented from QCPLayoutElement.

Definition at line 3619 of file qcustomplot.cpp.

References elementAt(), elementCount(), QCPLayoutElement::update(), updateLayout(), and QCPLayoutElement::upLayout.

Referenced by QCPAxisRect::update(), and QCustomPlot::updateLayout().

◆ update() [2/2]

virtual void QCPLayout::update ( UpdatePhase phase )

virtual

Updates the layout element and sub-elements. This function is automatically called before every replot by the parent layout element. It is called multiple times, once for every UpdatePhase. The phases are run through in the order of the enum values. For details about what happens at the different phases, see the documentation of UpdatePhase.

Layout elements that have child elements should call the update method of their child elements, and pass the current phase unchanged.

The default implementation executes the automatic margin mechanism in the upMargins phase. Subclasses should make sure to call the base class implementation.

Reimplemented from QCPLayoutElement.

◆ updateLayout() [1/2]

void QCPLayout::updateLayout ( )

protectedvirtual

Reimplemented in QCPLayoutInset, QCPLayoutGrid, QCPLayoutInset, and QCPLayoutGrid.

Definition at line 3738 of file qcustomplot.cpp.

Referenced by update().

◆ updateLayout() [2/2]

virtual void QCPLayout::updateLayout ( )

protectedvirtual

Reimplemented in QCPLayoutInset, QCPLayoutGrid, QCPLayoutInset, and QCPLayoutGrid.

The documentation for this class was generated from the following files:

/root/ACloudViewer/app/extern/QCustomPlot/qcustomplot.h
/root/ACloudViewer/app/extern/QCustomPlot/qcustomplot.cpp

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ QCPLayout() [1/2]

◆ QCPLayout() [2/2]

Member Function Documentation

◆ adoptElement() [1/2]

◆ adoptElement() [2/2]

◆ clear() [1/2]

◆ clear() [2/2]

◆ elementAt() [1/2]

◆ elementAt() [2/2]

◆ elementCount() [1/2]

◆ elementCount() [2/2]

◆ elements() [1/2]

◆ elements() [2/2]

◆ getFinalMaximumOuterSize()

◆ getFinalMinimumOuterSize()

◆ getSectionSizes() [1/2]

◆ getSectionSizes() [2/2]

◆ releaseElement() [1/2]

◆ releaseElement() [2/2]

◆ remove() [1/2]

◆ remove() [2/2]

◆ removeAt() [1/2]

◆ removeAt() [2/2]

◆ simplify() [1/2]

◆ simplify() [2/2]

◆ sizeConstraintsChanged() [1/2]

◆ sizeConstraintsChanged() [2/2]

◆ take() [1/2]

◆ take() [2/2]

◆ takeAt() [1/2]

◆ takeAt() [2/2]

◆ update() [1/2]

◆ update() [2/2]

◆ updateLayout() [1/2]

◆ updateLayout() [2/2]
