QCPLayoutInset Class Reference

A layout that places child elements aligned to the border or arbitrarily positioned. More...

#include <qcustomplot.h>

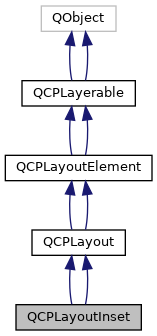

Inheritance diagram for QCPLayoutInset:

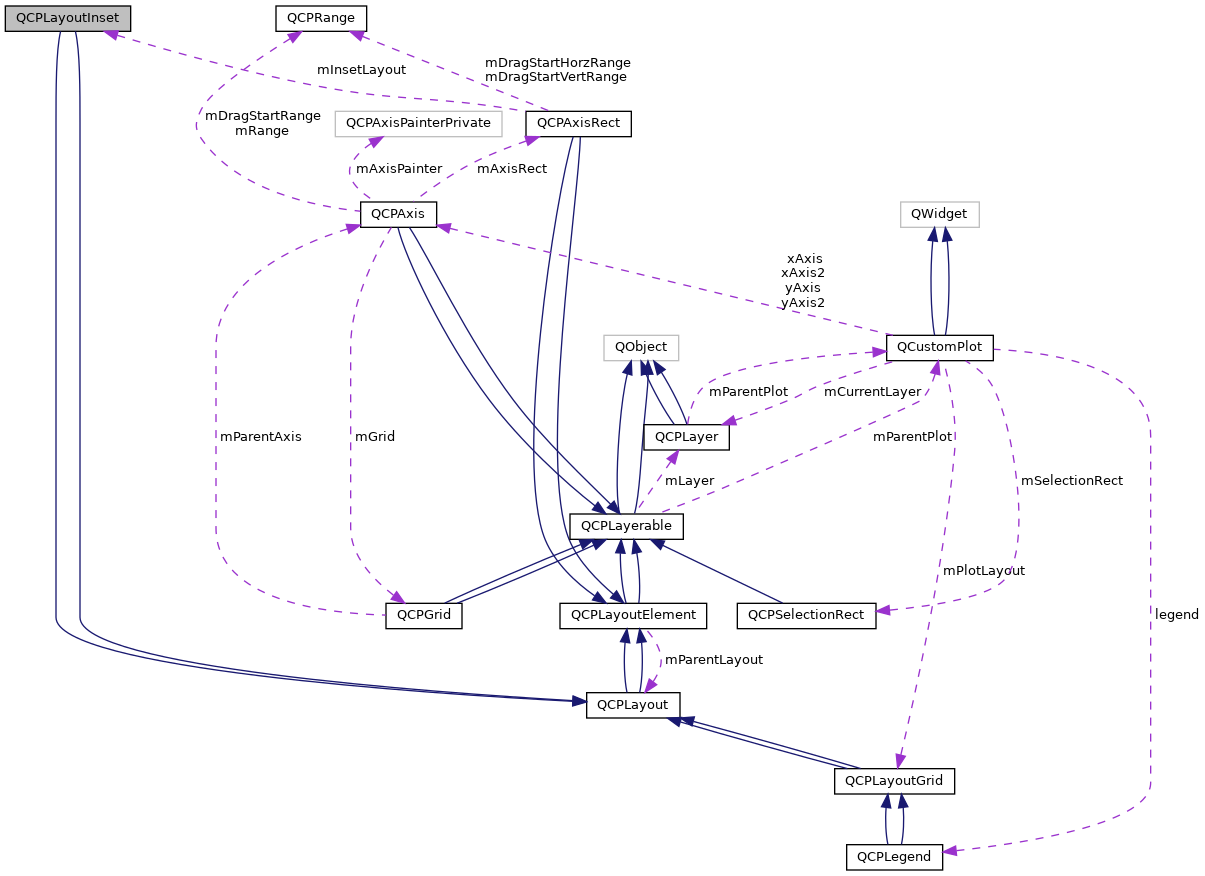

Collaboration diagram for QCPLayoutInset:

Public Types
enum	InsetPlacement { ipFree , ipBorderAligned , ipFree , ipBorderAligned }
enum	InsetPlacement { ipFree , ipBorderAligned , ipFree , ipBorderAligned }
Public Types inherited from QCPLayoutElement
enum	UpdatePhase {   upPreparation , upMargins , upLayout , upPreparation ,   upMargins , upLayout }
enum	SizeConstraintRect { scrInnerRect , scrOuterRect }
enum	UpdatePhase {   upPreparation , upMargins , upLayout , upPreparation ,   upMargins , upLayout }

Public Member Functions
	QCPLayoutInset ()
virtual	~QCPLayoutInset ()
InsetPlacement	insetPlacement (int index) const
Qt::Alignment	insetAlignment (int index) const
QRectF	insetRect (int index) const
void	setInsetPlacement (int index, InsetPlacement placement)
void	setInsetAlignment (int index, Qt::Alignment alignment)
void	setInsetRect (int index, const QRectF &rect)
virtual void	updateLayout ()
virtual int	elementCount () const
virtual QCPLayoutElement *	elementAt (int index) const
virtual QCPLayoutElement *	takeAt (int index)
virtual bool	take (QCPLayoutElement *element)
virtual void	simplify ()
virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const
void	addElement (QCPLayoutElement *element, Qt::Alignment alignment)
void	addElement (QCPLayoutElement *element, const QRectF &rect)
	QCPLayoutInset ()
virtual	~QCPLayoutInset ()
InsetPlacement	insetPlacement (int index) const
Qt::Alignment	insetAlignment (int index) const
QRectF	insetRect (int index) const
void	setInsetPlacement (int index, InsetPlacement placement)
void	setInsetAlignment (int index, Qt::Alignment alignment)
void	setInsetRect (int index, const QRectF &rect)
virtual void	updateLayout ()
virtual int	elementCount () const
virtual QCPLayoutElement *	elementAt (int index) const
virtual QCPLayoutElement *	takeAt (int index)
virtual bool	take (QCPLayoutElement *element)
virtual void	simplify ()
virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const
void	addElement (QCPLayoutElement *element, Qt::Alignment alignment)
void	addElement (QCPLayoutElement *element, const QRectF &rect)
Public Member Functions inherited from QCPLayout
	QCPLayout ()
virtual void	update (UpdatePhase phase)
virtual QList< QCPLayoutElement * >	elements (bool recursive) const
bool	removeAt (int index)
bool	remove (QCPLayoutElement *element)
void	clear ()
	QCPLayout ()
virtual void	update (UpdatePhase phase)
virtual QList< QCPLayoutElement * >	elements (bool recursive) const
bool	removeAt (int index)
bool	remove (QCPLayoutElement *element)
void	clear ()
Public Member Functions inherited from QCPLayoutElement
	QCPLayoutElement (QCustomPlot *parentPlot=0)
virtual	~QCPLayoutElement ()
QCPLayout *	layout () const
QRect	rect () const
QRect	outerRect () const
QMargins	margins () const
QMargins	minimumMargins () const
QCP::MarginSides	autoMargins () const
QSize	minimumSize () const
QSize	maximumSize () const
SizeConstraintRect	sizeConstraintRect () const
QCPMarginGroup *	marginGroup (QCP::MarginSide side) const
QHash< QCP::MarginSide, QCPMarginGroup * >	marginGroups () const
void	setOuterRect (const QRect &rect)
void	setMargins (const QMargins &margins)
void	setMinimumMargins (const QMargins &margins)
void	setAutoMargins (QCP::MarginSides sides)
void	setMinimumSize (const QSize &size)
void	setMinimumSize (int width, int height)
void	setMaximumSize (const QSize &size)
void	setMaximumSize (int width, int height)
void	setSizeConstraintRect (SizeConstraintRect constraintRect)
void	setMarginGroup (QCP::MarginSides sides, QCPMarginGroup *group)
virtual QSize	minimumOuterSizeHint () const
virtual QSize	maximumOuterSizeHint () const
	QCPLayoutElement (QCustomPlot *parentPlot=0)
virtual	~QCPLayoutElement ()
QCPLayout *	layout () const
QRect	rect () const
QRect	outerRect () const
QMargins	margins () const
QMargins	minimumMargins () const
QCP::MarginSides	autoMargins () const
QSize	minimumSize () const
QSize	maximumSize () const
QCPMarginGroup *	marginGroup (QCP::MarginSide side) const
QHash< QCP::MarginSide, QCPMarginGroup * >	marginGroups () const
void	setOuterRect (const QRect &rect)
void	setMargins (const QMargins &margins)
void	setMinimumMargins (const QMargins &margins)
void	setAutoMargins (QCP::MarginSides sides)
void	setMinimumSize (const QSize &size)
void	setMinimumSize (int width, int height)
void	setMaximumSize (const QSize &size)
void	setMaximumSize (int width, int height)
void	setMarginGroup (QCP::MarginSides sides, QCPMarginGroup *group)
virtual QSize	minimumSizeHint () const
virtual QSize	maximumSizeHint () const
Public Member Functions inherited from QCPLayerable
	QCPLayerable (QCustomPlot *plot, QString targetLayer=QString(), QCPLayerable *parentLayerable=0)
virtual	~QCPLayerable ()
bool	visible () const
QCustomPlot *	parentPlot () const
QCPLayerable *	parentLayerable () const
QCPLayer *	layer () const
bool	antialiased () const
void	setVisible (bool on)
Q_SLOT bool	setLayer (QCPLayer *layer)
bool	setLayer (const QString &layerName)
void	setAntialiased (bool enabled)
bool	realVisibility () const
	QCPLayerable (QCustomPlot *plot, QString targetLayer=QString(), QCPLayerable *parentLayerable=0)
	~QCPLayerable ()
bool	visible () const
QCustomPlot *	parentPlot () const
QCPLayerable *	parentLayerable () const
QCPLayer *	layer () const
bool	antialiased () const
void	setVisible (bool on)
Q_SLOT bool	setLayer (QCPLayer *layer)
bool	setLayer (const QString &layerName)
void	setAntialiased (bool enabled)
bool	realVisibility () const

Protected Attributes
QList< QCPLayoutElement * >	mElements
QList< InsetPlacement >	mInsetPlacement
QList< Qt::Alignment >	mInsetAlignment
QList< QRectF >	mInsetRect
Protected Attributes inherited from QCPLayoutElement
QCPLayout *	mParentLayout
QSize	mMinimumSize
QSize	mMaximumSize
SizeConstraintRect	mSizeConstraintRect
QRect	mRect
QRect	mOuterRect
QMargins	mMargins
QMargins	mMinimumMargins
QCP::MarginSides	mAutoMargins
QHash< QCP::MarginSide, QCPMarginGroup * >	mMarginGroups
Protected Attributes inherited from QCPLayerable
bool	mVisible
QCustomPlot *	mParentPlot
QPointer< QCPLayerable >	mParentLayerable
QCPLayer *	mLayer
bool	mAntialiased

Additional Inherited Members
Signals inherited from QCPLayerable
void	layerChanged (QCPLayer *newLayer)
void	layerChanged (QCPLayer *newLayer)
Protected Member Functions inherited from QCPLayout
void	sizeConstraintsChanged () const
void	adoptElement (QCPLayoutElement *el)
void	releaseElement (QCPLayoutElement *el)
QVector< int >	getSectionSizes (QVector< int > maxSizes, QVector< int > minSizes, QVector< double > stretchFactors, int totalSize) const
void	sizeConstraintsChanged () const
void	adoptElement (QCPLayoutElement *el)
void	releaseElement (QCPLayoutElement *el)
QVector< int >	getSectionSizes (QVector< int > maxSizes, QVector< int > minSizes, QVector< double > stretchFactors, int totalSize) const
Protected Member Functions inherited from QCPLayoutElement
virtual int	calculateAutoMargin (QCP::MarginSide side)
virtual void	layoutChanged ()
virtual void	applyDefaultAntialiasingHint (QCPPainter *painter) const
virtual void	draw (QCPPainter *painter)
virtual void	parentPlotInitialized (QCustomPlot *parentPlot)
virtual int	calculateAutoMargin (QCP::MarginSide side)
virtual void	mousePressEvent (QMouseEvent *event)
virtual void	mouseMoveEvent (QMouseEvent *event)
virtual void	mouseReleaseEvent (QMouseEvent *event)
virtual void	mouseDoubleClickEvent (QMouseEvent *event)
virtual void	wheelEvent (QWheelEvent *event)
virtual void	applyDefaultAntialiasingHint (QCPPainter *painter) const
virtual void	draw (QCPPainter *painter)
virtual void	parentPlotInitialized (QCustomPlot *parentPlot)
Protected Member Functions inherited from QCPLayerable
virtual QCP::Interaction	selectionCategory () const
virtual QRect	clipRect () const
virtual void	selectEvent (QMouseEvent *event, bool additive, const QVariant &details, bool *selectionStateChanged)
virtual void	deselectEvent (bool *selectionStateChanged)
virtual void	mousePressEvent (QMouseEvent *event, const QVariant &details)
virtual void	mouseMoveEvent (QMouseEvent *event, const QPointF &startPos)
virtual void	mouseReleaseEvent (QMouseEvent *event, const QPointF &startPos)
virtual void	mouseDoubleClickEvent (QMouseEvent *event, const QVariant &details)
void	initializeParentPlot (QCustomPlot *parentPlot)
void	setParentLayerable (QCPLayerable *parentLayerable)
bool	moveToLayer (QCPLayer *layer, bool prepend)
void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const
virtual QCP::Interaction	selectionCategory () const
virtual QRect	clipRect () const
virtual void	selectEvent (QMouseEvent *event, bool additive, const QVariant &details, bool *selectionStateChanged)
virtual void	deselectEvent (bool *selectionStateChanged)
void	initializeParentPlot (QCustomPlot *parentPlot)
void	setParentLayerable (QCPLayerable *parentLayerable)
bool	moveToLayer (QCPLayer *layer, bool prepend)
void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const
Static Protected Member Functions inherited from QCPLayout
static QSize	getFinalMinimumOuterSize (const QCPLayoutElement *el)
static QSize	getFinalMaximumOuterSize (const QCPLayoutElement *el)

Detailed Description

A layout that places child elements aligned to the border or arbitrarily positioned.

Elements are placed either aligned to the border or at arbitrary position in the area of the layout. Which placement applies is controlled with the InsetPlacement (setInsetPlacement).

Elements are added via addElement(QCPLayoutElement *element, Qt::Alignment alignment) or addElement(QCPLayoutElement *element, const QRectF &rect). If the first method is used, the inset placement will default to ipBorderAligned and the element will be aligned according to the alignment parameter. The second method defaults to ipFree and allows placing elements at arbitrary position and size, defined by rect.

The alignment or rect can be set via setInsetAlignment or setInsetRect, respectively.

This is the layout that every QCPAxisRect has as QCPAxisRect::insetLayout.

Definition at line 1677 of file qcustomplot.h.

Member Enumeration Documentation

InsetPlacement [1/2]

enum QCPLayoutInset::InsetPlacement

Defines how the placement and sizing is handled for a certain element in a QCPLayoutInset.

Enumerator
ipFree	The element may be positioned/sized arbitrarily, see setInsetRect
ipBorderAligned	The element is aligned to one of the layout sides, see setInsetAlignment
ipFree	The element may be positioned/sized arbitrarily, see setInsetRect
ipBorderAligned	The element is aligned to one of the layout sides, see setInsetAlignment

Definition at line 1684 of file qcustomplot.h.

InsetPlacement [2/2]

enum QCPLayoutInset::InsetPlacement

Defines how the placement and sizing is handled for a certain element in a QCPLayoutInset.

Enumerator
ipFree	The element may be positioned/sized arbitrarily, see setInsetRect
ipBorderAligned	The element is aligned to one of the layout sides, see setInsetAlignment
ipFree	The element may be positioned/sized arbitrarily, see setInsetRect
ipBorderAligned	The element is aligned to one of the layout sides, see setInsetAlignment

Definition at line 1025 of file qcustomplot.h.

Constructor & Destructor Documentation

QCPLayoutInset() [1/2]

QCPLayoutInset::QCPLayoutInset ( )

explicit

Creates an instance of QCPLayoutInset and sets default values.

Definition at line 4813 of file qcustomplot.cpp.

~QCPLayoutInset() [1/2]

QCPLayoutInset::~QCPLayoutInset ( )

virtual

Definition at line 4815 of file qcustomplot.cpp.

References QCPLayout::clear().

QCPLayoutInset() [2/2]

QCPLayoutInset::QCPLayoutInset ( )

explicit

~QCPLayoutInset() [2/2]

virtual QCPLayoutInset::~QCPLayoutInset ( )

virtual

Member Function Documentation

addElement() [1/4]

void QCPLayoutInset::addElement	(	QCPLayoutElement *	element,
		const QRectF &	rect
	)

Adds the specified element to the layout as an inset with free positioning/sizing (setInsetAlignment is initialized with ipFree). The position and size is set to rect.

rect is given in fractions of the whole inset layout rect. So an inset with rect (0, 0, 1, 1) will span the entire layout. An inset with rect (0.6, 0.1, 0.35, 0.35) will be in the top right corner of the layout, with 35% width and height of the parent layout.

See also

addElement(QCPLayoutElement *element, Qt::Alignment alignment)

Definition at line 5067 of file qcustomplot.cpp.

References QCPLayout::adoptElement(), ipFree, QCPLayoutElement::layout(), mElements, mInsetAlignment, mInsetPlacement, mInsetRect, QCPLayoutElement::rect(), and QCPLayout::take().

addElement() [2/4]

void QCPLayoutInset::addElement	(	QCPLayoutElement *	element,
		const QRectF &	rect
	)

addElement() [3/4]

void QCPLayoutInset::addElement	(	QCPLayoutElement *	element,
		Qt::Alignment	alignment
	)

Adds the specified element to the layout as an inset aligned at the border (setInsetAlignment is initialized with ipBorderAligned). The alignment is set to alignment.

alignment is an or combination of the following alignment flags: Qt::AlignLeft, Qt::AlignHCenter, Qt::AlighRight, Qt::AlignTop, Qt::AlignVCenter, Qt::AlignBottom. Any other alignment flags will be ignored.

See also

addElement(QCPLayoutElement *element, const QRectF &rect)

Definition at line 5041 of file qcustomplot.cpp.

References QCPLayout::adoptElement(), ipBorderAligned, QCPLayoutElement::layout(), mElements, mInsetAlignment, mInsetPlacement, mInsetRect, and QCPLayout::take().

Referenced by QCustomPlot::QCustomPlot().

addElement() [4/4]

void QCPLayoutInset::addElement	(	QCPLayoutElement *	element,
		Qt::Alignment	alignment
	)

elementAt() [1/2]

QCPLayoutElement * QCPLayoutInset::elementAt ( int  index ) const

virtual

Returns the element in the cell with the given index. If index is invalid, returns 0.

Note that even if index is valid, the respective cell may be empty in some layouts (e.g. QCPLayoutGrid), so this function may return 0 in those cases. You may use this function to check whether a cell is empty or not.

See also

elements, elementCount, takeAt

Implements QCPLayout.

Definition at line 4965 of file qcustomplot.cpp.

References mElements.

Referenced by insetAlignment(), insetPlacement(), insetRect(), setInsetAlignment(), setInsetPlacement(), setInsetRect(), take(), and takeAt().

elementAt() [2/2]

virtual QCPLayoutElement* QCPLayoutInset::elementAt ( int  index ) const

virtual

Returns the element in the cell with the given index. If index is invalid, returns 0.

Note that even if index is valid, the respective cell may be empty in some layouts (e.g. QCPLayoutGrid), so this function may return 0 in those cases. You may use this function to check whether a cell is empty or not.

See also

elements, elementCount, takeAt

Implements QCPLayout.

elementCount() [1/2]

int QCPLayoutInset::elementCount ( ) const

virtual

Returns the number of elements/cells in the layout.

See also

elements, elementAt

Implements QCPLayout.

Definition at line 4962 of file qcustomplot.cpp.

References mElements.

Referenced by take().

elementCount() [2/2]

virtual int QCPLayoutInset::elementCount ( ) const

virtual

Returns the number of elements/cells in the layout.

See also

elements, elementAt

Implements QCPLayout.

insetAlignment() [1/2]

Qt::Alignment QCPLayoutInset::insetAlignment

(

int

index

)

const

Returns the alignment of the element with the specified index. The alignment only has a meaning, if the inset placement (setInsetPlacement) is ipBorderAligned.

Definition at line 4839 of file qcustomplot.cpp.

References elementAt(), and mInsetAlignment.

insetAlignment() [2/2]

Qt::Alignment QCPLayoutInset::insetAlignment

(

int

index

)

const

insetPlacement() [1/2]

QCPLayoutInset::InsetPlacement QCPLayoutInset::insetPlacement

(

int

index

)

const

Returns the placement type of the element with the specified index.

Definition at line 4825 of file qcustomplot.cpp.

References elementAt(), ipFree, and mInsetPlacement.

insetPlacement() [2/2]

InsetPlacement QCPLayoutInset::insetPlacement

(

int

index

)

const

insetRect() [1/2]

QRectF QCPLayoutInset::insetRect

(

int

index

)

const

Returns the rect of the element with the specified index. The rect only has a meaning, if the inset placement (setInsetPlacement) is ipFree.

Definition at line 4856 of file qcustomplot.cpp.

References elementAt(), and mInsetRect.

Referenced by updateLayout().

insetRect() [2/2]

QRectF QCPLayoutInset::insetRect

(

int

index

)

const

selectTest() [1/2]

double QCPLayoutInset::selectTest ( const QPointF &  pos, bool  onlySelectable, QVariant *  details = 0  ) const

virtual

The inset layout is sensitive to events only at areas where its (visible) child elements are sensitive. If the selectTest method of any of the child elements returns a positive number for pos, this method returns a value corresponding to 0.99 times the parent plot's selection tolerance. The inset layout is not selectable itself by default. So if onlySelectable is true, -1.0 is returned.

See QCPLayerable::selectTest for a general explanation of this virtual method.

Reimplemented from QCPLayoutElement.

Definition at line 5013 of file qcustomplot.cpp.

References mElements, QCPLayerable::mParentPlot, and QCustomPlot::selectionTolerance().

selectTest() [2/2]

virtual double QCPLayoutInset::selectTest ( const QPointF &  pos, bool  onlySelectable, QVariant *  details = 0  ) const

virtual

Layout elements are sensitive to events inside their outer rect. If pos is within the outer rect, this method returns a value corresponding to 0.99 times the parent plot's selection tolerance. However, layout elements are not selectable by default. So if onlySelectable is true, -1.0 is returned.

See QCPLayerable::selectTest for a general explanation of this virtual method.

QCPLayoutElement subclasses may reimplement this method to provide more specific selection test behaviour.

Reimplemented from QCPLayoutElement.

setInsetAlignment() [1/2]

void QCPLayoutInset::setInsetAlignment	(	int	index,
		Qt::Alignment	alignment
	)

If the inset placement (setInsetPlacement) is ipBorderAligned, this function is used to set the alignment of the element with the specified index to alignment.

alignment is an or combination of the following alignment flags: Qt::AlignLeft, Qt::AlignHCenter, Qt::AlighRight, Qt::AlignTop, Qt::AlignVCenter, Qt::AlignBottom. Any other alignment flags will be ignored.

Definition at line 4888 of file qcustomplot.cpp.

References elementAt(), and mInsetAlignment.

setInsetAlignment() [2/2]

void QCPLayoutInset::setInsetAlignment	(	int	index,
		Qt::Alignment	alignment
	)

setInsetPlacement() [1/2]

void QCPLayoutInset::setInsetPlacement	(	int	index,
		QCPLayoutInset::InsetPlacement	placement
	)

Sets the inset placement type of the element with the specified index to placement.

See also

InsetPlacement

Definition at line 4871 of file qcustomplot.cpp.

References elementAt(), and mInsetPlacement.

setInsetPlacement() [2/2]

void QCPLayoutInset::setInsetPlacement	(	int	index,
		InsetPlacement	placement
	)

setInsetRect() [1/2]

void QCPLayoutInset::setInsetRect	(	int	index,
		const QRectF &	rect
	)

If the inset placement (setInsetPlacement) is ipFree, this function is used to set the position and size of the element with the specified index to rect.

rect is given in fractions of the whole inset layout rect. So an inset with rect (0, 0, 1, 1) will span the entire layout. An inset with rect (0.6, 0.1, 0.35, 0.35) will be in the top right corner of the layout, with 35% width and height of the parent layout.

Note that the minimum and maximum sizes of the embedded element (QCPLayoutElement::setMinimumSize, QCPLayoutElement::setMaximumSize) are enforced.

Definition at line 4909 of file qcustomplot.cpp.

References elementAt(), mInsetRect, and QCPLayoutElement::rect().

setInsetRect() [2/2]

void QCPLayoutInset::setInsetRect	(	int	index,
		const QRectF &	rect
	)

simplify() [1/2]

void QCPLayoutInset::simplify ( )

inlinevirtual

The QCPInsetLayout does not need simplification since it can never have empty cells due to its linear index structure. This method does nothing.

Reimplemented from QCPLayout.

Definition at line 1712 of file qcustomplot.h.

simplify() [2/2]

virtual void QCPLayoutInset::simplify ( )

inlinevirtual

Simplifies the layout by collapsing empty cells. The exact behavior depends on subclasses, the default implementation does nothing.

Not all layouts need simplification. For example, QCPLayoutInset doesn't use explicit simplification while QCPLayoutGrid does.

Reimplemented from QCPLayout.

Definition at line 1052 of file qcustomplot.h.

take() [1/2]

bool QCPLayoutInset::take ( QCPLayoutElement *  element )

virtual

Removes the specified element from the layout and returns true on success.

If the element isn't in this layout, returns false.

Note that some layouts don't remove the respective cell right away but leave an empty cell after successful removal of the layout element. To collapse empty cells, use simplify.

See also

takeAt

Implements QCPLayout.

Definition at line 4988 of file qcustomplot.cpp.

References elementAt(), elementCount(), and takeAt().

take() [2/2]

virtual bool QCPLayoutInset::take ( QCPLayoutElement *  element )

virtual

Removes the specified element from the layout and returns true on success.

If the element isn't in this layout, returns false.

Note that some layouts don't remove the respective cell right away but leave an empty cell after successful removal of the layout element. To collapse empty cells, use simplify.

See also

takeAt

Implements QCPLayout.

takeAt() [1/2]

QCPLayoutElement * QCPLayoutInset::takeAt ( int  index )

virtual

Removes the element with the given index from the layout and returns it.

If the index is invalid or the cell with that index is empty, returns 0.

Note that some layouts don't remove the respective cell right away but leave an empty cell after successful removal of the layout element. To collapse empty cells, use simplify.

See also

elementAt, take

Implements QCPLayout.

Definition at line 4973 of file qcustomplot.cpp.

References elementAt(), mElements, mInsetAlignment, mInsetPlacement, mInsetRect, and QCPLayout::releaseElement().

Referenced by take().

takeAt() [2/2]

virtual QCPLayoutElement* QCPLayoutInset::takeAt ( int  index )

virtual

Removes the element with the given index from the layout and returns it.

If the index is invalid or the cell with that index is empty, returns 0.

Note that some layouts don't remove the respective cell right away but leave an empty cell after successful removal of the layout element. To collapse empty cells, use simplify.

See also

elementAt, take

Implements QCPLayout.

updateLayout() [1/2]

void QCPLayoutInset::updateLayout ( )

virtual

Reimplemented from QCPLayout.

Definition at line 4917 of file qcustomplot.cpp.

References QCPLayout::getFinalMaximumOuterSize(), QCPLayout::getFinalMinimumOuterSize(), height, insetRect(), ipBorderAligned, ipFree, mElements, mInsetAlignment, mInsetPlacement, mInsetRect, QCPLayoutElement::rect(), width, x, and y.

updateLayout() [2/2]

virtual void QCPLayoutInset::updateLayout ( )

virtual

Reimplemented from QCPLayout.

Member Data Documentation

mElements

QList< QCPLayoutElement * > QCPLayoutInset::mElements

protected

Definition at line 1723 of file qcustomplot.h.

Referenced by addElement(), elementAt(), elementCount(), selectTest(), takeAt(), and updateLayout().

mInsetAlignment

QList< Qt::Alignment > QCPLayoutInset::mInsetAlignment

protected

Definition at line 1725 of file qcustomplot.h.

Referenced by addElement(), insetAlignment(), setInsetAlignment(), takeAt(), and updateLayout().

mInsetPlacement

QList< InsetPlacement > QCPLayoutInset::mInsetPlacement

protected

Definition at line 1724 of file qcustomplot.h.

Referenced by addElement(), insetPlacement(), setInsetPlacement(), takeAt(), and updateLayout().

mInsetRect

QList< QRectF > QCPLayoutInset::mInsetRect

protected

Definition at line 1726 of file qcustomplot.h.

Referenced by addElement(), insetRect(), setInsetRect(), takeAt(), and updateLayout().

---

The documentation for this class was generated from the following files:

• /root/ACloudViewer/app/extern/QCustomPlot/qcustomplot.h
• /root/ACloudViewer/app/extern/QCustomPlot/qcustomplot.cpp
