QCPLayoutGrid Class Reference

A layout that arranges child elements in a grid. More...

#include <qcustomplot.h>

Inheritance diagram for QCPLayoutGrid:

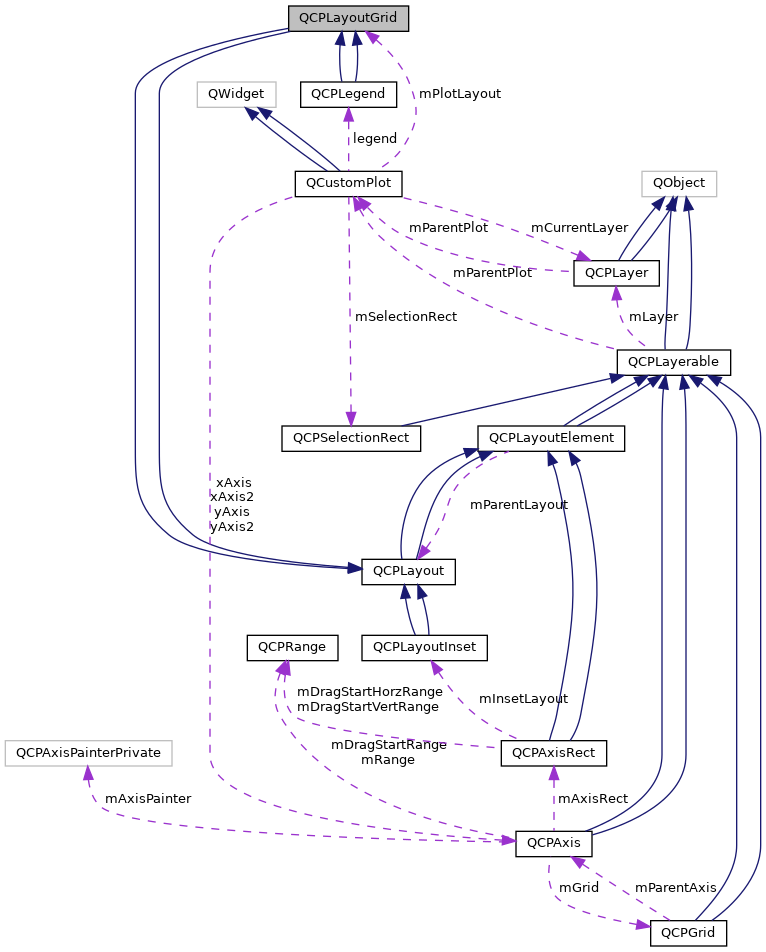

Collaboration diagram for QCPLayoutGrid:

Public Types
enum	FillOrder { foRowsFirst , foColumnsFirst }
Public Types inherited from QCPLayoutElement
enum	UpdatePhase {   upPreparation , upMargins , upLayout , upPreparation ,   upMargins , upLayout }
enum	SizeConstraintRect { scrInnerRect , scrOuterRect }
enum	UpdatePhase {   upPreparation , upMargins , upLayout , upPreparation ,   upMargins , upLayout }

Public Member Functions
	QCPLayoutGrid ()
virtual	~QCPLayoutGrid ()
int	rowCount () const
int	columnCount () const
QList< double >	columnStretchFactors () const
QList< double >	rowStretchFactors () const
int	columnSpacing () const
int	rowSpacing () const
int	wrap () const
FillOrder	fillOrder () const
void	setColumnStretchFactor (int column, double factor)
void	setColumnStretchFactors (const QList< double > &factors)
void	setRowStretchFactor (int row, double factor)
void	setRowStretchFactors (const QList< double > &factors)
void	setColumnSpacing (int pixels)
void	setRowSpacing (int pixels)
void	setWrap (int count)
void	setFillOrder (FillOrder order, bool rearrange=true)
virtual void	updateLayout ()
virtual int	elementCount () const
virtual QCPLayoutElement *	elementAt (int index) const
virtual QCPLayoutElement *	takeAt (int index)
virtual bool	take (QCPLayoutElement *element)
virtual QList< QCPLayoutElement * >	elements (bool recursive) const
virtual void	simplify ()
virtual QSize	minimumOuterSizeHint () const
virtual QSize	maximumOuterSizeHint () const
QCPLayoutElement *	element (int row, int column) const
bool	addElement (int row, int column, QCPLayoutElement *element)
bool	addElement (QCPLayoutElement *element)
bool	hasElement (int row, int column)
void	expandTo (int newRowCount, int newColumnCount)
void	insertRow (int newIndex)
void	insertColumn (int newIndex)
int	rowColToIndex (int row, int column) const
void	indexToRowCol (int index, int &row, int &column) const
	QCPLayoutGrid ()
virtual	~QCPLayoutGrid ()
int	rowCount () const
int	columnCount () const
QList< double >	columnStretchFactors () const
QList< double >	rowStretchFactors () const
int	columnSpacing () const
int	rowSpacing () const
void	setColumnStretchFactor (int column, double factor)
void	setColumnStretchFactors (const QList< double > &factors)
void	setRowStretchFactor (int row, double factor)
void	setRowStretchFactors (const QList< double > &factors)
void	setColumnSpacing (int pixels)
void	setRowSpacing (int pixels)
virtual void	updateLayout ()
virtual int	elementCount () const
virtual QCPLayoutElement *	elementAt (int index) const
virtual QCPLayoutElement *	takeAt (int index)
virtual bool	take (QCPLayoutElement *element)
virtual QList< QCPLayoutElement * >	elements (bool recursive) const
virtual void	simplify ()
virtual QSize	minimumSizeHint () const
virtual QSize	maximumSizeHint () const
QCPLayoutElement *	element (int row, int column) const
bool	addElement (int row, int column, QCPLayoutElement *element)
bool	hasElement (int row, int column)
void	expandTo (int newRowCount, int newColumnCount)
void	insertRow (int newIndex)
void	insertColumn (int newIndex)
Public Member Functions inherited from QCPLayout
	QCPLayout ()
virtual void	update (UpdatePhase phase)
bool	removeAt (int index)
bool	remove (QCPLayoutElement *element)
void	clear ()
	QCPLayout ()
virtual void	update (UpdatePhase phase)
bool	removeAt (int index)
bool	remove (QCPLayoutElement *element)
void	clear ()
Public Member Functions inherited from QCPLayoutElement
	QCPLayoutElement (QCustomPlot *parentPlot=0)
virtual	~QCPLayoutElement ()
QCPLayout *	layout () const
QRect	rect () const
QRect	outerRect () const
QMargins	margins () const
QMargins	minimumMargins () const
QCP::MarginSides	autoMargins () const
QSize	minimumSize () const
QSize	maximumSize () const
SizeConstraintRect	sizeConstraintRect () const
QCPMarginGroup *	marginGroup (QCP::MarginSide side) const
QHash< QCP::MarginSide, QCPMarginGroup * >	marginGroups () const
void	setOuterRect (const QRect &rect)
void	setMargins (const QMargins &margins)
void	setMinimumMargins (const QMargins &margins)
void	setAutoMargins (QCP::MarginSides sides)
void	setMinimumSize (const QSize &size)
void	setMinimumSize (int width, int height)
void	setMaximumSize (const QSize &size)
void	setMaximumSize (int width, int height)
void	setSizeConstraintRect (SizeConstraintRect constraintRect)
void	setMarginGroup (QCP::MarginSides sides, QCPMarginGroup *group)
virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const
	QCPLayoutElement (QCustomPlot *parentPlot=0)
virtual	~QCPLayoutElement ()
QCPLayout *	layout () const
QRect	rect () const
QRect	outerRect () const
QMargins	margins () const
QMargins	minimumMargins () const
QCP::MarginSides	autoMargins () const
QSize	minimumSize () const
QSize	maximumSize () const
QCPMarginGroup *	marginGroup (QCP::MarginSide side) const
QHash< QCP::MarginSide, QCPMarginGroup * >	marginGroups () const
void	setOuterRect (const QRect &rect)
void	setMargins (const QMargins &margins)
void	setMinimumMargins (const QMargins &margins)
void	setAutoMargins (QCP::MarginSides sides)
void	setMinimumSize (const QSize &size)
void	setMinimumSize (int width, int height)
void	setMaximumSize (const QSize &size)
void	setMaximumSize (int width, int height)
void	setMarginGroup (QCP::MarginSides sides, QCPMarginGroup *group)
virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const
Public Member Functions inherited from QCPLayerable
	QCPLayerable (QCustomPlot *plot, QString targetLayer=QString(), QCPLayerable *parentLayerable=0)
virtual	~QCPLayerable ()
bool	visible () const
QCustomPlot *	parentPlot () const
QCPLayerable *	parentLayerable () const
QCPLayer *	layer () const
bool	antialiased () const
void	setVisible (bool on)
Q_SLOT bool	setLayer (QCPLayer *layer)
bool	setLayer (const QString &layerName)
void	setAntialiased (bool enabled)
bool	realVisibility () const
	QCPLayerable (QCustomPlot *plot, QString targetLayer=QString(), QCPLayerable *parentLayerable=0)
	~QCPLayerable ()
bool	visible () const
QCustomPlot *	parentPlot () const
QCPLayerable *	parentLayerable () const
QCPLayer *	layer () const
bool	antialiased () const
void	setVisible (bool on)
Q_SLOT bool	setLayer (QCPLayer *layer)
bool	setLayer (const QString &layerName)
void	setAntialiased (bool enabled)
bool	realVisibility () const

Protected Member Functions
void	getMinimumRowColSizes (QVector< int > *minColWidths, QVector< int > *minRowHeights) const
void	getMaximumRowColSizes (QVector< int > *maxColWidths, QVector< int > *maxRowHeights) const
void	getMinimumRowColSizes (QVector< int > *minColWidths, QVector< int > *minRowHeights) const
void	getMaximumRowColSizes (QVector< int > *maxColWidths, QVector< int > *maxRowHeights) const
Protected Member Functions inherited from QCPLayout
void	sizeConstraintsChanged () const
void	adoptElement (QCPLayoutElement *el)
void	releaseElement (QCPLayoutElement *el)
QVector< int >	getSectionSizes (QVector< int > maxSizes, QVector< int > minSizes, QVector< double > stretchFactors, int totalSize) const
void	sizeConstraintsChanged () const
void	adoptElement (QCPLayoutElement *el)
void	releaseElement (QCPLayoutElement *el)
QVector< int >	getSectionSizes (QVector< int > maxSizes, QVector< int > minSizes, QVector< double > stretchFactors, int totalSize) const
Protected Member Functions inherited from QCPLayoutElement
virtual int	calculateAutoMargin (QCP::MarginSide side)
virtual void	layoutChanged ()
virtual void	applyDefaultAntialiasingHint (QCPPainter *painter) const
virtual void	draw (QCPPainter *painter)
virtual void	parentPlotInitialized (QCustomPlot *parentPlot)
virtual int	calculateAutoMargin (QCP::MarginSide side)
virtual void	mousePressEvent (QMouseEvent *event)
virtual void	mouseMoveEvent (QMouseEvent *event)
virtual void	mouseReleaseEvent (QMouseEvent *event)
virtual void	mouseDoubleClickEvent (QMouseEvent *event)
virtual void	wheelEvent (QWheelEvent *event)
virtual void	applyDefaultAntialiasingHint (QCPPainter *painter) const
virtual void	draw (QCPPainter *painter)
virtual void	parentPlotInitialized (QCustomPlot *parentPlot)
Protected Member Functions inherited from QCPLayerable
virtual QCP::Interaction	selectionCategory () const
virtual QRect	clipRect () const
virtual void	selectEvent (QMouseEvent *event, bool additive, const QVariant &details, bool *selectionStateChanged)
virtual void	deselectEvent (bool *selectionStateChanged)
virtual void	mousePressEvent (QMouseEvent *event, const QVariant &details)
virtual void	mouseMoveEvent (QMouseEvent *event, const QPointF &startPos)
virtual void	mouseReleaseEvent (QMouseEvent *event, const QPointF &startPos)
virtual void	mouseDoubleClickEvent (QMouseEvent *event, const QVariant &details)
void	initializeParentPlot (QCustomPlot *parentPlot)
void	setParentLayerable (QCPLayerable *parentLayerable)
bool	moveToLayer (QCPLayer *layer, bool prepend)
void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const
virtual QCP::Interaction	selectionCategory () const
virtual QRect	clipRect () const
virtual void	selectEvent (QMouseEvent *event, bool additive, const QVariant &details, bool *selectionStateChanged)
virtual void	deselectEvent (bool *selectionStateChanged)
void	initializeParentPlot (QCustomPlot *parentPlot)
void	setParentLayerable (QCPLayerable *parentLayerable)
bool	moveToLayer (QCPLayer *layer, bool prepend)
void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

Protected Attributes
QList< QList< QCPLayoutElement * > >	mElements
QList< double >	mColumnStretchFactors
QList< double >	mRowStretchFactors
int	mColumnSpacing
int	mRowSpacing
int	mWrap
FillOrder	mFillOrder
Protected Attributes inherited from QCPLayoutElement
QCPLayout *	mParentLayout
QSize	mMinimumSize
QSize	mMaximumSize
SizeConstraintRect	mSizeConstraintRect
QRect	mRect
QRect	mOuterRect
QMargins	mMargins
QMargins	mMinimumMargins
QCP::MarginSides	mAutoMargins
QHash< QCP::MarginSide, QCPMarginGroup * >	mMarginGroups
Protected Attributes inherited from QCPLayerable
bool	mVisible
QCustomPlot *	mParentPlot
QPointer< QCPLayerable >	mParentLayerable
QCPLayer *	mLayer
bool	mAntialiased

Additional Inherited Members
Signals inherited from QCPLayerable
void	layerChanged (QCPLayer *newLayer)
void	layerChanged (QCPLayer *newLayer)
Static Protected Member Functions inherited from QCPLayout
static QSize	getFinalMinimumOuterSize (const QCPLayoutElement *el)
static QSize	getFinalMaximumOuterSize (const QCPLayoutElement *el)

Detailed Description

A layout that arranges child elements in a grid.

Elements are laid out in a grid with configurable stretch factors (setColumnStretchFactor, setRowStretchFactor) and spacing (setColumnSpacing, setRowSpacing).

Elements can be added to cells via addElement. The grid is expanded if the specified row or column doesn't exist yet. Whether a cell contains a valid layout element can be checked with hasElement, that element can be retrieved with element. If rows and columns that only have empty cells shall be removed, call simplify. Removal of elements is either done by just adding the element to a different layout or by using the QCPLayout interface take or remove.

If you use addElement(QCPLayoutElement*) without explicit parameters for row and column, the grid layout will choose the position according to the current setFillOrder and the wrapping (setWrap).

Row and column insertion can be performed with insertRow and insertColumn.

Elements are laid out in a grid with configurable stretch factors (setColumnStretchFactor, setRowStretchFactor) and spacing (setColumnSpacing, setRowSpacing).

Elements can be added to cells via addElement. The grid is expanded if the specified row or column doesn't exist yet. Whether a cell contains a valid layout element can be checked with hasElement, that element can be retrieved with element. If rows and columns that only have empty cells shall be removed, call simplify. Removal of elements is either done by just adding the element to a different layout or by using the QCPLayout interface take or remove.

Row and column insertion can be performed with insertRow and insertColumn.

Definition at line 1574 of file qcustomplot.h.

Member Enumeration Documentation

FillOrder

enum QCPLayoutGrid::FillOrder

Defines in which direction the grid is filled when using addElement(QCPLayoutElement*). The column/row at which wrapping into the next row/column occurs can be specified with setWrap.

See also

setFillOrder

Enumerator
foRowsFirst	Rows are filled first, and a new element is wrapped to the next column if the row count would exceed setWrap.
foColumnsFirst	Columns are filled first, and a new element is wrapped to the next row if the column count would exceed setWrap.

Definition at line 1596 of file qcustomplot.h.

Constructor & Destructor Documentation

QCPLayoutGrid() [1/2]

QCPLayoutGrid::QCPLayoutGrid ( )

explicit

Creates an instance of QCPLayoutGrid and sets default values.

Definition at line 4078 of file qcustomplot.cpp.

~QCPLayoutGrid() [1/2]

QCPLayoutGrid::~QCPLayoutGrid ( )

virtual

Definition at line 4081 of file qcustomplot.cpp.

References QCPLayout::clear().

QCPLayoutGrid() [2/2]

QCPLayoutGrid::QCPLayoutGrid ( )

explicit

~QCPLayoutGrid() [2/2]

virtual QCPLayoutGrid::~QCPLayoutGrid ( )

virtual

Member Function Documentation

addElement() [1/3]

bool QCPLayoutGrid::addElement	(	int	row,
		int	column,
		QCPLayoutElement *	element
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Adds the element to cell with row and column. If element is already in a layout, it is first removed from there. If row or column don't exist yet, the layout is expanded accordingly.

Returns true if the element was added successfully, i.e. if the cell at row and column didn't already have an element.

Use the overload of this method without explicit row/column index to place the element according to the configured fill order and wrapping settings.

See also

element, hasElement, take, remove

Adds the element to cell with row and column. If element is already in a layout, it is first removed from there. If row or column don't exist yet, the layout is expanded accordingly.

Returns true if the element was added successfully, i.e. if the cell at row and column didn't already have an element.

See also

element, hasElement, take, remove

Definition at line 4129 of file qcustomplot.cpp.

References QCPLayout::adoptElement(), element(), expandTo(), hasElement(), QCPLayoutElement::layout(), mElements, and QCPLayout::take().

Referenced by addElement(), QCPLegend::addItem(), QCustomPlot::QCustomPlot(), ccHistogramWindow::refresh(), ccWaveWidget::refresh(), and setFillOrder().

addElement() [2/3]

bool QCPLayoutGrid::addElement	(	int	row,
		int	column,
		QCPLayoutElement *	element
	)

addElement() [3/3]

bool QCPLayoutGrid::addElement

(

QCPLayoutElement *

element

)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Adds the element to the next empty cell according to the current fill order (setFillOrder) and wrapping (setWrap). If element is already in a layout, it is first removed from there. If necessary, the layout is expanded to hold the new element.

Returns true if the element was added successfully.

See also

setFillOrder, setWrap, element, hasElement, take, remove

Definition at line 4155 of file qcustomplot.cpp.

References addElement(), element(), foColumnsFirst, hasElement(), mFillOrder, and mWrap.

columnCount() [1/2]

int QCPLayoutGrid::columnCount ( ) const

inline

Returns the number of columns in the layout.

See also

rowCount

Definition at line 1612 of file qcustomplot.h.

Referenced by expandTo(), getMaximumRowColSizes(), getMinimumRowColSizes(), hasElement(), indexToRowCol(), insertColumn(), insertRow(), maximumOuterSizeHint(), maximumSizeHint(), minimumOuterSizeHint(), minimumSizeHint(), rowColToIndex(), setColumnStretchFactor(), simplify(), and updateLayout().

columnCount() [2/2]

int QCPLayoutGrid::columnCount

(

)

const

columnSpacing() [1/2]

int QCPLayoutGrid::columnSpacing ( ) const

inline

Definition at line 1617 of file qcustomplot.h.

columnSpacing() [2/2]

int QCPLayoutGrid::columnSpacing ( ) const

inline

Definition at line 971 of file qcustomplot.h.

columnStretchFactors() [1/2]

QList<double> QCPLayoutGrid::columnStretchFactors ( ) const

inline

Definition at line 1615 of file qcustomplot.h.

columnStretchFactors() [2/2]

QList<double> QCPLayoutGrid::columnStretchFactors ( ) const

inline

Definition at line 969 of file qcustomplot.h.

element() [1/2]

QCPLayoutElement * QCPLayoutGrid::element	(	int	row,
		int	column
	)		const

Returns the element in the cell in row and column.

Returns 0 if either the row/column is invalid or if the cell is empty. In those cases, a qDebug message is printed. To check whether a cell exists and isn't empty, use hasElement.

See also

addElement, hasElement

Definition at line 4097 of file qcustomplot.cpp.

References mElements, and result.

Referenced by addElement(), and take().

element() [2/2]

QCPLayoutElement* QCPLayoutGrid::element	(	int	row,
		int	column
	)		const

elementAt() [1/2]

QCPLayoutElement * QCPLayoutGrid::elementAt ( int  index ) const

virtual

\seebaseclassmethod

Note that the association of the linear index to the row/column based cells depends on the current setting of setFillOrder.

See also

rowColToIndex

Implements QCPLayout.

Definition at line 4575 of file qcustomplot.cpp.

References elementCount(), indexToRowCol(), and mElements.

Referenced by elements(), QCPLegend::item(), setFillOrder(), take(), and takeAt().

elementAt() [2/2]

virtual QCPLayoutElement* QCPLayoutGrid::elementAt ( int  index ) const

virtual

Returns the element in the cell with the given index. If index is invalid, returns 0.

Note that even if index is valid, the respective cell may be empty in some layouts (e.g. QCPLayoutGrid), so this function may return 0 in those cases. You may use this function to check whether a cell is empty or not.

See also

elements, elementCount, takeAt

Implements QCPLayout.

elementCount() [1/2]

int QCPLayoutGrid::elementCount ( ) const

inlinevirtual

Returns the number of elements/cells in the layout.

See also

elements, elementAt

Implements QCPLayout.

Definition at line 1634 of file qcustomplot.h.

References columnCount().

Referenced by elementAt(), elements(), indexToRowCol(), QCPLegend::itemCount(), setFillOrder(), and take().

elementCount() [2/2]

virtual int QCPLayoutGrid::elementCount ( ) const

virtual

Returns the number of elements/cells in the layout.

See also

elements, elementAt

Implements QCPLayout.

elements() [1/2]

QList< QCPLayoutElement * > QCPLayoutGrid::elements ( bool  recursive ) const

virtual

Returns a list of all child elements in this layout element. If recursive is true, all sub-child elements are included in the list, too.

Warning

There may be entries with value 0 in the returned list. (For example, QCPLayoutGrid may have empty cells which yield 0 at the respective index.)

Reimplemented from QCPLayout.

Definition at line 4621 of file qcustomplot.cpp.

References elementAt(), elementCount(), and result.

elements() [2/2]

virtual QList<QCPLayoutElement *> QCPLayoutGrid::elements ( bool  recursive ) const

virtual

Returns a list of all child elements in this layout element. If recursive is true, all sub-child elements are included in the list, too.

Warning

There may be entries with value 0 in the returned list. (For example, QCPLayoutGrid may have empty cells which yield 0 at the respective index.)

Reimplemented from QCPLayout.

expandTo() [1/2]

void QCPLayoutGrid::expandTo	(	int	newRowCount,
		int	newColumnCount
	)

Expands the layout to have newRowCount rows and newColumnCount columns. So the last valid row index will be newRowCount-1, the last valid column index will be newColumnCount-1.

If the current column/row count is already larger or equal to newColumnCount/newRowCount, this function does nothing in that dimension.

Newly created cells are empty, new rows and columns have the stretch factor 1.

Note that upon a call to addElement, the layout is expanded automatically to contain the specified row and column, using this function.

See also

simplify

Definition at line 4398 of file qcustomplot.cpp.

References columnCount(), mColumnStretchFactors, mElements, mRowStretchFactors, and rowCount().

Referenced by addElement(), insertColumn(), and insertRow().

expandTo() [2/2]

void QCPLayoutGrid::expandTo	(	int	newRowCount,
		int	newColumnCount
	)

fillOrder()

FillOrder QCPLayoutGrid::fillOrder ( ) const

inline

Definition at line 1620 of file qcustomplot.h.

Referenced by QCPLegend::removeItem().

getMaximumRowColSizes() [1/2]

void QCPLayoutGrid::getMaximumRowColSizes ( QVector< int > *  maxColWidths, QVector< int > *  maxRowHeights  ) const

protected

Definition at line 4758 of file qcustomplot.cpp.

References columnCount(), QCPLayout::getFinalMaximumOuterSize(), mElements, and rowCount().

Referenced by maximumOuterSizeHint(), maximumSizeHint(), and updateLayout().

getMaximumRowColSizes() [2/2]

void QCPLayoutGrid::getMaximumRowColSizes ( QVector< int > *  maxColWidths, QVector< int > *  maxRowHeights  ) const

protected

getMinimumRowColSizes() [1/2]

void QCPLayoutGrid::getMinimumRowColSizes ( QVector< int > *  minColWidths, QVector< int > *  minRowHeights  ) const

protected

Definition at line 4728 of file qcustomplot.cpp.

References columnCount(), QCPLayout::getFinalMinimumOuterSize(), mElements, and rowCount().

Referenced by minimumOuterSizeHint(), minimumSizeHint(), and updateLayout().

getMinimumRowColSizes() [2/2]

void QCPLayoutGrid::getMinimumRowColSizes ( QVector< int > *  minColWidths, QVector< int > *  minRowHeights  ) const

protected

hasElement() [1/2]

bool QCPLayoutGrid::hasElement	(	int	row,
		int	column
	)

Returns whether the cell at row and column exists and contains a valid element, i.e. isn't empty.

See also

element

Definition at line 4184 of file qcustomplot.cpp.

References columnCount(), mElements, and rowCount().

Referenced by addElement().

hasElement() [2/2]

bool QCPLayoutGrid::hasElement	(	int	row,
		int	column
	)

indexToRowCol()

void QCPLayoutGrid::indexToRowCol	(	int	index,
		int &	row,
		int &	column
	)		const

Converts the linear index to row and column indices and writes the result to row and column.

The way the cells are indexed depends on setFillOrder. If it is foRowsFirst, the indices increase left to right and then top to bottom. If it is foColumnsFirst, the indices increase top to bottom and then left to right.

If there are no cells (i.e. column or row count is zero), sets row and column to -1.

For the retrieved row and column to be valid, the passed index must be valid itself, i.e. greater or equal to zero and smaller than the current elementCount.

See also

rowColToIndex

Definition at line 4512 of file qcustomplot.cpp.

References columnCount(), elementCount(), foColumnsFirst, foRowsFirst, mFillOrder, and rowCount().

Referenced by elementAt(), and takeAt().

insertColumn() [1/2]

void QCPLayoutGrid::insertColumn

(

int

newIndex

)

Inserts a new column with empty cells at the column index newIndex. Valid values for newIndex range from 0 (inserts a column at the left) to columnCount (appends a column at the right).

See also

insertRow

Inserts a new column with empty cells at the column index newIndex. Valid values for newIndex range from 0 (inserts a row at the left) to rowCount (appends a row at the right).

See also

insertRow

Definition at line 4446 of file qcustomplot.cpp.

References columnCount(), expandTo(), mColumnStretchFactors, mElements, and rowCount().

insertColumn() [2/2]

void QCPLayoutGrid::insertColumn

(

int

newIndex

)

insertRow() [1/2]

void QCPLayoutGrid::insertRow

(

int

newIndex

)

Inserts a new row with empty cells at the row index newIndex. Valid values for newIndex range from 0 (inserts a row at the top) to rowCount (appends a row at the bottom).

See also

insertColumn

Definition at line 4420 of file qcustomplot.cpp.

References columnCount(), expandTo(), mElements, mRowStretchFactors, and rowCount().

Referenced by ccHistogramWindow::refresh(), and ccWaveWidget::refresh().

insertRow() [2/2]

void QCPLayoutGrid::insertRow

(

int

newIndex

)

maximumOuterSizeHint()

QSize QCPLayoutGrid::maximumOuterSizeHint ( ) const

virtual

Returns the suggested maximum size this layout element (the outerRect) may be expanded to, if no manual maximum size is set.

if a maximum size (setMaximumSize) was not set manually, parent layouts use the returned size (usually indirectly through QCPLayout::getFinalMaximumOuterSize) to determine the maximum allowed size of this layout element.

A manual maximum size is considered set if it is smaller than Qt's QWIDGETSIZE_MAX.

The default implementation simply returns QWIDGETSIZE_MAX for both width and height, implying no suggested maximum size. Reimplementations may use their detailed knowledge about the layout element's content to provide size hints.

Reimplemented from QCPLayoutElement.

Definition at line 4695 of file qcustomplot.cpp.

References columnCount(), getMaximumRowColSizes(), mColumnSpacing, QCPLayoutElement::mMargins, mRowSpacing, result, and rowCount().

maximumSizeHint()

QSize QCPLayoutGrid::maximumSizeHint ( ) const

virtual

Returns the maximum size this layout element (the inner rect) may be expanded to.

if a maximum size (setMaximumSize) was not set manually, parent layouts consult this function to determine the maximum allowed size of this layout element. (A manual maximum size is considered set if it is smaller than Qt's QWIDGETSIZE_MAX.)

Reimplemented from QCPLayoutElement.

Definition at line 2944 of file qcustomplot.cpp.

References columnCount(), getMaximumRowColSizes(), mColumnSpacing, QCPLayoutElement::mMargins, mRowSpacing, result, and rowCount().

minimumOuterSizeHint()

QSize QCPLayoutGrid::minimumOuterSizeHint ( ) const

virtual

Returns the suggested minimum size this layout element (the outerRect) may be compressed to, if no manual minimum size is set.

if a minimum size (setMinimumSize) was not set manually, parent layouts use the returned size (usually indirectly through QCPLayout::getFinalMinimumOuterSize) to determine the minimum allowed size of this layout element.

A manual minimum size is considered set if it is non-zero.

The default implementation simply returns the sum of the horizontal margins for the width and the sum of the vertical margins for the height. Reimplementations may use their detailed knowledge about the layout element's content to provide size hints.

Reimplemented from QCPLayoutElement.

Definition at line 4679 of file qcustomplot.cpp.

References columnCount(), getMinimumRowColSizes(), mColumnSpacing, QCPLayoutElement::mMargins, mRowSpacing, result, and rowCount().

Referenced by QCustomPlot::minimumSizeHint(), and QCustomPlot::sizeHint().

minimumSizeHint()

QSize QCPLayoutGrid::minimumSizeHint ( ) const

virtual

Returns the minimum size this layout element (the inner rect) may be compressed to.

if a minimum size (setMinimumSize) was not set manually, parent layouts consult this function to determine the minimum allowed size of this layout element. (A manual minimum size is considered set if it is non-zero.)

Reimplemented from QCPLayoutElement.

Definition at line 2928 of file qcustomplot.cpp.

References columnCount(), getMinimumRowColSizes(), mColumnSpacing, QCPLayoutElement::mMargins, mRowSpacing, result, and rowCount().

rowColToIndex()

int QCPLayoutGrid::rowColToIndex	(	int	row,
		int	column
	)		const

Converts the given row and column to the linear index used by some methods of QCPLayoutGrid and QCPLayout.

The way the cells are indexed depends on setFillOrder. If it is foRowsFirst, the indices increase left to right and then top to bottom. If it is foColumnsFirst, the indices increase top to bottom and then left to right.

For the returned index to be valid, row and column must be valid indices themselves, i.e. greater or equal to zero and smaller than the current rowCount/ columnCount.

See also

indexToRowCol

Definition at line 4478 of file qcustomplot.cpp.

References columnCount(), foColumnsFirst, foRowsFirst, mFillOrder, and rowCount().

rowCount() [1/2]

int QCPLayoutGrid::rowCount ( ) const

inline

Returns the number of rows in the layout.

See also

columnCount

Definition at line 1611 of file qcustomplot.h.

Referenced by expandTo(), getMaximumRowColSizes(), getMinimumRowColSizes(), hasElement(), indexToRowCol(), insertColumn(), insertRow(), maximumOuterSizeHint(), maximumSizeHint(), minimumOuterSizeHint(), minimumSizeHint(), rowColToIndex(), setRowStretchFactor(), simplify(), and updateLayout().

rowCount() [2/2]

int QCPLayoutGrid::rowCount

(

)

const

rowSpacing() [1/2]

int QCPLayoutGrid::rowSpacing ( ) const

inline

Definition at line 1618 of file qcustomplot.h.

rowSpacing() [2/2]

int QCPLayoutGrid::rowSpacing ( ) const

inline

Definition at line 972 of file qcustomplot.h.

rowStretchFactors() [1/2]

QList<double> QCPLayoutGrid::rowStretchFactors ( ) const

inline

Definition at line 1616 of file qcustomplot.h.

rowStretchFactors() [2/2]

QList<double> QCPLayoutGrid::rowStretchFactors ( ) const

inline

Definition at line 970 of file qcustomplot.h.

setColumnSpacing() [1/2]

void QCPLayoutGrid::setColumnSpacing

(

int

pixels

)

Sets the gap that is left blank between columns to pixels.

See also

setRowSpacing

Definition at line 4306 of file qcustomplot.cpp.

References mColumnSpacing.

Referenced by QCPLegend::QCPLegend().

setColumnSpacing() [2/2]

void QCPLayoutGrid::setColumnSpacing

(

int

pixels

)

setColumnStretchFactor() [1/2]

void QCPLayoutGrid::setColumnStretchFactor	(	int	column,
		double	factor
	)

Sets the stretch factor of column.

Stretch factors control the relative sizes of rows and columns. Cells will not be resized beyond their minimum and maximum widths/heights, regardless of the stretch factor. (see QCPLayoutElement::setMinimumSize, QCPLayoutElement::setMaximumSize, QCPLayoutElement::setSizeConstraintRect.)

The default stretch factor of newly created rows/columns is 1.

See also

setColumnStretchFactors, setRowStretchFactor

Sets the stretch factor of column.

Stretch factors control the relative sizes of rows and columns. Cells will not be resized beyond their minimum and maximum widths/heights (QCPLayoutElement::setMinimumSize, QCPLayoutElement::setMaximumSize), regardless of the stretch factor.

The default stretch factor of newly created rows/columns is 1.

See also

setColumnStretchFactors, setRowStretchFactor

Definition at line 4204 of file qcustomplot.cpp.

References columnCount(), and mColumnStretchFactors.

setColumnStretchFactor() [2/2]

void QCPLayoutGrid::setColumnStretchFactor	(	int	column,
		double	factor
	)

setColumnStretchFactors() [1/2]

void QCPLayoutGrid::setColumnStretchFactors

(

const QList< double > &

factors

)

Sets the stretch factors of all columns. factors must have the size columnCount.

Stretch factors control the relative sizes of rows and columns. Cells will not be resized beyond their minimum and maximum widths/heights, regardless of the stretch factor. (see QCPLayoutElement::setMinimumSize, QCPLayoutElement::setMaximumSize, QCPLayoutElement::setSizeConstraintRect.)

The default stretch factor of newly created rows/columns is 1.

See also

setColumnStretchFactor, setRowStretchFactors

Sets the stretch factors of all columns. factors must have the size columnCount.

Stretch factors control the relative sizes of rows and columns. Cells will not be resized beyond their minimum and maximum widths/heights (QCPLayoutElement::setMinimumSize, QCPLayoutElement::setMaximumSize), regardless of the stretch factor.

The default stretch factor of newly created rows/columns is 1.

See also

setColumnStretchFactor, setRowStretchFactors

Definition at line 4229 of file qcustomplot.cpp.

References mColumnStretchFactors.

setColumnStretchFactors() [2/2]

void QCPLayoutGrid::setColumnStretchFactors

(

const QList< double > &

factors

)

setFillOrder()

void QCPLayoutGrid::setFillOrder	(	FillOrder	order,
		bool	rearrange = true
	)

Sets the filling order and wrapping behaviour that is used when adding new elements with the method addElement(QCPLayoutElement*).

The specified order defines whether rows or columns are filled first. Using setWrap, you can control at which row/column count wrapping into the next column/row will occur. If you set it to zero, no wrapping will ever occur. Changing the fill order also changes the meaning of the linear index used e.g. in elementAt and takeAt. The default fill order for QCPLayoutGrid is foColumnsFirst.

If you want to have all current elements arranged in the new order, set rearrange to true. The elements will be rearranged in a way that tries to preserve their linear index. However, empty cells are skipped during build-up of the new cell order, which shifts the succeeding element's index. The rearranging is performed even if the specified order is already the current fill order. Thus this method can be used to re-wrap the current elements.

If rearrange is false, the current element arrangement is not changed, which means the linear indexes change (because the linear index is dependent on the fill order).

Note that the method addElement(int row, int column, QCPLayoutElement element) with explicitly stated row and column is not subject to wrapping and can place elements even beyond the specified wrapping point.

See also

setWrap, addElement(QCPLayoutElement*)

Definition at line 4363 of file qcustomplot.cpp.

References addElement(), elementAt(), elementCount(), mFillOrder, simplify(), and takeAt().

Referenced by QCPLegend::QCPLegend(), and QCPLegend::removeItem().

setRowSpacing() [1/2]

void QCPLayoutGrid::setRowSpacing

(

int

pixels

)

Sets the gap that is left blank between rows to pixels.

See also

setColumnSpacing

Definition at line 4313 of file qcustomplot.cpp.

References mRowSpacing.

Referenced by QCPLegend::QCPLegend().

setRowSpacing() [2/2]

void QCPLayoutGrid::setRowSpacing

(

int

pixels

)

setRowStretchFactor() [1/2]

void QCPLayoutGrid::setRowStretchFactor	(	int	row,
		double	factor
	)

Sets the stretch factor of row.

Stretch factors control the relative sizes of rows and columns. Cells will not be resized beyond their minimum and maximum widths/heights, regardless of the stretch factor. (see QCPLayoutElement::setMinimumSize, QCPLayoutElement::setMaximumSize, QCPLayoutElement::setSizeConstraintRect.)

The default stretch factor of newly created rows/columns is 1.

See also

setColumnStretchFactors, setRowStretchFactor

Sets the stretch factor of row.

Stretch factors control the relative sizes of rows and columns. Cells will not be resized beyond their minimum and maximum widths/heights (QCPLayoutElement::setMinimumSize, QCPLayoutElement::setMaximumSize), regardless of the stretch factor.

The default stretch factor of newly created rows/columns is 1.

See also

setColumnStretchFactors, setRowStretchFactor

Definition at line 4259 of file qcustomplot.cpp.

References mRowStretchFactors, and rowCount().

setRowStretchFactor() [2/2]

void QCPLayoutGrid::setRowStretchFactor	(	int	row,
		double	factor
	)

setRowStretchFactors() [1/2]

void QCPLayoutGrid::setRowStretchFactors

(

const QList< double > &

factors

)

Sets the stretch factors of all rows. factors must have the size rowCount.

Stretch factors control the relative sizes of rows and columns. Cells will not be resized beyond their minimum and maximum widths/heights, regardless of the stretch factor. (see QCPLayoutElement::setMinimumSize, QCPLayoutElement::setMaximumSize, QCPLayoutElement::setSizeConstraintRect.)

The default stretch factor of newly created rows/columns is 1.

See also

setRowStretchFactor, setColumnStretchFactors

Sets the stretch factors of all rows. factors must have the size rowCount.

Stretch factors control the relative sizes of rows and columns. Cells will not be resized beyond their minimum and maximum widths/heights (QCPLayoutElement::setMinimumSize, QCPLayoutElement::setMaximumSize), regardless of the stretch factor.

The default stretch factor of newly created rows/columns is 1.

See also

setRowStretchFactor, setColumnStretchFactors

Definition at line 4284 of file qcustomplot.cpp.

References mRowStretchFactors.

setRowStretchFactors() [2/2]

void QCPLayoutGrid::setRowStretchFactors

(

const QList< double > &

factors

)

setWrap()

void QCPLayoutGrid::setWrap

(

int

count

)

Sets the maximum number of columns or rows that are used, before new elements added with addElement(QCPLayoutElement*) will start to fill the next row or column, respectively. It depends on setFillOrder, whether rows or columns are wrapped.

If count is set to zero, no wrapping will ever occur.

If you wish to re-wrap the elements currently in the layout, call setFillOrder with rearrange set to true (the actual fill order doesn't need to be changed for the rearranging to be done).

Note that the method addElement(int row, int column, QCPLayoutElement element) with explicitly stated row and column is not subject to wrapping and can place elements even beyond the specified wrapping point.

See also

setFillOrder

Definition at line 4333 of file qcustomplot.cpp.

References count, and mWrap.

Referenced by QCPLegend::QCPLegend().

simplify() [1/2]

void QCPLayoutGrid::simplify ( )

virtual

Simplifies the layout by collapsing rows and columns which only contain empty cells.

Reimplemented from QCPLayout.

Definition at line 4640 of file qcustomplot.cpp.

References columnCount(), mColumnStretchFactors, mElements, mRowStretchFactors, QCPLayout::removeAt(), and rowCount().

Referenced by setFillOrder().

simplify() [2/2]

virtual void QCPLayoutGrid::simplify ( )

virtual

Simplifies the layout by collapsing empty cells. The exact behavior depends on subclasses, the default implementation does nothing.

Not all layouts need simplification. For example, QCPLayoutInset doesn't use explicit simplification while QCPLayoutGrid does.

Reimplemented from QCPLayout.

take() [1/2]

bool QCPLayoutGrid::take ( QCPLayoutElement *  element )

virtual

Removes the specified element from the layout and returns true on success.

If the element isn't in this layout, returns false.

Note that some layouts don't remove the respective cell right away but leave an empty cell after successful removal of the layout element. To collapse empty cells, use simplify.

See also

takeAt

Implements QCPLayout.

Definition at line 4606 of file qcustomplot.cpp.

References element(), elementAt(), elementCount(), and takeAt().

take() [2/2]

virtual bool QCPLayoutGrid::take ( QCPLayoutElement *  element )

virtual

Removes the specified element from the layout and returns true on success.

If the element isn't in this layout, returns false.

Note that some layouts don't remove the respective cell right away but leave an empty cell after successful removal of the layout element. To collapse empty cells, use simplify.

See also

takeAt

Implements QCPLayout.

takeAt() [1/2]

QCPLayoutElement * QCPLayoutGrid::takeAt ( int  index )

virtual

\seebaseclassmethod

Note that the association of the linear index to the row/column based cells depends on the current setting of setFillOrder.

See also

rowColToIndex

Implements QCPLayout.

Definition at line 4592 of file qcustomplot.cpp.

References elementAt(), indexToRowCol(), mElements, and QCPLayout::releaseElement().

Referenced by setFillOrder(), and take().

takeAt() [2/2]

virtual QCPLayoutElement* QCPLayoutGrid::takeAt ( int  index )

virtual

Removes the element with the given index from the layout and returns it.

If the index is invalid or the cell with that index is empty, returns 0.

Note that some layouts don't remove the respective cell right away but leave an empty cell after successful removal of the layout element. To collapse empty cells, use simplify.

See also

elementAt, take

Implements QCPLayout.

updateLayout() [1/2]

void QCPLayoutGrid::updateLayout ( )

virtual

Reimplemented from QCPLayout.

Definition at line 4538 of file qcustomplot.cpp.

References columnCount(), getMaximumRowColSizes(), getMinimumRowColSizes(), QCPLayout::getSectionSizes(), mColumnSpacing, mColumnStretchFactors, mElements, QCPLayoutElement::mRect, mRowSpacing, mRowStretchFactors, and rowCount().

updateLayout() [2/2]

virtual void QCPLayoutGrid::updateLayout ( )

virtual

Reimplemented from QCPLayout.

wrap()

int QCPLayoutGrid::wrap ( ) const

inline

Definition at line 1619 of file qcustomplot.h.

Member Data Documentation

mColumnSpacing

int QCPLayoutGrid::mColumnSpacing

protected

Definition at line 1662 of file qcustomplot.h.

Referenced by maximumOuterSizeHint(), maximumSizeHint(), minimumOuterSizeHint(), minimumSizeHint(), setColumnSpacing(), and updateLayout().

mColumnStretchFactors

QList< double > QCPLayoutGrid::mColumnStretchFactors

protected

Definition at line 1660 of file qcustomplot.h.

Referenced by expandTo(), insertColumn(), setColumnStretchFactor(), setColumnStretchFactors(), simplify(), and updateLayout().

mElements

QList< QList< QCPLayoutElement * > > QCPLayoutGrid::mElements

protected

Definition at line 1659 of file qcustomplot.h.

Referenced by addElement(), element(), elementAt(), expandTo(), getMaximumRowColSizes(), getMinimumRowColSizes(), hasElement(), insertColumn(), insertRow(), simplify(), takeAt(), and updateLayout().

mFillOrder

FillOrder QCPLayoutGrid::mFillOrder

protected

Definition at line 1664 of file qcustomplot.h.

Referenced by addElement(), indexToRowCol(), rowColToIndex(), and setFillOrder().

mRowSpacing

int QCPLayoutGrid::mRowSpacing

protected

Definition at line 1662 of file qcustomplot.h.

Referenced by maximumOuterSizeHint(), maximumSizeHint(), minimumOuterSizeHint(), minimumSizeHint(), setRowSpacing(), and updateLayout().

mRowStretchFactors

QList< double > QCPLayoutGrid::mRowStretchFactors

protected

Definition at line 1661 of file qcustomplot.h.

Referenced by expandTo(), insertRow(), setRowStretchFactor(), setRowStretchFactors(), simplify(), and updateLayout().

mWrap

int QCPLayoutGrid::mWrap

protected

Definition at line 1663 of file qcustomplot.h.

Referenced by addElement(), and setWrap().

---

The documentation for this class was generated from the following files:

• /root/ACloudViewer/app/extern/QCustomPlot/qcustomplot.h
• /root/ACloudViewer/app/extern/QCustomPlot/qcustomplot.cpp
