Facet detection plugin (BRGM) More...

#include <qFacets.h>

Inheritance diagram for qFacets:

[legend]

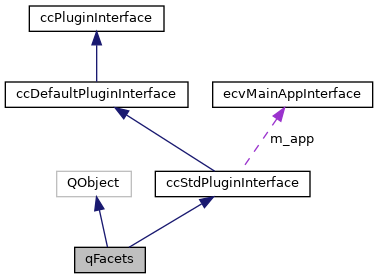

Collaboration diagram for qFacets:

[legend]

Protected Types
typedef std::unordered_set< ccFacet * >	FacetSet
	Set of facets (pointers) More...

Protected Slots
void	fuseKdTreeCells ()
	Fuses the cells of a kd-tree to produces planar facets. More...

void	extractFacetsWithFM ()
	Uses Fast Marching to detect planar facets. More...

void	exportFacets ()
	Exports facets (as shapefiles) More...

void	exportFacetsInfo ()
	Exports statistics on a set of facets. More...

void	classifyFacetsByAngle ()
	Classifies facets by orientation. More...

void	showStereogram ()
	Displays the selected entity stereogram. More...

Protected Member Functions
void	extractFacets (CellsFusionDlg::Algorithm algo)
	Uses the given algorithm to detect planar facets. More...

ccHObject *	createFacets (ccPointCloud *cloud, cloudViewer::ReferenceCloudContainer &components, unsigned minPointsPerComponent, double maxEdgeLength, bool randomColors, bool &error)
	Creates facets from components. More...

void	getFacetsInCurrentSelection (FacetSet &facets) const
	Returns all the facets in the current selection. More...

void	classifyFacetsByAngle (ccHObject *group, double angleStep_deg, double maxDist)
	Classifies facets by orientation. More...

Protected Member Functions inherited from ccDefaultPluginInterface
	ccDefaultPluginInterface (const QString &resourcePath=QString())

Protected Attributes
QAction *	m_doFuseKdTreeCells
	Associated action. More...

QAction *	m_fastMarchingExtraction
	Associated action. More...

QAction *	m_doExportFacets
	Associated action. More...

QAction *	m_doExportFacetsInfo
	Associated action. More...

QAction *	m_doClassifyFacetsByAngle
	Associated action. More...

QAction *	m_doShowStereogram
	Associated action. More...

Protected Attributes inherited from ccStdPluginInterface
ecvMainAppInterface *	m_app
	Main application interface. More...

Additional Inherited Members
Public Types inherited from ccPluginInterface
typedef QList< Contact >	ContactList

using	ReferenceList = QList< Reference >

Public Member Functions inherited from ccStdPluginInterface
	ccStdPluginInterface (const QString &resourcePath=QString())
	Default constructor. More...

virtual	~ccStdPluginInterface () override=default
	Destructor. More...

virtual CC_PLUGIN_TYPE	getType () const override
	Returns plugin type (standard or OpenGL filter) More...

virtual void	setMainAppInterface (ecvMainAppInterface *app)
	Sets application entry point. More...

virtual ecvMainAppInterface *	getMainAppInterface ()
	A callback pointer to the main app interface for use by plugins. More...

virtual void	dispToConsole (QString message, ecvMainAppInterface::ConsoleMessageLevel level=ecvMainAppInterface::STD_CONSOLE_MESSAGE)
	Shortcut to ecvMainAppInterface::dispToConsole. More...

Public Member Functions inherited from ccDefaultPluginInterface
virtual	~ccDefaultPluginInterface ()

virtual bool	isCore () const override
	Is this plugin a core plugin? More...

virtual QString	getName () const override
	Returns (short) name (for menu entry, etc.) More...

virtual QString	getDescription () const override
	Returns long name/description (for tooltip, etc.) More...

virtual QIcon	getIcon () const override
	Returns icon. More...

virtual ReferenceList	getReferences () const override

virtual ContactList	getAuthors () const override

virtual ContactList	getMaintainers () const override

Public Member Functions inherited from ccPluginInterface
virtual	~ccPluginInterface ()=default
	Virtual destructor. More...

virtual bool	start ()
	Starts the plugin. More...

virtual void	stop ()
	Stops the plugin. More...

virtual ccExternalFactory *	getCustomObjectsFactory () const
	Returns the plugin's custom object factory (if any) More...

virtual void	registerCommands (ccCommandLineInterface *cmd)
	Optional: registers commands (for the command line mode) More...

Detailed Description

Facet detection plugin (BRGM)

BRGM: BUREAU DE RECHERCHES GEOLOGIQUES ET MINIERES - http://www.brgm.fr/

Definition at line 35 of file qFacets.h.

Member Typedef Documentation

◆ FacetSet

typedef std::unordered_set<ccFacet*> qFacets::FacetSet

protected

Set of facets (pointers)

Definition at line 86 of file qFacets.h.

Member Function Documentation

◆ classifyFacetsByAngle [1/2]

void qFacets::classifyFacetsByAngle ( )

protectedslot

Classifies facets by orientation.

Definition at line 976 of file qFacets.cpp.

References ecvMainAppInterface::dispToConsole(), ecvMainAppInterface::getMainWindow(), ecvMainAppInterface::getSelectedEntities(), ecvMainAppInterface::haveOneSelection(), CV_TYPES::HIERARCHY_OBJECT, ccStdPluginInterface::m_app, s_classifAngleStep, s_classifMaxDist, s_stereogramAngleStep, and ShowDisclaimer().

◆ classifyFacetsByAngle() [2/2]

void qFacets::classifyFacetsByAngle	(	ccHObject *	group,
		double	angleStep_deg,
		double	maxDist
	)

protected

Classifies facets by orientation.

Definition at line 1006 of file qFacets.cpp.

References ecvMainAppInterface::addToDB(), FacetsClassifier::ByOrientation(), ecvMainAppInterface::dispToConsole(), ecvMainAppInterface::ERR_CONSOLE_MESSAGE, ccHObject::getParent(), CV_TYPES::HIERARCHY_OBJECT, ccObject::isA(), ccStdPluginInterface::m_app, and ecvMainAppInterface::removeFromDB().

◆ createFacets()

ccHObject * qFacets::createFacets	(	ccPointCloud *	cloud,
		cloudViewer::ReferenceCloudContainer &	components,
		unsigned	minPointsPerComponent,
		double	maxEdgeLength,
		bool	randomColors,
		bool &	error
	)

protected

Creates facets from components.

Definition at line 435 of file qFacets.cpp.

References ccHObject::addChild(), ecvColor::RgbTpl< Type >::b, c_darkColorRatio, ccOctree::ComputeAverageNorm(), ccNormalVectors::ConvertNormalToDipAndDipDir(), ccFacet::Create(), Vector3Tpl< Type >::dot(), ccGenericMesh::enableStippling(), error(), ecvColor::RgbTpl< Type >::g, FacetsClassifier::GenerateSubfamilyColor(), ccHObject::getChildrenNumber(), ccFacet::getContour(), ccShiftedObject::getGlobalScale(), ccShiftedObject::getGlobalShift(), ecvMainAppInterface::getMainWindow(), ccObject::getName(), ccFacet::getNormal(), ccFacet::getPolygon(), ccFacet::getRMS(), ccPointCloud::hasNormals(), ccFacet::invertNormal(), ccStdPluginInterface::m_app, ccPointCloud::partialClone(), ecvColor::RgbTpl< Type >::r, ecvColor::Generator::Random(), ccPolyline::setColor(), ccFacet::setColor(), ccPolyline::setGlobalScale(), ccPolyline::setGlobalShift(), ecvProgressDialog::setInfo(), ecvProgressDialog::setMethodTitle(), ccObject::setName(), ccDrawableObject::setVisible(), ccPolyline::setWidth(), ccGenericMesh::showNormals(), ccPlanarEntityInterface::showNormalVector(), and cloudViewer::ReferenceCloud::size().

Referenced by extractFacets().

◆ exportFacets

void qFacets::exportFacets ( )

protectedslot

Exports facets (as shapefiles)

Definition at line 682 of file qFacets.cpp.

References ccHObject::addChild(), ccHObject::applyGLTransformation_recursive(), CC_FERR_NO_ERROR, FacetMetaData::center, ComputeFacetExtensions(), Vector3Tpl< Type >::cross(), ecvFileUtils::defaultDocPath(), FacetMetaData::dip_deg, FacetMetaData::dipDir_deg, ecvMainAppInterface::dispToConsole(), ccHObject::DP_NONE, ccHObject::DP_PARENT_OF_OTHER, ecvMainAppInterface::ERR_CONSOLE_MESSAGE, FacetMetaData::facetIndex, FacetMetaData::familyIndex, fields, filename, cloudViewer::ReferenceCloud::getAssociatedCloud(), ccHObject::getChildrenNumber(), ccGLMatrixTpl< T >::getColumn(), ccFacet::getContour(), GetFacetMetaData(), getFacetsInCurrentSelection(), ecvMainAppInterface::getMainWindow(), ccObject::getName(), ccGLMatrixTpl< T >::getTranslationAsVec3D(), cloudViewer::GreaterThanEpsilon(), ccGLMatrixTpl< T >::invert(), ccStdPluginInterface::m_app, Vector3Tpl< Type >::norm2(), FacetMetaData::normal, Vector3Tpl< Type >::normalize(), params, FacetMetaData::rms, ccPolyline::set2DMode(), ccGLMatrixTpl< T >::setTranslation(), FacetsExportDlg::SHAPE_FILE_IO, ShowDisclaimer(), cloudViewer::GenericCloud::size(), ecvMainAppInterface::STD_CONSOLE_MESSAGE, FacetMetaData::subfamilyIndex, FacetMetaData::surface, ccGLMatrixTpl< T >::toIdentity(), ecvMainAppInterface::WRN_CONSOLE_MESSAGE, Tuple3Tpl< Type >::x, X, Tuple3Tpl< Type >::y, and Tuple3Tpl< Type >::z.

◆ exportFacetsInfo

void qFacets::exportFacetsInfo ( )

protectedslot

◆ extractFacets()

void qFacets::extractFacets ( CellsFusionDlg::Algorithm algo )

protected

Uses the given algorithm to detect planar facets.

Definition at line 202 of file qFacets.cpp.

Referenced by extractFacetsWithFM(), and fuseKdTreeCells().

◆ extractFacetsWithFM

void qFacets::extractFacetsWithFM ( )

protectedslot

Uses Fast Marching to detect planar facets.

Definition at line 196 of file qFacets.cpp.

References CellsFusionDlg::ALGO_FAST_MARCHING, and extractFacets().

◆ fuseKdTreeCells

void qFacets::fuseKdTreeCells ( )

protectedslot

Fuses the cells of a kd-tree to produces planar facets.

Definition at line 200 of file qFacets.cpp.

References CellsFusionDlg::ALGO_KD_TREE, and extractFacets().

◆ getFacetsInCurrentSelection()

void qFacets::getFacetsInCurrentSelection ( FacetSet & facets ) const

protected

Returns all the facets in the current selection.

Definition at line 557 of file qFacets.cpp.

References CV_TYPES::FACET, ccHObject::filterChildren(), ccFacet::getContour(), ecvMainAppInterface::getSelectedEntities(), and ccStdPluginInterface::m_app.

Referenced by exportFacets(), and exportFacetsInfo().

◆ showStereogram

void qFacets::showStereogram ( )

protectedslot

Displays the selected entity stereogram.

Definition at line 942 of file qFacets.cpp.

References ecvMainAppInterface::dispToConsole(), ecvMainAppInterface::getMainWindow(), ecvMainAppInterface::getSelectedEntities(), ecvMainAppInterface::haveOneSelection(), CV_TYPES::HIERARCHY_OBJECT, StereogramDialog::init(), ccStdPluginInterface::m_app, CV_TYPES::POINT_CLOUD, s_fcDlg, s_stereogramAngleStep, s_stereogramResolution_deg, and ShowDisclaimer().

Member Data Documentation

◆ m_doClassifyFacetsByAngle

QAction* qFacets::m_doClassifyFacetsByAngle

protected

Associated action.

Definition at line 105 of file qFacets.h.

◆ m_doExportFacets

QAction* qFacets::m_doExportFacets

protected

Associated action.

Definition at line 101 of file qFacets.h.

◆ m_doExportFacetsInfo

QAction* qFacets::m_doExportFacetsInfo

protected

Associated action.

Definition at line 103 of file qFacets.h.

◆ m_doFuseKdTreeCells

QAction* qFacets::m_doFuseKdTreeCells

protected

Associated action.

Definition at line 97 of file qFacets.h.

◆ m_doShowStereogram

QAction* qFacets::m_doShowStereogram

protected

Associated action.

Definition at line 107 of file qFacets.h.

◆ m_fastMarchingExtraction

QAction* qFacets::m_fastMarchingExtraction

protected

Associated action.

Definition at line 99 of file qFacets.h.

The documentation for this class was generated from the following files:

/root/ACloudViewer/plugins/core/Standard/qFacets/include/qFacets.h
/root/ACloudViewer/plugins/core/Standard/qFacets/src/qFacets.cpp
