cloudViewer::GenericIndexedMesh Class Reference

A generic mesh with index-based vertex access. More...

#include <GenericIndexedMesh.h>

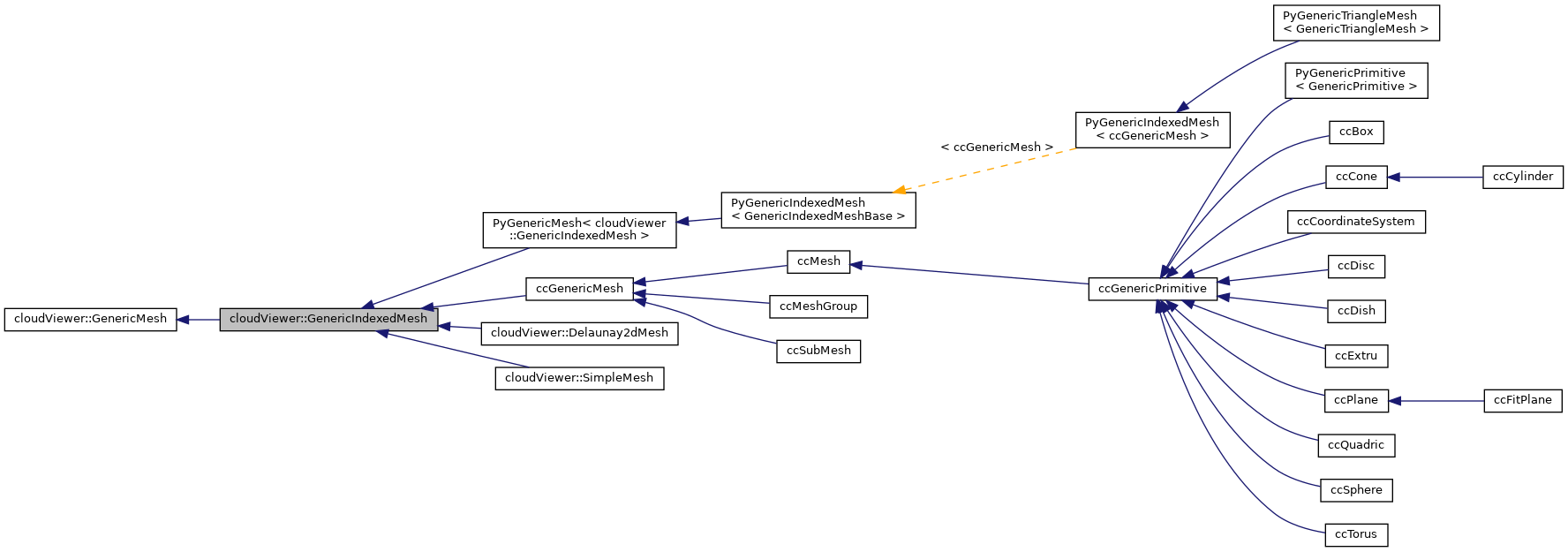

Inheritance diagram for cloudViewer::GenericIndexedMesh:

Collaboration diagram for cloudViewer::GenericIndexedMesh:

Public Member Functions
	GenericIndexedMesh ()=default
	~GenericIndexedMesh () override=default
	Default destructor. More...
virtual GenericTriangle *	_getTriangle (unsigned triangleIndex)=0
	Returns the ith triangle. More...
virtual VerticesIndexes *	getTriangleVertIndexes (unsigned triangleIndex)=0
	Returns the indexes of the vertices of a given triangle. More...
virtual void	getTriangleVertices (unsigned triangleIndex, CCVector3 &A, CCVector3 &B, CCVector3 &C) const =0
	Returns the vertices of a given triangle. More...
virtual void	getTriangleVertices (unsigned triangleIndex, double A[3], double B[3], double C[3]) const =0
virtual VerticesIndexes *	getNextTriangleVertIndexes ()=0
virtual bool	normalsAvailable () const
	Returns whether normals are available. More...
virtual bool	interpolateNormals (unsigned triIndex, const CCVector3 &P, CCVector3 &N)
	Interpolates normal(s) inside a given triangle. More...
Public Member Functions inherited from cloudViewer::GenericMesh
	GenericMesh ()=default
virtual	~GenericMesh ()=default
	Default destructor. More...
virtual unsigned	size () const =0
	Returns the number of triangles. More...
virtual bool	hasTriangles () const
virtual void	forEach (genericTriangleAction action)=0
	Fast iteration mechanism. More...
virtual void	getBoundingBox (CCVector3 &bbMin, CCVector3 &bbMax)=0
	Returns the mesh bounding-box. More...
virtual void	placeIteratorAtBeginning ()=0
	Places the mesh iterator at the beginning. More...
virtual GenericTriangle *	_getNextTriangle ()=0
	Returns the next triangle (relatively to the global iterator position) More...

Additional Inherited Members
Public Types inherited from cloudViewer::GenericMesh
enum class	SimplificationContraction { Average , Quadric }
	Indicates the method that is used for mesh simplification if multiple vertices are combined to a single one. More...
enum class	FilterScope { All , Color , Normal , Vertex }
	Indicates the scope of filter operations. More...
enum class	DeformAsRigidAsPossibleEnergy { Spokes , Smoothed }
using	genericTriangleAction = std::function< void(GenericTriangle &)>
	Generic function to apply to a triangle (used by foreach) More...

Detailed Description

A generic mesh with index-based vertex access.

Implements the GenericMehs interface.

Definition at line 37 of file GenericIndexedMesh.h.

Constructor & Destructor Documentation

GenericIndexedMesh()

cloudViewer::GenericIndexedMesh::GenericIndexedMesh ( )

default

~GenericIndexedMesh()

cloudViewer::GenericIndexedMesh::~GenericIndexedMesh ( )

overridedefault

Default destructor.

Member Function Documentation

_getTriangle()

virtual GenericTriangle* cloudViewer::GenericIndexedMesh::_getTriangle ( unsigned  triangleIndex )

pure virtual

Returns the ith triangle.

Virtual method to request a triangle with a specific index. The returned object can be temporary.

Parameters

triangleIndex

of the requested triangle (between 0 and the mesh size-1)

Returns

the requested triangle, or 0 if index value is not valid

Implemented in PyGenericIndexedMesh< GenericIndexedMeshBase >, ccMesh, cloudViewer::SimpleMesh, cloudViewer::Delaunay2dMesh, ccSubMesh, and ccMeshGroup.

Referenced by define_GenericIndexedMesh().

getNextTriangleVertIndexes()

virtual VerticesIndexes* cloudViewer::GenericIndexedMesh::getNextTriangleVertIndexes ( )

pure virtual

Returns the indexes of the vertices of the next triangle (relatively to the global iterator position)

Returns

the triangle indexes (or 0 if the global iterator is out of bounds)

Implemented in PyGenericIndexedMesh< GenericIndexedMeshBase >, ccSubMesh, ccMeshGroup, ccMesh, cloudViewer::SimpleMesh, and cloudViewer::Delaunay2dMesh.

Referenced by cloudViewer::MeshSamplingTools::buildMeshEdgeUsageMap(), define_GenericIndexedMesh(), MAFilter::saveToFile(), and cloudViewer::ManualSegmentationTools::segmentMesh().

getTriangleVertices() [1/2]

virtual void cloudViewer::GenericIndexedMesh::getTriangleVertices ( unsigned  triangleIndex, CCVector3 &  A, CCVector3 &  B, CCVector3 &  C  ) const

pure virtual

Returns the vertices of a given triangle.

Parameters

[in]	triangleIndex	index of the triangle (between 0 and the size(mesh)-1)
[out]	A	first vertex
[out]	B	second vertex
[out]	C	third vertex

Implemented in PyGenericIndexedMesh< GenericIndexedMeshBase >, ccSubMesh, ccMeshGroup, ccMesh, cloudViewer::SimpleMesh, and cloudViewer::Delaunay2dMesh.

Referenced by ComparePointsAndTriangles().

getTriangleVertices() [2/2]

virtual void cloudViewer::GenericIndexedMesh::getTriangleVertices ( unsigned  triangleIndex, double  A[3], double  B[3], double  C[3]  ) const

pure virtual

Implemented in PyGenericIndexedMesh< GenericIndexedMeshBase >, ccSubMesh, ccMeshGroup, ccMesh, cloudViewer::SimpleMesh, and cloudViewer::Delaunay2dMesh.

getTriangleVertIndexes()

virtual VerticesIndexes* cloudViewer::GenericIndexedMesh::getTriangleVertIndexes ( unsigned  triangleIndex )

pure virtual

Returns the indexes of the vertices of a given triangle.

Parameters

triangleIndex

index of the triangle (between 0 and size(mesh)-1)

Returns

the triangle indexes (or 0 if index value is not valid)

Implemented in PyGenericIndexedMesh< GenericIndexedMeshBase >, ccSubMesh, ccMeshGroup, ccMesh, cloudViewer::SimpleMesh, and cloudViewer::Delaunay2dMesh.

Referenced by ccCropTool::Crop(), MergeOldTriangles(), cloudViewer::ManualSegmentationTools::segmentMeshWithAABox(), cloudViewer::ManualSegmentationTools::segmentMeshWithAAPlane(), and ToFbxMesh().

interpolateNormals()

virtual bool cloudViewer::GenericIndexedMesh::interpolateNormals ( unsigned  triIndex, const CCVector3 &  P, CCVector3 &  N  )

inlinevirtual

Interpolates normal(s) inside a given triangle.

This method should be ideally overriden by the child class if normals are supported

Parameters

[in]	triIndex	triangle index
[in]	P	point where to interpolate (should be inside the triangle!)
[out]	N	interpolated normal

Returns

success

Reimplemented in PyGenericIndexedMesh< GenericIndexedMeshBase >, ccSubMesh, ccMeshGroup, ccMesh, and cloudViewer::SimpleMesh.

Definition at line 89 of file GenericIndexedMesh.h.

normalsAvailable()

virtual bool cloudViewer::GenericIndexedMesh::normalsAvailable ( ) const

inlinevirtual

Returns whether normals are available.

Reimplemented in PyGenericIndexedMesh< GenericIndexedMeshBase >, ccMesh, ccGenericMesh, and cloudViewer::SimpleMesh.

Definition at line 80 of file GenericIndexedMesh.h.

---

The documentation for this class was generated from the following file:

• /root/ACloudViewer/core/include/GenericIndexedMesh.h
