A simple mesh structure, with index-based vertex access. More...

#include <SimpleMesh.h>

Inheritance diagram for cloudViewer::SimpleMesh:

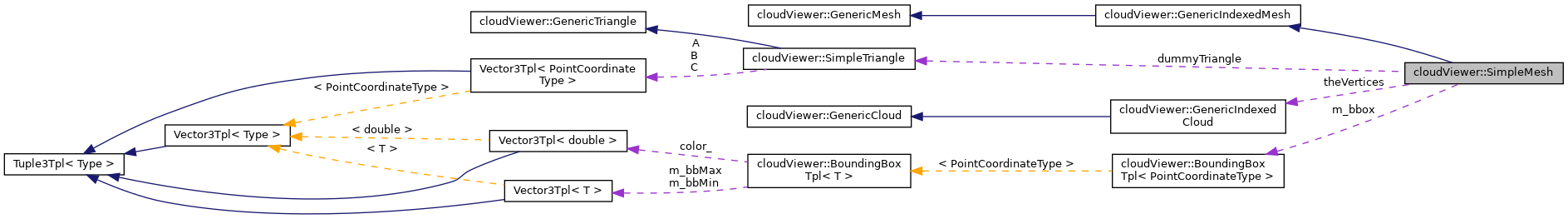

Collaboration diagram for cloudViewer::SimpleMesh:

[legend]

Public Member Functions
	SimpleMesh (GenericIndexedCloud *_theVertices, bool linkVerticesWithMesh=false)
	SimpleMesh Constructor. More...

	~SimpleMesh () override
	SimpleMesh destructor. More...

void	forEach (genericTriangleAction action) override
	Fast iteration mechanism. More...

void	placeIteratorAtBeginning () override
	Places the mesh iterator at the beginning. More...

GenericTriangle *	_getNextTriangle () override
	Returns the next triangle (relatively to the global iterator position) More...

GenericTriangle *	_getTriangle (unsigned triangleIndex) override
	Returns the ith triangle. More...

VerticesIndexes *	getNextTriangleVertIndexes () override

VerticesIndexes *	getTriangleVertIndexes (unsigned triangleIndex) override
	Returns the indexes of the vertices of a given triangle. More...

virtual unsigned	size () const override
	Returns the number of triangles. More...

void	getBoundingBox (CCVector3 &bbMin, CCVector3 &bbMax) override
	Returns the mesh bounding-box. More...

void	getTriangleVertices (unsigned triangleIndex, CCVector3 &A, CCVector3 &B, CCVector3 &C) const override
	Returns the vertices of a given triangle. More...

virtual void	getTriangleVertices (unsigned triangleIndex, double A[3], double B[3], double C[3]) const override

unsigned	capacity () const
	Returns the mesh capacity. More...

const GenericIndexedCloud *	vertices () const
	Returns the vertices. More...

void	clear ()
	Clears the mesh. More...

virtual void	addTriangle (unsigned i1, unsigned i2, unsigned i3)
	Adds a triangle to the mesh. More...

virtual bool	reserve (unsigned n)
	Reserves the memory to store the triangles (as 3 indexes each) More...

virtual bool	resize (unsigned n)
	Resizes the mesh database. More...

bool	normalsAvailable () const override
	Returns whether normals are available. More...

bool	interpolateNormals (unsigned triIndex, const CCVector3 &P, CCVector3 &N) override
	Interpolates normal(s) inside a given triangle. More...

Public Member Functions inherited from cloudViewer::GenericIndexedMesh
	GenericIndexedMesh ()=default

	~GenericIndexedMesh () override=default
	Default destructor. More...

Public Member Functions inherited from cloudViewer::GenericMesh
	GenericMesh ()=default

virtual	~GenericMesh ()=default
	Default destructor. More...

virtual bool	hasTriangles () const

Protected Types
using	TriangleIndexesContainer = std::vector< VerticesIndexes >
	A triangle vertices indexes container. More...

Protected Attributes
TriangleIndexesContainer	m_triIndexes
	The triangles indexes. More...

unsigned	globalIterator
	Iterator on the list of triangles. More...

SimpleTriangle	dummyTriangle
	Dump triangle structure to transmit temporary data. More...

GenericIndexedCloud *	theVertices
	The associated point cloud (vertices) More...

bool	verticesLinked

BoundingBox	m_bbox
	Bounding-box. More...

Additional Inherited Members
Public Types inherited from cloudViewer::GenericMesh
enum class	SimplificationContraction { Average , Quadric }
	Indicates the method that is used for mesh simplification if multiple vertices are combined to a single one. More...

enum class	FilterScope { All , Color , Normal , Vertex }
	Indicates the scope of filter operations. More...

enum class	DeformAsRigidAsPossibleEnergy { Spokes , Smoothed }

using	genericTriangleAction = std::function< void(GenericTriangle &)>
	Generic function to apply to a triangle (used by foreach) More...

Detailed Description

A simple mesh structure, with index-based vertex access.

Implements the GenericIndexedMesh interface. This mesh is always associated to a (index based) point cloud that stores the mesh vertexes.

Definition at line 26 of file SimpleMesh.h.

Member Typedef Documentation

◆ TriangleIndexesContainer

using cloudViewer::SimpleMesh::TriangleIndexesContainer = std::vector<VerticesIndexes>

protected

A triangle vertices indexes container.

Definition at line 102 of file SimpleMesh.h.

Constructor & Destructor Documentation

◆ SimpleMesh()

SimpleMesh::SimpleMesh	(	GenericIndexedCloud *	_theVertices,
		bool	linkVerticesWithMesh = `false`
	)

SimpleMesh Constructor.

Parameters

_theVertices	the point cloud containing the vertices
linkVerticesWithMesh	specifies if the vertex cloud should be deleted when the SimpleMesh object is destructed

Definition at line 18 of file SimpleMesh.cpp.

◆ ~SimpleMesh()

SimpleMesh::~SimpleMesh ( )

override

SimpleMesh destructor.

Definition at line 25 of file SimpleMesh.cpp.

References theVertices, and verticesLinked.

Member Function Documentation

◆ _getNextTriangle()

GenericTriangle * SimpleMesh::_getNextTriangle ( )

overridevirtual

Returns the next triangle (relatively to the global iterator position)

Virtual method to handle the mesh global iterator. Global iterator position should be increased each time this method is called. The returned object can be temporary.

Returns: a triangle

Implements cloudViewer::GenericMesh.

Definition at line 45 of file SimpleMesh.cpp.

References _getTriangle(), and globalIterator.

◆ _getTriangle()

GenericTriangle * SimpleMesh::_getTriangle ( unsigned triangleIndex )

overridevirtual

Returns the ith triangle.

Virtual method to request a triangle with a specific index. The returned object can be temporary.

Parameters

triangleIndex of the requested triangle (between 0 and the mesh size-1)

Returns: the requested triangle, or 0 if index value is not valid

Implements cloudViewer::GenericIndexedMesh.

Definition at line 49 of file SimpleMesh.cpp.

References cloudViewer::SimpleTriangle::A, cloudViewer::SimpleTriangle::B, cloudViewer::SimpleTriangle::C, dummyTriangle, cloudViewer::GenericIndexedCloud::getPoint(), cloudViewer::VerticesIndexes::i1, cloudViewer::VerticesIndexes::i2, cloudViewer::VerticesIndexes::i3, m_triIndexes, and theVertices.

Referenced by _getNextTriangle().

◆ addTriangle()

void SimpleMesh::addTriangle	(	unsigned	i1,
		unsigned	i2,
		unsigned	i3
	)

virtual

Adds a triangle to the mesh.

Vertex indexes are expresesed relatively to the vertex cloud.

Parameters

i1	first vertex index
i2	second vertex index
i3	third vertex index

Definition at line 103 of file SimpleMesh.cpp.

References m_bbox, m_triIndexes, and cloudViewer::BoundingBoxTpl< T >::setValidity().

Referenced by AddTriangle(), define_SimpleMesh(), MergeOldTriangles(), cloudViewer::ManualSegmentationTools::segmentMesh(), and cloudViewer::Neighbourhood::triangulateFromQuadric().

◆ capacity()

unsigned cloudViewer::SimpleMesh::capacity ( ) const

inline

Returns the mesh capacity.

Definition at line 62 of file SimpleMesh.h.

Referenced by AddTriangle(), define_SimpleMesh(), and cloudViewer::ManualSegmentationTools::segmentMesh().

◆ clear()

void cloudViewer::SimpleMesh::clear ( )

inline

Clears the mesh.

Definition at line 70 of file SimpleMesh.h.

Referenced by define_SimpleMesh(), and cloudViewer::ManualSegmentationTools::segmentMeshWithAABox().

◆ forEach()

void SimpleMesh::forEach ( genericTriangleAction action )

overridevirtual

Fast iteration mechanism.

Virtual method to apply a function to the whole mesh

Parameters

action function to apply (see GenericMesh::genericTriangleAction)

Implements cloudViewer::GenericMesh.

Definition at line 32 of file SimpleMesh.cpp.

References cloudViewer::SimpleTriangle::A, cloudViewer::SimpleTriangle::B, cloudViewer::SimpleTriangle::C, count, cloudViewer::GenericIndexedCloud::getPoint(), m_triIndexes, and theVertices.

◆ getBoundingBox()

void SimpleMesh::getBoundingBox	(	CCVector3 &	bbMin,
		CCVector3 &	bbMax
	)

overridevirtual

Returns the mesh bounding-box.

Virtual method to request the mesh bounding-box limits. It is equivalent to the bounding-box of the cloud composed of the mesh vertexes.

Parameters

bbMin	lower bounding-box limits (Xmin,Ymin,Zmin)
bbMax	higher bounding-box limits (Xmax,Ymax,Zmax)

Implements cloudViewer::GenericMesh.

Definition at line 84 of file SimpleMesh.cpp.

References cloudViewer::GenericCloud::getBoundingBox(), and theVertices.

◆ getNextTriangleVertIndexes()

VerticesIndexes * SimpleMesh::getNextTriangleVertIndexes ( )

overridevirtual

Returns the indexes of the vertices of the next triangle (relatively to the global iterator position)

Returns: the triangle indexes (or 0 if the global iterator is out of bounds)

Implements cloudViewer::GenericIndexedMesh.

Definition at line 184 of file SimpleMesh.cpp.

References getTriangleVertIndexes(), and globalIterator.

◆ getTriangleVertices() [1/2]

void SimpleMesh::getTriangleVertices	(	unsigned	triangleIndex,
		CCVector3 &	A,
		CCVector3 &	B,
		CCVector3 &	C
	)		const

overridevirtual

Returns the vertices of a given triangle.

Parameters

[in]	triangleIndex	index of the triangle (between 0 and the size(mesh)-1)
[out]	A	first vertex
[out]	B	second vertex
[out]	C	third vertex

Implements cloudViewer::GenericIndexedMesh.

Definition at line 60 of file SimpleMesh.cpp.

References cloudViewer::GenericIndexedCloud::getPoint(), cloudViewer::VerticesIndexes::i1, cloudViewer::VerticesIndexes::i2, cloudViewer::VerticesIndexes::i3, m_triIndexes, and theVertices.

◆ getTriangleVertices() [2/2]

void cloudViewer::SimpleMesh::getTriangleVertices	(	unsigned	triangleIndex,
		double	A[3],
		double	B[3],
		double	C[3]
	)		const

overridevirtual

Implements cloudViewer::GenericIndexedMesh.

Definition at line 72 of file SimpleMesh.cpp.

References cloudViewer::GenericIndexedCloud::getPoint(), cloudViewer::VerticesIndexes::i1, cloudViewer::VerticesIndexes::i2, cloudViewer::VerticesIndexes::i3, m_triIndexes, and theVertices.

◆ getTriangleVertIndexes()

VerticesIndexes * SimpleMesh::getTriangleVertIndexes ( unsigned triangleIndex )

overridevirtual

Returns the indexes of the vertices of a given triangle.

Parameters

triangleIndex index of the triangle (between 0 and size(mesh)-1)

Returns: the triangle indexes (or 0 if index value is not valid)

Implements cloudViewer::GenericIndexedMesh.

Definition at line 180 of file SimpleMesh.cpp.

References m_triIndexes.

Referenced by getNextTriangleVertIndexes(), ImportSourceVertices(), and MergeOldTriangles().

◆ interpolateNormals()

bool SimpleMesh::interpolateNormals	(	unsigned	triIndex,
		const CCVector3 &	P,
		CCVector3 &	N
	)

overridevirtual

Interpolates normal(s) inside a given triangle.

This method should be ideally overriden by the child class if normals are supported

Parameters

[in]	triIndex	triangle index
[in]	P	point where to interpolate (should be inside the triangle!)
[out]	N	interpolated normal

Returns: success

Reimplemented from cloudViewer::GenericIndexedMesh.

Definition at line 131 of file SimpleMesh.cpp.

References cross(), cloudViewer::GenericIndexedCloud::getPoint(), cloudViewer::VerticesIndexes::i1, cloudViewer::VerticesIndexes::i2, cloudViewer::VerticesIndexes::i3, m_triIndexes, theVertices, Tuple3Tpl< Type >::x, Tuple3Tpl< Type >::y, and Tuple3Tpl< Type >::z.

◆ normalsAvailable()

bool SimpleMesh::normalsAvailable ( ) const

overridevirtual

Returns whether normals are available.

Reimplemented from cloudViewer::GenericIndexedMesh.

Definition at line 127 of file SimpleMesh.cpp.

References cloudViewer::GenericIndexedCloud::normalsAvailable(), and theVertices.

◆ placeIteratorAtBeginning()

void SimpleMesh::placeIteratorAtBeginning ( )

overridevirtual

Places the mesh iterator at the beginning.

Virtual method to handle the mesh global iterator

Implements cloudViewer::GenericMesh.

Definition at line 43 of file SimpleMesh.cpp.

References globalIterator.

◆ reserve()

bool SimpleMesh::reserve ( unsigned n )

virtual

Reserves the memory to store the triangles (as 3 indexes each)

Parameters

n	the number of triangles to reserve

Returns: true if the method succeeds, false otherwise

Definition at line 109 of file SimpleMesh.cpp.

References m_triIndexes.

Referenced by AddTriangle(), define_SimpleMesh(), MergeOldTriangles(), cloudViewer::ManualSegmentationTools::segmentMesh(), and cloudViewer::Neighbourhood::triangulateFromQuadric().

◆ resize()

bool SimpleMesh::resize ( unsigned n )

virtual

Resizes the mesh database.

If the new number of elements is smaller than the actual size, the overflooding elements will be deleted.

Parameters

n	the new number of triangles

Returns: true if the method succeeds, false otherwise

Definition at line 118 of file SimpleMesh.cpp.

References m_triIndexes.

Referenced by define_SimpleMesh(), MergeOldTriangles(), cloudViewer::ManualSegmentationTools::segmentMesh(), and cloudViewer::ManualSegmentationTools::segmentMeshWithAABox().

◆ size()

virtual unsigned cloudViewer::SimpleMesh::size ( ) const

inlineoverridevirtual

Returns the number of triangles.

Virtual method to request the mesh size

Returns: the mesh size

Implements cloudViewer::GenericMesh.

Definition at line 47 of file SimpleMesh.h.

Referenced by AddTriangle(), ImportSourceVertices(), MergeOldTriangles(), cloudViewer::ManualSegmentationTools::segmentMesh(), and cloudViewer::ManualSegmentationTools::segmentMeshWithAABox().

◆ vertices()

const GenericIndexedCloud* cloudViewer::SimpleMesh::vertices ( ) const

inline

Returns the vertices.

Definition at line 67 of file SimpleMesh.h.

Referenced by ccCropTool::Crop(), and define_SimpleMesh().

Member Data Documentation

◆ dummyTriangle

SimpleTriangle cloudViewer::SimpleMesh::dummyTriangle

protected

Dump triangle structure to transmit temporary data.

Definition at line 109 of file SimpleMesh.h.

Referenced by _getTriangle().

◆ globalIterator

unsigned cloudViewer::SimpleMesh::globalIterator

protected

Iterator on the list of triangles.

Definition at line 107 of file SimpleMesh.h.

Referenced by _getNextTriangle(), getNextTriangleVertIndexes(), and placeIteratorAtBeginning().

◆ m_bbox

BoundingBox cloudViewer::SimpleMesh::m_bbox

protected

Bounding-box.

Definition at line 118 of file SimpleMesh.h.

Referenced by addTriangle().

◆ m_triIndexes

TriangleIndexesContainer cloudViewer::SimpleMesh::m_triIndexes

protected

The triangles indexes.

Definition at line 104 of file SimpleMesh.h.

Referenced by _getTriangle(), addTriangle(), forEach(), getTriangleVertices(), getTriangleVertIndexes(), interpolateNormals(), reserve(), and resize().

◆ theVertices

GenericIndexedCloud* cloudViewer::SimpleMesh::theVertices

protected

The associated point cloud (vertices)

Definition at line 112 of file SimpleMesh.h.

Referenced by _getTriangle(), forEach(), getBoundingBox(), getTriangleVertices(), interpolateNormals(), normalsAvailable(), and ~SimpleMesh().

◆ verticesLinked

bool cloudViewer::SimpleMesh::verticesLinked

protected

Specifies if the associated cloud should be deleted when the mesh is deleted

Definition at line 115 of file SimpleMesh.h.

Referenced by ~SimpleMesh().

The documentation for this class was generated from the following files:

/root/ACloudViewer/core/include/SimpleMesh.h
/root/ACloudViewer/core/src/SimpleMesh.cpp

Public Member Functions

Protected Types

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ TriangleIndexesContainer

Constructor & Destructor Documentation

◆ SimpleMesh()

◆ ~SimpleMesh()

Member Function Documentation

◆ _getNextTriangle()

◆ _getTriangle()

◆ addTriangle()

◆ capacity()

◆ clear()

◆ forEach()

◆ getBoundingBox()

◆ getNextTriangleVertIndexes()

◆ getTriangleVertices() [1/2]

◆ getTriangleVertices() [2/2]

◆ getTriangleVertIndexes()

◆ interpolateNormals()

◆ normalsAvailable()

◆ placeIteratorAtBeginning()

◆ reserve()

◆ resize()

◆ size()

◆ vertices()

Member Data Documentation

◆ dummyTriangle

◆ globalIterator

◆ m_bbox

◆ m_triIndexes

◆ theVertices

◆ verticesLinked
