A class to compute and handle a Delaunay 2D mesh on a subset of points. More...

#include <Delaunay2dMesh.h>

Inheritance diagram for cloudViewer::Delaunay2dMesh:

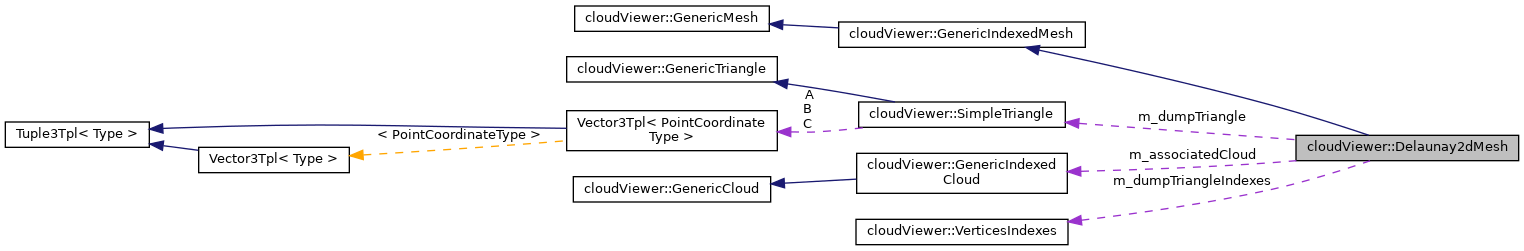

Collaboration diagram for cloudViewer::Delaunay2dMesh:

[legend]

Public Member Functions
	Delaunay2dMesh ()
	Delaunay2dMesh constructor. More...

	~Delaunay2dMesh () override
	Delaunay2dMesh destructor. More...

virtual void	linkMeshWith (GenericIndexedCloud *aCloud, bool passOwnership=false)
	Associate this mesh to a point cloud. More...

virtual bool	buildMesh (const std::vector< CCVector2 > &points2D, std::size_t pointCountToUse, std::string &outputErrorStr)
	Build the Delaunay mesh on top a set of 2D points. More...

virtual bool	buildMesh (const std::vector< CCVector2 > &points2D, const std::vector< int > &segments2D, std::string &outputErrorStr)
	Build the Delaunay mesh from a set of 2D polylines. More...

virtual bool	removeOuterTriangles (const std::vector< CCVector2 > &vertices2D, const std::vector< CCVector2 > &polygon2D, bool removeOutside=true)
	Removes the triangles falling outside of a given (2D) polygon. More...

virtual unsigned	size () const override
	Returns the number of triangles. More...

void	forEach (genericTriangleAction action) override
	Fast iteration mechanism. More...

void	getBoundingBox (CCVector3 &bbMin, CCVector3 &bbMax) override
	Returns the mesh bounding-box. More...

void	placeIteratorAtBeginning () override
	Places the mesh iterator at the beginning. More...

GenericTriangle *	_getNextTriangle () override
	Returns the next triangle (relatively to the global iterator position) More...

GenericTriangle *	_getTriangle (unsigned triangleIndex) override
	Returns the ith triangle. More...

VerticesIndexes *	getNextTriangleVertIndexes () override

VerticesIndexes *	getTriangleVertIndexes (unsigned triangleIndex) override
	Returns the indexes of the vertices of a given triangle. More...

virtual void	getTriangleVertices (unsigned triangleIndex, CCVector3 &A, CCVector3 &B, CCVector3 &C) const override
	Returns the vertices of a given triangle. More...

virtual void	getTriangleVertices (unsigned triangleIndex, double A[3], double B[3], double C[3]) const override

int *	getTriangleVertIndexesArray ()
	Returns triangles indexes array (pointer to) More...

bool	removeTrianglesWithEdgesLongerThan (PointCoordinateType maxEdgeLength)
	Filters out the triangles based on their edge length. More...

GenericIndexedCloud *	getAssociatedCloud ()
	Returns associated cloud. More...

Public Member Functions inherited from cloudViewer::GenericIndexedMesh
	GenericIndexedMesh ()=default

	~GenericIndexedMesh () override=default
	Default destructor. More...

virtual bool	normalsAvailable () const
	Returns whether normals are available. More...

virtual bool	interpolateNormals (unsigned triIndex, const CCVector3 &P, CCVector3 &N)
	Interpolates normal(s) inside a given triangle. More...

Public Member Functions inherited from cloudViewer::GenericMesh
	GenericMesh ()=default

virtual	~GenericMesh ()=default
	Default destructor. More...

virtual bool	hasTriangles () const

Static Public Member Functions
static bool	Available ()
	Returns whether 2D Delaunay triangulation is supported or not. More...

static Delaunay2dMesh *	TesselateContour (const std::vector< CCVector2 > &contourPoints)

static Delaunay2dMesh *	TesselateContour (GenericIndexedCloudPersist *contourPoints, int flatDimension=-1)
	Tesselates a 2D polyline (not necessarily axis-aligned) More...

Static Public Attributes
static constexpr int	USE_ALL_POINTS = 0

Protected Attributes
GenericIndexedCloud *	m_associatedCloud
	Associated point cloud. More...

int *	m_triIndexes
	Triangle vertex indexes. More...

int *	m_globalIterator
	Iterator on the list of triangle vertex indexes. More...

int *	m_globalIteratorEnd
	End position of global iterator. More...

unsigned	m_numberOfTriangles
	The number of triangles. More...

bool	m_cloudIsOwnedByMesh

SimpleTriangle	m_dumpTriangle
	Dump triangle structure to transmit temporary data. More...

VerticesIndexes	m_dumpTriangleIndexes
	Dump triangle index structure to transmit temporary data. More...

Additional Inherited Members
Public Types inherited from cloudViewer::GenericMesh
enum class	SimplificationContraction { Average , Quadric }
	Indicates the method that is used for mesh simplification if multiple vertices are combined to a single one. More...

enum class	FilterScope { All , Color , Normal , Vertex }
	Indicates the scope of filter operations. More...

enum class	DeformAsRigidAsPossibleEnergy { Spokes , Smoothed }

using	genericTriangleAction = std::function< void(GenericTriangle &)>
	Generic function to apply to a triangle (used by foreach) More...

Detailed Description

A class to compute and handle a Delaunay 2D mesh on a subset of points.

Definition at line 24 of file Delaunay2dMesh.h.

Constructor & Destructor Documentation

◆ Delaunay2dMesh()

Delaunay2dMesh::Delaunay2dMesh ( )

Delaunay2dMesh constructor.

Definition at line 30 of file Delaunay2dMesh.cpp.

Referenced by TesselateContour().

◆ ~Delaunay2dMesh()

Delaunay2dMesh::~Delaunay2dMesh ( )

override

Delaunay2dMesh destructor.

Definition at line 38 of file Delaunay2dMesh.cpp.

References linkMeshWith(), and m_triIndexes.

Member Function Documentation

◆ _getNextTriangle()

GenericTriangle * Delaunay2dMesh::_getNextTriangle ( )

overridevirtual

Returns the next triangle (relatively to the global iterator position)

Virtual method to handle the mesh global iterator. Global iterator position should be increased each time this method is called. The returned object can be temporary.

Returns: a triangle

Implements cloudViewer::GenericMesh.

Definition at line 324 of file Delaunay2dMesh.cpp.

References cloudViewer::SimpleTriangle::A, cloudViewer::SimpleTriangle::B, cloudViewer::SimpleTriangle::C, cloudViewer::GenericIndexedCloud::getPoint(), m_associatedCloud, m_dumpTriangle, m_globalIterator, and m_globalIteratorEnd.

◆ _getTriangle()

GenericTriangle * Delaunay2dMesh::_getTriangle ( unsigned triangleIndex )

overridevirtual

Returns the ith triangle.

Virtual method to request a triangle with a specific index. The returned object can be temporary.

Parameters

triangleIndex of the requested triangle (between 0 and the mesh size-1)

Returns: the requested triangle, or 0 if index value is not valid

Implements cloudViewer::GenericIndexedMesh.

Definition at line 347 of file Delaunay2dMesh.cpp.

References cloudViewer::SimpleTriangle::A, cloudViewer::SimpleTriangle::B, cloudViewer::SimpleTriangle::C, cloudViewer::GenericIndexedCloud::getPoint(), m_associatedCloud, m_dumpTriangle, m_numberOfTriangles, and m_triIndexes.

◆ Available()

bool Delaunay2dMesh::Available ( )

static

Returns whether 2D Delaunay triangulation is supported or not.

2D Delaunay triangulation requires the CGAL library.

Definition at line 44 of file Delaunay2dMesh.cpp.

Referenced by define_Delaunay2dMesh().

◆ buildMesh() [1/2]

bool Delaunay2dMesh::buildMesh	(	const std::vector< CCVector2 > &	points2D,
		const std::vector< int > &	segments2D,
		std::string &	outputErrorStr
	)

virtual

Build the Delaunay mesh from a set of 2D polylines.

Parameters

points2D	a set of 2D points
segments2D	constraining segments (as 2 indexes per segment)
outputErrorStr	error string as output by the CGAL lib. (if any)

Returns: success

Definition at line 63 of file Delaunay2dMesh.cpp.

References face, m_globalIterator, m_globalIteratorEnd, m_numberOfTriangles, m_triIndexes, Vector2Tpl< Type >::x, and Vector2Tpl< Type >::y.

◆ buildMesh() [2/2]

bool Delaunay2dMesh::buildMesh	(	const std::vector< CCVector2 > &	points2D,
		std::size_t	pointCountToUse,
		std::string &	outputErrorStr
	)

virtual

Build the Delaunay mesh on top a set of 2D points.

Parameters

points2D	a set of 2D points
pointCountToUse	number of points to use from the input set (USE_ALL_POINTS = all)
outputErrorStr	error string as output by the CGAL lib. (if any)

Returns: success

Definition at line 133 of file Delaunay2dMesh.cpp.

References face, m_globalIterator, m_globalIteratorEnd, m_numberOfTriangles, m_triIndexes, Vector2Tpl< Type >::x, and Vector2Tpl< Type >::y.

Referenced by cloudViewer::PointProjectionTools::computeTriangulation(), DistanceMapGenerationTool::CreateMap(), define_Delaunay2dMesh(), TesselateContour(), and cloudViewer::Neighbourhood::triangulateOnPlane().

◆ forEach()

void Delaunay2dMesh::forEach ( genericTriangleAction action )

overridevirtual

Fast iteration mechanism.

Virtual method to apply a function to the whole mesh

Parameters

action function to apply (see GenericMesh::genericTriangleAction)

Implements cloudViewer::GenericMesh.

Definition at line 306 of file Delaunay2dMesh.cpp.

References cloudViewer::SimpleTriangle::A, cloudViewer::SimpleTriangle::B, cloudViewer::SimpleTriangle::C, cloudViewer::GenericIndexedCloud::getPoint(), m_associatedCloud, m_numberOfTriangles, and m_triIndexes.

◆ getAssociatedCloud()

GenericIndexedCloud* cloudViewer::Delaunay2dMesh::getAssociatedCloud ( )

inline

Returns associated cloud.

Definition at line 111 of file Delaunay2dMesh.h.

Referenced by define_Delaunay2dMesh().

◆ getBoundingBox()

void Delaunay2dMesh::getBoundingBox	(	CCVector3 &	bbMin,
		CCVector3 &	bbMax
	)

overridevirtual

Returns the mesh bounding-box.

Virtual method to request the mesh bounding-box limits. It is equivalent to the bounding-box of the cloud composed of the mesh vertexes.

Parameters

bbMin	lower bounding-box limits (Xmin,Ymin,Zmin)
bbMax	higher bounding-box limits (Xmax,Ymax,Zmax)

Implements cloudViewer::GenericMesh.

Definition at line 389 of file Delaunay2dMesh.cpp.

References cloudViewer::GenericCloud::getBoundingBox(), and m_associatedCloud.

◆ getNextTriangleVertIndexes()

VerticesIndexes * Delaunay2dMesh::getNextTriangleVertIndexes ( )

overridevirtual

Returns the indexes of the vertices of the next triangle (relatively to the global iterator position)

Returns: the triangle indexes (or 0 if the global iterator is out of bounds)

Implements cloudViewer::GenericIndexedMesh.

Definition at line 335 of file Delaunay2dMesh.cpp.

References cloudViewer::VerticesIndexes::i1, cloudViewer::VerticesIndexes::i2, cloudViewer::VerticesIndexes::i3, m_dumpTriangleIndexes, m_globalIterator, and m_globalIteratorEnd.

Referenced by DistanceMapGenerationTool::CreateMap().

◆ getTriangleVertices() [1/2]

void Delaunay2dMesh::getTriangleVertices	(	unsigned	triangleIndex,
		CCVector3 &	A,
		CCVector3 &	B,
		CCVector3 &	C
	)		const

overridevirtual

Returns the vertices of a given triangle.

Parameters

[in]	triangleIndex	index of the triangle (between 0 and the size(mesh)-1)
[out]	A	first vertex
[out]	B	second vertex
[out]	C	third vertex

Implements cloudViewer::GenericIndexedMesh.

Definition at line 358 of file Delaunay2dMesh.cpp.

References cloudViewer::GenericIndexedCloud::getPoint(), m_associatedCloud, m_numberOfTriangles, and m_triIndexes.

◆ getTriangleVertices() [2/2]

void Delaunay2dMesh::getTriangleVertices	(	unsigned	triangleIndex,
		double	A[3],
		double	B[3],
		double	C[3]
	)		const

overridevirtual

Implements cloudViewer::GenericIndexedMesh.

Definition at line 370 of file Delaunay2dMesh.cpp.

References cloudViewer::GenericIndexedCloud::getPoint(), m_associatedCloud, m_numberOfTriangles, and m_triIndexes.

◆ getTriangleVertIndexes()

VerticesIndexes * Delaunay2dMesh::getTriangleVertIndexes ( unsigned triangleIndex )

overridevirtual

Returns the indexes of the vertices of a given triangle.

Parameters

triangleIndex index of the triangle (between 0 and size(mesh)-1)

Returns: the triangle indexes (or 0 if index value is not valid)

Implements cloudViewer::GenericIndexedMesh.

Definition at line 382 of file Delaunay2dMesh.cpp.

References m_numberOfTriangles, and m_triIndexes.

◆ getTriangleVertIndexesArray()

int* cloudViewer::Delaunay2dMesh::getTriangleVertIndexesArray ( )

inline

Returns triangles indexes array (pointer to)

Handle with care!

Definition at line 102 of file Delaunay2dMesh.h.

Referenced by define_Delaunay2dMesh().

◆ linkMeshWith()

void Delaunay2dMesh::linkMeshWith	(	GenericIndexedCloud *	aCloud,
		bool	passOwnership = `false`
	)

virtual

Associate this mesh to a point cloud.

This particular mesh structure deals with point indexes instead of points. Therefore, it is possible to change the associated point cloud (if the new cloud has the same size). For example, it can be useful to compute the mesh on 2D points corresponding to 3D points that have been projected on a plane and then to link this structure with the 3D original points.

Parameters

aCloud	a point cloud
passOwnership	if true the Delaunay2dMesh destructor will delete the cloud as well

Definition at line 52 of file Delaunay2dMesh.cpp.

References m_associatedCloud, and m_cloudIsOwnedByMesh.

Referenced by cloudViewer::PointProjectionTools::computeTriangulation(), define_Delaunay2dMesh(), cloudViewer::Neighbourhood::triangulateOnPlane(), and ~Delaunay2dMesh().

◆ placeIteratorAtBeginning()

void Delaunay2dMesh::placeIteratorAtBeginning ( )

overridevirtual

Places the mesh iterator at the beginning.

Virtual method to handle the mesh global iterator

Implements cloudViewer::GenericMesh.

Definition at line 320 of file Delaunay2dMesh.cpp.

References m_globalIterator, and m_triIndexes.

Referenced by DistanceMapGenerationTool::CreateMap().

◆ removeOuterTriangles()

bool Delaunay2dMesh::removeOuterTriangles	(	const std::vector< CCVector2 > &	vertices2D,
		const std::vector< CCVector2 > &	polygon2D,
		bool	removeOutside = `true`
	)

virtual

Removes the triangles falling outside of a given (2D) polygon.

Parameters

vertices2D	vertices of the mesh as 2D points (typically the one used to triangulate the mesh!)
polygon2D	vertices of the 2D boundary polygon (ordered)
removeOutside	whether to remove triangles outside (default) or inside

Returns: success

Definition at line 207 of file Delaunay2dMesh.cpp.

References cloudViewer::ManualSegmentationTools::isPointInsidePoly(), m_associatedCloud, m_globalIterator, m_globalIteratorEnd, m_numberOfTriangles, m_triIndexes, and cloudViewer::GenericCloud::size().

Referenced by define_Delaunay2dMesh(), and TesselateContour().

◆ removeTrianglesWithEdgesLongerThan()

bool Delaunay2dMesh::removeTrianglesWithEdgesLongerThan ( PointCoordinateType maxEdgeLength )

Filters out the triangles based on their edge length.

Warning: may remove ALL triangles! Check the resulting size afterwards.

Definition at line 265 of file Delaunay2dMesh.cpp.

References cloudViewer::GenericIndexedCloud::getPoint(), m_associatedCloud, m_globalIterator, m_globalIteratorEnd, m_numberOfTriangles, and m_triIndexes.

Referenced by cloudViewer::PointProjectionTools::computeTriangulation(), define_Delaunay2dMesh(), and cloudViewer::Neighbourhood::triangulateOnPlane().

◆ size()

virtual unsigned cloudViewer::Delaunay2dMesh::size ( ) const

inlineoverridevirtual

Returns the number of triangles.

Virtual method to request the mesh size

Returns: the mesh size

Implements cloudViewer::GenericMesh.

Definition at line 82 of file Delaunay2dMesh.h.

Referenced by cloudViewer::PointProjectionTools::computeTriangulation(), DistanceMapGenerationTool::CreateMap(), TesselateContour(), and cloudViewer::Neighbourhood::triangulateOnPlane().

◆ TesselateContour() [1/2]

Delaunay2dMesh * Delaunay2dMesh::TesselateContour ( const std::vector< CCVector2 > & contourPoints )

static

Tesselates a 2D polyline (shortcut to buildMesh and removeOuterTriangles)

Definition at line 397 of file Delaunay2dMesh.cpp.

References buildMesh(), count, Delaunay2dMesh(), removeOuterTriangles(), and size().

Referenced by define_Delaunay2dMesh(), and TesselateContour().

◆ TesselateContour() [2/2]

Delaunay2dMesh * Delaunay2dMesh::TesselateContour	(	GenericIndexedCloudPersist *	contourPoints,
		int	flatDimension = `-1`
	)

static

Tesselates a 2D polyline (not necessarily axis-aligned)

Definition at line 429 of file Delaunay2dMesh.cpp.

References count, cloudViewer::GenericIndexedCloud::getPoint(), cloudViewer::Neighbourhood::projectPointsOn2DPlane(), cloudViewer::GenericCloud::size(), TesselateContour(), Tuple3Tpl< Type >::u, and X.

Member Data Documentation

◆ m_associatedCloud

GenericIndexedCloud* cloudViewer::Delaunay2dMesh::m_associatedCloud

protected

Associated point cloud.

Definition at line 126 of file Delaunay2dMesh.h.

Referenced by _getNextTriangle(), _getTriangle(), forEach(), getBoundingBox(), getTriangleVertices(), linkMeshWith(), removeOuterTriangles(), and removeTrianglesWithEdgesLongerThan().

◆ m_cloudIsOwnedByMesh

bool cloudViewer::Delaunay2dMesh::m_cloudIsOwnedByMesh

protected

Specifies if the associated cloud should be deleted when the mesh is deleted

Definition at line 142 of file Delaunay2dMesh.h.

Referenced by linkMeshWith().

◆ m_dumpTriangle

SimpleTriangle cloudViewer::Delaunay2dMesh::m_dumpTriangle

protected

Dump triangle structure to transmit temporary data.

Definition at line 145 of file Delaunay2dMesh.h.

Referenced by _getNextTriangle(), and _getTriangle().

◆ m_dumpTriangleIndexes

VerticesIndexes cloudViewer::Delaunay2dMesh::m_dumpTriangleIndexes

protected

Dump triangle index structure to transmit temporary data.

Definition at line 148 of file Delaunay2dMesh.h.

Referenced by getNextTriangleVertIndexes().

◆ m_globalIterator

int* cloudViewer::Delaunay2dMesh::m_globalIterator

protected

Iterator on the list of triangle vertex indexes.

Definition at line 132 of file Delaunay2dMesh.h.

Referenced by _getNextTriangle(), buildMesh(), getNextTriangleVertIndexes(), placeIteratorAtBeginning(), removeOuterTriangles(), and removeTrianglesWithEdgesLongerThan().

◆ m_globalIteratorEnd

int* cloudViewer::Delaunay2dMesh::m_globalIteratorEnd

protected

End position of global iterator.

Definition at line 135 of file Delaunay2dMesh.h.

Referenced by _getNextTriangle(), buildMesh(), getNextTriangleVertIndexes(), removeOuterTriangles(), and removeTrianglesWithEdgesLongerThan().

◆ m_numberOfTriangles

unsigned cloudViewer::Delaunay2dMesh::m_numberOfTriangles

protected

The number of triangles.

Definition at line 138 of file Delaunay2dMesh.h.

Referenced by _getTriangle(), buildMesh(), forEach(), getTriangleVertices(), getTriangleVertIndexes(), removeOuterTriangles(), and removeTrianglesWithEdgesLongerThan().

◆ m_triIndexes

int* cloudViewer::Delaunay2dMesh::m_triIndexes

protected

Triangle vertex indexes.

Definition at line 129 of file Delaunay2dMesh.h.

Referenced by _getTriangle(), buildMesh(), forEach(), getTriangleVertices(), getTriangleVertIndexes(), placeIteratorAtBeginning(), removeOuterTriangles(), removeTrianglesWithEdgesLongerThan(), and ~Delaunay2dMesh().

◆ USE_ALL_POINTS

constexpr int cloudViewer::Delaunay2dMesh::USE_ALL_POINTS = 0

staticconstexpr

Definition at line 26 of file Delaunay2dMesh.h.

Referenced by cloudViewer::PointProjectionTools::computeTriangulation(), DistanceMapGenerationTool::CreateMap(), define_Delaunay2dMesh(), and cloudViewer::Neighbourhood::triangulateOnPlane().

The documentation for this class was generated from the following files:

/root/ACloudViewer/core/include/Delaunay2dMesh.h
/root/ACloudViewer/core/src/Delaunay2dMesh.cpp

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Delaunay2dMesh()

◆ ~Delaunay2dMesh()

Member Function Documentation

◆ _getNextTriangle()

◆ _getTriangle()

◆ Available()

◆ buildMesh() [1/2]

◆ buildMesh() [2/2]

◆ forEach()

◆ getAssociatedCloud()

◆ getBoundingBox()

◆ getNextTriangleVertIndexes()

◆ getTriangleVertices() [1/2]

◆ getTriangleVertices() [2/2]

◆ getTriangleVertIndexes()

◆ getTriangleVertIndexesArray()

◆ linkMeshWith()

◆ placeIteratorAtBeginning()

◆ removeOuterTriangles()

◆ removeTrianglesWithEdgesLongerThan()

◆ size()

◆ TesselateContour() [1/2]

◆ TesselateContour() [2/2]

Member Data Documentation

◆ m_associatedCloud

◆ m_cloudIsOwnedByMesh

◆ m_dumpTriangle

◆ m_dumpTriangleIndexes

◆ m_globalIterator

◆ m_globalIteratorEnd

◆ m_numberOfTriangles

◆ m_triIndexes

◆ USE_ALL_POINTS
