Command line parser. More...

#include <ecvCommandLineParser.h>

Inheritance diagram for ccCommandLineParser:

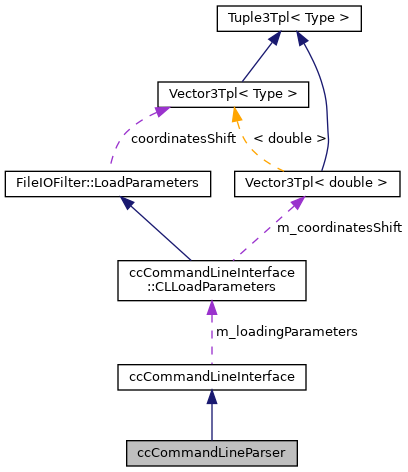

Collaboration diagram for ccCommandLineParser:

[legend]

Public Member Functions
	~ccCommandLineParser () override
	Destructor. More...

QString	getExportFilename (const CLEntityDesc &entityDesc, QString extension=QString(), QString suffix=QString(), QString *baseOutputFilename=nullptr, bool forceNoTimestamp=false) const override
	Returns the name of a to-be-exported entity. More...

QString	exportEntity (CLEntityDesc &entityDesc, const QString &suffix=QString(), QString *baseOutputFilename=nullptr, ccCommandLineInterface::ExportOptions options=ExportOption::NoOptions) override
	Exports a cloud or a mesh. More...

void	removeClouds (bool onlyLast=false) override
	Removes all clouds (or only the last one ;) More...

void	removeMeshes (bool onlyLast=false) override
	Removes all meshes (or only the last one ;) More...

QStringList &	arguments () override
	Returns the list of arguments. More...

const QStringList &	arguments () const override
	Returns the list of arguments (const version) More...

bool	registerCommand (Command::Shared command) override

QDialog *	widgetParent () override
	Returns a (widget) parent (if any is available) More...

void	print (const QString &message) const override

void	warning (const QString &message) const override

bool	error (const QString &message) const override

bool	saveClouds (QString suffix=QString(), bool allAtOnce=false, const QString *allAtOnceFileName=nullptr) override
	Saves all clouds. More...

bool	saveMeshes (QString suffix=QString(), bool allAtOnce=false, const QString *allAtOnceFileName=nullptr) override
	Saves all meshes. More...

bool	importFile (QString filename, const GlobalShiftOptions &globalShiftOptions, FileIOFilter::Shared filter=FileIOFilter::Shared(nullptr)) override
	Loads a file with a specific filter. More...

QString	cloudExportFormat () const override
	Returns the current cloud(s) export format. More...

QString	cloudExportExt () const override
	Returns the current cloud(s) export extension (warning: can be anything) More...

QString	meshExportFormat () const override
	Returns the current mesh(es) export format. More...

QString	meshExportExt () const override
	Returns the current mesh(es) export extension (warning: can be anything) More...

QString	hierarchyExportFormat () const override
	Returns the current hierarchy(ies) export format. More...

QString	hierarchyExportExt () const override

void	setCloudExportFormat (QString format, QString ext) override
	Sets the current cloud(s) export format and extension. More...

void	setMeshExportFormat (QString format, QString ext) override
	Sets the current mesh(es) export format and extension. More...

void	setHierarchyExportFormat (QString format, QString ext) override
	Sets the current hierarchy(ies) export format and extension. More...

Public Member Functions inherited from ccCommandLineInterface
	ccCommandLineInterface ()
	Default constructor. More...

virtual	~ccCommandLineInterface ()=default

virtual bool	registerCommand (Command::Shared command)=0
	Registers a new command. More...

virtual ecvProgressDialog *	progressDialog ()
	Returns a (shared) progress dialog (if any is available) More...

virtual CLLoadParameters &	fileLoadingParams ()
	File loading parameters. More...

virtual std::vector< CLCloudDesc > &	clouds ()
	Currently opened point clouds and their filename. More...

virtual const std::vector< CLCloudDesc > &	clouds () const
	Currently opened point clouds and their filename (const version) More...

virtual std::vector< CLMeshDesc > &	meshes ()
	Currently opened meshes and their filename. More...

virtual const std::vector< CLMeshDesc > &	meshes () const
	Currently opened meshes and their filename (const version) More...

void	toggleSilentMode (bool state)
	Toggles silent mode. More...

bool	silentMode () const
	Returns the silent mode. More...

void	toggleAutoSaveMode (bool state)

bool	autoSaveMode () const

void	toggleAddTimestamp (bool state)

bool	addTimestamp () const

void	setNumericalPrecision (int p)
	Sets the numerical precision. More...

int	numericalPrecision () const
	Returns the numerical precision. More...

bool	nextCommandIsGlobalShift () const
	Returns whether the nex command is the '-GLOBAL_SHIFT' option. More...

bool	processGlobalShiftCommand (GlobalShiftOptions &options)

Static Public Member Functions
static int	Parse (int nargs, char **args, ccPluginInterfaceList &plugins)
	Parses the input command. More...

Static Public Member Functions inherited from ccCommandLineInterface
static bool	IsCommand (const QString &token, const char *command)
	Test whether a command line token is a valid command keyword or not. More...

Protected Member Functions
	ccCommandLineParser ()
	Default constructor. More...

void	registerBuiltInCommands ()

void	cleanup ()

int	start (QDialog *parent=0)
	Parses the command line. More...

Additional Inherited Members
Public Types inherited from ccCommandLineInterface
enum class	ExportOption { NoOptions = 0x0 , ForceCloud = 0x1 , ForceMesh = 0x2 , ForceHierarchy = 0x4 , ForceNoTimestamp = 0x8 }

Protected Attributes inherited from ccCommandLineInterface
std::vector< CLCloudDesc >	m_clouds
	Currently opened point clouds and their filename. More...

std::vector< CLMeshDesc >	m_meshes
	Currently opened meshes and their filename. More...

bool	m_silentMode
	Silent mode. More...

bool	m_autoSaveMode
	Whether files should be automatically saved (after each process) or not. More...

bool	m_addTimestamp
	Whether a timestamp should be automatically added to output files or not. More...

int	m_precision
	Default numerical precision for ASCII output. More...

CLLoadParameters	m_loadingParameters
	File loading parameters. More...

Detailed Description

Command line parser.

Definition at line 20 of file ecvCommandLineParser.h.

Constructor & Destructor Documentation

◆ ~ccCommandLineParser()

ccCommandLineParser::~ccCommandLineParser ( )

override

Destructor.

Definition at line 147 of file ecvCommandLineParser.cpp.

◆ ccCommandLineParser()

ccCommandLineParser::ccCommandLineParser ( )

protected

Default constructor.

Shouldn't be called by user.

Definition at line 135 of file ecvCommandLineParser.cpp.

Member Function Documentation

◆ arguments() [1/2]

const QStringList& ccCommandLineParser::arguments ( ) const

inlineoverridevirtual

Returns the list of arguments (const version)

Implements ccCommandLineInterface.

Definition at line 42 of file ecvCommandLineParser.h.

◆ arguments() [2/2]

QStringList& ccCommandLineParser::arguments ( )

inlineoverridevirtual

Returns the list of arguments.

Implements ccCommandLineInterface.

Definition at line 41 of file ecvCommandLineParser.h.

◆ cleanup()

void ccCommandLineParser::cleanup ( )

protected

Definition at line 696 of file ecvCommandLineParser.cpp.

References removeClouds(), and removeMeshes().

◆ cloudExportExt()

QString ccCommandLineParser::cloudExportExt ( ) const

inlineoverridevirtual

Returns the current cloud(s) export extension (warning: can be anything)

Implements ccCommandLineInterface.

Definition at line 60 of file ecvCommandLineParser.h.

◆ cloudExportFormat()

QString ccCommandLineParser::cloudExportFormat ( ) const

inlineoverridevirtual

Returns the current cloud(s) export format.

Implements ccCommandLineInterface.

Definition at line 59 of file ecvCommandLineParser.h.

◆ error()

bool ccCommandLineParser::error ( const QString & message ) const

overridevirtual

Implements ccCommandLineInterface.

Definition at line 52 of file ecvCommandLineParser.cpp.

References CVLog::Error().

Referenced by saveClouds(), saveMeshes(), and start().

◆ exportEntity()

QString ccCommandLineParser::exportEntity	(	CLEntityDesc &	entityDesc,
		const QString &	suffix = `QString()`,
		QString *	outputFilename = `nullptr`,
		ccCommandLineInterface::ExportOptions	options = `ExportOption::NoOptions`
	)

overridevirtual

Exports a cloud or a mesh.

Returns: error string (if any)

Implements ccCommandLineInterface.

Definition at line 223 of file ecvCommandLineParser.cpp.

References ccHObject::addChild(), FileIOFilter::SaveParameters::alwaysDisplaySaveDialog, CLEntityDesc::basename, CC_FERR_NO_ERROR, CLOUD, ccHObject::detachChild(), ccHObject::DP_NONE, ccCommandLineInterface::ForceCloud, ccCommandLineInterface::ForceHierarchy, ccCommandLineInterface::ForceMesh, ccCommandLineInterface::ForceNoTimestamp, format, ccGenericMesh::getAssociatedCloud(), CLEntityDesc::getCLEntityType(), CLEntityDesc::getEntity(), getExportFilename(), BinFilter::GetFileFilter(), ccObject::getName(), ccObject::isA(), ccHObject::isAncestorOf(), ccObject::isKindOf(), CV_TYPES::MESH, MESH, FileIOFilter::SaveParameters::parentWidget, CV_TYPES::POINT_CLOUD, print(), result, FileIOFilter::SaveToFile(), ccObject::setName(), ccCommandLineInterface::silentMode(), and CVLog::TheInstance().

Referenced by saveClouds(), and saveMeshes().

◆ getExportFilename()

QString ccCommandLineParser::getExportFilename	(	const CLEntityDesc &	entityDesc,
		QString	extension = `QString()`,
		QString	suffix = `QString()`,
		QString *	baseOutputFilename = `nullptr`,
		bool	forceNoTimestamp = `false`
	)		const

overridevirtual

Returns the name of a to-be-exported entity.

Implements ccCommandLineInterface.

Definition at line 174 of file ecvCommandLineParser.cpp.

References CLEntityDesc::basename, CLEntityDesc::getEntity(), CLEntityDesc::indexInFile, ccCommandLineInterface::m_addTimestamp, CLEntityDesc::path, e57::toString(), and warning().

Referenced by exportEntity().

◆ hierarchyExportExt()

QString ccCommandLineParser::hierarchyExportExt ( ) const

inlineoverridevirtual

Returns the current hierarchy(ies) export extension (warning: can be anything)

Implements ccCommandLineInterface.

Definition at line 66 of file ecvCommandLineParser.h.

◆ hierarchyExportFormat()

QString ccCommandLineParser::hierarchyExportFormat ( ) const

inlineoverridevirtual

Returns the current hierarchy(ies) export format.

Implements ccCommandLineInterface.

Definition at line 63 of file ecvCommandLineParser.h.

◆ importFile()

bool ccCommandLineParser::importFile	(	QString	filename,
		const GlobalShiftOptions &	globalShiftOptions,
		FileIOFilter::Shared	filter = `FileIOFilter::Shared(nullptr)`
	)
