CLEntityDesc Struct Reference

Loaded entity description. More...

#include <ecvCommandLineInterface.h>

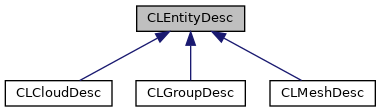

Inheritance diagram for CLEntityDesc:

Public Member Functions
	CLEntityDesc (const QString &name)
	CLEntityDesc (const QString &filename, int _indexInFile)
	CLEntityDesc (const QString &_basename, const QString &_path, int _indexInFile=-1)
virtual	~CLEntityDesc ()=default
virtual ccHObject *	getEntity ()=0
virtual const ccHObject *	getEntity () const =0
virtual CL_ENTITY_TYPE	getCLEntityType () const =0

Public Attributes
QString	basename
QString	path
int	indexInFile

Detailed Description

Loaded entity description.

Definition at line 34 of file ecvCommandLineInterface.h.

Constructor & Destructor Documentation

CLEntityDesc() [1/3]

CLEntityDesc::CLEntityDesc

(

const QString &

name

)

Definition at line 24 of file ecvCommandLineInterface.cpp.

CLEntityDesc() [2/3]

CLEntityDesc::CLEntityDesc	(	const QString &	filename,
		int	_indexInFile
	)

Definition at line 27 of file ecvCommandLineInterface.cpp.

References basename, filename, and path.

CLEntityDesc() [3/3]

CLEntityDesc::CLEntityDesc	(	const QString &	_basename,
		const QString &	_path,
		int	_indexInFile = -1
	)

Definition at line 39 of file ecvCommandLineInterface.cpp.

~CLEntityDesc()

virtual CLEntityDesc::~CLEntityDesc ( )

virtualdefault

Member Function Documentation

getCLEntityType()

virtual CL_ENTITY_TYPE CLEntityDesc::getCLEntityType ( ) const

pure virtual

Implemented in CLMeshDesc, CLCloudDesc, and CLGroupDesc.

Referenced by ccCommandLineParser::exportEntity().

getEntity() [1/2]

virtual const ccHObject* CLEntityDesc::getEntity ( ) const

pure virtual

Implemented in CLMeshDesc, CLCloudDesc, and CLGroupDesc.

getEntity() [2/2]

virtual ccHObject* CLEntityDesc::getEntity ( )

pure virtual

Implemented in CLMeshDesc, CLCloudDesc, and CLGroupDesc.

Referenced by define_ccCommandLine(), ccCommandLineParser::exportEntity(), ccCommandLineParser::getExportFilename(), and CommandICP::process().

Member Data Documentation

basename

QString CLEntityDesc::basename

Definition at line 35 of file ecvCommandLineInterface.h.

Referenced by CLEntityDesc(), define_ccCommandLine(), ccCommandLineParser::exportEntity(), ccCommandLineParser::getExportFilename(), CommandMergeMeshes::process(), CommandMatchBestFitPlane::process(), CommandDist::process(), CommandCPS::process(), CommandDelaunayTri::process(), CommandICP::process(), CommandRasterize::process(), CommandVolume25D::process(), and CommandSave::SetFileDesc().

indexInFile

int CLEntityDesc::indexInFile

Definition at line 37 of file ecvCommandLineInterface.h.

Referenced by define_ccCommandLine(), ccCommandLineParser::getExportFilename(), and CommandDelaunayTri::process().

path

QString CLEntityDesc::path

Definition at line 36 of file ecvCommandLineInterface.h.

Referenced by CLEntityDesc(), define_ccCommandLine(), ccCommandLineParser::getExportFilename(), CommandMatchBestFitPlane::process(), CommandDelaunayTri::process(), CommandRasterize::process(), CommandVolume25D::process(), and CommandSave::SetFileDesc().

---

The documentation for this struct was generated from the following files:

• /root/ACloudViewer/libs/CVPluginAPI/include/ecvCommandLineInterface.h
• /root/ACloudViewer/libs/CVPluginAPI/src/ecvCommandLineInterface.cpp
