cloudViewer::t::geometry::DrawableGeometry Class Reference

Mix-in class for geometry types that can be visualized. More...

#include <DrawableGeometry.h>

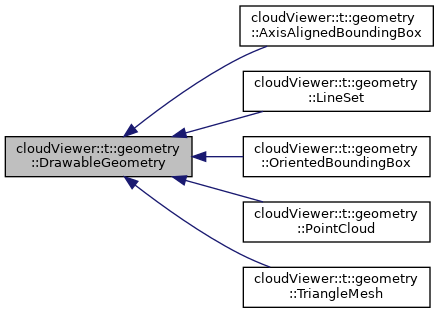

Inheritance diagram for cloudViewer::t::geometry::DrawableGeometry:

Public Member Functions
	DrawableGeometry ()
	~DrawableGeometry ()
bool	HasMaterial () const
	Check if a material has been applied to this Geometry with SetMaterial. More...
visualization::rendering::Material &	GetMaterial ()
	Get material associated with this Geometry. More...
const visualization::rendering::Material &	GetMaterial () const
	Get const reference to material associated with this Geometry. More...
void	SetMaterial (const visualization::rendering::Material &material)
	Set the material properties associate with this Geometry. More...

Detailed Description

Mix-in class for geometry types that can be visualized.

Definition at line 19 of file DrawableGeometry.h.

Constructor & Destructor Documentation

DrawableGeometry()

cloudViewer::t::geometry::DrawableGeometry::DrawableGeometry ( )

inline

Definition at line 21 of file DrawableGeometry.h.

~DrawableGeometry()

cloudViewer::t::geometry::DrawableGeometry::~DrawableGeometry ( )

inline

Definition at line 22 of file DrawableGeometry.h.

Member Function Documentation

GetMaterial() [1/2]

visualization::rendering::Material& cloudViewer::t::geometry::DrawableGeometry::GetMaterial ( )

inline

Get material associated with this Geometry.

Definition at line 28 of file DrawableGeometry.h.

Referenced by cloudViewer::t::geometry::TriangleMesh::BakeVertexAttrTextures(), cloudViewer::t::geometry::TriangleMesh::FromLegacy(), cloudViewer::io::rpc::GeometryToMeshData(), cloudViewer::t::geometry::TriangleMesh::ProjectImagesToAlbedo(), cloudViewer::t::geometry::pybind_drawable_geometry(), cloudViewer::t::io::ReadTriangleMeshFromNPZ(), cloudViewer::t::geometry::TriangleMesh::SamplePointsUniformly(), cloudViewer::io::rpc::SetTriangleMesh(), and cloudViewer::t::geometry::TriangleMesh::ToLegacy().

GetMaterial() [2/2]

const visualization::rendering::Material& cloudViewer::t::geometry::DrawableGeometry::GetMaterial ( ) const

inline

Get const reference to material associated with this Geometry.

Definition at line 31 of file DrawableGeometry.h.

HasMaterial()

bool cloudViewer::t::geometry::DrawableGeometry::HasMaterial ( ) const

inline

Check if a material has been applied to this Geometry with SetMaterial.

Definition at line 25 of file DrawableGeometry.h.

References cloudViewer::visualization::rendering::Material::IsValid().

Referenced by cloudViewer::t::geometry::TriangleMesh::ProjectImagesToAlbedo(), cloudViewer::t::geometry::pybind_drawable_geometry(), and cloudViewer::io::rpc::SetTriangleMesh().

SetMaterial()

void cloudViewer::t::geometry::DrawableGeometry::SetMaterial ( const visualization::rendering::Material &  material )

inline

Set the material properties associate with this Geometry.

Definition at line 36 of file DrawableGeometry.h.

Referenced by cloudViewer::t::geometry::TriangleMesh::ProjectImagesToAlbedo(), and cloudViewer::t::geometry::pybind_drawable_geometry().

---

The documentation for this class was generated from the following file:

• /root/ACloudViewer/libs/cloudViewer/t/geometry/DrawableGeometry.h
