#include <Tensor.h>

Inheritance diagram for cloudViewer::core::Tensor:

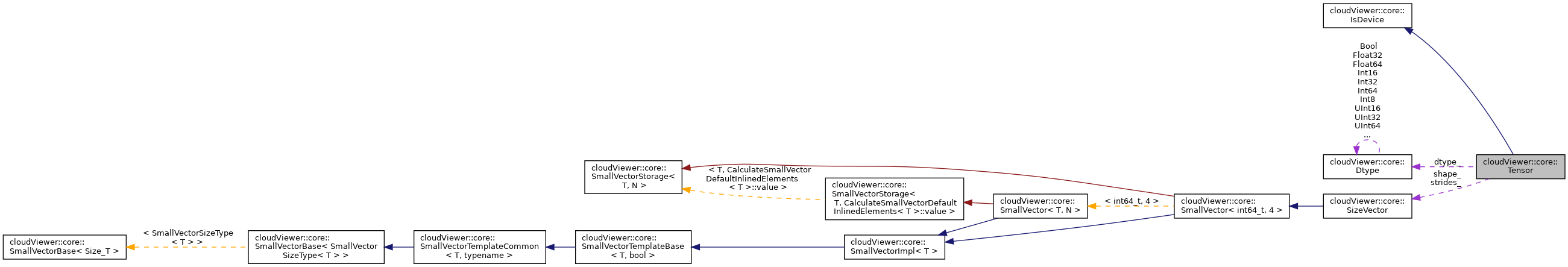

Collaboration diagram for cloudViewer::core::Tensor:

[legend]

Classes
struct	ConstIterator
	Const iterator for Tensor. More...

struct	Iterator
	Iterator for Tensor. More...

Public Member Functions
	Tensor ()

	Tensor (const SizeVector &shape, Dtype dtype, const Device &device=Device("CPU:0"))
	Constructor for creating a contiguous Tensor. More...

template<typename T >
	Tensor (const std::vector< T > &init_vals, const SizeVector &shape, Dtype dtype, const Device &device=Device("CPU:0"))
	Constructor for creating a contiguous Tensor with initial values. More...

template<typename T >
	Tensor (const T *init_vals, const SizeVector &shape, Dtype dtype, const Device &device=Device("CPU:0"))
	Constructor from raw host buffer. The memory will be copied. More...

	Tensor (const SizeVector &shape, const SizeVector &strides, void *data_ptr, Dtype dtype, const std::shared_ptr< Blob > &blob)

template<typename T >
	Tensor (std::vector< T > &&vec, const SizeVector &shape={})
	Take ownership of data in std::vector<T> More...

	Tensor (void *data_ptr, Dtype dtype, const SizeVector &shape, const SizeVector &strides={}, const Device &device=Device("CPU:0"))
	Tensor wrapper constructor from raw host buffer. More...

	Tensor (const Tensor &other)=default

	Tensor (Tensor &&other)=default

Tensor &	operator= (const Tensor &other) &

Tensor &	operator= (Tensor &&other) &

Tensor &	operator= (const Tensor &other) &&
	Tensor assignment rvalue = lvalue, e.g. `tensor_a[0] = tensor_b`. More...

Tensor &	operator= (Tensor &&other) &&
	Tensor assignment rvalue = rvalue, e.g. `tensor_a[0] = tensor_b[0]`. More...

template<typename T >
Tensor &	operator= (const T v) &&

Tensor	ReinterpretCast (const core::Dtype &dtype) const

template<typename Object >
Tensor &	AssignObject (const Object &v) &&

template<typename S >
void	Fill (S v)
	Fill the whole Tensor with a scalar value, the scalar will be casted to the Tensor's Dtype. More...

template<typename Object >
void	FillObject (const Object &v)

Tensor	Reverse () const
	Reverse a Tensor's elements by viewing the tensor as a 1D array. More...

Tensor	GetItem (const TensorKey &tk) const

Tensor	GetItem (const std::vector< TensorKey > &tks) const

Tensor	SetItem (const Tensor &value)
	Set all items. Equivalent to `tensor[:] = value` in Python. More...

Tensor	SetItem (const TensorKey &tk, const Tensor &value)

Tensor	SetItem (const std::vector< TensorKey > &tks, const Tensor &value)

Tensor	Append (const Tensor &other, const utility::optional< int64_t > &axis=utility::nullopt) const
	Appends the `other` tensor, along the given axis and returns a copy of the tensor. The `other` tensors must have same data-type, device, and number of dimensions. All dimensions must be the same, except the dimension along the axis the tensors are to be appended. More...

Tensor	Broadcast (const SizeVector &dst_shape) const
	Broadcast Tensor to a new broadcastable shape. More...

Tensor	Expand (const SizeVector &dst_shape) const

Tensor	Reshape (const SizeVector &dst_shape) const

Tensor	Flatten (int64_t start_dim=0, int64_t end_dim=-1) const

Tensor	View (const SizeVector &dst_shape) const

Tensor	Clone () const
	Copy Tensor to the same device. More...

void	CopyFrom (const Tensor &other)
	Copy Tensor values to current tensor from the source tensor. More...

Tensor	To (Dtype dtype, bool copy=false) const

Tensor	To (const Device &device, bool copy=false) const

Tensor	To (const Device &device, Dtype dtype, bool copy=false) const

std::string	ToString (bool with_suffix=true, const std::string &indent="") const

Tensor	operator[] (int64_t i) const
	Extract the i-th Tensor along the first axis, returning a new view. More...

Tensor	IndexExtract (int64_t dim, int64_t idx) const

Tensor	Slice (int64_t dim, int64_t start, int64_t stop, int64_t step=1) const

Tensor	AsRvalue ()

const Tensor	AsRvalue () const
	Convert to constant rvalue. More...

Tensor	IndexGet (const std::vector< Tensor > &index_tensors) const
	Advanced indexing getter. This will always allocate a new Tensor. More...

void	IndexSet (const std::vector< Tensor > &index_tensors, const Tensor &src_tensor)
	Advanced indexing getter. More...

void	IndexAdd_ (int64_t dim, const Tensor &index, const Tensor &src)
	Advanced in-place reduction by index. More...

Tensor	Permute (const SizeVector &dims) const
	Permute (dimension shuffle) the Tensor, returns a view. More...

Tensor	AsStrided (const SizeVector &new_shape, const SizeVector &new_strides) const
	Create a Tensor view of specified shape and strides. The underlying buffer and data_ptr offsets remain the same. More...

Tensor	Transpose (int64_t dim0, int64_t dim1) const
	Transpose a Tensor by swapping dimension `dim0` and `dim1`. More...

Tensor	T () const
	Expects input to be <= 2-D Tensor by swapping dimension 0 and 1. More...

double	Det () const
	Compute the determinant of a 2D square tensor. More...

template<typename T >
T	Item () const

Tensor	Add (const Tensor &value) const
	Adds a tensor and returns the resulting tensor. More...

Tensor	Add (Scalar value) const

Tensor	operator+ (const Tensor &value) const

Tensor	operator+ (Scalar value) const

Tensor	Add_ (const Tensor &value)

Tensor	Add_ (Scalar value)

Tensor	operator+= (const Tensor &value)

Tensor	operator+= (Scalar value)

Tensor	Sub (const Tensor &value) const
	Substracts a tensor and returns the resulting tensor. More...

Tensor	Sub (Scalar value) const

Tensor	operator- (const Tensor &value) const

Tensor	operator- (Scalar value) const

Tensor	Sub_ (const Tensor &value)

Tensor	Sub_ (Scalar value)

Tensor	operator-= (const Tensor &value)

Tensor	operator-= (Scalar value)

Tensor	Mul (const Tensor &value) const
	Multiplies a tensor and returns the resulting tensor. More...

Tensor	Mul (Scalar value) const

Tensor	operator* (const Tensor &value) const

Tensor	operator* (Scalar value) const

Tensor	Mul_ (const Tensor &value)

Tensor	Mul_ (Scalar value)

Tensor	operator*= (const Tensor &value)

Tensor	operator*= (Scalar value)

Tensor	Div (const Tensor &value) const
	Divides a tensor and returns the resulting tensor. More...

Tensor	Div (Scalar value) const

Tensor	operator/ (const Tensor &value) const

Tensor	operator/ (Scalar value) const

Tensor	Div_ (const Tensor &value)

Tensor	Div_ (Scalar value)

Tensor	operator/= (const Tensor &value)

Tensor	operator/= (Scalar value)

Tensor	Sum (const SizeVector &dims, bool keepdim=false) const

Tensor	Mean (const SizeVector &dims, bool keepdim=false) const

Tensor	Prod (const SizeVector &dims, bool keepdim=false) const

Tensor	Min (const SizeVector &dims, bool keepdim=false) const

Tensor	Max (const SizeVector &dims, bool keepdim=false) const

Tensor	ArgMin (const SizeVector &dims) const

Tensor	ArgMax (const SizeVector &dims) const

Tensor	Sqrt () const
	Element-wise square root of a tensor, returns a new tensor. More...

Tensor	Sqrt_ ()
	Element-wise square root of a tensor, in-place. More...

Tensor	Sin () const
	Element-wise sine of a tensor, returning a new tensor. More...

Tensor	Sin_ ()
	Element-wise sine of a tensor, in-place. More...

Tensor	Cos () const
	Element-wise cosine of a tensor, returning a new tensor. More...

Tensor	Cos_ ()
	Element-wise cosine of a tensor, in-place. More...

Tensor	Neg () const
	Element-wise negation of a tensor, returning a new tensor. More...

Tensor	Neg_ ()
	Element-wise negation of a tensor, in-place. More...

Tensor	operator- () const
	Unary minus of a tensor, returning a new tensor. More...

Tensor	Exp () const
	Element-wise exponential of a tensor, returning a new tensor. More...

Tensor	Exp_ ()
	Element-wise base-e exponential of a tensor, in-place. More...

Tensor	Abs () const
	Element-wise absolute value of a tensor, returning a new tensor. More...

Tensor	Abs_ ()
	Element-wise absolute value of a tensor, in-place. More...

Tensor	IsNan () const

Tensor	IsInf () const

Tensor	IsFinite () const

Tensor	Clip (Scalar min_val, Scalar max_val) const

Tensor	Clip_ (Scalar min_val, Scalar max_val)

Tensor	Floor () const
	Element-wise floor value of a tensor, returning a new tensor. More...

Tensor	Ceil () const
	Element-wise ceil value of a tensor, returning a new tensor. More...

Tensor	Round () const
	Element-wise round value of a tensor, returning a new tensor. More...

Tensor	Trunc () const
	Element-wise trunc value of a tensor, returning a new tensor. More...

Tensor	LogicalNot () const

Tensor	LogicalNot_ ()

Tensor	LogicalAnd (const Tensor &value) const

Tensor	operator&& (const Tensor &value) const

Tensor	LogicalAnd (Scalar value) const

Tensor	LogicalAnd_ (const Tensor &value)

Tensor	LogicalAnd_ (Scalar value)

Tensor	LogicalOr (const Tensor &value) const

Tensor	operator\|\| (const Tensor &value) const

Tensor	LogicalOr (Scalar value) const

Tensor	LogicalOr_ (const Tensor &value)

Tensor	LogicalOr_ (Scalar value)

Tensor	LogicalXor (const Tensor &value) const

Tensor	LogicalXor (Scalar value) const

Tensor	LogicalXor_ (const Tensor &value)

Tensor	LogicalXor_ (Scalar value)

Tensor	Gt (const Tensor &value) const
	Element-wise greater-than of tensors, returning a new boolean tensor. More...

Tensor	operator> (const Tensor &value) const

Tensor	Gt (Scalar value) const

Tensor	Gt_ (const Tensor &value)

Tensor	Gt_ (Scalar value)

Tensor	Lt (const Tensor &value) const
	Element-wise less-than of tensors, returning a new boolean tensor. More...

Tensor	operator< (const Tensor &value) const

Tensor	Lt (Scalar value) const

Tensor	Lt_ (const Tensor &value)

Tensor	Lt_ (Scalar value)

Tensor	Ge (const Tensor &value) const

Tensor	operator>= (const Tensor &value) const

Tensor	Ge (Scalar value) const

Tensor	Ge_ (const Tensor &value)

Tensor	Ge_ (Scalar value)

Tensor	Le (const Tensor &value) const

Tensor	operator<= (const Tensor &value) const

Tensor	Le (Scalar value) const

Tensor	Le_ (const Tensor &value)

Tensor	Le_ (Scalar value)

Tensor	Eq (const Tensor &value) const
	Element-wise equals-to of tensors, returning a new boolean tensor. More...

Tensor	operator== (const Tensor &value) const

Tensor	Eq (Scalar value) const

Tensor	Eq_ (const Tensor &value)

Tensor	Eq_ (Scalar value)

Tensor	Ne (const Tensor &value) const
	Element-wise not-equals-to of tensors, returning a new boolean tensor. More...

Tensor	operator!= (const Tensor &value) const

Tensor	Ne (Scalar value) const

Tensor	Ne_ (const Tensor &value)

Tensor	Ne_ (Scalar value)

std::vector< Tensor >	NonZeroNumpy () const

Tensor	NonZero () const

bool	IsNonZero () const

Tensor	All (const utility::optional< SizeVector > &dims=utility::nullopt, bool keepdim=false) const

Tensor	Any (const utility::optional< SizeVector > &dims=utility::nullopt, bool keepdim=false) const

bool	AllEqual (const Tensor &other) const

bool	AllClose (const Tensor &other, double rtol=1e-5, double atol=1e-8) const

Tensor	IsClose (const Tensor &other, double rtol=1e-5, double atol=1e-8) const

bool	IsSame (const Tensor &other) const

template<typename T >
std::vector< T >	ToFlatVector () const
	Retrieve all values as an std::vector, for debugging and testing. More...

bool	IsContiguous () const

Tensor	Contiguous () const

Tensor	Matmul (const Tensor &rhs) const

Tensor	Solve (const Tensor &rhs) const

Tensor	LeastSquares (const Tensor &rhs) const

std::tuple< Tensor, Tensor, Tensor >	LU (const bool permute_l=false) const
	Computes LU factorisation of the 2D square tensor, using A = P * L * U; where P is the permutation matrix, L is the lower-triangular matrix with diagonal elements as 1.0 and U is the upper-triangular matrix, and returns tuple (P, L, U). More...

std::tuple< Tensor, Tensor >	LUIpiv () const
	Computes LU factorisation of the 2D square tensor, using A = P * L * U; where P is the permutation matrix, L is the lower-triangular matrix with diagonal elements as 1.0 and U is the upper-triangular matrix, and returns tuple `output` tensor of shape {n,n} and `ipiv` tensor of shape {n}, where {n,n} is the shape of input tensor. [ipiv, output = cloudViewer.core.lu_ipiv(a)]. More...

Tensor	Triu (const int diagonal=0) const
	Returns the upper triangular matrix of the 2D tensor, above the given diagonal index. [The value of diagonal = col - row, therefore 0 is the main diagonal (row = col), and it shifts towards right for positive values (for diagonal = 1, col - row = 1), and towards left for negative values. The value of the diagonal parameter must be between [-m, n] for a {m,n} shaped tensor. More...

Tensor	Tril (const int diagonal=0) const
	Returns the lower triangular matrix of the 2D tensor, above the given diagonal index. [The value of diagonal = col - row, therefore 0 is the main diagonal (row = col), and it shifts towards right for positive values (for diagonal = 1, col - row = 1), and towards left for negative values. The value of the diagonal parameter must be between [-m, n] where {m, n} is the shape of input tensor. More...

std::tuple< Tensor, Tensor >	Triul (const int diagonal=0) const
	Returns the tuple of upper and lower triangular matrix of the 2D tensor, above and below the given diagonal index. The diagonal elements of lower triangular matrix are taken to be unity. [The value of diagonal = col - row, therefore 0 is the main diagonal (row = col), and it shifts towards right for positive values (for diagonal = 1, col - row = 1), and towards left for negative values. The value of the diagonal parameter must be between [-m, n] where {m, n} is the shape of input tensor. More...

Tensor	Inverse () const

std::tuple< Tensor, Tensor, Tensor >	SVD () const

int64_t	GetLength () const

SizeVector	GetShape () const

const SizeVector &	GetShapeRef () const

int64_t	GetShape (int64_t dim) const

SizeVector	GetStrides () const

const SizeVector &	GetStridesRef () const

int64_t	GetStride (int64_t dim) const

template<typename T >
T *	GetDataPtr ()

template<typename T >
const T *	GetDataPtr () const

void *	GetDataPtr ()

const void *	GetDataPtr () const

Dtype	GetDtype () const

Device	GetDevice () const override

std::shared_ptr< Blob >	GetBlob () const

int64_t	NumElements () const

int64_t	NumDims () const

template<typename T >
void	AssertTemplateDtype () const

DLManagedTensor *	ToDLPack () const
	Convert the Tensor to DLManagedTensor (DLPack v0.x). More...

DLManagedTensorVersioned *	ToDLPackVersioned () const
	Convert the Tensor to DLManagedTensorVersioned (DLPack v1.x). More...

void	Save (const std::string &file_name) const
	Save tensor to numpy's npy format. More...

Iterator	begin ()

Iterator	end ()

ConstIterator	cbegin () const

ConstIterator	cend () const

ConstIterator	begin () const

ConstIterator	end () const

template<>
	Tensor (const std::vector< bool > &init_vals, const SizeVector &shape, Dtype dtype, const Device &device)

template<>
std::vector< bool >	ToFlatVector () const

template<>
bool	Item () const

Public Member Functions inherited from cloudViewer::core::IsDevice
	IsDevice ()=default

virtual	~IsDevice ()=default

bool	IsCPU () const

bool	IsCUDA () const

bool	IsSYCL () const

Static Public Member Functions
static Tensor	Empty (const SizeVector &shape, Dtype dtype, const Device &device=Device("CPU:0"))
	Create a tensor with uninitialized values. More...

static Tensor	EmptyLike (const Tensor &other)

template<typename T >
static Tensor	Full (const SizeVector &shape, T fill_value, Dtype dtype, const Device &device=Device("CPU:0"))
	Create a tensor fill with specified value. More...

static Tensor	Zeros (const SizeVector &shape, Dtype dtype, const Device &device=Device("CPU:0"))
	Create a tensor fill with zeros. More...

static Tensor	Ones (const SizeVector &shape, Dtype dtype, const Device &device=Device("CPU:0"))
	Create a tensor fill with ones. More...

template<typename T >
static Tensor	Init (const T val, const Device &device=Device("CPU:0"))

template<typename T >
static Tensor	Init (const std::initializer_list< T > &in_list, const Device &device=Device("CPU:0"))

template<typename T >
static Tensor	Init (const std::initializer_list< std::initializer_list< T >> &in_list, const Device &device=Device("CPU:0"))

template<typename T >
static Tensor	Init (const std::initializer_list< std::initializer_list< std::initializer_list< T >>> &in_list, const Device &device=Device("CPU:0"))

static Tensor	Eye (int64_t n, Dtype dtype, const Device &device)
	Create an identity matrix of size n x n. More...

static Tensor	Diag (const Tensor &input)
	Create a square matrix with specified diagonal elements in input. More...

static Tensor	Arange (const Scalar start, const Scalar stop, const Scalar step=1, const Dtype dtype=core::Int64, const Device &device=core::Device("CPU:0"))
	Create a 1D tensor with evenly spaced values in the given interval. More...

static Tensor	FromDLPack (const DLManagedTensor dlmt, std::function< void(void )> deleter=nullptr)
	Convert DLManagedTensor to Tensor (DLPack v0.x). More...

static Tensor	FromDLPackVersioned (const DLManagedTensorVersioned dlmt, std::function< void(void )> deleter=nullptr)
	Convert DLManagedTensorVersioned to Tensor (DLPack v1.x). More...

static Tensor	Load (const std::string &file_name)
	Load tensor from numpy's npy format. More...

Protected Member Functions
std::string	ScalarPtrToString (const void *ptr) const

Protected Attributes
SizeVector	shape_ = {0}
	SizeVector of the Tensor. shape_[i] is the length of dimension i. More...

SizeVector	strides_ = {1}

void *	data_ptr_ = nullptr

Dtype	dtype_ = core::Undefined
	Data type. More...

std::shared_ptr< Blob >	blob_ = nullptr
	Underlying memory buffer for Tensor. More...

Detailed Description

A Tensor is a "view" of a data Blob with shape, stride, data_ptr. Tensor can also be used to perform numerical operations.

Definition at line 32 of file Tensor.h.

Constructor & Destructor Documentation

◆ Tensor() [1/10]

cloudViewer::core::Tensor::Tensor ( )

inline

Definition at line 34 of file Tensor.h.

Referenced by All(), Any(), Arange(), Empty(), GetItem(), IndexExtract(), IndexGet(), Init(), ReinterpretCast(), SetItem(), and Slice().

◆ Tensor() [2/10]

cloudViewer::core::Tensor::Tensor	(	const SizeVector &	shape,
		Dtype	dtype,
		const Device &	device = `Device("CPU:0")`
	)

inline

Constructor for creating a contiguous Tensor.

Definition at line 37 of file Tensor.h.

References blob_, and data_ptr_.

◆ Tensor() [3/10]

template<typename T >

cloudViewer::core::Tensor::Tensor	(	const std::vector< T > &	init_vals,
		const SizeVector &	shape,
		Dtype	dtype,
		const Device &	device = `Device("CPU:0")`
	)

inline

Constructor for creating a contiguous Tensor with initial values.

Definition at line 50 of file Tensor.h.

References blob_, cloudViewer::core::Dtype::ByteSize(), GetDevice(), LogError, cloudViewer::core::MemoryManager::MemcpyFromHost(), cloudViewer::core::SizeVector::NumElements(), and shape_.

◆ Tensor() [4/10]

template<typename T >

cloudViewer::core::Tensor::Tensor	(	const T *	init_vals,
		const SizeVector &	shape,
		Dtype	dtype,
		const Device &	device = `Device("CPU:0")`
	)

inline

Constructor from raw host buffer. The memory will be copied.

Definition at line 78 of file Tensor.h.

References blob_, cloudViewer::core::Dtype::ByteSize(), GetDevice(), cloudViewer::core::MemoryManager::MemcpyFromHost(), cloudViewer::core::SizeVector::NumElements(), and shape_.

◆ Tensor() [5/10]

cloudViewer::core::Tensor::Tensor	(	const SizeVector &	shape,
		const SizeVector &	strides,
		void *	data_ptr,
		Dtype	dtype,
		const std::shared_ptr< Blob > &	blob
	)

inline

The fully specified constructor. Since you're responsible for creating the Blob, take care of Blob's deleter if the memory is allocated elsewhere. See Blob.h for more details.

Definition at line 95 of file Tensor.h.

◆ Tensor() [6/10]

template<typename T >

cloudViewer::core::Tensor::Tensor	(	std::vector< T > &&	vec,
		const SizeVector &	shape = `{}`
	)

inline

Take ownership of data in std::vector<T>

Create a Tensor from data "moved" from an std::vector<T>. This always produces a Tensor on the CPU device.

Parameters

vec	source for the data as an r-value reference. After the Tensor is created this will not have access to or manage the data any more.
shape	List of dimensions of data in buffer. e.g. `{640, 480, 3}` for a 640x480 RGB image. A 1D {vec.size()} shape is assumed if not specified.

Definition at line 117 of file Tensor.h.

◆ Tensor() [7/10]

cloudViewer::core::Tensor::Tensor	(	void *	data_ptr,
		Dtype	dtype,
		const SizeVector &	shape,
		const SizeVector &	strides = `{}`,
		const Device &	device = `Device("CPU:0")`
	)

inline

Tensor wrapper constructor from raw host buffer.

This creates a Tensor wrapper for externally managed memory. It is the user's responsibility to keep the buffer valid during the lifetime of this Tensor and deallocate it afterwards.

Parameters

data_ptr	Pointer to externally managed buffer.
dtype	Tensor element data type. e.g. `Float32` for single precision float.
shape	List of dimensions of data in buffer. e.g. `{640, 480, 3}` for a 640x480 RGB image.
strides	Number of elements to advance to reach the next element, for every dimension. This will be calculated from the shape assuming a contiguous buffer if not specified. For the above `Float32` image, the value of an element will be read as: image[row, col, ch] = (float ) (data_ptr + sizeof(float) * (row * stride[0] + col * stride[1] + ch * stride[2]));
device	Device containing the data buffer.

Definition at line 162 of file Tensor.h.

◆ Tensor() [8/10]

cloudViewer::core::Tensor::Tensor ( const Tensor & other )

default

Copy constructor performs a "shallow" copy of the Tensor. This takes a lvalue input, e.g. Tensor dst(src).

◆ Tensor() [9/10]

cloudViewer::core::Tensor::Tensor ( Tensor && other )

default

Move constructor performs a "shallow" copy of the Tensor. This takes a rvalue input, e.g. Tensor dst(src[0]).

◆ Tensor() [10/10]

template<>

cloudViewer::core::Tensor::Tensor	(	const std::vector< bool > &	init_vals,
		const SizeVector &	shape,
		Dtype	dtype,
		const Device &	device
	)

inline

Definition at line 1343 of file Tensor.h.

References blob_, cloudViewer::core::Dtype::ByteSize(), GetDevice(), LogError, cloudViewer::core::MemoryManager::MemcpyFromHost(), cloudViewer::core::SizeVector::NumElements(), and shape_.

Member Function Documentation

◆ Abs()

Tensor cloudViewer::core::Tensor::Abs ( ) const

Element-wise absolute value of a tensor, returning a new tensor.

Definition at line 1351 of file Tensor.cpp.

References cloudViewer::core::kernel::Abs, dtype_, GetDevice(), shape_, and cloudViewer::core::kernel::UnaryEW().

Referenced by IsClose(), cloudViewer::core::MakeOperation(), and cloudViewer::core::pybind_core_tensor().

◆ Abs_()

Tensor cloudViewer::core::Tensor::Abs_ ( )

Element-wise absolute value of a tensor, in-place.

Definition at line 1357 of file Tensor.cpp.

References cloudViewer::core::kernel::Abs, and cloudViewer::core::kernel::UnaryEW().

Referenced by cloudViewer::core::pybind_core_tensor().

◆ Add() [1/2]

Tensor cloudViewer::core::Tensor::Add ( const Tensor & value ) const

Adds a tensor and returns the resulting tensor.

Definition at line 1097 of file Tensor.cpp.

References cloudViewer::core::kernel::Add, AssertTensorDevice, AssertTensorDtype, cloudViewer::core::kernel::BinaryEW(), cloudViewer::core::shape_util::BroadcastedShape(), dtype_, GetDevice(), GetDtype(), and shape_.

Referenced by Add(), cloudViewer::t::geometry::OrientedBoundingBox::GetBoxPoints(), operator+(), and cloudViewer::ml::contrib::RadiusSearch().

◆ Add() [2/2]

Tensor cloudViewer::core::Tensor::Add ( Scalar value ) const

Definition at line 1108 of file Tensor.cpp.

References Add(), DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), and cloudViewer::core::Scalar::To().

◆ Add_() [1/2]

Tensor cloudViewer::core::Tensor::Add_ ( const Tensor & value )

Inplace version of Tensor::Add. Adds a tensor to the current tensor and returns the current tensor.

Definition at line 1117 of file Tensor.cpp.

References cloudViewer::core::kernel::Add, AssertTensorDevice, AssertTensorDtype, cloudViewer::core::kernel::BinaryEW(), GetDevice(), and GetDtype().

Referenced by Add_(), cloudViewer::t::pipelines::registration::TransformationEstimationForColoredICP::ComputeRMSE(), cloudViewer::t::geometry::CreatePointCloudWithNormals(), cloudViewer::t::pipelines::slac::FillInSLACAlignmentTerm(), operator+=(), cloudViewer::t::geometry::LineSet::Scale(), cloudViewer::t::geometry::PointCloud::Scale(), and cloudViewer::t::geometry::TriangleMesh::Scale().

◆ Add_() [2/2]

Tensor cloudViewer::core::Tensor::Add_ ( Scalar value )

Definition at line 1126 of file Tensor.cpp.

References Add_(), DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), and cloudViewer::core::Scalar::To().

◆ All()

Tensor cloudViewer::core::Tensor::All	(	const utility::optional< SizeVector > &	dims = `utility::nullopt`,
		bool	keepdim = `false`
	)		const

Returns true if all elements in the tensor are true. Only works for boolean tensors.

Definition at line 1770 of file Tensor.cpp.

References cloudViewer::core::kernel::All, AssertTensorDtype, cloudViewer::core::Bool, dtype_, GetDevice(), cloudViewer::utility::optional< T >::has_value(), cloudViewer::core::shape_util::Iota(), NumDims(), cloudViewer::core::kernel::Reduction(), cloudViewer::core::shape_util::ReductionShape(), shape_, Tensor(), and cloudViewer::utility::optional< T >::value().

Referenced by AllClose(), cloudViewer::core::pybind_core_tensor(), and cloudViewer::t::geometry::PointCloud::RemoveNonFinitePoints().

◆ AllClose()

bool cloudViewer::core::Tensor::AllClose	(	const Tensor &	other,
		double	rtol = `1e-5`,
		double	atol = `1e-8`
	)		const

Returns true if the two tensors are element-wise equal within a tolerance.

If the device is not the same: throws exception.
If the dtype is not the same: throws exception.
If the shape is not the same: returns false.
Returns true if: abs(self - other) <= (atol + rtol * abs(other)).

The equation is not symmetrical, i.e. a.AllClose(b) might not be the same as b.AllClose(a). Also see Numpy's documentation: https://numpy.org/doc/stable/reference/generated/numpy.allclose.html.

TODO: support nan

Parameters

other	The other tensor to compare with.
rtol	Relative tolerance.
atol	Absolute tolerance.

Definition at line 1895 of file Tensor.cpp.

References All(), IsClose(), and Item().

Referenced by cloudViewer::t::geometry::CreatePointCloudWithNormals(), cloudViewer::t::geometry::OrientedBoundingBox::Rotate(), and cloudViewer::t::geometry::OrientedBoundingBox::SetRotation().

◆ AllEqual()

bool cloudViewer::core::Tensor::AllEqual ( const Tensor & other ) const

Returns true if the two tensors are element-wise equal.

If the device is not the same: throws exception.
If the dtype is not the same: throws exception.
If the shape is not the same: returns false.
Returns true if: the device, dtype and shape are the same and all corresponding elements are equal.

TODO: support nan

Parameters

other The other tensor to compare with.

Definition at line 1885 of file Tensor.cpp.

References AssertTensorDevice, AssertTensorDtype, GetDevice(), GetDtype(), and shape_.

◆ Any()

Tensor cloudViewer::core::Tensor::Any	(	const utility::optional< SizeVector > &	dims = `utility::nullopt`,
		bool	keepdim = `false`
	)		const

Returns true if any elements in the tensor are true. Only works for boolean tensors.

Definition at line 1789 of file Tensor.cpp.

References cloudViewer::core::kernel::Any, AssertTensorDtype, cloudViewer::core::Bool, dtype_, GetDevice(), cloudViewer::utility::optional< T >::has_value(), cloudViewer::core::shape_util::Iota(), NumDims(), cloudViewer::core::kernel::Reduction(), cloudViewer::core::shape_util::ReductionShape(), shape_, Tensor(), and cloudViewer::utility::optional< T >::value().

Referenced by cloudViewer::core::pybind_core_tensor().

◆ Append()

Tensor cloudViewer::core::Tensor::Append	(	const Tensor &	other,
		const utility::optional< int64_t > &	axis = `utility::nullopt`
	)		const

Appends the other tensor, along the given axis and returns a copy of the tensor. The other tensors must have same data-type, device, and number of dimensions. All dimensions must be the same, except the dimension along the axis the tensors are to be appended.

This is the same as NumPy's semantics:

https://numpy.org/doc/stable/reference/generated/numpy.append.html

Example:

Tensor a = Tensor::Init<int64_t>({0, 1}, {2, 3});
Tensor b = Tensor::Init<int64_t>({4, 5});
Tensor t1 = a.Append(b, 0);
// t1:
//  [[0 1],
//   [2 3],
//   [4 5]]
//  Tensor[shape={3, 2}, stride={2, 1}, Int64, CPU:0, 0x55555abc6b00]
Tensor t2 = a.Append(b);
// t2:
//  [0 1 2 3 4 5]
//  Tensor[shape={6}, stride={1}, Int64, CPU:0, 0x55555abc6b70]

Parameters

other	Values of this tensor is appended to the tensor.
axis	[optional] The axis along which values are appended. If axis is not given, both tensors are flattened before use.

Returns: A copy of the tensor with values appended to axis. Note that append does not occur in-place: a new array is allocated and filled. If axis is None, out is a flattened tensor.

Definition at line 622 of file Tensor.cpp.

References cloudViewer::core::Append().

◆ Arange()

Tensor cloudViewer::core::Tensor::Arange	(	const Scalar	start,
		const Scalar	stop,
		const Scalar	step = `1`,
		const Dtype	dtype = `core::Int64`,
		const Device &	device = `core::Device("CPU:0")`
	)

static

Create a 1D tensor with evenly spaced values in the given interval.

Definition at line 436 of file Tensor.cpp.

References cloudViewer::core::kernel::Arange(), cloudViewer::core::Scalar::AssertSameScalarType(), DISPATCH_DTYPE_TO_TEMPLATE, cloudViewer::core::Scalar::Equal(), Full(), LogError, Tensor(), and cloudViewer::core::Scalar::To().

Referenced by cloudViewer::t::pipelines::registration::ComputeFPFHFeature(), cloudViewer::t::pipelines::kernel::ComputeFPFHFeatureCPU(), cloudViewer::t::pipelines::kernel::ComputeRtPointToPoint(), cloudViewer::t::geometry::kernel::uvunwrapping::ComputeUVAtlas(), cloudViewer::t::pipelines::slac::ConvertCorrespondencesTargetIndexedToCx2Form(), cloudViewer::t::pipelines::registration::CorrespondencesFromFeatures(), cloudViewer::t::geometry::VoxelBlockGrid::ExtractTriangleMesh(), cloudViewer::t::geometry::npp::FilterGaussian(), cloudViewer::core::GetColPermutation(), cloudViewer::t::geometry::VoxelBlockGrid::GetVoxelIndices(), cloudViewer::core::kernel::NonZeroSYCL(), cloudViewer::core::pybind_core_tensor(), Reverse(), cloudViewer::t::pipelines::slac::RunRigidOptimizerForFragments(), cloudViewer::t::pipelines::slac::RunSLACOptimizerForFragments(), and cloudViewer::t::geometry::SelectByIndex().

◆ ArgMax()

Tensor cloudViewer::core::Tensor::ArgMax ( const SizeVector & dims ) const

Returns maximum index of the tensor along the given dim. The returned tensor has dtype int64_t, and has the same shape as original tensor except that the reduced dimension is removed.

Parameters

dims	`dims` can only contain a single dimension or all dimensions. If `dims` contains a single dimension, the index is along the specified dimension. If `dims` contains all dimensions, the index is into the flattened tensor.

Definition at line 1289 of file Tensor.cpp.

References cloudViewer::core::kernel::ArgMax, GetDevice(), cloudViewer::core::Int64, cloudViewer::core::kernel::Reduction(), cloudViewer::core::shape_util::ReductionShape(), and shape_.

◆ ArgMin()

Tensor cloudViewer::core::Tensor::ArgMin ( const SizeVector & dims ) const

Returns minimum index of the tensor along the given dim. The returned tensor has dtype int64_t, and has the same shape as original tensor except that the reduced dimension is removed.

Parameters

dims	`dims` can only contain a single dimension or all dimensions. If `dims` contains a single dimension, the index is along the specified dimension. If `dims` contains all dimensions, the index is into the flattened tensor.

Definition at line 1282 of file Tensor.cpp.

References cloudViewer::core::kernel::ArgMin, GetDevice(), cloudViewer::core::Int64, cloudViewer::core::kernel::Reduction(), cloudViewer::core::shape_util::ReductionShape(), and shape_.

◆ AsRvalue() [1/2]

Tensor cloudViewer::core::Tensor::AsRvalue ( )

inline

Convert to rvalue such that the Tensor can be assigned.

E.g. in numpy

tensor_a = tensor_b     # tensor_a is lvalue, tensor_a variable will
                        # now reference tensor_b, that is, tensor_a
                        # and tensor_b share exactly the same memory.
tensor_a[:] = tensor_b  # tensor_a[:] is rvalue, tensor_b's values are
                        # assigned to tensor_a's memory.

Definition at line 558 of file Tensor.h.

Referenced by Broadcast(), CopyFrom(), Fill(), FillObject(), cloudViewer::t::geometry::LineSet::PaintUniformColor(), cloudViewer::t::geometry::PointCloud::PaintUniformColor(), cloudViewer::ml::contrib::RadiusSearch(), cloudViewer::core::kernel::Reduction(), and SetItem().

◆ AsRvalue() [2/2]

const Tensor cloudViewer::core::Tensor::AsRvalue ( ) const

inline

Convert to constant rvalue.

Definition at line 561 of file Tensor.h.

◆ AssertTemplateDtype()

template<typename T >

void cloudViewer::core::Tensor::AssertTemplateDtype ( ) const

inline

Definition at line 1175 of file Tensor.h.

References cloudViewer::core::Dtype::ByteSize(), dtype_, cloudViewer::core::Dtype::IsObject(), LogError, T(), cloudViewer::core::Dtype::ToString(), and ToString().

◆ AssignObject()

template<typename Object >

Tensor& cloudViewer::core::Tensor::AssignObject ( const Object & v ) &&

inline

Assign an object to a tensor. The tensor being assigned to must be a scalar tensor of shape {}. The element byte size of the tensor must be the same as the size of the object. The object must be a POD.

Definition at line 220 of file Tensor.h.

References GetDataPtr(), GetDevice(), LogError, cloudViewer::core::MemoryManager::MemcpyFromHost(), shape_, and cloudViewer::core::SmallVectorBase< Size_T >::size().

◆ AsStrided()

Tensor cloudViewer::core::Tensor::AsStrided	(	const SizeVector &	new_shape,
		const SizeVector &	new_strides
	)		const

Create a Tensor view of specified shape and strides. The underlying buffer and data_ptr offsets remain the same.

Definition at line 1061 of file Tensor.cpp.

References blob_, data_ptr_, dtype_, and result.

Referenced by Diag(), Expand(), Eye(), Permute(), Reshape(), cloudViewer::core::AdvancedIndexPreprocessor::RestrideTensor(), and View().

◆ begin() [1/2]

Tensor::Iterator cloudViewer::core::Tensor::begin ( )

Returns the beginning of the tensor iterator. The iterator iterates over the first dimension of the tensor. The generated tensor slices share the same memory with the original tensor.

Definition at line 269 of file Tensor.cpp.

References LogError, and NumDims().

◆ begin() [2/2]

ConstIterator cloudViewer::core::Tensor::begin ( ) const

inline

Returns the beginning of the const tensor iterator. The iterator iterates over the first dimension of the tensor. The generated tensor slices share the same memory with the original tensor. This is equivalent to Tensor::cbegin().

Definition at line 1284 of file Tensor.h.

References cbegin().

◆ Broadcast()

Tensor cloudViewer::core::Tensor::Broadcast ( const SizeVector & dst_shape ) const

Broadcast Tensor to a new broadcastable shape.

Definition at line 628 of file Tensor.cpp.

References AsRvalue(), cloudViewer::core::shape_util::CanBeBrocastedToShape(), dtype_, GetDevice(), LogError, shape_, and cloudViewer::core::SizeVector::ToString().

◆ cbegin()

Tensor::ConstIterator cloudViewer::core::Tensor::cbegin ( ) const

Returns the beginning of the const tensor iterator. The iterator iterates over the first dimension of the tensor. The generated tensor slices share the same memory with the original tensor.

Definition at line 338 of file Tensor.cpp.

References LogError, and NumDims().

Referenced by begin().

◆ Ceil()

Tensor cloudViewer::core::Tensor::Ceil ( ) const

Element-wise ceil value of a tensor, returning a new tensor.

Definition at line 1417 of file Tensor.cpp.

References cloudViewer::core::kernel::Ceil, dtype_, GetDevice(), shape_, and cloudViewer::core::kernel::UnaryEW().

Referenced by cloudViewer::core::MakeOperation(), and cloudViewer::core::pybind_core_tensor().

◆ cend()

Tensor::ConstIterator cloudViewer::core::Tensor::cend ( ) const

Returns the end of the const tensor iterator. The iterator iterates over the first dimension of the tensor. The generated tensor slices share the same memory with the original tensor.

Definition at line 345 of file Tensor.cpp.

References LogError, NumDims(), and shape_.

Referenced by end().

◆ Clip()

Tensor cloudViewer::core::Tensor::Clip	(	Scalar	min_val,
		Scalar	max_val
	)		const

Element-wise clipping of tensor values so that resulting values lie in the range [min_val, max_val], returning a new tensor.

Parameters

min_val	Lower bound for output values.
max_val	Upper bound for output values.

Definition at line 1392 of file Tensor.cpp.

References Clip_(), and Clone().

Referenced by cloudViewer::t::io::ConvertColorTensorToUint8().

◆ Clip_()

Tensor cloudViewer::core::Tensor::Clip_	(	Scalar	min_val,
		Scalar	max_val
	)

Element-wise clipping of tensor values so that resulting values lie in the range [min_val, max_val]. In-place version.

Parameters

min_val	Lower bound for output values.
max_val	Upper bound for output values.

Definition at line 1398 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE, dtype_, Full(), GetDevice(), Gt(), cloudViewer::core::TensorKey::IndexTensor(), Lt(), SetItem(), and cloudViewer::core::Scalar::To().

Referenced by Clip().

◆ Clone()

Tensor cloudViewer::core::Tensor::Clone ( ) const

inline

Copy Tensor to the same device.

Definition at line 502 of file Tensor.h.

References GetDevice(), and To().

Referenced by cloudViewer::t::geometry::PointCloud::Append(), Clip(), cloudViewer::core::TensorList::CopyFrom(), IndexGet(), cloudViewer::core::LeastSquares(), cloudViewer::core::LUIpiv(), NonZeroNumpy(), cloudViewer::core::PyArrayToTensor(), cloudViewer::core::pybind_core_tensor(), cloudViewer::core::PyHandleToTensor(), cloudViewer::t::pipelines::odometry::RGBDOdometryMultiScale(), cloudViewer::t::pipelines::odometry::RGBDOdometryMultiScaleHybrid(), cloudViewer::t::pipelines::odometry::RGBDOdometryMultiScaleIntensity(), cloudViewer::t::pipelines::odometry::RGBDOdometryMultiScalePointToPlane(), cloudViewer::t::geometry::AxisAlignedBoundingBox::SetMaxBound(), cloudViewer::t::geometry::AxisAlignedBoundingBox::SetMinBound(), cloudViewer::t::io::DepthNoiseSimulator::Simulate(), cloudViewer::core::Solve(), and cloudViewer::t::geometry::Image::To().

◆ Contiguous()

Tensor cloudViewer::core::Tensor::Contiguous ( ) const

Returns a contiguous Tensor containing the same data in the same device. If self tensor is already contiguous, the same underlying memory will be used.

Definition at line 772 of file Tensor.cpp.

References GetDevice(), IsContiguous(), and To().

◆ CopyFrom()

void cloudViewer::core::Tensor::CopyFrom ( const Tensor & other )

Copy Tensor values to current tensor from the source tensor.

Definition at line 770 of file Tensor.cpp.

References AsRvalue().

Referenced by cloudViewer::t::geometry::kernel::minimum_obb::ComputeMinimumOBBApprox(), cloudViewer::core::kernel::CopySYCL(), and cloudViewer::core::kernel::IndexGet().

◆ Cos()

Tensor cloudViewer::core::Tensor::Cos ( ) const

Element-wise cosine of a tensor, returning a new tensor.

Definition at line 1318 of file Tensor.cpp.

References cloudViewer::core::kernel::Cos, dtype_, GetDevice(), shape_, and cloudViewer::core::kernel::UnaryEW().

Referenced by cloudViewer::core::MakeOperation(), and cloudViewer::core::pybind_core_tensor().

◆ Cos_()

Tensor cloudViewer::core::Tensor::Cos_ ( )

Element-wise cosine of a tensor, in-place.

Definition at line 1324 of file Tensor.cpp.

References cloudViewer::core::kernel::Cos, and cloudViewer::core::kernel::UnaryEW().

Referenced by cloudViewer::core::pybind_core_tensor().

◆ Det()

double cloudViewer::core::Tensor::Det ( ) const

Compute the determinant of a 2D square tensor.

Returns: returns the determinant of the matrix (double).

Definition at line 1092 of file Tensor.cpp.

References AssertTensorDtypes, cloudViewer::core::Det(), cloudViewer::core::Float32, and cloudViewer::core::Float64.

Referenced by cloudViewer::t::pipelines::kernel::ComputeRtPointToPoint(), and cloudViewer::core::pybind_core_tensor().

◆ Diag()

Tensor cloudViewer::core::Tensor::Diag ( const Tensor & input )

static

Create a square matrix with specified diagonal elements in input.

Definition at line 424 of file Tensor.cpp.

References AsStrided(), GetDevice(), GetDtype(), GetShape(), LogError, shape_, cloudViewer::core::SmallVectorBase< Size_T >::size(), strides_, cloudViewer::core::SizeVector::ToString(), and Zeros().

Referenced by cloudViewer::core::pybind_core_tensor().

◆ Div() [1/2]

Tensor cloudViewer::core::Tensor::Div ( const Tensor & value ) const

Divides a tensor and returns the resulting tensor.

Definition at line 1205 of file Tensor.cpp.

References AssertTensorDevice, AssertTensorDtype, cloudViewer::core::kernel::BinaryEW(), cloudViewer::core::shape_util::BroadcastedShape(), cloudViewer::core::kernel::Div, dtype_, GetDevice(), GetDtype(), and shape_.

Referenced by Div(), cloudViewer::t::geometry::kernel::pointcloud::GetPointMaskWithinOBBCPU(), cloudViewer::t::pipelines::registration::LoadTensorPointCloudFromFile(), and operator/().

◆ Div() [2/2]

Tensor cloudViewer::core::Tensor::Div ( Scalar value ) const

Definition at line 1216 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, Div(), dtype_, Full(), GetDevice(), and cloudViewer::core::Scalar::To().

◆ Div_() [1/2]

Tensor cloudViewer::core::Tensor::Div_ ( const Tensor & value )

Inplace version of Tensor::Div. Divides a tensor to the current tensor and returns the current tensor.

Definition at line 1225 of file Tensor.cpp.

References AssertTensorDevice, AssertTensorDtype, cloudViewer::core::kernel::BinaryEW(), cloudViewer::core::kernel::Div, GetDevice(), and GetDtype().

Referenced by cloudViewer::t::pipelines::kernel::ComputeRtPointToPoint(), Div_(), and operator/=().

◆ Div_() [2/2]

Tensor cloudViewer::core::Tensor::Div_ ( Scalar value )

Definition at line 1233 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, Div_(), dtype_, Full(), GetDevice(), and cloudViewer::core::Scalar::To().

◆ Empty()

Tensor cloudViewer::core::Tensor::Empty	(	const SizeVector &	shape,
		Dtype	dtype,
		const Device &	device = `Device("CPU:0")`
	)

static

Create a tensor with uninitialized values.

Definition at line 400 of file Tensor.cpp.

References Tensor().

◆ EmptyLike()

static Tensor cloudViewer::core::Tensor::EmptyLike ( const Tensor & other )

inlinestatic

Create a tensor with uninitialized values with the same Dtype and Device as the other tensor.

Definition at line 247 of file Tensor.h.

References dtype_, Empty(), GetDevice(), and shape_.

Referenced by cloudViewer::t::geometry::Image::Dilate(), cloudViewer::t::geometry::Image::Filter(), cloudViewer::t::geometry::Image::FilterBilateral(), cloudViewer::t::geometry::Image::FilterGaussian(), and cloudViewer::t::geometry::Image::FilterSobel().

◆ end() [1/2]

Tensor::Iterator cloudViewer::core::Tensor::end ( )

Returns the end of the tensor iterator. The iterator iterates over the first dimension of the tensor. The generated tensor slices share the same memory with the original tensor.

Definition at line 276 of file Tensor.cpp.

References LogError, NumDims(), and shape_.

◆ end() [2/2]

ConstIterator cloudViewer::core::Tensor::end ( ) const

inline

Returns the end of the const tensor iterator. The iterator iterates over the first dimension of the tensor. The generated tensor slices share the same memory with the original tensor. This is equivalent to Tensor::cend().

Definition at line 1290 of file Tensor.h.

References cend().

◆ Eq() [1/2]

Tensor cloudViewer::core::Tensor::Eq ( const Tensor & value ) const

Element-wise equals-to of tensors, returning a new boolean tensor.

Definition at line 1682 of file Tensor.cpp.

References AssertTensorDevice, cloudViewer::core::kernel::BinaryEW(), cloudViewer::core::Bool, cloudViewer::core::shape_util::BroadcastedShape(), cloudViewer::core::kernel::Eq, GetDevice(), and shape_.

Referenced by cloudViewer::t::pipelines::registration::CorrespondencesFromFeatures(), Eq(), and operator==().

◆ Eq() [2/2]

Tensor cloudViewer::core::Tensor::Eq ( Scalar value ) const

Definition at line 1691 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Eq(), Full(), GetDevice(), and cloudViewer::core::Scalar::To().

◆ Eq_() [1/2]

Tensor cloudViewer::core::Tensor::Eq_ ( const Tensor & value )

Element-wise equals-to of tensors, in-place. This operation won't change the tensor's dtype.

Definition at line 1700 of file Tensor.cpp.

References AssertTensorDevice, cloudViewer::core::kernel::BinaryEW(), cloudViewer::core::kernel::Eq, and GetDevice().

Referenced by Eq_().

◆ Eq_() [2/2]

Tensor cloudViewer::core::Tensor::Eq_ ( Scalar value )

Definition at line 1707 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Eq_(), Full(), GetDevice(), and cloudViewer::core::Scalar::To().

◆ Exp()

Tensor cloudViewer::core::Tensor::Exp ( ) const

Element-wise exponential of a tensor, returning a new tensor.

Definition at line 1340 of file Tensor.cpp.

References dtype_, cloudViewer::core::kernel::Exp, GetDevice(), shape_, and cloudViewer::core::kernel::UnaryEW().

Referenced by cloudViewer::t::geometry::npp::FilterGaussian(), cloudViewer::core::MakeOperation(), and cloudViewer::core::pybind_core_tensor().

◆ Exp_()

Tensor cloudViewer::core::Tensor::Exp_ ( )

Element-wise base-e exponential of a tensor, in-place.

Definition at line 1346 of file Tensor.cpp.

References cloudViewer::core::kernel::Exp, and cloudViewer::core::kernel::UnaryEW().

Referenced by cloudViewer::core::pybind_core_tensor().

◆ Expand()

Tensor cloudViewer::core::Tensor::Expand ( const SizeVector & dst_shape ) const

Expand Tensor to a new broadcastable shape, returning a new view.

Tensors can be expanded to broadcastable shape by setting dimension of size 1 to have stride 0, without allocating new memory.

Definition at line 638 of file Tensor.cpp.

References AsStrided(), cloudViewer::core::shape_util::CanBeBrocastedToShape(), LogError, NumDims(), shape_, cloudViewer::core::SmallVectorBase< Size_T >::size(), strides_, and cloudViewer::core::SizeVector::ToString().

Referenced by cloudViewer::core::pybind_core_linalg().

◆ Eye()

Tensor cloudViewer::core::Tensor::Eye	(	int64_t	n,
		Dtype	dtype,
		const Device &	device
	)

static

Create an identity matrix of size n x n.

Definition at line 418 of file Tensor.cpp.

References AsStrided(), Fill(), strides_, and Zeros().

◆ Fill()

template<typename S >

void cloudViewer::core::Tensor::Fill ( S v )

inline

Fill the whole Tensor with a scalar value, the scalar will be casted to the Tensor's Dtype.

Definition at line 1400 of file Tensor.h.

References AsRvalue(), DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, GetDevice(), and GetDtype().

Referenced by cloudViewer::t::pipelines::registration::ComputeDirectionVectors(), cloudViewer::t::pipelines::kernel::DecodeAndSolve6x6(), Eye(), Full(), operator=(), cloudViewer::t::geometry::TriangleMesh::ProjectImagesToAlbedo(), cloudViewer::core::HashBackendBuffer::ResetHeap(), and cloudViewer::core::TensorList::Resize().

◆ FillObject()

template<typename Object >

void cloudViewer::core::Tensor::FillObject ( const Object & v )

inline

Definition at line 1410 of file Tensor.h.

References AsRvalue(), GetDevice(), and GetDtype().

◆ Flatten()

Tensor cloudViewer::core::Tensor::Flatten	(	int64_t	start_dim = `0`,
		int64_t	end_dim = `-1`
	)		const

Flattens input by reshaping it into a one-dimensional tensor. If start_dim or end_dim are passed, only dimensions starting with start_dim and ending with end_dim are flattened. The order of elements in input is unchanged.

Unlike NumPy’s flatten, which always copies input’s data, this function may return the original object, a view, or copy. If no dimensions are flattened, then the original object input is returned. Otherwise, if input can be viewed as the flattened shape, then that view is returned. Finally, only if the input cannot be viewed as the flattened shape is input’s data copied.

Ref:

https://pytorch.org/docs/stable/tensors.html
aten/src/ATen/native/TensorShape.cpp
aten/src/ATen/TensorUtils.cpp

Parameters

start_dim	The first dimension to flatten (inclusive).
end_dim	The last dimension to flatten, starting from `start_dim` (inclusive).

Definition at line 685 of file Tensor.cpp.

References GetShape(), LogError, NumDims(), cloudViewer::core::SmallVectorTemplateBase< T, bool >::push_back(), Reshape(), and cloudViewer::core::shape_util::WrapDim().

Referenced by cloudViewer::t::geometry::AxisAlignedBoundingBox::FromLegacy(), cloudViewer::t::geometry::OrientedBoundingBox::FromLegacy(), cloudViewer::core::pybind_core_tensor(), and cloudViewer::t::geometry::OrientedBoundingBox::Rotate().

◆ Floor()

Tensor cloudViewer::core::Tensor::Floor ( ) const

Element-wise floor value of a tensor, returning a new tensor.

Definition at line 1411 of file Tensor.cpp.

References dtype_, cloudViewer::core::kernel::Floor, GetDevice(), shape_, and cloudViewer::core::kernel::UnaryEW().

Referenced by cloudViewer::core::MakeOperation(), cloudViewer::t::pipelines::slac::ControlGrid::Parameterize(), cloudViewer::core::pybind_core_tensor(), and cloudViewer::t::geometry::PointCloud::VoxelDownSample().

◆ FromDLPack()

Tensor cloudViewer::core::Tensor::FromDLPack	(	const DLManagedTensor *	dlmt,
		std::function< void(void *)>	deleter = `nullptr`
	)

static

Convert DLManagedTensor to Tensor (DLPack v0.x).

Definition at line 1868 of file Tensor.cpp.

Referenced by cloudViewer::core::pybind_core_tensor().

◆ FromDLPackVersioned()

Tensor cloudViewer::core::Tensor::FromDLPackVersioned	(	const DLManagedTensorVersioned *	dlmt,
		std::function< void(void *)>	deleter = `nullptr`
	)

static

Convert DLManagedTensorVersioned to Tensor (DLPack v1.x).

Definition at line 1872 of file Tensor.cpp.

Referenced by cloudViewer::core::pybind_core_tensor().

◆ Full()

template<typename T >

static Tensor cloudViewer::core::Tensor::Full	(	const SizeVector &	shape,
		T	fill_value,
		Dtype	dtype,
		const Device &	device = `Device("CPU:0")`
	)

inlinestatic

Create a tensor fill with specified value.

Definition at line 253 of file Tensor.h.

References Empty(), and Fill().

Referenced by Add(), Add_(), cloudViewer::core::nns::NeighborSearchAllocator< T, TIndex >::AllocCounts(), cloudViewer::core::nns::NeighborSearchAllocator< T, TIndex >::AllocDistances(), cloudViewer::core::nns::NeighborSearchAllocator< T, TIndex >::AllocIndices(), Arange(), Clip_(), cloudViewer::t::pipelines::registration::ComputeFPFHFeature(), cloudViewer::t::pipelines::kernel::ComputeFPFHFeatureCPU(), Div(), Div_(), Eq(), Eq_(), cloudViewer::t::geometry::PointCloud::FarthestPointDownSample(), Ge(), Ge_(), Gt(), Gt_(), Le(), Le_(), LogicalAnd(), LogicalAnd_(), LogicalOr(), LogicalOr_(), LogicalXor(), LogicalXor_(), Lt(), Lt_(), Mul(), Mul_(), Ne(), Ne_(), Ones(), cloudViewer::core::operator-(), cloudViewer::core::operator/(), cloudViewer::ml::contrib::RadiusSearch(), cloudViewer::t::geometry::PointCloud::RemoveNonFinitePoints(), Sub(), Sub_(), and Zeros().

◆ Ge() [1/2]

Tensor cloudViewer::core::Tensor::Ge ( const Tensor & value ) const

Element-wise greater-than-or-equals-to of tensors, returning a new boolean tensor.

Definition at line 1618 of file Tensor.cpp.

References AssertTensorDevice, cloudViewer::core::kernel::BinaryEW(), cloudViewer::core::Bool, cloudViewer::core::shape_util::BroadcastedShape(), cloudViewer::core::kernel::Ge, GetDevice(), and shape_.

Referenced by Ge(), operator>=(), and cloudViewer::t::geometry::PointCloud::RemoveRadiusOutliers().

◆ Ge() [2/2]

Tensor cloudViewer::core::Tensor::Ge ( Scalar value ) const

Definition at line 1627 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), Ge(), GetDevice(), and cloudViewer::core::Scalar::To().

◆ Ge_() [1/2]

Tensor cloudViewer::core::Tensor::Ge_ ( const Tensor & value )

Element-wise greater-than-or-equals-to of tensors, in-place. This operation won't change the tensor's dtype.

Definition at line 1636 of file Tensor.cpp.

References AssertTensorDevice, cloudViewer::core::kernel::BinaryEW(), cloudViewer::core::kernel::Ge, and GetDevice().

Referenced by Ge_().

◆ Ge_() [2/2]

Tensor cloudViewer::core::Tensor::Ge_ ( Scalar value )

Definition at line 1643 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), Ge_(), GetDevice(), and cloudViewer::core::Scalar::To().

◆ GetBlob()

std::shared_ptr<Blob> cloudViewer::core::Tensor::GetBlob ( ) const

inline

Definition at line 1168 of file Tensor.h.

References blob_.

Referenced by cloudViewer::core::HashMap::GetValueTensor(), cloudViewer::t::io::NumpyArray::NumpyArray(), and cloudViewer::core::pybind_core_tensor().

◆ GetDataPtr() [1/4]

template<typename T >

T* cloudViewer::core::Tensor::GetDataPtr ( )

inline

Definition at line 1144 of file Tensor.h.

References T().

◆ GetDataPtr() [2/4]

void* cloudViewer::core::Tensor::GetDataPtr ( )

inline

Definition at line 1160 of file Tensor.h.

References data_ptr_.

◆ GetDataPtr() [3/4]

template<typename T >

const T* cloudViewer::core::Tensor::GetDataPtr ( ) const

inline

Definition at line 1149 of file Tensor.h.

References data_ptr_, dtype_, cloudViewer::core::Dtype::IsObject(), LogError, T(), cloudViewer::core::Dtype::ToString(), and ToString().

◆ GetDataPtr() [4/4]

const void* cloudViewer::core::Tensor::GetDataPtr ( ) const

inline

Definition at line 1162 of file Tensor.h.

References data_ptr_.

◆ GetDevice()

Device cloudViewer::core::Tensor::GetDevice ( ) const

overridevirtual

Implements cloudViewer::core::IsDevice.

Definition at line 1435 of file Tensor.cpp.

References blob_, and LogError.

◆ GetDtype()

Dtype cloudViewer::core::Tensor::GetDtype ( ) const

inline

Definition at line 1164 of file Tensor.h.

References dtype_.

◆ GetItem() [1/2]

Tensor cloudViewer::core::Tensor::GetItem ( const std::vector< TensorKey > & tks ) const

Pythonic getitem for tensor.

Returns a view of the original tensor, if TensorKey only contains TensorKeyMode::Index or TensorKeyMode::Slice. Returns a copy if the TensorKey contains IndexTensor (advanced indexing).

For example, in numpy:

t = np.empty((4, 5), dtype=np.float32)

t1 = t[1, 0:4:2]

The equivalent CloudViewer C++ calls:

Tensor t({4, 5}, core::Float32);

Tensor t1 = t.GetItem({TensorIndex(2), TensorSlice(0, 4, 2)});

cloudViewer::core::Float32

const Dtype Float32

Definition: Dtype.cpp:42

Definition at line 489 of file Tensor.cpp.

◆ GetItem() [2/2]

Tensor cloudViewer::core::Tensor::GetItem ( const TensorKey & tk ) const

Pythonic getitem for tensor.

Returns a view of the original tensor, if TensorKey is TensorKeyMode::Index or TensorKeyMode::Slice. Returns a copy if the TensorKey contains TensorKeyMode::IndexTensor (advanced indexing).

For example, in numpy:

t = np.empty((4, 5), dtype=np.float32)
t1 = t[2]
t2 = t[0:4:2]

The equivalent CloudViewer C++ calls:

Tensor t({4, 5}, core::Float32);
Tensor t1 = t.GetItem(TensorIndex(2));
Tensor t2 = t.GetItem(TensorSlice(0, 4, 2));

Definition at line 473 of file Tensor.cpp.

Referenced by cloudViewer::t::pipelines::registration::ComputeFPFHFeature(), cloudViewer::t::pipelines::kernel::ComputeFPFHFeatureCPU(), cloudViewer::t::pipelines::kernel::ComputePoseDopplerICP(), GetItem(), cloudViewer::t::pipelines::slac::ControlGrid::Parameterize(), cloudViewer::t::pipelines::kernel::PoseToTransformation(), cloudViewer::t::geometry::TriangleMesh::ProjectImagesToAlbedo(), SetItem(), and cloudViewer::t::pipelines::kernel::TransformationToPose().

◆ GetLength()

int64_t cloudViewer::core::Tensor::GetLength ( ) const

inline

Returns the size of the first dimension. If NumDims() == 0, an exception will be thrown.

Definition at line 1125 of file Tensor.h.

References cloudViewer::core::SizeVector::GetLength(), and GetShape().

◆ GetShape() [1/2]

SizeVector cloudViewer::core::Tensor::GetShape ( ) const

inline

Definition at line 1127 of file Tensor.h.

References shape_.

◆ GetShape() [2/2]

int64_t cloudViewer::core::Tensor::GetShape ( int64_t dim ) const

inline

Definition at line 1131 of file Tensor.h.

References NumDims(), shape_, and cloudViewer::core::shape_util::WrapDim().

◆ GetShapeRef()

const SizeVector& cloudViewer::core::Tensor::GetShapeRef ( ) const

inline

Definition at line 1129 of file Tensor.h.

References shape_.

◆ GetStride()

int64_t cloudViewer::core::Tensor::GetStride ( int64_t dim ) const

inline

Definition at line 1139 of file Tensor.h.

References NumDims(), strides_, and cloudViewer::core::shape_util::WrapDim().

◆ GetStrides()

SizeVector cloudViewer::core::Tensor::GetStrides ( ) const

inline

Definition at line 1135 of file Tensor.h.

References strides_.

Referenced by cloudViewer::t::geometry::pybind_image(), cloudViewer::core::AdvancedIndexPreprocessor::RestrideTensor(), and cloudViewer::core::TensorToPyArray().

◆ GetStridesRef()

const SizeVector& cloudViewer::core::Tensor::GetStridesRef ( ) const

inline

Definition at line 1137 of file Tensor.h.

References strides_.

◆ Gt() [1/2]

Tensor cloudViewer::core::Tensor::Gt ( const Tensor & value ) const

Element-wise greater-than of tensors, returning a new boolean tensor.

Definition at line 1554 of file Tensor.cpp.

References AssertTensorDevice, cloudViewer::core::kernel::BinaryEW(), cloudViewer::core::Bool, cloudViewer::core::shape_util::BroadcastedShape(), GetDevice(), cloudViewer::core::kernel::Gt, and shape_.

Referenced by Clip_(), Gt(), and operator>().

◆ Gt() [2/2]

Tensor cloudViewer::core::Tensor::Gt ( Scalar value ) const

Definition at line 1563 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), Gt(), and cloudViewer::core::Scalar::To().

◆ Gt_() [1/2]

Tensor cloudViewer::core::Tensor::Gt_ ( const Tensor & value )

Element-wise greater-than of tensors, in-place. This operation won't change the tensor's dtype.

Definition at line 1572 of file Tensor.cpp.

References AssertTensorDevice, cloudViewer::core::kernel::BinaryEW(), GetDevice(), and cloudViewer::core::kernel::Gt.

Referenced by Gt_().

◆ Gt_() [2/2]

Tensor cloudViewer::core::Tensor::Gt_ ( Scalar value )

Definition at line 1579 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), Gt_(), and cloudViewer::core::Scalar::To().

◆ IndexAdd_()

void cloudViewer::core::Tensor::IndexAdd_	(	int64_t	dim,
		const Tensor &	index,
		const Tensor &	src
	)

Advanced in-place reduction by index.

See https://pytorch.org/docs/stable/generated/torch.Tensor.index_add_.html

self[index[i]] = operator(self[index[i]], src[i]).

Note: Only support 1D index and src tensors now.

Definition at line 991 of file Tensor.cpp.

References AssertTensorDtype, GetDtype(), GetShape(), cloudViewer::core::kernel::IndexAdd_(), cloudViewer::core::Int64, LogError, and NumDims().

Referenced by cloudViewer::t::geometry::PointCloud::VoxelDownSample().

◆ IndexExtract()

Tensor cloudViewer::core::Tensor::IndexExtract	(	int64_t	dim,
		int64_t	idx
	)		const

Extract the idx -th sub-tensor in dimension dim. After IndexExtract, the dimension dim will be removed.

Definition at line 841 of file Tensor.cpp.

References cloudViewer::core::SmallVectorTemplateCommon< T, typename >::begin(), blob_, cloudViewer::core::Dtype::ByteSize(), data_ptr_, dtype_, cloudViewer::core::SmallVectorImpl< T >::erase(), LogError, NumDims(), shape_, cloudViewer::core::SmallVectorBase< Size_T >::size(), strides_, Tensor(), and cloudViewer::core::shape_util::WrapDim().

Referenced by GetItem(), and operator[]().

◆ IndexGet()

Tensor cloudViewer::core::Tensor::IndexGet ( const std::vector< Tensor > & index_tensors ) const

Advanced indexing getter. This will always allocate a new Tensor.

We use the Numpy advanced indexing semantics, see: https://docs.scipy.org/doc/numpy/reference/arrays.indexing.html

Definition at line 905 of file Tensor.cpp.

References AssertTensorDtype, AssertTensorShape, cloudViewer::core::Bool, Clone(), dtype_, GetDevice(), GetDtype(), cloudViewer::core::AdvancedIndexPreprocessor::GetIndexedShape(), cloudViewer::core::AdvancedIndexPreprocessor::GetIndexedStrides(), cloudViewer::core::AdvancedIndexPreprocessor::GetIndexTensors(), cloudViewer::core::AdvancedIndexPreprocessor::GetOutputShape(), cloudViewer::core::AdvancedIndexPreprocessor::GetTensor(), cloudViewer::core::kernel::IndexGet(), IsNonZero(), LogError, NumDims(), and Tensor().

◆ IndexSet()

void cloudViewer::core::Tensor::IndexSet	(	const std::vector< Tensor > &	index_tensors,
		const Tensor &	src_tensor
	)

Advanced indexing getter.

We use the Numpy advanced indexing semantics, see: https://docs.scipy.org/doc/numpy/reference/arrays.indexing.html

Note: Only support 1D index tensors. Note: Only support advanced indices are all next to each other.

Definition at line 936 of file Tensor.cpp.

References AssertTensorDtype, AssertTensorShape, cloudViewer::core::Bool, DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, GetDtype(), cloudViewer::core::AdvancedIndexPreprocessor::GetIndexedShape(), cloudViewer::core::AdvancedIndexPreprocessor::GetIndexedStrides(), cloudViewer::core::AdvancedIndexPreprocessor::GetIndexTensors(), cloudViewer::core::AdvancedIndexPreprocessor::GetTensor(), cloudViewer::core::kernel::IndexSet(), IsNonZero(), LogError, NumDims(), and NumElements().

Referenced by cloudViewer::t::pipelines::registration::ComputeFPFHFeature(), cloudViewer::t::pipelines::kernel::ComputeFPFHFeatureCPU(), cloudViewer::t::pipelines::kernel::FillInRigidAlignmentTermCPU(), cloudViewer::t::pipelines::slac::RunRigidOptimizerForFragments(), cloudViewer::t::pipelines::slac::RunSLACOptimizerForFragments(), and SetItem().

◆ Init() [1/4]

template<typename T >

static Tensor cloudViewer::core::Tensor::Init	(	const std::initializer_list< std::initializer_list< std::initializer_list< T >>> &	in_list,
		const Device &	device = `Device("CPU:0")`
	)

inlinestatic

Create a 3-D tensor with nested initializer list, e.g., core::Tensor::Init<float>({{{0, 1}, {2, 3}}, {{4, 5}, {6, 7}}});

Definition at line 302 of file Tensor.h.

◆ Init() [2/4]

template<typename T >

static Tensor cloudViewer::core::Tensor::Init	(	const std::initializer_list< std::initializer_list< T >> &	in_list,
		const Device &	device = `Device("CPU:0")`
	)

inlinestatic

Create a 2-D tensor with nested initializer list, e.g., core::Tensor::Init<float>({{0, 1, 2}, {3, 4, 5}});

Definition at line 293 of file Tensor.h.

◆ Init() [3/4]

template<typename T >

static Tensor cloudViewer::core::Tensor::Init	(	const std::initializer_list< T > &	in_list,
		const Device &	device = `Device("CPU:0")`
	)

inlinestatic

Create a 1-D tensor with initializer list, e.g., core::Tensor::Init<float>({0, 1, 2});

Definition at line 285 of file Tensor.h.

◆ Init() [4/4]

template<typename T >

static Tensor cloudViewer::core::Tensor::Init	(	const T	val,
		const Device &	device = `Device("CPU:0")`
	)

inlinestatic

Create a 0-D tensor (scalar) with given value, e.g., core::Tensor::Init<float>(0);

Definition at line 275 of file Tensor.h.

References Tensor(), and type.

Referenced by cloudViewer::core::pybind_getitem(), and cloudViewer::core::pybind_setitem().

◆ Inverse()

Tensor cloudViewer::core::Tensor::Inverse ( ) const

Computes the matrix inversion of the square matrix *this with LU factorization and returns the result.

Definition at line 1982 of file Tensor.cpp.

References AssertTensorDtypes, cloudViewer::core::Float32, cloudViewer::core::Float64, and cloudViewer::core::Inverse().

Referenced by cloudViewer::t::geometry::CreatePointCloudWithNormals(), cloudViewer::t::pipelines::slac::FillInRigidAlignmentTerm(), cloudViewer::t::pipelines::slac::FillInSLACAlignmentTerm(), cloudViewer::t::pipelines::slac::GetCorrespondenceSetForPointCloudPair(), cloudViewer::core::pybind_core_tensor(), cloudViewer::t::geometry::OrientedBoundingBox::Rotate(), and cloudViewer::t::geometry::OrientedBoundingBox::SetRotation().

◆ IsClose()

Tensor cloudViewer::core::Tensor::IsClose	(	const Tensor &	other,
		double	rtol = `1e-5`,
		double	atol = `1e-8`
	)		const

Element-wise version of Tensor::AllClose().

If the device is not the same: throws exception.
If the dtype is not the same: throws exception.
If the shape is not the same: throws exception.
For each element in the returned tensor: abs(self - other) <= (atol + rtol * abs(other)).

The equation is not symmetrial, i.e. a.AllClose(b) might not be the same as b.AllClose(a). Also see Numpy's documentation: https://numpy.org/doc/stable/reference/generated/numpy.allclose.html.

TODO: support nan

Parameters

other	The other tensor to compare with.
rtol	Relative tolerance.
atol	Absolute tolerance.

Returns: A boolean tensor indicating where the tensor is close.

Definition at line 1900 of file Tensor.cpp.

References Abs(), AssertTensorDevice, AssertTensorDtype, AssertTensorShape, cloudViewer::core::Float64, GetDevice(), GetDtype(), GetShape(), and To().

Referenced by AllClose().

◆ IsContiguous()

bool cloudViewer::core::Tensor::IsContiguous ( ) const

inline

Returns True if the underlying memory buffer is contiguous. A contiguous Tensor's data_ptr_ does not need to point to the beginning of blob_.

Definition at line 1036 of file Tensor.h.

References cloudViewer::core::shape_util::DefaultStrides(), shape_, and strides_.

Referenced by cloudViewer::core::AddMM(), cloudViewer::t::geometry::CheckExtrinsicTensor(), cloudViewer::t::geometry::CheckIntrinsicTensor(), Contiguous(), cloudViewer::core::kernel::CopyCPU(), cloudViewer::core::kernel::CopySYCL(), cloudViewer::t::geometry::vtkutils::CreateVtkDataArrayFromTensor(), cloudViewer::core::TensorList::FromTensor(), cloudViewer::t::geometry::Image::Image(), cloudViewer::t::geometry::InverseTransformation(), cloudViewer::core::pybind_core_tensor(), cloudViewer::t::geometry::kernel::TArrayIndexer< index_t >::TArrayIndexer(), cloudViewer::t::geometry::Image::ToLegacy(), ToString(), and cloudViewer::t::geometry::kernel::TransformIndexer::TransformIndexer().

◆ IsFinite()

Tensor cloudViewer::core::Tensor::IsFinite ( ) const

Element-wise check for finite values (not Inf or NaN) in a tensor, returning a new Boolean tensor. Non-floating point tensors return all True values.

Definition at line 1382 of file Tensor.cpp.

References cloudViewer::core::Bool, dtype_, cloudViewer::core::Float32, cloudViewer::core::Float64, GetDevice(), cloudViewer::core::kernel::IsFinite, Ones(), shape_, and cloudViewer::core::kernel::UnaryEW().

Referenced by cloudViewer::core::MakeOperation(), cloudViewer::core::pybind_core_tensor(), and cloudViewer::t::geometry::PointCloud::RemoveNonFinitePoints().

◆ IsInf()

Tensor cloudViewer::core::Tensor::IsInf ( ) const

Element-wise check for Infinity values in a tensor, returning a new Boolean tensor. Non-floating point tensors return all False values.

Definition at line 1372 of file Tensor.cpp.

References cloudViewer::core::Bool, dtype_, cloudViewer::core::Float32, cloudViewer::core::Float64, GetDevice(), cloudViewer::core::kernel::IsInf, shape_, cloudViewer::core::kernel::UnaryEW(), and Zeros().

Referenced by cloudViewer::core::MakeOperation(), cloudViewer::core::pybind_core_tensor(), and cloudViewer::t::geometry::PointCloud::RemoveNonFinitePoints().

◆ IsNan()

Tensor cloudViewer::core::Tensor::IsNan ( ) const

Element-wise check for NaN values in a tensor, returning a new Boolean tensor. Non-floating point tensors return all False values.

Definition at line 1362 of file Tensor.cpp.

References cloudViewer::core::Bool, dtype_, cloudViewer::core::Float32, cloudViewer::core::Float64, GetDevice(), cloudViewer::core::kernel::IsNan, shape_, cloudViewer::core::kernel::UnaryEW(), and Zeros().

Referenced by cloudViewer::core::MakeOperation(), cloudViewer::core::pybind_core_tensor(), and cloudViewer::t::geometry::PointCloud::RemoveNonFinitePoints().

◆ IsNonZero()

bool cloudViewer::core::Tensor::IsNonZero ( ) const

Evaluate a single-element Tensor as a boolean value. This can be used to implement Tensor.__bool__() in Python, e.g.

assert Tensor([True])         # Passes.
assert Tensor([123])          # Passes.
assert Tensor([False])        # AssertionError.
assert Tensor([0])            # AssertionError.
assert Tensor([True, False])  # ValueError: cannot be evaluated as bool.

Definition at line 1757 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, LogError, cloudViewer::core::SizeVector::NumElements(), and shape_.

Referenced by IndexGet(), IndexSet(), and cloudViewer::core::pybind_core_tensor().

◆ IsSame()

bool cloudViewer::core::Tensor::IsSame ( const Tensor & other ) const

Returns true iff the tensor is the other tensor. This means that, the two tensors have the same underlying memory, device, dtype, shape, strides and etc.

Definition at line 1912 of file Tensor.cpp.

References AssertTensorDevice, blob_, data_ptr_, dtype_, GetDevice(), shape_, and strides_.

◆ Item() [1/2]

template<typename T >

T cloudViewer::core::Tensor::Item ( ) const

inline

Helper function to return scalar value of a scalar Tensor, the Tensor must have empty shape.

Definition at line 618 of file Tensor.h.

References data_ptr_, GetDevice(), LogError, cloudViewer::core::MemoryManager::MemcpyToHost(), cloudViewer::core::SizeVector::NumElements(), shape_, and T().

Referenced by AllClose(), cloudViewer::core::kernel::Arange(), cloudViewer::core::kernel::ArangeCPU(), cloudViewer::core::kernel::ArangeSYCL(), cloudViewer::t::pipelines::registration::ComputeDirectionVectors(), cloudViewer::t::geometry::ComputeMetricsCommon(), cloudViewer::core::HashBackendBuffer::GetHeapTopIndex(), cloudViewer::t::geometry::AxisAlignedBoundingBox::GetXPercentage(), cloudViewer::t::geometry::AxisAlignedBoundingBox::GetYPercentage(), cloudViewer::t::geometry::AxisAlignedBoundingBox::GetZPercentage(), cloudViewer::t::geometry::VoxelBlockGrid::Load(), cloudViewer::ml::contrib::RadiusSearch(), cloudViewer::core::nns::KnnIndex::SearchKnn(), cloudViewer::t::geometry::OrientedBoundingBox::SetExtent(), cloudViewer::core::nns::KnnIndex::SetTensorData(), cloudViewer::core::nns::FixedRadiusIndex::SetTensorData(), cloudViewer::ml::contrib::SubsampleBatch(), and cloudViewer::t::io::WritePointCloudToXYZI().

◆ Item() [2/2]

template<>

bool cloudViewer::core::Tensor::Item ( ) const

inline

Definition at line 1387 of file Tensor.h.

References data_ptr_, GetDevice(), LogError, cloudViewer::core::MemoryManager::MemcpyToHost(), cloudViewer::core::SizeVector::NumElements(), and shape_.

◆ Le() [1/2]

Tensor cloudViewer::core::Tensor::Le ( const Tensor & value ) const

Element-wise less-than-or-equals-to of tensors, returning a new boolean tensor.

Definition at line 1650 of file Tensor.cpp.

References AssertTensorDevice, cloudViewer::core::kernel::BinaryEW(), cloudViewer::core::Bool, cloudViewer::core::shape_util::BroadcastedShape(), GetDevice(), cloudViewer::core::kernel::Le, and shape_.

Referenced by cloudViewer::t::pipelines::slac::GetCorrespondenceSetForPointCloudPair(), Le(), operator<=(), and cloudViewer::t::geometry::PointCloud::RemoveStatisticalOutliers().

◆ Le() [2/2]

Tensor cloudViewer::core::Tensor::Le ( Scalar value ) const

Definition at line 1659 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), Le(), and cloudViewer::core::Scalar::To().

◆ Le_() [1/2]

Tensor cloudViewer::core::Tensor::Le_ ( const Tensor & value )

Element-wise less-than-or-equals-to of tensors, in-place. This operation won't change the tensor's dtype.

Definition at line 1668 of file Tensor.cpp.

References AssertTensorDevice, cloudViewer::core::kernel::BinaryEW(), GetDevice(), and cloudViewer::core::kernel::Le.

Referenced by Le_().

◆ Le_() [2/2]

Tensor cloudViewer::core::Tensor::Le_ ( Scalar value )

Definition at line 1675 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), Le_(), and cloudViewer::core::Scalar::To().

◆ LeastSquares()

Tensor cloudViewer::core::Tensor::LeastSquares ( const Tensor & rhs ) const

Solves the linear system AX = B with QR decomposition and returns X. A is a (m, n) matrix with m >= n.

Definition at line 1938 of file Tensor.cpp.

References AssertTensorDevice, AssertTensorDtype, AssertTensorDtypes, cloudViewer::core::Float32, cloudViewer::core::Float64, GetDevice(), GetDtype(), and cloudViewer::core::LeastSquares().

Referenced by cloudViewer::core::pybind_core_tensor().

◆ Load()

Tensor cloudViewer::core::Tensor::Load ( const std::string & file_name )

static

Load tensor from numpy's npy format.

Definition at line 1881 of file Tensor.cpp.

References cloudViewer::t::io::ReadNpy().

Referenced by cloudViewer::t::pipelines::slac::FillInRigidAlignmentTerm(), cloudViewer::t::pipelines::slac::FillInSLACAlignmentTerm(), and cloudViewer::core::pybind_core_tensor().

◆ LogicalAnd() [1/2]

Tensor cloudViewer::core::Tensor::LogicalAnd ( const Tensor & value ) const

Element-wise logical and of a tensor, returning a new boolean tensor.

If the tensor is not boolean, zero will be treated as False, while non-zero values will be treated as True.

Definition at line 1453 of file Tensor.cpp.

References AssertTensorDevice, cloudViewer::core::kernel::BinaryEW(), cloudViewer::core::Bool, cloudViewer::core::shape_util::BroadcastedShape(), GetDevice(), cloudViewer::core::kernel::LogicalAnd, and shape_.

Referenced by LogicalAnd(), and operator&&().

◆ LogicalAnd() [2/2]

Tensor cloudViewer::core::Tensor::LogicalAnd ( Scalar value ) const

Definition at line 1463 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), LogicalAnd(), and cloudViewer::core::Scalar::To().

◆ LogicalAnd_() [1/2]

Tensor cloudViewer::core::Tensor::LogicalAnd_ ( const Tensor & value )

Element-wise logical and of tensors, in-place. This operation won't change the tensor's dtype.

If the tensor is not boolean, 0 will be treated as False, while non-zero will be treated as True. The tensor will be filled with 0 or 1 casted to the tensor's dtype.

Definition at line 1472 of file Tensor.cpp.

References AssertTensorDevice, cloudViewer::core::kernel::BinaryEW(), GetDevice(), and cloudViewer::core::kernel::LogicalAnd.

Referenced by LogicalAnd_().

◆ LogicalAnd_() [2/2]

Tensor cloudViewer::core::Tensor::LogicalAnd_ ( Scalar value )

Definition at line 1479 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), LogicalAnd_(), and cloudViewer::core::Scalar::To().

◆ LogicalNot()

Tensor cloudViewer::core::Tensor::LogicalNot ( ) const

Element-wise logical not of a tensor, returning a new boolean tensor.

If the tensor is not boolean, 0 will be treated as False, while non-zero will be treated as True.

Definition at line 1442 of file Tensor.cpp.

References cloudViewer::core::Bool, GetDevice(), cloudViewer::core::kernel::LogicalNot, shape_, and cloudViewer::core::kernel::UnaryEW().

Referenced by cloudViewer::core::MakeOperation(), cloudViewer::core::pybind_core_tensor(), cloudViewer::t::geometry::PointCloud::RemoveNonFinitePoints(), and cloudViewer::t::geometry::PointCloud::SelectByMask().

◆ LogicalNot_()

Tensor cloudViewer::core::Tensor::LogicalNot_ ( )

Element-wise logical not of a tensor, in-place. This operation won't change the tensor's dtype.

If the tensor is not boolean, 0 will be treated as False, while non-zero will be treated as True. The tensor will be filled with 0 or 1 casted to the tensor's dtype.

Definition at line 1448 of file Tensor.cpp.

References cloudViewer::core::kernel::LogicalNot, and cloudViewer::core::kernel::UnaryEW().

Referenced by cloudViewer::core::pybind_core_tensor().

◆ LogicalOr() [1/2]

Tensor cloudViewer::core::Tensor::LogicalOr ( const Tensor & value ) const

Element-wise logical or of tensors, returning a new boolean tensor.

If the tensor is not boolean, zero will be treated as False, while non-zero values will be treated as True.

Definition at line 1487 of file Tensor.cpp.

References AssertTensorDevice, cloudViewer::core::kernel::BinaryEW(), cloudViewer::core::Bool, cloudViewer::core::shape_util::BroadcastedShape(), GetDevice(), cloudViewer::core::kernel::LogicalOr, and shape_.

Referenced by LogicalOr(), and operator||().

◆ LogicalOr() [2/2]

Tensor cloudViewer::core::Tensor::LogicalOr ( Scalar value ) const

Definition at line 1497 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), LogicalOr(), and cloudViewer::core::Scalar::To().

◆ LogicalOr_() [1/2]

Tensor cloudViewer::core::Tensor::LogicalOr_ ( const Tensor & value )

Element-wise logical or of tensors, in-place. This operation won't change the tensor's dtype.

If the tensor is not boolean, 0 will be treated as False, while non-zero will be treated as True. The tensor will be filled with 0 or 1 casted to the tensor's dtype.

Definition at line 1506 of file Tensor.cpp.

References AssertTensorDevice, cloudViewer::core::kernel::BinaryEW(), GetDevice(), and cloudViewer::core::kernel::LogicalOr.

Referenced by LogicalOr_().

◆ LogicalOr_() [2/2]

Tensor cloudViewer::core::Tensor::LogicalOr_ ( Scalar value )

Definition at line 1513 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), LogicalOr_(), and cloudViewer::core::Scalar::To().

◆ LogicalXor() [1/2]

Tensor cloudViewer::core::Tensor::LogicalXor ( const Tensor & value ) const

Element-wise logical exclusive-or of tensors, returning a new boolean tensor.

If the tensor is not boolean, zero will be treated as False, while non-zero values will be treated as True.

Definition at line 1520 of file Tensor.cpp.

References AssertTensorDevice, cloudViewer::core::kernel::BinaryEW(), cloudViewer::core::Bool, cloudViewer::core::shape_util::BroadcastedShape(), GetDevice(), cloudViewer::core::kernel::LogicalXor, and shape_.

Referenced by LogicalXor(), and cloudViewer::core::MakeOperation().

◆ LogicalXor() [2/2]

Tensor cloudViewer::core::Tensor::LogicalXor ( Scalar value ) const

Definition at line 1530 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), LogicalXor(), and cloudViewer::core::Scalar::To().

◆ LogicalXor_() [1/2]

Tensor cloudViewer::core::Tensor::LogicalXor_ ( const Tensor & value )

Element-wise logical exclusive-or of tensors, in-place. This operation won't change the tensor's dtype.

If the tensor is not boolean, zero will be treated as False, while non-zero values will be treated as True. The tensor will be filled with 0 or 1 casted to the tensor's dtype.

Definition at line 1539 of file Tensor.cpp.

References AssertTensorDevice, cloudViewer::core::kernel::BinaryEW(), GetDevice(), and cloudViewer::core::kernel::LogicalXor.

Referenced by LogicalXor_().

◆ LogicalXor_() [2/2]

Tensor cloudViewer::core::Tensor::LogicalXor_ ( Scalar value )

Definition at line 1546 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), LogicalXor_(), and cloudViewer::core::Scalar::To().

◆ Lt() [1/2]

Tensor cloudViewer::core::Tensor::Lt ( const Tensor & value ) const

Element-wise less-than of tensors, returning a new boolean tensor.

Definition at line 1586 of file Tensor.cpp.

References AssertTensorDevice, cloudViewer::core::kernel::BinaryEW(), cloudViewer::core::Bool, cloudViewer::core::shape_util::BroadcastedShape(), GetDevice(), cloudViewer::core::kernel::Lt, and shape_.

Referenced by Clip_(), Lt(), and operator<().

◆ Lt() [2/2]

Tensor cloudViewer::core::Tensor::Lt ( Scalar value ) const

Definition at line 1595 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), Lt(), and cloudViewer::core::Scalar::To().

◆ Lt_() [1/2]

Tensor cloudViewer::core::Tensor::Lt_ ( const Tensor & value )

Element-wise less-than of tensors, in-place. This operation won't change the tensor's dtype.

Definition at line 1604 of file Tensor.cpp.

References AssertTensorDevice, cloudViewer::core::kernel::BinaryEW(), GetDevice(), and cloudViewer::core::kernel::Lt.

Referenced by Lt_().

◆ Lt_() [2/2]

Tensor cloudViewer::core::Tensor::Lt_ ( Scalar value )

Definition at line 1611 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), Lt_(), and cloudViewer::core::Scalar::To().

◆ LU()

std::tuple< Tensor, Tensor, Tensor > cloudViewer::core::Tensor::LU ( const bool permute_l = false ) const

Computes LU factorisation of the 2D square tensor, using A = P * L * U; where P is the permutation matrix, L is the lower-triangular matrix with diagonal elements as 1.0 and U is the upper-triangular matrix, and returns tuple (P, L, U).

Parameters

permute_l [optional input] If true: returns L as P * L.

Returns: Tuple (P, L, U).

Definition at line 1948 of file Tensor.cpp.

References AssertTensorDtypes, cloudViewer::core::Float32, cloudViewer::core::Float64, and cloudViewer::core::LU().

◆ LUIpiv()

std::tuple< Tensor, Tensor > cloudViewer::core::Tensor::LUIpiv ( ) const

Computes LU factorisation of the 2D square tensor, using A = P * L * U; where P is the permutation matrix, L is the lower-triangular matrix with diagonal elements as 1.0 and U is the upper-triangular matrix, and returns tuple output tensor of shape {n,n} and ipiv tensor of shape {n}, where {n,n} is the shape of input tensor. [ipiv, output = cloudViewer.core.lu_ipiv(a)].

Returns: Tuple {ipiv, output}. Where ipiv is a 1D integer pivort indices tensor. It contains the pivot indices, indicating row i of the matrix was interchanged with row ipiv(i)); and output it has L as lower triangular values and U as upper triangle values including the main diagonal (diagonal elements of L to be taken as unity).

Definition at line 1956 of file Tensor.cpp.

References AssertTensorDtypes, cloudViewer::core::Float32, cloudViewer::core::Float64, and cloudViewer::core::LUIpiv().

Referenced by cloudViewer::core::pybind_core_tensor().

◆ Matmul()

Tensor cloudViewer::core::Tensor::Matmul ( const Tensor & rhs ) const

Computes matrix multiplication with *this and rhs and returns the result.

Definition at line 1919 of file Tensor.cpp.

References AssertTensorDevice, AssertTensorDtype, GetDevice(), GetDtype(), and cloudViewer::core::Matmul().

Referenced by cloudViewer::t::pipelines::kernel::ComputeRtPointToPoint(), cloudViewer::t::pipelines::kernel::ComputeRtPointToPointCPU(), cloudViewer::t::geometry::CreatePointCloudWithNormals(), cloudViewer::t::pipelines::registration::DoSingleScaleICPIterations(), cloudViewer::t::pipelines::slac::FillInRigidAlignmentTerm(), cloudViewer::t::pipelines::slac::FillInSLACAlignmentTerm(), cloudViewer::t::geometry::npp::FilterGaussian(), cloudViewer::t::geometry::OrientedBoundingBox::GetBoxPoints(), cloudViewer::t::pipelines::slac::GetCorrespondenceSetForPointCloudPair(), cloudViewer::core::MatmulAB(), cloudViewer::core::OutputToPLU(), cloudViewer::core::pybind_core_tensor(), cloudViewer::t::geometry::OrientedBoundingBox::Rotate(), and cloudViewer::t::pipelines::slac::UpdatePoses().

◆ Max()

Tensor cloudViewer::core::Tensor::Max	(	const SizeVector &	dims,
		bool	keepdim = `false`
	)		const

Returns max of the tensor along the given dims.

Parameters

dims	A list of dimensions to be reduced.
keepdim	If true, the reduced dims will be retained as size 1.

Definition at line 1275 of file Tensor.cpp.

References dtype_, GetDevice(), cloudViewer::core::kernel::Max, cloudViewer::core::kernel::Reduction(), cloudViewer::core::shape_util::ReductionShape(), and shape_.

Referenced by cloudViewer::t::geometry::ComputeMetricsCommon(), cloudViewer::t::geometry::OrientedBoundingBox::GetMaxBound(), cloudViewer::t::geometry::LineSet::GetMaxBound(), cloudViewer::t::geometry::PointCloud::GetMaxBound(), cloudViewer::t::geometry::TriangleMesh::GetMaxBound(), and cloudViewer::t::geometry::AxisAlignedBoundingBox::GetMaxExtent().

◆ Mean()

Tensor cloudViewer::core::Tensor::Mean	(	const SizeVector &	dims,
		bool	keepdim = `false`
	)		const

Returns the mean of the tensor along the given dims.

Parameters

dims	A list of dimensions to be reduced.
keepdim	If true, the reduced dims will be retained as size 1.

Definition at line 1247 of file Tensor.cpp.

References AssertTensorDtypes, cloudViewer::core::Float32, cloudViewer::core::Float64, LogWarning, and NumElements().

Referenced by cloudViewer::t::pipelines::registration::TransformationEstimationForColoredICP::ComputeRMSE(), cloudViewer::t::pipelines::kernel::ComputeRtPointToPoint(), cloudViewer::t::geometry::LineSet::GetCenter(), cloudViewer::t::geometry::PointCloud::GetCenter(), cloudViewer::t::geometry::TriangleMesh::GetCenter(), and cloudViewer::t::geometry::PointCloud::RemoveStatisticalOutliers().

◆ Min()

Tensor cloudViewer::core::Tensor::Min	(	const SizeVector &	dims,
		bool	keepdim = `false`
	)		const

Returns min of the tensor along the given dims.

Parameters

dims	A list of dimensions to be reduced.
keepdim	If true, the reduced dims will be retained as size 1.

Definition at line 1268 of file Tensor.cpp.

References dtype_, GetDevice(), cloudViewer::core::kernel::Min, cloudViewer::core::kernel::Reduction(), cloudViewer::core::shape_util::ReductionShape(), and shape_.

Referenced by cloudViewer::t::geometry::OrientedBoundingBox::GetMinBound(), cloudViewer::t::geometry::LineSet::GetMinBound(), cloudViewer::t::geometry::PointCloud::GetMinBound(), cloudViewer::t::geometry::TriangleMesh::GetMinBound(), and cloudViewer::t::geometry::OrientedBoundingBox::SetExtent().

◆ Mul() [1/2]

Tensor cloudViewer::core::Tensor::Mul ( const Tensor & value ) const

Multiplies a tensor and returns the resulting tensor.

Definition at line 1169 of file Tensor.cpp.

References AssertTensorDevice, AssertTensorDtype, cloudViewer::core::kernel::BinaryEW(), cloudViewer::core::shape_util::BroadcastedShape(), dtype_, GetDevice(), GetDtype(), cloudViewer::core::kernel::Mul, and shape_.

Referenced by cloudViewer::t::pipelines::registration::TransformationEstimationForColoredICP::ComputeRMSE(), cloudViewer::t::io::ConvertColorTensorToUint8(), cloudViewer::t::geometry::AxisAlignedBoundingBox::GetBoxPoints(), Mul(), and operator*().

◆ Mul() [2/2]

Tensor cloudViewer::core::Tensor::Mul ( Scalar value ) const

Definition at line 1180 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), Mul(), and cloudViewer::core::Scalar::To().

◆ Mul_() [1/2]

Tensor cloudViewer::core::Tensor::Mul_ ( const Tensor & value )

Inplace version of Tensor::Mul. Multiplies a tensor to the current tensor and returns the current tensor.

Definition at line 1189 of file Tensor.cpp.

References AssertTensorDevice, AssertTensorDtype, cloudViewer::core::kernel::BinaryEW(), GetDevice(), GetDtype(), and cloudViewer::core::kernel::Mul.

Referenced by cloudViewer::t::pipelines::registration::TransformationEstimationPointToPoint::ComputeRMSE(), cloudViewer::t::pipelines::registration::TransformationEstimationPointToPlane::ComputeRMSE(), cloudViewer::t::pipelines::registration::TransformationEstimationForDopplerICP::ComputeRMSE(), Mul_(), operator*=(), cloudViewer::t::geometry::LineSet::Scale(), cloudViewer::t::geometry::PointCloud::Scale(), and cloudViewer::t::geometry::TriangleMesh::Scale().

◆ Mul_() [2/2]

Tensor cloudViewer::core::Tensor::Mul_ ( Scalar value )

Definition at line 1198 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), Mul_(), and cloudViewer::core::Scalar::To().

◆ Ne() [1/2]

Tensor cloudViewer::core::Tensor::Ne ( const Tensor & value ) const

Element-wise not-equals-to of tensors, returning a new boolean tensor.

Definition at line 1714 of file Tensor.cpp.

References AssertTensorDevice, cloudViewer::core::kernel::BinaryEW(), cloudViewer::core::Bool, cloudViewer::core::shape_util::BroadcastedShape(), GetDevice(), cloudViewer::core::kernel::Ne, and shape_.

Referenced by cloudViewer::t::pipelines::registration::TransformationEstimationPointToPoint::ComputeRMSE(), cloudViewer::t::pipelines::registration::TransformationEstimationPointToPlane::ComputeRMSE(), cloudViewer::t::pipelines::registration::TransformationEstimationForColoredICP::ComputeRMSE(), cloudViewer::t::pipelines::registration::TransformationEstimationForDopplerICP::ComputeRMSE(), cloudViewer::t::pipelines::kernel::ComputeRtPointToPoint(), cloudViewer::t::pipelines::slac::ConvertCorrespondencesTargetIndexedToCx2Form(), Ne(), and operator!=().

◆ Ne() [2/2]

Tensor cloudViewer::core::Tensor::Ne ( Scalar value ) const

Definition at line 1723 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), Ne(), and cloudViewer::core::Scalar::To().

◆ Ne_() [1/2]

Tensor cloudViewer::core::Tensor::Ne_ ( const Tensor & value )

Element-wise equals-to of tensors, in-place. This operation won't change the tensor's dtype.

Definition at line 1732 of file Tensor.cpp.

References AssertTensorDevice, cloudViewer::core::kernel::BinaryEW(), GetDevice(), and cloudViewer::core::kernel::Ne.

Referenced by Ne_().

◆ Ne_() [2/2]

Tensor cloudViewer::core::Tensor::Ne_ ( Scalar value )

Definition at line 1739 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), Ne_(), and cloudViewer::core::Scalar::To().

◆ Neg()

Tensor cloudViewer::core::Tensor::Neg ( ) const

Element-wise negation of a tensor, returning a new tensor.

Definition at line 1329 of file Tensor.cpp.

References dtype_, GetDevice(), cloudViewer::core::kernel::Neg, shape_, and cloudViewer::core::kernel::UnaryEW().

Referenced by cloudViewer::t::pipelines::kernel::ComputePoseDopplerICP(), cloudViewer::core::MakeOperation(), operator-(), and cloudViewer::core::pybind_core_tensor().

◆ Neg_()

Tensor cloudViewer::core::Tensor::Neg_ ( )

Element-wise negation of a tensor, in-place.

Definition at line 1335 of file Tensor.cpp.

References cloudViewer::core::kernel::Neg, and cloudViewer::core::kernel::UnaryEW().

Referenced by cloudViewer::t::geometry::ipp::FilterSobel(), cloudViewer::t::geometry::npp::FilterSobel(), and cloudViewer::core::pybind_core_tensor().

◆ NonZero()

Tensor cloudViewer::core::Tensor::NonZero ( ) const

Find the indices of the elements that are non-zero. Returns an int64 tensor of shape {num_dims, num_non_zeros}, where the i-th row contains the indices of the non-zero elements in i-th dimension of the original tensor.

Definition at line 1755 of file Tensor.cpp.

References cloudViewer::core::kernel::NonZero().

Referenced by cloudViewer::t::pipelines::registration::ComputeFPFHFeature(), and cloudViewer::t::pipelines::kernel::ComputeFPFHFeatureCPU().

◆ NonZeroNumpy()

std::vector< Tensor > cloudViewer::core::Tensor::NonZeroNumpy ( ) const

Find the indices of the elements that are non-zero. Returns a vector of int64 Tensors, each containing the indices of the non-zero elements in each dimension.

Definition at line 1746 of file Tensor.cpp.

References Clone(), cloudViewer::core::kernel::NonZero(), NumDims(), and result.

◆ NumDims()

int64_t cloudViewer::core::Tensor::NumDims ( ) const

inline

Definition at line 1172 of file Tensor.h.

References shape_, and cloudViewer::core::SmallVectorBase< Size_T >::size().

◆ NumElements()

int64_t cloudViewer::core::Tensor::NumElements ( ) const

inline

Definition at line 1170 of file Tensor.h.

References cloudViewer::core::SizeVector::NumElements(), and shape_.

◆ Ones()

Tensor cloudViewer::core::Tensor::Ones	(	const SizeVector &	shape,
		Dtype	dtype,
		const Device &	device = `Device("CPU:0")`
	)

static

Create a tensor fill with ones.

Definition at line 412 of file Tensor.cpp.

References Full().

Referenced by cloudViewer::t::geometry::AxisAlignedBoundingBox::Clear(), cloudViewer::t::geometry::OrientedBoundingBox::Clear(), cloudViewer::t::pipelines::registration::ComputeFPFHFeature(), cloudViewer::t::geometry::ipp::Dilate(), cloudViewer::t::geometry::npp::Dilate(), IsFinite(), cloudViewer::core::MatmulAB(), cloudViewer::core::pybind_core_tensor(), cloudViewer::t::pipelines::slac::RunRigidOptimizerForFragments(), cloudViewer::t::pipelines::slac::RunSLACOptimizerForFragments(), and cloudViewer::t::geometry::PointCloud::VoxelDownSample().

◆ operator!=()

Tensor cloudViewer::core::Tensor::operator!= ( const Tensor & value ) const

inline

Definition at line 922 of file Tensor.h.

References Ne().

◆ operator&&()

Tensor cloudViewer::core::Tensor::operator&& ( const Tensor & value ) const

inline

Definition at line 822 of file Tensor.h.

References LogicalAnd().

◆ operator*() [1/2]

Tensor cloudViewer::core::Tensor::operator* ( const Tensor & value ) const

inline

Definition at line 659 of file Tensor.h.

References Mul().

◆ operator*() [2/2]

Tensor cloudViewer::core::Tensor::operator* ( Scalar value ) const

inline

Definition at line 660 of file Tensor.h.

References Mul().

◆ operator*=() [1/2]

Tensor cloudViewer::core::Tensor::operator*= ( const Tensor & value )

inline

Definition at line 666 of file Tensor.h.

References Mul_().

◆ operator*=() [2/2]

Tensor cloudViewer::core::Tensor::operator*= ( Scalar value )

inline

Definition at line 667 of file Tensor.h.

References Mul_().

◆ operator+() [1/2]

Tensor cloudViewer::core::Tensor::operator+ ( const Tensor & value ) const

inline

Definition at line 633 of file Tensor.h.

References Add().

◆ operator+() [2/2]

Tensor cloudViewer::core::Tensor::operator+ ( Scalar value ) const

inline

Definition at line 634 of file Tensor.h.

References Add().

◆ operator+=() [1/2]

Tensor cloudViewer::core::Tensor::operator+= ( const Tensor & value )

inline

Definition at line 640 of file Tensor.h.

References Add_().

◆ operator+=() [2/2]

Tensor cloudViewer::core::Tensor::operator+= ( Scalar value )

inline

Definition at line 641 of file Tensor.h.

References Add_().

◆ operator-() [1/3]

Tensor cloudViewer::core::Tensor::operator- ( ) const

inline

Unary minus of a tensor, returning a new tensor.

Definition at line 752 of file Tensor.h.

References Neg().

◆ operator-() [2/3]

Tensor cloudViewer::core::Tensor::operator- ( const Tensor & value ) const

inline

Definition at line 646 of file Tensor.h.

References Sub().

◆ operator-() [3/3]

Tensor cloudViewer::core::Tensor::operator- ( Scalar value ) const

inline

Definition at line 647 of file Tensor.h.

References Sub().

◆ operator-=() [1/2]

Tensor cloudViewer::core::Tensor::operator-= ( const Tensor & value )

inline

Definition at line 653 of file Tensor.h.

References Sub_().

◆ operator-=() [2/2]

Tensor cloudViewer::core::Tensor::operator-= ( Scalar value )

inline

Definition at line 654 of file Tensor.h.

References Sub_().

◆ operator/() [1/2]

Tensor cloudViewer::core::Tensor::operator/ ( const Tensor & value ) const

inline

Definition at line 672 of file Tensor.h.

References Div().

◆ operator/() [2/2]

Tensor cloudViewer::core::Tensor::operator/ ( Scalar value ) const

inline

Definition at line 673 of file Tensor.h.

References Div().

◆ operator/=() [1/2]

Tensor cloudViewer::core::Tensor::operator/= ( const Tensor & value )

inline

Definition at line 679 of file Tensor.h.

References Div_().

◆ operator/=() [2/2]

Tensor cloudViewer::core::Tensor::operator/= ( Scalar value )

inline

Definition at line 680 of file Tensor.h.

References Div_().

◆ operator<()

Tensor cloudViewer::core::Tensor::operator< ( const Tensor & value ) const

inline

Definition at line 880 of file Tensor.h.

References Lt().

◆ operator<=()

Tensor cloudViewer::core::Tensor::operator<= ( const Tensor & value ) const

inline

Definition at line 902 of file Tensor.h.

References Le().

◆ operator=() [1/5]

template<typename T >

Tensor& cloudViewer::core::Tensor::operator= ( const T v ) &&

inline

Tensor assignment rvalue = scalar, e.g. tensor_a[0] = 100 Implicit casting is performed to the underlying dtype.

Note that we don't have lvalue = scalar, e.g. we don't support Tensor a_slice = tensor_a[0]; a_slice = 100;

Definition at line 205 of file Tensor.h.

References Fill().

◆ operator=() [2/5]

Tensor & cloudViewer::core::Tensor::operator= ( const Tensor & other ) &

Tensor assignment lvalue = lvalue, e.g. tensor_a = tensor_b. This results in a "shallow" copy.

Definition at line 355 of file Tensor.cpp.

References blob_, data_ptr_, dtype_, shape_, and strides_.

◆ operator=() [3/5]

Tensor & cloudViewer::core::Tensor::operator= ( const Tensor & other ) &&

Tensor assignment rvalue = lvalue, e.g. tensor_a[0] = tensor_b.

Tensor assignment rvalue = lvalue, e.g. tensor_a[0] = tensor_b. An actual copy of the data will be performed.

Definition at line 377 of file Tensor.cpp.

References cloudViewer::core::kernel::Copy().

◆ operator=() [4/5]

Tensor & cloudViewer::core::Tensor::operator= ( Tensor && other ) &

Tensor assignment lvalue = rvalue, e.g. tensor_a = tensor_b[0]. This results in a "shallow" copy.

Definition at line 367 of file Tensor.cpp.

References blob_, data_ptr_, dtype_, shape_, and strides_.

◆ operator=() [5/5]

Tensor & cloudViewer::core::Tensor::operator= ( Tensor && other ) &&

Tensor assignment rvalue = rvalue, e.g. tensor_a[0] = tensor_b[0].

Tensor assignment rvalue = rvalue, e.g. tensor_a[0] = tensor_b[0]. An actual copy of the data will be performed.

Definition at line 383 of file Tensor.cpp.

References cloudViewer::core::kernel::Copy().

◆ operator==()

Tensor cloudViewer::core::Tensor::operator== ( const Tensor & value ) const

inline

Definition at line 912 of file Tensor.h.

References Eq().

◆ operator>()

Tensor cloudViewer::core::Tensor::operator> ( const Tensor & value ) const

inline

Definition at line 870 of file Tensor.h.

References Gt().

◆ operator>=()

Tensor cloudViewer::core::Tensor::operator>= ( const Tensor & value ) const

inline

Definition at line 891 of file Tensor.h.

References Ge().

◆ operator[]()

Tensor cloudViewer::core::Tensor::operator[] ( int64_t i ) const

Extract the i-th Tensor along the first axis, returning a new view.

Definition at line 839 of file Tensor.cpp.

References IndexExtract().

Referenced by ToString().

◆ operator||()

Tensor cloudViewer::core::Tensor::operator|| ( const Tensor & value ) const

inline

Definition at line 839 of file Tensor.h.

References LogicalOr().

◆ Permute()

Tensor cloudViewer::core::Tensor::Permute ( const SizeVector & dims ) const

Permute (dimension shuffle) the Tensor, returns a view.

Parameters

dims	The desired ordering of dimensions.

Returns: A Tensor with the desired ordering of the dimensions.

Definition at line 1028 of file Tensor.cpp.

References AsStrided(), LogError, NumDims(), shape_, cloudViewer::core::SmallVectorBase< Size_T >::size(), strides_, and cloudViewer::core::shape_util::WrapDim().

Referenced by cloudViewer::core::kernel::IndexAdd_(), cloudViewer::t::geometry::TriangleMesh::ProjectImagesToAlbedo(), cloudViewer::core::AdvancedIndexPreprocessor::ShuffleIndexedDimsToFront(), and Transpose().

◆ Prod()

Tensor cloudViewer::core::Tensor::Prod	(	const SizeVector &	dims,
		bool	keepdim = `false`
	)		const

Returns the product of the tensor along the given dims.

Parameters

dims	A list of dimensions to be reduced.
keepdim	If true, the reduced dims will be retained as size 1.

Definition at line 1261 of file Tensor.cpp.

References dtype_, GetDevice(), cloudViewer::core::kernel::Prod, cloudViewer::core::kernel::Reduction(), cloudViewer::core::shape_util::ReductionShape(), and shape_.

Referenced by cloudViewer::t::geometry::AxisAlignedBoundingBox::Volume(), and cloudViewer::t::geometry::OrientedBoundingBox::Volume().

◆ ReinterpretCast()

Tensor cloudViewer::core::Tensor::ReinterpretCast ( const core::Dtype & dtype ) const

Tensor reinterpret cast operator. It changes the tensor's dtype without changing the underlying memory blob itself. The byte-size of dtype must be same as the original dtype before casting.

Definition at line 388 of file Tensor.cpp.

References blob_, cloudViewer::core::Dtype::ByteSize(), data_ptr_, dtype_, LogError, shape_, strides_, Tensor(), and cloudViewer::core::Dtype::ToString().

Referenced by cloudViewer::t::geometry::PointCloud::RemoveDuplicatedPoints(), and cloudViewer::t::geometry::Image::Resize().

◆ Reshape()

Tensor cloudViewer::core::Tensor::Reshape ( const SizeVector & dst_shape ) const

Returns a tensor with the same data and number of elements as input, but with the specified shape. When possible, the returned tensor will be a view of input. Otherwise, it will be a copy.

Contiguous inputs and inputs with compatible strides can be reshaped without copying, but you should not depend on the copying vs. viewing behavior.

Ref:

https://pytorch.org/docs/stable/tensors.html
aten/src/ATen/native/TensorShape.cpp
aten/src/ATen/TensorUtils.cpp

Definition at line 671 of file Tensor.cpp.

References AsStrided(), Contiguous(), cloudViewer::core::shape_util::InferShape(), NumElements(), cloudViewer::core::shape_util::Restride(), shape_, strides_, and View().

◆ Reverse()

Tensor cloudViewer::core::Tensor::Reverse ( ) const

Reverse a Tensor's elements by viewing the tensor as a 1D array.

Definition at line 465 of file Tensor.cpp.

References Arange(), GetShape(), IndexGet(), NumElements(), and View().

Referenced by cloudViewer::t::geometry::npp::Filter().

◆ Round()

Tensor cloudViewer::core::Tensor::Round ( ) const

Element-wise round value of a tensor, returning a new tensor.

Definition at line 1423 of file Tensor.cpp.

References dtype_, GetDevice(), cloudViewer::core::kernel::Round, shape_, and cloudViewer::core::kernel::UnaryEW().

Referenced by cloudViewer::t::io::ConvertColorTensorToUint8(), cloudViewer::core::MakeOperation(), and cloudViewer::core::pybind_core_tensor().

◆ Save()

void cloudViewer::core::Tensor::Save ( const std::string & file_name ) const

Save tensor to numpy's npy format.

Definition at line 1877 of file Tensor.cpp.

References cloudViewer::t::io::WriteNpy().

Referenced by cloudViewer::core::pybind_core_tensor(), and cloudViewer::t::pipelines::slac::SaveCorrespondencesForPointClouds().

◆ ScalarPtrToString()

std::string cloudViewer::core::Tensor::ScalarPtrToString ( const void * ptr ) const

protected

Definition at line 825 of file Tensor.cpp.

References cloudViewer::core::Bool, DISPATCH_DTYPE_TO_TEMPLATE, dtype_, format, and cloudViewer::core::Dtype::IsObject().

Referenced by ToString().

◆ SetItem() [1/3]

Tensor cloudViewer::core::Tensor::SetItem	(	const std::vector< TensorKey > &	tks,
		const Tensor &	value
	)

Pythonic setitem for tensor.

For example, in numpy:

t = np.empty((4, 5), dtype=np.float32)

t[2, 0:4:2] = np.empty((2, 5), dtype=np.float32)

The equivalent CloudViewer C++ calls:

Tensor t({4, 5}, core::Float32);
t.SetItem({TensorIndex(2), TensorSlice(0, 4, 2)},
          Tensor({2, 5}, core::Float32));

Definition at line 578 of file Tensor.cpp.

References GetDevice(), cloudViewer::core::TensorKey::GetIndex(), cloudViewer::core::TensorKey::GetIndexTensor(), GetItem(), cloudViewer::core::TensorKey::GetMode(), cloudViewer::core::TensorKey::Index, IndexSet(), cloudViewer::core::TensorKey::IndexTensor, cloudViewer::core::Int64, LogError, cloudViewer::core::None, cloudViewer::core::TensorKey::Slice(), and Tensor().

◆ SetItem() [2/3]

Tensor cloudViewer::core::Tensor::SetItem ( const Tensor & value )

Set all items. Equivalent to tensor[:] = value in Python.

Definition at line 564 of file Tensor.cpp.

References AsRvalue().

Referenced by cloudViewer::t::geometry::PointCloud::Append(), Clip_(), cloudViewer::core::ConcatenateImpl(), cloudViewer::t::pipelines::slac::ConvertCorrespondencesTargetIndexedToCx2Form(), cloudViewer::t::pipelines::kernel::PoseToTransformation(), cloudViewer::t::pipelines::kernel::RtToTransformation(), cloudViewer::t::geometry::PointCloud::SelectByIndex(), and cloudViewer::t::pipelines::kernel::TransformationToPose().

◆ SetItem() [3/3]

Tensor cloudViewer::core::Tensor::SetItem	(	const TensorKey &	tk,
		const Tensor &	value
	)

Pythonic setitem for tensor.

For example, in numpy:

t = np.empty((4, 5), dtype=np.float32)
t[2] = np.empty((5,), dtype=np.float32)
t[0:4:2] = np.empty((2, 5), dtype=np.float32)

The equivalent CloudViewer C++ calls:

Tensor t({4, 5}, core::Float32);
t.SetItem(TensorIndex(2), Tensor({5}, core::Float32));
t.SetItem(TensorSlice(0, 4, 2), Tensor({2, 5}, core::Float32));

Definition at line 569 of file Tensor.cpp.

References cloudViewer::core::TensorKey::GetIndexTensor(), GetItem(), cloudViewer::core::TensorKey::GetMode(), IndexSet(), and cloudViewer::core::TensorKey::IndexTensor.

◆ Sin()

Tensor cloudViewer::core::Tensor::Sin ( ) const

Element-wise sine of a tensor, returning a new tensor.

Definition at line 1307 of file Tensor.cpp.

References dtype_, GetDevice(), shape_, cloudViewer::core::kernel::Sin, and cloudViewer::core::kernel::UnaryEW().

Referenced by cloudViewer::core::MakeOperation(), and cloudViewer::core::pybind_core_tensor().

◆ Sin_()

Tensor cloudViewer::core::Tensor::Sin_ ( )

Element-wise sine of a tensor, in-place.

Definition at line 1313 of file Tensor.cpp.

References cloudViewer::core::kernel::Sin, and cloudViewer::core::kernel::UnaryEW().

Referenced by cloudViewer::core::pybind_core_tensor().

◆ Slice()

Tensor cloudViewer::core::Tensor::Slice	(	int64_t	dim,
		int64_t	start,
		int64_t	stop,
		int64_t	step = `1`
	)		const

Slice Tensor.

Parameters

dim	The dimension to slice.
start	The start index (inclusive).
stop	The end index (exclusive).
step	Pick one element for every `step` elements.

Definition at line 857 of file Tensor.cpp.

References blob_, cloudViewer::core::Dtype::ByteSize(), data_ptr_, dtype_, LogError, NumDims(), shape_, cloudViewer::core::SmallVectorBase< Size_T >::size(), strides_, Tensor(), and cloudViewer::core::shape_util::WrapDim().

Referenced by cloudViewer::core::TensorList::AsTensor(), cloudViewer::visualization::rendering::TMeshBuffersBuilder::ConstructBuffers(), cloudViewer::t::geometry::LineSet::CreateCameraVisualization(), cloudViewer::core::TensorList::Extend(), cloudViewer::t::pipelines::slac::FillInSLACAlignmentTerm(), cloudViewer::core::TensorList::FromTensor(), GetItem(), cloudViewer::core::LeastSquares(), cloudViewer::core::LU(), cloudViewer::t::geometry::TriangleMesh::ProjectImagesToAlbedo(), cloudViewer::ml::contrib::RadiusSearch(), cloudViewer::t::geometry::PointCloud::RemoveRadiusOutliers(), cloudViewer::core::TensorList::Resize(), cloudViewer::core::TensorList::ResizeWithExpand(), cloudViewer::t::pipelines::slac::RunSLACOptimizerForFragments(), cloudViewer::t::pipelines::slac::UpdateControlGrid(), cloudViewer::t::pipelines::slac::VisualizeGridDeformation(), and cloudViewer::t::pipelines::slac::VisualizePointCloudEmbedding().

◆ Solve()

Tensor cloudViewer::core::Tensor::Solve ( const Tensor & rhs ) const

Solves the linear system AX = B with LU decomposition and returns X. A must be a square matrix.

Definition at line 1928 of file Tensor.cpp.

References AssertTensorDevice, AssertTensorDtype, AssertTensorDtypes, cloudViewer::core::Float32, cloudViewer::core::Float64, GetDevice(), GetDtype(), and cloudViewer::core::Solve().

Referenced by cloudViewer::t::pipelines::kernel::DecodeAndSolve6x6(), cloudViewer::core::pybind_core_tensor(), cloudViewer::t::pipelines::slac::RunRigidOptimizerForFragments(), and cloudViewer::t::pipelines::slac::RunSLACOptimizerForFragments().

◆ Sqrt()

Tensor cloudViewer::core::Tensor::Sqrt ( ) const

Element-wise square root of a tensor, returns a new tensor.

Definition at line 1296 of file Tensor.cpp.

References dtype_, GetDevice(), shape_, cloudViewer::core::kernel::Sqrt, and cloudViewer::core::kernel::UnaryEW().

Referenced by cloudViewer::core::MakeOperation(), cloudViewer::core::pybind_core_tensor(), and cloudViewer::t::geometry::PointCloud::RemoveStatisticalOutliers().

◆ Sqrt_()

Tensor cloudViewer::core::Tensor::Sqrt_ ( )

Element-wise square root of a tensor, in-place.

Definition at line 1302 of file Tensor.cpp.

References cloudViewer::core::kernel::Sqrt, and cloudViewer::core::kernel::UnaryEW().

Referenced by cloudViewer::t::geometry::PointCloud::ComputeMetrics(), and cloudViewer::core::pybind_core_tensor().

◆ Sub() [1/2]

Tensor cloudViewer::core::Tensor::Sub ( const Tensor & value ) const

Substracts a tensor and returns the resulting tensor.

Definition at line 1133 of file Tensor.cpp.

References AssertTensorDevice, AssertTensorDtype, cloudViewer::core::kernel::BinaryEW(), cloudViewer::core::shape_util::BroadcastedShape(), dtype_, GetDevice(), GetDtype(), shape_, and cloudViewer::core::kernel::Sub.

Referenced by operator-(), cloudViewer::ml::contrib::RadiusSearch(), and Sub().

◆ Sub() [2/2]

Tensor cloudViewer::core::Tensor::Sub ( Scalar value ) const

Definition at line 1144 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), Sub(), and cloudViewer::core::Scalar::To().

◆ Sub_() [1/2]

Tensor cloudViewer::core::Tensor::Sub_ ( const Tensor & value )

Inplace version of Tensor::Sub. Substracts a tensor to the current tensor and returns the current tensor.

Definition at line 1153 of file Tensor.cpp.

References AssertTensorDevice, AssertTensorDtype, cloudViewer::core::kernel::BinaryEW(), GetDevice(), GetDtype(), and cloudViewer::core::kernel::Sub.

Referenced by operator-=(), cloudViewer::t::geometry::LineSet::Scale(), cloudViewer::t::geometry::PointCloud::Scale(), cloudViewer::t::geometry::TriangleMesh::Scale(), and Sub_().

◆ Sub_() [2/2]

Tensor cloudViewer::core::Tensor::Sub_ ( Scalar value )

Definition at line 1162 of file Tensor.cpp.

References DISPATCH_DTYPE_TO_TEMPLATE_WITH_BOOL, dtype_, Full(), GetDevice(), Sub_(), and cloudViewer::core::Scalar::To().

◆ Sum()

Tensor cloudViewer::core::Tensor::Sum	(	const SizeVector &	dims,
		bool	keepdim = `false`
	)		const

Returns the sum of the tensor along the given dims.

Parameters

dims	A list of dimensions to be reduced.
keepdim	If true, the reduced dims will be retained as size 1.

Definition at line 1240 of file Tensor.cpp.

References dtype_, GetDevice(), cloudViewer::core::kernel::Reduction(), cloudViewer::core::shape_util::ReductionShape(), shape_, and cloudViewer::core::kernel::Sum.

Referenced by cloudViewer::t::pipelines::registration::ComputeRegistrationResult(), cloudViewer::t::pipelines::registration::TransformationEstimationPointToPoint::ComputeRMSE(), cloudViewer::t::pipelines::registration::TransformationEstimationPointToPlane::ComputeRMSE(), cloudViewer::t::pipelines::registration::TransformationEstimationForColoredICP::ComputeRMSE(), cloudViewer::t::pipelines::registration::TransformationEstimationForDopplerICP::ComputeRMSE(), cloudViewer::t::pipelines::slac::ControlGrid::Deform(), cloudViewer::t::geometry::npp::FilterGaussian(), cloudViewer::t::pipelines::slac::GetCorrespondenceSetForPointCloudPair(), cloudViewer::t::pipelines::registration::GetInformationMatrix(), cloudViewer::t::geometry::TriangleMesh::GetSurfaceArea(), cloudViewer::ml::contrib::RadiusSearch(), cloudViewer::core::Reduction(), and cloudViewer::ml::contrib::SubsampleBatch().

◆ SVD()

std::tuple< Tensor, Tensor, Tensor > cloudViewer::core::Tensor::SVD ( ) const

Computes the matrix SVD decomposition A = U S VT and returns the result. Note VT (V transpose) is returned instead of V.

Definition at line 1990 of file Tensor.cpp.

References AssertTensorDtypes, cloudViewer::core::Float32, cloudViewer::core::Float64, and cloudViewer::core::SVD().

Referenced by cloudViewer::t::pipelines::kernel::ComputeRtPointToPoint(), cloudViewer::t::pipelines::kernel::ComputeRtPointToPointCPU(), and cloudViewer::core::pybind_core_tensor().

◆ T()

Tensor cloudViewer::core::Tensor::T ( ) const

Expects input to be <= 2-D Tensor by swapping dimension 0 and 1.

0-D and 1-D Tensor remains the same.

Definition at line 1079 of file Tensor.cpp.

References LogError, NumDims(), and Transpose().

Referenced by cloudViewer::core::AddMM(), AssertTemplateDtype(), cloudViewer::t::pipelines::kernel::ComputeRtPointToPoint(), cloudViewer::t::pipelines::kernel::ComputeRtPointToPointCPU(), cloudViewer::t::pipelines::slac::FillInSLACAlignmentTerm(), cloudViewer::t::geometry::npp::FilterGaussian(), GetDataPtr(), cloudViewer::t::pipelines::slac::ControlGrid::GetNeighborGridMap(), cloudViewer::core::Inverse(), Item(), cloudViewer::core::LeastSquares(), cloudViewer::core::LUIpiv(), cloudViewer::core::OutputToPLU(), cloudViewer::t::pipelines::slac::ControlGrid::Parameterize(), cloudViewer::core::pybind_core_tensor(), cloudViewer::t::geometry::OrientedBoundingBox::Rotate(), cloudViewer::t::geometry::OrientedBoundingBox::SetRotation(), cloudViewer::core::Solve(), and cloudViewer::core::SVD().

◆ To() [1/3]

Tensor cloudViewer::core::Tensor::To	(	const Device &	device,
		bool	copy = `false`
	)		const

Returns a tensor with the specified device.

Parameters

device	The targeted device to convert to.
copy	If true, a new tensor is always created; if false, the copy is avoided when the original tensor is already on the targeted device.

Definition at line 753 of file Tensor.cpp.

References cloudViewer::core::kernel::Copy(), copy, dtype_, GetDevice(), and shape_.

◆ To() [2/3]

Tensor cloudViewer::core::Tensor::To	(	const Device &	device,
		Dtype	dtype,
		bool	copy = `false`
	)		const

Returns a tensor with the specified device and dtype.

Parameters

device	The targeted device to convert to.
dtype	The targeted dtype to convert to.
copy	If true, a new tensor is always created; if false, the copy is avoided when the original tensor is already on the targeted device and have the targeted dtype.

Definition at line 762 of file Tensor.cpp.

References copy, and To().

◆ To() [3/3]

Tensor cloudViewer::core::Tensor::To	(	Dtype	dtype,
		bool	copy = `false`
	)		const

Returns a tensor with the specified dtype.

Parameters

dtype	The targeted dtype to convert to.
copy	If true, a new tensor is always created; if false, the copy is avoided when the original tensor already has the targeted dtype.

Definition at line 739 of file Tensor.cpp.

References cloudViewer::core::kernel::Copy(), copy, dtype_, GetDevice(), cloudViewer::core::Dtype::IsObject(), LogError, shape_, and cloudViewer::core::Dtype::ToString().

◆ ToDLPack()

DLManagedTensor * cloudViewer::core::Tensor::ToDLPack ( ) const

Convert the Tensor to DLManagedTensor (DLPack v0.x).

Definition at line 1808 of file Tensor.cpp.

References cloudViewer::core::Open3DDLManagedTensor< DLMT >::Create().

◆ ToDLPackVersioned()

DLManagedTensorVersioned * cloudViewer::core::Tensor::ToDLPackVersioned ( ) const

Convert the Tensor to DLManagedTensorVersioned (DLPack v1.x).

Definition at line 1811 of file Tensor.cpp.

References cloudViewer::core::Open3DDLManagedTensor< DLMT >::Create().

◆ ToFlatVector() [1/2]

template<typename T >

std::vector<T> cloudViewer::core::Tensor::ToFlatVector ( ) const

inline

Retrieve all values as an std::vector, for debugging and testing.

Definition at line 1025 of file Tensor.h.

References Contiguous(), GetDataPtr(), GetDevice(), GetDtype(), cloudViewer::core::MemoryManager::MemcpyToHost(), and NumElements().

Referenced by cloudViewer::ml::contrib::Subsample(), and cloudViewer::ml::contrib::SubsampleBatch().

◆ ToFlatVector() [2/2]

template<>

std::vector<bool> cloudViewer::core::Tensor::ToFlatVector ( ) const

inline

Definition at line 1371 of file Tensor.h.

References Contiguous(), GetDataPtr(), GetDevice(), GetDtype(), cloudViewer::core::MemoryManager::MemcpyToHost(), and NumElements().

◆ ToString()

std::string cloudViewer::core::Tensor::ToString	(	bool	with_suffix = `true`,
		const std::string &	indent = `""`
	)		const

◆ Transpose()

Tensor cloudViewer::core::Tensor::Transpose	(	int64_t	dim0,
		int64_t	dim1
	)		const

Transpose a Tensor by swapping dimension dim0 and dim1.

Parameters

dim0	The first dimension to be transposed.
dim1	The second dimension to be transposed.

Definition at line 1068 of file Tensor.cpp.

References cloudViewer::core::SmallVectorTemplateCommon< T, typename >::begin(), cloudViewer::core::SmallVectorTemplateCommon< T, typename >::end(), NumDims(), Permute(), and cloudViewer::core::shape_util::WrapDim().

Referenced by cloudViewer::t::geometry::kernel::pointcloud::GetPointMaskWithinOBBCPU(), and T().

◆ Tril()

Tensor cloudViewer::core::Tensor::Tril ( const int diagonal = 0 ) const

Returns the lower triangular matrix of the 2D tensor, above the given diagonal index. [The value of diagonal = col - row, therefore 0 is the main diagonal (row = col), and it shifts towards right for positive values (for diagonal = 1, col - row = 1), and towards left for negative values. The value of the diagonal parameter must be between [-m, n] where {m, n} is the shape of input tensor.

Parameters

diagonal value of [col - row], below which the elements are to be taken for lower triangular matrix.

Definition at line 1970 of file Tensor.cpp.

References cloudViewer::core::Tril().

Referenced by cloudViewer::core::pybind_core_tensor().

◆ Triu()

Tensor cloudViewer::core::Tensor::Triu ( const int diagonal = 0 ) const

Returns the upper triangular matrix of the 2D tensor, above the given diagonal index. [The value of diagonal = col - row, therefore 0 is the main diagonal (row = col), and it shifts towards right for positive values (for diagonal = 1, col - row = 1), and towards left for negative values. The value of the diagonal parameter must be between [-m, n] for a {m,n} shaped tensor.

Parameters

diagonal value of [col - row], above which the elements are to be taken for upper triangular matrix.

Definition at line 1964 of file Tensor.cpp.

References cloudViewer::core::Triu().

Referenced by cloudViewer::core::pybind_core_tensor().

◆ Triul()

std::tuple< Tensor, Tensor > cloudViewer::core::Tensor::Triul ( const int diagonal = 0 ) const

Returns the tuple of upper and lower triangular matrix of the 2D tensor, above and below the given diagonal index. The diagonal elements of lower triangular matrix are taken to be unity. [The value of diagonal = col - row, therefore 0 is the main diagonal (row = col), and it shifts towards right for positive values (for diagonal = 1, col - row = 1), and towards left for negative values. The value of the diagonal parameter must be between [-m, n] where {m, n} is the shape of input tensor.

Parameters

diagonal value of [col - row], above and below which the elements are to be taken for upper (diag. included) and lower triangular matrix.

Definition at line 1976 of file Tensor.cpp.

References cloudViewer::core::Triul().

Referenced by cloudViewer::core::pybind_core_tensor().

◆ Trunc()

Tensor cloudViewer::core::Tensor::Trunc ( ) const

Element-wise trunc value of a tensor, returning a new tensor.

Definition at line 1429 of file Tensor.cpp.

References dtype_, GetDevice(), shape_, cloudViewer::core::kernel::Trunc, and cloudViewer::core::kernel::UnaryEW().

Referenced by cloudViewer::core::MakeOperation(), and cloudViewer::core::pybind_core_tensor().

◆ View()

Tensor cloudViewer::core::Tensor::View ( const SizeVector & dst_shape ) const

Returns a new tensor view with the same data but of a different shape.

The returned tensor shares the same data and must have the same number of elements, but may have a different size. For a tensor to be viewed, the new view size must be compatible with its original size and stride, i.e., each new view dimension must either be a subspace of an original dimension, or only span across original dimensions d, d+1, ..., d+kd,d+1, ..., d+k that satisfy the following contiguity-like condition that for all i = 0, ..., k-1, strides[i] = stride[i + 1] * shape[i + 1].

Otherwise, Contiguous() needs to be called before the tensor can be viewed. See also: Reshape(), which returns a view if the shapes are compatible, and copies (equivalent to calling Contiguous()) otherwise.

Ref:

https://pytorch.org/docs/stable/tensors.html
aten/src/ATen/native/TensorShape.cpp
aten/src/ATen/TensorUtils.cpp

Definition at line 721 of file Tensor.cpp.

References AsStrided(), cloudViewer::core::shape_util::InferShape(), LogError, NumElements(), cloudViewer::core::shape_util::Restride(), shape_, and strides_.

◆ Zeros()

Tensor cloudViewer::core::Tensor::Zeros	(	const SizeVector &	shape,
		Dtype	dtype,
		const Device &	device = `Device("CPU:0")`
	)

static

Create a tensor fill with zeros.

Definition at line 406 of file Tensor.cpp.

References Full().

Member Data Documentation

◆ blob_

std::shared_ptr<Blob> cloudViewer::core::Tensor::blob_ = nullptr

protected

Underlying memory buffer for Tensor.

Definition at line 1339 of file Tensor.h.

Referenced by AsStrided(), GetBlob(), GetDevice(), IndexExtract(), IsSame(), operator=(), ReinterpretCast(), Slice(), and Tensor().

◆ data_ptr_

void* cloudViewer::core::Tensor::data_ptr_ = nullptr

protected

Data pointer pointing to the beginning element of the Tensor.

Note that this is not necessarily the same as blob_.GetDataPtr(). When this happens, it means that the beginning element of the Tensor is not located a the beginning of the underlying blob. This could happen, for instance, at slicing:

// a.GetDataPtr() == a.GetBlob().GetDataPtr()
Tensor a({2, 3}, dtype, "CPU:0");
// b.GetDataPtr() != b.GetBlob().GetDataPtr()
b = a[1];

Definition at line 1333 of file Tensor.h.

Referenced by AsStrided(), GetDataPtr(), IndexExtract(), IsSame(), Item(), operator=(), ReinterpretCast(), Slice(), Tensor(), and ToString().

◆ dtype_

Dtype cloudViewer::core::Tensor::dtype_ = core::Undefined

protected

Data type.

Definition at line 1336 of file Tensor.h.

Referenced by Abs(), Add(), Add_(), All(), Any(), AssertTemplateDtype(), AsStrided(), Broadcast(), Ceil(), Clip_(), Cos(), Div(), Div_(), EmptyLike(), Eq(), Eq_(), Exp(), Floor(), Ge(), Ge_(), GetDataPtr(), GetDtype(), Gt(), Gt_(), IndexExtract(), IndexGet(), IsFinite(), IsInf(), IsNan(), IsNonZero(), IsSame(), Le(), Le_(), LogicalAnd(), LogicalAnd_(), LogicalOr(), LogicalOr_(), LogicalXor(), LogicalXor_(), Lt(), Lt_(), Max(), Min(), Mul(), Mul_(), Ne(), Ne_(), Neg(), operator=(), Prod(), ReinterpretCast(), Round(), ScalarPtrToString(), Sin(), Slice(), Sqrt(), Sub(), Sub_(), Sum(), To(), ToString(), and Trunc().

◆ shape_

SizeVector cloudViewer::core::Tensor::shape_ = {0}

protected

SizeVector of the Tensor. shape_[i] is the length of dimension i.

Definition at line 1309 of file Tensor.h.

Referenced by Abs(), Add(), All(), AllEqual(), Any(), ArgMax(), ArgMin(), AssignObject(), Broadcast(), Ceil(), cend(), Cos(), Diag(), Div(), EmptyLike(), end(), Eq(), Exp(), Expand(), Floor(), Ge(), GetItem(), GetShape(), GetShapeRef(), Gt(), IndexExtract(), IsContiguous(), IsFinite(), IsInf(), IsNan(), IsNonZero(), IsSame(), Item(), Le(), LogicalAnd(), LogicalNot(), LogicalOr(), LogicalXor(), Lt(), Max(), Min(), Mul(), Ne(), Neg(), NumDims(), NumElements(), operator=(), Permute(), Prod(), ReinterpretCast(), Reshape(), Round(), Sin(), Slice(), Sqrt(), Sub(), Sum(), Tensor(), To(), ToString(), Trunc(), and View().

◆ strides_

SizeVector cloudViewer::core::Tensor::strides_ = {1}

protected

Stride of a Tensor. The stride of a n-dimensional tensor is also n-dimensional. Stride(i) is the number of elements (not bytes) to jump in a continuous memory space before reaching the next element in dimension i. For example, a 2x3x4 float32 dense tensor has shape(2, 3, 4) and stride(12, 4, 1). A slicing operation performed on the tensor can change the shape and stride.

Definition at line 1318 of file Tensor.h.

Referenced by Diag(), Expand(), Eye(), GetStride(), GetStrides(), GetStridesRef(), IndexExtract(), IsContiguous(), IsSame(), operator=(), Permute(), ReinterpretCast(), Reshape(), Slice(), ToString(), and View().

The documentation for this class was generated from the following files:

/root/ACloudViewer/libs/cloudViewer/core/Tensor.h
/root/ACloudViewer/libs/cloudViewer/core/Tensor.cpp

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Tensor() [1/10]

◆ Tensor() [2/10]

◆ Tensor() [3/10]

◆ Tensor() [4/10]

◆ Tensor() [5/10]

◆ Tensor() [6/10]

◆ Tensor() [7/10]

◆ Tensor() [8/10]

◆ Tensor() [9/10]

◆ Tensor() [10/10]

Member Function Documentation

◆ Abs()

◆ Abs_()

◆ Add() [1/2]

◆ Add() [2/2]

◆ Add_() [1/2]

◆ Add_() [2/2]

◆ All()

◆ AllClose()

◆ AllEqual()

◆ Any()

◆ Append()

◆ Arange()

◆ ArgMax()

◆ ArgMin()

◆ AsRvalue() [1/2]

◆ AsRvalue() [2/2]

◆ AssertTemplateDtype()

◆ AssignObject()

◆ AsStrided()

◆ begin() [1/2]

◆ begin() [2/2]

◆ Broadcast()

◆ cbegin()

◆ Ceil()

◆ cend()

◆ Clip()

◆ Clip_()

◆ Clone()

◆ Contiguous()

◆ CopyFrom()

◆ Cos()

◆ Cos_()

◆ Det()

◆ Diag()

◆ Div() [1/2]

◆ Div() [2/2]

◆ Div_() [1/2]

◆ Div_() [2/2]

◆ Empty()

◆ EmptyLike()

◆ end() [1/2]

◆ end() [2/2]

◆ Eq() [1/2]

◆ Eq() [2/2]

◆ Eq_() [1/2]

◆ Eq_() [2/2]

◆ Exp()

◆ Exp_()

◆ Expand()

◆ Eye()

◆ Fill()

◆ FillObject()

◆ Flatten()

◆ Floor()

◆ FromDLPack()

◆ FromDLPackVersioned()

◆ Full()

◆ Ge() [1/2]

◆ Ge() [2/2]

◆ Ge_() [1/2]

◆ Ge_() [2/2]

◆ GetBlob()
