Provides rect/rubber-band data selection and range zoom interaction. More...

#include <qcustomplot.h>

Inheritance diagram for QCPSelectionRect:

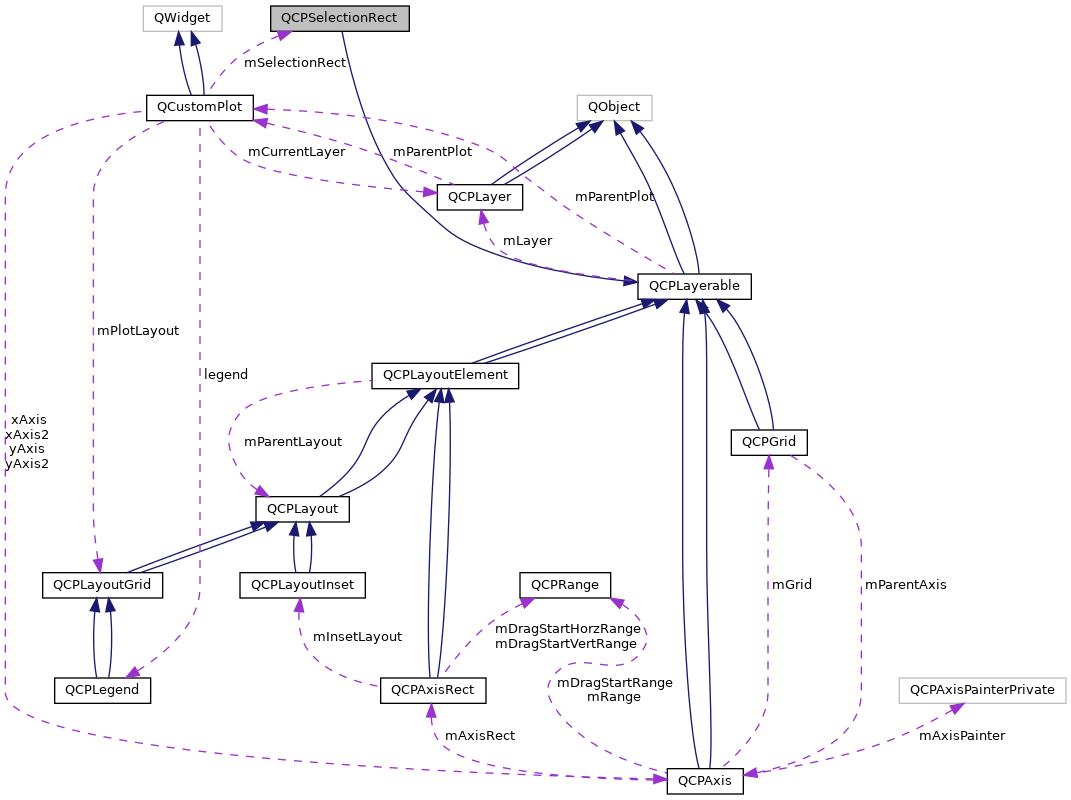

Collaboration diagram for QCPSelectionRect:

[legend]

Signals
void	started (QMouseEvent *event)

void	changed (const QRect &rect, QMouseEvent *event)

void	canceled (const QRect &rect, QInputEvent *event)

void	accepted (const QRect &rect, QMouseEvent *event)

Signals inherited from QCPLayerable
void	layerChanged (QCPLayer *newLayer)

void	layerChanged (QCPLayer *newLayer)

Public Member Functions
	QCPSelectionRect (QCustomPlot *parentPlot)

virtual	~QCPSelectionRect ()

QRect	rect () const

QCPRange	range (const QCPAxis *axis) const

QPen	pen () const

QBrush	brush () const

bool	isActive () const

void	setPen (const QPen &pen)

void	setBrush (const QBrush &brush)

Q_SLOT void	cancel ()

Public Member Functions inherited from QCPLayerable
	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)

virtual	~QCPLayerable ()

bool	visible () const

QCustomPlot *	parentPlot () const

QCPLayerable *	parentLayerable () const

QCPLayer *	layer () const

bool	antialiased () const

void	setVisible (bool on)

Q_SLOT bool	setLayer (QCPLayer *layer)

bool	setLayer (const QString &layerName)

void	setAntialiased (bool enabled)

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const

bool	realVisibility () const

	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)

	~QCPLayerable ()

bool	visible () const

QCustomPlot *	parentPlot () const

QCPLayerable *	parentLayerable () const

QCPLayer *	layer () const

bool	antialiased () const

void	setVisible (bool on)

Q_SLOT bool	setLayer (QCPLayer *layer)

bool	setLayer (const QString &layerName)

void	setAntialiased (bool enabled)

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const

bool	realVisibility () const

Protected Member Functions
virtual void	startSelection (QMouseEvent *event)

virtual void	moveSelection (QMouseEvent *event)

virtual void	endSelection (QMouseEvent *event)

virtual void	keyPressEvent (QKeyEvent *event)

virtual void	applyDefaultAntialiasingHint (QCPPainter *painter) const

virtual void	draw (QCPPainter *painter)

Protected Member Functions inherited from QCPLayerable
virtual void	parentPlotInitialized (QCustomPlot *parentPlot)

virtual QCP::Interaction	selectionCategory () const

virtual QRect	clipRect () const

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged)

virtual void	deselectEvent (bool *selectionStateChanged)

virtual void	mousePressEvent (QMouseEvent *event, const QVariant &details)

virtual void	mouseMoveEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mouseReleaseEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mouseDoubleClickEvent (QMouseEvent *event, const QVariant &details)

virtual void	wheelEvent (QWheelEvent *event)

void	initializeParentPlot (QCustomPlot *parentPlot)

void	setParentLayerable (QCPLayerable *parentLayerable)

bool	moveToLayer (QCPLayer *layer, bool prepend)

void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

virtual void	parentPlotInitialized (QCustomPlot *parentPlot)

virtual QCP::Interaction	selectionCategory () const

virtual QRect	clipRect () const

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged)

virtual void	deselectEvent (bool *selectionStateChanged)

void	initializeParentPlot (QCustomPlot *parentPlot)

void	setParentLayerable (QCPLayerable *parentLayerable)

bool	moveToLayer (QCPLayer *layer, bool prepend)

void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

Protected Attributes
QRect	mRect

QPen	mPen

QBrush	mBrush

bool	mActive

Protected Attributes inherited from QCPLayerable
bool	mVisible

QCustomPlot *	mParentPlot

QPointer< QCPLayerable >	mParentLayerable

QCPLayer *	mLayer

bool	mAntialiased

Detailed Description

Provides rect/rubber-band data selection and range zoom interaction.

QCPSelectionRect is used by QCustomPlot when the QCustomPlot::setSelectionRectMode is not QCP::srmNone. When the user drags the mouse across the plot, the current selection rect instance (QCustomPlot::setSelectionRect) is forwarded these events and makes sure an according rect shape is drawn. At the begin, during, and after completion of the interaction, it emits the corresponding signals started, changed, canceled, and accepted.

The QCustomPlot instance connects own slots to the current selection rect instance, in order to react to an accepted selection rect interaction accordingly.

isActive can be used to check whether the selection rect is currently active. An ongoing selection interaction can be cancelled programmatically via calling cancel at any time.

The appearance of the selection rect can be controlled via setPen and setBrush.

If you wish to provide custom behaviour, e.g. a different visual representation of the selection rect (QCPSelectionRect::draw), you can subclass QCPSelectionRect and pass an instance of your subclass to QCustomPlot::setSelectionRect.

Definition at line 1325 of file qcustomplot.h.

Constructor & Destructor Documentation

◆ QCPSelectionRect()

QCPSelectionRect::QCPSelectionRect ( QCustomPlot * parentPlot )

explicit

Creates a new QCPSelectionRect instance. To make QCustomPlot use the selection rect instance, pass it to QCustomPlot::setSelectionRect. parentPlot should be set to the same QCustomPlot widget.

Definition at line 2780 of file qcustomplot.cpp.

◆ ~QCPSelectionRect()

QCPSelectionRect::~QCPSelectionRect ( )

virtual

Definition at line 2786 of file qcustomplot.cpp.

References cancel().

Member Function Documentation

◆ accepted

void QCPSelectionRect::accepted	(	const QRect &	rect,
		QMouseEvent *	event
	)

signal

This signal is emitted when the selection interaction was completed by the user releasing the mouse button.

Note that rect may have a negative width or height, if the selection is being dragged to the upper or left side of the selection rect origin.

Referenced by endSelection().

◆ applyDefaultAntialiasingHint()

void QCPSelectionRect::applyDefaultAntialiasingHint ( QCPPainter * painter ) const

protectedvirtual

Implements QCPLayerable.

Definition at line 2885 of file qcustomplot.cpp.

References QCP::aeOther, QCPLayerable::applyAntialiasingHint(), and QCPLayerable::mAntialiased.

◆ brush()

QBrush QCPSelectionRect::brush ( ) const

inline

Definition at line 1335 of file qcustomplot.h.

Referenced by setBrush().

◆ cancel()

void QCPSelectionRect::cancel ( )

If there is currently a selection interaction going on (isActive), the interaction is canceled. The selection rect will emit the canceled signal.

Definition at line 2826 of file qcustomplot.cpp.

References canceled(), mActive, and mRect.

Referenced by QCustomPlot::mouseReleaseEvent(), QCustomPlot::setSelectionRectMode(), and ~QCPSelectionRect().

◆ canceled

void QCPSelectionRect::canceled	(	const QRect &	rect,
		QInputEvent *	event
	)

signal

This signal is emitted when the selection interaction was cancelled. Note that event is 0 if the selection interaction was cancelled programmatically, by a call to cancel.

The user may cancel the selection interaction by pressing the escape key. In this case, event holds the respective input event.

Note that rect may have a negative width or height, if the selection is being dragged to the upper or left side of the selection rect origin.

Referenced by cancel(), and keyPressEvent().

◆ changed

void QCPSelectionRect::changed	(	const QRect &	rect,
		QMouseEvent *	event
	)

signal

This signal is emitted while the selection rect interaction is ongoing and the rect has changed its size due to the user moving the mouse.

Note that rect may have a negative width or height, if the selection is being dragged to the upper or left side of the selection rect origin.

Referenced by moveSelection().

◆ draw()

void QCPSelectionRect::draw ( QCPPainter * painter )

protectedvirtual

Implements QCPLayerable.

Definition at line 2896 of file qcustomplot.cpp.

References mActive, mBrush, mPen, mRect, and QCPPainter::setPen().

◆ endSelection()

void QCPSelectionRect::endSelection ( QMouseEvent * event )

protectedvirtual

Definition at line 2865 of file qcustomplot.cpp.

References accepted(), event, mActive, and mRect.

Referenced by QCustomPlot::mouseReleaseEvent().

◆ isActive()

bool QCPSelectionRect::isActive ( ) const

inline

Returns true if there is currently a selection going on, i.e. the user has started dragging a selection rect, but hasn't released the mouse button yet.

See also: cancel

Definition at line 1336 of file qcustomplot.h.

Referenced by QCustomPlot::mouseMoveEvent(), and QCustomPlot::mouseReleaseEvent().

◆ keyPressEvent()

void QCPSelectionRect::keyPressEvent ( QKeyEvent * event )

protectedvirtual

Definition at line 2877 of file qcustomplot.cpp.

References canceled(), event, mActive, and mRect.

◆ moveSelection()

void QCPSelectionRect::moveSelection ( QMouseEvent * event )

protectedvirtual

Definition at line 2852 of file qcustomplot.cpp.

References changed(), event, QCPLayerable::layer(), mRect, and QCPLayer::replot().

Referenced by QCustomPlot::mouseMoveEvent().

◆ pen()

QPen QCPSelectionRect::pen ( ) const

inline

Definition at line 1334 of file qcustomplot.h.

Referenced by setPen().

◆ range()

QCPRange QCPSelectionRect::range ( const QCPAxis * axis ) const

A convenience function which returns the coordinate range of the provided axis, that this selection rect currently encompasses.

Definition at line 2792 of file qcustomplot.cpp.

References mRect, QCPAxis::orientation(), and QCPAxis::pixelToCoord().

◆ rect()

QRect QCPSelectionRect::rect ( ) const

inline

Definition at line 1332 of file qcustomplot.h.

◆ setBrush()

void QCPSelectionRect::setBrush ( const QBrush & brush )

Sets the brush that will be used to fill the selection rect. By default the selection rect is not filled, i.e. brush is Qt::NoBrush.

See also: setPen

Definition at line 2819 of file qcustomplot.cpp.

References brush(), and mBrush.

◆ setPen()

void QCPSelectionRect::setPen ( const QPen & pen )

Sets the pen that will be used to draw the selection rect outline.

See also: setBrush

Definition at line 2811 of file qcustomplot.cpp.

References mPen, and pen().

◆ started

void QCPSelectionRect::started ( QMouseEvent * event )

signal

This signal is emitted when a selection rect interaction was initiated, i.e. the user just started dragging the selection rect with the mouse.

Referenced by startSelection().

◆ startSelection()

void QCPSelectionRect::startSelection ( QMouseEvent * event )

protectedvirtual

Definition at line 2840 of file qcustomplot.cpp.

References event, mActive, mRect, and started().

Referenced by QCustomPlot::mousePressEvent().

Member Data Documentation

◆ mActive

bool QCPSelectionRect::mActive

protected

Definition at line 1357 of file qcustomplot.h.

Referenced by cancel(), draw(), endSelection(), keyPressEvent(), and startSelection().

◆ mBrush

QBrush QCPSelectionRect::mBrush

protected

Definition at line 1355 of file qcustomplot.h.

Referenced by draw(), and setBrush().

◆ mPen

QPen QCPSelectionRect::mPen

protected

Definition at line 1354 of file qcustomplot.h.

Referenced by draw(), and setPen().

◆ mRect

QRect QCPSelectionRect::mRect

protected

Definition at line 1353 of file qcustomplot.h.

Referenced by cancel(), draw(), endSelection(), keyPressEvent(), moveSelection(), range(), and startSelection().

The documentation for this class was generated from the following files:

/root/ACloudViewer/app/extern/QCustomPlot/qcustomplot.h
/root/ACloudViewer/app/extern/QCustomPlot/qcustomplot.cpp
