QCPBarsGroup Class Reference

Groups multiple QCPBars together so they appear side by side. More...

#include <qcustomplot.h>

Inheritance diagram for QCPBarsGroup:

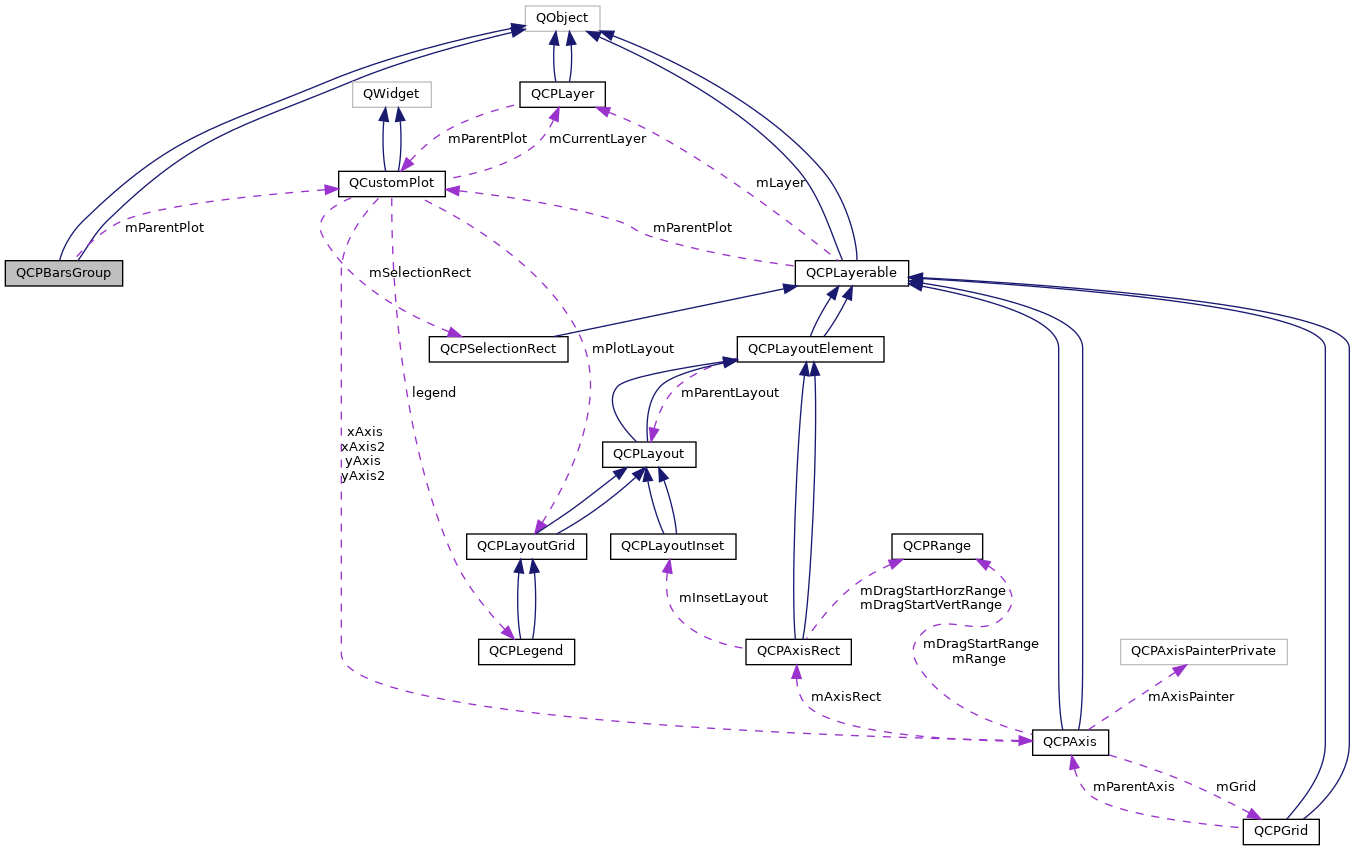

Collaboration diagram for QCPBarsGroup:

Public Types
enum	SpacingType {   stAbsolute , stAxisRectRatio , stPlotCoords , stAbsolute ,   stAxisRectRatio , stPlotCoords }
enum	SpacingType {   stAbsolute , stAxisRectRatio , stPlotCoords , stAbsolute ,   stAxisRectRatio , stPlotCoords }

Public Member Functions
	QCPBarsGroup (QCustomPlot *parentPlot)
virtual	~QCPBarsGroup ()
SpacingType	spacingType () const
double	spacing () const
void	setSpacingType (SpacingType spacingType)
void	setSpacing (double spacing)
QList< QCPBars * >	bars () const
QCPBars *	bars (int index) const
int	size () const
bool	isEmpty () const
void	clear ()
bool	contains (QCPBars *bars) const
void	append (QCPBars *bars)
void	insert (int i, QCPBars *bars)
void	remove (QCPBars *bars)
	QCPBarsGroup (QCustomPlot *parentPlot)
	~QCPBarsGroup ()
SpacingType	spacingType () const
double	spacing () const
void	setSpacingType (SpacingType spacingType)
void	setSpacing (double spacing)
QList< QCPBars * >	bars () const
QCPBars *	bars (int index) const
int	size () const
bool	isEmpty () const
void	clear ()
bool	contains (QCPBars *bars) const
void	append (QCPBars *bars)
void	insert (int i, QCPBars *bars)
void	remove (QCPBars *bars)

Protected Member Functions
void	registerBars (QCPBars *bars)
void	unregisterBars (QCPBars *bars)
double	keyPixelOffset (const QCPBars *bars, double keyCoord)
double	getPixelSpacing (const QCPBars *bars, double keyCoord)
void	registerBars (QCPBars *bars)
void	unregisterBars (QCPBars *bars)
double	keyPixelOffset (const QCPBars *bars, double keyCoord)
double	getPixelSpacing (const QCPBars *bars, double keyCoord)

Protected Attributes
QCustomPlot *	mParentPlot
SpacingType	mSpacingType
double	mSpacing
QList< QCPBars * >	mBars

Detailed Description

Groups multiple QCPBars together so they appear side by side.

When showing multiple QCPBars in one plot which have bars at identical keys, it may be desirable to have them appearing next to each other at each key. This is what adding the respective QCPBars plottables to a QCPBarsGroup achieves. (An alternative approach is to stack them on top of each other, see QCPBars::moveAbove.)

Usage

To add a QCPBars plottable to the group, create a new group and then add the respective bars intances:

Alternatively to appending to the group like shown above, you can also set the group on the QCPBars plottable via QCPBars::setBarsGroup.

The spacing between the bars can be configured via setSpacingType and setSpacing. The bars in this group appear in the plot in the order they were appended. To insert a bars plottable at a certain index position, or to reposition a bars plottable which is already in the group, use insert.

To remove specific bars from the group, use either remove or call QCPBars::setBarsGroup(0) on the respective bars plottable.

To clear the entire group, call clear, or simply delete the group.

Example

The image above is generated with the following code:

Definition at line 6345 of file qcustomplot.h.

Member Enumeration Documentation

SpacingType [1/2]

enum QCPBarsGroup::SpacingType

Defines the ways the spacing between bars in the group can be specified. Thus it defines what the number passed to setSpacing actually means.

See also

setSpacingType, setSpacing

Enumerator
stAbsolute	Bar spacing is in absolute pixels.
stAxisRectRatio	Bar spacing is given by a fraction of the axis rect size
stPlotCoords	Bar spacing is in key coordinates and thus scales with the key axis range
stAbsolute	Bar spacing is in absolute pixels.
stAxisRectRatio	Bar spacing is given by a fraction of the axis rect size
stPlotCoords	Bar spacing is in key coordinates and thus scales with the key axis range

Definition at line 6358 of file qcustomplot.h.

SpacingType [2/2]

enum QCPBarsGroup::SpacingType

Defines the ways the spacing between bars in the group can be specified. Thus it defines what the number passed to setSpacing actually means.

See also

setSpacingType, setSpacing

Enumerator
stAbsolute	Bar spacing is in absolute pixels.
stAxisRectRatio	Bar spacing is given by a fraction of the axis rect size
stPlotCoords	Bar spacing is in key coordinates and thus scales with the key axis range
stAbsolute	Bar spacing is in absolute pixels.
stAxisRectRatio	Bar spacing is given by a fraction of the axis rect size
stPlotCoords	Bar spacing is in key coordinates and thus scales with the key axis range

Definition at line 3346 of file qcustomplot.h.

Constructor & Destructor Documentation

QCPBarsGroup() [1/2]

QCPBarsGroup::QCPBarsGroup ( QCustomPlot *  parentPlot )

explicit

Constructs a new bars group for the specified QCustomPlot instance.

Definition at line 24736 of file qcustomplot.cpp.

~QCPBarsGroup() [1/2]

QCPBarsGroup::~QCPBarsGroup ( )

virtual

Definition at line 24742 of file qcustomplot.cpp.

References clear().

QCPBarsGroup() [2/2]

QCPBarsGroup::QCPBarsGroup

(

QCustomPlot *

parentPlot

)

~QCPBarsGroup() [2/2]

QCPBarsGroup::~QCPBarsGroup

(

)

Member Function Documentation

append() [1/2]

void QCPBarsGroup::append

(

QCPBars *

bars

)

Adds the specified bars plottable to this group. Alternatively, you can also use QCPBars::setBarsGroup on the bars instance.

See also

insert, remove

Definition at line 24797 of file qcustomplot.cpp.

References bars(), and mBars.

append() [2/2]

void QCPBarsGroup::append

(

QCPBars *

bars

)

bars() [1/4]

QList< QCPBars * > QCPBarsGroup::bars ( ) const

inline

Returns all bars currently in this group.

See also

bars(int index)

Definition at line 6381 of file qcustomplot.h.

Referenced by append(), clear(), getPixelSpacing(), insert(), keyPixelOffset(), registerBars(), remove(), and unregisterBars().

bars() [2/4]

QList<QCPBars *> QCPBarsGroup::bars ( ) const

inline

Definition at line 3367 of file qcustomplot.h.

bars() [3/4]

QCPBars * QCPBarsGroup::bars

(

int

index

)

const

Returns the QCPBars instance with the specified index in this group. If no such QCPBars exists, returns 0.

See also

bars(), size

Definition at line 24771 of file qcustomplot.cpp.

References mBars.

bars() [4/4]

QCPBars* QCPBarsGroup::bars

(

int

index

)

const

clear() [1/2]

void QCPBarsGroup::clear

(

)

Removes all QCPBars plottables from this group.

See also

isEmpty

Definition at line 24785 of file qcustomplot.cpp.

References bars(), and mBars.

Referenced by ~QCPBarsGroup().

clear() [2/2]

void QCPBarsGroup::clear

(

)

contains() [1/2]

bool QCPBarsGroup::contains ( QCPBars *  bars ) const

inline

Definition at line 6386 of file qcustomplot.h.

contains() [2/2]

bool QCPBarsGroup::contains ( QCPBars *  bars ) const

inline

Definition at line 3372 of file qcustomplot.h.

getPixelSpacing() [1/2]

double QCPBarsGroup::getPixelSpacing ( const QCPBars *  bars, double  keyCoord  )

protected

Definition at line 24953 of file qcustomplot.cpp.

References bars(), mSpacing, mSpacingType, stAbsolute, stAxisRectRatio, and stPlotCoords.

Referenced by keyPixelOffset().

getPixelSpacing() [2/2]

double QCPBarsGroup::getPixelSpacing ( const QCPBars *  bars, double  keyCoord  )

protected

insert() [1/2]

void QCPBarsGroup::insert	(	int	i,
		QCPBars *	bars
	)

Inserts the specified bars plottable into this group at the specified index position i. This gives you full control over the ordering of the bars.

bars may already be part of this group. In that case, bars is just moved to the new index position.

See also

append, remove

Definition at line 24820 of file qcustomplot.cpp.

References bars(), and mBars.

insert() [2/2]

void QCPBarsGroup::insert	(	int	i,
		QCPBars *	bars
	)

isEmpty() [1/2]

bool QCPBarsGroup::isEmpty ( ) const

inline

Returns whether this bars group is empty.

See also

size

Definition at line 6384 of file qcustomplot.h.

isEmpty() [2/2]

bool QCPBarsGroup::isEmpty ( ) const

inline

Definition at line 3370 of file qcustomplot.h.

keyPixelOffset() [1/2]

double QCPBarsGroup::keyPixelOffset ( const QCPBars *  bars, double  keyCoord  )

protected

Definition at line 24876 of file qcustomplot.cpp.

References QCPBars::barBelow(), bars(), getPixelSpacing(), QCPAbstractPlottable::keyAxis(), mBars, QCPAxis::pixelOrientation(), and result.

Referenced by QCPBars::dataPixelPosition(), QCPBars::getBarPolygon(), QCPBars::getBarRect(), and QCPBars::getKeyRange().

keyPixelOffset() [2/2]

double QCPBarsGroup::keyPixelOffset ( const QCPBars *  bars, double  keyCoord  )

protected

registerBars() [1/2]

void QCPBarsGroup::registerBars ( QCPBars *  bars )

protected

Definition at line 24857 of file qcustomplot.cpp.

References bars(), and mBars.

Referenced by QCPBars::setBarsGroup().

registerBars() [2/2]

void QCPBarsGroup::registerBars ( QCPBars *  bars )

protected

remove() [1/2]

void QCPBarsGroup::remove

(

QCPBars *

bars

)

Removes the specified bars plottable from this group.

See also

contains, clear

Definition at line 24837 of file qcustomplot.cpp.

References bars(), and mBars.

remove() [2/2]

void QCPBarsGroup::remove

(

QCPBars *

bars

)

setSpacing() [1/2]

void QCPBarsGroup::setSpacing

(

double

spacing

)

Sets the spacing between adjacent bars. What the number passed as spacing actually means, is defined by the current SpacingType, which can be set with setSpacingType.

See also

setSpacingType

Definition at line 24763 of file qcustomplot.cpp.

References mSpacing, and spacing().

setSpacing() [2/2]

void QCPBarsGroup::setSpacing

(

double

spacing

)

setSpacingType() [1/2]

void QCPBarsGroup::setSpacingType

(

SpacingType

spacingType

)

Sets how the spacing between adjacent bars is interpreted. See SpacingType.

The actual spacing can then be specified with setSpacing.

See also

setSpacing

Definition at line 24752 of file qcustomplot.cpp.

References mSpacingType, and spacingType().

setSpacingType() [2/2]

void QCPBarsGroup::setSpacingType

(

SpacingType

spacingType

)

size() [1/2]

int QCPBarsGroup::size ( ) const

inline

Returns the number of QCPBars plottables that are part of this group.

Definition at line 6383 of file qcustomplot.h.

size() [2/2]

int QCPBarsGroup::size ( ) const

inline

Definition at line 3369 of file qcustomplot.h.

spacing() [1/2]

double QCPBarsGroup::spacing ( ) const

inline

Definition at line 6374 of file qcustomplot.h.

Referenced by setSpacing().

spacing() [2/2]

double QCPBarsGroup::spacing ( ) const

inline

Definition at line 3360 of file qcustomplot.h.

spacingType() [1/2]

SpacingType QCPBarsGroup::spacingType ( ) const

inline

Definition at line 6373 of file qcustomplot.h.

Referenced by setSpacingType().

spacingType() [2/2]

SpacingType QCPBarsGroup::spacingType ( ) const

inline

Definition at line 3359 of file qcustomplot.h.

unregisterBars() [1/2]

void QCPBarsGroup::unregisterBars ( QCPBars *  bars )

protected

Definition at line 24868 of file qcustomplot.cpp.

References bars(), and mBars.

Referenced by QCPBars::setBarsGroup().

unregisterBars() [2/2]

void QCPBarsGroup::unregisterBars ( QCPBars *  bars )

protected

Member Data Documentation

mBars

QList< QCPBars * > QCPBarsGroup::mBars

protected

Definition at line 6396 of file qcustomplot.h.

Referenced by append(), bars(), clear(), insert(), keyPixelOffset(), registerBars(), remove(), and unregisterBars().

mParentPlot

QCustomPlot * QCPBarsGroup::mParentPlot

protected

Definition at line 6393 of file qcustomplot.h.

mSpacing

double QCPBarsGroup::mSpacing

protected

Definition at line 6395 of file qcustomplot.h.

Referenced by getPixelSpacing(), and setSpacing().

mSpacingType

SpacingType QCPBarsGroup::mSpacingType

protected

Definition at line 6394 of file qcustomplot.h.

Referenced by getPixelSpacing(), and setSpacingType().

---

The documentation for this class was generated from the following files:

• /root/ACloudViewer/app/extern/QCustomPlot/qcustomplot.h
• /root/ACloudViewer/app/extern/QCustomPlot/qcustomplot.cpp
