flann::NNIndex< Distance > Class Template Reference

#include <nn_index.h>

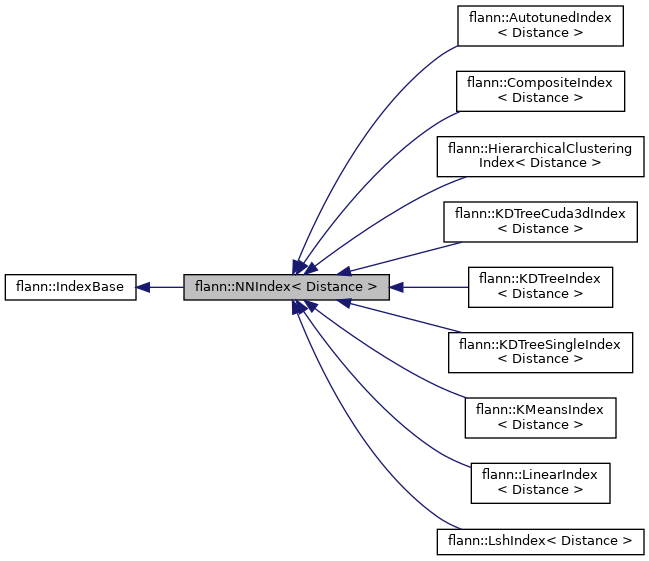

Inheritance diagram for flann::NNIndex< Distance >:

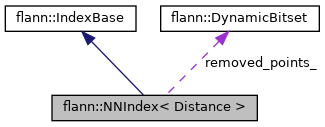

Collaboration diagram for flann::NNIndex< Distance >:

Public Types
typedef Distance::ElementType	ElementType
typedef Distance::ResultType	DistanceType

Public Member Functions
	NNIndex (Distance d)
	NNIndex (const IndexParams &params, Distance d)
	NNIndex (const NNIndex &other)
virtual	~NNIndex ()
virtual NNIndex *	clone () const =0
virtual void	buildIndex ()
virtual void	buildIndex (const Matrix< ElementType > &dataset)
virtual void	addPoints (const Matrix< ElementType > &points, float rebuild_threshold=2)
	Incrementally add points to the index. More...
virtual void	removePoint (size_t id)
virtual ElementType *	getPoint (size_t id)
size_t	size () const
size_t	veclen () const
IndexParams	getParameters () const
template<typename Archive >
void	serialize (Archive &ar)
virtual int	knnSearch (const Matrix< ElementType > &queries, Matrix< size_t > &indices, Matrix< DistanceType > &dists, size_t knn, const SearchParams &params) const
	Perform k-nearest neighbor search. More...
int	knnSearch (const Matrix< ElementType > &queries, Matrix< int > &indices, Matrix< DistanceType > &dists, size_t knn, const SearchParams &params) const
int	knnSearch (const Matrix< ElementType > &queries, std::vector< std::vector< size_t > > &indices, std::vector< std::vector< DistanceType > > &dists, size_t knn, const SearchParams &params) const
	Perform k-nearest neighbor search. More...
int	knnSearch (const Matrix< ElementType > &queries, std::vector< std::vector< int > > &indices, std::vector< std::vector< DistanceType > > &dists, size_t knn, const SearchParams &params) const
int	radiusSearch (const Matrix< ElementType > &queries, Matrix< size_t > &indices, Matrix< DistanceType > &dists, float radius, const SearchParams &params) const
	Perform radius search. More...
int	radiusSearch (const Matrix< ElementType > &queries, Matrix< int > &indices, Matrix< DistanceType > &dists, float radius, const SearchParams &params) const
int	radiusSearch (const Matrix< ElementType > &queries, std::vector< std::vector< size_t > > &indices, std::vector< std::vector< DistanceType > > &dists, float radius, const SearchParams &params) const
	Perform radius search. More...
int	radiusSearch (const Matrix< ElementType > &queries, std::vector< std::vector< int > > &indices, std::vector< std::vector< DistanceType > > &dists, float radius, const SearchParams &params) const
virtual void	findNeighbors (ResultSet< DistanceType > &result, const ElementType *vec, const SearchParams &searchParams) const =0
Public Member Functions inherited from flann::IndexBase
virtual	~IndexBase ()
virtual flann_algorithm_t	getType () const =0
virtual int	usedMemory () const =0
virtual void	loadIndex (FILE *stream)=0
virtual void	saveIndex (FILE *stream)=0

Protected Member Functions
virtual void	freeIndex ()=0
virtual void	buildIndexImpl ()=0
size_t	id_to_index (size_t id)
void	indices_to_ids (const size_t *in, size_t *out, size_t size) const
void	setDataset (const Matrix< ElementType > &dataset)
void	extendDataset (const Matrix< ElementType > &new_points)
void	cleanRemovedPoints ()
void	swap (NNIndex &other)

Protected Attributes
Distance	distance_
size_t	last_id_
size_t	size_
size_t	size_at_build_
size_t	veclen_
IndexParams	index_params_
bool	removed_
DynamicBitset	removed_points_
size_t	removed_count_
std::vector< size_t >	ids_
std::vector< ElementType * >	points_
ElementType *	data_ptr_

Detailed Description

template<typename Distance>
class flann::NNIndex< Distance >

Nearest-neighbour index base class

Definition at line 73 of file nn_index.h.

Member Typedef Documentation

DistanceType

template<typename Distance >

typedef Distance::ResultType flann::NNIndex< Distance >::DistanceType

Definition at line 77 of file nn_index.h.

ElementType

template<typename Distance >

typedef Distance::ElementType flann::NNIndex< Distance >::ElementType

Definition at line 76 of file nn_index.h.

Constructor & Destructor Documentation

NNIndex() [1/3]

template<typename Distance >

flann::NNIndex< Distance >::NNIndex ( Distance  d )

inline

Definition at line 79 of file nn_index.h.

NNIndex() [2/3]

template<typename Distance >

flann::NNIndex< Distance >::NNIndex ( const IndexParams &  params, Distance  d  )

inline

Definition at line 84 of file nn_index.h.

NNIndex() [3/3]

template<typename Distance >

flann::NNIndex< Distance >::NNIndex ( const NNIndex< Distance > &  other )

inline

Definition at line 89 of file nn_index.h.

References copy, flann::NNIndex< Distance >::data_ptr_, flann::NNIndex< Distance >::points_, flann::NNIndex< Distance >::size_, and flann::NNIndex< Distance >::veclen_.

~NNIndex()

template<typename Distance >

virtual flann::NNIndex< Distance >::~NNIndex ( )

inlinevirtual

Definition at line 112 of file nn_index.h.

References flann::NNIndex< Distance >::data_ptr_.

Member Function Documentation

addPoints()

template<typename Distance >

virtual void flann::NNIndex< Distance >::addPoints ( const Matrix< ElementType > &  points, float  rebuild_threshold = 2  )

inlinevirtual

Incrementally add points to the index.

Parameters

points	Matrix with points to be added
rebuild_threshold

Reimplemented in flann::LshIndex< Distance >, flann::LinearIndex< Distance >, flann::KMeansIndex< Distance >, flann::KDTreeSingleIndex< Distance >, flann::KDTreeIndex< Distance >, flann::HierarchicalClusteringIndex< Distance >, flann::CompositeIndex< Distance >, and flann::AutotunedIndex< Distance >.

Definition at line 152 of file nn_index.h.

Referenced by flann::Index< Distance >::addPoints().

buildIndex() [1/2]

template<typename Distance >

virtual void flann::NNIndex< Distance >::buildIndex ( )

inlinevirtual

Builds the index

Reimplemented in flann::LshIndex< Distance >, flann::KMeansIndex< Distance >, flann::KDTreeSingleIndex< Distance >, flann::KDTreeIndex< Distance >, flann::HierarchicalClusteringIndex< Distance >, flann::LshIndex< Distance >, flann::KMeansIndex< Distance >, flann::KDTreeSingleIndex< Distance >, flann::KDTreeIndex< Distance >, flann::KDTreeCuda3dIndex< Distance >, flann::HierarchicalClusteringIndex< Distance >, flann::CompositeIndex< Distance >, and flann::AutotunedIndex< Distance >.

Definition at line 125 of file nn_index.h.

References flann::NNIndex< Distance >::buildIndexImpl(), flann::NNIndex< Distance >::cleanRemovedPoints(), flann::NNIndex< Distance >::freeIndex(), flann::NNIndex< Distance >::size_, and flann::NNIndex< Distance >::size_at_build_.

Referenced by flann::Index< Distance >::buildIndex(), and flann::NNIndex< Distance >::buildIndex().

buildIndex() [2/2]

template<typename Distance >

virtual void flann::NNIndex< Distance >::buildIndex ( const Matrix< ElementType > &  dataset )

inlinevirtual

Builds the index using the specified dataset

Parameters

dataset

the dataset to use

Reimplemented in flann::AutotunedIndex< Distance >.

Definition at line 141 of file nn_index.h.

References flann::NNIndex< Distance >::buildIndex(), and flann::NNIndex< Distance >::setDataset().

buildIndexImpl()

template<typename Distance >

virtual void flann::NNIndex< Distance >::buildIndexImpl ( )

protectedpure virtual

Implemented in flann::LshIndex< Distance >, flann::LinearIndex< Distance >, flann::KMeansIndex< Distance >, flann::KDTreeSingleIndex< Distance >, flann::KDTreeIndex< Distance >, flann::KDTreeCuda3dIndex< Distance >, flann::HierarchicalClusteringIndex< Distance >, flann::CompositeIndex< Distance >, and flann::AutotunedIndex< Distance >.

Referenced by flann::NNIndex< Distance >::buildIndex().

cleanRemovedPoints()

template<typename Distance >

void flann::NNIndex< Distance >::cleanRemovedPoints ( )

inlineprotected

Definition at line 782 of file nn_index.h.

References flann::NNIndex< Distance >::ids_, flann::NNIndex< Distance >::points_, flann::NNIndex< Distance >::removed_, flann::NNIndex< Distance >::removed_count_, flann::NNIndex< Distance >::removed_points_, flann::DynamicBitset::reset(), flann::DynamicBitset::resize(), flann::NNIndex< Distance >::size_, and flann::DynamicBitset::test().

Referenced by flann::NNIndex< Distance >::buildIndex().

clone()

template<typename Distance >

virtual NNIndex* flann::NNIndex< Distance >::clone ( ) const

pure virtual

Implemented in flann::LshIndex< Distance >, flann::LinearIndex< Distance >, flann::KMeansIndex< Distance >, flann::KDTreeSingleIndex< Distance >, flann::KDTreeIndex< Distance >, flann::KDTreeCuda3dIndex< Distance >, flann::HierarchicalClusteringIndex< Distance >, flann::CompositeIndex< Distance >, and flann::AutotunedIndex< Distance >.

Referenced by flann::Index< Distance >::Index().

extendDataset()

template<typename Distance >

void flann::NNIndex< Distance >::extendDataset ( const Matrix< ElementType > &  new_points )

inlineprotected

Definition at line 763 of file nn_index.h.

References flann::NNIndex< Distance >::ids_, flann::NNIndex< Distance >::last_id_, flann::NNIndex< Distance >::points_, flann::NNIndex< Distance >::removed_, flann::NNIndex< Distance >::removed_points_, flann::DynamicBitset::reset(), flann::DynamicBitset::resize(), flann::Matrix_::rows, and flann::NNIndex< Distance >::size_.

Referenced by flann::HierarchicalClusteringIndex< Distance >::addPoints(), flann::KDTreeIndex< Distance >::addPoints(), flann::KDTreeSingleIndex< Distance >::addPoints(), flann::KMeansIndex< Distance >::addPoints(), flann::LinearIndex< Distance >::addPoints(), and flann::LshIndex< Distance >::addPoints().

findNeighbors()

template<typename Distance >

virtual void flann::NNIndex< Distance >::findNeighbors ( ResultSet< DistanceType > &  result, const ElementType *  vec, const SearchParams &  searchParams  ) const

pure virtual

Implemented in flann::LinearIndex< Distance >, flann::KMeansIndex< Distance >, flann::KDTreeSingleIndex< Distance >, flann::KDTreeIndex< Distance >, flann::KDTreeCuda3dIndex< Distance >, flann::HierarchicalClusteringIndex< Distance >, flann::CompositeIndex< Distance >, flann::AutotunedIndex< Distance >, and flann::LshIndex< Distance >.

Referenced by flann::NNIndex< Distance >::knnSearch(), and flann::NNIndex< Distance >::radiusSearch().

freeIndex()

template<typename Distance >

virtual void flann::NNIndex< Distance >::freeIndex ( )

protectedpure virtual

Implemented in flann::LshIndex< Distance >, flann::LinearIndex< Distance >, flann::KDTreeIndex< Distance >, flann::KDTreeCuda3dIndex< Distance >, flann::CompositeIndex< Distance >, and flann::AutotunedIndex< Distance >.

Referenced by flann::NNIndex< Distance >::buildIndex().

getParameters()

template<typename Distance >

IndexParams flann::NNIndex< Distance >::getParameters ( ) const

inlinevirtual

Returns the parameters used by the index.

Returns

The index parameters

Implements flann::IndexBase.

Definition at line 219 of file nn_index.h.

References flann::NNIndex< Distance >::index_params_.

Referenced by flann::Index< Distance >::getParameters().

getPoint()

template<typename Distance >

virtual ElementType* flann::NNIndex< Distance >::getPoint ( size_t  id )

inlinevirtual

Get point with specific id

Parameters

id

Returns

Reimplemented in flann::KDTreeCuda3dIndex< Distance >.

Definition at line 187 of file nn_index.h.

References flann::NNIndex< Distance >::id_to_index(), NULL, and flann::NNIndex< Distance >::points_.

Referenced by flann::Index< Distance >::getPoint().

id_to_index()

template<typename Distance >

size_t flann::NNIndex< Distance >::id_to_index ( size_t  id )

inlineprotected

Definition at line 705 of file nn_index.h.

References flann::NNIndex< Distance >::ids_.

Referenced by flann::NNIndex< Distance >::getPoint(), and flann::NNIndex< Distance >::removePoint().

indices_to_ids()

template<typename Distance >

void flann::NNIndex< Distance >::indices_to_ids ( const size_t *  in, size_t *  out, size_t  size  ) const

inlineprotected

Definition at line 737 of file nn_index.h.

Referenced by flann::LshIndex< Distance >::knnSearch(), flann::NNIndex< Distance >::knnSearch(), and flann::NNIndex< Distance >::radiusSearch().

knnSearch() [1/4]

template<typename Distance >

int flann::NNIndex< Distance >::knnSearch ( const Matrix< ElementType > &  queries, Matrix< int > &  indices, Matrix< DistanceType > &  dists, size_t  knn, const SearchParams &  params  ) const

inline

Parameters

queries
indices
dists
knn
params

Returns

Definition at line 368 of file nn_index.h.

References flann::Matrix_::cols, flann::NNIndex< Distance >::knnSearch(), params, flann::Matrix< T >::ptr(), result, and flann::Matrix_::rows.

knnSearch() [2/4]

template<typename Distance >

virtual int flann::NNIndex< Distance >::knnSearch ( const Matrix< ElementType > &  queries, Matrix< size_t > &  indices, Matrix< DistanceType > &  dists, size_t  knn, const SearchParams &  params  ) const

inlinevirtual

Perform k-nearest neighbor search.

Parameters

[in]	queries	The query points for which to find the nearest neighbors
[out]	indices	The indices of the nearest neighbors found
[out]	dists	Distances to the nearest neighbors found
[in]	knn	Number of nearest neighbors to return
[in]	params	Search parameters

Reimplemented in flann::LshIndex< Distance >, and flann::AutotunedIndex< Distance >.

Definition at line 305 of file nn_index.h.

References flann::KNNSimpleResultSet< DistanceType >::clear(), flann::KNNResultSet2< DistanceType >::clear(), flann::Matrix_::cols, flann::KNNSimpleResultSet< DistanceType >::copy(), flann::KNNResultSet2< DistanceType >::copy(), count, flann::NNIndex< Distance >::findNeighbors(), flann::FLANN_True, flann::FLANN_Undefined, flann::NNIndex< Distance >::indices_to_ids(), KNN_HEAP_THRESHOLD, min(), params, flann::Matrix_::rows, flann::KNNSimpleResultSet< DistanceType >::size(), flann::KNNResultSet2< DistanceType >::size(), and flann::NNIndex< Distance >::veclen().

Referenced by flann::NNIndex< Distance >::knnSearch(), and flann::Index< Distance >::knnSearch().

knnSearch() [3/4]

template<typename Distance >

int flann::NNIndex< Distance >::knnSearch ( const Matrix< ElementType > &  queries, std::vector< std::vector< int > > &  indices, std::vector< std::vector< DistanceType > > &  dists, size_t  knn, const SearchParams &  params  ) const

inline

Parameters

queries
indices
dists
knn
params

Returns

Definition at line 466 of file nn_index.h.

References flann::NNIndex< Distance >::knnSearch(), params, and result.

knnSearch() [4/4]

template<typename Distance >

int flann::NNIndex< Distance >::knnSearch ( const Matrix< ElementType > &  queries, std::vector< std::vector< size_t > > &  indices, std::vector< std::vector< DistanceType > > &  dists, size_t  knn, const SearchParams &  params  ) const

inline

Perform k-nearest neighbor search.

Parameters

[in]	queries	The query points for which to find the nearest neighbors
[out]	indices	The indices of the nearest neighbors found
[out]	dists	Distances to the nearest neighbors found
[in]	knn	Number of nearest neighbors to return
[in]	params	Search parameters

Definition at line 395 of file nn_index.h.

References flann::KNNSimpleResultSet< DistanceType >::clear(), flann::KNNResultSet2< DistanceType >::clear(), flann::Matrix_::cols, flann::KNNSimpleResultSet< DistanceType >::copy(), flann::KNNResultSet2< DistanceType >::copy(), count, flann::NNIndex< Distance >::findNeighbors(), flann::FLANN_True, flann::FLANN_Undefined, flann::NNIndex< Distance >::indices_to_ids(), KNN_HEAP_THRESHOLD, min(), params, flann::Matrix_::rows, flann::KNNSimpleResultSet< DistanceType >::size(), flann::KNNResultSet2< DistanceType >::size(), and flann::NNIndex< Distance >::veclen().

radiusSearch() [1/4]

template<typename Distance >

int flann::NNIndex< Distance >::radiusSearch ( const Matrix< ElementType > &  queries, Matrix< int > &  indices, Matrix< DistanceType > &  dists, float  radius, const SearchParams &  params  ) const

inline

Parameters

queries
indices
dists
radius
params

Returns

Definition at line 574 of file nn_index.h.

References flann::Matrix_::cols, params, flann::Matrix< T >::ptr(), flann::NNIndex< Distance >::radiusSearch(), result, and flann::Matrix_::rows.

radiusSearch() [2/4]

template<typename Distance >

int flann::NNIndex< Distance >::radiusSearch ( const Matrix< ElementType > &  queries, Matrix< size_t > &  indices, Matrix< DistanceType > &  dists, float  radius, const SearchParams &  params  ) const

inline

Perform radius search.

Parameters

[in]	query	The query point
[out]	indices	The indices of the neighbors found within the given radius
[out]	dists	The distances to the nearest neighbors found
[in]	radius	The radius used for search
[in]	params	Search parameters

Returns

Number of neighbors found

Definition at line 491 of file nn_index.h.

References flann::RadiusResultSet< DistanceType >::clear(), flann::KNNRadiusResultSet< DistanceType >::clear(), flann::CountRadiusResultSet< DistanceType >::clear(), flann::Matrix_::cols, flann::RadiusResultSet< DistanceType >::copy(), flann::KNNRadiusResultSet< DistanceType >::copy(), count, flann::NNIndex< Distance >::findNeighbors(), flann::NNIndex< Distance >::indices_to_ids(), infinity(), min(), params, flann::Matrix_::rows, flann::NNIndex< Distance >::size(), flann::RadiusResultSet< DistanceType >::size(), flann::KNNRadiusResultSet< DistanceType >::size(), flann::CountRadiusResultSet< DistanceType >::size(), and flann::NNIndex< Distance >::veclen().

Referenced by flann::NNIndex< Distance >::radiusSearch(), and flann::Index< Distance >::radiusSearch().

radiusSearch() [3/4]

template<typename Distance >

int flann::NNIndex< Distance >::radiusSearch ( const Matrix< ElementType > &  queries, std::vector< std::vector< int > > &  indices, std::vector< std::vector< DistanceType > > &  dists, float  radius, const SearchParams &  params  ) const

inline

Parameters

queries
indices
dists
radius
params

Returns

Definition at line 680 of file nn_index.h.

References params, flann::NNIndex< Distance >::radiusSearch(), and result.

radiusSearch() [4/4]

template<typename Distance >

int flann::NNIndex< Distance >::radiusSearch ( const Matrix< ElementType > &  queries, std::vector< std::vector< size_t > > &  indices, std::vector< std::vector< DistanceType > > &  dists, float  radius, const SearchParams &  params  ) const

inline

Perform radius search.

Parameters

[in]	query	The query point
[out]	indices	The indices of the neighbors found within the given radius
[out]	dists	The distances to the nearest neighbors found
[in]	radius	The radius used for search
[in]	params	Search parameters

Returns

Number of neighbors found

Definition at line 601 of file nn_index.h.

References flann::RadiusResultSet< DistanceType >::clear(), flann::KNNRadiusResultSet< DistanceType >::clear(), flann::CountRadiusResultSet< DistanceType >::clear(), flann::Matrix_::cols, flann::RadiusResultSet< DistanceType >::copy(), flann::KNNRadiusResultSet< DistanceType >::copy(), count, flann::NNIndex< Distance >::findNeighbors(), flann::NNIndex< Distance >::indices_to_ids(), params, flann::Matrix_::rows, flann::RadiusResultSet< DistanceType >::size(), flann::KNNRadiusResultSet< DistanceType >::size(), flann::CountRadiusResultSet< DistanceType >::size(), and flann::NNIndex< Distance >::veclen().

removePoint()

template<typename Distance >

virtual void flann::NNIndex< Distance >::removePoint ( size_t  id )

inlinevirtual

Remove point from the index

Parameters

index

Index of point to be removed

Reimplemented in flann::KDTreeCuda3dIndex< Distance >, flann::CompositeIndex< Distance >, and flann::AutotunedIndex< Distance >.

Definition at line 161 of file nn_index.h.

References flann::NNIndex< Distance >::id_to_index(), flann::NNIndex< Distance >::ids_, flann::NNIndex< Distance >::last_id_, flann::NNIndex< Distance >::removed_, flann::NNIndex< Distance >::removed_count_, flann::NNIndex< Distance >::removed_points_, flann::DynamicBitset::reset(), flann::DynamicBitset::resize(), flann::DynamicBitset::set(), flann::NNIndex< Distance >::size_, and flann::DynamicBitset::test().

Referenced by flann::Index< Distance >::removePoint().

serialize()

template<typename Distance >

template<typename Archive >

void flann::NNIndex< Distance >::serialize ( Archive &  ar )

inline

Definition at line 226 of file nn_index.h.

References flann::IndexHeaderStruct::cols, flann::NNIndex< Distance >::data_ptr_, flann::IndexHeaderStruct::data_type, FLANN_SIGNATURE_, flann::get_param(), flann::IndexBase::getType(), flann::IndexHeader::h, flann::NNIndex< Distance >::ids_, flann::NNIndex< Distance >::index_params_, flann::IndexHeaderStruct::index_type, flann::NNIndex< Distance >::last_id_, flann::serialization::make_binary_object(), flann::NNIndex< Distance >::points_, flann::NNIndex< Distance >::removed_, flann::NNIndex< Distance >::removed_count_, flann::NNIndex< Distance >::removed_points_, flann::IndexHeaderStruct::rows, flann::IndexHeaderStruct::signature, flann::NNIndex< Distance >::size_, flann::NNIndex< Distance >::size_at_build_, and flann::NNIndex< Distance >::veclen_.

setDataset()

template<typename Distance >

void flann::NNIndex< Distance >::setDataset ( const Matrix< ElementType > &  dataset )

inlineprotected

Definition at line 746 of file nn_index.h.

References flann::DynamicBitset::clear(), flann::Matrix_::cols, flann::NNIndex< Distance >::ids_, flann::NNIndex< Distance >::last_id_, flann::NNIndex< Distance >::points_, flann::NNIndex< Distance >::removed_, flann::NNIndex< Distance >::removed_count_, flann::NNIndex< Distance >::removed_points_, flann::Matrix_::rows, flann::NNIndex< Distance >::size_, and flann::NNIndex< Distance >::veclen_.

Referenced by flann::NNIndex< Distance >::buildIndex(), flann::HierarchicalClusteringIndex< Distance >::HierarchicalClusteringIndex(), flann::KDTreeIndex< Distance >::KDTreeIndex(), flann::KDTreeSingleIndex< Distance >::KDTreeSingleIndex(), flann::KMeansIndex< Distance >::KMeansIndex(), flann::LinearIndex< Distance >::LinearIndex(), and flann::LshIndex< Distance >::LshIndex().

size()

template<typename Distance >

size_t flann::NNIndex< Distance >::size ( ) const

inlinevirtual

Returns

number of features in this index.

Implements flann::IndexBase.

Definition at line 201 of file nn_index.h.

References flann::NNIndex< Distance >::removed_count_, and flann::NNIndex< Distance >::size_.

Referenced by flann::NNIndex< Distance >::radiusSearch(), and flann::Index< Distance >::size().

swap()

template<typename Distance >

void flann::NNIndex< Distance >::swap ( NNIndex< Distance > &  other )

inlineprotected

Definition at line 802 of file nn_index.h.

References flann::NNIndex< Distance >::data_ptr_, flann::NNIndex< Distance >::distance_, flann::NNIndex< Distance >::ids_, flann::NNIndex< Distance >::index_params_, flann::NNIndex< Distance >::last_id_, flann::NNIndex< Distance >::points_, flann::NNIndex< Distance >::removed_, flann::NNIndex< Distance >::removed_count_, flann::NNIndex< Distance >::removed_points_, flann::NNIndex< Distance >::size_, flann::NNIndex< Distance >::size_at_build_, std::swap(), and flann::NNIndex< Distance >::veclen_.

Referenced by flann::LinearIndex< Distance >::operator=().

veclen()

template<typename Distance >

size_t flann::NNIndex< Distance >::veclen ( ) const

inlinevirtual

Returns

The dimensionality of the features in this index.

Implements flann::IndexBase.

Definition at line 209 of file nn_index.h.

References flann::NNIndex< Distance >::veclen_.

Referenced by flann::NNIndex< Distance >::knnSearch(), flann::NNIndex< Distance >::radiusSearch(), and flann::Index< Distance >::veclen().

Member Data Documentation

data_ptr_

template<typename Distance >

ElementType* flann::NNIndex< Distance >::data_ptr_

protected

Pointer to dataset memory if allocated by this index, otherwise NULL

Definition at line 881 of file nn_index.h.

Referenced by flann::NNIndex< Distance >::NNIndex(), flann::NNIndex< Distance >::serialize(), flann::NNIndex< Distance >::swap(), and flann::NNIndex< Distance >::~NNIndex().

distance_

template<typename Distance >

Distance flann::NNIndex< Distance >::distance_

protected

The distance functor

Definition at line 823 of file nn_index.h.

Referenced by flann::KMeansIndex< Distance >::addPoints(), flann::AutotunedIndex< Distance >::buildIndex(), flann::LinearIndex< Distance >::findNeighbors(), flann::HierarchicalClusteringIndex< Distance >::initCenterChooser(), flann::KMeansIndex< Distance >::initCenterChooser(), flann::AutotunedIndex< Distance >::loadIndex(), and flann::NNIndex< Distance >::swap().

ids_

template<typename Distance >

std::vector<size_t> flann::NNIndex< Distance >::ids_

protected

Array of point IDs, returned by nearest-neighbour operations

Definition at line 871 of file nn_index.h.

Referenced by flann::NNIndex< Distance >::cleanRemovedPoints(), flann::NNIndex< Distance >::extendDataset(), flann::NNIndex< Distance >::id_to_index(), flann::NNIndex< Distance >::removePoint(), flann::NNIndex< Distance >::serialize(), flann::NNIndex< Distance >::setDataset(), and flann::NNIndex< Distance >::swap().

index_params_

template<typename Distance >

IndexParams flann::NNIndex< Distance >::index_params_

protected

Parameters of the index.

Definition at line 851 of file nn_index.h.

Referenced by flann::NNIndex< Distance >::getParameters(), flann::HierarchicalClusteringIndex< Distance >::HierarchicalClusteringIndex(), flann::KDTreeIndex< Distance >::KDTreeIndex(), flann::LshIndex< Distance >::LshIndex(), flann::AutotunedIndex< Distance >::serialize(), flann::HierarchicalClusteringIndex< Distance >::serialize(), flann::KDTreeIndex< Distance >::serialize(), flann::KDTreeSingleIndex< Distance >::serialize(), flann::KMeansIndex< Distance >::serialize(), flann::LinearIndex< Distance >::serialize(), flann::LshIndex< Distance >::serialize(), flann::NNIndex< Distance >::serialize(), and flann::NNIndex< Distance >::swap().

last_id_

template<typename Distance >

size_t flann::NNIndex< Distance >::last_id_

protected

Each index point has an associated ID. IDs are assigned sequentially in increasing order. This indicates the ID assigned to the last point added to the index.

Definition at line 831 of file nn_index.h.

Referenced by flann::NNIndex< Distance >::extendDataset(), flann::NNIndex< Distance >::removePoint(), flann::NNIndex< Distance >::serialize(), flann::NNIndex< Distance >::setDataset(), and flann::NNIndex< Distance >::swap().

points_

template<typename Distance >

std::vector<ElementType*> flann::NNIndex< Distance >::points_

protected

Point data

Definition at line 876 of file nn_index.h.

Referenced by flann::LshIndex< Distance >::addPoints(), flann::KDTreeSingleIndex< Distance >::buildIndexImpl(), flann::LshIndex< Distance >::buildIndexImpl(), flann::NNIndex< Distance >::cleanRemovedPoints(), flann::NNIndex< Distance >::extendDataset(), flann::LinearIndex< Distance >::findNeighbors(), flann::NNIndex< Distance >::getPoint(), flann::HierarchicalClusteringIndex< Distance >::initCenterChooser(), flann::KMeansIndex< Distance >::initCenterChooser(), flann::NNIndex< Distance >::NNIndex(), flann::NNIndex< Distance >::serialize(), flann::NNIndex< Distance >::setDataset(), and flann::NNIndex< Distance >::swap().

removed_

template<typename Distance >

bool flann::NNIndex< Distance >::removed_

protected

Flag indicating if at least a point was removed from the index

Definition at line 856 of file nn_index.h.

Referenced by flann::NNIndex< Distance >::cleanRemovedPoints(), flann::NNIndex< Distance >::extendDataset(), flann::HierarchicalClusteringIndex< Distance >::findNeighbors(), flann::KDTreeIndex< Distance >::findNeighbors(), flann::KDTreeSingleIndex< Distance >::findNeighbors(), flann::KMeansIndex< Distance >::findNeighbors(), flann::LinearIndex< Distance >::findNeighbors(), flann::NNIndex< Distance >::removePoint(), flann::NNIndex< Distance >::serialize(), flann::NNIndex< Distance >::setDataset(), and flann::NNIndex< Distance >::swap().

removed_count_

template<typename Distance >

size_t flann::NNIndex< Distance >::removed_count_

protected

Number of points removed from the index

Definition at line 866 of file nn_index.h.

Referenced by flann::NNIndex< Distance >::cleanRemovedPoints(), flann::NNIndex< Distance >::removePoint(), flann::NNIndex< Distance >::serialize(), flann::NNIndex< Distance >::setDataset(), flann::NNIndex< Distance >::size(), and flann::NNIndex< Distance >::swap().

removed_points_

template<typename Distance >

DynamicBitset flann::NNIndex< Distance >::removed_points_

protected

Array used to mark points removed from the index

Definition at line 861 of file nn_index.h.

Referenced by flann::NNIndex< Distance >::cleanRemovedPoints(), flann::NNIndex< Distance >::extendDataset(), flann::LinearIndex< Distance >::findNeighbors(), flann::NNIndex< Distance >::removePoint(), flann::NNIndex< Distance >::serialize(), flann::NNIndex< Distance >::setDataset(), and flann::NNIndex< Distance >::swap().

size_

template<typename Distance >

size_t flann::NNIndex< Distance >::size_

protected

Number of points in the index (and database)

Definition at line 836 of file nn_index.h.

Referenced by flann::HierarchicalClusteringIndex< Distance >::addPoints(), flann::KDTreeIndex< Distance >::addPoints(), flann::KMeansIndex< Distance >::addPoints(), flann::LshIndex< Distance >::addPoints(), flann::KDTreeCuda3dIndex< Distance >::buildIndex(), flann::NNIndex< Distance >::buildIndex(), flann::HierarchicalClusteringIndex< Distance >::buildIndexImpl(), flann::KDTreeIndex< Distance >::buildIndexImpl(), flann::KDTreeSingleIndex< Distance >::buildIndexImpl(), flann::KMeansIndex< Distance >::buildIndexImpl(), flann::NNIndex< Distance >::cleanRemovedPoints(), flann::NNIndex< Distance >::extendDataset(), flann::KDTreeCuda3dIndex< Distance >::KDTreeCuda3dIndex(), flann::KDTreeSingleIndex< Distance >::KDTreeSingleIndex(), flann::NNIndex< Distance >::NNIndex(), flann::NNIndex< Distance >::removePoint(), flann::NNIndex< Distance >::serialize(), flann::NNIndex< Distance >::setDataset(), flann::NNIndex< Distance >::size(), flann::NNIndex< Distance >::swap(), flann::KDTreeIndex< Distance >::usedMemory(), flann::KDTreeSingleIndex< Distance >::usedMemory(), and flann::LshIndex< Distance >::usedMemory().

size_at_build_

template<typename Distance >

size_t flann::NNIndex< Distance >::size_at_build_

protected

Number of features in the dataset when the index was last built.

Definition at line 841 of file nn_index.h.

Referenced by flann::HierarchicalClusteringIndex< Distance >::addPoints(), flann::KDTreeIndex< Distance >::addPoints(), flann::KMeansIndex< Distance >::addPoints(), flann::LshIndex< Distance >::addPoints(), flann::NNIndex< Distance >::buildIndex(), flann::NNIndex< Distance >::serialize(), and flann::NNIndex< Distance >::swap().

veclen_

template<typename Distance >

size_t flann::NNIndex< Distance >::veclen_

protected

Size of one point in the index (and database)

Definition at line 846 of file nn_index.h.

Referenced by flann::HierarchicalClusteringIndex< Distance >::addPoints(), flann::KDTreeIndex< Distance >::addPoints(), flann::KDTreeSingleIndex< Distance >::addPoints(), flann::KMeansIndex< Distance >::addPoints(), flann::LinearIndex< Distance >::addPoints(), flann::LshIndex< Distance >::addPoints(), flann::HierarchicalClusteringIndex< Distance >::buildIndexImpl(), flann::KDTreeIndex< Distance >::buildIndexImpl(), flann::KDTreeSingleIndex< Distance >::buildIndexImpl(), flann::KMeansIndex< Distance >::buildIndexImpl(), flann::LshIndex< Distance >::buildIndexImpl(), flann::KDTreeSingleIndex< Distance >::findNeighbors(), flann::LinearIndex< Distance >::findNeighbors(), flann::KMeansIndex< Distance >::getClusterCenters(), flann::HierarchicalClusteringIndex< Distance >::HierarchicalClusteringIndex(), flann::KDTreeSingleIndex< Distance >::KDTreeSingleIndex(), flann::LshIndex< Distance >::knnSearch(), flann::NNIndex< Distance >::NNIndex(), flann::NNIndex< Distance >::serialize(), flann::NNIndex< Distance >::setDataset(), flann::NNIndex< Distance >::swap(), and flann::NNIndex< Distance >::veclen().

---

The documentation for this class was generated from the following file:

• /root/ACloudViewer/libs/Reconstruction/lib/FLANN/algorithms/nn_index.h
