flann::Matrix< T > Class Template Reference

#include <matrix.h>

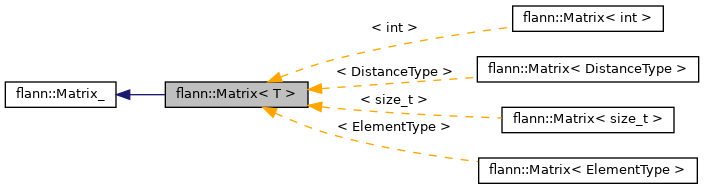

Inheritance diagram for flann::Matrix< T >:

Collaboration diagram for flann::Matrix< T >:

Public Types
typedef T	type

Public Member Functions
	Matrix ()
	Matrix (T *data_, size_t rows_, size_t cols_, size_t stride_=0)
T *	operator[] (size_t index) const
T *	ptr () const
Public Member Functions inherited from flann::Matrix_
	Matrix_ ()
	Matrix_ (void *data_, size_t rows_, size_t cols_, flann_datatype_t type_, size_t stride_=0)
void *	operator[] (size_t index) const
void *	ptr () const

Additional Inherited Members
Public Attributes inherited from flann::Matrix_
size_t	rows
size_t	cols
size_t	stride
flann_datatype_t	type
Protected Member Functions inherited from flann::Matrix_
template<typename Archive >
void	serialize (Archive &ar)
Protected Attributes inherited from flann::Matrix_
uchar *	data

Detailed Description

template<typename T>
class flann::Matrix< T >

Class that implements a simple rectangular matrix stored in a memory buffer and provides convenient matrix-like access using the [] operators.

This class has the same memory structure as the un-templated class flann::Matrix_ and it's directly convertible from it.

Definition at line 103 of file matrix.h.

Member Typedef Documentation

type

template<typename T >

typedef T flann::Matrix< T >::type

Definition at line 106 of file matrix.h.

Constructor & Destructor Documentation

Matrix() [1/2]

template<typename T >

flann::Matrix< T >::Matrix ( )

inline

Definition at line 108 of file matrix.h.

Matrix() [2/2]

template<typename T >

flann::Matrix< T >::Matrix ( T *  data_, size_t  rows_, size_t  cols_, size_t  stride_ = 0  )

inline

Definition at line 112 of file matrix.h.

References flann::Matrix_::cols, and flann::Matrix_::stride.

Member Function Documentation

operator[]()

template<typename T >

T* flann::Matrix< T >::operator[] ( size_t  index ) const

inline

Operator that returns a (pointer to a) row of the data.

Definition at line 121 of file matrix.h.

References flann::Matrix_::data, and flann::Matrix_::stride.

ptr()

template<typename T >

T* flann::Matrix< T >::ptr ( ) const

inline

Definition at line 127 of file matrix.h.

References flann::Matrix_::data.

Referenced by flann::KDTreeCuda3dIndex< Distance >::buildIndex(), flann::mpi::Index< Distance >::knnSearch(), flann::NNIndex< Distance >::knnSearch(), flann::KDTreeCuda3dIndex< Distance >::knnSearchGpu(), flann::mpi::ResultsMerger< DistanceType >::operator()(), flann::mpi::Index< Distance >::radiusSearch(), flann::NNIndex< Distance >::radiusSearch(), flann::save_to_file(), flann::mpi::SearchResults< DistanceType >::serialize(), boost::serialization::serialize(), and flann::KDTreeCuda3dIndex< Distance >::~KDTreeCuda3dIndex().

---

The documentation for this class was generated from the following file:

• /root/ACloudViewer/libs/Reconstruction/lib/FLANN/util/matrix.h
