#include <Layout.h>

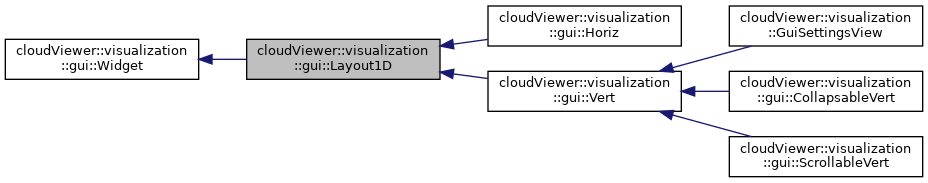

Inheritance diagram for cloudViewer::visualization::gui::Layout1D:

[legend]

Collaboration diagram for cloudViewer::visualization::gui::Layout1D:

Classes
class	Fixed

struct	Impl

class	Stretch

Public Types
enum	Dir { VERT , HORIZ }

Public Types inherited from cloudViewer::visualization::gui::Widget
enum class	DrawResult { NONE , REDRAW , RELAYOUT }

enum class	EventResult { IGNORED , CONSUMED , DISCARD }

Public Member Functions
	Layout1D (Dir dir, int spacing, const Margins &margins, const std::vector< std::shared_ptr< Widget >> &children)

virtual	~Layout1D ()

int	GetSpacing () const

const Margins &	GetMargins () const

void	SetSpacing (int spacing)

void	SetMargins (const Margins &margins)

Size	CalcPreferredSize (const LayoutContext &context, const Constraints &constraints) const override

void	Layout (const LayoutContext &context) override

void	AddFixed (int size)
	Adds a fixed number of pixels after the previously added widget. More...

void	AddStretch ()

Public Member Functions inherited from cloudViewer::visualization::gui::Widget
	Widget ()

	Widget (const std::vector< std::shared_ptr< Widget >> &children)

virtual	~Widget ()

virtual void	AddChild (std::shared_ptr< Widget > child)

virtual const std::vector< std::shared_ptr< Widget > >	GetChildren () const

virtual const Rect &	GetFrame () const
	Returns the frame size in pixels. More...

virtual void	SetFrame (const Rect &f)

virtual const Color &	GetBackgroundColor () const

virtual bool	IsDefaultBackgroundColor () const

virtual void	SetBackgroundColor (const Color &color)

virtual bool	IsVisible () const

virtual void	SetVisible (bool vis)

virtual bool	IsEnabled () const

virtual void	SetEnabled (bool enabled)

virtual void	SetTooltip (const char *text)

virtual const char *	GetTooltip () const

virtual Size	CalcMinimumSize (const LayoutContext &context) const

virtual DrawResult	Draw (const DrawContext &context)

virtual EventResult	Mouse (const MouseEvent &e)

virtual EventResult	Key (const KeyEvent &e)

virtual DrawResult	Tick (const TickEvent &e)

Static Public Member Functions
static void	debug_PrintPreferredSizes (Layout1D *layout, const LayoutContext &context, const Constraints &constraints, int depth=0)

Protected Member Functions
int	GetMinorAxisPreferredSize () const

void	SetMinorAxisPreferredSize (int size)

Margins &	GetMutableMargins ()

Protected Member Functions inherited from cloudViewer::visualization::gui::Widget
void	DrawImGuiPushEnabledState ()

void	DrawImGuiPopEnabledState ()

void	DrawImGuiTooltip ()

Additional Inherited Members
Static Public Attributes inherited from cloudViewer::visualization::gui::Widget
static constexpr int	DIM_GROW = 10000

Detailed Description

Lays out widgets either horizontally or vertically. Base class for Vert and Horiz.

Definition at line 43 of file Layout.h.

Member Enumeration Documentation

◆ Dir

enum cloudViewer::visualization::gui::Layout1D::Dir

Enumerator
VERT
HORIZ

Definition at line 47 of file Layout.h.

Constructor & Destructor Documentation

◆ Layout1D()

cloudViewer::visualization::gui::Layout1D::Layout1D	(	Dir	dir,
		int	spacing,
		const Margins &	margins,
		const std::vector< std::shared_ptr< Widget >> &	children
	)

Spacing is in pixels; see the comment in Margin(). 1em is typically a good value for spacing.

Definition at line 193 of file Layout.cpp.

◆ ~Layout1D()

cloudViewer::visualization::gui::Layout1D::~Layout1D ( )

virtual

Definition at line 203 of file Layout.cpp.

Member Function Documentation

◆ AddFixed()

void cloudViewer::visualization::gui::Layout1D::AddFixed ( int size )

Adds a fixed number of pixels after the previously added widget.

Definition at line 212 of file Layout.cpp.

References cloudViewer::visualization::gui::Widget::AddChild(), and size.

Referenced by cloudViewer::visualization::GuiSettingsView::GuiSettingsView(), and cloudViewer::visualization::gui::pybind_gui_classes().

◆ AddStretch()

void cloudViewer::visualization::gui::Layout1D::AddStretch ( )

Adds a virtual widget that takes up as much space as possible. This is useful for centering widgets: { stretch, w1, w2, stretch } or for aligning widgets to one side or the other: { stretch, ok, cancel }.

Definition at line 224 of file Layout.cpp.

References cloudViewer::visualization::gui::Widget::AddChild().

Referenced by cloudViewer::visualization::gui::pybind_gui_classes().

◆ CalcPreferredSize()

Size cloudViewer::visualization::gui::Layout1D::CalcPreferredSize	(	const LayoutContext &	context,
		const Constraints &	constraints
	)		const

overridevirtual

Reimplemented from cloudViewer::visualization::gui::Widget.

Reimplemented in cloudViewer::visualization::gui::CollapsableVert.

Definition at line 226 of file Layout.cpp.

References context, cloudViewer::visualization::gui::Widget::DIM_GROW, cloudViewer::visualization::gui::Widget::GetChildren(), max(), size, and VERT.

Referenced by cloudViewer::visualization::gui::CollapsableVert::CalcPreferredSize(), and debug_PrintPreferredSizes().

◆ debug_PrintPreferredSizes()

void cloudViewer::visualization::gui::Layout1D::debug_PrintPreferredSizes	(	Layout1D *	layout,
		const LayoutContext &	context,
		const Constraints &	constraints,
		int	depth = `0`
	)

static

Definition at line 130 of file Layout.cpp.

References cloudViewer::visualization::gui::Margins::bottom, CalcPreferredSize(), context, QtCompat::endl(), cloudViewer::visualization::gui::Widget::GetChildren(), cloudViewer::visualization::gui::VGrid::GetMargins(), cloudViewer::visualization::gui::VGrid::GetSpacing(), cloudViewer::visualization::gui::Margins::left, cloudViewer::visualization::gui::Margins::right, size, cloudViewer::visualization::gui::Margins::top, VERT, and cloudViewer::visualization::gui::Size::width.

◆ GetMargins()

const Margins & cloudViewer::visualization::gui::Layout1D::GetMargins ( ) const

Definition at line 206 of file Layout.cpp.

Referenced by cloudViewer::visualization::gui::CollapsableVert::CalcPreferredSize().

◆ GetMinorAxisPreferredSize()

int cloudViewer::visualization::gui::Layout1D::GetMinorAxisPreferredSize ( ) const

protected

Definition at line 216 of file Layout.cpp.

Referenced by cloudViewer::visualization::gui::Horiz::GetPreferredHeight(), and cloudViewer::visualization::gui::Vert::GetPreferredWidth().

◆ GetMutableMargins()

Margins & cloudViewer::visualization::gui::Layout1D::GetMutableMargins ( )

protected

Definition at line 207 of file Layout.cpp.

Referenced by cloudViewer::visualization::gui::CollapsableVert::Layout().

◆ GetSpacing()

int cloudViewer::visualization::gui::Layout1D::GetSpacing ( ) const

Definition at line 205 of file Layout.cpp.

◆ Layout()

void cloudViewer::visualization::gui::Layout1D::Layout ( const LayoutContext & context )

overridevirtual

Reimplemented from cloudViewer::visualization::gui::Widget.

Reimplemented in cloudViewer::visualization::gui::CollapsableVert.

Definition at line 250 of file Layout.cpp.

References cloudViewer::visualization::gui::Widget::CalcMinimumSize(), context, cloudViewer::visualization::gui::Widget::DIM_GROW, frame, cloudViewer::visualization::gui::Widget::GetChildren(), cloudViewer::visualization::gui::Widget::GetFrame(), height, cloudViewer::visualization::gui::Widget::Constraints::height, cloudViewer::visualization::gui::Widget::Layout(), max(), VERT, and cloudViewer::visualization::gui::Widget::Constraints::width.

Referenced by cloudViewer::visualization::gui::CollapsableVert::Layout().

◆ SetMargins()

void cloudViewer::visualization::gui::Layout1D::SetMargins ( const Margins & margins )

Sets margins. Need to signal a relayout after calling (unless it is before a layout that will happen, such as before adding as a child).

Definition at line 210 of file Layout.cpp.

Referenced by cloudViewer::visualization::GuiSettingsView::GuiSettingsView().

◆ SetMinorAxisPreferredSize()

void cloudViewer::visualization::gui::Layout1D::SetMinorAxisPreferredSize ( int size )

protected

Definition at line 220 of file Layout.cpp.

References size.

Referenced by cloudViewer::visualization::gui::Horiz::SetPreferredHeight(), and cloudViewer::visualization::gui::Vert::SetPreferredWidth().

◆ SetSpacing()

void cloudViewer::visualization::gui::Layout1D::SetSpacing ( int spacing )

Sets spacing. Need to signal a relayout after calling (unless it is before a layout that will happen, such as before adding as a child).

Definition at line 209 of file Layout.cpp.

The documentation for this class was generated from the following files:

/root/ACloudViewer/libs/cloudViewer/visualization/gui/Layout.h
/root/ACloudViewer/libs/cloudViewer/visualization/gui/Layout.cpp
