#include <Button.h>

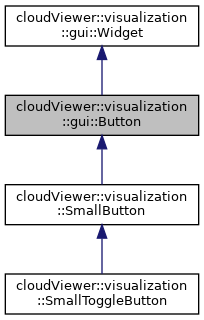

Inheritance diagram for cloudViewer::visualization::gui::Button:

[legend]

Collaboration diagram for cloudViewer::visualization::gui::Button:

Classes
struct	Impl

Public Member Functions
	Button (const char *title)

	Button (std::shared_ptr< UIImage > image)

	~Button ()

const char *	GetText () const

void	SetText (const char *text)
	Sets the text of the button. Do not call if this is an image button. More...

float	GetHorizontalPaddingEm () const
	Returns the padding, in units of ems. More...

float	GetVerticalPaddingEm () const

void	SetPaddingEm (float horiz_ems, float vert_ems)

bool	GetIsToggleable () const

void	SetToggleable (bool toggles)

bool	GetIsOn () const

void	SetOn (bool is_on)

Size	CalcPreferredSize (const LayoutContext &context, const Constraints &constraints) const override

DrawResult	Draw (const DrawContext &context) override

void	SetOnClicked (std::function< void()> on_clicked)

Public Member Functions inherited from cloudViewer::visualization::gui::Widget
	Widget ()

	Widget (const std::vector< std::shared_ptr< Widget >> &children)

virtual	~Widget ()

virtual void	AddChild (std::shared_ptr< Widget > child)

virtual const std::vector< std::shared_ptr< Widget > >	GetChildren () const

virtual const Rect &	GetFrame () const
	Returns the frame size in pixels. More...

virtual void	SetFrame (const Rect &f)

virtual const Color &	GetBackgroundColor () const

virtual bool	IsDefaultBackgroundColor () const

virtual void	SetBackgroundColor (const Color &color)

virtual bool	IsVisible () const

virtual void	SetVisible (bool vis)

virtual bool	IsEnabled () const

virtual void	SetEnabled (bool enabled)

virtual void	SetTooltip (const char *text)

virtual const char *	GetTooltip () const

virtual Size	CalcMinimumSize (const LayoutContext &context) const

virtual void	Layout (const LayoutContext &context)

virtual EventResult	Mouse (const MouseEvent &e)

virtual EventResult	Key (const KeyEvent &e)

virtual DrawResult	Tick (const TickEvent &e)

Additional Inherited Members
Public Types inherited from cloudViewer::visualization::gui::Widget
enum class	DrawResult { NONE , REDRAW , RELAYOUT }

enum class	EventResult { IGNORED , CONSUMED , DISCARD }

Static Public Attributes inherited from cloudViewer::visualization::gui::Widget
static constexpr int	DIM_GROW = 10000

Protected Member Functions inherited from cloudViewer::visualization::gui::Widget
void	DrawImGuiPushEnabledState ()

void	DrawImGuiPopEnabledState ()

void	DrawImGuiTooltip ()

Detailed Description

Definition at line 19 of file Button.h.

Constructor & Destructor Documentation

◆ Button() [1/2]

cloudViewer::visualization::gui::Button::Button ( const char * title )

explicit

Definition at line 37 of file Button.cpp.

References patch::to_string().

◆ Button() [2/2]

cloudViewer::visualization::gui::Button::Button ( std::shared_ptr< UIImage > image )

explicit

Definition at line 42 of file Button.cpp.

References image.

◆ ~Button()

cloudViewer::visualization::gui::Button::~Button ( )

Definition at line 46 of file Button.cpp.

Member Function Documentation

◆ CalcPreferredSize()

Size cloudViewer::visualization::gui::Button::CalcPreferredSize	(	const LayoutContext &	context,
		const Constraints &	constraints
	)		const

overridevirtual

Reimplemented from cloudViewer::visualization::gui::Widget.

Reimplemented in cloudViewer::visualization::SmallButton.

Definition at line 81 of file Button.cpp.

References cloudViewer::utility::ceil(), context, size, and cloudViewer::visualization::gui::Widget::Constraints::width.

◆ Draw()

Widget::DrawResult cloudViewer::visualization::gui::Button::Draw ( const DrawContext & context )

overridevirtual

Draws the widget. If this is a Dear ImGUI widget, this is where the actual event processing happens. Return NONE if no action needs to be taken, REDRAW if the widget needs to be redrawn (e.g. its value changed), and RELAYOUT if the widget wishes to change size.

Reimplemented from cloudViewer::visualization::gui::Widget.

Definition at line 115 of file Button.cpp.

References cloudViewer::visualization::gui::colorToImgui(), context, cloudViewer::visualization::gui::Widget::DrawImGuiPopEnabledState(), cloudViewer::visualization::gui::Widget::DrawImGuiPushEnabledState(), cloudViewer::visualization::gui::Widget::DrawImGuiTooltip(), frame, cloudViewer::visualization::gui::Widget::GetFrame(), height, cloudViewer::visualization::gui::Widget::NONE, params, cloudViewer::visualization::gui::Widget::REDRAW, result, and width.

◆ GetHorizontalPaddingEm()

float cloudViewer::visualization::gui::Button::GetHorizontalPaddingEm ( ) const

Returns the padding, in units of ems.

Definition at line 52 of file Button.cpp.

Referenced by cloudViewer::visualization::gui::pybind_gui_classes().

◆ GetIsOn()

bool cloudViewer::visualization::gui::Button::GetIsOn ( ) const

Definition at line 69 of file Button.cpp.

Referenced by cloudViewer::visualization::gui::pybind_gui_classes().

◆ GetIsToggleable()

bool cloudViewer::visualization::gui::Button::GetIsToggleable ( ) const

Definition at line 65 of file Button.cpp.

Referenced by cloudViewer::visualization::gui::pybind_gui_classes().

◆ GetText()

const char * cloudViewer::visualization::gui::Button::GetText ( ) const

Returns the text of the button. If the button is an image, will return "".

Definition at line 48 of file Button.cpp.

Referenced by cloudViewer::visualization::gui::pybind_gui_classes().

◆ GetVerticalPaddingEm()

float cloudViewer::visualization::gui::Button::GetVerticalPaddingEm ( ) const

Definition at line 56 of file Button.cpp.

Referenced by cloudViewer::visualization::gui::pybind_gui_classes().

◆ SetOn()

void cloudViewer::visualization::gui::Button::SetOn ( bool is_on )

Definition at line 71 of file Button.cpp.

Referenced by cloudViewer::visualization::gui::pybind_gui_classes().

◆ SetOnClicked()

void cloudViewer::visualization::gui::Button::SetOnClicked ( std::function< void()> on_clicked )

Definition at line 77 of file Button.cpp.

Referenced by cloudViewer::visualization::visualizer::O3DVisualizer::AddAction(), and cloudViewer::visualization::gui::pybind_gui_classes().

◆ SetPaddingEm()

void cloudViewer::visualization::gui::Button::SetPaddingEm	(	float	horiz_ems,
		float	vert_ems
	)

Sets the padding, in units of ems. Note that for text buttons, a padding of (0, 0) will not actually give a padding of 0, there will be a small padding because having zero padding looks horrible and because this way a vertical padding of zero is exactly the same size as a text row, which means the button is the same size as the the other text-based widgets, so it will look nice with them.

Definition at line 60 of file Button.cpp.

◆ SetText()

void cloudViewer::visualization::gui::Button::SetText ( const char * text )

Sets the text of the button. Do not call if this is an image button.

Definition at line 50 of file Button.cpp.

Referenced by cloudViewer::visualization::gui::pybind_gui_classes().

◆ SetToggleable()

void cloudViewer::visualization::gui::Button::SetToggleable ( bool toggles )

Definition at line 67 of file Button.cpp.

Referenced by cloudViewer::visualization::gui::pybind_gui_classes(), and cloudViewer::visualization::SmallToggleButton::SmallToggleButton().

The documentation for this class was generated from the following files:

/root/ACloudViewer/libs/cloudViewer/visualization/gui/Button.h
/root/ACloudViewer/libs/cloudViewer/visualization/gui/Button.cpp
