Data class for FlightHelmetModel contains a flight helmet model file, along with material and various other texture files. The model file can be accessed using GetPath(), however in order to access the paths to the texture files one may use GetPath(filename) method or get the unordered map of filename to path using GetPathMap(). More...

#include <Dataset.h>

Inheritance diagram for cloudViewer::data::FlightHelmetModel:

[legend]

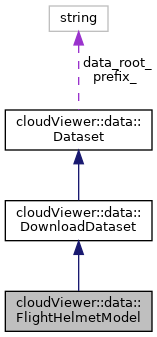

Collaboration diagram for cloudViewer::data::FlightHelmetModel:

[legend]

Public Member Functions
	FlightHelmetModel (const std::string &data_root="")

std::string	GetPath (const std::string filename="flight_helmet") const
	Path to the `filename`. By default it returns the path to `FlightHelmet.gltf` file. Refer documentation page for available options. More...

std::unordered_map< std::string, std::string >	GetPathMap () const
	Returns the map of filename to path. Refer documentation page for available options. More...

Public Member Functions inherited from cloudViewer::data::DownloadDataset
	DownloadDataset (const std::string &prefix, const DataDescriptor &data_descriptor, const std::string &data_root="")

	DownloadDataset (const std::string &prefix, const std::vector< DataDescriptor > &data_descriptors, const std::string &data_root="")

virtual	~DownloadDataset ()

Public Member Functions inherited from cloudViewer::data::Dataset
	Dataset (const std::string &prefix, const std::string &data_root="")
	Parameterized Constructor. More...

virtual	~Dataset ()

const std::string	GetDataRoot () const
	Get data root directory. The data root is set at construction time or automatically determined. More...

const std::string	GetPrefix () const
	Get prefix for the dataset. More...

const std::string	GetDownloadDir () const
	Get absolute path to download directory. i.e. ${data_root}/download/${prefix}. More...

const std::string	GetExtractDir () const
	Get absolute path to extract directory. i.e. ${data_root}/extract/${prefix}. More...

Additional Inherited Members
Protected Member Functions inherited from cloudViewer::data::DownloadDataset
bool	HasDownloaded (const DataDescriptor &data_descriptor) const
	Check if all files are downloaded and MD5 checksums are valid. More...

Protected Member Functions inherited from cloudViewer::data::Dataset
void	CheckPathsExist (const std::vector< std::string > &paths) const
	Check if the paths exists after extraction. More...

Protected Attributes inherited from cloudViewer::data::DownloadDataset
std::vector< DataDescriptor >	data_descriptors_

Protected Attributes inherited from cloudViewer::data::Dataset
std::string	data_root_
	CloudViewer data root. More...

std::string	prefix_
	Dataset prefix. More...

Detailed Description

Data class for FlightHelmetModel contains a flight helmet model file, along with material and various other texture files. The model file can be accessed using GetPath(), however in order to access the paths to the texture files one may use GetPath(filename) method or get the unordered map of filename to path using GetPathMap().

Definition at line 489 of file Dataset.h.

Constructor & Destructor Documentation

◆ FlightHelmetModel()

cloudViewer::data::FlightHelmetModel::FlightHelmetModel ( const std::string & data_root = "" )

Definition at line 22 of file FlightHelmetModel.cpp.

References cloudViewer::data::Dataset::GetExtractDir().

Member Function Documentation

◆ GetPath()

std::string cloudViewer::data::FlightHelmetModel::GetPath ( const std::string filename = "flight_helmet" ) const

inline

Path to the filename. By default it returns the path to FlightHelmet.gltf file. Refer documentation page for available options.

Definition at line 496 of file Dataset.h.

References filename.

◆ GetPathMap()

std::unordered_map<std::string, std::string> cloudViewer::data::FlightHelmetModel::GetPathMap ( ) const

inline

Returns the map of filename to path. Refer documentation page for available options.

Definition at line 502 of file Dataset.h.

Referenced by cloudViewer::data::pybind_helmet().

The documentation for this class was generated from the following files:

/root/ACloudViewer/libs/cloudViewer/data/Dataset.h
/root/ACloudViewer/libs/cloudViewer/data/dataset/FlightHelmetModel.cpp
