#include <StdGPUHashBackend.h>

Inheritance diagram for cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >:

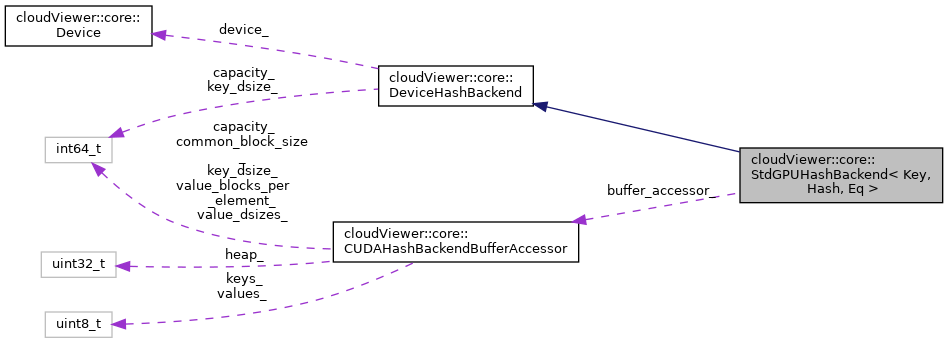

Collaboration diagram for cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >:

[legend]

Public Member Functions
	StdGPUHashBackend (int64_t init_capacity, int64_t key_dsize, const std::vector< int64_t > &value_dsizes, const Device &device)

	~StdGPUHashBackend ()

void	Reserve (int64_t capacity) override

void	Insert (const void input_keys, const std::vector< const void > &input_values_soa, buf_index_t output_buf_indices, bool output_masks, int64_t count) override
	Parallel insert contiguous arrays of keys and values. More...

void	Find (const void input_keys, buf_index_t output_buf_indices, bool *output_masks, int64_t count) override
	Parallel find a contiguous array of keys. More...

void	Erase (const void input_keys, bool output_masks, int64_t count) override
	Parallel erase a contiguous array of keys. More...

int64_t	GetActiveIndices (buf_index_t *output_indices) override
	Parallel collect all iterators in the hash table. More...

void	Clear () override
	Clear stored map without reallocating memory. More...

int64_t	Size () const override
	Get the size (number of valid entries) of the hash map. More...

int64_t	GetBucketCount () const override
	Get the number of buckets of the hash map. More...

std::vector< int64_t >	BucketSizes () const override
	Get the number of entries per bucket. More...

float	LoadFactor () const override
	Get the current load factor, defined as size / bucket count. More...

InternalStdGPUHashBackend< Key, Hash, Eq >	GetImpl () const

void	Allocate (int64_t capacity)

void	Free ()

Public Member Functions inherited from cloudViewer::core::DeviceHashBackend
	DeviceHashBackend (int64_t init_capacity, int64_t key_dsize, const std::vector< int64_t > &value_dsizes, const Device &device)

virtual	~DeviceHashBackend ()

int64_t	GetCapacity () const
	Get the maximum capacity of the hash map. More...

Device	GetDevice () const
	Get the current device. More...

Tensor	GetKeyBuffer ()
	Get the key buffer that stores actual keys. More...

std::vector< Tensor >	GetValueBuffers ()
	Get the value buffers that store actual array of values. More...

Tensor	GetValueBuffer (size_t i=0)
	Get the i-th value buffer that store an actual value array. More...

Protected Attributes
InternalStdGPUHashBackend< Key, Hash, Eq >	impl_

CUDAHashBackendBufferAccessor	buffer_accessor_

Additional Inherited Members
Public Attributes inherited from cloudViewer::core::DeviceHashBackend
int64_t	capacity_

int64_t	key_dsize_

std::vector< int64_t >	value_dsizes_

Device	device_

std::shared_ptr< HashBackendBuffer >	buffer_

Detailed Description

template<typename Key, typename Hash, typename Eq>
class cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >

Definition at line 105 of file StdGPUHashBackend.h.

Constructor & Destructor Documentation

◆ StdGPUHashBackend()

template<typename Key , typename Hash , typename Eq >

cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::StdGPUHashBackend	(	int64_t	init_capacity,
		int64_t	key_dsize,
		const std::vector< int64_t > &	value_dsizes,
		const Device &	device
	)

Definition at line 154 of file StdGPUHashBackend.h.

References cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::Allocate(), and cloudViewer::core::DeviceHashBackend::device_.

◆ ~StdGPUHashBackend()

template<typename Key , typename Hash , typename Eq >

cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::~StdGPUHashBackend

Definition at line 165 of file StdGPUHashBackend.h.

References cloudViewer::core::Free().

Member Function Documentation

◆ Allocate()

template<typename Key , typename Hash , typename Eq >

void cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::Allocate ( int64_t capacity )

virtual

Implements cloudViewer::core::DeviceHashBackend.

Definition at line 388 of file StdGPUHashBackend.h.

References cloudViewer::core::cuda::Synchronize().

Referenced by cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::StdGPUHashBackend().

◆ BucketSizes()

template<typename Key , typename Hash , typename Eq >

std::vector< int64_t > cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::BucketSizes ( ) const

overridevirtual

Get the number of entries per bucket.

Implements cloudViewer::core::DeviceHashBackend.

Definition at line 292 of file StdGPUHashBackend.h.

References LogError.

◆ Clear()

template<typename Key , typename Hash , typename Eq >

void cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::Clear ( )

overridevirtual

Clear stored map without reallocating memory.

Implements cloudViewer::core::DeviceHashBackend.

Definition at line 274 of file StdGPUHashBackend.h.

◆ Erase()

template<typename Key , typename Hash , typename Eq >

void cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::Erase	(	const void *	input_keys,
		bool *	output_masks,
		int64_t	count
	)

overridevirtual

Parallel erase a contiguous array of keys.

Implements cloudViewer::core::DeviceHashBackend.

Definition at line 235 of file StdGPUHashBackend.h.

References count, cloudViewer::core::Tensor::GetDataPtr(), cloudViewer::core::Int32, cloudViewer::core::STDGPUEraseKernel(), and cloudViewer::core::cuda::Synchronize().

◆ Find()

template<typename Key , typename Hash , typename Eq >

void cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::Find	(	const void *	input_keys,
		buf_index_t *	output_buf_indices,
		bool *	output_masks,
		int64_t	count
	)

overridevirtual

Parallel find a contiguous array of keys.

Implements cloudViewer::core::DeviceHashBackend.

Definition at line 195 of file StdGPUHashBackend.h.

References count, cloudViewer::core::STDGPUFindKernel(), and cloudViewer::core::cuda::Synchronize().

◆ Free()

template<typename Key , typename Hash , typename Eq >

void cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::Free

virtual

Implements cloudViewer::core::DeviceHashBackend.

Definition at line 411 of file StdGPUHashBackend.h.

◆ GetActiveIndices()

template<typename Key , typename Hash , typename Eq >

int64_t cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::GetActiveIndices ( buf_index_t * output_buf_indices )

overridevirtual

Parallel collect all iterators in the hash table.

Implements cloudViewer::core::DeviceHashBackend.

Definition at line 262 of file StdGPUHashBackend.h.

◆ GetBucketCount()

template<typename Key , typename Hash , typename Eq >

int64_t cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::GetBucketCount ( ) const

overridevirtual

Get the number of buckets of the hash map.

Implements cloudViewer::core::DeviceHashBackend.

Definition at line 286 of file StdGPUHashBackend.h.

◆ GetImpl()

template<typename Key , typename Hash , typename Eq >

InternalStdGPUHashBackend<Key, Hash, Eq> cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::GetImpl ( ) const

inline

Definition at line 140 of file StdGPUHashBackend.h.

References cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::impl_.

◆ Insert()

template<typename Key , typename Hash , typename Eq >

void cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::Insert	(	const void *	input_keys,
		const std::vector< const void * > &	input_values,
		buf_index_t *	output_buf_indices,
		bool *	output_masks,
		int64_t	count
	)

overridevirtual

Parallel insert contiguous arrays of keys and values.

Implements cloudViewer::core::DeviceHashBackend.

Definition at line 358 of file StdGPUHashBackend.h.

References count, and cloudViewer::core::cuda::Synchronize().

◆ LoadFactor()

template<typename Key , typename Hash , typename Eq >

float cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::LoadFactor ( ) const

overridevirtual

Get the current load factor, defined as size / bucket count.

Implements cloudViewer::core::DeviceHashBackend.

Definition at line 298 of file StdGPUHashBackend.h.

◆ Reserve()

template<typename Key , typename Hash , typename Eq >

void cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::Reserve ( int64_t capacity )

overridevirtual

Reserve expects a lot of extra memory space at runtime, since it consists of 1) dumping all key value pairs to a buffer 2) creating a new hash table 3) parallel inserting dumped key value pairs 4) deallocating old hash table

Implements cloudViewer::core::DeviceHashBackend.

Definition at line 281 of file StdGPUHashBackend.h.

◆ Size()

template<typename Key , typename Hash , typename Eq >

int64_t cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::Size ( ) const

overridevirtual

Get the size (number of valid entries) of the hash map.

Implements cloudViewer::core::DeviceHashBackend.

Definition at line 171 of file StdGPUHashBackend.h.

Member Data Documentation

◆ buffer_accessor_

template<typename Key , typename Hash , typename Eq >

CUDAHashBackendBufferAccessor cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::buffer_accessor_

protected

Definition at line 150 of file StdGPUHashBackend.h.

◆ impl_

template<typename Key , typename Hash , typename Eq >

InternalStdGPUHashBackend<Key, Hash, Eq> cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::impl_

protected

Definition at line 148 of file StdGPUHashBackend.h.

Referenced by cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::GetImpl().

The documentation for this class was generated from the following file:

/root/ACloudViewer/libs/cloudViewer/core/hashmap/CUDA/StdGPUHashBackend.h
