#include <DeviceHashBackend.h>

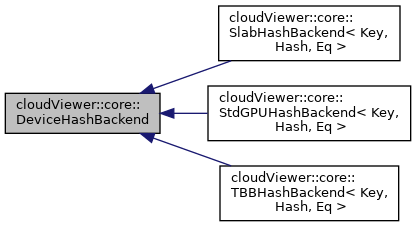

Inheritance diagram for cloudViewer::core::DeviceHashBackend:

[legend]

Collaboration diagram for cloudViewer::core::DeviceHashBackend:

Public Member Functions
	DeviceHashBackend (int64_t init_capacity, int64_t key_dsize, const std::vector< int64_t > &value_dsizes, const Device &device)

virtual	~DeviceHashBackend ()

virtual void	Reserve (int64_t capacity)=0

virtual void	Insert (const void input_keys, const std::vector< const void > &input_values, buf_index_t output_buf_indices, bool output_masks, int64_t count)=0
	Parallel insert contiguous arrays of keys and values. More...

virtual void	Find (const void input_keys, buf_index_t output_buf_indices, bool *output_masks, int64_t count)=0
	Parallel find a contiguous array of keys. More...

virtual void	Erase (const void input_keys, bool output_masks, int64_t count)=0
	Parallel erase a contiguous array of keys. More...

virtual int64_t	GetActiveIndices (buf_index_t *output_buf_indices)=0
	Parallel collect all iterators in the hash table. More...

virtual void	Clear ()=0
	Clear stored map without reallocating memory. More...

virtual int64_t	Size () const =0
	Get the size (number of valid entries) of the hash map. More...

virtual int64_t	GetBucketCount () const =0
	Get the number of buckets of the hash map. More...

virtual float	LoadFactor () const =0
	Get the current load factor, defined as size / bucket count. More...

int64_t	GetCapacity () const
	Get the maximum capacity of the hash map. More...

Device	GetDevice () const
	Get the current device. More...

virtual std::vector< int64_t >	BucketSizes () const =0
	Get the number of entries per bucket. More...

Tensor	GetKeyBuffer ()
	Get the key buffer that stores actual keys. More...

std::vector< Tensor >	GetValueBuffers ()
	Get the value buffers that store actual array of values. More...

Tensor	GetValueBuffer (size_t i=0)
	Get the i-th value buffer that store an actual value array. More...

virtual void	Allocate (int64_t capacity)=0

virtual void	Free ()=0

Public Attributes
int64_t	capacity_

int64_t	key_dsize_

std::vector< int64_t >	value_dsizes_

Device	device_

std::shared_ptr< HashBackendBuffer >	buffer_

Detailed Description

Definition at line 20 of file DeviceHashBackend.h.

Constructor & Destructor Documentation

◆ DeviceHashBackend()

cloudViewer::core::DeviceHashBackend::DeviceHashBackend	(	int64_t	init_capacity,
		int64_t	key_dsize,
		const std::vector< int64_t > &	value_dsizes,
		const Device &	device
	)

inline

Definition at line 22 of file DeviceHashBackend.h.

◆ ~DeviceHashBackend()

virtual cloudViewer::core::DeviceHashBackend::~DeviceHashBackend ( )

inlinevirtual

Definition at line 30 of file DeviceHashBackend.h.

Member Function Documentation

◆ Allocate()

virtual void cloudViewer::core::DeviceHashBackend::Allocate ( int64_t capacity )

pure virtual

Implemented in cloudViewer::core::SlabHashBackend< Key, Hash, Eq >, cloudViewer::core::TBBHashBackend< Key, Hash, Eq >, and cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >.

◆ BucketSizes()

virtual std::vector<int64_t> cloudViewer::core::DeviceHashBackend::BucketSizes ( ) const

pure virtual

Get the number of entries per bucket.

Implemented in cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >, cloudViewer::core::SlabHashBackend< Key, Hash, Eq >, and cloudViewer::core::TBBHashBackend< Key, Hash, Eq >.

◆ Clear()

virtual void cloudViewer::core::DeviceHashBackend::Clear ( )

pure virtual

Clear stored map without reallocating memory.

Implemented in cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >, cloudViewer::core::SlabHashBackend< Key, Hash, Eq >, and cloudViewer::core::TBBHashBackend< Key, Hash, Eq >.

◆ Erase()

virtual void cloudViewer::core::DeviceHashBackend::Erase	(	const void *	input_keys,
		bool *	output_masks,
		int64_t	count
	)

pure virtual

Parallel erase a contiguous array of keys.

Implemented in cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >, cloudViewer::core::SlabHashBackend< Key, Hash, Eq >, and cloudViewer::core::TBBHashBackend< Key, Hash, Eq >.

◆ Find()

virtual void cloudViewer::core::DeviceHashBackend::Find	(	const void *	input_keys,
		buf_index_t *	output_buf_indices,
		bool *	output_masks,
		int64_t	count
	)

pure virtual

Parallel find a contiguous array of keys.

Implemented in cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >, cloudViewer::core::SlabHashBackend< Key, Hash, Eq >, and cloudViewer::core::TBBHashBackend< Key, Hash, Eq >.

◆ Free()

virtual void cloudViewer::core::DeviceHashBackend::Free ( )

pure virtual

Implemented in cloudViewer::core::SlabHashBackend< Key, Hash, Eq >, cloudViewer::core::TBBHashBackend< Key, Hash, Eq >, and cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >.

◆ GetActiveIndices()

virtual int64_t cloudViewer::core::DeviceHashBackend::GetActiveIndices ( buf_index_t * output_buf_indices )

pure virtual

Parallel collect all iterators in the hash table.

Implemented in cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >, cloudViewer::core::SlabHashBackend< Key, Hash, Eq >, and cloudViewer::core::TBBHashBackend< Key, Hash, Eq >.

◆ GetBucketCount()

virtual int64_t cloudViewer::core::DeviceHashBackend::GetBucketCount ( ) const

pure virtual

Get the number of buckets of the hash map.

Implemented in cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >, cloudViewer::core::SlabHashBackend< Key, Hash, Eq >, and cloudViewer::core::TBBHashBackend< Key, Hash, Eq >.

◆ GetCapacity()

int64_t cloudViewer::core::DeviceHashBackend::GetCapacity ( ) const

inline

Get the maximum capacity of the hash map.

Definition at line 74 of file DeviceHashBackend.h.

References capacity_.

◆ GetDevice()

Device cloudViewer::core::DeviceHashBackend::GetDevice ( ) const

inline

Get the current device.

Definition at line 77 of file DeviceHashBackend.h.

References device_.

◆ GetKeyBuffer()

Tensor cloudViewer::core::DeviceHashBackend::GetKeyBuffer ( )

inline

Get the key buffer that stores actual keys.

Definition at line 83 of file DeviceHashBackend.h.

References buffer_.

◆ GetValueBuffer()

Tensor cloudViewer::core::DeviceHashBackend::GetValueBuffer ( size_t i = 0 )

inline

Get the i-th value buffer that store an actual value array.

Definition at line 89 of file DeviceHashBackend.h.

References buffer_.

◆ GetValueBuffers()

std::vector<Tensor> cloudViewer::core::DeviceHashBackend::GetValueBuffers ( )

inline

Get the value buffers that store actual array of values.

Definition at line 86 of file DeviceHashBackend.h.

References buffer_.

◆ Insert()

virtual void cloudViewer::core::DeviceHashBackend::Insert	(	const void *	input_keys,
		const std::vector< const void * > &	input_values,
		buf_index_t *	output_buf_indices,
		bool *	output_masks,
		int64_t	count
	)

pure virtual

Parallel insert contiguous arrays of keys and values.

Implemented in cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >, cloudViewer::core::SlabHashBackend< Key, Hash, Eq >, and cloudViewer::core::TBBHashBackend< Key, Hash, Eq >.

◆ LoadFactor()

virtual float cloudViewer::core::DeviceHashBackend::LoadFactor ( ) const

pure virtual

Get the current load factor, defined as size / bucket count.

Implemented in cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >, cloudViewer::core::SlabHashBackend< Key, Hash, Eq >, and cloudViewer::core::TBBHashBackend< Key, Hash, Eq >.

◆ Reserve()

virtual void cloudViewer::core::DeviceHashBackend::Reserve ( int64_t capacity )

pure virtual

Reserve expects a lot of extra memory space at runtime, since it consists of 1) dumping all key value pairs to a buffer 2) creating a new hash table 3) parallel inserting dumped key value pairs 4) deallocating old hash table

Implemented in cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >, cloudViewer::core::SlabHashBackend< Key, Hash, Eq >, and cloudViewer::core::TBBHashBackend< Key, Hash, Eq >.

◆ Size()

virtual int64_t cloudViewer::core::DeviceHashBackend::Size ( ) const

pure virtual

Get the size (number of valid entries) of the hash map.

Implemented in cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >, cloudViewer::core::SlabHashBackend< Key, Hash, Eq >, and cloudViewer::core::TBBHashBackend< Key, Hash, Eq >.

Member Data Documentation

◆ buffer_

std::shared_ptr<HashBackendBuffer> cloudViewer::core::DeviceHashBackend::buffer_

Definition at line 102 of file DeviceHashBackend.h.

Referenced by GetKeyBuffer(), GetValueBuffer(), and GetValueBuffers().

◆ capacity_

int64_t cloudViewer::core::DeviceHashBackend::capacity_

Definition at line 95 of file DeviceHashBackend.h.

Referenced by GetCapacity().

◆ device_

Device cloudViewer::core::DeviceHashBackend::device_

Definition at line 100 of file DeviceHashBackend.h.

Referenced by GetDevice(), cloudViewer::core::SlabHashBackend< Key, Hash, Eq >::SlabHashBackend(), and cloudViewer::core::StdGPUHashBackend< Key, Hash, Eq >::StdGPUHashBackend().

◆ key_dsize_

int64_t cloudViewer::core::DeviceHashBackend::key_dsize_

Definition at line 97 of file DeviceHashBackend.h.

◆ value_dsizes_

std::vector<int64_t> cloudViewer::core::DeviceHashBackend::value_dsizes_

Definition at line 98 of file DeviceHashBackend.h.

The documentation for this class was generated from the following file:

/root/ACloudViewer/libs/cloudViewer/core/hashmap/DeviceHashBackend.h
