A kind of ReferenceCloud based on the DgmOctree::NeighboursSet structure. More...

#include <DgmOctreeReferenceCloud.h>

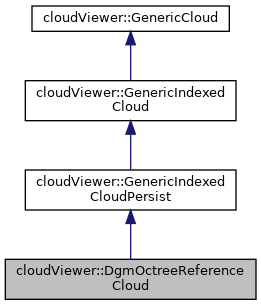

Inheritance diagram for cloudViewer::DgmOctreeReferenceCloud:

[legend]

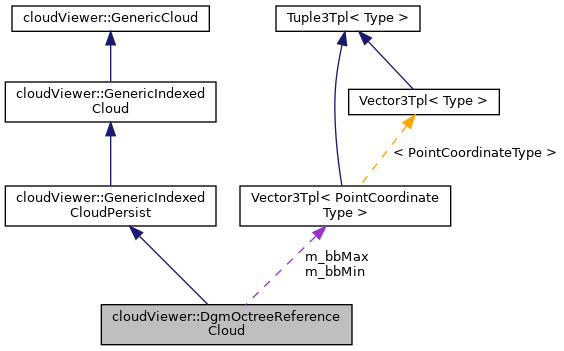

Collaboration diagram for cloudViewer::DgmOctreeReferenceCloud:

[legend]

Public Member Functions
	DgmOctreeReferenceCloud (DgmOctree::NeighboursSet *associatedSet, unsigned count=0)
	Default constructor. More...

unsigned	size () const override
	Returns the number of points. More...

void	forEach (genericPointAction action) override
	Fast iteration mechanism. More...

void	getBoundingBox (CCVector3 &bbMin, CCVector3 &bbMax) override
	Returns the cloud bounding box. More...

void	placeIteratorAtBeginning () override
	Sets the cloud iterator at the beginning. More...

const CCVector3 *	getNextPoint () override
	Returns the next point (relatively to the global iterator position) More...

bool	enableScalarField () override
	Enables the scalar field associated to the cloud. More...

bool	isScalarFieldEnabled () const override
	Returns true if the scalar field is enabled, false otherwise. More...

void	setPointScalarValue (unsigned pointIndex, ScalarType value) override
	Sets the ith point associated scalar value. More...

ScalarType	getPointScalarValue (unsigned pointIndex) const override
	Returns the ith point associated scalar value. More...

const CCVector3 *	getPoint (unsigned index) const override
	Returns the ith point. More...

void	getPoint (unsigned index, CCVector3 &P) const override
	Returns the ith point. More...

void	getPoint (unsigned index, double P[3]) const override

const CCVector3 *	getPointPersistentPtr (unsigned index) override
	Returns the ith point as a persistent pointer. More...

void	forwardIterator ()
	Forwards global iterator. More...

Public Member Functions inherited from cloudViewer::GenericIndexedCloudPersist
	~GenericIndexedCloudPersist () override=default
	Default destructor. More...

Public Member Functions inherited from cloudViewer::GenericIndexedCloud
	~GenericIndexedCloud () override=default
	Default destructor. More...

virtual bool	normalsAvailable () const
	Returns whether normals are available. More...

virtual const CCVector3 *	getNormal (unsigned index) const
	If per-point normals are available, returns the one at a specific index. More...

Public Member Functions inherited from cloudViewer::GenericCloud
	GenericCloud ()=default
	Default constructor. More...

virtual	~GenericCloud ()=default
	Default destructor. More...

virtual bool	hasPoints () const

virtual unsigned char	testVisibility (const CCVector3 &P) const

Protected Member Functions
virtual void	computeBB ()
	Computes the cloud bounding-box (internal) More...

Protected Attributes
unsigned	m_globalIterator
	Iterator on the point references container. More...

CCVector3	m_bbMin
	Bounding-box min corner. More...

CCVector3	m_bbMax
	Bounding-box max corner. More...

bool	m_validBB
	Bounding-box validity. More...

DgmOctree::NeighboursSet *	m_set
	Associated PointDescriptor set. More...

unsigned	m_size
	Number of points. More...

Additional Inherited Members
Public Types inherited from cloudViewer::GenericCloud
using	genericPointAction = std::function< void(const CCVector3 &, ScalarType &)>
	Generic function applied to a point (used by foreach) More...

Detailed Description

A kind of ReferenceCloud based on the DgmOctree::NeighboursSet structure.

Definition at line 17 of file DgmOctreeReferenceCloud.h.

Constructor & Destructor Documentation

◆ DgmOctreeReferenceCloud()

DgmOctreeReferenceCloud::DgmOctreeReferenceCloud	(	DgmOctree::NeighboursSet *	associatedSet,
		unsigned	count = `0`
	)

Default constructor.

Parameters

associatedSet	associated NeighboursSet
count	number of values to use (0 = all)

Definition at line 12 of file DgmOctreeReferenceCloud.cpp.

Member Function Documentation

◆ computeBB()

void DgmOctreeReferenceCloud::computeBB ( )

protectedvirtual

Computes the cloud bounding-box (internal)

Definition at line 22 of file DgmOctreeReferenceCloud.cpp.

References count, m_bbMax, m_bbMin, m_set, m_validBB, size(), Tuple3Tpl< Type >::x, Tuple3Tpl< Type >::y, and Tuple3Tpl< Type >::z.

Referenced by getBoundingBox().

◆ enableScalarField()

bool cloudViewer::DgmOctreeReferenceCloud::enableScalarField ( )

inlineoverridevirtual

Enables the scalar field associated to the cloud.

If the scalar field structure is not yet initialized/allocated, this method gives the signal for its creation. Otherwise, if possible the structure size should be pre-reserved with the same number of elements as the point cloud.

Implements cloudViewer::GenericCloud.

Definition at line 38 of file DgmOctreeReferenceCloud.h.

◆ forEach()

void DgmOctreeReferenceCloud::forEach ( genericPointAction action )

overridevirtual

Fast iteration mechanism.

Virtual method to apply a function to the whole cloud

Parameters

action the function to apply (see GenericCloud::genericPointAction)

Implements cloudViewer::GenericCloud.

Definition at line 65 of file DgmOctreeReferenceCloud.cpp.

References count, m_set, and size().

◆ forwardIterator()

void cloudViewer::DgmOctreeReferenceCloud::forwardIterator ( )

inline

Forwards global iterator.

Definition at line 75 of file DgmOctreeReferenceCloud.h.

Referenced by define_DgmOctreeReferenceCloud().

◆ getBoundingBox()

void DgmOctreeReferenceCloud::getBoundingBox	(	CCVector3 &	bbMin,
		CCVector3 &	bbMax
	)

overridevirtual

Returns the cloud bounding box.

Virtual method to request the cloud bounding box limits

Parameters

bbMin	lower bounding-box limits (Xmin,Ymin,Zmin)
bbMax	higher bounding-box limits (Xmax,Ymax,Zmax)

Implements cloudViewer::GenericCloud.

Definition at line 57 of file DgmOctreeReferenceCloud.cpp.

References computeBB(), m_bbMax, m_bbMin, and m_validBB.

◆ getNextPoint()

const CCVector3* cloudViewer::DgmOctreeReferenceCloud::getNextPoint ( )

inlineoverridevirtual

Returns the next point (relatively to the global iterator position)

Virtual method to handle the cloud global iterator. Global iterator position should be increased by one each time this method is called. Warning:

the returned object may not be persistent!
THIS METHOD MAY NOT BE COMPATIBLE WITH PARALLEL STRATEGIES (see the DgmOctree::executeFunctionForAllCellsAtLevel_MT and DgmOctree::executeFunctionForAllCellsAtStartingLevel_MT methods).
Returns
pointer on next point (or 0 if no more)

Implements cloudViewer::GenericCloud.

Definition at line 34 of file DgmOctreeReferenceCloud.h.

References size.

◆ getPoint() [1/3]

const CCVector3* cloudViewer::DgmOctreeReferenceCloud::getPoint ( unsigned index ) const

inlineoverridevirtual

Returns the ith point.

Virtual method to request a point with a specific index. WARNINGS:

the returned object may not be persistent!
THIS METHOD MAY NOT BE COMPATIBLE WITH PARALLEL STRATEGIES (see the DgmOctree::executeFunctionForAllCellsAtLevel_MT and DgmOctree::executeFunctionForAllCellsAtStartingLevel_MT methods). Consider the other version of getPoint instead or the GenericIndexedCloudPersist class.
Parameters

index of the requested point (between 0 and the cloud size minus 1)

Returns
the requested point (undefined behavior if index is invalid)

Implements cloudViewer::GenericIndexedCloud.

Definition at line 54 of file DgmOctreeReferenceCloud.h.

References size.

Referenced by cloudViewer::CloudSamplingTools::applyNoiseFilterAtLevel(), and ccTrace::getSegmentCostCurve().

◆ getPoint() [2/3]

void cloudViewer::DgmOctreeReferenceCloud::getPoint	(	unsigned	index,
		CCVector3 &	P
	)		const

inlineoverridevirtual

Returns the ith point.

Virtual method to request a point with a specific index. Index must be valid (undefined behavior if index is invalid)

Parameters

index	of the requested point (between 0 and the cloud size minus 1)
P	output point

Implements cloudViewer::GenericIndexedCloud.

Definition at line 58 of file DgmOctreeReferenceCloud.h.

References size.

◆ getPoint() [3/3]

void cloudViewer::DgmOctreeReferenceCloud::getPoint	(	unsigned	index,
		double	P[3]
	)		const

inlineoverridevirtual

Reimplemented from cloudViewer::GenericIndexedCloud.

Definition at line 62 of file DgmOctreeReferenceCloud.h.

References size.

◆ getPointPersistentPtr()

const CCVector3* cloudViewer::DgmOctreeReferenceCloud::getPointPersistentPtr ( unsigned index )

inlineoverridevirtual

Returns the ith point as a persistent pointer.

Virtual method to request a point with a specific index. WARNING: the returned object MUST be persistent in order to be compatible with parallel strategies!

Parameters

index of the requested point (between 0 and the cloud size minus 1)

Returns: the requested point (or 0 if index is invalid)

Implements cloudViewer::GenericIndexedCloudPersist.

Definition at line 69 of file DgmOctreeReferenceCloud.h.

References size.

◆ getPointScalarValue()

ScalarType cloudViewer::DgmOctreeReferenceCloud::getPointScalarValue ( unsigned pointIndex ) const

inlineoverridevirtual

Returns the ith point associated scalar value.

Implements cloudViewer::GenericCloud.

Definition at line 49 of file DgmOctreeReferenceCloud.h.

References size.

◆ isScalarFieldEnabled()

bool cloudViewer::DgmOctreeReferenceCloud::isScalarFieldEnabled ( ) const

inlineoverridevirtual

Returns true if the scalar field is enabled, false otherwise.

Implements cloudViewer::GenericCloud.

Definition at line 41 of file DgmOctreeReferenceCloud.h.

◆ placeIteratorAtBeginning()

void cloudViewer::DgmOctreeReferenceCloud::placeIteratorAtBeginning ( )

inlineoverridevirtual

Sets the cloud iterator at the beginning.

Virtual method to handle the cloud global iterator

Implements cloudViewer::GenericCloud.

Definition at line 33 of file DgmOctreeReferenceCloud.h.

◆ setPointScalarValue()

void cloudViewer::DgmOctreeReferenceCloud::setPointScalarValue	(	unsigned	pointIndex,
		ScalarType	value
	)

inlineoverridevirtual

Sets the ith point associated scalar value.

Implements cloudViewer::GenericCloud.

Definition at line 44 of file DgmOctreeReferenceCloud.h.

References size.

◆ size()

unsigned cloudViewer::DgmOctreeReferenceCloud::size ( ) const

inlineoverridevirtual

Returns the number of points.

Virtual method to request the cloud size

Returns: the cloud size

Implements cloudViewer::GenericCloud.

Definition at line 28 of file DgmOctreeReferenceCloud.h.

Referenced by computeBB(), and forEach().

Member Data Documentation

◆ m_bbMax

CCVector3 cloudViewer::DgmOctreeReferenceCloud::m_bbMax

protected

Bounding-box max corner.

Definition at line 87 of file DgmOctreeReferenceCloud.h.

Referenced by computeBB(), and getBoundingBox().

◆ m_bbMin

CCVector3 cloudViewer::DgmOctreeReferenceCloud::m_bbMin

protected

Bounding-box min corner.

Definition at line 85 of file DgmOctreeReferenceCloud.h.

Referenced by computeBB(), and getBoundingBox().

◆ m_globalIterator

unsigned cloudViewer::DgmOctreeReferenceCloud::m_globalIterator

protected

Iterator on the point references container.

Definition at line 82 of file DgmOctreeReferenceCloud.h.

◆ m_set

DgmOctree::NeighboursSet* cloudViewer::DgmOctreeReferenceCloud::m_set

protected

Associated PointDescriptor set.

Definition at line 92 of file DgmOctreeReferenceCloud.h.

Referenced by computeBB(), and forEach().

◆ m_size

unsigned cloudViewer::DgmOctreeReferenceCloud::m_size

protected

Number of points.

Definition at line 95 of file DgmOctreeReferenceCloud.h.

◆ m_validBB

bool cloudViewer::DgmOctreeReferenceCloud::m_validBB

protected

Bounding-box validity.

Definition at line 89 of file DgmOctreeReferenceCloud.h.

Referenced by computeBB(), and getBoundingBox().

The documentation for this class was generated from the following files:

/root/ACloudViewer/core/include/DgmOctreeReferenceCloud.h
/root/ACloudViewer/core/src/DgmOctreeReferenceCloud.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DgmOctreeReferenceCloud()

Member Function Documentation

◆ computeBB()

◆ enableScalarField()

◆ forEach()

◆ forwardIterator()

◆ getBoundingBox()

◆ getNextPoint()

◆ getPoint() [1/3]

◆ getPoint() [2/3]

◆ getPoint() [3/3]

◆ getPointPersistentPtr()

◆ getPointScalarValue()

◆ isScalarFieldEnabled()

◆ placeIteratorAtBeginning()

◆ setPointScalarValue()

◆ size()

Member Data Documentation

◆ m_bbMax

◆ m_bbMin

◆ m_globalIterator

◆ m_set

◆ m_size

◆ m_validBB
