Waveform proxy. More...

#include <ecvWaveform.h>

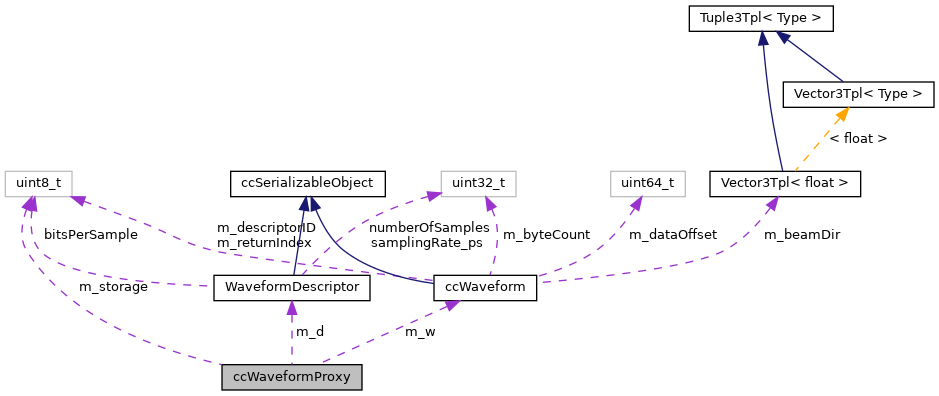

Collaboration diagram for ccWaveformProxy:

[legend]

Public Member Functions
	ccWaveformProxy (const ccWaveform &w, const WaveformDescriptor &d, const uint8_t *storage)
	Default constructor. More...

bool	isValid () const
	Returns whether the waveform (proxy) is valid or not. More...

uint8_t	descriptorID () const
	Returns the associated descriptor (ID) More...

uint32_t	getRawSample (uint32_t i) const
	Returns the (raw) value of a given sample. More...

double	getSample (uint32_t i) const
	Returns the (real) value of a given sample (in volts) More...

double	getRange (double &minVal, double &maxVal) const
	Returns the range of (real) samples. More...

bool	decodeSamples (std::vector< double > &values) const
	Decodes the samples and store them in a vector. More...

bool	toASCII (const QString &filename) const
	Exports (real) samples to an ASCII file. More...

CCVector3	getSamplePos (float i, const CCVector3 &P0) const
	Returns the sample position in 3D. More...

uint32_t	byteCount () const
	Returns the number of allocated bytes. More...

const uint8_t *	data () const
	Gives access to the internal data. More...

const CCVector3f &	beamDir () const
	Returns the beam direction. More...

float	echoTime_ps () const
	Returns the echo time (in picoseconds) More...

uint32_t	numberOfSamples () const
	Returns the number of samples. More...

const WaveformDescriptor &	descriptor () const
	Returns the descriptor. More...

const ccWaveform &	waveform () const
	Returns the waveform. More...

Protected Attributes
const ccWaveform &	m_w
	Associated ccWaveform instance. More...

const WaveformDescriptor &	m_d
	Associated descriptor. More...

const uint8_t *	m_storage
	Associated storage data. More...

Detailed Description

Waveform proxy.

For easier access to the waveform data

Definition at line 189 of file ecvWaveform.h.

Constructor & Destructor Documentation

◆ ccWaveformProxy()

ccWaveformProxy::ccWaveformProxy	(	const ccWaveform &	w,
		const WaveformDescriptor &	d,
		const uint8_t *	storage
	)

inline

Default constructor.

Definition at line 192 of file ecvWaveform.h.

Member Function Documentation

◆ beamDir()

const CCVector3f& ccWaveformProxy::beamDir ( ) const

inline

Returns the beam direction.

Definition at line 245 of file ecvWaveform.h.

Referenced by define_ccWaveform().

◆ byteCount()

uint32_t ccWaveformProxy::byteCount ( ) const

inline

Returns the number of allocated bytes.

Definition at line 239 of file ecvWaveform.h.

Referenced by define_ccWaveform().

◆ data()

const uint8_t* ccWaveformProxy::data ( ) const

inline

Gives access to the internal data.

Definition at line 242 of file ecvWaveform.h.

Referenced by define_ccWaveform().

◆ decodeSamples()

bool ccWaveformProxy::decodeSamples ( std::vector< double > & values ) const

inline

Decodes the samples and store them in a vector.

Definition at line 224 of file ecvWaveform.h.

◆ descriptor()

const WaveformDescriptor& ccWaveformProxy::descriptor ( ) const

inline

Returns the descriptor.

Definition at line 254 of file ecvWaveform.h.

Referenced by define_ccWaveform(), and ccWaveWidget::init().

◆ descriptorID()

uint8_t ccWaveformProxy::descriptorID ( ) const

inline

Returns the associated descriptor (ID)

Warning: A value of zero indicates that there is no associated waveform data.

Definition at line 206 of file ecvWaveform.h.

Referenced by define_ccWaveform(), and LASFWFFilter::saveToFile().

◆ echoTime_ps()

float ccWaveformProxy::echoTime_ps ( ) const

inline

Returns the echo time (in picoseconds)

Definition at line 248 of file ecvWaveform.h.

Referenced by define_ccWaveform(), and ccWaveWidget::init().

◆ getRange()

double ccWaveformProxy::getRange	(	double &	minVal,
		double &	maxVal
	)		const

inline

Returns the range of (real) samples.

Definition at line 219 of file ecvWaveform.h.

◆ getRawSample()

uint32_t ccWaveformProxy::getRawSample ( uint32_t i ) const

inline

Returns the (raw) value of a given sample.

Definition at line 209 of file ecvWaveform.h.

Referenced by define_ccWaveform().

◆ getSample()

double ccWaveformProxy::getSample ( uint32_t i ) const

inline

Returns the (real) value of a given sample (in volts)

Definition at line 214 of file ecvWaveform.h.

Referenced by ccWaveWidget::init().

◆ getSamplePos()

CCVector3 ccWaveformProxy::getSamplePos	(	float	i,
		const CCVector3 &	P0
	)		const

inline

Returns the sample position in 3D.

Definition at line 234 of file ecvWaveform.h.

Referenced by define_ccWaveform().

◆ isValid()

bool ccWaveformProxy::isValid ( ) const

inline

Returns whether the waveform (proxy) is valid or not.

Definition at line 198 of file ecvWaveform.h.

Referenced by define_ccWaveform(), ccWaveWidget::init(), ccWaveDialog::onExportWaveAsCSV(), and LASFWFFilter::saveToFile().

◆ numberOfSamples()

uint32_t ccWaveformProxy::numberOfSamples ( ) const

inline

Returns the number of samples.

Definition at line 251 of file ecvWaveform.h.

Referenced by ccWaveWidget::init(), and ccWaveDialog::onExportWaveAsCSV().

◆ toASCII()

bool ccWaveformProxy::toASCII ( const QString & filename ) const

inline

Exports (real) samples to an ASCII file.

Definition at line 229 of file ecvWaveform.h.

References filename.

Referenced by define_ccWaveform(), and ccWaveDialog::onExportWaveAsCSV().

◆ waveform()

const ccWaveform& ccWaveformProxy::waveform ( ) const

inline

Returns the waveform.

Definition at line 256 of file ecvWaveform.h.

Referenced by define_ccWaveform(), and LASFWFFilter::saveToFile().

Member Data Documentation

◆ m_d

const WaveformDescriptor& ccWaveformProxy::m_d

protected

Associated descriptor.

Definition at line 262 of file ecvWaveform.h.

◆ m_storage

const uint8_t* ccWaveformProxy::m_storage

protected

Associated storage data.

Definition at line 264 of file ecvWaveform.h.

◆ m_w

const ccWaveform& ccWaveformProxy::m_w

protected

Associated ccWaveform instance.

Definition at line 260 of file ecvWaveform.h.

The documentation for this class was generated from the following file:

/root/ACloudViewer/libs/CV_db/include/ecvWaveform.h
