WaveformDescriptor Class Reference

Waveform descriptor. More...

#include <ecvWaveform.h>

Inheritance diagram for WaveformDescriptor:

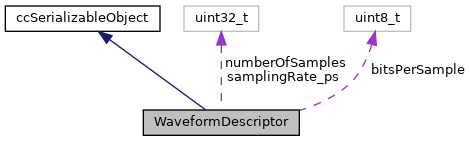

Collaboration diagram for WaveformDescriptor:

Public Member Functions
	WaveformDescriptor ()
	Default constructor. More...
bool	operator!= (const WaveformDescriptor &d) const
	Difference operator. More...
bool	operator== (const WaveformDescriptor &d) const
	Equivalence operator. More...
bool	isSerializable () const override
	Returns whether object is serializable of not. More...
bool	toFile (QFile &out, short dataVersion) const override
	Saves data to binary stream. More...
short	minimumFileVersion () const override
	Returns the minimum file version required to save this instance. More...
bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override
	Loads data from binary stream. More...
Public Member Functions inherited from ccSerializableObject
virtual	~ccSerializableObject ()=default
	Destructor. More...

Public Attributes
uint32_t	numberOfSamples
	Number of samples. More...
uint32_t	samplingRate_ps
	Sampling rate in pico seconds. More...
double	digitizerGain
double	digitizerOffset
uint8_t	bitsPerSample
	Number of bits per sample. More...

Additional Inherited Members
Public Types inherited from ccSerializableObject
enum	DeserializationFlags { DF_POINT_COORDS_64_BITS , DF_SCALAR_VAL_32_BITS = 2 }
	Deserialization flags (bit-field) More...
typedef QMultiMap< unsigned, unsigned >	LoadedIDMap
	Map of loaded unique IDs (old ID --> new ID) More...
Static Public Member Functions inherited from ccSerializableObject
static bool	WriteError ()
	Sends a custom error message (write error) and returns 'false'. More...
static bool	ReadError ()
	Sends a custom error message (read error) and returns 'false'. More...
static bool	MemoryError ()
	Sends a custom error message (not enough memory) and returns 'false'. More...
static bool	CorruptError ()
	Sends a custom error message (corrupted file) and returns 'false'. More...

Detailed Description

Waveform descriptor.

Definition at line 23 of file ecvWaveform.h.

Constructor & Destructor Documentation

WaveformDescriptor()

WaveformDescriptor::WaveformDescriptor

(

)

Default constructor.

Member Function Documentation

fromFile()

bool WaveformDescriptor::fromFile ( QFile &  in, short  dataVersion, int  flags, LoadedIDMap &  oldToNewIDMap  )

overridevirtual

Loads data from binary stream.

Parameters

in	input file (already opened)
dataVersion	file version (for version-specific deserialization)
flags	deserialization flags (see ccSerializableObject::DeserializationFlags)
oldToNewIDMap	map to link old IDs with new IDs

Returns

success

Note: When implementing, use dataVersion checks to handle different

versions:

• if (dataVersion >= X) { read new field } else { use default value } This ensures forward compatibility with older file formats.

Reimplemented from ccSerializableObject.

isSerializable()

bool WaveformDescriptor::isSerializable ( ) const

inlineoverridevirtual

Returns whether object is serializable of not.

Reimplemented from ccSerializableObject.

Definition at line 35 of file ecvWaveform.h.

minimumFileVersion()

short WaveformDescriptor::minimumFileVersion ( ) const

overridevirtual

Returns the minimum file version required to save this instance.

To be overridden by subclasses to indicate their minimum required version. This enables the system to determine:

• Forward compatibility: newer software can read older files (dataVersion check in fromFile)
• Backward compatibility: determine minimum version needed to save current data

  Returns

  minimum file version required for this object

Implements ccSerializableObject.

operator!=()

bool WaveformDescriptor::operator!=

(

const WaveformDescriptor &

d

)

const

Difference operator.

operator==()

bool WaveformDescriptor::operator== ( const WaveformDescriptor &  d ) const

inline

Equivalence operator.

Definition at line 32 of file ecvWaveform.h.

toFile()

bool WaveformDescriptor::toFile ( QFile &  out, short  dataVersion  ) const

overridevirtual

Saves data to binary stream.

Parameters

out	output file (already opened)
dataVersion	target file version (for forward/backward compatibility)

Returns

success

Reimplemented from ccSerializableObject.

Member Data Documentation

bitsPerSample

uint8_t WaveformDescriptor::bitsPerSample

Number of bits per sample.

Definition at line 49 of file ecvWaveform.h.

Referenced by define_ccWaveform(), LASFWFFilter::loadFile(), and ParseWavepacketDescriptorVlr().

digitizerGain

double WaveformDescriptor::digitizerGain

Digitizer gain (VOLTS = OFFSET + GAIN * Raw_Waveform_Amplitude)

Definition at line 45 of file ecvWaveform.h.

Referenced by define_ccWaveform(), LASFWFFilter::loadFile(), and ParseWavepacketDescriptorVlr().

digitizerOffset

double WaveformDescriptor::digitizerOffset

Digitizer offset (VOLTS = OFFSET + GAIN * Raw_Waveform_Amplitude)

Definition at line 47 of file ecvWaveform.h.

Referenced by define_ccWaveform(), LASFWFFilter::loadFile(), and ParseWavepacketDescriptorVlr().

numberOfSamples

uint32_t WaveformDescriptor::numberOfSamples

Number of samples.

Definition at line 43 of file ecvWaveform.h.

Referenced by define_ccWaveform(), LASFWFFilter::loadFile(), and ParseWavepacketDescriptorVlr().

samplingRate_ps

uint32_t WaveformDescriptor::samplingRate_ps

Sampling rate in pico seconds.

Definition at line 44 of file ecvWaveform.h.

Referenced by define_ccWaveform(), ccWaveWidget::init(), LASFWFFilter::loadFile(), and ParseWavepacketDescriptorVlr().

---

The documentation for this class was generated from the following file:

• /root/ACloudViewer/libs/CV_db/include/ecvWaveform.h
