#include <ecvWaveform.h>

Inheritance diagram for ccWaveform:

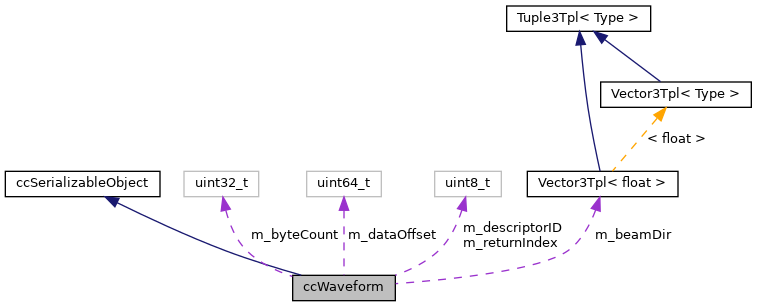

Collaboration diagram for ccWaveform:

[legend]

Public Member Functions
	ccWaveform (uint8_t descriptorID=0)
	Default constructor. More...

	~ccWaveform () override=default
	Destructor. More...

uint8_t	descriptorID () const
	Returns the associated descriptor (ID) More...

void	setDescriptorID (uint8_t id)
	Sets the associated descriptor (ID) More...

void	setDataDescription (uint64_t dataOffset, uint32_t byteCount)
	Describes the waveform data. More...

uint32_t	getRawSample (uint32_t i, const WaveformDescriptor &descriptor, const uint8_t *dataStorage) const
	Returns the (raw) value of a given sample. More...

double	getSample (uint32_t i, const WaveformDescriptor &descriptor, const uint8_t *dataStorage) const
	Returns the (real) value of a given sample (in volts) More...

double	getRange (double &minVal, double &maxVal, const WaveformDescriptor &descriptor, const uint8_t *dataStorage) const
	Returns the range of (real) samples. More...

bool	decodeSamples (std::vector< double > &values, const WaveformDescriptor &descriptor, const uint8_t *dataStorage) const
	Decodes the samples and store them in a vector. More...

bool	toASCII (const QString &filename, const WaveformDescriptor &descriptor, const uint8_t *dataStorage) const
	Exports (real) samples to an ASCII file. More...

CCVector3	getSamplePos (float i, const CCVector3 &P0, const WaveformDescriptor &descriptor) const
	Returns the sample position in 3D. More...

uint32_t	byteCount () const
	Returns the number of allocated bytes. More...

uint64_t	dataOffset () const
	Returns the byte offset to waveform data. More...

void	setDataOffset (uint64_t offset)
	Sets the byte offset to waveform data. More...

const uint8_t *	data (const uint8_t *dataStorage) const
	Gives access to the internal data. More...

void	setBeamDir (const CCVector3f &dir)
	Sets the beam direction. More...

const CCVector3f &	beamDir () const
	Returns the beam direction. More...

void	setEchoTime_ps (float time_ps)
	Set the echo time (in picoseconds) More...

float	echoTime_ps () const
	Returns the echo time (in picoseconds) More...

void	applyRigidTransformation (const ccGLMatrix &trans)
	Applies a rigid transformation (on the beam direction) More...

uint8_t	returnIndex () const
	Returns the return index. More...

void	setReturnIndex (uint8_t index)
	Sets the return index. More...

bool	isSerializable () const override
	Returns whether object is serializable of not. More...

bool	toFile (QFile &out, short dataVersion) const override
	Saves data to binary stream. More...

short	minimumFileVersion () const override
	Returns the minimum file version required to save this instance. More...

bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override
	Loads data from binary stream. More...

Public Member Functions inherited from ccSerializableObject
virtual	~ccSerializableObject ()=default
	Destructor. More...

Static Public Member Functions
static bool	ToASCII (const QString &filename, std::vector< double > &values, uint32_t samplingRate_ps)
	Helper: exports a series of values as an ASCII file. More...

Static Public Member Functions inherited from ccSerializableObject
static bool	WriteError ()
	Sends a custom error message (write error) and returns 'false'. More...

static bool	ReadError ()
	Sends a custom error message (read error) and returns 'false'. More...

static bool	MemoryError ()
	Sends a custom error message (not enough memory) and returns 'false'. More...

static bool	CorruptError ()
	Sends a custom error message (corrupted file) and returns 'false'. More...

Protected Attributes
uint32_t	m_byteCount
	Waveform packet size in bytes. More...

uint64_t	m_dataOffset
	Byte offset to waveform data. More...

CCVector3f	m_beamDir
	Laser beam direction. More...

float	m_echoTime_ps
	Return Point location (in picoseconds) More...

uint8_t	m_descriptorID
	Wave Packet descriptor index. More...

uint8_t	m_returnIndex
	Return index. More...

Additional Inherited Members
Public Types inherited from ccSerializableObject
enum	DeserializationFlags { DF_POINT_COORDS_64_BITS , DF_SCALAR_VAL_32_BITS = 2 }
	Deserialization flags (bit-field) More...

typedef QMultiMap< unsigned, unsigned >	LoadedIDMap
	Map of loaded unique IDs (old ID --> new ID) More...

Detailed Description

Waveform.

Warning: Waveforms do not own their data!

Definition at line 55 of file ecvWaveform.h.

Constructor & Destructor Documentation

◆ ccWaveform()

ccWaveform::ccWaveform ( uint8_t descriptorID = 0 )

Default constructor.

◆ ~ccWaveform()

ccWaveform::~ccWaveform ( )

overridedefault

Destructor.

Member Function Documentation

◆ applyRigidTransformation()

void ccWaveform::applyRigidTransformation ( const ccGLMatrix & trans )

Applies a rigid transformation (on the beam direction)

Referenced by define_ccWaveform().

◆ beamDir()

const CCVector3f& ccWaveform::beamDir ( ) const

inline

Returns the beam direction.

Definition at line 129 of file ecvWaveform.h.

Referenced by define_ccWaveform(), LasWaveformSaver::handlePoint(), and LASFWFFilter::saveToFile().

◆ byteCount()

uint32_t ccWaveform::byteCount ( ) const

inline

Returns the number of allocated bytes.

Definition at line 112 of file ecvWaveform.h.

Referenced by define_ccWaveform(), LasWaveformSaver::handlePoint(), and LASFWFFilter::saveToFile().

◆ data()

const uint8_t* ccWaveform::data ( const uint8_t * dataStorage ) const

inline

Gives access to the internal data.

Definition at line 121 of file ecvWaveform.h.

◆ dataOffset()

uint64_t ccWaveform::dataOffset ( ) const

inline

Returns the byte offset to waveform data.

Definition at line 115 of file ecvWaveform.h.

Referenced by define_ccWaveform(), LasWaveformSaver::handlePoint(), and LASFWFFilter::saveToFile().

◆ decodeSamples()

bool ccWaveform::decodeSamples	(	std::vector< double > &	values,
		const WaveformDescriptor &	descriptor,
		const uint8_t *	dataStorage
	)		const

Decodes the samples and store them in a vector.

◆ descriptorID()

uint8_t ccWaveform::descriptorID ( ) const

inline

Returns the associated descriptor (ID)

Warning: A value of zero indicates that there is no associated waveform data.

Definition at line 67 of file ecvWaveform.h.

Referenced by define_ccWaveform(), and LasWaveformSaver::handlePoint().

◆ echoTime_ps()

float ccWaveform::echoTime_ps ( ) const

inline

Returns the echo time (in picoseconds)

Definition at line 135 of file ecvWaveform.h.

Referenced by define_ccWaveform(), LasWaveformSaver::handlePoint(), and LASFWFFilter::saveToFile().

◆ fromFile()

bool ccWaveform::fromFile	(	QFile &	in,
		short	dataVersion,
		int	flags,
		LoadedIDMap &	oldToNewIDMap
	)

overridevirtual

Loads data from binary stream.

Parameters

in	input file (already opened)
dataVersion	file version (for version-specific deserialization)
flags	deserialization flags (see ccSerializableObject::DeserializationFlags)
oldToNewIDMap	map to link old IDs with new IDs

Returns

success

Note: When implementing, use dataVersion checks to handle different

versions:

if (dataVersion >= X) { read new field } else { use default value } This ensures forward compatibility with older file formats.

Reimplemented from ccSerializableObject.

◆ getRange()

double ccWaveform::getRange	(	double &	minVal,
		double &	maxVal,
		const WaveformDescriptor &	descriptor,
		const uint8_t *	dataStorage
	)		const

Returns the range of (real) samples.

◆ getRawSample()

uint32_t ccWaveform::getRawSample	(	uint32_t	i,
		const WaveformDescriptor &	descriptor,
		const uint8_t *	dataStorage
	)		const

Returns the (raw) value of a given sample.

Referenced by define_ccWaveform().

◆ getSample()

double ccWaveform::getSample	(	uint32_t	i,
		const WaveformDescriptor &	descriptor,
		const uint8_t *	dataStorage
	)		const

Returns the (real) value of a given sample (in volts)

◆ getSamplePos()

CCVector3 ccWaveform::getSamplePos	(	float	i,
		const CCVector3 &	P0,
		const WaveformDescriptor &	descriptor
	)		const

Returns the sample position in 3D.

Referenced by define_ccWaveform().

◆ isSerializable()

bool ccWaveform::isSerializable ( ) const

inlineoverridevirtual

Returns whether object is serializable of not.

Reimplemented from ccSerializableObject.

Definition at line 146 of file ecvWaveform.h.

◆ minimumFileVersion()

short ccWaveform::minimumFileVersion ( ) const

overridevirtual

Returns the minimum file version required to save this instance.

To be overridden by subclasses to indicate their minimum required version. This enables the system to determine:

Forward compatibility: newer software can read older files (dataVersion check in fromFile)
Backward compatibility: determine minimum version needed to save current data
Returns
minimum file version required for this object

Implements ccSerializableObject.

◆ returnIndex()

uint8_t ccWaveform::returnIndex ( ) const

inline

Returns the return index.

Definition at line 141 of file ecvWaveform.h.

Referenced by define_ccWaveform(), and LASFWFFilter::saveToFile().

◆ setBeamDir()

void ccWaveform::setBeamDir ( const CCVector3f & dir )

inline

Sets the beam direction.

Definition at line 126 of file ecvWaveform.h.

Referenced by define_ccWaveform(), LASFWFFilter::loadFile(), and LasWaveformLoader::loadWaveform().

◆ setDataDescription()

void ccWaveform::setDataDescription	(	uint64_t	dataOffset,
		uint32_t	byteCount
	)

Describes the waveform data.

Referenced by define_ccWaveform(), LASFWFFilter::loadFile(), and LasWaveformLoader::loadWaveform().

◆ setDataOffset()

void ccWaveform::setDataOffset ( uint64_t offset )

inline

Sets the byte offset to waveform data.

Definition at line 118 of file ecvWaveform.h.

References offset.

Referenced by define_ccWaveform().

◆ setDescriptorID()

void ccWaveform::setDescriptorID ( uint8_t id )

inline

Sets the associated descriptor (ID)

Definition at line 70 of file ecvWaveform.h.

Referenced by define_ccWaveform(), LASFWFFilter::loadFile(), and LasWaveformLoader::loadWaveform().

◆ setEchoTime_ps()

void ccWaveform::setEchoTime_ps ( float time_ps )

inline

Set the echo time (in picoseconds)

Definition at line 132 of file ecvWaveform.h.

Referenced by define_ccWaveform(), LASFWFFilter::loadFile(), and LasWaveformLoader::loadWaveform().

◆ setReturnIndex()

void ccWaveform::setReturnIndex ( uint8_t index )

inline

Sets the return index.

Definition at line 143 of file ecvWaveform.h.

Referenced by define_ccWaveform(), LASFWFFilter::loadFile(), and LasWaveformLoader::loadWaveform().

◆ toASCII()

bool ccWaveform::toASCII	(	const QString &	filename,
		const WaveformDescriptor &	descriptor,
		const uint8_t *	dataStorage
	)		const

Exports (real) samples to an ASCII file.

Referenced by define_ccWaveform().

◆ ToASCII()

static bool ccWaveform::ToASCII	(	const QString &	filename,
		std::vector< double > &	values,
		uint32_t	samplingRate_ps
	)

static

Helper: exports a series of values as an ASCII file.

Referenced by define_ccWaveform().

◆ toFile()

bool ccWaveform::toFile	(	QFile &	out,
		short	dataVersion
	)		const

overridevirtual

Saves data to binary stream.

Parameters

out	output file (already opened)
dataVersion	target file version (for forward/backward compatibility)

Returns: success

Reimplemented from ccSerializableObject.

Member Data Documentation

◆ m_beamDir

CCVector3f ccWaveform::m_beamDir

protected

Laser beam direction.

Parametric line equation for extrapolating points along the associated waveform: X = X0 + X(t) Y = Y0 + Y(t) Z = Z0 + Z(t)

Definition at line 167 of file ecvWaveform.h.

◆ m_byteCount

uint32_t ccWaveform::m_byteCount

protected

Waveform packet size in bytes.

Warning: Not necessarily equal to the number of samples!

Definition at line 158 of file ecvWaveform.h.

◆ m_dataOffset

uint64_t ccWaveform::m_dataOffset

protected

Byte offset to waveform data.

Definition at line 161 of file ecvWaveform.h.

◆ m_descriptorID

uint8_t ccWaveform::m_descriptorID

protected

Wave Packet descriptor index.

Warning: A value of zero indicates that there is no associated waveform data.

Definition at line 180 of file ecvWaveform.h.

◆ m_echoTime_ps

float ccWaveform::m_echoTime_ps

protected

Return Point location (in picoseconds)

The offset in picoseconds from the first digitized value to the location within the waveform packet that the associated return pulse was detected.

Definition at line 174 of file ecvWaveform.h.

◆ m_returnIndex

uint8_t ccWaveform::m_returnIndex

protected

Return index.

Definition at line 183 of file ecvWaveform.h.

The documentation for this class was generated from the following file:

/root/ACloudViewer/libs/CV_db/include/ecvWaveform.h

Public Member Functions

Static Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ccWaveform()

◆ ~ccWaveform()

Member Function Documentation

◆ applyRigidTransformation()

◆ beamDir()

◆ byteCount()

◆ data()

◆ dataOffset()

◆ decodeSamples()

◆ descriptorID()

◆ echoTime_ps()

◆ fromFile()

◆ getRange()

◆ getRawSample()

◆ getSample()

◆ getSamplePos()

◆ isSerializable()

◆ minimumFileVersion()

◆ returnIndex()

◆ setBeamDir()

◆ setDataDescription()

◆ setDataOffset()

◆ setDescriptorID()

◆ setEchoTime_ps()

◆ setReturnIndex()

◆ toASCII()

◆ ToASCII()

◆ toFile()

Member Data Documentation

◆ m_beamDir

◆ m_byteCount

◆ m_dataOffset

◆ m_descriptorID

◆ m_echoTime_ps

◆ m_returnIndex
