ccPointPickingGenericInterface Class Reference

#include <ecvPointPickingGenericInterface.h>

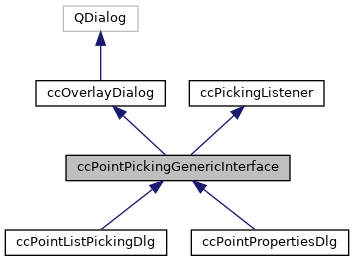

Inheritance diagram for ccPointPickingGenericInterface:

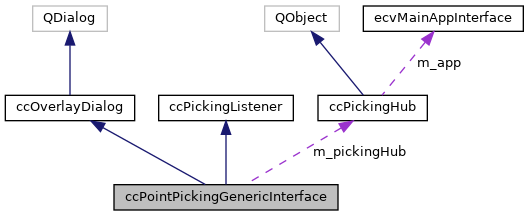

Collaboration diagram for ccPointPickingGenericInterface:

Public Member Functions
	ccPointPickingGenericInterface (ccPickingHub *pickingHub, QWidget *parent=nullptr)
	Default constructor. More...
	~ccPointPickingGenericInterface () override=default
	Destructor. More...
bool	linkWith (QWidget *win) override
	Links the overlay dialog with a MDI window. More...
bool	start () override
	Starts process. More...
void	stop (bool state) override
	Stops process/dialog. More...
void	onItemPicked (const PickedItem &pi) override
	Inherited from ccPickingListener. More...
Public Member Functions inherited from ccOverlayDialog
	ccOverlayDialog (QWidget *parent=nullptr, Qt::WindowFlags flags=Qt::FramelessWindowHint|Qt::Tool)
	Default constructor. More...
	~ccOverlayDialog () override
	Destructor. More...
void	reject () override
void	addOverridenShortcut (Qt::Key key)
bool	started () const
	Returns whether the tool is currently started or not. More...
Public Member Functions inherited from ccPickingListener
virtual	~ccPickingListener ()=default

Protected Member Functions
virtual void	processPickedPoint (ccPointCloud *cloud, unsigned pointIndex, int x, int y)=0
	Generic method to process picked points. More...
Protected Member Functions inherited from ccOverlayDialog
bool	eventFilter (QObject *obj, QEvent *e) override

Protected Attributes
ccPickingHub *	m_pickingHub
	Picking hub. More...
Protected Attributes inherited from ccOverlayDialog
QWidget *	m_associatedWin
	Associated (MDI) window. More...
bool	m_processing
	Running/processing state. More...
QList< int >	m_overriddenKeys
	Overridden keys. More...

Additional Inherited Members
Signals inherited from ccOverlayDialog
void	processFinished (bool accepted)
	Signal emitted when process is finished. More...
void	shortcutTriggered (int key)
	Signal emitted when an overridden key shortcut is pressed. More...
void	shown ()
	Signal emitted when a 'show' event is detected. More...
Protected Slots inherited from ccOverlayDialog
virtual void	onLinkedWindowDeletion (QObject *object=nullptr)
	Slot called when the linked window is deleted (calls 'onClose') More...

Detailed Description

Generic interface for any dialog/graphical interactor that relies on point picking.

Definition at line 28 of file ecvPointPickingGenericInterface.h.

Constructor & Destructor Documentation

ccPointPickingGenericInterface()

ccPointPickingGenericInterface::ccPointPickingGenericInterface ( ccPickingHub *  pickingHub, QWidget *  parent = nullptr  )

explicit

Default constructor.

Definition at line 24 of file ecvPointPickingGenericInterface.cpp.

References m_pickingHub.

~ccPointPickingGenericInterface()

ccPointPickingGenericInterface::~ccPointPickingGenericInterface ( )

overridedefault

Destructor.

Member Function Documentation

linkWith()

bool ccPointPickingGenericInterface::linkWith ( QWidget *  win )

overridevirtual

Links the overlay dialog with a MDI window.

Warning: link can't be modified while dialog is displayed/process is running!

Returns

success

Reimplemented from ccOverlayDialog.

Reimplemented in ccPointPropertiesDlg.

Definition at line 30 of file ecvPointPickingGenericInterface.cpp.

References ccOverlayDialog::linkWith(), m_pickingHub, and ccPickingHub::removeListener().

Referenced by ccPointPropertiesDlg::linkWith().

onItemPicked()

void ccPointPickingGenericInterface::onItemPicked ( const PickedItem &  pi )

overridevirtual

Inherited from ccPickingListener.

Implements ccPickingListener.

Definition at line 73 of file ecvPointPickingGenericInterface.cpp.

References ccPickingListener::PickedItem::clickPoint, ccPickingListener::PickedItem::entity, ccObject::isKindOf(), ccPickingListener::PickedItem::itemIndex, ccOverlayDialog::m_processing, CV_TYPES::MESH, CV_TYPES::POINT_CLOUD, processPickedPoint(), and CVLog::Warning().

processPickedPoint()

virtual void ccPointPickingGenericInterface::processPickedPoint ( ccPointCloud *  cloud, unsigned  pointIndex, int  x, int  y  )

protectedpure virtual

Generic method to process picked points.

Parameters

cloud	picked point cloud
pointIndex	point index in cloud
x	picked pixel X position
y	picked pixel Y position

Implemented in ccPointPropertiesDlg, and ccPointListPickingDlg.

Referenced by onItemPicked().

start()

bool ccPointPickingGenericInterface::start ( )

overridevirtual

Starts process.

Returns

success

Reimplemented from ccOverlayDialog.

Reimplemented in ccPointPropertiesDlg.

Definition at line 45 of file ecvPointPickingGenericInterface.cpp.

References ccPickingHub::addListener(), CVLog::Error(), m_pickingHub, ecvDisplayTools::POINT_PICKING, and ccOverlayDialog::start().

Referenced by ccPointPropertiesDlg::start().

stop()

void ccPointPickingGenericInterface::stop ( bool  accepted )

overridevirtual

Stops process/dialog.

Automatically emits the 'processFinished' signal (with input state as argument).

Parameters

accepted

process/dialog result

Reimplemented from ccOverlayDialog.

Reimplemented in ccPointPropertiesDlg.

Definition at line 64 of file ecvPointPickingGenericInterface.cpp.

References m_pickingHub, ccPickingHub::removeListener(), and ccOverlayDialog::stop().

Referenced by ccPointListPickingDlg::applyAndExit(), ccPointListPickingDlg::cancelAndExit(), and ccPointPropertiesDlg::stop().

Member Data Documentation

m_pickingHub

ccPickingHub* ccPointPickingGenericInterface::m_pickingHub

protected

Picking hub.

Definition at line 60 of file ecvPointPickingGenericInterface.h.

Referenced by ccPointPickingGenericInterface(), linkWith(), start(), and stop().

---

The documentation for this class was generated from the following files:

• /root/ACloudViewer/app/ecvPointPickingGenericInterface.h
• /root/ACloudViewer/app/ecvPointPickingGenericInterface.cpp
