ccPclPluginInterface Class Reference

Pcl ECV plugin interface. More...

#include <ecvPclPluginInterface.h>

Inheritance diagram for ccPclPluginInterface:

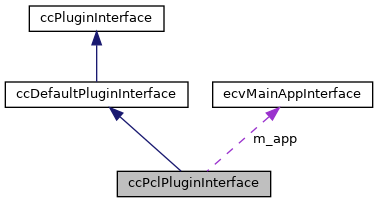

Collaboration diagram for ccPclPluginInterface:

Public Member Functions
	ccPclPluginInterface (const QString &resourcePath=QString())
	Default constructor. More...
virtual	~ccPclPluginInterface ()=default
	Destructor. More...
virtual CC_PLUGIN_TYPE	getType () const override
	Returns plugin type (standard or OpenGL filter) More...
virtual void	setMainAppInterface (ecvMainAppInterface *app)
	Sets application entry point. More...
virtual ecvMainAppInterface *	getMainAppInterface ()
	A callback pointer to the main app interface for use by plugins. More...
virtual QVector< QList< QAction * > >	getActions ()=0
	Get a list of actions for this plugin. More...
virtual QVector< QString >	getModuleNames ()=0
virtual void	onNewSelection (const ccHObject::Container &selectedEntities)
virtual void	dispToConsole (QString message, ecvMainAppInterface::ConsoleMessageLevel level=ecvMainAppInterface::STD_CONSOLE_MESSAGE)
	Shortcut to ecvMainAppInterface::dispToConsole. More...
Public Member Functions inherited from ccDefaultPluginInterface
virtual	~ccDefaultPluginInterface ()
virtual bool	isCore () const override
	Is this plugin a core plugin? More...
virtual QString	getName () const override
	Returns (short) name (for menu entry, etc.) More...
virtual QString	getDescription () const override
	Returns long name/description (for tooltip, etc.) More...
virtual QIcon	getIcon () const override
	Returns icon. More...
virtual ReferenceList	getReferences () const override
virtual ContactList	getAuthors () const override
virtual ContactList	getMaintainers () const override
Public Member Functions inherited from ccPluginInterface
virtual	~ccPluginInterface ()=default
	Virtual destructor. More...
virtual bool	start ()
	Starts the plugin. More...
virtual void	stop ()
	Stops the plugin. More...
virtual ccExternalFactory *	getCustomObjectsFactory () const
	Returns the plugin's custom object factory (if any) More...
virtual void	registerCommands (ccCommandLineInterface *cmd)
	Optional: registers commands (for the command line mode) More...

Protected Attributes
ecvMainAppInterface *	m_app
	Main application interface. More...

Additional Inherited Members
Public Types inherited from ccPluginInterface
typedef QList< Contact >	ContactList
using	ReferenceList = QList< Reference >
Protected Member Functions inherited from ccDefaultPluginInterface
	ccDefaultPluginInterface (const QString &resourcePath=QString())

Detailed Description

Pcl ECV plugin interface.

Version 1.4 The plugin is now responsible for its own actions (QAction ;) and the associated ecvMainAppInterface member should give it access to everything it needs in the main application.

Definition at line 27 of file ecvPclPluginInterface.h.

Constructor & Destructor Documentation

ccPclPluginInterface()

ccPclPluginInterface::ccPclPluginInterface ( const QString &  resourcePath = QString() )

inline

Default constructor.

Definition at line 30 of file ecvPclPluginInterface.h.

~ccPclPluginInterface()

virtual ccPclPluginInterface::~ccPclPluginInterface ( )

virtualdefault

Destructor.

Member Function Documentation

dispToConsole()

virtual void ccPclPluginInterface::dispToConsole ( QString  message, ecvMainAppInterface::ConsoleMessageLevel  level = ecvMainAppInterface::STD_CONSOLE_MESSAGE  )

inlinevirtual

Shortcut to ecvMainAppInterface::dispToConsole.

Definition at line 74 of file ecvPclPluginInterface.h.

References ecvMainAppInterface::dispToConsole(), and m_app.

getActions()

virtual QVector<QList<QAction*> > ccPclPluginInterface::getActions ( )

pure virtual

Get a list of actions for this plugin.

Implemented in qPCL.

getMainAppInterface()

virtual ecvMainAppInterface* ccPclPluginInterface::getMainAppInterface ( )

inlinevirtual

A callback pointer to the main app interface for use by plugins.

Any plugin (and its tools) may need to access methods of this interface

Definition at line 57 of file ecvPclPluginInterface.h.

References m_app.

getModuleNames()

virtual QVector<QString> ccPclPluginInterface::getModuleNames ( )

pure virtual

Implemented in qPCL.

getType()

virtual CC_PLUGIN_TYPE ccPclPluginInterface::getType ( ) const

inlineoverridevirtual

Returns plugin type (standard or OpenGL filter)

Implements ccPluginInterface.

Definition at line 37 of file ecvPclPluginInterface.h.

References ECV_PCL_ALGORITHM_PLUGIN.

onNewSelection()

virtual void ccPclPluginInterface::onNewSelection ( const ccHObject::Container &  selectedEntities )

inlinevirtual

This method is called by the main application whenever the entity selection changes Does nothing by default. Should be re-implemented by the plugin if necessary.

Parameters

selectedEntities

currently selected entities

Reimplemented in qPCL.

Definition at line 69 of file ecvPclPluginInterface.h.

Referenced by ccPluginUIManager::handleSelectionChanged().

setMainAppInterface()

virtual void ccPclPluginInterface::setMainAppInterface ( ecvMainAppInterface *  app )

inlinevirtual

Sets application entry point.

Called just after plugin creation by qCC

Definition at line 44 of file ecvPclPluginInterface.h.

References ecvMainAppInterface::getUniqueIDGenerator(), m_app, and ccObject::SetUniqueIDGenerator().

Referenced by ccPluginUIManager::init().

Member Data Documentation

m_app

ecvMainAppInterface* ccPclPluginInterface::m_app

protected

Main application interface.

Definition at line 85 of file ecvPclPluginInterface.h.

Referenced by qPCL::addPclModule(), dispToConsole(), getMainAppInterface(), qPCL::handleEntityChange(), qPCL::handleErrorMessage(), qPCL::handleNewEntity(), and setMainAppInterface().

---

The documentation for this class was generated from the following file:

• /root/ACloudViewer/libs/CVPluginStub/include/ecvPclPluginInterface.h
