ccDrawableObject Class Referenceabstract

Generic interface for (3D) drawable entities. More...

#include <ecvDrawableObject.h>

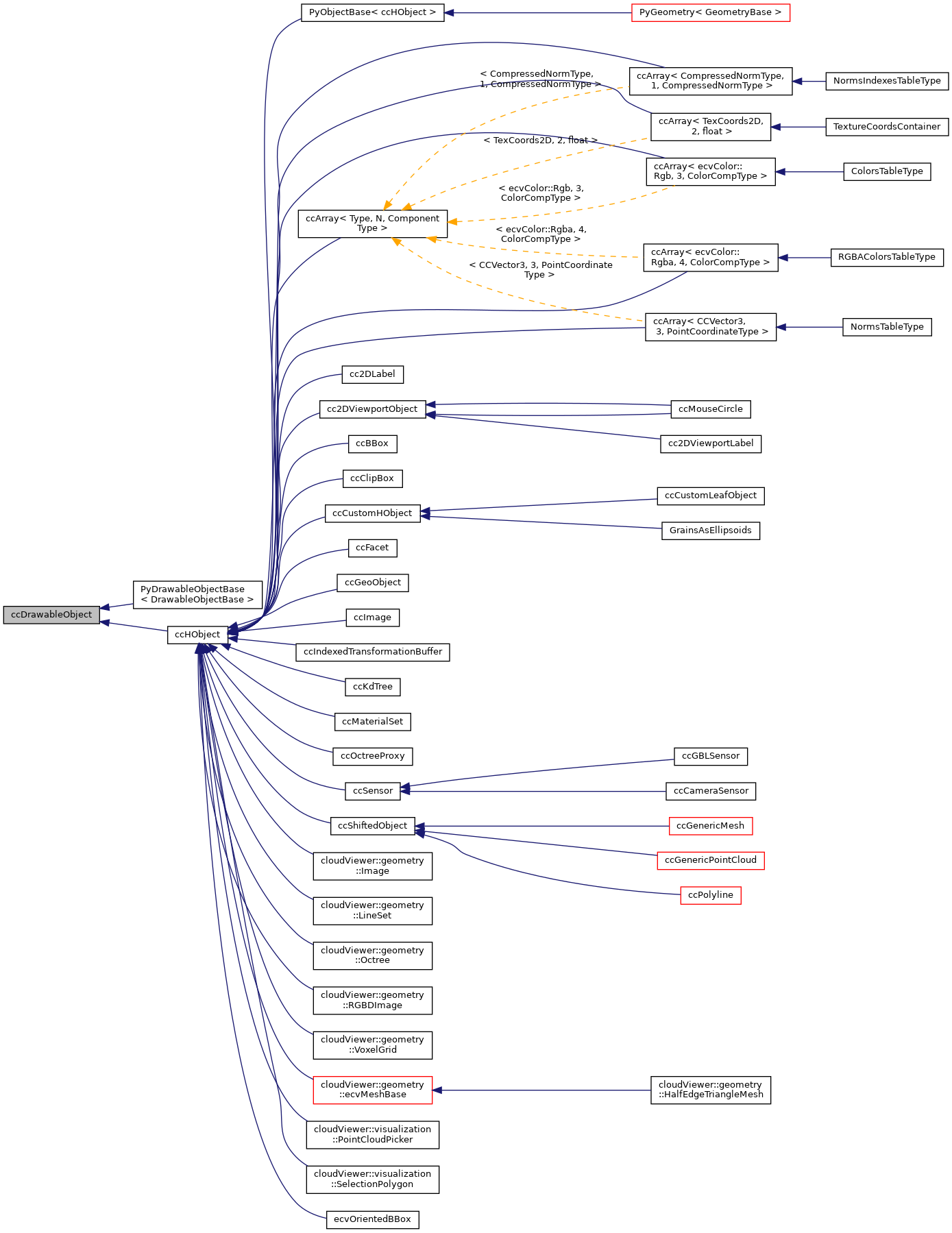

Inheritance diagram for ccDrawableObject:
Inheritance graph
[legend]

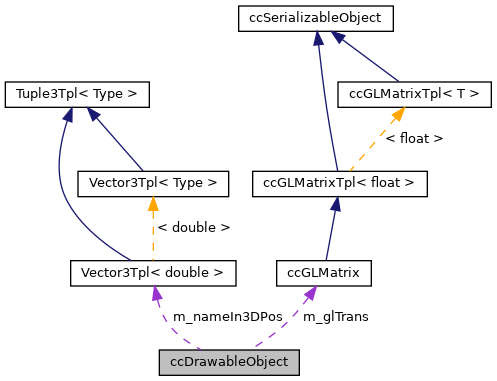

Collaboration diagram for ccDrawableObject:
Collaboration graph
[legend]

Classes

struct  DisplayState
 Display state. More...


Public Member Functions

 ccDrawableObject ()
 Default constructor. More...

 ccDrawableObject (const ccDrawableObject &object)
 Copy constructor. More...

virtual ~ccDrawableObject ()=default

virtual void draw (CC_DRAW_CONTEXT &context)=0
 Draws entity and its children. More...

virtual bool isVisible () const
 Returns whether entity is visible or not. More...

virtual void setVisible (bool state)
 Sets entity visibility. More...

virtual void toggleVisibility ()
 Toggles visibility. More...

virtual bool isRedraw () const
 Returns whether entity is to be redraw. More...

virtual void setRedraw (bool state)
 Sets entity redraw mode. More...

virtual void setForceRedraw (bool state)
 Sets force redraw. More...

virtual void setFixedId (bool state)

virtual bool isFixedId ()

virtual bool isVisibilityLocked () const
 Returns whether visibility is locked or not. More...

virtual void lockVisibility (bool state)
 Locks/unlocks visibility. More...

virtual bool isSelected () const
 Returns whether entity is selected or not. More...

virtual void setSelected (bool state)
 Selects/Unselects entity. More...

virtual void getDrawingParameters (glDrawParams &params) const
 Returns main OpenGL parameters for this entity. More...

virtual bool hasColors () const
 Returns whether colors are enabled or not. More...

virtual bool colorsShown () const
 Returns whether colors are shown or not. More...

virtual void showColors (bool state)
 Sets colors visibility. More...

virtual void toggleColors ()
 Toggles colors display state. More...

virtual bool hasNormals () const
 Returns whether normals are enabled or not. More...

virtual bool normalsShown () const
 Returns whether normals are shown or not. More...

virtual void showNormals (bool state)
 Sets normals visibility. More...

virtual void toggleNormals ()
 Toggles normals display state. More...

virtual bool hasDisplayedScalarField () const
 Returns whether an active scalar field is available or not. More...

virtual bool hasScalarFields () const
 Returns whether one or more scalar fields are instantiated. More...

virtual void showSF (bool state)
 Sets active scalarfield visibility. More...

virtual void toggleSF ()
 Toggles SF display state. More...

virtual bool sfShown () const
 Returns whether active scalar field is visible. More...

virtual void toggleMaterials ()
 Toggles material display state. More...

virtual void showNameIn3D (bool state)
 Sets whether name should be displayed in 3D. More...

virtual bool nameShownIn3D () const
 Returns whether name is displayed in 3D or not. More...

virtual void toggleShowName ()
 Toggles name in 3D display state. More...

virtual bool isColorOverridden () const

virtual const ecvColor::Rgb & getTempColor () const
 Returns current temporary (unique) color. More...

virtual void setTempColor (const ecvColor::Rgb &col, bool autoActivate=true)
 Sets current temporary (unique) More...

virtual void enableTempColor (bool state)
 Set temporary color activation state. More...

virtual float getOpacity () const

virtual void setOpacity (float opacity)
 Set opacity activation state. More...

virtual void setGLTransformation (const ccGLMatrix &trans)
 Associates entity with a GL transformation (rotation + translation) More...

virtual void enableGLTransformation (bool state)
 Enables/disables associated GL transformation. More...

virtual bool isGLTransEnabled () const
 Returns whether a GL transformation is enabled or not. More...

virtual const ccGLMatrix & getGLTransformation () const
 Returns associated GL transformation. More...

virtual void resetGLTransformation ()
 Resets associated GL transformation. More...

virtual void rotateGL (const ccGLMatrix &rotMat)
 Multiplies (left) current GL transformation by a rotation matrix. More...

virtual void translateGL (const CCVector3 &trans)
 Translates current GL transformation by a rotation matrix. More...

virtual void removeAllClipPlanes ()
 Removes all clipping planes (if any) More...

virtual bool addClipPlanes (const ccClipPlane &plane)
 Registers a new clipping plane. More...

virtual void toggleClipPlanes (CC_DRAW_CONTEXT &context, bool enable)
 Enables or disables clipping planes (OpenGL) More...

virtual bool pushDisplayState ()
 Pushes the current display state. More...

virtual void popDisplayState (bool apply=true)
 Pops the last pushed display state. More...

virtual void applyDisplayState (const DisplayState &state)
 Applies a display state. More...


Protected Attributes

bool m_fixedId

bool m_modelRedraw

bool m_forceRedraw

float m_opacity

bool m_visible
 Specifies whether the object is visible or not. More...

bool m_selected
 Specifies whether the object is selected or not. More...

bool m_lockedVisibility
 Specifies whether the visibility can be changed by user or not. More...

bool m_colorsDisplayed
 Specifies whether colors should be displayed. More...

bool m_normalsDisplayed
 Specifies whether normals should be displayed. More...

bool m_sfDisplayed
 Specifies whether scalar field should be displayed. More...

ecvColor::Rgb m_tempColor
 Temporary (unique) color. More...

bool m_colorIsOverridden
 Temporary (unique) color activation state. More...

ccGLMatrix m_glTrans
 Current GL transformation. More...

bool m_glTransEnabled
 Current GL transformation activation state. More...

bool m_showNameIn3D
 Whether name is displayed in 3D or not. More...

CCVector3d m_nameIn3DPos
 Last 2D position of the '3D' name. More...

ccClipPlaneSet m_clipPlanes
 Active clipping planes (used for display only) More...

std::vector< DisplayState::Shared > m_displayStateStack
 The stack of pushed display states. More...


Detailed Description

Generic interface for (3D) drawable entities.

Definition at line 24 of file ecvDrawableObject.h.

Constructor & Destructor Documentation

◆ ccDrawableObject() [1/2]

ccDrawableObject::ccDrawableObject ( )

Default constructor.

◆ ccDrawableObject() [2/2]

ccDrawableObject::ccDrawableObject ( const ccDrawableObject &  object)

Copy constructor.

◆ ~ccDrawableObject()

virtual ccDrawableObject::~ccDrawableObject ( )
virtualdefault

Member Function Documentation

◆ addClipPlanes()

virtual bool ccDrawableObject::addClipPlanes ( const ccClipPlane &  plane)
virtual

Registers a new clipping plane.

Returns
false if the planes couldn't be added (not enough memory)

Referenced by define_ccDrawableObject().

◆ applyDisplayState()

virtual void ccDrawableObject::applyDisplayState ( const DisplayState &  state)
virtual

Applies a display state.

◆ colorsShown()

virtual bool ccDrawableObject::colorsShown ( ) const
inlinevirtual

Returns whether colors are shown or not.

Definition at line 82 of file ecvDrawableObject.h.

Referenced by ccCloudLayersHelper::ccCloudLayersHelper(), ccCropTool::Crop(), define_ccDrawableObject(), qPoissonRecon::doAction(), ccRasterizeTool::generateMesh(), ccRegistrationTools::ICP(), CommandRasterize::process(), CommandVolume25D::process(), cloudViewer::geometry::pybind_geometry_classes(), ccPropertiesTreeDelegate::setEditorData(), and ecvPoissonReconDlg::start().

◆ draw()

virtual void ccDrawableObject::draw ( CC_DRAW_CONTEXT &  context)
pure virtual

Draws entity and its children.

Implemented in GrainsAsEllipsoids, ccMouseCircle, ccMouseCircle, PyDrawableObjectBase< DrawableObjectBase >, ecvOrientedBBox, ccHObject, and ccBBox.

Referenced by define_ccDrawableObject().

◆ enableGLTransformation()

virtual void ccDrawableObject::enableGLTransformation ( bool  state)
virtual

Enables/disables associated GL transformation.

See ccDrawableObject::setGLTransformation.

Referenced by define_ccDrawableObject(), and cloudViewer::geometry::pybind_geometry_classes().

◆ enableTempColor()

virtual void ccDrawableObject::enableTempColor ( bool  state)
inlinevirtual

Set temporary color activation state.

Definition at line 155 of file ecvDrawableObject.h.

Referenced by ccThicknessTool::onNewSelection(), cloudViewer::geometry::pybind_geometry_classes(), ccPolyline::setColor(), ccThicknessTool::toolDisactivated(), ccAlignDlg::~ccAlignDlg(), ccOrderChoiceDlg::~ccOrderChoiceDlg(), and ccRegistrationDlg::~ccRegistrationDlg().

◆ getDrawingParameters()

virtual void ccDrawableObject::getDrawingParameters ( glDrawParams &  params) const
virtual

Returns main OpenGL parameters for this entity.

These parameters are deduced from the visibility states of its different features (points, normals, etc.).

Parameters
paramsa glDrawParams structure

Reimplemented in ccPointCloud.

Referenced by ccTrace::drawMeOnly().

◆ getGLTransformation()

virtual const ccGLMatrix& ccDrawableObject::getGLTransformation ( ) const
inlinevirtual

Returns associated GL transformation.

See ccDrawableObject::setGLTransformation.

Definition at line 191 of file ecvDrawableObject.h.

Referenced by define_ccDrawableObject(), MainWindow::onItemPicked(), cloudViewer::geometry::pybind_geometry_classes(), and ccPropertiesTreeDelegate::setEditorData().

◆ getOpacity()

virtual float ccDrawableObject::getOpacity ( ) const
inlinevirtual

Definition at line 160 of file ecvDrawableObject.h.

Referenced by cloudViewer::geometry::pybind_geometry_classes(), and ccPropertiesTreeDelegate::setEditorData().

◆ getTempColor()

virtual const ecvColor::Rgb& ccDrawableObject::getTempColor ( ) const
inlinevirtual

Returns current temporary (unique) color.

Definition at line 143 of file ecvDrawableObject.h.

Referenced by define_ccDrawableObject(), and cloudViewer::geometry::pybind_geometry_classes().

◆ hasColors()

virtual bool ccDrawableObject::hasColors ( ) const
inlinevirtual

Returns whether colors are enabled or not.

Reimplemented in ccSubMesh, ccPolyline, ccPointCloud, and ccMesh.

Definition at line 80 of file ecvDrawableObject.h.

Referenced by CCCloudToDraco(), ccRasterizeTool::ccRasterizeTool(), ccEntityAction::clearProperty(), ccPropertiesTreeDelegate::createEditor(), ccCropTool::Crop(), define_ccDrawableObject(), ccPropertiesTreeDelegate::fillWithHObject(), ccDBRoot::getSelectedEntities(), ccEntityAction::interpolateColors(), RgbDialog::onItemPicked(), cloudViewer::geometry::pybind_geometry_classes(), cloudViewer::geometry::pybind_lineset(), LASFilter::saveToFile(), ccPropertiesTreeDelegate::setEditorData(), and ToFbxMesh().

◆ hasDisplayedScalarField()

virtual bool ccDrawableObject::hasDisplayedScalarField ( ) const
inlinevirtual

Returns whether an active scalar field is available or not.

Reimplemented in ccSubMesh, ccPointCloud, and ccMesh.

Definition at line 99 of file ecvDrawableObject.h.

Referenced by ccEntityAction::clearProperty(), define_ccDrawableObject(), cloudViewer::geometry::pybind_geometry_classes(), and ccRegistrationDlg::updateGUI().

◆ hasNormals()

virtual bool ccDrawableObject::hasNormals ( ) const
inlinevirtual

Returns whether normals are enabled or not.

Reimplemented in ccSubMesh, ccPointCloud, and ccMesh.

Definition at line 89 of file ecvDrawableObject.h.

Referenced by CCCloudToDraco(), ccEntityAction::clearProperty(), ccCropTool::Crop(), define_ccDrawableObject(), qPCV::doAction(), ccPropertiesTreeDelegate::fillWithHObject(), ccDBRoot::getSelectedEntities(), ccGenericMesh::normalsAvailable(), ccMesh::normalsAvailable(), cloudViewer::geometry::pybind_geometry_classes(), ToFbxMesh(), and ccRegistrationDlg::updateGUI().

◆ hasScalarFields()

virtual bool ccDrawableObject::hasScalarFields ( ) const
inlinevirtual

Returns whether one or more scalar fields are instantiated.

WARNING: doesn't mean a scalar field is currently displayed (see ccDrawableObject::hasDisplayedScalarField).

Reimplemented in ccSubMesh, ccPointCloud, and ccMesh.

Definition at line 105 of file ecvDrawableObject.h.

Referenced by ccRasterizeTool::activeLayerChanged(), CCCloudToDraco(), ccRasterizeTool::ccRasterizeTool(), ccEntityAction::clearProperty(), ccPropertiesTreeDelegate::createEditor(), ccCropTool::Crop(), define_ccDrawableObject(), ccDBRoot::editLabelScalarValue(), ccPropertiesTreeDelegate::fillWithHObject(), ccDBRoot::getSelectedEntities(), ScalarDialog::onItemPicked(), cloudViewer::geometry::pybind_geometry_classes(), ccPropertiesTreeDelegate::setEditorData(), and ccDBRoot::showContextMenu().

◆ isColorOverridden()

virtual bool ccDrawableObject::isColorOverridden ( ) const
inlinevirtual

Returns whether colors are currently overridden by a temporary (unique) color See ccDrawableObject::setTempColor.

Definition at line 138 of file ecvDrawableObject.h.

Referenced by define_ccDrawableObject(), ccSymbolCloud::drawMeOnly(), and cloudViewer::geometry::pybind_geometry_classes().

◆ isFixedId()

virtual bool ccDrawableObject::isFixedId ( )
inlinevirtual

Definition at line 53 of file ecvDrawableObject.h.

◆ isGLTransEnabled()

virtual bool ccDrawableObject::isGLTransEnabled ( ) const
inlinevirtual

Returns whether a GL transformation is enabled or not.

Definition at line 186 of file ecvDrawableObject.h.

Referenced by define_ccDrawableObject(), ccPropertiesTreeDelegate::fillModel(), and cloudViewer::geometry::pybind_geometry_classes().

◆ isRedraw()

virtual bool ccDrawableObject::isRedraw ( ) const
inlinevirtual

Returns whether entity is to be redraw.

Definition at line 46 of file ecvDrawableObject.h.

◆ isSelected()

virtual bool ccDrawableObject::isSelected ( ) const
inlinevirtual

Returns whether entity is selected or not.

Definition at line 68 of file ecvDrawableObject.h.

Referenced by ccPointPropertiesDlg::close2DZone(), define_ccDrawableObject(), ccPointPropertiesDlg::exportCurrentLabel(), ccPointPropertiesDlg::processClickedPoint(), cloudViewer::geometry::pybind_geometry_classes(), ccDBRoot::selectEntities(), ccDBRoot::selectEntity(), ccDBRoot::setData(), ccDBRoot::unselectEntity(), and ccPointPropertiesDlg::update2DZone().

◆ isVisibilityLocked()

virtual bool ccDrawableObject::isVisibilityLocked ( ) const
inlinevirtual

Returns whether visibility is locked or not.

Definition at line 56 of file ecvDrawableObject.h.

Referenced by define_ccDrawableObject(), ccPropertiesTreeDelegate::fillWithHObject(), and cloudViewer::geometry::pybind_geometry_classes().

◆ isVisible()

virtual bool ccDrawableObject::isVisible ( ) const
inlinevirtual

Returns whether entity is visible or not.

Definition at line 38 of file ecvDrawableObject.h.

Referenced by ccComparisonDlg::ccComparisonDlg(), ccPointPropertiesDlg::close2DZone(), define_ccDrawableObject(), ccMouseCircle::draw(), ccPointPropertiesDlg::exportCurrentLabel(), ccCompass::exportToSVG(), ccPropertiesTreeDelegate::fillWithFacet(), ccPropertiesTreeDelegate::fillWithHObject(), ccPointListPickingDlg::getPickedPoints(), ccCompass::hideAllPointClouds(), ccCloudLayersHelper::mouseMove(), cloudViewer::geometry::pybind_geometry_classes(), qM3C2Dialog::setClouds(), ccDBRoot::setData(), qVoxFallDialog::setMeshes(), ccCloudLayersDlg::stop(), DistanceMapGenerationDlg::toggleOverlayGrid(), ccCompass::tryLoading(), GrainsAsEllipsoids::updateMeshAndLineSet(), and DistanceMapGenerationDlg::updateZoom().

◆ lockVisibility()

virtual void ccDrawableObject::lockVisibility ( bool  state)
inlinevirtual

Locks/unlocks visibility.

If visibility is locked, the user won't be able to modify it (via the properties tree for instance).

Definition at line 63 of file ecvDrawableObject.h.

Referenced by define_ccDrawableObject(), GrainsAsEllipsoids::GrainsAsEllipsoids(), and cloudViewer::geometry::pybind_geometry_classes().

◆ nameShownIn3D()

virtual bool ccDrawableObject::nameShownIn3D ( ) const
inlinevirtual

Returns whether name is displayed in 3D or not.

Definition at line 128 of file ecvDrawableObject.h.

Referenced by define_ccDrawableObject(), ccPropertiesTreeDelegate::fillWithHObject(), cloudViewer::geometry::pybind_geometry_classes(), and ccDBRoot::setData().

◆ normalsShown()

virtual bool ccDrawableObject::normalsShown ( ) const
inlinevirtual

Returns whether normals are shown or not.

Reimplemented in ccSubMesh, and ccMesh.

Definition at line 91 of file ecvDrawableObject.h.

Referenced by ccCropTool::Crop(), define_ccDrawableObject(), ccPropertiesTreeDelegate::fillWithHObject(), and cloudViewer::geometry::pybind_geometry_classes().

◆ popDisplayState()

virtual void ccDrawableObject::popDisplayState ( bool  apply = true)
virtual

Pops the last pushed display state.

Reimplemented in ccHObject.

◆ pushDisplayState()

virtual bool ccDrawableObject::pushDisplayState ( )
virtual

Pushes the current display state.

Reimplemented in ccHObject.

◆ removeAllClipPlanes()

virtual void ccDrawableObject::removeAllClipPlanes ( )
inlinevirtual

Removes all clipping planes (if any)

Definition at line 218 of file ecvDrawableObject.h.

Referenced by define_ccDrawableObject().

◆ resetGLTransformation()

virtual void ccDrawableObject::resetGLTransformation ( )
virtual

Resets associated GL transformation.

GL transformation is reset to identity. Note: GL transformation is automatically disabled. See ccDrawableObject::setGLTransformation.

Referenced by ccGraphicalTransformationTool::cancel(), define_ccDrawableObject(), and cloudViewer::geometry::pybind_geometry_classes().

◆ rotateGL()

virtual void ccDrawableObject::rotateGL ( const ccGLMatrix &  rotMat)
virtual

Multiplies (left) current GL transformation by a rotation matrix.

'GLtrans = M * GLtrans' Note: GL transformation is automatically enabled. See ccDrawableObject::setGLTransformation.

Referenced by define_ccDrawableObject(), and cloudViewer::geometry::pybind_geometry_classes().

◆ setFixedId()

virtual void ccDrawableObject::setFixedId ( bool  state)
inlinevirtual

Definition at line 52 of file ecvDrawableObject.h.

◆ setForceRedraw()

virtual void ccDrawableObject::setForceRedraw ( bool  state)
inlinevirtual

Sets force redraw.

Definition at line 50 of file ecvDrawableObject.h.

Referenced by FastGlobalRegistrationDialog::updateGUI().

◆ setGLTransformation()

virtual void ccDrawableObject::setGLTransformation ( const ccGLMatrix &  trans)
virtual

Associates entity with a GL transformation (rotation + translation)

Warning
FOR DISPLAY PURPOSE ONLY (i.e. should only be temporary) If the associated GL transformation is enabled (see ccDrawableObject::enableGLTransformation), it will be applied before displaying this entity. However it will not be taken into account by any cloudViewer algorithm (distance computation, etc.) for instance. Note: GL transformation is automatically enabled.

Referenced by ccGraphicalTransformationTool::apply(), CorrespondenceMatching::applyTransformation(), TemplateAlignment::applyTransformation(), ccCropTool::Crop(), define_ccDrawableObject(), JsonRPCPlugin::execute(), GetConeProfile(), PDMSFilter::loadFile(), qSRA::loadProfile(), and cloudViewer::geometry::pybind_geometry_classes().

◆ setOpacity()

virtual void ccDrawableObject::setOpacity ( float  opacity)
inlinevirtual

Set opacity activation state.

Definition at line 163 of file ecvDrawableObject.h.

Referenced by cloudViewer::geometry::pybind_geometry_classes().

◆ setRedraw()

virtual void ccDrawableObject::setRedraw ( bool  state)
inlinevirtual

Sets entity redraw mode.

Definition at line 48 of file ecvDrawableObject.h.

Referenced by ccLibAlgorithms::ApplyScaleMatchingAlgorithm(), ccGraphicalTransformationTool::cancel(), ccEntityAction::clearProperty(), qCanupoPlugin::doClassifyAction(), qSRA::doComputeRadialDists(), masc::Classifier::evaluate(), ccPointPropertiesDlg::exportCurrentLabel(), ccTracePolylineTool::onItemPicked(), qVoxFallDialog::setMesh1Visibility(), qVoxFallDialog::setMesh2Visibility(), and StereogramDialog::updateFacetsFilter().

◆ setSelected()

virtual void ccDrawableObject::setSelected ( bool  state)
inlinevirtual

Selects/Unselects entity.

Definition at line 70 of file ecvDrawableObject.h.

Referenced by ccPointPropertiesDlg::ccPointPropertiesDlg(), ccDBRoot::changeSelection(), ccPointPropertiesDlg::close2DZone(), define_ccDrawableObject(), ccPointPropertiesDlg::exportCurrentLabel(), ccContourExtractor::ExtractConcaveHull2D(), ccPointPropertiesDlg::initializeState(), ccPointPropertiesDlg::linkWith(), ccPointPropertiesDlg::processClickedPoint(), cloudViewer::geometry::pybind_geometry_classes(), and ccDBRoot::selectEntity().

◆ setTempColor()

virtual void ccDrawableObject::setTempColor ( const ecvColor::Rgb &  col,
bool  autoActivate = true
)
virtual

Sets current temporary (unique)

Parameters
colrgb color
autoActivateauto activates temporary color

Referenced by ccPointPairRegistrationDlg::addAlignedPoint(), ccPointPairRegistrationDlg::addReferencePoint(), ccTracePolylineTool::ccTracePolylineTool(), define_ccDrawableObject(), ccTracePolylineTool::exportLine(), DistanceMapGenerationDlg::loadOverlaySymbols(), ccTracePolylineTool::onItemPicked(), ccThicknessTool::onNewSelection(), DistanceMapGenerationDlg::overlayGridColorChanged(), DistanceMapGenerationDlg::overlaySymbolsColorChanged(), cloudViewer::geometry::pybind_geometry_classes(), ccAlignDlg::setColorsAndLabels(), ccOrderChoiceDlg::setColorsAndLabels(), DistanceMapGenerationDlg::toggleOverlayGrid(), ccRegistrationDlg::updateGUI(), and FastGlobalRegistrationDialog::updateGUI().

◆ setVisible()

virtual void ccDrawableObject::setVisible ( bool  state)
inlinevirtual

Sets entity visibility.

Definition at line 40 of file ecvDrawableObject.h.

Referenced by ccPointPropertiesDlg::activate2DZonePicking(), ccPointPropertiesDlg::activateAngleDisplay(), ccPointPropertiesDlg::activateDistanceDisplay(), ccPointPropertiesDlg::activatePointPropertiesDisplay(), ecvAnnotationsTool::addAssociatedEntity(), ecvFilterTool::addAssociatedEntity(), ecvMeasurementTool::addAssociatedEntity(), ccGraphicalSegmentationTool::addEntity(), qCanupo2DViewDialog::addObject(), ccCloudLayersDlg::ccCloudLayersDlg(), ccMouseCircle::ccMouseCircle(), ccPointPairRegistrationDlg::ccPointPairRegistrationDlg(), ccPointPropertiesDlg::ccPointPropertiesDlg(), ccCompass::cleanupBeforeToolChange(), DistanceMapGenerationDlg::clearView(), ccPointPropertiesDlg::close2DZone(), CorrespondenceMatching::compute(), NurbsCurveFitting::compute(), qM3C2Process::Compute(), qVoxFallProcess::Compute(), qSRA::computeCloud2ProfileRadialDist(), ccEntityAction::computeOctree(), ccTopologyRelation::constructGraphic(), contourPoly(), contourPoly2(), DistanceMapGenerationTool::ConvertConicalMapToMesh(), DistanceMapGenerationTool::ConvertProfileToMesh(), qFacets::createFacets(), CreateLabel(), CC_ITEM_TREE::createPointLabel2D(), define_ccDrawableObject(), qCSF::doAction(), qPoissonRecon::doAction(), ccPointPropertiesDlg::exportCurrentLabel(), ccPointListPickingDlg::exportToNewPolyline(), ccCompass::exportToSVG(), ccContourExtractor::ExtractConcaveHull2D(), ccContourExtractor::ExtractFlatContour(), ccTraceTool::finishCurrentTrace(), ccRasterizeTool::generateMesh(), GrainsAsEllipsoids::GrainsAsEllipsoids(), ccCompass::hideAllPointClouds(), ccPointPairRegistrationDlg::init(), ccPointPropertiesDlg::initializeState(), ccPointPropertiesDlg::linkWith(), IcmFilter::LoadCalibratedImages(), CSVMatrixFilter::loadFile(), PhotoScanFilter::loadFile(), PcdFilter::loadFile(), PovFilter::loadFile(), SinusxFilter::loadFile(), PDMSFilter::loadFile(), DRCFilter::loadFile(), RDBFilter::loadFile(), LoadImage(), DistanceMapGenerationDlg::loadOverlaySymbols(), LoadScan(), MainWindow::onItemPicked(), ccThicknessTool::onNewSelection(), ccTraceTool::pickupTrace(), ccFitPlaneTool::pointPicked(), ccLineationTool::pointPicked(), ccTraceTool::pointPicked(), CommandRasterize::process(), CommandVolume25D::process(), ccPointPropertiesDlg::processClickedPoint(), ccPointListPickingDlg::processPickedPoint(), ccPointPropertiesDlg::processPickedPoint(), cloudViewer::geometry::pybind_geometry_classes(), ccNormalComputationDlg::setCloud(), qM3C2Dialog::setCloud1Visibility(), qM3C2Dialog::setCloud2Visibility(), ccAlignDlg::setColorsAndLabels(), ccOrderChoiceDlg::setColorsAndLabels(), qVoxFallDialog::setMesh1Visibility(), qVoxFallDialog::setMesh2Visibility(), ccCloudLayersHelper::setVisible(), ecvPoissonReconDlg::start(), DistanceMapGenerationDlg::toggleOverlayGrid(), ccFitPlaneTool::toolActivated(), ccFitPlaneTool::toolDisactivated(), ccThicknessTool::toolDisactivated(), ccCompass::tryLoading(), DistanceMapGenerationDlg::update(), ccPointPropertiesDlg::update2DZone(), ccComparisonDlg::updateDisplay(), StereogramDialog::updateFacetsFilter(), ccRegistrationDlg::updateGUI(), and FastGlobalRegistrationDialog::updateGUI().

◆ sfShown()

virtual bool ccDrawableObject::sfShown ( ) const
inlinevirtual

Returns whether active scalar field is visible.

Definition at line 117 of file ecvDrawableObject.h.

Referenced by ccCloudLayersHelper::ccCloudLayersHelper(), ccComparisonDlg::ccComparisonDlg(), ccCropTool::Crop(), define_ccDrawableObject(), ccRasterizeTool::generateMesh(), ccRegistrationTools::ICP(), CommandRasterize::process(), CommandVolume25D::process(), cloudViewer::geometry::pybind_geometry_classes(), and ccPropertiesTreeDelegate::setEditorData().

◆ showColors()

virtual void ccDrawableObject::showColors ( bool  state)
inlinevirtual

Sets colors visibility.

Definition at line 84 of file ecvDrawableObject.h.

Referenced by ccRasterizeTool::activeLayerChanged(), ccRasterizeTool::addNewContour(), ccCloudLayersHelper::ccCloudLayersHelper(), ccGraphicalSegmentationTool::ccGraphicalSegmentationTool(), ExtractSIFT::compute(), GeneralFilters::compute(), ProjectionFilter::compute(), CorrespondenceMatching::compute(), TemplateAlignment::compute(), qSRA::computeCloud2ProfileRadialDist(), contourPoly(), contourPoly2(), ccRasterizeTool::convertGridToCloud(), ccEntityAction::convertNormalsTo(), ccEntityAction::convertTextureToColor(), ccCropTool::Crop(), define_ccDrawableObject(), qPoissonRecon::doAction(), ccCompass::estimateStrain(), ccRasterizeTool::exportContourLines(), GrainsAsEllipsoids::exportResultsAsCloud(), FromFbxMesh(), ccRasterizeTool::generateMesh(), ccRegistrationTools::ICP(), ccEntityAction::interpolateColors(), ProfileLoader::Load(), LoadCloud(), CSVMatrixFilter::loadFile(), SoiFilter::loadFile(), DRCFilter::loadFile(), LASFWFFilter::loadFile(), LASFilter::loadFile(), RDBFilter::loadFile(), LoadScan(), ccColorFromScalarDlg::onApply(), CommandSFConvertToRGB::process(), CommandRemoveRGB::process(), CommandRasterize::process(), CommandVolume25D::process(), cloudViewer::geometry::pybind_geometry_classes(), cloudViewer::io::ReadTriangleMeshFromOBJ(), qCanupo2DViewDialog::resetBoundary(), ccEntityAction::rgbToGreyScale(), ccEntityAction::setColor(), ccEntityAction::sfConvertToRandomRGB(), ccEntityAction::sfConvertToRGB(), ecvPoissonReconDlg::start(), DistanceMapGenerationDlg::toggleOverlayGrid(), qCanupo2DViewDialog::trainClassifier(), qCanupoTools::TrainClassifier(), GrainsAsEllipsoids::updateMeshAndLineSet(), and ccCloudLayersHelper::~ccCloudLayersHelper().

◆ showNameIn3D()

virtual void ccDrawableObject::showNameIn3D ( bool  state)
inlinevirtual

Sets whether name should be displayed in 3D.

Definition at line 125 of file ecvDrawableObject.h.

Referenced by ccPointPairRegistrationDlg::addAlignedPoint(), ccPointPairRegistrationDlg::addReferencePoint(), ccFitPlane::ccFitPlane(), ccTopologyRelation::constructGraphic(), define_ccDrawableObject(), ccCompass::importFoliations(), ccCompassImport::importFoliations(), ccLineationTool::pointPicked(), ccPinchNodeTool::pointPicked(), ccThicknessTool::pointPicked(), cloudViewer::geometry::pybind_geometry_classes(), ccNote::updateMetadata(), ccTopologyRelation::updateMetadata(), and ccPointPairRegistrationDlg::updateSphereMarks().

◆ showNormals()

virtual void ccDrawableObject::showNormals ( bool  state)
inlinevirtual

Sets normals visibility.

Reimplemented in ccGenericMesh.

Definition at line 93 of file ecvDrawableObject.h.

Referenced by qM3C2Process::Compute(), ccEntityAction::convertNormalsTo(), define_ccDrawableObject(), qHoughNormals::doAction(), FromFbxMesh(), ccEntityAction::invertNormals(), LoadCloud(), RDBFilter::loadFile(), LoadScan(), CommandRemoveNormals::process(), and cloudViewer::geometry::pybind_geometry_classes().

◆ showSF()

virtual void ccDrawableObject::showSF ( bool  state)
inlinevirtual

Sets active scalarfield visibility.

Definition at line 108 of file ecvDrawableObject.h.

Referenced by ccRasterizeTool::activeLayerChanged(), LasCloudChunk::addLasFieldsToCloud(), ccComparisonDlg::applyAndExit(), ccLibAlgorithms::ApplyCCLibAlgorithm(), ccComparisonDlg::cancelAndExit(), ccCloudLayersHelper::ccCloudLayersHelper(), masc::Classifier::classify(), qCanupoProcess::Classify(), ExtractSIFT::compute(), GeneralFilters::compute(), ProjectionFilter::compute(), CorrespondenceMatching::compute(), TemplateAlignment::compute(), qM3C2Process::Compute(), qVoxFallProcess::Compute(), ccComparisonDlg::computeApproxDistances(), ccComparisonDlg::computeDistances(), ccLibAlgorithms::ComputeGeomCharacteristic(), DistanceMapGenerationTool::ComputeRadialDist(), ccVolumeCalcTool::convertGridToCloud(), ccVolumeCalcTool::ConvertGridToCloud(), ccRasterizeTool::convertGridToCloud(), DistanceMapGenerationTool::ConvertMapToCloud(), ccEntityAction::convertNormalsTo(), ccEntityAction::convertTextureToColor(), ccMeasurementDevice::createScalarFieldForCloud(), ccCropTool::Crop(), define_ccDrawableObject(), qPCV::doAction(), qPoissonRecon::doAction(), ccCompass::estimateStructureNormals(), masc::Classifier::evaluate(), ecvAnnotationsTool::exportAnnotationToSF(), qFacets::extractFacets(), TreeIso::Final_seg_pcd(), ccRasterizeTool::generateHillshade(), ccRasterizeTool::generateMesh(), getMortarMaps(), ccRegistrationTools::ICP(), ccEntityAction::importToSF(), TreeIso::Init_seg_pcd(), TreeIso::Intermediate_seg_pcd(), ccEntityAction::interpolateColors(), ccEntityAction::interpolateSFs(), LoadCloud(), LASFWFFilter::loadFile(), RDBFilter::loadFile(), LoadScan(), ccColorFromScalarDlg::onApply(), CommandSFConvertToRGB::process(), CommandRemoveAllSFs::process(), CommandStatTest::process(), CommandRasterize::process(), CommandVolume25D::process(), PCVCommand::Process(), cloudViewer::geometry::pybind_geometry_classes(), CommandRemoveSF::removeSF(), ccEntityAction::rgbGaussianFilter(), ccEntityAction::rgbToGreyScale(), ccEntityAction::setColor(), ccEntityAction::sfAddIdField(), ccEntityAction::sfArithmetic(), ccEntityAction::sfConvertToRandomRGB(), ccEntityAction::sfGaussianFilter(), ecvPoissonReconDlg::start(), ccEntityAction::statisticalTest(), ccComparisonDlg::updateDisplay(), and ccCloudLayersHelper::~ccCloudLayersHelper().

◆ toggleClipPlanes()

virtual void ccDrawableObject::toggleClipPlanes ( CC_DRAW_CONTEXT &  context,
bool  enable
)
virtual

Enables or disables clipping planes (OpenGL)

Warning
If enabling the clipping planes, be sure to call this method AFTER the model view matrix has been set.

Referenced by define_ccDrawableObject().

◆ toggleColors()

virtual void ccDrawableObject::toggleColors ( )
inlinevirtual

Toggles colors display state.

Definition at line 86 of file ecvDrawableObject.h.

Referenced by define_ccDrawableObject(), cloudViewer::geometry::pybind_geometry_classes(), and ccDBRoot::toggleSelectedEntitiesProperty().

◆ toggleMaterials()

virtual void ccDrawableObject::toggleMaterials ( )
inlinevirtual

Toggles material display state.

Reimplemented in ccMesh.

Definition at line 121 of file ecvDrawableObject.h.

Referenced by define_ccDrawableObject(), and cloudViewer::geometry::pybind_geometry_classes().

◆ toggleNormals()

virtual void ccDrawableObject::toggleNormals ( )
inlinevirtual

Toggles normals display state.

Definition at line 95 of file ecvDrawableObject.h.

Referenced by define_ccDrawableObject(), cloudViewer::geometry::pybind_geometry_classes(), and ccDBRoot::toggleSelectedEntitiesProperty().

◆ toggleSF()

virtual void ccDrawableObject::toggleSF ( )
inlinevirtual

Toggles SF display state.

Definition at line 114 of file ecvDrawableObject.h.

Referenced by define_ccDrawableObject(), cloudViewer::geometry::pybind_geometry_classes(), and ccDBRoot::toggleSelectedEntitiesProperty().

◆ toggleShowName()

virtual void ccDrawableObject::toggleShowName ( )
inlinevirtual

Toggles name in 3D display state.

Definition at line 131 of file ecvDrawableObject.h.

Referenced by define_ccDrawableObject(), cloudViewer::geometry::pybind_geometry_classes(), and ccDBRoot::toggleSelectedEntitiesProperty().

◆ toggleVisibility()

virtual void ccDrawableObject::toggleVisibility ( )
inlinevirtual

Toggles visibility.

Definition at line 43 of file ecvDrawableObject.h.

Referenced by define_ccDrawableObject(), cloudViewer::geometry::pybind_geometry_classes(), and ccDBRoot::toggleSelectedEntitiesProperty().

◆ translateGL()

virtual void ccDrawableObject::translateGL ( const CCVector3 &  trans)
virtual

Translates current GL transformation by a rotation matrix.

'GLtrans = GLtrans + T' Note: GL transformation is automatically enabled. See ccDrawableObject::setGLTransformation.

Referenced by define_ccDrawableObject(), and cloudViewer::geometry::pybind_geometry_classes().

Member Data Documentation

◆ m_clipPlanes

ccClipPlaneSet ccDrawableObject::m_clipPlanes
protected

Active clipping planes (used for display only)

Definition at line 300 of file ecvDrawableObject.h.

◆ m_colorIsOverridden

bool ccDrawableObject::m_colorIsOverridden
protected

Temporary (unique) color activation state.

Definition at line 283 of file ecvDrawableObject.h.

◆ m_colorsDisplayed

bool ccDrawableObject::m_colorsDisplayed
protected

Specifies whether colors should be displayed.

Definition at line 274 of file ecvDrawableObject.h.

◆ m_displayStateStack

std::vector<DisplayState::Shared> ccDrawableObject::m_displayStateStack
protected

The stack of pushed display states.

Definition at line 303 of file ecvDrawableObject.h.

◆ m_fixedId

bool ccDrawableObject::m_fixedId
protected

Definition at line 257 of file ecvDrawableObject.h.

◆ m_forceRedraw

bool ccDrawableObject::m_forceRedraw
protected

Definition at line 259 of file ecvDrawableObject.h.

◆ m_glTrans

ccGLMatrix ccDrawableObject::m_glTrans
protected

Current GL transformation.

See ccDrawableObject::setGLTransformation.

Definition at line 288 of file ecvDrawableObject.h.

◆ m_glTransEnabled

bool ccDrawableObject::m_glTransEnabled
protected

Current GL transformation activation state.

See ccDrawableObject::setGLTransformation.

Definition at line 292 of file ecvDrawableObject.h.

◆ m_lockedVisibility

bool ccDrawableObject::m_lockedVisibility
protected

Specifies whether the visibility can be changed by user or not.

Definition at line 271 of file ecvDrawableObject.h.

◆ m_modelRedraw

bool ccDrawableObject::m_modelRedraw
protected

Definition at line 258 of file ecvDrawableObject.h.

◆ m_nameIn3DPos

CCVector3d ccDrawableObject::m_nameIn3DPos
protected

Last 2D position of the '3D' name.

Definition at line 297 of file ecvDrawableObject.h.

◆ m_normalsDisplayed

bool ccDrawableObject::m_normalsDisplayed
protected

Specifies whether normals should be displayed.

Definition at line 276 of file ecvDrawableObject.h.

◆ m_opacity

float ccDrawableObject::m_opacity
protected

Definition at line 260 of file ecvDrawableObject.h.

◆ m_selected

bool ccDrawableObject::m_selected
protected

Specifies whether the object is selected or not.

Definition at line 268 of file ecvDrawableObject.h.

◆ m_sfDisplayed

bool ccDrawableObject::m_sfDisplayed
protected

Specifies whether scalar field should be displayed.

Definition at line 278 of file ecvDrawableObject.h.

◆ m_showNameIn3D

bool ccDrawableObject::m_showNameIn3D
protected

Whether name is displayed in 3D or not.

Definition at line 295 of file ecvDrawableObject.h.

◆ m_tempColor

ecvColor::Rgb ccDrawableObject::m_tempColor
protected

Temporary (unique) color.

Definition at line 281 of file ecvDrawableObject.h.

Referenced by ccSymbolCloud::drawMeOnly().

◆ m_visible

bool ccDrawableObject::m_visible
protected

Specifies whether the object is visible or not.

Note: this does not influence the children visibility

Definition at line 265 of file ecvDrawableObject.h.

The documentation for this class was generated from the following file:
