LasExtraScalarField Class Reference

This serves the same purpose as LasScalarField but for extra bytes. More...

#include <LasExtraScalarField.h>

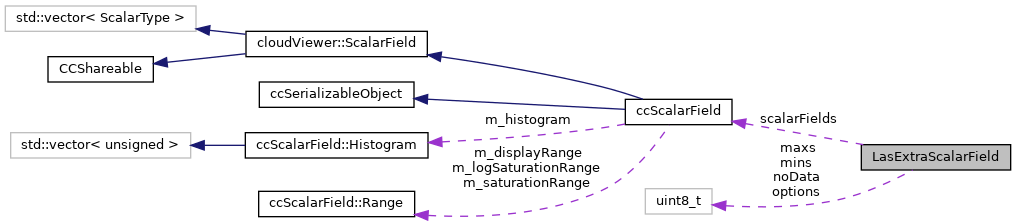

Collaboration diagram for LasExtraScalarField:
Collaboration graph
[legend]

Public Types

enum class  DimensionSize { One = 1 , Two = 2 , Three = 3 }

enum  DataType {
  Undocumented = 0 , u8 = 1 , i8 , u16 ,
  i16 , u32 , i32 , u64 ,
  i64 , f32 , f64 , Invalid
}
 Data types available LAS Extra Field. More...

enum  Kind { Signed , Unsigned , Floating }


Public Member Functions

 LasExtraScalarField ()=default

uint8_t typeCode () const

unsigned elementSize () const

unsigned numElements () const

unsigned byteSize () const

Kind kind () const

const char * typeName () const

bool noDataIsRelevant () const

bool minIsRelevant () const

bool maxIsRelevant () const

bool scaleIsRelevant () const

bool offsetIsRelevant () const

void setOffsetIsRelevant (bool isRelevant)

void setScaleIsRelevant (bool isRelevant)

void resetScalarFieldsPointers ()


Static Public Member Functions

static std::vector< LasExtraScalarField > ParseExtraScalarFields (const laszip_header &laszipHeader)

static std::vector< LasExtraScalarField > ParseExtraScalarFields (const laszip_vlr_struct &extraBytesVlr)

static void InitExtraBytesVlr (laszip_vlr_struct &vlr, const std::vector< LasExtraScalarField > &extraFields)

static void UpdateByteOffsets (std::vector< LasExtraScalarField > &extraFields)

static unsigned TotalExtraBytesSize (const std::vector< LasExtraScalarField > &extraScalarFields)

static void MatchExtraBytesToScalarFields (std::vector< LasExtraScalarField > &extraScalarFields, const ccPointCloud &pointCloud)

static std::tuple< DataType, DimensionSize > DataTypeFromValue (uint8_t value)


Public Attributes

DataType type {Undocumented}

DimensionSize dimensions {DimensionSize::One}

uint8_t options {0}

char name [MAX_NAME_SIZE] = ""

char description [MAX_DESCRIPTION_SIZE] = ""

uint8_t noData [MAX_DIM_SIZE][8] = {0}

uint8_t mins [MAX_DIM_SIZE][8] = {0}

uint8_t maxs [MAX_DIM_SIZE][8] = {0}

double scales [MAX_DIM_SIZE] = {0.0}

double offsets [MAX_DIM_SIZE] = {0.0}

unsigned byteOffset {0}

ccScalarField * scalarFields [MAX_DIM_SIZE] = {nullptr}

char ccName [MAX_NAME_SIZE+8] = {0}


Static Public Attributes

static constexpr unsigned MAX_DIM_SIZE = 3

static constexpr unsigned MAX_NAME_SIZE = 32

static constexpr unsigned MAX_DESCRIPTION_SIZE = 32


Detailed Description

This serves the same purpose as LasScalarField but for extra bytes.

Definition at line 41 of file LasExtraScalarField.h.

Member Enumeration Documentation

◆ DataType

enum LasExtraScalarField::DataType

Data types available LAS Extra Field.

Enumerator
Undocumented
u8
i8
u16
i16
u32
i32
u64
i64
f32
f64
Invalid

Definition at line 62 of file LasExtraScalarField.h.

◆ DimensionSize

enum LasExtraScalarField::DimensionSize
strong
Enumerator
One
Two
Three

Definition at line 54 of file LasExtraScalarField.h.

◆ Kind

enum LasExtraScalarField::Kind
Enumerator
Signed
Unsigned
Floating

Definition at line 78 of file LasExtraScalarField.h.

Constructor & Destructor Documentation

◆ LasExtraScalarField()

LasExtraScalarField::LasExtraScalarField ( )
default

Member Function Documentation

◆ byteSize()

unsigned LasExtraScalarField::byteSize ( ) const

Definition at line 167 of file LasExtraScalarField.cpp.

References elementSize(), and numElements().

Referenced by ParseExtraScalarFields().

◆ DataTypeFromValue()

std::tuple< LasExtraScalarField::DataType, LasExtraScalarField::DimensionSize > LasExtraScalarField::DataTypeFromValue ( uint8_t  value)
static

Definition at line 67 of file LasExtraScalarField.cpp.

References One, Three, and Two.

◆ elementSize()

unsigned LasExtraScalarField::elementSize ( ) const

Definition at line 134 of file LasExtraScalarField.cpp.

References f32, f64, i16, i32, i64, i8, Invalid, type, u16, u32, u64, u8, and Undocumented.

Referenced by byteSize().

◆ InitExtraBytesVlr()

void LasExtraScalarField::InitExtraBytesVlr ( laszip_vlr_struct &  vlr,
const std::vector< LasExtraScalarField > &  extraFields
)
static

Definition at line 302 of file LasExtraScalarField.cpp.

References copy.

Referenced by LasSaver::LasSaver().

◆ kind()

LasExtraScalarField::Kind LasExtraScalarField::kind ( ) const

Definition at line 279 of file LasExtraScalarField.cpp.

References f32, f64, Floating, i16, i32, i64, i8, Invalid, Signed, type, u16, u32, u64, u8, Undocumented, and Unsigned.

◆ MatchExtraBytesToScalarFields()

void LasExtraScalarField::MatchExtraBytesToScalarFields ( std::vector< LasExtraScalarField > &  extraScalarFields,
const ccPointCloud &  pointCloud
)
static

Definition at line 389 of file LasExtraScalarField.cpp.

References cloudViewer::PointCloudTpl< T >::getScalarField(), cloudViewer::PointCloudTpl< T >::getScalarFieldIndexByName(), name, and CVLog::Warning().

Referenced by LasIOFilter::saveToFile().

◆ maxIsRelevant()

bool LasExtraScalarField::maxIsRelevant ( ) const

Definition at line 240 of file LasExtraScalarField.cpp.

References options.

◆ minIsRelevant()

bool LasExtraScalarField::minIsRelevant ( ) const

Definition at line 235 of file LasExtraScalarField.cpp.

References options.

◆ noDataIsRelevant()

bool LasExtraScalarField::noDataIsRelevant ( ) const

Definition at line 230 of file LasExtraScalarField.cpp.

References options.

◆ numElements()

unsigned LasExtraScalarField::numElements ( ) const

Definition at line 172 of file LasExtraScalarField.cpp.

References dimensions.

Referenced by byteSize(), LasExtraScalarFieldCard::fillField(), LasExtraScalarFieldCard::fillFrom(), and typeCode().

◆ offsetIsRelevant()

bool LasExtraScalarField::offsetIsRelevant ( ) const

Definition at line 250 of file LasExtraScalarField.cpp.

References options.

Referenced by LasExtraScalarFieldCard::fillFrom().

◆ ParseExtraScalarFields() [1/2]

std::vector< LasExtraScalarField > LasExtraScalarField::ParseExtraScalarFields ( const laszip_header &  laszipHeader)
static

Definition at line 178 of file LasExtraScalarField.cpp.

References LasDetails::IsExtraBytesVlr().

Referenced by LasIOFilter::loadFile().

◆ ParseExtraScalarFields() [2/2]

std::vector< LasExtraScalarField > LasExtraScalarField::ParseExtraScalarFields ( const laszip_vlr_struct &  extraBytesVlr)
static

Definition at line 191 of file LasExtraScalarField.cpp.

References byteOffset, byteSize(), LasDetails::IsExtraBytesVlr(), name, CVLog::Print(), type, typeName(), and CVLog::Warning().

◆ resetScalarFieldsPointers()

void LasExtraScalarField::resetScalarFieldsPointers ( )

Definition at line 371 of file LasExtraScalarField.cpp.

References MAX_DIM_SIZE, and scalarFields.

◆ scaleIsRelevant()

bool LasExtraScalarField::scaleIsRelevant ( ) const

Definition at line 245 of file LasExtraScalarField.cpp.

References options.

Referenced by LasExtraScalarFieldCard::fillFrom().

◆ setOffsetIsRelevant()

void LasExtraScalarField::setOffsetIsRelevant ( bool  isRelevant)

Definition at line 267 of file LasExtraScalarField.cpp.

References options.

Referenced by LasExtraScalarFieldCard::fillField().

◆ setScaleIsRelevant()

void LasExtraScalarField::setScaleIsRelevant ( bool  isRelevant)

Definition at line 255 of file LasExtraScalarField.cpp.

References options.

Referenced by LasExtraScalarFieldCard::fillField().

◆ TotalExtraBytesSize()

unsigned LasExtraScalarField::TotalExtraBytesSize ( const std::vector< LasExtraScalarField > &  extraScalarFields)
static

Definition at line 362 of file LasExtraScalarField.cpp.

Referenced by LasSaver::LasSaver().

◆ typeCode()

uint8_t LasExtraScalarField::typeCode ( ) const

Definition at line 322 of file LasExtraScalarField.cpp.

References numElements(), and type.

◆ typeName()

const char * LasExtraScalarField::typeName ( ) const

Definition at line 330 of file LasExtraScalarField.cpp.

References f32, f64, i16, i32, i64, i8, Invalid, type, u16, u32, u64, u8, and Undocumented.

Referenced by ParseExtraScalarFields().

◆ UpdateByteOffsets()

void LasExtraScalarField::UpdateByteOffsets ( std::vector< LasExtraScalarField > &  extraFields)
static

Definition at line 379 of file LasExtraScalarField.cpp.

References byteOffset.

Referenced by LasSaver::LasSaver().

Member Data Documentation

◆ byteOffset

unsigned LasExtraScalarField::byteOffset {0}

Definition at line 140 of file LasExtraScalarField.h.

Referenced by ParseExtraScalarFields(), and UpdateByteOffsets().

◆ ccName

char LasExtraScalarField::ccName[MAX_NAME_SIZE+8] = {0}

Definition at line 147 of file LasExtraScalarField.h.

Referenced by LasExtraScalarFieldCard::fillFrom().

◆ description

char LasExtraScalarField::description[MAX_DESCRIPTION_SIZE] = ""

Definition at line 132 of file LasExtraScalarField.h.

Referenced by LasExtraScalarFieldCard::fillField(), and LasExtraScalarFieldCard::fillFrom().

◆ dimensions

DimensionSize LasExtraScalarField::dimensions {DimensionSize::One}

Definition at line 128 of file LasExtraScalarField.h.

Referenced by LasExtraScalarFieldCard::fillField(), and numElements().

◆ MAX_DESCRIPTION_SIZE

constexpr unsigned LasExtraScalarField::MAX_DESCRIPTION_SIZE = 32
staticconstexpr

Definition at line 52 of file LasExtraScalarField.h.

Referenced by LasExtraScalarFieldCard::fillField(), and LasExtraScalarFieldCard::LasExtraScalarFieldCard().

◆ MAX_DIM_SIZE

constexpr unsigned LasExtraScalarField::MAX_DIM_SIZE = 3
staticconstexpr

When the extra dimension in an array type, it can have at most 3 elements.

Eg: A Color extra array dimension with 3 elements, so that each points have Color[0], Color[1], Color[2] as in a single extra dimension definition.

Definition at line 50 of file LasExtraScalarField.h.

Referenced by LasScalarFieldSaver::handleExtraFields(), and resetScalarFieldsPointers().

◆ MAX_NAME_SIZE

constexpr unsigned LasExtraScalarField::MAX_NAME_SIZE = 32
staticconstexpr

Definition at line 51 of file LasExtraScalarField.h.

Referenced by LasExtraScalarFieldCard::fillField(), LasExtraScalarFieldCard::LasExtraScalarFieldCard(), and LasIOFilter::saveToFile().

◆ maxs

uint8_t LasExtraScalarField::maxs[MAX_DIM_SIZE][8] = {0}

Definition at line 135 of file LasExtraScalarField.h.

◆ mins

uint8_t LasExtraScalarField::mins[MAX_DIM_SIZE][8] = {0}

Definition at line 134 of file LasExtraScalarField.h.

◆ name

char LasExtraScalarField::name[MAX_NAME_SIZE] = ""

Definition at line 131 of file LasExtraScalarField.h.

Referenced by LasExtraScalarFieldCard::fillField(), LasExtraScalarFieldCard::fillFrom(), MatchExtraBytesToScalarFields(), ParseExtraScalarFields(), and LasIOFilter::saveToFile().

◆ noData

uint8_t LasExtraScalarField::noData[MAX_DIM_SIZE][8] = {0}

Definition at line 133 of file LasExtraScalarField.h.

◆ offsets

double LasExtraScalarField::offsets[MAX_DIM_SIZE] = {0.0}

Definition at line 137 of file LasExtraScalarField.h.

Referenced by LasExtraScalarFieldCard::fillField(), and LasExtraScalarFieldCard::fillFrom().

◆ options

uint8_t LasExtraScalarField::options {0}

Definition at line 130 of file LasExtraScalarField.h.

Referenced by maxIsRelevant(), minIsRelevant(), noDataIsRelevant(), offsetIsRelevant(), scaleIsRelevant(), setOffsetIsRelevant(), and setScaleIsRelevant().

◆ scalarFields

ccScalarField* LasExtraScalarField::scalarFields[MAX_DIM_SIZE] = {nullptr}

Definition at line 141 of file LasExtraScalarField.h.

Referenced by LasExtraScalarFieldCard::fillField(), LasExtraScalarFieldCard::fillFrom(), resetScalarFieldsPointers(), and LasIOFilter::saveToFile().

◆ scales

double LasExtraScalarField::scales[MAX_DIM_SIZE] = {0.0}

Definition at line 136 of file LasExtraScalarField.h.

Referenced by LasExtraScalarFieldCard::fillField(), and LasExtraScalarFieldCard::fillFrom().

◆ type

DataType LasExtraScalarField::type {Undocumented}

Definition at line 127 of file LasExtraScalarField.h.

Referenced by elementSize(), LasExtraScalarFieldCard::fillField(), LasExtraScalarFieldCard::fillFrom(), kind(), ParseExtraScalarFields(), LasIOFilter::saveToFile(), typeCode(), and typeName().

The documentation for this class was generated from the following files:
