#include <LasScalarField.h>

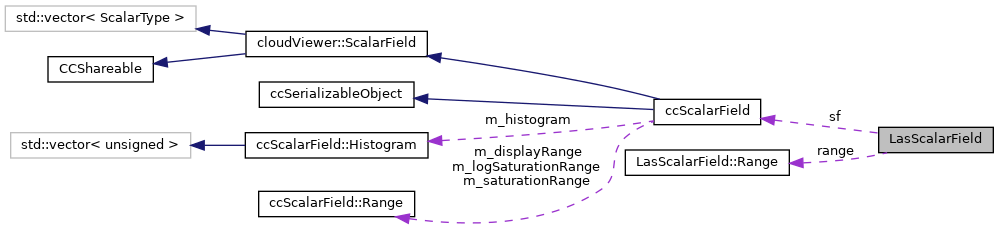

Collaboration diagram for LasScalarField:

[legend]

Classes
struct	Range

Public Types
enum	Id { Intensity = 0 , ReturnNumber = 1 , NumberOfReturns = 2 , ScanDirectionFlag , EdgeOfFlightLine , Classification , SyntheticFlag , KeypointFlag , WithheldFlag , ScanAngleRank , UserData , PointSourceId , GpsTime , ExtendedScanAngle , ExtendedScannerChannel , OverlapFlag , ExtendedClassification , ExtendedReturnNumber , ExtendedNumberOfReturns , NearInfrared }

Public Member Functions
	LasScalarField ()=delete

	LasScalarField (LasScalarField::Id id, ccScalarField *sf=nullptr)

const char *	name () const

Static Public Member Functions
static constexpr const char *	NameFromId (LasScalarField::Id id)
	Returns the name that correspond to the given LasScalarField::Id variant. More...

static LasScalarField::Id	IdFromName (const char *name, unsigned targetPointFormat)

static LasScalarField::Range	ValueRange (LasScalarField::Id id)
	Returns the range of value the given field (ID) supports. More...

static std::vector< LasScalarField >	ForPointFormat (unsigned pointFormatId)

Public Attributes
Id	id
	The Id of the LAS field this relates to. More...

ccScalarField *	sf {nullptr}

Range	range

Detailed Description

class used to link a LAS field defined by the LAS standard to the ACloudViewer scalar field that stores or will store the values.

Definition at line 37 of file LasScalarField.h.

Member Enumeration Documentation

◆ Id

enum LasScalarField::Id

Enum used to uniquely identify LAS fields with a clear distinction between 'normal' and 'extended' fields which may have the same name (e.g. Classification)

Enumerator
Intensity
ReturnNumber
NumberOfReturns
ScanDirectionFlag
EdgeOfFlightLine
Classification
SyntheticFlag
KeypointFlag
WithheldFlag
ScanAngleRank
UserData
PointSourceId
GpsTime
ExtendedScanAngle
ExtendedScannerChannel
OverlapFlag
ExtendedClassification
ExtendedReturnNumber
ExtendedNumberOfReturns
NearInfrared

Definition at line 42 of file LasScalarField.h.

Constructor & Destructor Documentation

◆ LasScalarField() [1/2]

LasScalarField::LasScalarField ( )

delete

◆ LasScalarField() [2/2]

LasScalarField::LasScalarField	(	LasScalarField::Id	id,
		ccScalarField *	sf = `nullptr`
	)

explicit

Definition at line 233 of file LasScalarField.cpp.

Member Function Documentation

◆ ForPointFormat()

std::vector< LasScalarField > LasScalarField::ForPointFormat ( unsigned pointFormatId )

static

Returns the scalar fields that correspond the the point format ID as per LAS specifications.

Definition at line 245 of file LasScalarField.cpp.

References LasNames::Classification, LasNames::EdgeOfFlightLine, LasNames::GpsTime, LasDetails::HasGpsTime(), LasDetails::HasNearInfrared(), LasNames::Intensity, LasNames::KeypointFlag, LasNames::NearInfrared, LasNames::NumberOfReturns, LasNames::OverlapFlag, LasNames::PointSourceId, LasNames::ReturnNumber, LasNames::ScanAngleRank, LasNames::ScanDirectionFlag, LasNames::SyntheticFlag, LasNames::UserData, and LasNames::WithheldFlag.

Referenced by LasSaveDialog::handleSelectedPointFormatChange(), and LasIOFilter::loadFile().

◆ IdFromName()

LasScalarField::Id LasScalarField::IdFromName	(	const char *	name,
		unsigned	targetPointFormat
	)

static

Returns the LasScalarField::Id variant that correspond to the given name

Point Format is needed, as we have different Id for the same name depending on the point format. For example: The "Classification" field has a different Id in fmt >= 6 as it allows to store more information.

Throws a logic_error if the name does not have a matching id

Definition at line 68 of file LasScalarField.cpp.

References LasNames::Classification, LasNames::EdgeOfFlightLine, LasNames::GpsTime, LasNames::Intensity, IsPointFormatExtended(), LasNames::KeypointFlag, name(), LasNames::NearInfrared, LasNames::NumberOfReturns, LasNames::OverlapFlag, LasNames::PointSourceId, LasNames::ReturnNumber, LasNames::ScanAngle, LasNames::ScanAngleRank, LasNames::ScanDirectionFlag, LasNames::ScannerChannel, LasNames::SyntheticFlag, LasNames::UserData, CVLog::Warning(), and LasNames::WithheldFlag.
