Example qCC plugin. More...

#include <JsonRPCPlugin.h>

Inheritance diagram for JsonRPCPlugin:

[legend]

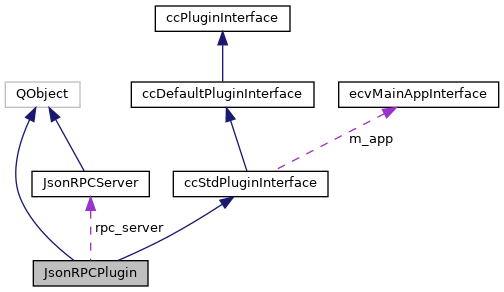

Collaboration diagram for JsonRPCPlugin:

[legend]

Public Slots
void	triggered (bool checked)

JsonRPCResult	execute (QString method, QMap< QString, QVariant > params)

Protected Attributes
JsonRPCServer	rpc_server

Protected Attributes inherited from ccStdPluginInterface
ecvMainAppInterface *	m_app
	Main application interface. More...

Additional Inherited Members
Public Types inherited from ccPluginInterface
typedef QList< Contact >	ContactList

using	ReferenceList = QList< Reference >

Public Member Functions inherited from ccStdPluginInterface
	ccStdPluginInterface (const QString &resourcePath=QString())
	Default constructor. More...

virtual	~ccStdPluginInterface () override=default
	Destructor. More...

virtual CC_PLUGIN_TYPE	getType () const override
	Returns plugin type (standard or OpenGL filter) More...

virtual void	setMainAppInterface (ecvMainAppInterface *app)
	Sets application entry point. More...

virtual ecvMainAppInterface *	getMainAppInterface ()
	A callback pointer to the main app interface for use by plugins. More...

virtual void	onNewSelection (const ccHObject::Container &selectedEntities)

virtual void	dispToConsole (QString message, ecvMainAppInterface::ConsoleMessageLevel level=ecvMainAppInterface::STD_CONSOLE_MESSAGE)
	Shortcut to ecvMainAppInterface::dispToConsole. More...

Public Member Functions inherited from ccDefaultPluginInterface
virtual	~ccDefaultPluginInterface ()

virtual bool	isCore () const override
	Is this plugin a core plugin? More...

virtual QString	getName () const override
	Returns (short) name (for menu entry, etc.) More...

virtual QString	getDescription () const override
	Returns long name/description (for tooltip, etc.) More...

virtual QIcon	getIcon () const override
	Returns icon. More...

virtual ReferenceList	getReferences () const override

virtual ContactList	getAuthors () const override

virtual ContactList	getMaintainers () const override

Public Member Functions inherited from ccPluginInterface
virtual	~ccPluginInterface ()=default
	Virtual destructor. More...

virtual bool	start ()
	Starts the plugin. More...

virtual void	stop ()
	Stops the plugin. More...

virtual ccExternalFactory *	getCustomObjectsFactory () const
	Returns the plugin's custom object factory (if any) More...

virtual void	registerCommands (ccCommandLineInterface *cmd)
	Optional: registers commands (for the command line mode) More...

Protected Member Functions inherited from ccDefaultPluginInterface
	ccDefaultPluginInterface (const QString &resourcePath=QString())

Detailed Description

Example qCC plugin.

Replace 'ExamplePlugin' by your own plugin class name throughout and then check 'ExamplePlugin.cpp' for more directions.

Each plugin requires an info.json file to provide information about itself - the name, authors, maintainers, icon, etc..

    The one method you are required to implement is 'getActions'. This

should return all actions (QAction objects) for the plugin. ACloudViewer will automatically add these with their icons in the plugin toolbar and to the plugin menu. If your plugin returns several actions, CC will create a dedicated toolbar and a sub-menu for your plugin. You are responsible for connecting these actions to methods in your plugin.

    Use the ccStdPluginInterface::m_app variable for access to most of the

CC components (database, 3D views, console, etc.) - see the ecvMainAppInterface class in ecvMainAppInterface.h.

Definition at line 32 of file JsonRPCPlugin.h.

Member Function Documentation

◆ execute

JsonRPCResult JsonRPCPlugin::execute	(	QString	method,
		QMap< QString, QVariant >	params
	)

slot

Definition at line 62 of file JsonRPCPlugin.cpp.

References ecvMainAppInterface::addToDB(), FileIOFilter::LoadParameters::alwaysDisplayLoadDialog, ccHObject::applyGLTransformation_recursive(), CC_FERR_NO_ERROR, FileIOFilter::LoadParameters::coordinatesShift, FileIOFilter::LoadParameters::coordinatesShiftEnabled, ecvMainAppInterface::dbRootObject(), ecvGlobalShiftManager::DIALOG_IF_NECESSARY, JsonRPCResult::error(), filename, ccHObject::filterChildren(), ecvMainAppInterface::getActiveWindow(), ccHObject::getChild(), FileIOFilter::LoadFromFile(), ccStdPluginInterface::m_app, params, FileIOFilter::LoadParameters::parentWidget, CV_TYPES::POINT_CLOUD, ecvDisplayTools::RedrawDisplay(), ecvMainAppInterface::removeFromDB(), result, ccDrawableObject::setGLTransformation(), FileIOFilter::LoadParameters::shiftHandlingMode, JsonRPCResult::success(), ccGLMatrixTpl< T >::toString(), and e57::toString().

◆ triggered

void JsonRPCPlugin::triggered ( bool checked )

slot

Definition at line 52 of file JsonRPCPlugin.cpp.

References JsonRPCServer::close(), JsonRPCServer::listen(), and rpc_server.

Member Data Documentation

◆ rpc_server

JsonRPCServer JsonRPCPlugin::rpc_server

protected

Definition at line 66 of file JsonRPCPlugin.h.

Referenced by triggered().

The documentation for this class was generated from the following files:

/root/ACloudViewer/plugins/core/Standard/qJSonRPCPlugin/include/JsonRPCPlugin.h
/root/ACloudViewer/plugins/core/Standard/qJSonRPCPlugin/src/JsonRPCPlugin.cpp
