Helper class for highlighting selected elements in the visualizer. More...

#include <cvSelectionHighlighter.h>

Inheritance diagram for cvSelectionHighlighter:

[legend]

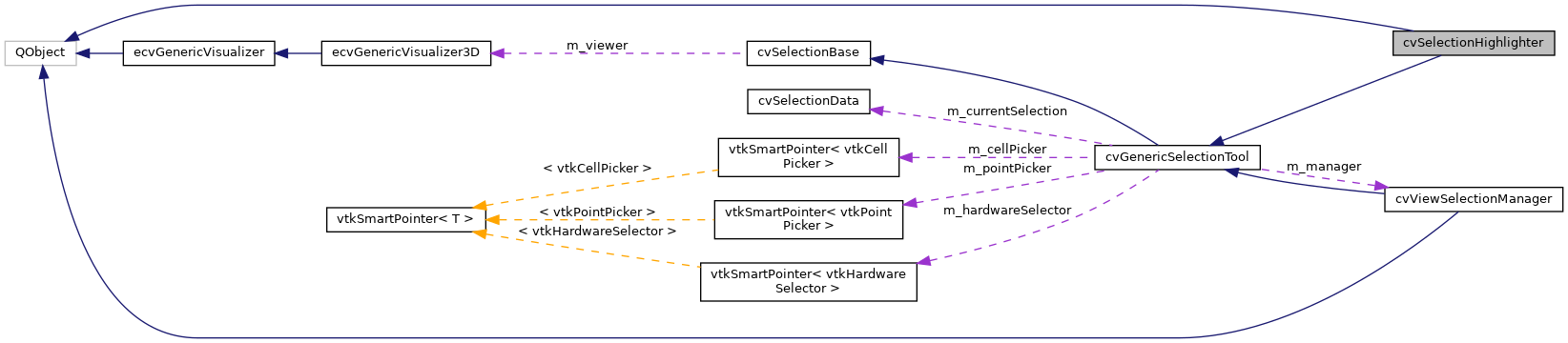

Collaboration diagram for cvSelectionHighlighter:

[legend]

Public Types
enum	HighlightMode { HOVER , PRESELECTED , SELECTED , BOUNDARY }
	Highlight mode (Enhanced multi-level highlighting) More...

Public Types inherited from cvGenericSelectionTool
using	SelectionMode = ::SelectionMode
	Selection mode Now using global SelectionMode enum from cvSelectionTypes.h. More...

using	SelectionModifier = ::SelectionModifier
	Selection modifier (for multi-selection) Now using global SelectionModifier enum from cvSelectionTypes.h. More...

Signals
void	colorChanged (int mode)
	Emitted when any highlight color changes. More...

void	opacityChanged (int mode)
	Emitted when any opacity changes. More...

void	pointSizeChanged (int mode)
	Emitted when point size changes. More...

void	lineWidthChanged (int mode)
	Emitted when line width changes. More...

void	labelPropertiesChanged (bool interactive)
	Emitted when label properties change. More...

void	propertiesChanged ()
	Emitted when any property changes (general notification) More...

Public Member Functions
	cvSelectionHighlighter ()
	Constructor. More...

	~cvSelectionHighlighter ()
	Destructor. More...

bool	highlightSelection (const vtkSmartPointer< vtkIdTypeArray > &selection, int fieldAssociation, HighlightMode mode=SELECTED)
	Highlight selected elements (automatically gets polyData from visualizer) More...

bool	highlightSelection (vtkPolyData *polyData, const vtkSmartPointer< vtkIdTypeArray > &selection, int fieldAssociation, HighlightMode mode=SELECTED)
	Highlight selected elements (with explicit polyData) More...

bool	highlightSelection (const cvSelectionData &selectionData, HighlightMode mode=SELECTED)
	Highlight a selection (high-level interface - no VTK types) More...

bool	highlightElement (vtkPolyData *polyData, vtkIdType elementId, int fieldAssociation)
	Highlight a single element (for hover preview) More...

void	clearHighlights ()
	Clear all highlights. More...

void	clearHoverHighlight ()
	Clear only hover highlight (keep selected/preselected) More...

void	setHighlightsVisible (bool visible)
	Set visibility of all highlight actors. More...

void	setHighlightColor (double r, double g, double b, HighlightMode mode=SELECTED)
	Set highlight color. More...

void	setHighlightOpacity (double opacity, HighlightMode mode=SELECTED)
	Set highlight opacity. More...

const double *	getHighlightColor (HighlightMode mode) const
	Get highlight color for a specific mode. More...

double	getHighlightOpacity (HighlightMode mode) const
	Get highlight opacity for a specific mode. More...

void	setPointSize (int size, HighlightMode mode=SELECTED)
	Set point size for highlight rendering. More...

int	getPointSize (HighlightMode mode) const
	Get point size for a specific mode. More...

void	setLineWidth (int width, HighlightMode mode=SELECTED)
	Set line width for highlight rendering. More...

int	getLineWidth (HighlightMode mode) const
	Get line width for a specific mode. More...

void	setEnabled (bool enabled)
	Enable/disable highlight. More...

const SelectionLabelProperties &	getLabelProperties (bool interactive=false) const
	Get label properties for selection mode. More...

void	setLabelProperties (const SelectionLabelProperties &props, bool interactive=false)
	Set label properties for selection mode. More...

void	setPointLabelArray (const QString &arrayName, bool visible=true)
	Set the point label array name. More...

void	setCellLabelArray (const QString &arrayName, bool visible=true)
	Set the cell label array name. More...

QString	getPointLabelArrayName () const
	Get current point label array name. More...

QString	getCellLabelArrayName () const
	Get current cell label array name. More...

bool	isPointLabelVisible () const
	Check if point labels are visible. More...

bool	isCellLabelVisible () const
	Check if cell labels are visible. More...

QColor	getHighlightQColor (HighlightMode mode) const
	Get highlight color as QColor. More...

void	setHighlightQColor (const QColor &color, HighlightMode mode=SELECTED)
	Set highlight color from QColor. More...

Public Member Functions inherited from cvGenericSelectionTool
	cvGenericSelectionTool ()

	~cvGenericSelectionTool () override=default

void	setSelectionManager (cvViewSelectionManager *manager)
	Set the selection manager (to access pipeline) More...

cvViewSelectionManager *	getSelectionManager () const
	Get the selection manager. More...

cvSelectionPipeline *	getSelectionPipeline () const
	Get the selection pipeline from manager. More...

vtkPolyData *	getPolyDataForSelection (const cvSelectionData *selectionData=nullptr) override
	Get polyData for a selection using ParaView-style priority (override) More...

Public Member Functions inherited from cvSelectionBase
	cvSelectionBase ()

virtual	~cvSelectionBase ()=default

virtual void	setVisualizer (ecvGenericVisualizer3D *viewer)
	Set the visualizer instance. More...

ecvGenericVisualizer3D *	getVisualizer () const
	Get the visualizer instance. More...

Additional Inherited Members
Protected Member Functions inherited from cvGenericSelectionTool
cvSelectionData	hardwareSelectAtPoint (int x, int y, SelectionMode mode=SelectionMode::SELECT_SURFACE_CELLS, SelectionModifier modifier=SelectionModifier::SELECTION_DEFAULT)
	Hardware-accelerated selection (ParaView-aligned) More...

cvSelectionData	hardwareSelectInRegion (const int region[4], SelectionMode mode=SelectionMode::SELECT_SURFACE_CELLS, SelectionModifier modifier=SelectionModifier::SELECTION_DEFAULT)
	Perform hardware selection in a region. More...

QVector< cvActorSelectionInfo >	getActorsAtPoint (int x, int y)
	Get all actors at a screen location (without full selection) More...

void	setUseHardwareSelection (bool enable)
	Hardware selection configuration. More...

bool	useHardwareSelection () const
	Check if hardware selection is enabled. More...

void	setCaptureZValues (bool capture)
	Set whether to capture Z-buffer values. More...

void	setMultipleSelectionMode (bool enable)
	Enable/disable multi-selection mode. More...

bool	multipleSelectionMode () const
	Check if multi-selection is enabled. More...

void	initializePickers ()
	Software picking methods (unified from subclasses) More...

vtkIdType	pickAtPosition (int x, int y, bool selectCells)
	Pick element at screen position. More...

vtkIdType	pickAtCursor (bool selectCells)
	Pick element at current cursor position. More...

void	setInteractor (vtkRenderWindowInteractor *interactor)
	Set the interactor for picking. More...

vtkRenderWindowInteractor *	getInteractor () const
	Get the interactor. More...

void	setRenderer (vtkRenderer *renderer)
	Set the renderer for picking. More...

vtkRenderer *	getPickingRenderer () const
	Get the renderer (for picking) More...

void	setPickerTolerance (double cellTolerance, double pointTolerance)
	Set picker tolerance. More...

vtkActor *	getPickedActor (bool selectCells)
	Get the last picked actor. More...

vtkPolyData *	getPickedPolyData (bool selectCells)
	Get the last picked polyData. More...

bool	getPickedPosition (bool selectCells, double position[3])
	Get pick position in world coordinates. More...

cvSelectionData	createSelectionFromPick (vtkIdType pickedId, bool selectCells)
	Create cvSelectionData from software picking result. More...

cvSelectionData	applySelectionModifierUnified (const cvSelectionData &newSelection, const cvSelectionData &currentSelection, int modifier, int fieldAssociation)
	Apply selection modifier to combine selections. More...

Protected Member Functions inherited from cvSelectionBase
PclUtils::PCLVis *	getPCLVis () const
	Get PCLVis instance (for VTK-specific operations) More...

bool	hasValidPCLVis () const
	Check if visualizer is valid and is PCLVis. More...

vtkDataSet *	getDataFromActor (vtkActor *actor)
	Get data object from a specific actor (ParaView-style) More...

QList< vtkActor * >	getDataActors () const
	Get all visible data actors from visualizer. More...

std::vector< vtkPolyData * >	getAllPolyDataFromVisualizer ()
	Get all polyData from the visualizer. More...

Protected Attributes inherited from cvGenericSelectionTool
cvViewSelectionManager *	m_manager
	Manager reference (for pipeline access) More...

vtkSmartPointer< vtkCellPicker >	m_cellPicker
	Software picking components (unified from subclasses) More...

vtkSmartPointer< vtkPointPicker >	m_pointPicker
	Point picker. More...

vtkRenderWindowInteractor *	m_interactor
	Interactor (weak pointer) More...

vtkRenderer *	m_renderer
	Renderer (weak pointer) More...

bool	m_useHardwareSelection
	Hardware selection components (reused for performance) More...

bool	m_captureZValues
	Capture Z-buffer values. More...

bool	m_multipleSelectionMode
	Allow multiple selections. More...

cvSelectionData	m_currentSelection
	Current selection (for modifiers) More...

vtkSmartPointer< vtkHardwareSelector >	m_hardwareSelector
	Hardware selector (reused) More...

Protected Attributes inherited from cvSelectionBase
ecvGenericVisualizer3D *	m_viewer
	Visualizer instance (abstract interface) More...

Detailed Description

Helper class for highlighting selected elements in the visualizer.

This is the SINGLE SOURCE OF TRUTH for all selection visualization properties:

Colors for each highlight mode (HOVER, PRESELECTED, SELECTED, BOUNDARY)
Opacities for each mode
Point sizes and line widths
Label properties for annotations

Inherits from QObject to provide property change notifications. UI components should connect to signals and read properties from this class.

Based on ParaView's selection highlighting system Reference: ParaView's vtkSMPVRepresentationProxy selection highlighting

Definition at line 101 of file cvSelectionHighlighter.h.

Member Enumeration Documentation

◆ HighlightMode

enum cvSelectionHighlighter::HighlightMode

Highlight mode (Enhanced multi-level highlighting)

Enhanced for maximum visibility with bright colors and high opacity:

HOVER - Immediate feedback on mouse movement (bright cyan, high opacity)
PRESELECTED - Preview before confirming (bright yellow, high opacity)
SELECTED - Final selection (bright green, opaque)

Enumerator
HOVER	Hover highlight (bright cyan, 0.9 opacity) - enhanced visibility
PRESELECTED	Pre-selected (bright yellow, 0.8 opacity) - enhanced visibility
SELECTED	Final selection (bright green, 1.0 opacity) - enhanced visibility
BOUNDARY	Boundary elements (bright orange, 0.85 opacity) - enhanced visibility

Definition at line 115 of file cvSelectionHighlighter.h.

Constructor & Destructor Documentation

◆ cvSelectionHighlighter()

cvSelectionHighlighter::cvSelectionHighlighter ( )

Constructor.

Definition at line 45 of file cvSelectionHighlighter.cpp.

References CVLog::PrintVerbose().

◆ ~cvSelectionHighlighter()

cvSelectionHighlighter::~cvSelectionHighlighter ( )

Destructor.

Definition at line 100 of file cvSelectionHighlighter.cpp.

References clearHighlights().

Member Function Documentation

◆ clearHighlights()

void cvSelectionHighlighter::clearHighlights ( )

Clear all highlights.

Definition at line 430 of file cvSelectionHighlighter.cpp.

References cvSelectionBase::getPCLVis().

Referenced by cvViewSelectionManager::expandSelection(), cvRenderViewSelectionReaction::finalizeSelection(), setEnabled(), and ~cvSelectionHighlighter().

◆ clearHoverHighlight()

void cvSelectionHighlighter::clearHoverHighlight ( )

Clear only hover highlight (keep selected/preselected)

Note: Used during hover to avoid clearing persistent selections

Definition at line 452 of file cvSelectionHighlighter.cpp.

Referenced by cvRenderViewSelectionReaction::preSelection().

◆ colorChanged

void cvSelectionHighlighter::colorChanged ( int mode )

signal

Emitted when any highlight color changes.

Parameters

mode	The mode that changed

Referenced by setHighlightColor(), and cvSelectionPropertiesWidget::setHighlighter().

◆ getCellLabelArrayName()

QString cvSelectionHighlighter::getCellLabelArrayName ( ) const

inline

Get current cell label array name.

Definition at line 320 of file cvSelectionHighlighter.h.

◆ getHighlightColor()

const double * cvSelectionHighlighter::getHighlightColor ( HighlightMode mode ) const

Get highlight color for a specific mode.

Parameters

mode	Which mode to get color for

Returns: Pointer to color array [r, g, b] or nullptr if invalid mode

Definition at line 227 of file cvSelectionHighlighter.cpp.

References BOUNDARY, HOVER, PRESELECTED, and SELECTED.

Referenced by getHighlightQColor().

◆ getHighlightOpacity()

double cvSelectionHighlighter::getHighlightOpacity ( HighlightMode mode ) const

Get highlight opacity for a specific mode.

Parameters

mode	Which mode to get opacity for

Returns: Opacity value (0-1)

Definition at line 244 of file cvSelectionHighlighter.cpp.

References BOUNDARY, HOVER, PRESELECTED, and SELECTED.

Referenced by cvSelectionPropertiesWidget::syncUIWithHighlighter().

◆ getHighlightQColor()

QColor cvSelectionHighlighter::getHighlightQColor ( HighlightMode mode ) const

Get highlight color as QColor.

Definition at line 1218 of file cvSelectionHighlighter.cpp.

References color, and getHighlightColor().

Referenced by cvSelectionPropertiesWidget::eventFilter(), and cvSelectionPropertiesWidget::syncUIWithHighlighter().

◆ getLabelProperties()

const SelectionLabelProperties & cvSelectionHighlighter::getLabelProperties ( bool interactive = false ) const

Get label properties for selection mode.

Parameters

interactive If true, return interactive (hover) label properties

Returns: Reference to label properties

Definition at line 917 of file cvSelectionHighlighter.cpp.

Referenced by cvSelectionPropertiesWidget::setSelectionManager().

◆ getLineWidth()

int cvSelectionHighlighter::getLineWidth ( HighlightMode mode ) const

Get line width for a specific mode.

Parameters

mode	Which mode to get line width for

Returns: Line width in pixels

Definition at line 901 of file cvSelectionHighlighter.cpp.

References BOUNDARY, HOVER, PRESELECTED, and SELECTED.

◆ getPointLabelArrayName()

QString cvSelectionHighlighter::getPointLabelArrayName ( ) const

inline

Get current point label array name.

Definition at line 315 of file cvSelectionHighlighter.h.

◆ getPointSize()

int cvSelectionHighlighter::getPointSize ( HighlightMode mode ) const

Get point size for a specific mode.

Parameters

mode	Which mode to get point size for

Returns: Point size in pixels

Definition at line 840 of file cvSelectionHighlighter.cpp.

References BOUNDARY, HOVER, PRESELECTED, and SELECTED.

◆ highlightElement()

bool cvSelectionHighlighter::highlightElement	(	vtkPolyData *	polyData,
		vtkIdType	elementId,
		int	fieldAssociation
	)

Highlight a single element (for hover preview)

Parameters

polyData	The mesh data
elementId	ID of the element to highlight
fieldAssociation	0 for cells, 1 for points

Returns: true on success

Definition at line 394 of file cvSelectionHighlighter.cpp.

References highlightSelection(), HOVER, cvSelectionBase::m_viewer, result, and CVLog::Warning().

Referenced by cvRenderViewSelectionReaction::preSelection().

◆ highlightSelection() [1/3]

bool cvSelectionHighlighter::highlightSelection	(	const cvSelectionData &	selectionData,
		HighlightMode	mode = `SELECTED`
	)

Highlight a selection (high-level interface - no VTK types)

Parameters

selectionData	Selection data wrapper
mode	Highlight mode

Returns: True on success

Note: This is the recommended interface for UI code to avoid VTK dependencies

Definition at line 366 of file cvSelectionHighlighter.cpp.

References cvSelectionData::count(), CVLog::Error(), cvSelectionData::fieldAssociation(), cvSelectionData::fieldTypeString(), highlightSelection(), cvSelectionData::isEmpty(), CVLog::PrintVerbose(), cvSelectionData::vtkArray(), and CVLog::Warning().

◆ highlightSelection() [2/3]

bool cvSelectionHighlighter::highlightSelection	(	const vtkSmartPointer< vtkIdTypeArray > &	selection,
		int	fieldAssociation,
		HighlightMode	mode = `SELECTED`
	)

Highlight selected elements (automatically gets polyData from visualizer)

Parameters

selection	Array of selected IDs (smart pointer)
fieldAssociation	0 for cells, 1 for points
mode	Highlight mode

Returns: true on success

Note: This method gets polyData internally from visualizer, following SelectionTools architecture pattern

Definition at line 268 of file cvSelectionHighlighter.cpp.

References CVLog::Error(), cvGenericSelectionTool::getPolyDataForSelection(), cvSelectionBase::m_viewer, CVLog::PrintVerbose(), and CVLog::Warning().

Referenced by cvViewSelectionManager::expandSelection(), cvRenderViewSelectionReaction::finalizeSelection(), highlightElement(), and highlightSelection().

◆ highlightSelection() [3/3]

bool cvSelectionHighlighter::highlightSelection	(	vtkPolyData *	polyData,
		const vtkSmartPointer< vtkIdTypeArray > &	selection,
		int	fieldAssociation,
		HighlightMode	mode = `SELECTED`
	)

Highlight selected elements (with explicit polyData)

Parameters

polyData	The mesh data
selection	Array of selected IDs (smart pointer)
fieldAssociation	0 for cells, 1 for points
mode	Highlight mode

Returns: true on success

Note: Use this overload when polyData is already available

Definition at line 309 of file cvSelectionHighlighter.cpp.

References BOUNDARY, HOVER, cvSelectionBase::m_viewer, PRESELECTED, and SELECTED.

◆ isCellLabelVisible()

bool cvSelectionHighlighter::isCellLabelVisible ( ) const

inline

Check if cell labels are visible.

Definition at line 330 of file cvSelectionHighlighter.h.

Referenced by cvSelectionPropertiesWidget::clearSelection().

◆ isPointLabelVisible()

bool cvSelectionHighlighter::isPointLabelVisible ( ) const

inline

Check if point labels are visible.

Definition at line 325 of file cvSelectionHighlighter.h.

Referenced by cvSelectionPropertiesWidget::clearSelection().

◆ labelPropertiesChanged

void cvSelectionHighlighter::labelPropertiesChanged ( bool interactive )

signal

Emitted when label properties change.

Parameters

interactive Whether interactive properties changed

Referenced by setCellLabelArray(), cvSelectionPropertiesWidget::setHighlighter(), setLabelProperties(), and setPointLabelArray().

◆ lineWidthChanged

void cvSelectionHighlighter::lineWidthChanged ( int mode )

signal

Emitted when line width changes.

Parameters

mode	The mode that changed

Referenced by setLineWidth().

◆ opacityChanged

void cvSelectionHighlighter::opacityChanged ( int mode )

signal

Emitted when any opacity changes.

Parameters

mode	The mode that changed

Referenced by cvSelectionPropertiesWidget::setHighlighter(), and setHighlightOpacity().

◆ pointSizeChanged

void cvSelectionHighlighter::pointSizeChanged ( int mode )

signal

Emitted when point size changes.

Parameters

mode	The mode that changed

Referenced by setPointSize().

◆ propertiesChanged

void cvSelectionHighlighter::propertiesChanged ( )

signal

Emitted when any property changes (general notification)

Referenced by setHighlightColor(), setHighlightOpacity(), setLabelProperties(), setLineWidth(), and setPointSize().

◆ setCellLabelArray()

void cvSelectionHighlighter::setCellLabelArray	(	const QString &	arrayName,
		bool	visible = `true`
	)

Set the cell label array name.

Parameters

arrayName	Name of array to use for cell labels (empty to disable)
visible	Whether labels should be visible

Definition at line 1003 of file cvSelectionHighlighter.cpp.

References labelPropertiesChanged(), and CVLog::PrintVerbose().

Referenced by cvSelectionPropertiesWidget::clearSelection().

◆ setEnabled()

void cvSelectionHighlighter::setEnabled ( bool enabled )

Enable/disable highlight.

Parameters

enabled True to enable, false to disable

Definition at line 260 of file cvSelectionHighlighter.cpp.

References clearHighlights().

◆ setHighlightColor()

void cvSelectionHighlighter::setHighlightColor	(	double	r,
		double	g,
		double	b,
		HighlightMode	mode = `SELECTED`
	)

Set highlight color.

Parameters

r	Red component (0-1)
g	Green component (0-1)
b	Blue component (0-1)
mode	Which mode to set color for

Definition at line 105 of file cvSelectionHighlighter.cpp.

References BOUNDARY, color, colorChanged(), cvSelectionBase::getPCLVis(), HOVER, PRESELECTED, CVLog::PrintVerbose(), propertiesChanged(), and SELECTED.

Referenced by cvSelectionPropertiesWidget::setHighlighter(), and setHighlightQColor().

◆ setHighlightOpacity()

void cvSelectionHighlighter::setHighlightOpacity	(	double	opacity,
		HighlightMode	mode = `SELECTED`
	)

Set highlight opacity.

Parameters

opacity	Opacity value (0-1)
mode	Which mode to set opacity for

Definition at line 171 of file cvSelectionHighlighter.cpp.

References BOUNDARY, cvSelectionBase::getPCLVis(), HOVER, opacityChanged(), PRESELECTED, CVLog::PrintVerbose(), propertiesChanged(), and SELECTED.

Referenced by cvSelectionPropertiesWidget::setHighlighter(), and setLabelProperties().

◆ setHighlightQColor()

void cvSelectionHighlighter::setHighlightQColor	(	const QColor &	color,
		HighlightMode	mode = `SELECTED`
	)

Set highlight color from QColor.

Definition at line 1227 of file cvSelectionHighlighter.cpp.

References color, and setHighlightColor().

◆ setHighlightsVisible()

void cvSelectionHighlighter::setHighlightsVisible ( bool visible )

Set visibility of all highlight actors.

Parameters

visible True to show highlights, false to hide

Note: Used to temporarily hide highlights during hardware selection to prevent depth buffer occlusion issues with subtract selection

Definition at line 460 of file cvSelectionHighlighter.cpp.

References cvSelectionBase::getPCLVis().

Referenced by cvRenderViewSelectionReaction::selectCellsOnSurface(), cvRenderViewSelectionReaction::selectPointsOnSurface(), cvRenderViewSelectionReaction::selectPolygonCells(), and cvRenderViewSelectionReaction::selectPolygonPoints().

◆ setLabelProperties()

void cvSelectionHighlighter::setLabelProperties	(	const SelectionLabelProperties &	props,
		bool	interactive = `false`
	)

Set label properties for selection mode.

Parameters

props	Label properties to set
interactive	If true, set interactive (hover) label properties

Definition at line 923 of file cvSelectionHighlighter.cpp.

◆ setLineWidth()

void cvSelectionHighlighter::setLineWidth	(	int	width,
		HighlightMode	mode = `SELECTED`
	)

Set line width for highlight rendering.

Parameters

width	Line width in pixels
mode	Which mode to set line width for

Definition at line 856 of file cvSelectionHighlighter.cpp.

References BOUNDARY, HOVER, lineWidthChanged(), PRESELECTED, CVLog::PrintVerbose(), propertiesChanged(), SELECTED, and width.

Referenced by setLabelProperties().

◆ setPointLabelArray()

void cvSelectionHighlighter::setPointLabelArray	(	const QString &	arrayName,
		bool	visible = `true`
	)

Set the point label array name.

Parameters

arrayName	Name of array to use for point labels (empty to disable)
visible	Whether labels should be visible

Definition at line 984 of file cvSelectionHighlighter.cpp.

References labelPropertiesChanged(), and CVLog::PrintVerbose().

Referenced by cvSelectionPropertiesWidget::clearSelection().

◆ setPointSize()

void cvSelectionHighlighter::setPointSize	(	int	size,
		HighlightMode	mode = `SELECTED`
	)

Set point size for highlight rendering.

Parameters

size	Point size in pixels
mode	Which mode to set point size for

Definition at line 795 of file cvSelectionHighlighter.cpp.

References BOUNDARY, HOVER, pointSizeChanged(), PRESELECTED, CVLog::PrintVerbose(), propertiesChanged(), SELECTED, and size.

Referenced by setLabelProperties().

The documentation for this class was generated from the following files:

/root/ACloudViewer/libs/PCLEngine/Tools/SelectionTools/cvSelectionHighlighter.h
/root/ACloudViewer/libs/PCLEngine/Tools/SelectionTools/cvSelectionHighlighter.cpp

Public Types

Signals

Public Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ HighlightMode

Constructor & Destructor Documentation

◆ cvSelectionHighlighter()

◆ ~cvSelectionHighlighter()

Member Function Documentation

◆ clearHighlights()

◆ clearHoverHighlight()

◆ colorChanged

◆ getCellLabelArrayName()

◆ getHighlightColor()

◆ getHighlightOpacity()

◆ getHighlightQColor()

◆ getLabelProperties()

◆ getLineWidth()

◆ getPointLabelArrayName()

◆ getPointSize()

◆ highlightElement()

◆ highlightSelection() [1/3]

◆ highlightSelection() [2/3]

◆ highlightSelection() [3/3]

◆ isCellLabelVisible()

◆ isPointLabelVisible()

◆ labelPropertiesChanged

◆ lineWidthChanged

◆ opacityChanged

◆ pointSizeChanged

◆ propertiesChanged

◆ setCellLabelArray()

◆ setEnabled()

◆ setHighlightColor()

◆ setHighlightOpacity()

◆ setHighlightQColor()

◆ setHighlightsVisible()

◆ setLabelProperties()

◆ setLineWidth()

◆ setPointLabelArray()

◆ setPointSize()
