Base class for selection tools with picking capabilities. More...

#include <cvGenericSelectionTool.h>

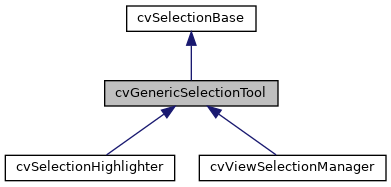

Inheritance diagram for cvGenericSelectionTool:

[legend]

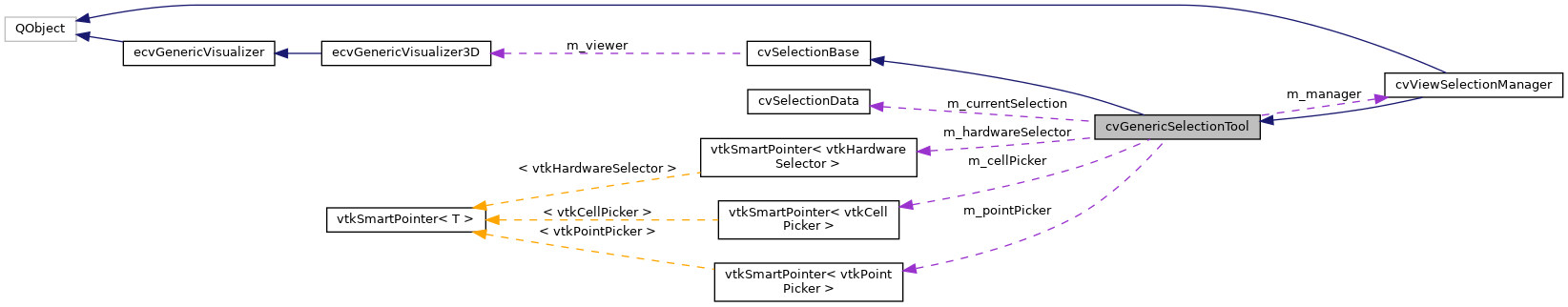

Collaboration diagram for cvGenericSelectionTool:

[legend]

Public Types
using	SelectionMode = ::SelectionMode
	Selection mode Now using global SelectionMode enum from cvSelectionTypes.h. More...

using	SelectionModifier = ::SelectionModifier
	Selection modifier (for multi-selection) Now using global SelectionModifier enum from cvSelectionTypes.h. More...

Public Member Functions
	cvGenericSelectionTool ()

	~cvGenericSelectionTool () override=default

void	setSelectionManager (cvViewSelectionManager *manager)
	Set the selection manager (to access pipeline) More...

cvViewSelectionManager *	getSelectionManager () const
	Get the selection manager. More...

cvSelectionPipeline *	getSelectionPipeline () const
	Get the selection pipeline from manager. More...

vtkPolyData *	getPolyDataForSelection (const cvSelectionData *selectionData=nullptr) override
	Get polyData for a selection using ParaView-style priority (override) More...

Public Member Functions inherited from cvSelectionBase
	cvSelectionBase ()

virtual	~cvSelectionBase ()=default

virtual void	setVisualizer (ecvGenericVisualizer3D *viewer)
	Set the visualizer instance. More...

ecvGenericVisualizer3D *	getVisualizer () const
	Get the visualizer instance. More...

Protected Member Functions

cvSelectionData	hardwareSelectAtPoint (int x, int y, SelectionMode mode=SelectionMode::SELECT_SURFACE_CELLS, SelectionModifier modifier=SelectionModifier::SELECTION_DEFAULT)
	Hardware-accelerated selection (ParaView-aligned) More...

cvSelectionData	hardwareSelectInRegion (const int region[4], SelectionMode mode=SelectionMode::SELECT_SURFACE_CELLS, SelectionModifier modifier=SelectionModifier::SELECTION_DEFAULT)
	Perform hardware selection in a region. More...

QVector< cvActorSelectionInfo >	getActorsAtPoint (int x, int y)
	Get all actors at a screen location (without full selection) More...


void	setUseHardwareSelection (bool enable)
	Hardware selection configuration. More...

bool	useHardwareSelection () const
	Check if hardware selection is enabled. More...

void	setCaptureZValues (bool capture)
	Set whether to capture Z-buffer values. More...

void	setMultipleSelectionMode (bool enable)
	Enable/disable multi-selection mode. More...

bool	multipleSelectionMode () const
	Check if multi-selection is enabled. More...


void	initializePickers ()
	Software picking methods (unified from subclasses) More...

vtkIdType	pickAtPosition (int x, int y, bool selectCells)
	Pick element at screen position. More...

vtkIdType	pickAtCursor (bool selectCells)
	Pick element at current cursor position. More...

void	setInteractor (vtkRenderWindowInteractor *interactor)
	Set the interactor for picking. More...

vtkRenderWindowInteractor *	getInteractor () const
	Get the interactor. More...

void	setRenderer (vtkRenderer *renderer)
	Set the renderer for picking. More...

vtkRenderer *	getPickingRenderer () const
	Get the renderer (for picking) More...

void	setPickerTolerance (double cellTolerance, double pointTolerance)
	Set picker tolerance. More...

vtkActor *	getPickedActor (bool selectCells)
	Get the last picked actor. More...

vtkPolyData *	getPickedPolyData (bool selectCells)
	Get the last picked polyData. More...

bool	getPickedPosition (bool selectCells, double position[3])
	Get pick position in world coordinates. More...

cvSelectionData	createSelectionFromPick (vtkIdType pickedId, bool selectCells)
	Create cvSelectionData from software picking result. More...

cvSelectionData	applySelectionModifierUnified (const cvSelectionData &newSelection, const cvSelectionData &currentSelection, int modifier, int fieldAssociation)
	Apply selection modifier to combine selections. More...

Protected Member Functions inherited from cvSelectionBase
PclUtils::PCLVis *	getPCLVis () const
	Get PCLVis instance (for VTK-specific operations) More...

bool	hasValidPCLVis () const
	Check if visualizer is valid and is PCLVis. More...

vtkDataSet *	getDataFromActor (vtkActor *actor)
	Get data object from a specific actor (ParaView-style) More...

QList< vtkActor * >	getDataActors () const
	Get all visible data actors from visualizer. More...

std::vector< vtkPolyData * >	getAllPolyDataFromVisualizer ()
	Get all polyData from the visualizer. More...

Protected Attributes
cvViewSelectionManager *	m_manager
	Manager reference (for pipeline access) More...

vtkSmartPointer< vtkCellPicker >	m_cellPicker
	Software picking components (unified from subclasses) More...

vtkSmartPointer< vtkPointPicker >	m_pointPicker
	Point picker. More...

vtkRenderWindowInteractor *	m_interactor
	Interactor (weak pointer) More...

vtkRenderer *	m_renderer
	Renderer (weak pointer) More...

bool	m_useHardwareSelection
	Hardware selection components (reused for performance) More...

bool	m_captureZValues
	Capture Z-buffer values. More...

bool	m_multipleSelectionMode
	Allow multiple selections. More...

cvSelectionData	m_currentSelection
	Current selection (for modifiers) More...

vtkSmartPointer< vtkHardwareSelector >	m_hardwareSelector
	Hardware selector (reused) More...

Protected Attributes inherited from cvSelectionBase
ecvGenericVisualizer3D *	m_viewer
	Visualizer instance (abstract interface) More...

Detailed Description

Base class for selection tools with picking capabilities.

Inherits from cvSelectionBase and adds:

Software picking (cell/point pickers)
Hardware selection (vtkHardwareSelector)
Selection modifiers

Use this class when you need picking/selection functionality. For components that only need visualizer access, use cvSelectionBase instead.

ParaView-Aligned Features:

Hardware-accelerated selection using vtkHardwareSelector
Multi-actor support with Z-value ordering
Selection modifiers (Add/Subtract/Toggle)
Unified API for both software and hardware selection

Definition at line 47 of file cvGenericSelectionTool.h.

Member Typedef Documentation

◆ SelectionMode

using cvGenericSelectionTool::SelectionMode = ::SelectionMode

Selection mode Now using global SelectionMode enum from cvSelectionTypes.h.

Definition at line 53 of file cvGenericSelectionTool.h.

◆ SelectionModifier

using cvGenericSelectionTool::SelectionModifier = ::SelectionModifier

Selection modifier (for multi-selection) Now using global SelectionModifier enum from cvSelectionTypes.h.

Definition at line 59 of file cvGenericSelectionTool.h.

Constructor & Destructor Documentation

◆ cvGenericSelectionTool()

cvGenericSelectionTool::cvGenericSelectionTool ( )

inline

Definition at line 61 of file cvGenericSelectionTool.h.

◆ ~cvGenericSelectionTool()

cvGenericSelectionTool::~cvGenericSelectionTool ( )

overridedefault

Member Function Documentation

◆ applySelectionModifierUnified()

cvSelectionData cvGenericSelectionTool::applySelectionModifierUnified	(	const cvSelectionData &	newSelection,
		const cvSelectionData &	currentSelection,
		int	modifier,
		int	fieldAssociation
	)

protected

Apply selection modifier to combine selections.

Parameters

newSelection	New selection to combine
currentSelection	Current selection (or empty for replace)
modifier	Modifier defining combination operation
fieldAssociation	Field association (0=cells, 1=points)

Returns: Combined selection result

ParaView-aligned: Uses cvSelectionPipeline::combineSelections() Reference: pqRenderViewSelectionReaction selection modifier handling

Definition at line 746 of file cvGenericSelectionTool.cpp.

References cvSelectionPipeline::combineSelections(), cvSelectionPipeline::OPERATION_ADDITION, cvSelectionPipeline::OPERATION_DEFAULT, cvSelectionPipeline::OPERATION_SUBTRACTION, cvSelectionPipeline::OPERATION_TOGGLE, CVLog::PrintVerbose(), and CVLog::Warning().

◆ createSelectionFromPick()

cvSelectionData cvGenericSelectionTool::createSelectionFromPick	(	vtkIdType	pickedId,
		bool	selectCells
	)

protected

Create cvSelectionData from software picking result.

Parameters

pickedId	The picked element ID
selectCells	If true, selecting cells; if false, selecting points

Returns: Selection data with actor information

Convenience method to convert software picking result to cvSelectionData with full actor information. This bridges software and hardware selection.

Definition at line 700 of file cvGenericSelectionTool.cpp.

References cvActorSelectionInfo::actor, cvSelectionData::addActorInfo(), cvSelectionData::CELLS, getPickedActor(), getPickedPolyData(), getPickedPosition(), cvSelectionData::POINTS, cvActorSelectionInfo::polyData, CVLog::PrintVerbose(), and cvActorSelectionInfo::zValue.

◆ getActorsAtPoint()

QVector< cvActorSelectionInfo > cvGenericSelectionTool::getActorsAtPoint	(	int	x,
		int	y
	)

protected

Get all actors at a screen location (without full selection)

Parameters

x	X coordinate
y	Y coordinate

Returns: Vector of actor info, sorted by depth (front to back)

Fast query to find what actors are at a given screen position. Useful for tooltips and hover highlighting.

Definition at line 245 of file cvGenericSelectionTool.cpp.

References cvSelectionBase::hasValidPCLVis(), x, and y.

◆ getInteractor()

vtkRenderWindowInteractor* cvGenericSelectionTool::getInteractor ( ) const

inlineprotected

Get the interactor.

Definition at line 266 of file cvGenericSelectionTool.h.

◆ getPickedActor()

vtkActor * cvGenericSelectionTool::getPickedActor ( bool selectCells )

protected

Get the last picked actor.

Parameters

selectCells If true, get from cell picker; if false, from point picker

Returns: Picked actor, or nullptr if no pick was made

Call this after pickAtPosition/pickAtCursor to get the actor that was picked. Useful for multi-actor scenarios to identify which actor was clicked.

Definition at line 649 of file cvGenericSelectionTool.cpp.

References m_cellPicker, and m_pointPicker.

Referenced by createSelectionFromPick(), and getPickedPolyData().

◆ getPickedPolyData()

vtkPolyData * cvGenericSelectionTool::getPickedPolyData ( bool selectCells )

protected

Get the last picked polyData.

Parameters

selectCells If true, get from cell picker; if false, from point picker

Returns: Picked polyData, or nullptr if no pick was made

Convenience method to get the polyData from the picked actor's mapper.

Definition at line 659 of file cvGenericSelectionTool.cpp.

References getPickedActor().

Referenced by createSelectionFromPick().

◆ getPickedPosition()

bool cvGenericSelectionTool::getPickedPosition	(	bool	selectCells,
		double	position[3]
	)

protected

Get pick position in world coordinates.

Parameters

selectCells	If true, get from cell picker; if false, from point picker
position	Output: world position [x, y, z]

Returns: true if position is valid

Definition at line 687 of file cvGenericSelectionTool.cpp.

References m_cellPicker, m_pointPicker, and position.

Referenced by createSelectionFromPick().

◆ getPickingRenderer()

vtkRenderer* cvGenericSelectionTool::getPickingRenderer ( ) const

inlineprotected

Get the renderer (for picking)

Definition at line 277 of file cvGenericSelectionTool.h.

◆ getPolyDataForSelection()

vtkPolyData * cvGenericSelectionTool::getPolyDataForSelection ( const cvSelectionData * selectionData = nullptr )

overridevirtual

Get polyData for a selection using ParaView-style priority (override)

Parameters

selectionData Optional selection data to extract from (highest priority)

Returns: PolyData pointer, or nullptr if not available

This method extends cvSelectionBase::getPolyDataForSelection() by adding: Priority 2: From current selection's actor info (m_currentSelection)

Full priority order: Priority 1: From selectionData's actor info (if provided and has actor info) Priority 2: From current selection's actor info (m_currentSelection) [NEW] Priority 3: From selection manager's getPolyData() (uses last selection) Priority 4: From first data actor (fallback for non-selection operations)

This override provides enhanced functionality for selection tools.

Reimplemented from cvSelectionBase.

Definition at line 64 of file cvGenericSelectionTool.cpp.

References cvSelectionBase::getPolyDataForSelection(), cvSelectionData::hasActorInfo(), m_currentSelection, cvSelectionData::primaryPolyData(), and CVLog::PrintVerbose().

Referenced by cvSelectionHighlighter::highlightSelection().

◆ getSelectionManager()

cvViewSelectionManager* cvGenericSelectionTool::getSelectionManager ( ) const

inline

Get the selection manager.

Returns: Pointer to selection manager, or nullptr

Definition at line 84 of file cvGenericSelectionTool.h.

◆ getSelectionPipeline()

cvSelectionPipeline * cvGenericSelectionTool::getSelectionPipeline ( ) const

Get the selection pipeline from manager.

Returns: Pointer to pipeline, or nullptr

Definition at line 56 of file cvGenericSelectionTool.cpp.

References cvViewSelectionManager::getPipeline(), and m_manager.

Referenced by hardwareSelectInRegion().

◆ hardwareSelectAtPoint()

cvSelectionData cvGenericSelectionTool::hardwareSelectAtPoint	(	int	x,
		int	y,
		SelectionMode	mode = `SelectionMode::SELECT_SURFACE_CELLS`,
		SelectionModifier	modifier = `SelectionModifier::SELECTION_DEFAULT`
	)

protected

Hardware-accelerated selection (ParaView-aligned)

These methods provide GPU-accelerated selection using vtkHardwareSelector. They return cvSelectionData with full actor information and Z-value ordering.

Perform hardware selection at a point

Parameters

x	X coordinate in window space
y	Y coordinate in window space
mode	Selection mode (cells/points)
modifier	Selection modifier (replace/add/subtract/toggle)

Returns: Selection data with all actors at that location

Uses vtkHardwareSelector for precise, GPU-accelerated selection. Returns selection with actor information sorted by Z-value.

Definition at line 97 of file cvGenericSelectionTool.cpp.

References hardwareSelectInRegion(), x, and y.

◆ hardwareSelectInRegion()

cvSelectionData cvGenericSelectionTool::hardwareSelectInRegion	(	const int	region[4],
		SelectionMode	mode = `SelectionMode::SELECT_SURFACE_CELLS`,
		SelectionModifier	modifier = `SelectionModifier::SELECTION_DEFAULT`
	)

protected

Perform hardware selection in a region.

Parameters

region	Selection region [x1, y1, x2, y2]
mode	Selection mode
modifier	Selection modifier

Returns: Selection data with all selected items

Definition at line 104 of file cvGenericSelectionTool.cpp.

Referenced by hardwareSelectAtPoint().

◆ initializePickers()

void cvGenericSelectionTool::initializePickers ( )

protected

Software picking methods (unified from subclasses)

These methods provide software-based picking using VTK pickers. All selection tools can use these methods without duplicating code.

Initialize cell and point pickers

Creates and configures vtkCellPicker and vtkPointPicker with default tolerances. Call this before using pickAtPosition.

Tolerance defaults:

Cell picker: 0.005
Point picker: 0.01

Definition at line 553 of file cvGenericSelectionTool.cpp.

References m_cellPicker, m_pointPicker, and CVLog::PrintVerbose().

Referenced by pickAtPosition(), and setPickerTolerance().

◆ multipleSelectionMode()

bool cvGenericSelectionTool::multipleSelectionMode ( ) const

inlineprotected

Check if multi-selection is enabled.

Definition at line 209 of file cvGenericSelectionTool.h.

◆ pickAtCursor()

vtkIdType cvGenericSelectionTool::pickAtCursor ( bool selectCells )

protected

Pick element at current cursor position.

Parameters

selectCells If true, pick cells; if false, pick points

Returns: Picked element ID, or -1 if nothing was picked

Convenience method that gets the current cursor position from the interactor and calls pickAtPosition.

Definition at line 619 of file cvGenericSelectionTool.cpp.

References m_interactor, pickAtPosition(), and CVLog::Warning().

◆ pickAtPosition()

vtkIdType cvGenericSelectionTool::pickAtPosition	(	int	x,
		int	y,
		bool	selectCells
	)

protected

Pick element at screen position.

Parameters

x	X coordinate in screen space
y	Y coordinate in screen space
selectCells	If true, pick cells; if false, pick points

Returns: Picked element ID, or -1 if nothing was picked

This method uses vtkCellPicker or vtkPointPicker based on selectCells. The interactor and renderer must be set before calling this method.

Definition at line 568 of file cvGenericSelectionTool.cpp.

References initializePickers(), m_cellPicker, m_pointPicker, m_renderer, CVLog::PrintVerbose(), CVLog::Warning(), x, and y.

Referenced by pickAtCursor().

◆ setCaptureZValues()

void cvGenericSelectionTool::setCaptureZValues ( bool capture )

inlineprotected

Set whether to capture Z-buffer values.

Parameters

capture If true, capture Z values for depth sorting

Definition at line 196 of file cvGenericSelectionTool.h.

◆ setInteractor()

void cvGenericSelectionTool::setInteractor ( vtkRenderWindowInteractor * interactor )

inlineprotected

Set the interactor for picking.

Parameters

interactor The render window interactor

Definition at line 259 of file cvGenericSelectionTool.h.

◆ setMultipleSelectionMode()

void cvGenericSelectionTool::setMultipleSelectionMode ( bool enable )

inlineprotected

Enable/disable multi-selection mode.

Parameters

enable If true, allow multiple selections

Definition at line 202 of file cvGenericSelectionTool.h.

◆ setPickerTolerance()

void cvGenericSelectionTool::setPickerTolerance	(	double	cellTolerance,
		double	pointTolerance
	)

protected

Set picker tolerance.

Parameters

cellTolerance	Tolerance for cell picker
pointTolerance	Tolerance for point picker

Definition at line 631 of file cvGenericSelectionTool.cpp.

References initializePickers(), m_cellPicker, m_pointPicker, and CVLog::PrintVerbose().

◆ setRenderer()

void cvGenericSelectionTool::setRenderer ( vtkRenderer * renderer )

inlineprotected

Set the renderer for picking.

Parameters

renderer The renderer

Definition at line 272 of file cvGenericSelectionTool.h.

◆ setSelectionManager()

void cvGenericSelectionTool::setSelectionManager ( cvViewSelectionManager * manager )

inline

Set the selection manager (to access pipeline)

Parameters

manager The view selection manager

Definition at line 76 of file cvGenericSelectionTool.h.

◆ setUseHardwareSelection()

void cvGenericSelectionTool::setUseHardwareSelection ( bool enable )

inlineprotected

Hardware selection configuration.

Enable/disable hardware selection

Parameters

enable If true, use vtkHardwareSelector; if false, use software methods

When enabled, selection tools will use GPU-accelerated hardware selection for better accuracy and multi-actor support.

Definition at line 183 of file cvGenericSelectionTool.h.

◆ useHardwareSelection()

bool cvGenericSelectionTool::useHardwareSelection ( ) const

inlineprotected

Check if hardware selection is enabled.

Definition at line 190 of file cvGenericSelectionTool.h.

Member Data Documentation

◆ m_captureZValues

bool cvGenericSelectionTool::m_captureZValues

protected

Capture Z-buffer values.

Definition at line 404 of file cvGenericSelectionTool.h.

◆ m_cellPicker

vtkSmartPointer<vtkCellPicker> cvGenericSelectionTool::m_cellPicker

protected

Software picking components (unified from subclasses)

Cell picker

Definition at line 397 of file cvGenericSelectionTool.h.

Referenced by getPickedActor(), getPickedPosition(), initializePickers(), pickAtPosition(), and setPickerTolerance().

◆ m_currentSelection

cvSelectionData cvGenericSelectionTool::m_currentSelection

protected

Current selection (for modifiers)

Definition at line 406 of file cvGenericSelectionTool.h.

Referenced by getPolyDataForSelection(), and hardwareSelectInRegion().

◆ m_hardwareSelector

vtkSmartPointer<vtkHardwareSelector> cvGenericSelectionTool::m_hardwareSelector

protected

Hardware selector (reused)

Definition at line 408 of file cvGenericSelectionTool.h.

◆ m_interactor

vtkRenderWindowInteractor* cvGenericSelectionTool::m_interactor

protected

Interactor (weak pointer)

Definition at line 399 of file cvGenericSelectionTool.h.

Referenced by pickAtCursor().

◆ m_manager

cvViewSelectionManager* cvGenericSelectionTool::m_manager

protected

Manager reference (for pipeline access)

Selection manager (weak pointer)

Definition at line 394 of file cvGenericSelectionTool.h.

Referenced by getSelectionPipeline().

◆ m_multipleSelectionMode

bool cvGenericSelectionTool::m_multipleSelectionMode

protected

Allow multiple selections.

Definition at line 405 of file cvGenericSelectionTool.h.

Referenced by hardwareSelectInRegion().

◆ m_pointPicker

vtkSmartPointer<vtkPointPicker> cvGenericSelectionTool::m_pointPicker

protected

Point picker.

Definition at line 398 of file cvGenericSelectionTool.h.

Referenced by getPickedActor(), getPickedPosition(), initializePickers(), pickAtPosition(), and setPickerTolerance().

◆ m_renderer

vtkRenderer* cvGenericSelectionTool::m_renderer

protected

Renderer (weak pointer)

Definition at line 400 of file cvGenericSelectionTool.h.

Referenced by pickAtPosition().

◆ m_useHardwareSelection

bool cvGenericSelectionTool::m_useHardwareSelection

protected

Hardware selection components (reused for performance)

Use hardware selection

Definition at line 403 of file cvGenericSelectionTool.h.

The documentation for this class was generated from the following files:

/root/ACloudViewer/libs/PCLEngine/Tools/SelectionTools/cvGenericSelectionTool.h
/root/ACloudViewer/libs/PCLEngine/Tools/SelectionTools/cvGenericSelectionTool.cpp

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ SelectionMode

◆ SelectionModifier

Constructor & Destructor Documentation

◆ cvGenericSelectionTool()

◆ ~cvGenericSelectionTool()

Member Function Documentation

◆ applySelectionModifierUnified()

◆ createSelectionFromPick()

◆ getActorsAtPoint()

◆ getInteractor()

◆ getPickedActor()

◆ getPickedPolyData()

◆ getPickedPosition()

◆ getPickingRenderer()

◆ getPolyDataForSelection()

◆ getSelectionManager()

◆ getSelectionPipeline()

◆ hardwareSelectAtPoint()

◆ hardwareSelectInRegion()

◆ initializePickers()

◆ multipleSelectionMode()

◆ pickAtCursor()

◆ pickAtPosition()

◆ setCaptureZValues()

◆ setInteractor()

◆ setMultipleSelectionMode()

◆ setPickerTolerance()

◆ setRenderer()

◆ setSelectionManager()

◆ setUseHardwareSelection()

◆ useHardwareSelection()

Member Data Documentation

◆ m_captureZValues

◆ m_cellPicker

◆ m_currentSelection

◆ m_hardwareSelector

◆ m_interactor

◆ m_manager

◆ m_multipleSelectionMode

◆ m_pointPicker

◆ m_renderer

◆ m_useHardwareSelection
