cloudViewer::data::MetalTexture Class Reference

Data class for MetalTexture contains albedo, normal, roughness and metallic texture files for metal based material. More...

#include <Dataset.h>

Inheritance diagram for cloudViewer::data::MetalTexture:

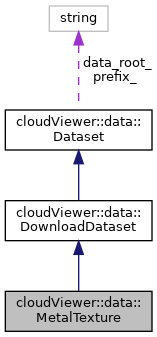

Collaboration diagram for cloudViewer::data::MetalTexture:

Public Member Functions
	MetalTexture (const std::string &data_root="")
std::string	GetAlbedoTexturePath () const
	Returns the path to albedo color texture image. More...
std::string	GetNormalTexturePath () const
	Returns the path to normal texture image. More...
std::string	GetRoughnessTexturePath () const
	Returns the path to roughness texture image. More...
std::string	GetMetallicTexturePath () const
	Returns the path to metallic texture image. More...
std::unordered_map< std::string, std::string >	GetPathMap () const
	Returns the map of filename to path. Refer documentation page for available options. More...
Public Member Functions inherited from cloudViewer::data::DownloadDataset
	DownloadDataset (const std::string &prefix, const DataDescriptor &data_descriptor, const std::string &data_root="")
	DownloadDataset (const std::string &prefix, const std::vector< DataDescriptor > &data_descriptors, const std::string &data_root="")
virtual	~DownloadDataset ()
Public Member Functions inherited from cloudViewer::data::Dataset
	Dataset (const std::string &prefix, const std::string &data_root="")
	Parameterized Constructor. More...
virtual	~Dataset ()
const std::string	GetDataRoot () const
	Get data root directory. The data root is set at construction time or automatically determined. More...
const std::string	GetPrefix () const
	Get prefix for the dataset. More...
const std::string	GetDownloadDir () const
	Get absolute path to download directory. i.e. ${data_root}/download/${prefix}. More...
const std::string	GetExtractDir () const
	Get absolute path to extract directory. i.e. ${data_root}/extract/${prefix}. More...

Additional Inherited Members
Protected Member Functions inherited from cloudViewer::data::DownloadDataset
bool	HasDownloaded (const DataDescriptor &data_descriptor) const
	Check if all files are downloaded and MD5 checksums are valid. More...
Protected Member Functions inherited from cloudViewer::data::Dataset
void	CheckPathsExist (const std::vector< std::string > &paths) const
	Check if the paths exists after extraction. More...
Protected Attributes inherited from cloudViewer::data::DownloadDataset
std::vector< DataDescriptor >	data_descriptors_
Protected Attributes inherited from cloudViewer::data::Dataset
std::string	data_root_
	CloudViewer data root. More...
std::string	prefix_
	Dataset prefix. More...

Detailed Description

Data class for MetalTexture contains albedo, normal, roughness and metallic texture files for metal based material.

Definition at line 608 of file Dataset.h.

Constructor & Destructor Documentation

MetalTexture()

cloudViewer::data::MetalTexture::MetalTexture

(

const std::string &

data_root = ""

)

Definition at line 22 of file MetalTexture.cpp.

References cloudViewer::data::Dataset::GetExtractDir().

Member Function Documentation

GetAlbedoTexturePath()

std::string cloudViewer::data::MetalTexture::GetAlbedoTexturePath ( ) const

inline

Returns the path to albedo color texture image.

Definition at line 612 of file Dataset.h.

GetMetallicTexturePath()

std::string cloudViewer::data::MetalTexture::GetMetallicTexturePath ( ) const

inline

Returns the path to metallic texture image.

Definition at line 624 of file Dataset.h.

GetNormalTexturePath()

std::string cloudViewer::data::MetalTexture::GetNormalTexturePath ( ) const

inline

Returns the path to normal texture image.

Definition at line 616 of file Dataset.h.

GetPathMap()

std::unordered_map<std::string, std::string> cloudViewer::data::MetalTexture::GetPathMap ( ) const

inline

Returns the map of filename to path. Refer documentation page for available options.

Definition at line 629 of file Dataset.h.

GetRoughnessTexturePath()

std::string cloudViewer::data::MetalTexture::GetRoughnessTexturePath ( ) const

inline

Returns the path to roughness texture image.

Definition at line 620 of file Dataset.h.

---

The documentation for this class was generated from the following files:

• /root/ACloudViewer/libs/cloudViewer/data/Dataset.h
• /root/ACloudViewer/libs/cloudViewer/data/dataset/MetalTexture.cpp
