Generic file I/O filter. More...

#include <FileIOFilter.h>

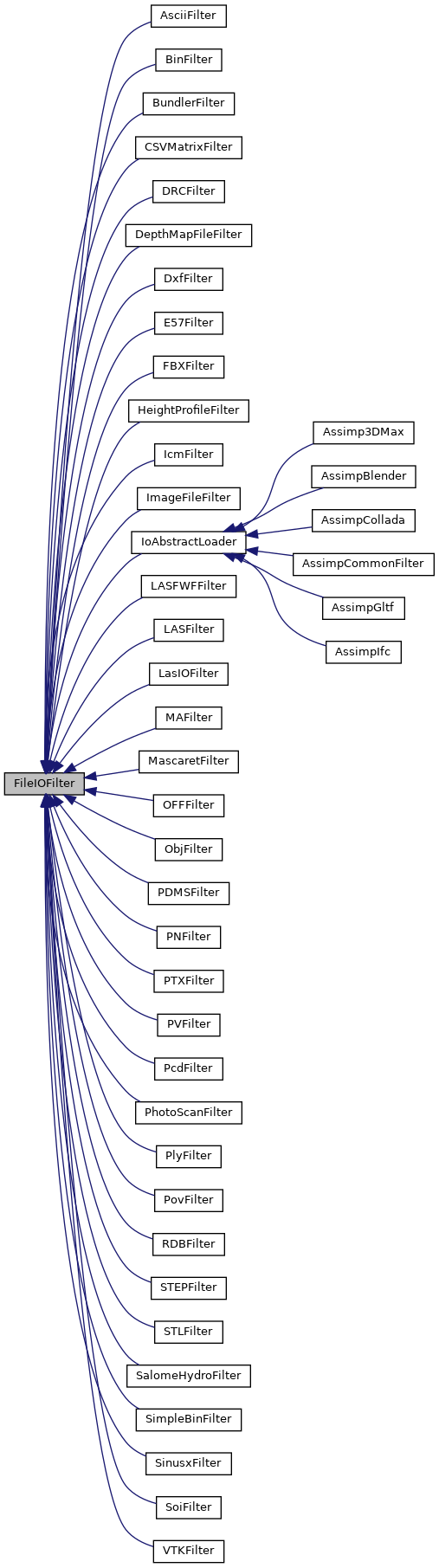

Inheritance diagram for FileIOFilter:

[legend]

Classes
struct	FilterInfo

struct	LoadParameters
	Generic loading parameters. More...

struct	SaveParameters
	Generic saving parameters. More...

Public Types
enum	FilterFeature { NoFeatures = 0x0000 , Import = 0x00001 , Export = 0x0002 , BuiltIn = 0x0004 , DynamicInfo = 0x0008 }

using	Shared = QSharedPointer< FileIOFilter >
	Shared type. More...

using	FilterContainer = std::vector< FileIOFilter::Shared >
	Type of a I/O filters container. More...

Public Member Functions
virtual	~FileIOFilter ()=default

bool	importSupported () const
	Returns whether this I/O filter can import files. More...

bool	exportSupported () const
	Returns whether this I/O filter can export files. More...

const QStringList &	getFileFilters (bool onImport) const
	Returns the file filter(s) for this I/O filter. More...

QString	getDefaultExtension () const
	Returns the default file extension. More...

virtual CC_FILE_ERROR	loadFile (const QString &filename, ccHObject &container, LoadParameters &parameters)
	Loads one or more entities from a file. More...

virtual CC_FILE_ERROR	saveToFile (ccHObject *entity, const QString &filename, const SaveParameters &parameters)
	Saves an entity (or a group of) to a file. More...

virtual bool	canSave (CV_CLASS_ENUM type, bool &multiple, bool &exclusive) const
	Returns whether this I/O filter can save the specified type of entity. More...

virtual void	unregister ()
	Called when the filter is unregistered. More...

Static Public Member Functions
static QStringList	ImportFilterList ()

static ccHObject *	LoadFromFile (const QString &filename, LoadParameters &parameters, Shared filter, CC_FILE_ERROR &result)
	Loads one or more entities from a file with a known filter. More...

static ccHObject *	LoadFromFile (const QString &filename, LoadParameters &parameters, CC_FILE_ERROR &result, const QString &fileFilter=QString())
	Loads one or more entities from a file with known type. More...

static CC_FILE_ERROR	SaveToFile (ccHObject *entities, const QString &filename, const SaveParameters &parameters, Shared filter)

static CC_FILE_ERROR	SaveToFile (ccHObject *entities, const QString &filename, const SaveParameters &parameters, const QString &fileFilter)

static bool	HandleGlobalShift (const CCVector3d &P, CCVector3d &Pshift, bool &preserveCoordinateShift, LoadParameters &loadParameters, bool useInputCoordinatesShiftIfPossible=false)
	Shortcut to the ecvGlobalShiftManager mechanism specific for files. More...

static void	DisplayErrorMessage (CC_FILE_ERROR err, const QString &action, const QString &filename)
	Displays (to console) the message corresponding to a given error code. More...

static bool	CheckForSpecialChars (const QString &filename)
	Returns whether special characters are present in the input string. More...

static void	ResetSesionCounter ()

static unsigned	IncreaseSesionCounter ()

static void	Register (Shared filter)
	Registers a new filter. More...

static Shared	GetFilter (const QString &fileFilter, bool onImport)
	Returns the filter corresponding to the given 'file filter'. More...

static Shared	FindBestFilterForExtension (const QString &ext)
	Returns the best filter (presumably) to open a given file extension. More...

static const FilterContainer &	GetFilters ()
	Returns the set of all registered filters. More...

static void	UnregisterAll ()
	Unregisters all filters. More...

Protected Member Functions
	FileIOFilter (const FilterInfo &info)

void	setImportExtensions (const QStringList &extensions)

void	setImportFileFilterStrings (const QStringList &filterStrings)

void	setExportFileFilterStrings (const QStringList &filterStrings)

Static Protected Attributes
static constexpr float	DEFAULT_PRIORITY = 25.0f

Detailed Description

Generic file I/O filter.

Gives static access to file loader. Must be implemented by any specific I/O filter.

Definition at line 46 of file FileIOFilter.h.

Member Typedef Documentation

◆ FilterContainer

using FileIOFilter::FilterContainer = std::vector<FileIOFilter::Shared>

Type of a I/O filters container.

Definition at line 284 of file FileIOFilter.h.

◆ Shared

using FileIOFilter::Shared = QSharedPointer<FileIOFilter>

Shared type.

Definition at line 97 of file FileIOFilter.h.

Member Enumeration Documentation

◆ FilterFeature

enum FileIOFilter::FilterFeature

Enumerator
NoFeatures
Import
Export
BuiltIn
DynamicInfo

Definition at line 299 of file FileIOFilter.h.

Constructor & Destructor Documentation

◆ ~FileIOFilter()

virtual FileIOFilter::~FileIOFilter ( )

virtualdefault

◆ FileIOFilter()

FileIOFilter::FileIOFilter ( const FilterInfo & info )

explicitprotected

Definition at line 52 of file FileIOFilter.cpp.

References DynamicInfo, and FileIOFilter::FilterInfo::features.

Member Function Documentation

◆ canSave()

virtual bool FileIOFilter::canSave	(	CV_CLASS_ENUM	type,
		bool &	multiple,
		bool &	exclusive
	)		const

inlinevirtual

Returns whether this I/O filter can save the specified type of entity.

Parameters

type	entity type
multiple	whether the filter can save multiple instances of this entity at once
exclusive	whether the filter can only save this type of entity if selected or if it can be mixed with other types

Returns: whether the entity type can be saved

Reimplemented in RDBFilter, LASFilter, LasIOFilter, LASFWFFilter, FBXFilter, E57Filter, DRCFilter, SimpleBinFilter, MascaretFilter, MAFilter, HeightProfileFilter, SinusxFilter, SalomeHydroFilter, PVFilter, PovFilter, PNFilter, VTKFilter, STLFilter, PlyFilter, OFFFilter, ObjFilter, ImageFileFilter, DxfFilter, DepthMapFileFilter, BinFilter, AsciiFilter, PcdFilter, and IoAbstractLoader.

Definition at line 158 of file FileIOFilter.h.

References type.

◆ CheckForSpecialChars()

bool FileIOFilter::CheckForSpecialChars ( const QString & filename )

static

Returns whether special characters are present in the input string.

Definition at line 505 of file FileIOFilter.cpp.

References filename.

Referenced by IcmFilter::LoadCalibratedImages(), DxfFilter::loadFile(), IcmFilter::loadFile(), FBXFilter::loadFile(), DxfFilter::saveToFile(), FBXFilter::saveToFile(), and DepthMapFileFilter::saveToFile().

◆ DisplayErrorMessage()

void FileIOFilter::DisplayErrorMessage	(	CC_FILE_ERROR	err,
		const QString &	action,
		const QString &	filename
	)

static

Displays (to console) the message corresponding to a given error code.

Parameters

err	error code
action	"saving", "reading", etc.
filename	corresponding file

Definition at line 425 of file FileIOFilter.cpp.

References CC_FERR_BAD_ARGUMENT, CC_FERR_BAD_ENTITY_TYPE, CC_FERR_BROKEN_DEPENDENCY_ERROR, CC_FERR_CANCELED_BY_USER, CC_FERR_CONSOLE_ERROR, CC_FERR_FILE_WAS_WRITTEN_BY_UNKNOWN_PLUGIN, CC_FERR_MALFORMED_FILE, CC_FERR_NO_ERROR, CC_FERR_NO_LOAD, CC_FERR_NO_SAVE, CC_FERR_NOT_ENOUGH_MEMORY, CC_FERR_NOT_IMPLEMENTED, CC_FERR_READING, CC_FERR_THIRD_PARTY_LIB_EXCEPTION, CC_FERR_THIRD_PARTY_LIB_FAILURE, CC_FERR_UNKNOWN_FILE, CC_FERR_WRITING, CC_FERR_WRONG_FILE_TYPE, CVLog::Error(), filename, and CVLog::Warning().

Referenced by cloudViewer::io::AutoReadEntity(), cloudViewer::io::AutoWriteEntity(), LoadFromFile(), and SaveToFile().

◆ exportSupported()

bool FileIOFilter::exportSupported ( ) const

Returns whether this I/O filter can export files.

Definition at line 65 of file FileIOFilter.cpp.

References Export, and FileIOFilter::FilterInfo::features.

◆ FindBestFilterForExtension()

FileIOFilter::Shared FileIOFilter::FindBestFilterForExtension ( const QString & ext )

static

Returns the best filter (presumably) to open a given file extension.

Definition at line 228 of file FileIOFilter.cpp.

References s_ioFilters.

Referenced by cloudViewer::io::AutoReadEntity(), cloudViewer::io::AutoWriteEntity(), IcmFilter::loadFile(), PovFilter::loadFile(), and LoadFromFile().

◆ getDefaultExtension()

QString FileIOFilter::getDefaultExtension ( ) const

Returns the default file extension.

Definition at line 77 of file FileIOFilter.cpp.

References FileIOFilter::FilterInfo::defaultExtension.

◆ getFileFilters()

const QStringList & FileIOFilter::getFileFilters ( bool onImport ) const

Returns the file filter(s) for this I/O filter.

E.g. 'ASCII file (*.asc)'

Parameters

onImport whether the requested filters are for import or export

Returns: list of filters

Definition at line 69 of file FileIOFilter.cpp.

References FileIOFilter::FilterInfo::exportFileFilterStrings, and FileIOFilter::FilterInfo::importFileFilterStrings.

◆ GetFilter()

FileIOFilter::Shared FileIOFilter::GetFilter	(	const QString &	fileFilter,
		bool	onImport
	)

static

Returns the filter corresponding to the given 'file filter'.

Definition at line 212 of file FileIOFilter.cpp.

References s_ioFilters.

Referenced by LoadFromFile(), CommandLoadLASFWF::process(), ccCommandLineParser::saveClouds(), ccCommandLineParser::saveMeshes(), and SaveToFile().

◆ GetFilters()

const FileIOFilter::FilterContainer & FileIOFilter::GetFilters ( )

static

Returns the set of all registered filters.

Definition at line 224 of file FileIOFilter.cpp.

References s_ioFilters.

Referenced by cloudViewer::io::AutoReadEntity(), cloudViewer::io::AutoWriteEntity(), define_qcc_io(), CommandChangeOutputFormat::getFileFormatFilter(), and cvSelectionExporter::saveObjectToFileWithDialog().

◆ HandleGlobalShift()

bool FileIOFilter::HandleGlobalShift	(	const CCVector3d &	P,
		CCVector3d &	Pshift,
		bool &	preserveCoordinateShift,
		LoadParameters &	loadParameters,
		bool	useInputCoordinatesShiftIfPossible = `false`
	)

static

Shortcut to the ecvGlobalShiftManager mechanism specific for files.

Parameters

[in]	P	sample point (typically the first loaded)
[out]	Pshift	global shift
[out]	preserveCoordinateShift	whether shift sould be preserved on save
[in]	loadParameters	loading parameters
[in]	useInputCoordinatesShiftIfPossible	whether to use the input 'PShift' vector if possible

Returns: whether global shift has been defined/enabled

Definition at line 509 of file FileIOFilter.cpp.

References FileIOFilter::LoadParameters::coordinatesShift, FileIOFilter::LoadParameters::coordinatesShiftEnabled, ecvGlobalShiftManager::Handle(), FileIOFilter::LoadParameters::preserveShiftOnSave, and FileIOFilter::LoadParameters::shiftHandlingMode.

Referenced by FromFbxMesh(), GetGlobalShift(), STLFilter::loadASCIIFile(), STLFilter::loadBinaryFile(), LoadCloud(), AsciiFilter::loadCloudFromFormatedAsciiStream(), ObjFilter::loadFile(), OFFFilter::loadFile(), PTXFilter::loadFile(), VTKFilter::loadFile(), SalomeHydroFilter::loadFile(), SinusxFilter::loadFile(), SimpleBinFilter::loadFile(), LASFWFFilter::loadFile(), LASFilter::loadFile(), LoadScan(), and vertex_cb().

◆ ImportFilterList()

QStringList FileIOFilter::ImportFilterList ( )

static

Get a list of all the available importer filter strings for use in a drop down menu. Includes "All (*.)" as the first item in the list.

Definition at line 241 of file FileIOFilter.cpp.

References s_ioFilters.

◆ importSupported()

bool FileIOFilter::importSupported ( ) const

Returns whether this I/O filter can import files.

Definition at line 61 of file FileIOFilter.cpp.

References FileIOFilter::FilterInfo::features, and Import.

◆ IncreaseSesionCounter()

unsigned FileIOFilter::IncreaseSesionCounter ( )

static

Indicates to the I/O filters that a new loading/saving action has started

Returns: the updated session counter

Definition at line 142 of file FileIOFilter.cpp.

References s_sessionCounter.

Referenced by cloudViewer::io::AutoReadEntity(), and LoadFromFile().

◆ loadFile()

virtual CC_FILE_ERROR FileIOFilter::loadFile	(	const QString &	filename,
		ccHObject &	container,
		LoadParameters &	parameters
	)

inlinevirtual

Loads one or more entities from a file.

This method must be implemented by children classes.

Parameters

filename	file to load
container	container to store loaded entities
parameters	generic loading parameters

Returns: error

Reimplemented in IoAbstractLoader, STEPFilter, RDBFilter, LASFilter, LasIOFilter, LASFWFFilter, FBXFilter, E57Filter, DRCFilter, SimpleBinFilter, PDMSFilter, SoiFilter, SinusxFilter, SalomeHydroFilter, PVFilter, PovFilter, PNFilter, IcmFilter, BundlerFilter, VTKFilter, STLFilter, PTXFilter, PlyFilter, OFFFilter, ObjFilter, ImageFileFilter, DxfFilter, BinFilter, AsciiFilter, PcdFilter, PhotoScanFilter, and CSVMatrixFilter.

Definition at line 124 of file FileIOFilter.h.

References CC_FERR_NOT_IMPLEMENTED, and filename.

◆ LoadFromFile() [1/2]

ccHObject * FileIOFilter::LoadFromFile	(	const QString &	filename,
		LoadParameters &	parameters,
		CC_FILE_ERROR &	result,
		const QString &	fileFilter = `QString()`
	)

static

Loads one or more entities from a file with known type.

Shortcut to the other version of FileIOFilter::LoadFromFile

Parameters

	filename	filename
	parameters	generic loading parameters
[out]	result	file error code
	fileFilter	input filter 'file filter' (if empty, the best I/O filter will be guessed from the file extension)

Returns: loaded entities (or 0 if an error occurred)

Definition at line 334 of file FileIOFilter.cpp.

References CC_FERR_CONSOLE_ERROR, CVLog::Error(), filename, FindBestFilterForExtension(), GetFilter(), LoadFromFile(), and result.

◆ LoadFromFile() [2/2]

ccHObject * FileIOFilter::LoadFromFile	(	const QString &	filename,
		LoadParameters &	parameters,
		Shared	filter,
		CC_FILE_ERROR &	result
	)

static

Loads one or more entities from a file with a known filter.

Shortcut to FileIOFilter::loadFile

Parameters

	filename	filename
	parameters	generic loading parameters
	filter	input filter
[out]	result	file error code

Returns: loaded entities (or 0 if an error occurred)

Definition at line 253 of file FileIOFilter.cpp.

References CC_FERR_CONSOLE_ERROR, CC_FERR_NO_ERROR, DisplayErrorMessage(), e, CVLog::Error(), filename, ccHObject::getChild(), ccHObject::getChildrenNumber(), ccObject::getName(), IncreaseSesionCounter(), CVLog::Print(), ccHObject::removeAllChildren(), result, FileIOFilter::LoadParameters::sessionStart, ccObject::setBaseName(), ccObject::setFullPath(), ccObject::setName(), and CVLog::Warning().

Referenced by MainWindow::addToDB(), define_qcc_io(), JsonRPCPlugin::execute(), ccCommandLineParser::importFile(), ccGuiPythonInstance::loadFile(), PhotoScanFilter::loadFile(), IcmFilter::loadFile(), PovFilter::loadFile(), MainWindow::loadFile(), LoadFromFile(), and ReadCloud().

◆ Register()

void FileIOFilter::Register ( Shared filter )

static

Registers a new filter.

Definition at line 167 of file FileIOFilter.cpp.

References s_ioFilters, and CVLog::Warning().

Referenced by ccPluginManager::loadPlugins().

◆ ResetSesionCounter()

void FileIOFilter::ResetSesionCounter ( )

static

Indicates to the I/O filters that a new loading/saving session has started (for "Apply all" buttons for instance)

Definition at line 140 of file FileIOFilter.cpp.

References s_sessionCounter.

Referenced by MainWindow::addToDB(), cloudViewer::io::AutoReadEntity(), cloudViewer::io::AutoWriteEntity(), and masc::Tools::LoadFile().

◆ SaveToFile() [1/2]

CC_FILE_ERROR FileIOFilter::SaveToFile	(	ccHObject *	entities,
		const QString &	filename,
		const SaveParameters &	parameters,
		const QString &	fileFilter
	)

static

Saves an entity (or a group of) to a specific file thanks to a given filter Shortcut to the other version of FileIOFilter::SaveToFile

Parameters

entities	entity to save (can be a group of other entities)
filename	filename
parameters	saving parameters
fileFilter	output filter 'file filter'

Returns: error type (if any)

Definition at line 408 of file FileIOFilter.cpp.

References CC_FERR_BAD_ARGUMENT, CC_FERR_UNKNOWN_FILE, CVLog::Error(), filename, GetFilter(), and SaveToFile().

◆ SaveToFile() [2/2]

CC_FILE_ERROR FileIOFilter::SaveToFile	(	ccHObject *	entities,
		const QString &	filename,
		const SaveParameters &	parameters,
		Shared	filter
	)

static

Saves an entity (or a group of) to a specific file thanks to a given filter Shortcut to FileIOFilter::saveFile

Parameters

entities	entity to save (can be a group of other entities)
filename	filename
parameters	saving parameters
filter	output filter

Returns: error type (if any)

Definition at line 377 of file FileIOFilter.cpp.

References CC_FERR_BAD_ARGUMENT, CC_FERR_CONSOLE_ERROR, CC_FERR_NO_ERROR, DisplayErrorMessage(), filename, CVLog::Print(), result, and CVLog::Warning().

Referenced by define_qcc_io(), ccCommandLineParser::exportEntity(), cvSelectionExporter::saveObjectToFileWithDialog(), SaveToFile(), and PovFilter::saveToFile().

◆ saveToFile()

virtual CC_FILE_ERROR FileIOFilter::saveToFile	(	ccHObject *	entity,
		const QString &	filename,
		const SaveParameters &	parameters
	)

inlinevirtual

Saves an entity (or a group of) to a file.

This method must be implemented by children classes.

Parameters

entity	entity (or group of) to save
filename	filename
parameters	generic saving parameters

Returns: error

Reimplemented in LASFilter, LasIOFilter, LASFWFFilter, FBXFilter, E57Filter, DRCFilter, SimpleBinFilter, MascaretFilter, MAFilter, HeightProfileFilter, SinusxFilter, SalomeHydroFilter, PVFilter, PovFilter, PNFilter, VTKFilter, STLFilter, PlyFilter, OFFFilter, ObjFilter, ImageFileFilter, DxfFilter, DepthMapFileFilter, BinFilter, AsciiFilter, and PcdFilter.

Definition at line 141 of file FileIOFilter.h.

References CC_FERR_NOT_IMPLEMENTED, and filename.

◆ setExportFileFilterStrings()

void FileIOFilter::setExportFileFilterStrings ( const QStringList & filterStrings )

protected

Allow export filter strings to be set after construction (e.g. for ImageFileFilter & QImageReader::supportedImageFormats())

Definition at line 90 of file FileIOFilter.cpp.

References FileIOFilter::FilterInfo::exportFileFilterStrings.

◆ setImportExtensions()

void FileIOFilter::setImportExtensions ( const QStringList & extensions )

protected

Allow import extensions to be set after construction (e.g. for ImageFileFilter & QImageReader::supportedImageFormats())

Definition at line 81 of file FileIOFilter.cpp.

References FileIOFilter::FilterInfo::importExtensions.

◆ setImportFileFilterStrings()

void FileIOFilter::setImportFileFilterStrings ( const QStringList & filterStrings )

protected

Allow import filter strings to be set after construction (e.g. for ImageFileFilter & QImageReader::supportedImageFormats())

Definition at line 85 of file FileIOFilter.cpp.

References FileIOFilter::FilterInfo::importFileFilterStrings.

◆ unregister()

virtual void FileIOFilter::unregister ( )

inlinevirtual

Called when the filter is unregistered.

Does nothing by default

Definition at line 296 of file FileIOFilter.h.

◆ UnregisterAll()

void FileIOFilter::UnregisterAll ( )

static

Unregisters all filters.

Should be called at the end of the application

Definition at line 204 of file FileIOFilter.cpp.

References s_ioFilters.

Referenced by main().

Member Data Documentation

◆ DEFAULT_PRIORITY

constexpr float FileIOFilter::DEFAULT_PRIORITY = 25.0f

staticconstexprprotected

The documentation for this class was generated from the following files:

/root/ACloudViewer/libs/CV_io/include/FileIOFilter.h
/root/ACloudViewer/libs/CV_io/src/FileIOFilter.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Attributes

Detailed Description

Member Typedef Documentation

◆ FilterContainer

◆ Shared

Member Enumeration Documentation

◆ FilterFeature

Constructor & Destructor Documentation

◆ ~FileIOFilter()

◆ FileIOFilter()

Member Function Documentation

◆ canSave()

◆ CheckForSpecialChars()

◆ DisplayErrorMessage()

◆ exportSupported()

◆ FindBestFilterForExtension()

◆ getDefaultExtension()

◆ getFileFilters()

◆ GetFilter()

◆ GetFilters()

◆ HandleGlobalShift()

◆ ImportFilterList()

◆ importSupported()

◆ IncreaseSesionCounter()

◆ loadFile()

◆ LoadFromFile() [1/2]

◆ LoadFromFile() [2/2]

◆ Register()

◆ ResetSesionCounter()

◆ SaveToFile() [1/2]

◆ SaveToFile() [2/2]

◆ saveToFile()

◆ setExportFileFilterStrings()

◆ setImportExtensions()

◆ setImportFileFilterStrings()

◆ unregister()

◆ UnregisterAll()

Member Data Documentation

◆ DEFAULT_PRIORITY
