qCanupoTrainingDialog Class Reference

CANUPO plugin's training dialog. More...

#include <qCanupoTrainingDialog.h>

Inheritance diagram for qCanupoTrainingDialog:

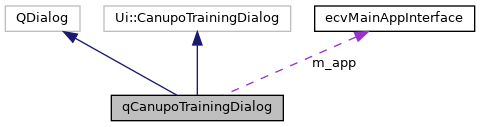

Collaboration diagram for qCanupoTrainingDialog:

Public Member Functions
	qCanupoTrainingDialog (ecvMainAppInterface *app)
	Default constructor. More...
ccPointCloud *	getOriginPointCloud ()
	Get origin point cloud. More...
ccPointCloud *	getClass1Cloud ()
	Get class #1 point cloud. More...
ccPointCloud *	getClass2Cloud ()
	Get class #2 point cloud. More...
ccPointCloud *	getEvaluationCloud ()
	Get evaluation point cloud. More...
void	loadParamsFromPersistentSettings ()
	Loads parameters from persistent settings. More...
void	saveParamsToPersistentSettings ()
	Saves parameters to persistent settings. More...
bool	getScales (std::vector< float > &scales) const
	Returns input scales. More...
int	getMaxThreadCount () const
	Returns the max number of threads to use. More...
unsigned	getDescriptorID () const
	Returns the selected descriptor ID. More...

Protected Slots
void	onClassChanged (int)
void	onCloudChanged (int)

Protected Member Functions
bool	validParameters () const

Protected Attributes
ecvMainAppInterface *	m_app
	Gives access to the application (data-base, UI, etc.) More...

Detailed Description

CANUPO plugin's training dialog.

Definition at line 16 of file qCanupoTrainingDialog.h.

Constructor & Destructor Documentation

qCanupoTrainingDialog()

qCanupoTrainingDialog::qCanupoTrainingDialog

(

ecvMainAppInterface *

app

)

Default constructor.

Definition at line 32 of file qCanupoTrainingDialog.cpp.

References ScaleParamsComputer::AvailableCount(), count, ecvMainAppInterface::dbRootObject(), ecvMainAppInterface::dispToConsole(), ecvMainAppInterface::ERR_CONSOLE_MESSAGE, ccHObject::filterChildren(), ScaleParamsComputer::GetByIndex(), qCanupoTools::GetEntityName(), ScaleParamsComputer::getID(), ScaleParamsComputer::getName(), loadParamsFromPersistentSettings(), m_app, name, onClassChanged(), onCloudChanged(), and CV_TYPES::POINT_CLOUD.

Member Function Documentation

getClass1Cloud()

ccPointCloud * qCanupoTrainingDialog::getClass1Cloud

(

)

Get class #1 point cloud.

Definition at line 179 of file qCanupoTrainingDialog.cpp.

References ecvMainAppInterface::dbRootObject(), qCanupoTools::GetCloudFromCombo(), and m_app.

Referenced by qCanupoPlugin::doTrainAction().

getClass2Cloud()

ccPointCloud * qCanupoTrainingDialog::getClass2Cloud

(

)

Get class #2 point cloud.

Definition at line 185 of file qCanupoTrainingDialog.cpp.

References ecvMainAppInterface::dbRootObject(), qCanupoTools::GetCloudFromCombo(), and m_app.

Referenced by qCanupoPlugin::doTrainAction().

getDescriptorID()

unsigned qCanupoTrainingDialog::getDescriptorID

(

)

const

Returns the selected descriptor ID.

Definition at line 160 of file qCanupoTrainingDialog.cpp.

Referenced by qCanupoPlugin::doTrainAction().

getEvaluationCloud()

ccPointCloud * qCanupoTrainingDialog::getEvaluationCloud

(

)

Get evaluation point cloud.

Definition at line 199 of file qCanupoTrainingDialog.cpp.

References ecvMainAppInterface::dbRootObject(), qCanupoTools::GetCloudFromCombo(), and m_app.

Referenced by qCanupoPlugin::doTrainAction().

getMaxThreadCount()

int qCanupoTrainingDialog::getMaxThreadCount

(

)

const

Returns the max number of threads to use.

Definition at line 116 of file qCanupoTrainingDialog.cpp.

Referenced by qCanupoPlugin::doTrainAction().

getOriginPointCloud()

ccPointCloud * qCanupoTrainingDialog::getOriginPointCloud

(

)

Get origin point cloud.

Definition at line 191 of file qCanupoTrainingDialog.cpp.

References ecvMainAppInterface::dbRootObject(), qCanupoTools::GetCloudFromCombo(), and m_app.

Referenced by qCanupoPlugin::doTrainAction().

getScales()

bool qCanupoTrainingDialog::getScales

(

std::vector< float > &

scales

)

const

Returns input scales.

Definition at line 120 of file qCanupoTrainingDialog.cpp.

References cloudViewer::utility::floor(), and QtCompat::SkipEmptyParts.

Referenced by qCanupoPlugin::doTrainAction().

loadParamsFromPersistentSettings()

void qCanupoTrainingDialog::loadParamsFromPersistentSettings

(

)

Loads parameters from persistent settings.

Definition at line 207 of file qCanupoTrainingDialog.cpp.

Referenced by qCanupoTrainingDialog().

onClassChanged

void qCanupoTrainingDialog::onClassChanged ( int  dummy )

protectedslot

Definition at line 171 of file qCanupoTrainingDialog.cpp.

References validParameters().

Referenced by qCanupoTrainingDialog().

onCloudChanged

void qCanupoTrainingDialog::onCloudChanged ( int  dummy )

protectedslot

Definition at line 175 of file qCanupoTrainingDialog.cpp.

References validParameters().

Referenced by qCanupoTrainingDialog().

saveParamsToPersistentSettings()

void qCanupoTrainingDialog::saveParamsToPersistentSettings

(

)

Saves parameters to persistent settings.

Definition at line 249 of file qCanupoTrainingDialog.cpp.

Referenced by qCanupoPlugin::doTrainAction().

validParameters()

bool qCanupoTrainingDialog::validParameters ( ) const

protected

Definition at line 104 of file qCanupoTrainingDialog.cpp.

Referenced by onClassChanged(), and onCloudChanged().

Member Data Documentation

m_app

ecvMainAppInterface* qCanupoTrainingDialog::m_app

protected

Gives access to the application (data-base, UI, etc.)

Definition at line 52 of file qCanupoTrainingDialog.h.

Referenced by getClass1Cloud(), getClass2Cloud(), getEvaluationCloud(), getOriginPointCloud(), and qCanupoTrainingDialog().

---

The documentation for this class was generated from the following files:

• /root/ACloudViewer/plugins/core/Standard/qCanupo/include/qCanupoTrainingDialog.h
• /root/ACloudViewer/plugins/core/Standard/qCanupo/src/qCanupoTrainingDialog.cpp
