ecvGenericAnnotationTool Class Reference

Generic Annotation Tool interface. More...

#include <ecvGenericAnnotationTool.h>

Inheritance diagram for ecvGenericAnnotationTool:

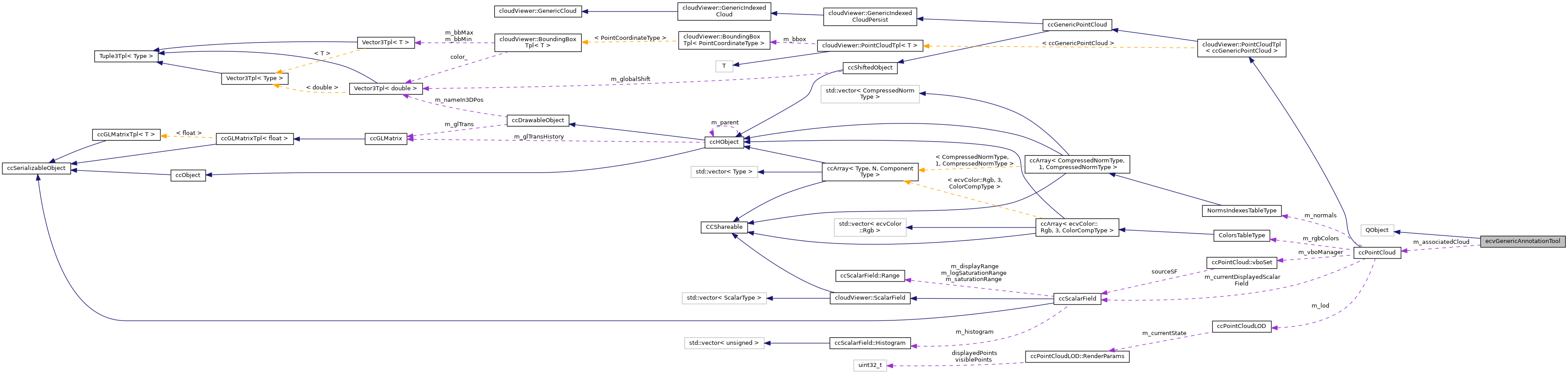

Collaboration diagram for ecvGenericAnnotationTool:

Public Types
enum	AnnotationMode { SEMANTICS , BOUNDINGBOX }
	Default constructor. More...

Signals
void	objectPicked (bool isPicked)

Public Member Functions
	ecvGenericAnnotationTool (AnnotationMode mode=AnnotationMode::BOUNDINGBOX)
virtual	~ecvGenericAnnotationTool ()=default
AnnotationMode	getAnnotationMode ()
virtual void	setVisualizer (ecvGenericVisualizer3D *viewer=nullptr)=0
virtual bool	loadClassesFromFile (const std::string &file)=0
virtual void	getAnnotationLabels (std::vector< std::string > &labelList)=0
virtual bool	getCurrentAnnotations (std::vector< int > &annos) const =0
virtual void	initAnnotationLabels (const std::vector< std::string > &labelList)
virtual void	toggleInteractor ()=0
virtual bool	setInputCloud (ccPointCloud *pointCloud, int viewport=0)=0
virtual void	start ()=0
virtual void	stop ()=0
virtual void	intersectMode ()=0
virtual void	unionMode ()=0
virtual void	trimMode ()=0
virtual void	resetMode ()=0
virtual void	reset ()=0
virtual void	clear ()=0
virtual void	exportAnnotations ()=0
virtual void	updateCloud ()=0
virtual void	changeAnnotationType (const std::string &type)=0
virtual void	selectExistedAnnotation (const std::string &type)=0
virtual void	showAnnotation ()=0
virtual void	hideAnnotation ()=0
virtual void	showOrigin ()=0
virtual void	hideOrigin ()=0
virtual void	removeAnnotation ()=0

Protected Member Functions
virtual bool	buildUp ()
	Builds primitive. More...
virtual void	initialize (ecvGenericVisualizer3D *viewer)=0
ccPointCloud *	vertices ()
	Returns vertices. More...

Protected Attributes
AnnotationMode	m_annotationMode
ccPointCloud *	m_associatedCloud

Detailed Description

Generic Annotation Tool interface.

Definition at line 18 of file ecvGenericAnnotationTool.h.

Member Enumeration Documentation

AnnotationMode

enum ecvGenericAnnotationTool::AnnotationMode

Default constructor.

Parameters

mode	Annotation mode

Enumerator
SEMANTICS
BOUNDINGBOX

Definition at line 26 of file ecvGenericAnnotationTool.h.

Constructor & Destructor Documentation

ecvGenericAnnotationTool()

ecvGenericAnnotationTool::ecvGenericAnnotationTool

(

AnnotationMode

mode = AnnotationMode::BOUNDINGBOX

)

~ecvGenericAnnotationTool()

virtual ecvGenericAnnotationTool::~ecvGenericAnnotationTool ( )

virtualdefault

Member Function Documentation

buildUp()

virtual bool ecvGenericAnnotationTool::buildUp ( )

inlineprotectedvirtual

Builds primitive.

Transformation will be applied afterwards!

Returns

success

Definition at line 73 of file ecvGenericAnnotationTool.h.

changeAnnotationType()

virtual void ecvGenericAnnotationTool::changeAnnotationType ( const std::string &  type )

pure virtual

Referenced by ecvAnnotationsTool::onLabelChanged().

clear()

virtual void ecvGenericAnnotationTool::clear ( )

pure virtual

exportAnnotations()

virtual void ecvGenericAnnotationTool::exportAnnotations ( )

pure virtual

Referenced by ecvAnnotationsTool::saveAnnotations().

getAnnotationLabels()

virtual void ecvGenericAnnotationTool::getAnnotationLabels ( std::vector< std::string > &  labelList )

pure virtual

Referenced by ecvAnnotationsTool::importClassesFromFile(), and ecvAnnotationsTool::start().

getAnnotationMode()

AnnotationMode ecvGenericAnnotationTool::getAnnotationMode ( )

inline

Definition at line 31 of file ecvGenericAnnotationTool.h.

Referenced by ecvAnnotationsTool::start().

getCurrentAnnotations()

virtual bool ecvGenericAnnotationTool::getCurrentAnnotations ( std::vector< int > &  annos ) const

pure virtual

Referenced by ecvAnnotationsTool::exportAnnotationToSF().

hideAnnotation()

virtual void ecvGenericAnnotationTool::hideAnnotation ( )

pure virtual

Referenced by ecvAnnotationsTool::toggleBox().

hideOrigin()

virtual void ecvGenericAnnotationTool::hideOrigin ( )

pure virtual

Referenced by ecvAnnotationsTool::toggleOrigin().

initAnnotationLabels()

virtual void ecvGenericAnnotationTool::initAnnotationLabels ( const std::vector< std::string > &  labelList )

inlinevirtual

Definition at line 39 of file ecvGenericAnnotationTool.h.

initialize()

virtual void ecvGenericAnnotationTool::initialize ( ecvGenericVisualizer3D *  viewer )

protectedpure virtual

intersectMode()

virtual void ecvGenericAnnotationTool::intersectMode ( )

pure virtual

Referenced by ecvAnnotationsTool::onIntersectMode().

loadClassesFromFile()

virtual bool ecvGenericAnnotationTool::loadClassesFromFile ( const std::string &  file )

pure virtual

Referenced by ecvAnnotationsTool::importClassesFromFile().

objectPicked

void ecvGenericAnnotationTool::objectPicked ( bool  isPicked )

signal

Referenced by ecvAnnotationsTool::setAnnotationsTool().

removeAnnotation()

virtual void ecvGenericAnnotationTool::removeAnnotation ( )

pure virtual

reset()

virtual void ecvGenericAnnotationTool::reset ( )

pure virtual

Referenced by ecvAnnotationsTool::reset().

resetMode()

virtual void ecvGenericAnnotationTool::resetMode ( )

pure virtual

Referenced by ecvAnnotationsTool::onNewMode().

selectExistedAnnotation()

virtual void ecvGenericAnnotationTool::selectExistedAnnotation ( const std::string &  type )

pure virtual

Referenced by ecvAnnotationsTool::onLabelChanged().

setInputCloud()

virtual bool ecvGenericAnnotationTool::setInputCloud ( ccPointCloud *  pointCloud, int  viewport = 0  )

pure virtual

Referenced by ecvAnnotationsTool::start().

setVisualizer()

virtual void ecvGenericAnnotationTool::setVisualizer ( ecvGenericVisualizer3D *  viewer = nullptr )

pure virtual

showAnnotation()

virtual void ecvGenericAnnotationTool::showAnnotation ( )

pure virtual

Referenced by ecvAnnotationsTool::toggleBox().

showOrigin()

virtual void ecvGenericAnnotationTool::showOrigin ( )

pure virtual

Referenced by ecvAnnotationsTool::toggleOrigin().

start()

virtual void ecvGenericAnnotationTool::start ( )

pure virtual

Referenced by ecvAnnotationsTool::start().

stop()

virtual void ecvGenericAnnotationTool::stop ( )

pure virtual

Referenced by ecvAnnotationsTool::stop().

toggleInteractor()

virtual void ecvGenericAnnotationTool::toggleInteractor ( )

pure virtual

Referenced by ecvAnnotationsTool::toggleInteractors().

trimMode()

virtual void ecvGenericAnnotationTool::trimMode ( )

pure virtual

Referenced by ecvAnnotationsTool::onTrimMode().

unionMode()

virtual void ecvGenericAnnotationTool::unionMode ( )

pure virtual

Referenced by ecvAnnotationsTool::onUnionMode().

updateCloud()

virtual void ecvGenericAnnotationTool::updateCloud ( )

pure virtual

vertices()

ccPointCloud* ecvGenericAnnotationTool::vertices ( )

protected

Returns vertices.

Member Data Documentation

m_annotationMode

AnnotationMode ecvGenericAnnotationTool::m_annotationMode

protected

Definition at line 80 of file ecvGenericAnnotationTool.h.

m_associatedCloud

ccPointCloud* ecvGenericAnnotationTool::m_associatedCloud

protected

Definition at line 81 of file ecvGenericAnnotationTool.h.

---

The documentation for this class was generated from the following file:

• /root/ACloudViewer/libs/CV_db/include/ecvGenericAnnotationTool.h
