cloudViewer::visualization::rendering::MatrixInteractorLogic Class Reference

#include <MatrixInteractorLogic.h>

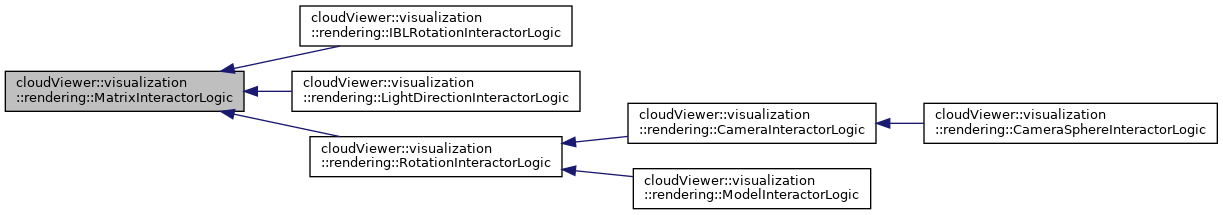

Inheritance diagram for cloudViewer::visualization::rendering::MatrixInteractorLogic:
Inheritance graph
[legend]

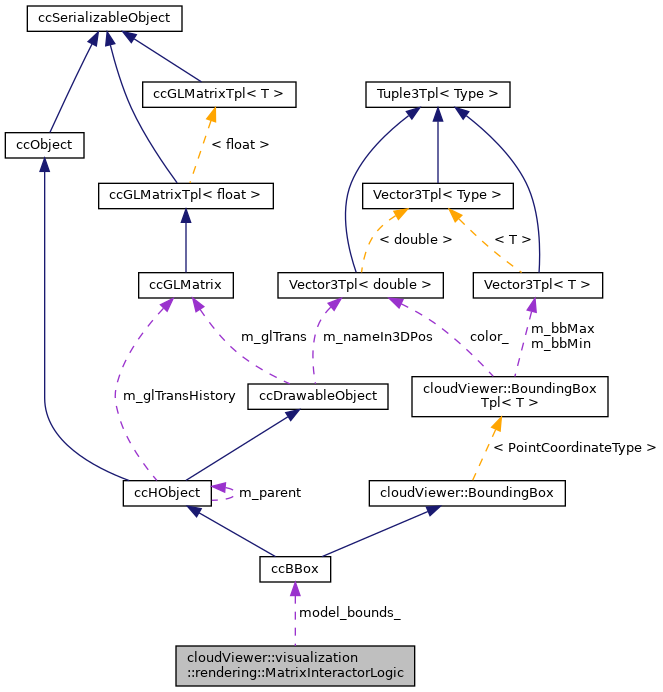

Collaboration diagram for cloudViewer::visualization::rendering::MatrixInteractorLogic:
Collaboration graph
[legend]

Public Types

enum class  DragType { MOUSE , WHEEL , TWO_FINGER }


Public Member Functions

virtual ~MatrixInteractorLogic ()

void SetViewSize (int width, int height)

int GetViewWidth () const

int GetViewHeight () const

const ccBBox & GetBoundingBox () const

virtual void SetBoundingBox (const ccBBox &bounds)

Eigen::Vector3f GetCenterOfRotation () const

void SetMouseDownInfo (const Camera::Transform &matrix, const Eigen::Vector3f &center_of_rotation)

const Camera::Transform & GetMatrix () const

virtual void Rotate (int dx, int dy)

virtual void RotateWorld (int dx, int dy, const Eigen::Vector3f &x_axis, const Eigen::Vector3f &y_axis)

virtual void RotateZ (int dx, int dy)
 Rotates about the forward axis of the matrix. More...

virtual void RotateZWorld (int dx, int dy, const Eigen::Vector3f &forward)

virtual void Dolly (float dy, DragType drag_type)

virtual void Dolly (float z_dist, Camera::Transform matrix)


Protected Member Functions

void SetMatrix (const Camera::Transform &matrix)

float CalcRotateRadians (int dx, int dy)

float CalcRotateZRadians (int dx, int dy)

float CalcDollyDist (float dy, DragType drag_type, const Camera::Transform &matrix)


Protected Attributes

int view_width_ = 1

int view_height_ = 1

double model_size_ = 20.0

ccBBox model_bounds_

Eigen::Vector3f center_of_rotation_

Camera::Transform matrix_at_mouse_down_

Eigen::Vector3f center_of_rotation_at_mouse_down_


Detailed Description

Base class for rotating and dollying (translating along forward axis). Could be used for a camera, or also something else, like a the direction of a directional light.

Definition at line 21 of file MatrixInteractorLogic.h.

Member Enumeration Documentation

◆ DragType

enum cloudViewer::visualization::rendering::MatrixInteractorLogic::DragType
strong
Enumerator
MOUSE
WHEEL
TWO_FINGER

Definition at line 57 of file MatrixInteractorLogic.h.

Constructor & Destructor Documentation

◆ ~MatrixInteractorLogic()

cloudViewer::visualization::rendering::MatrixInteractorLogic::~MatrixInteractorLogic ( )
virtual

Definition at line 14 of file MatrixInteractorLogic.cpp.

Member Function Documentation

◆ CalcDollyDist()

float cloudViewer::visualization::rendering::MatrixInteractorLogic::CalcDollyDist ( float  dy,
DragType  drag_type,
const Camera::Transform &  matrix
)
protected

Definition at line 189 of file MatrixInteractorLogic.cpp.

References center_of_rotation_, dist(), length(), max(), model_size_, MOUSE, TWO_FINGER, and WHEEL.

Referenced by Dolly(), and cloudViewer::visualization::rendering::ModelInteractorLogic::Dolly().

◆ CalcRotateRadians()

float cloudViewer::visualization::rendering::MatrixInteractorLogic::CalcRotateRadians ( int  dx,
int  dy
)
protected

Definition at line 128 of file MatrixInteractorLogic.cpp.

References M_PI, and view_height_.

Referenced by Rotate(), cloudViewer::visualization::rendering::ModelInteractorLogic::Rotate(), and RotateWorld().

◆ CalcRotateZRadians()

float cloudViewer::visualization::rendering::MatrixInteractorLogic::CalcRotateZRadians ( int  dx,
int  dy
)
protected

Definition at line 157 of file MatrixInteractorLogic.cpp.

References M_PI, and view_height_.

Referenced by RotateZ(), cloudViewer::visualization::rendering::ModelInteractorLogic::RotateZ(), and RotateZWorld().

◆ Dolly() [1/2]

void cloudViewer::visualization::rendering::MatrixInteractorLogic::Dolly ( float  dy,
DragType  drag_type
)
virtual

Moves the matrix along the forward axis. (This is one type of zoom.)

Reimplemented in cloudViewer::visualization::rendering::CameraInteractorLogic, and cloudViewer::visualization::rendering::ModelInteractorLogic.

Definition at line 163 of file MatrixInteractorLogic.cpp.

References CalcDollyDist(), dist(), matrix_at_mouse_down_, and MOUSE.

Referenced by cloudViewer::visualization::rendering::CameraInteractorLogic::Dolly(), and cloudViewer::visualization::gui::RotationInteractor::Mouse().

◆ Dolly() [2/2]

void cloudViewer::visualization::rendering::MatrixInteractorLogic::Dolly ( float  z_dist,
Camera::Transform  matrix
)
virtual

Reimplemented in cloudViewer::visualization::rendering::CameraInteractorLogic.

Definition at line 175 of file MatrixInteractorLogic.cpp.

◆ GetBoundingBox()

const ccBBox & cloudViewer::visualization::rendering::MatrixInteractorLogic::GetBoundingBox ( ) const

Definition at line 25 of file MatrixInteractorLogic.cpp.

References model_bounds_.

◆ GetCenterOfRotation()

Eigen::Vector3f cloudViewer::visualization::rendering::MatrixInteractorLogic::GetCenterOfRotation ( ) const

Definition at line 34 of file MatrixInteractorLogic.cpp.

References center_of_rotation_.

Referenced by cloudViewer::visualization::gui::RotationInteractor::GetCenterOfRotation().

◆ GetMatrix()

const Camera::Transform & cloudViewer::visualization::rendering::MatrixInteractorLogic::GetMatrix ( ) const

Definition at line 52 of file MatrixInteractorLogic.cpp.

Referenced by cloudViewer::visualization::rendering::CameraInteractorLogic::Dolly(), cloudViewer::visualization::rendering::LightDirectionInteractorLogic::GetCurrentDirection(), cloudViewer::visualization::rendering::IBLRotationInteractorLogic::GetCurrentRotation(), cloudViewer::visualization::rendering::CameraInteractorLogic::Pan(), cloudViewer::visualization::rendering::CameraInteractorLogic::Rotate(), cloudViewer::visualization::rendering::CameraInteractorLogic::RotateFly(), cloudViewer::visualization::rendering::CameraInteractorLogic::RotateZ(), cloudViewer::visualization::rendering::RotationInteractorLogic::StartMouseDrag(), and cloudViewer::visualization::rendering::LightDirectionInteractorLogic::UpdateMouseDragUI().

◆ GetViewHeight()

int cloudViewer::visualization::rendering::MatrixInteractorLogic::GetViewHeight ( ) const

Definition at line 23 of file MatrixInteractorLogic.cpp.

References view_height_.

Referenced by cloudViewer::visualization::gui::PickPointsInteractor::DoPick().

◆ GetViewWidth()

int cloudViewer::visualization::rendering::MatrixInteractorLogic::GetViewWidth ( ) const

Definition at line 21 of file MatrixInteractorLogic.cpp.

References view_width_.

Referenced by cloudViewer::visualization::gui::PickPointsInteractor::DoPick().

◆ Rotate()

void cloudViewer::visualization::rendering::MatrixInteractorLogic::Rotate ( int  dx,
int  dy
)
virtual

Rotates about an axis defined by dx * matrixLeft, dy * matrixUp. dy is assumed to be in window-style coordinates, that is, going up produces a negative dy. The axis goes through the center of rotation.

Reimplemented in cloudViewer::visualization::rendering::ModelInteractorLogic, cloudViewer::visualization::rendering::LightDirectionInteractorLogic, cloudViewer::visualization::rendering::IBLRotationInteractorLogic, cloudViewer::visualization::rendering::CameraSphereInteractorLogic, and cloudViewer::visualization::rendering::CameraInteractorLogic.

Definition at line 56 of file MatrixInteractorLogic.cpp.

References CalcRotateRadians(), center_of_rotation_, dist(), and matrix_at_mouse_down_.

Referenced by cloudViewer::visualization::gui::RotationInteractor::Mouse(), cloudViewer::visualization::rendering::CameraInteractorLogic::Rotate(), and cloudViewer::visualization::rendering::CameraInteractorLogic::RotateFly().

◆ RotateWorld()

void cloudViewer::visualization::rendering::MatrixInteractorLogic::RotateWorld ( int  dx,
int  dy,
const Eigen::Vector3f &  x_axis,
const Eigen::Vector3f &  y_axis
)
virtual

Same as Rotate() except that the dx-axis and the dy-axis are specified

Definition at line 101 of file MatrixInteractorLogic.cpp.

References CalcRotateRadians(), center_of_rotation_, dist(), and matrix_at_mouse_down_.

Referenced by cloudViewer::visualization::rendering::IBLRotationInteractorLogic::Rotate(), cloudViewer::visualization::rendering::LightDirectionInteractorLogic::Rotate(), and cloudViewer::visualization::rendering::IBLRotationInteractorLogic::RotateZ().

◆ RotateZ()

void cloudViewer::visualization::rendering::MatrixInteractorLogic::RotateZ ( int  dx,
int  dy
)
virtual

Rotates about the forward axis of the matrix.

Reimplemented in cloudViewer::visualization::rendering::ModelInteractorLogic, cloudViewer::visualization::rendering::IBLRotationInteractorLogic, and cloudViewer::visualization::rendering::CameraInteractorLogic.

Definition at line 133 of file MatrixInteractorLogic.cpp.

References CalcRotateZRadians(), and matrix_at_mouse_down_.

Referenced by cloudViewer::visualization::gui::RotationInteractor::Mouse(), and cloudViewer::visualization::rendering::CameraInteractorLogic::RotateZ().

◆ RotateZWorld()

void cloudViewer::visualization::rendering::MatrixInteractorLogic::RotateZWorld ( int  dx,
int  dy,
const Eigen::Vector3f &  forward
)
virtual

Definition at line 144 of file MatrixInteractorLogic.cpp.

References CalcRotateZRadians(), center_of_rotation_, and matrix_at_mouse_down_.

◆ SetBoundingBox()

void cloudViewer::visualization::rendering::MatrixInteractorLogic::SetBoundingBox ( const ccBBox &  bounds)
virtual

Reimplemented in cloudViewer::visualization::rendering::ModelInteractorLogic, and cloudViewer::visualization::rendering::CameraInteractorLogic.

Definition at line 29 of file MatrixInteractorLogic.cpp.

References ccBBox::GetMaxBound(), ccBBox::GetMinBound(), model_bounds_, and model_size_.

Referenced by cloudViewer::visualization::rendering::CameraInteractorLogic::SetBoundingBox(), and cloudViewer::visualization::rendering::ModelInteractorLogic::SetBoundingBox().

◆ SetMatrix()

void cloudViewer::visualization::rendering::MatrixInteractorLogic::SetMatrix ( const Camera::Transform &  matrix)
protected

Definition at line 48 of file MatrixInteractorLogic.cpp.

Referenced by cloudViewer::visualization::rendering::RotationInteractorLogic::Pan(), and cloudViewer::visualization::rendering::CameraSphereInteractorLogic::Rotate().

◆ SetMouseDownInfo()

void cloudViewer::visualization::rendering::MatrixInteractorLogic::SetMouseDownInfo ( const Camera::Transform &  matrix,
const Eigen::Vector3f &  center_of_rotation
)

Definition at line 38 of file MatrixInteractorLogic.cpp.

References center_of_rotation_, center_of_rotation_at_mouse_down_, and matrix_at_mouse_down_.

Referenced by cloudViewer::visualization::rendering::CameraInteractorLogic::Dolly(), cloudViewer::visualization::rendering::CameraInteractorLogic::RotateFly(), cloudViewer::visualization::rendering::CameraInteractorLogic::SetBoundingBox(), cloudViewer::visualization::rendering::ModelInteractorLogic::SetBoundingBox(), cloudViewer::visualization::rendering::IBLRotationInteractorLogic::StartMouseDrag(), cloudViewer::visualization::rendering::LightDirectionInteractorLogic::StartMouseDrag(), cloudViewer::visualization::rendering::RotationInteractorLogic::StartMouseDrag(), cloudViewer::visualization::rendering::CameraInteractorLogic::StartMouseDrag(), and cloudViewer::visualization::rendering::ModelInteractorLogic::StartMouseDrag().

◆ SetViewSize()

void cloudViewer::visualization::rendering::MatrixInteractorLogic::SetViewSize ( int  width,
int  height
)

Definition at line 16 of file MatrixInteractorLogic.cpp.

References height, view_height_, view_width_, and width.

Referenced by cloudViewer::visualization::gui::PickInteractor::SetViewSize().

Member Data Documentation

◆ center_of_rotation_

Eigen::Vector3f cloudViewer::visualization::rendering::MatrixInteractorLogic::center_of_rotation_
protected

Definition at line 72 of file MatrixInteractorLogic.h.

Referenced by CalcDollyDist(), cloudViewer::visualization::rendering::CameraInteractorLogic::Dolly(), GetCenterOfRotation(), cloudViewer::visualization::rendering::RotationInteractorLogic::Pan(), cloudViewer::visualization::rendering::ModelInteractorLogic::Pan(), Rotate(), cloudViewer::visualization::rendering::CameraSphereInteractorLogic::Rotate(), cloudViewer::visualization::rendering::ModelInteractorLogic::Rotate(), RotateWorld(), cloudViewer::visualization::rendering::ModelInteractorLogic::RotateZ(), RotateZWorld(), cloudViewer::visualization::rendering::RotationInteractorLogic::SetCenterOfRotation(), SetMouseDownInfo(), cloudViewer::visualization::rendering::RotationInteractorLogic::StartMouseDrag(), cloudViewer::visualization::rendering::CameraInteractorLogic::StartMouseDrag(), cloudViewer::visualization::rendering::CameraSphereInteractorLogic::StartMouseDrag(), cloudViewer::visualization::rendering::ModelInteractorLogic::StartMouseDrag(), and cloudViewer::visualization::rendering::CameraInteractorLogic::Zoom().

◆ center_of_rotation_at_mouse_down_

Eigen::Vector3f cloudViewer::visualization::rendering::MatrixInteractorLogic::center_of_rotation_at_mouse_down_
protected

Definition at line 75 of file MatrixInteractorLogic.h.

Referenced by cloudViewer::visualization::rendering::RotationInteractorLogic::CalcPanVectorWorld(), cloudViewer::visualization::rendering::RotationInteractorLogic::Pan(), cloudViewer::visualization::rendering::ModelInteractorLogic::Pan(), SetMouseDownInfo(), and cloudViewer::visualization::rendering::CameraInteractorLogic::Zoom().

◆ matrix_at_mouse_down_

Camera::Transform cloudViewer::visualization::rendering::MatrixInteractorLogic::matrix_at_mouse_down_
protected

Definition at line 74 of file MatrixInteractorLogic.h.

Referenced by Dolly(), cloudViewer::visualization::rendering::ModelInteractorLogic::Dolly(), cloudViewer::visualization::rendering::RotationInteractorLogic::Pan(), Rotate(), RotateWorld(), RotateZ(), RotateZWorld(), SetMouseDownInfo(), and cloudViewer::visualization::rendering::CameraInteractorLogic::Zoom().

◆ model_bounds_

ccBBox cloudViewer::visualization::rendering::MatrixInteractorLogic::model_bounds_
protected

Definition at line 71 of file MatrixInteractorLogic.h.

Referenced by GetBoundingBox(), SetBoundingBox(), cloudViewer::visualization::rendering::RotationInteractorLogic::UpdateCameraFarPlane(), and cloudViewer::visualization::rendering::LightDirectionInteractorLogic::UpdateMouseDragUI().

◆ model_size_

double cloudViewer::visualization::rendering::MatrixInteractorLogic::model_size_ = 20.0
protected

Definition at line 70 of file MatrixInteractorLogic.h.

Referenced by CalcDollyDist(), SetBoundingBox(), and cloudViewer::visualization::rendering::LightDirectionInteractorLogic::StartMouseDrag().

◆ view_height_

int cloudViewer::visualization::rendering::MatrixInteractorLogic::view_height_ = 1
protected

Definition at line 69 of file MatrixInteractorLogic.h.

Referenced by cloudViewer::visualization::rendering::RotationInteractorLogic::CalcPanVectorWorld(), CalcRotateRadians(), CalcRotateZRadians(), GetViewHeight(), cloudViewer::visualization::rendering::CameraSphereInteractorLogic::Rotate(), SetViewSize(), and cloudViewer::visualization::rendering::CameraInteractorLogic::Zoom().

◆ view_width_

int cloudViewer::visualization::rendering::MatrixInteractorLogic::view_width_ = 1
protected

Definition at line 68 of file MatrixInteractorLogic.h.

Referenced by GetViewWidth(), cloudViewer::visualization::rendering::CameraSphereInteractorLogic::Rotate(), SetViewSize(), and cloudViewer::visualization::rendering::CameraInteractorLogic::Zoom().
