#include <MenuBase.h>

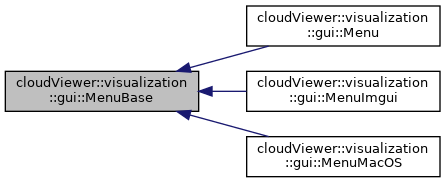

Inheritance diagram for cloudViewer::visualization::gui::MenuBase:

[legend]

Public Types
using	ItemId = int

Public Member Functions
	MenuBase ()

virtual	~MenuBase ()

virtual void	AddItem (const char *name, ItemId item_id=NO_ITEM, KeyName key=KEY_NONE)=0

virtual void	AddMenu (const char *name, std::shared_ptr< MenuBase > submenu)=0

virtual void	AddSeparator ()=0

virtual void	InsertItem (int index, const char *name, ItemId item_id=NO_ITEM, KeyName key=KEY_NONE)=0

virtual void	InsertMenu (int index, const char *name, std::shared_ptr< MenuBase > submenu)=0

virtual void	InsertSeparator (int index)=0

virtual int	GetNumberOfItems () const =0

virtual bool	IsEnabled (ItemId item_id) const =0

virtual void	SetEnabled (ItemId item_id, bool enabled)=0

virtual bool	IsChecked (ItemId item_id) const =0

virtual void	SetChecked (ItemId item_id, bool checked)=0

virtual int	CalcHeight (const Theme &theme) const =0

virtual bool	CheckVisibilityChange () const =0
	Returns true if submenu visibility changed on last call to DrawMenuBar. More...

virtual ItemId	DrawMenuBar (const DrawContext &context, bool is_enabled)=0

virtual ItemId	Draw (const DrawContext &context, const char *name, bool is_enabled)=0

virtual void *	GetNativePointer ()=0

Static Public Attributes
static constexpr ItemId	NO_ITEM = -1

Detailed Description

The menu item action is handled by Window, rather than by registering a a callback function with (non-existent) Menu::SetOnClicked(). This is because on macOS the menubar is global over all application windows, so any callback would need to go find the data object corresponding to the active window.

Definition at line 26 of file MenuBase.h.

Member Typedef Documentation

◆ ItemId

using cloudViewer::visualization::gui::MenuBase::ItemId = int

Definition at line 28 of file MenuBase.h.

Constructor & Destructor Documentation

◆ MenuBase()

cloudViewer::visualization::gui::MenuBase::MenuBase ( )

inline

Definition at line 31 of file MenuBase.h.

◆ ~MenuBase()

virtual cloudViewer::visualization::gui::MenuBase::~MenuBase ( )

inlinevirtual

Definition at line 32 of file MenuBase.h.

Member Function Documentation

◆ AddItem()

virtual void cloudViewer::visualization::gui::MenuBase::AddItem	(	const char *	name,
		ItemId	item_id = `NO_ITEM`,
		KeyName	key = `KEY_NONE`
	)

pure virtual

Implemented in cloudViewer::visualization::gui::MenuMacOS, cloudViewer::visualization::gui::MenuImgui, and cloudViewer::visualization::gui::Menu.

◆ AddMenu()

virtual void cloudViewer::visualization::gui::MenuBase::AddMenu	(	const char *	name,
		std::shared_ptr< MenuBase >	submenu
	)

pure virtual

Implemented in cloudViewer::visualization::gui::MenuMacOS, cloudViewer::visualization::gui::MenuImgui, and cloudViewer::visualization::gui::Menu.

◆ AddSeparator()

virtual void cloudViewer::visualization::gui::MenuBase::AddSeparator ( )

pure virtual

Implemented in cloudViewer::visualization::gui::MenuMacOS, cloudViewer::visualization::gui::MenuImgui, and cloudViewer::visualization::gui::Menu.

◆ CalcHeight()

virtual int cloudViewer::visualization::gui::MenuBase::CalcHeight ( const Theme & theme ) const

pure virtual

Implemented in cloudViewer::visualization::gui::MenuMacOS, cloudViewer::visualization::gui::MenuImgui, and cloudViewer::visualization::gui::Menu.

◆ CheckVisibilityChange()

virtual bool cloudViewer::visualization::gui::MenuBase::CheckVisibilityChange ( ) const

pure virtual

Returns true if submenu visibility changed on last call to DrawMenuBar.

Implemented in cloudViewer::visualization::gui::MenuMacOS, cloudViewer::visualization::gui::MenuImgui, and cloudViewer::visualization::gui::Menu.

◆ Draw()

virtual ItemId cloudViewer::visualization::gui::MenuBase::Draw	(	const DrawContext &	context,
		const char *	name,
		bool	is_enabled
	)

pure virtual

Implemented in cloudViewer::visualization::gui::MenuMacOS, cloudViewer::visualization::gui::MenuImgui, and cloudViewer::visualization::gui::Menu.

◆ DrawMenuBar()

virtual ItemId cloudViewer::visualization::gui::MenuBase::DrawMenuBar	(	const DrawContext &	context,
		bool	is_enabled
	)

pure virtual

Implemented in cloudViewer::visualization::gui::MenuMacOS, cloudViewer::visualization::gui::MenuImgui, and cloudViewer::visualization::gui::Menu.

◆ GetNativePointer()

virtual void* cloudViewer::visualization::gui::MenuBase::GetNativePointer ( )

pure virtual

Implemented in cloudViewer::visualization::gui::MenuMacOS, cloudViewer::visualization::gui::MenuImgui, and cloudViewer::visualization::gui::Menu.

◆ GetNumberOfItems()

virtual int cloudViewer::visualization::gui::MenuBase::GetNumberOfItems ( ) const

pure virtual

Implemented in cloudViewer::visualization::gui::MenuMacOS, cloudViewer::visualization::gui::MenuImgui, and cloudViewer::visualization::gui::Menu.

◆ InsertItem()

virtual void cloudViewer::visualization::gui::MenuBase::InsertItem	(	int	index,
		const char *	name,
		ItemId	item_id = `NO_ITEM`,
		KeyName	key = `KEY_NONE`
	)

pure virtual

Implemented in cloudViewer::visualization::gui::MenuMacOS, cloudViewer::visualization::gui::MenuImgui, and cloudViewer::visualization::gui::Menu.

◆ InsertMenu()

virtual void cloudViewer::visualization::gui::MenuBase::InsertMenu	(	int	index,
		const char *	name,
		std::shared_ptr< MenuBase >	submenu
	)

pure virtual

Implemented in cloudViewer::visualization::gui::MenuMacOS, cloudViewer::visualization::gui::MenuImgui, and cloudViewer::visualization::gui::Menu.

◆ InsertSeparator()

virtual void cloudViewer::visualization::gui::MenuBase::InsertSeparator ( int index )

pure virtual

Implemented in cloudViewer::visualization::gui::MenuMacOS, cloudViewer::visualization::gui::MenuImgui, and cloudViewer::visualization::gui::Menu.

◆ IsChecked()

virtual bool cloudViewer::visualization::gui::MenuBase::IsChecked ( ItemId item_id ) const

pure virtual

Implemented in cloudViewer::visualization::gui::MenuMacOS, cloudViewer::visualization::gui::MenuImgui, and cloudViewer::visualization::gui::Menu.

◆ IsEnabled()

virtual bool cloudViewer::visualization::gui::MenuBase::IsEnabled ( ItemId item_id ) const

pure virtual

Searches the menu hierarchy down from this menu to find the item and returns true if the item is enabled.

Implemented in cloudViewer::visualization::gui::MenuMacOS, cloudViewer::visualization::gui::MenuImgui, and cloudViewer::visualization::gui::Menu.

◆ SetChecked()

virtual void cloudViewer::visualization::gui::MenuBase::SetChecked	(	ItemId	item_id,
		bool	checked
	)

pure virtual

Implemented in cloudViewer::visualization::gui::MenuMacOS, cloudViewer::visualization::gui::MenuImgui, and cloudViewer::visualization::gui::Menu.

◆ SetEnabled()

virtual void cloudViewer::visualization::gui::MenuBase::SetEnabled	(	ItemId	item_id,
		bool	enabled
	)

pure virtual

Searches the menu hierarchy down from this menu to find the item and set it enabled according to enabled.

Implemented in cloudViewer::visualization::gui::MenuMacOS, cloudViewer::visualization::gui::MenuImgui, and cloudViewer::visualization::gui::Menu.

Member Data Documentation

◆ NO_ITEM

constexpr ItemId cloudViewer::visualization::gui::MenuBase::NO_ITEM = -1

staticconstexpr

Definition at line 29 of file MenuBase.h.

Referenced by cloudViewer::visualization::gui::MenuImgui::Draw(), and cloudViewer::visualization::gui::MenuImgui::DrawMenuBar().

The documentation for this class was generated from the following file:

/root/ACloudViewer/libs/cloudViewer/visualization/gui/MenuBase.h
