#include <SaitoSquaredDistanceTransform.h>

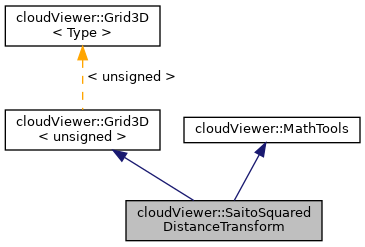

Inheritance diagram for cloudViewer::SaitoSquaredDistanceTransform:

[legend]

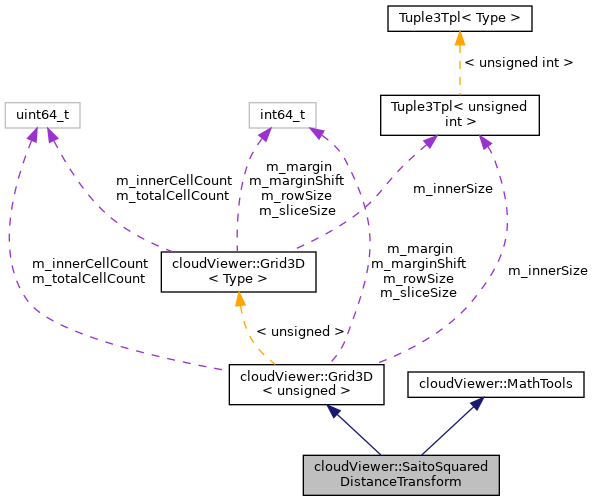

Collaboration diagram for cloudViewer::SaitoSquaredDistanceTransform:

[legend]

Public Member Functions
	SaitoSquaredDistanceTransform ()=default
	Default constructor. More...

bool	initGrid (const Tuple3ui &gridSize)
	Initializes the grid. More...

bool	initDT (GenericIndexedMesh mesh, PointCoordinateType cellLength, const CCVector3 &gridMinCorner, GenericProgressCallback progressCb=nullptr)
	Initializes the distance transform with a mesh. More...

bool	initDT (GenericCloud cloud, PointCoordinateType cellLength, const CCVector3 &gridMinCorner, GenericProgressCallback progressCb=nullptr)
	Initializes the distance transform with a cloud. More...

bool	propagateDistance (GenericProgressCallback *progressCb=nullptr)
	Computes the exact Squared Distance Transform on the whole grid. More...

Public Member Functions inherited from cloudViewer::Grid3D< unsigned >
	Grid3D ()
	Default constructor. More...

const Tuple3ui &	size () const
	Returns the grid dimensions. More...

bool	isInitialized () const
	Returns whether the grid has been initialized or not. More...

void	clear ()
	Clears the grid. More...

bool	init (unsigned di, unsigned dj, unsigned dk, unsigned margin, GridElement defaultCellValue=0)
	Initializes the grid. More...

Tuple3i	computeCellPos (const CCVector3 &P, const CCVector3 &gridMinCorner, PointCoordinateType cellSize) const
	Computes the (grid) cell position that contains a given point. More...

bool	intersectWith (GenericIndexedMesh mesh, PointCoordinateType cellLength, const CCVector3 &gridMinCorner, GridElement intersectValue=0, GenericProgressCallback progressCb=nullptr)
	Intersects this grid with a mesh. More...

bool	intersectWith (GenericIndexedMesh mesh, PointCoordinateType cellLength, const CCVector3 &gridMinCorner, genericCellTriIntersectionAction action, GenericProgressCallback progressCb=nullptr)
	Intersects this grid with a mesh (generic form) More...

bool	intersectWith (GenericCloud cloud, PointCoordinateType cellLength, const CCVector3 &gridMinCorner, GridElement intersectValue=0, GenericProgressCallback progressCb=nullptr)
	Intersects this grid with a cloud. More...

void	setValue (int i, int j, int k, GridElement value)
	Sets the value of a given cell. More...

void	setValue (const Tuple3i &cellPos, GridElement value)
	Sets the value of a given cell. More...

const GridElement &	getValue (int i, int j, int k) const
	Returns the value of a given cell (const version) More...

GridElement &	getValue (int i, int j, int k)
	Returns the value of a given cell. More...

const GridElement &	getValue (Tuple3i &cellPos) const
	Returns the value of a given cell const version) More...

GridElement &	getValue (Tuple3i &cellPos)
	Returns the value of a given cell. More...

GridElement *	data ()
	Gives access to the internal grid data (with margin) More...

const GridElement *	data () const
	Gives access to the internal grid data (with margin) (const version) More...

uint64_t	innerCellCount () const
	Returns the number of cell count (whithout margin) More...

uint64_t	totalCellCount () const
	Returns the total number of cell count (with margin) More...

Static Protected Member Functions
static bool	EDT_1D (GridElement *slice, std::size_t r, std::size_t c)
	1D Euclidean Distance Transform More...

static bool	SDT_2D (Grid3D< GridElement > &image, std::size_t sliceIndex, const std::vector< GridElement > &sq)
	2D Exact Squared Distance Transform More...

static bool	SDT_3D (Grid3D< GridElement > &image, GenericProgressCallback *progressCb=nullptr)
	3D Exact Squared Distance Transform More...

Additional Inherited Members
Public Types inherited from cloudViewer::Grid3D< unsigned >
using	GridElement = unsigned
	Cell type. More...

using	genericCellTriIntersectionAction = std::function< void(const Tuple3i &, unsigned)>

Protected Member Functions inherited from cloudViewer::Grid3D< unsigned >
int64_t	pos2index (int i, int j, int k) const
	Converts a 3D position to an absolute index. More...

Protected Attributes inherited from cloudViewer::Grid3D< unsigned >
std::vector< GridElement >	m_grid
	Grid data. More...

Tuple3ui	m_innerSize
	Dimensions of the grid (without margin) More...

int64_t	m_margin
	Margin. More...

int64_t	m_rowSize
	1D row size (with margin) More...

int64_t	m_sliceSize
	2D slice size (with margin) More...

uint64_t	m_innerCellCount
	3D grid size without margin More...

uint64_t	m_totalCellCount
	3D grid size with margin More...

int64_t	m_marginShift
	First index of real data (i.e. after marin) More...

Detailed Description

Class to compute a Squared Distance Field with the Saito algorithm on a 3D grid

Definition at line 25 of file SaitoSquaredDistanceTransform.h.

Constructor & Destructor Documentation

◆ SaitoSquaredDistanceTransform()

cloudViewer::SaitoSquaredDistanceTransform::SaitoSquaredDistanceTransform ( )

default

Default constructor.

Member Function Documentation

◆ EDT_1D()

bool SaitoSquaredDistanceTransform::EDT_1D	(	GridElement *	slice,
		std::size_t	r,
		std::size_t	c
	)

staticprotected

1D Euclidean Distance Transform

Definition at line 19 of file SaitoSquaredDistanceTransform.cpp.

Referenced by SDT_2D().

◆ initDT() [1/2]

bool cloudViewer::SaitoSquaredDistanceTransform::initDT	(	GenericCloud *	cloud,
		PointCoordinateType	cellLength,
		const CCVector3 &	gridMinCorner,
		GenericProgressCallback *	progressCb = `nullptr`
	)

inline

Initializes the distance transform with a cloud.

Definition at line 50 of file SaitoSquaredDistanceTransform.h.

◆ initDT() [2/2]

bool cloudViewer::SaitoSquaredDistanceTransform::initDT	(	GenericIndexedMesh *	mesh,
		PointCoordinateType	cellLength,
		const CCVector3 &	gridMinCorner,
		GenericProgressCallback *	progressCb = `nullptr`
	)

inline

Initializes the distance transform with a mesh.

Definition at line 42 of file SaitoSquaredDistanceTransform.h.

◆ initGrid()

bool cloudViewer::SaitoSquaredDistanceTransform::initGrid ( const Tuple3ui & gridSize )

inline

Initializes the grid.

The memory for the grid must be explicitelty reserved prior to any action.

Returns: true if the initialization succeeded

Definition at line 35 of file SaitoSquaredDistanceTransform.h.

References cloudViewer::Grid3D< Type >::init(), Tuple3Tpl< Type >::x, Tuple3Tpl< Type >::y, and Tuple3Tpl< Type >::z.

Referenced by cloudViewer::DistanceComputationTools::computeApproxCloud2CloudDistance(), and cloudViewer::DistanceComputationTools::computeCloud2MeshDistances().

◆ propagateDistance()

bool cloudViewer::SaitoSquaredDistanceTransform::propagateDistance ( GenericProgressCallback * progressCb = nullptr )

inline

Computes the exact Squared Distance Transform on the whole grid.

Propagates the distances on the whole grid.

Base on the implementation by R. Fabbri (which is itslef based on
two independent implementations by O. Cuisenaire and J. C. Torelli).

PAPER
T. Saito and J.I. Toriwaki, "New algorithms for Euclidean distance
transformations of an n-dimensional digitised picture with

applications", Pattern Recognition, 27(11), pp. 1551-1565, 1994

    \warning Output distances are squared

    \param progressCb progress callback (optional)
    \return success

Definition at line 73 of file SaitoSquaredDistanceTransform.h.

Referenced by cloudViewer::DistanceComputationTools::computeApproxCloud2CloudDistance(), and cloudViewer::DistanceComputationTools::computeCloud2MeshDistances().

◆ SDT_2D()

bool SaitoSquaredDistanceTransform::SDT_2D	(	Grid3D< GridElement > &	image,
		std::size_t	sliceIndex,
		const std::vector< GridElement > &	sq
	)

staticprotected

2D Exact Squared Distance Transform

Definition at line 55 of file SaitoSquaredDistanceTransform.cpp.

References cloudViewer::Grid3D< Type >::data(), EDT_1D(), cloudViewer::Grid3D< Type >::size(), Tuple3Tpl< Type >::x, and Tuple3Tpl< Type >::y.

Referenced by SDT_3D().

◆ SDT_3D()

bool SaitoSquaredDistanceTransform::SDT_3D	(	Grid3D< GridElement > &	image,
		GenericProgressCallback *	progressCb = `nullptr`
	)

staticprotected

3D Exact Squared Distance Transform

Definition at line 159 of file SaitoSquaredDistanceTransform.cpp.

References cloudViewer::utility::ceil(), cloudViewer::Grid3D< Type >::data(), cloudViewer::Grid3D< unsigned >::data(), max(), cloudViewer::NormalizedProgress::oneStep(), SDT_2D(), cloudViewer::GenericProgressCallback::setInfo(), cloudViewer::GenericProgressCallback::setMethodTitle(), cloudViewer::Grid3D< Type >::size(), cloudViewer::GenericProgressCallback::start(), cloudViewer::GenericProgressCallback::textCanBeEdited(), cloudViewer::GenericProgressCallback::update(), Tuple3Tpl< Type >::x, Tuple3Tpl< Type >::y, and Tuple3Tpl< Type >::z.

The documentation for this class was generated from the following files:

/root/ACloudViewer/core/include/SaitoSquaredDistanceTransform.h
/root/ACloudViewer/core/src/SaitoSquaredDistanceTransform.cpp
